8.3. The JBoss Security Model

Similar to the rest of the JBoss architecture, security at the lowest level is defined as a set of interfaces for which alternate implementations may be provided. Three basic interfaces define the JBoss server security layer: org.jboss.security.AuthenticationManager, org.jboss.security.RealmMapping, and org.jboss.security.SecurityProxy. Figure 8.8, “The key security model interfaces and their relationship to the JBoss server EJB container elements.” shows a class diagram of the security interfaces and their relationship to the EJB container architecture.

The key security model interfaces and their relationship to the JBoss server EJB container elements.

Figure 8.8. The key security model interfaces and their relationship to the JBoss server EJB container elements.


The light blue classes represent the security interfaces while the yellow classes represent the EJB container layer. The two interfaces required for the implementation of the J2EE security model are org.jboss.security.AuthenticationManager and org.jboss.security.RealmMapping. The roles of the security interfaces presented in Figure 8.8, “The key security model interfaces and their relationship to the JBoss server EJB container elements.” are summarized in the following list.

Note that the AuthenticationManager, RealmMapping and SecurityProxy interfaces have no association to JAAS related classes. Although the JBossSX framework is heavily dependent on JAAS, the basic security interfaces required for implementation of the J2EE security model are not. The JBossSX framework is simply an implementation of the basic security plug-in interfaces that are based on JAAS. The component diagram presented in Figure 8.9, “The relationship between the JBossSX framework implementation classes and the JBoss server EJB container layer.” illustrates this fact. The implication of this plug-in architecture is that you are free to replace the JAAS-based JBossSX implementation classes with your own custom security manager implementation that does not make use of JAAS, if you so desire. You'll see how to do this when you look at the JBossSX MBeans available for the configuration of JBossSX in Figure 8.9, “The relationship between the JBossSX framework implementation classes and the JBoss server EJB container layer.”.

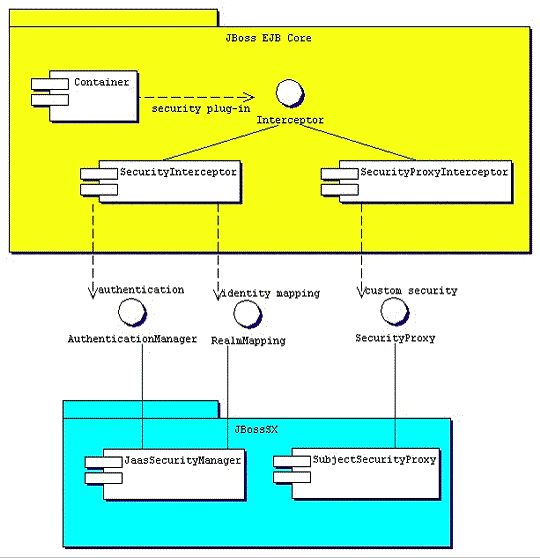

The relationship between the JBossSX framework implementation classes and the JBoss server EJB container layer.

Figure 8.9. The relationship between the JBossSX framework implementation classes and the JBoss server EJB container layer.
