One of the goals of jBPM is to allow users to extend the default process constructs with domain-specific extensions that simplify development in a particular application domain. This tutorial describes how to take your first steps towards domain-specific processes. Note that you don't need to be a jBPM expert to define your own domain-specific nodes, this should be considered integration code that a normal developer with some experience in jBPM can do himself.

Most process languages offer some generic action (node) construct that allows plugging in custom user actions. However, these actions are usually low-level, where the user is required to write custom code to implement the work that should be incorporated in the process. The code is also closely linked to a specific target environment, making it difficult to reuse the process in different contexts.

Domain-specific languages are targeted to one particular application domain and therefore can offer constructs that are closely related to the problem the user is trying to solve. This makes the processes and easier to understand and self-documenting. We will show you how to define domain-specific work items (also called service nodes), which represent atomic units of work that need to be executed. These service nodes specify the work that should be executed in the context of a process in a declarative manner, i.e. specifying what should be executed (and not how) on a higher level (no code) and hiding implementation details.

So we want service nodes that are:

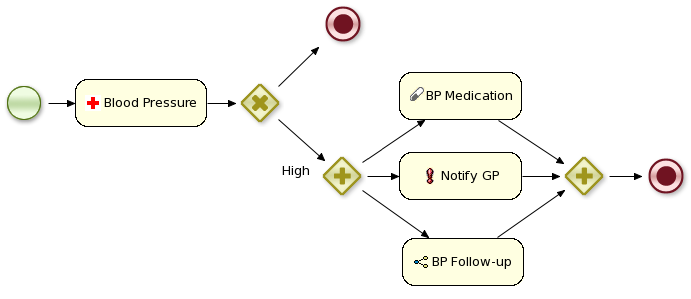

Users can easily define their own set of domain-specific service nodes and integrate them in our process language. For example, the next figure shows an example of a process in a healthcare context. The process includes domain-specific service nodes for ordering nursing tasks (e.g. measuring blood pressure), prescribing medication and notifying care providers.

Let's start by showing you how to include a simple work item for sending notifications. A work item represent an atomic unit of work in a declarative way. It is defined by a unique name and additional parameters that can be used to describe the work in more detail. Work items can also return information after they have been executed, specified as results. Our notification work item could thus be defined using a work definition with four parameters and no results:

  Name: "Notification"
  From [String]
  To [String]
  Message [String]
  Priority [String]

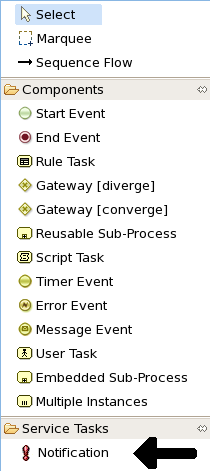

Once our work definition has been created and registered, we can start using it in our processes. The process editor contains a separate section in the palette where the different service nodes that have been defined for the project appear.

Using drag and drop, a notification node can be created inside your process. The properties can be filled in using the properties view.

Apart from the properties defined by this work item, all work items also have these three properties:

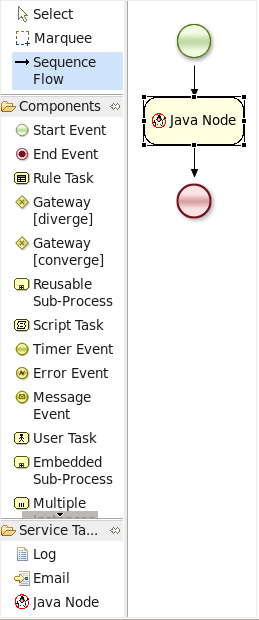

Here is an example that creates a domain specific node to execute Java, asking for the class and method parameters. It includes a custom java.gif icon and consists of the following files and resulting screenshot:

import org.drools.process.core.datatype.impl.type.StringDataType;
  // the Java Node work item located in:
  // project/src/main/resources/META-INF/JavaNodeDefinition.conf
    "name" : "JavaNode",
    "parameters" : [
      "class" : new StringDataType(),
      "method" : new StringDataType(),
    "displayName" : "Java Node",
    "icon" : "icons/java.gif"

// located in: project/src/main/resources/META-INF/drools.rulebase.conf
  drools.workDefinitions = JavaNodeDefinition.conf WorkDefinitions.conf

// icon for java.gif located in:
// project/src/main/resources/icons/java.gif

The jBPM engine contains a WorkItemManager that is responsible for executing work items whenever necessary. The WorkItemManager is responsible for delegating the work items to WorkItemHandlers that execute the work item and notify the WorkItemManager when the work item has been completed. For executing notification work items, a NotificationWorkItemHandler should be created (implementing the WorkItemHandler interface):

package com.sample;

import org.drools.runtime.process.WorkItem;
import org.drools.runtime.process.WorkItemHandler;
import org.drools.runtime.process.WorkItemManager;
public class NotificationWorkItemHandler implements WorkItemHandler {
  public void executeWorkItem(WorkItem workItem, WorkItemManager manager) {
    // extract parameters
    String from = (String) workItem.getParameter("From");
    String to = (String) workItem.getParameter("To");
    String message = (String) workItem.getParameter("Message");
    String priority = (String) workItem.getParameter("Priority");
    // send email
    EmailService service = ServiceRegistry.getInstance().getEmailService();
    service.sendEmail(from, to, "Notification", message);
    // notify manager that work item has been completed
    manager.completeWorkItem(workItem.getId(), null);
  public void abortWorkItem(WorkItem workItem, WorkItemManager manager) {
    // Do nothing, notifications cannot be aborted

This WorkItemHandler sends a notification as an email and then immediately notifies the WorkItemManager that the work item has been completed. Note that not all work items can be completed directly. In cases where executing a work item takes some time, execution can continue asynchronously and the work item manager can be notified later. In these situations, it might also be possible that a work item is being aborted before it has been completed. The abort method can be used to specify how to abort such work items.

WorkItemHandlers should be registered at the WorkItemManager, using the following API:


    "Notification", new NotificationWorkItemHandler());

Decoupling the execution of work items from the process itself has the following advantages:
