org.jboss.netty.handler.codec.replay

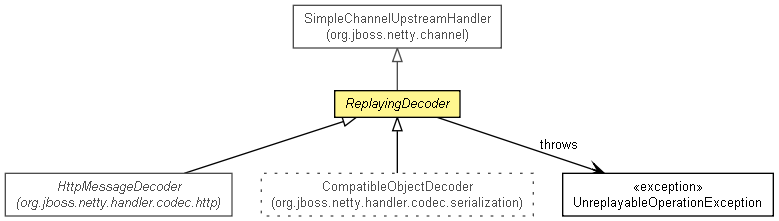

Class ReplayingDecoder<T extends Enum<T>>

java.lang.Object
  org.jboss.netty.channel.SimpleChannelUpstreamHandler
      org.jboss.netty.handler.codec.replay.ReplayingDecoder<T>

Type Parameters:

T - the state type; use VoidEnum if state management is unused

All Implemented Interfaces:

ChannelHandler, ChannelUpstreamHandler

Direct Known Subclasses:

CompatibleObjectDecoder, HttpMessageDecoder

@ChannelPipelineCoverage(value="one")
public abstract class ReplayingDecoder<T extends Enum<T>>
extends SimpleChannelUpstreamHandler

A specialized variation of FrameDecoder which enables implementation of a non-blocking decoder in the blocking I/O paradigm.

The biggest difference between ReplayingDecoder and FrameDecoder is that ReplayingDecoder allows you to implement the decode() and decodeLast() methods just like all required bytes were received already, rather than checking the availability of the required bytes. For example, the following FrameDecoder implementation:

 public class IntegerHeaderFrameDecoder extends FrameDecoder {

   protected Object decode(ChannelHandlerContext ctx,
                           Channel channel,
                           ChannelBuffer buf) throws Exception {

     if (buf.readableBytes() < 4) {
        return null;
     }

     buf.markReaderIndex();
     int length = buf.readInt();

     if (buf.readableBytes() < length) {
        buf.resetReaderIndex();
        return null;
     }

     return buf.readBytes(length);
   }
 }


is simplified like the following with ReplayingDecoder:

 public class IntegerHeaderFrameDecoder
      extends ReplayingDecoder<VoidEnum> {

   protected Object decode(ChannelHandlerContext ctx,
                           Channel channel,
                           ChannelBuffer buf,
                           VoidEnum state) throws Exception {

     return buf.readBytes(buf.readInt());
   }
 }


How does this work?

ReplayingDecoder passes a specialized ChannelBuffer implementation which throws an Error of certain type when there's not enough data in the buffer. In the IntegerHeaderFrameDecoder above, you just assumed that there will be 4 or more bytes in the buffer when you call buf.readInt(). If there's really 4 bytes in the buffer, it will return the integer header as you expected. Otherwise, the Error will be raised and the control will be returned to ReplayingDecoder. If ReplayingDecoder catches the Error, then it will rewind the readerIndex of the buffer back to the 'initial' position (i.e. the beginning of the buffer) and call the decode(..) method again when more data is received into the buffer.

Please note that the overhead of throwing an Error is minimal unlike throwing a new Exception in an ordinary way. ReplayingDecoder reuses the same Error instance so that it does not need to fill its stack trace, which takes most of Exception initialization time.

Limitations

At the cost of the simplicity, ReplayingDecoder enforces you a few limitations:

• Some buffer operations are prohibited.
• Performance can be worse if the network is slow and the message format is complicated unlike the example above. In this case, your decoder might have to decode the same part of the message over and over again.
• You must keep in mind that decode(..) method can be called many times to decode a single message. For example, the following code will not work:

   public class MyDecoder extends ReplayingDecoder<VoidEnum> {

     private final Queue<Integer> values = new LinkedList<Integer>();

     public Object decode(.., ChannelBuffer buffer, ..) throws Exception {

       // A message contains 2 integers.
       values.offer(buffer.readInt());
       values.offer(buffer.readInt());

       // This assertion will fail intermittently since values.offer()
       // can be called more than two times!
       assert values.size() == 2;
       return values.poll() + values.poll();
     }
   }

  The correct implementation looks like the following, and you can also utilize the 'checkpoint' feature which is explained in detail in the next section.

   public class MyDecoder extends ReplayingDecoder<VoidEnum> {

     private final Queue<Integer> values = new LinkedList<Integer>();

     public Object decode(.., ChannelBuffer buffer, ..) throws Exception {

       // Revert the state of the variable that might have been changed
       // since the last partial decode.
       values.clear();

       // A message contains 2 integers.
       values.offer(buffer.readInt());
       values.offer(buffer.readInt());

       // Now we know this assertion will never fail.
       assert values.size() == 2;
       return values.poll() + values.poll();
     }
   }

Improving the performance

Fortunately, the performance of a complex decoder implementation can be improved significantly with the checkpoint() method. The checkpoint() method updates the 'initial' position of the buffer so that ReplayingDecoder rewinds the readerIndex of the buffer to the last position where you called the checkpoint() method.

Calling checkpoint(T) with an Enum

Although you can just use checkpoint() method and manage the state of the decoder by yourself, the easiest way to manage the state of the decoder is to create an Enum type which represents the current state of the decoder and to call checkpoint(T) method whenever the state changes. You can have as many states as you want depending on the complexity of the message you want to decode:

 public enum MyDecoderState {
   READ_LENGTH,
   READ_CONTENT;
 }

 public class IntegerHeaderFrameDecoder
      extends ReplayingDecoder<MyDecoderState> {

   private int length;

   public IntegerHeaderFrameDecoder() {
     // Set the initial state.
     super(MyDecoderState.READ_LENGTH);
   }

   protected Object decode(ChannelHandlerContext ctx,
                           Channel channel,
                           ChannelBuffer buf,
                           MyDecoderState state) throws Exception {
     switch (state) {
     case READ_LENGTH:
       length = buf.readInt();
       checkpoint(MyDecoderState.READ_CONTENT);
     case READ_CONTENT:
       ChannelBuffer frame = buf.readBytes(length);
       checkpoint(MyDecoderState.READ_LENGTH);
       return frame;
     default:
       throw new Error("Shouldn't reach here.");
     }
   }
 }


Calling checkpoint() with no parameter

An alternative way to manage the decoder state is to manage it by yourself.

 public class IntegerHeaderFrameDecoder
      extends ReplayingDecoder<VoidEnum> {

   private boolean readLength;
   private int length;

   protected Object decode(ChannelHandlerContext ctx,
                           Channel channel,
                           ChannelBuffer buf,
                           MyDecoderState state) throws Exception {
     if (!readLength) {
       length = buf.readInt();
       readLength = true;
       checkpoint();
     }

     if (readLength) {
       ChannelBuffer frame = buf.readBytes(length);
       readLength = false;
       checkpoint();
       return frame;
     }
   }
 }


Replacing a decoder with another decoder in a pipeline

If you are going to write a protocol multiplexer, you will probably want to replace a ReplayingDecoder (protocol detector) with another ReplayingDecoder or FrameDecoder (actual protocol decoder). It is not possible to achieve this simply by calling ChannelPipeline.replace(ChannelHandler, String, ChannelHandler), but some additional steps are required:

 public class FirstDecoder extends ReplayingDecoder<VoidEnum> {

     public FirstDecoder() {
         super(true); // Enable unfold
     }

     protected Object decode(ChannelHandlerContext ctx, Channel ch, ChannelBuffer buf, VoidEnum state) {
         ...
         // Decode the first message
         Object firstMessage = ...;

         // Add the second decoder
         ctx.getPipeline().addLast("second", new SecondDecoder());

         // Remove the first decoder (me)
         ctx.getPipeline().remove(this);

         if (buf.readable()) {
             // Hand off the remaining data to the second decoder
             return new Object[] { firstMessage, buf.readBytes(super.actualReadableBytes()) };
         } else {
             // Nothing to hand off
             return firstMessage;
         }
     }


Version:

$Rev: 1685 $, $Date: 2009-08-28 16:15:49 +0900 (금, 28 8 2009) $

Author:

The Netty Project (netty-dev@lists.jboss.org), Trustin Lee (tlee@redhat.com)

Constructor Summary

protected	ReplayingDecoder() Creates a new instance with no initial state (i.e: null).
protected	ReplayingDecoder(boolean unfold)
protected	ReplayingDecoder(T initialState) Creates a new instance with the specified initial state.
protected	ReplayingDecoder(T initialState, boolean unfold)

Method Summary

protected int	actualReadableBytes() Returns the actual number of readable bytes in the cumulative buffer of this decoder.
void	channelClosed(ChannelHandlerContext ctx, ChannelStateEvent e) Invoked when a Channel was closed and all its related resources were released.
void	channelDisconnected(ChannelHandlerContext ctx, ChannelStateEvent e) Invoked when a Channel was disconnected from its remote peer.
protected void	checkpoint() Stores the internal cumulative buffer's reader position.
protected void	checkpoint(T state) Stores the internal cumulative buffer's reader position and updates the current decoder state.
protected abstract Object	decode(ChannelHandlerContext ctx, Channel channel, ChannelBuffer buffer, T state) Decodes the received packets so far into a frame.
protected Object	decodeLast(ChannelHandlerContext ctx, Channel channel, ChannelBuffer buffer, T state) Decodes the received data so far into a frame when the channel is disconnected.
void	exceptionCaught(ChannelHandlerContext ctx, ExceptionEvent e) Invoked when an exception was raised by an I/O thread or a ChannelHandler.
protected T	getState() Returns the current state of this decoder.
void	messageReceived(ChannelHandlerContext ctx, MessageEvent e) Invoked when a message object (e.g: ChannelBuffer) was received from a remote peer.
protected T	setState(T newState) Sets the current state of this decoder.

Methods inherited from class org.jboss.netty.channel.SimpleChannelUpstreamHandler

channelBound, channelConnected, channelInterestChanged, channelOpen, channelUnbound, childChannelClosed, childChannelOpen, handleUpstream, writeComplete

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

ReplayingDecoder

protected ReplayingDecoder()

Creates a new instance with no initial state (i.e: null).

ReplayingDecoder

protected ReplayingDecoder(boolean unfold)

ReplayingDecoder

protected ReplayingDecoder(T initialState)

Creates a new instance with the specified initial state.

ReplayingDecoder

protected ReplayingDecoder(T initialState,
                           boolean unfold)

Method Detail

checkpoint

protected void checkpoint()

Stores the internal cumulative buffer's reader position.

checkpoint

protected void checkpoint(T state)

Stores the internal cumulative buffer's reader position and updates the current decoder state.

getState

protected T getState()

Returns the current state of this decoder.

Returns:

the current state of this decoder

setState

protected T setState(T newState)

Sets the current state of this decoder.

Returns:

the old state of this decoder

actualReadableBytes

protected int actualReadableBytes()

Returns the actual number of readable bytes in the cumulative buffer of this decoder. You do not need to rely on this value to write a decoder. Use it only when necessary.

decode

protected abstract Object decode(ChannelHandlerContext ctx,
                                 Channel channel,
                                 ChannelBuffer buffer,
                                 T state)
                          throws Exception

Decodes the received packets so far into a frame.

Parameters:

ctx - the context of this handler

channel - the current channel

buffer - the cumulative buffer of received packets so far. Note that the buffer might be empty, which means you should not make an assumption that the buffer contains at least one byte in your decoder implementation.

state - the current decoder state (null if unused)

Returns:

the decoded frame

Throws:

Exception

decodeLast

protected Object decodeLast(ChannelHandlerContext ctx,
                            Channel channel,
                            ChannelBuffer buffer,
                            T state)
                     throws Exception

Decodes the received data so far into a frame when the channel is disconnected.

Parameters:

ctx - the context of this handler

channel - the current channel

buffer - the cumulative buffer of received packets so far. Note that the buffer might be empty, which means you should not make an assumption that the buffer contains at least one byte in your decoder implementation.

state - the current decoder state (null if unused)

Returns:

the decoded frame

Throws:

Exception

messageReceived

public void messageReceived(ChannelHandlerContext ctx,
                            MessageEvent e)
                     throws Exception

Description copied from class: SimpleChannelUpstreamHandler

Invoked when a message object (e.g: ChannelBuffer) was received from a remote peer.

Overrides:

messageReceived in class SimpleChannelUpstreamHandler

Throws:

Exception

channelDisconnected

public void channelDisconnected(ChannelHandlerContext ctx,
                                ChannelStateEvent e)
                         throws Exception

Description copied from class: SimpleChannelUpstreamHandler

Invoked when a Channel was disconnected from its remote peer.

Overrides:

channelDisconnected in class SimpleChannelUpstreamHandler

Throws:

Exception

channelClosed

public void channelClosed(ChannelHandlerContext ctx,
                          ChannelStateEvent e)
                   throws Exception

Description copied from class: SimpleChannelUpstreamHandler

Invoked when a Channel was closed and all its related resources were released.

Overrides:

channelClosed in class SimpleChannelUpstreamHandler

Throws:

Exception

exceptionCaught

public void exceptionCaught(ChannelHandlerContext ctx,
                            ExceptionEvent e)
                     throws Exception

Description copied from class: SimpleChannelUpstreamHandler

Invoked when an exception was raised by an I/O thread or a ChannelHandler.

Overrides:

exceptionCaught in class SimpleChannelUpstreamHandler

Throws:

Exception
