org.jboss.netty.handler.codec.oneone
Class OneToOneEncoder

java.lang.Object
  extended by org.jboss.netty.handler.codec.oneone.OneToOneEncoder
All Implemented Interfaces:
ChannelDownstreamHandler, ChannelHandler

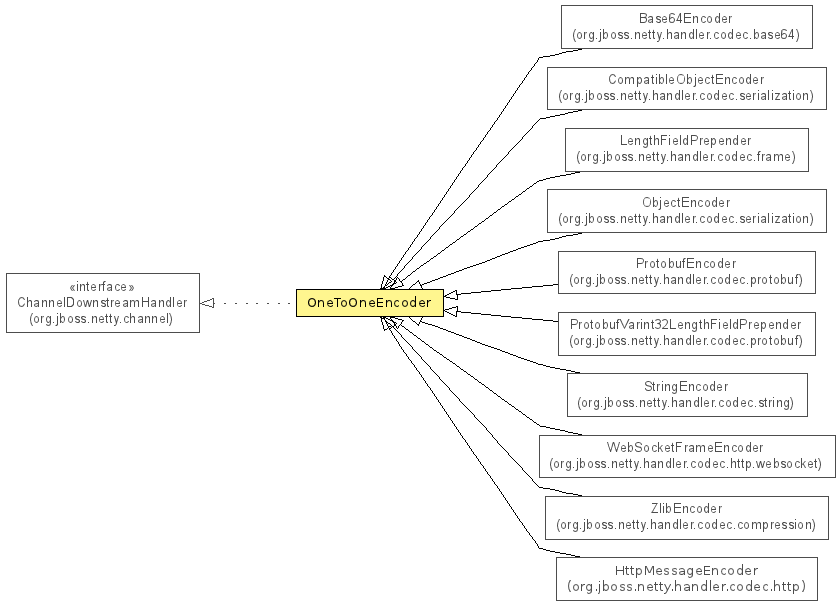

Direct Known Subclasses:
Base64Encoder, CompatibleObjectEncoder, HttpMessageEncoder, LengthFieldPrepender, ObjectEncoder, ProtobufEncoder, ProtobufVarint32LengthFieldPrepender, StringEncoder, WebSocketFrameEncoder, ZlibEncoder

public abstract class OneToOneEncoder
extends Object
implements ChannelDownstreamHandler

Transforms a write request into another write request. A typical setup for TCP/IP would be:

 ChannelPipeline pipeline = ...;

 // Decoders
 pipeline.addLast("frameDecoder", new DelimiterBasedFrameDecoder(80, Delimiters.nulDelimiter()));
 pipeline.addLast("customDecoder", new OneToOneDecoder() { ... });

 // Encoder
 pipeline.addLast("customEncoder", new OneToOneEncoder() { ... });


Version:
$Rev:231 $, $Date:2008-06-12 16:44:50 +0900 (목, 12 6월 2008) $
Author:
The Netty Project, Trustin Lee

Nested Class Summary

Nested classes/interfaces inherited from interface org.jboss.netty.channel.ChannelHandler
ChannelHandler.Sharable

Constructor Summary
protected OneToOneEncoder()


Method Summary
protected abstract  Object encode(ChannelHandlerContext ctx, Channel channel, Object msg)
          Transforms the specified message into another message and return the transformed message.
 void handleDownstream(ChannelHandlerContext ctx, ChannelEvent evt)
          Handles the specified downstream event.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait


Constructor Detail

OneToOneEncoder

protected OneToOneEncoder()
Method Detail

handleDownstream

public void handleDownstream(ChannelHandlerContext ctx,
                             ChannelEvent evt)
                      throws Exception
Description copied from interface: ChannelDownstreamHandler
Handles the specified downstream event.

Specified by:
handleDownstream in interface ChannelDownstreamHandler
Parameters:
ctx - the context object for this handler
evt - the downstream event to process or intercept
Throws:
Exception

encode

protected abstract Object encode(ChannelHandlerContext ctx,
                                 Channel channel,
                                 Object msg)
                          throws Exception
Transforms the specified message into another message and return the transformed message. Note that you can not return null, unlike you can in OneToOneDecoder.decode(ChannelHandlerContext, Channel, Object); you must return something, at least ChannelBuffers.EMPTY_BUFFER.

Throws:
Exception
