This section describes the administration capabilities associated with RiftSaw.

The BPEL console can be located using the URL: http://localhost:8080/bpel-console.

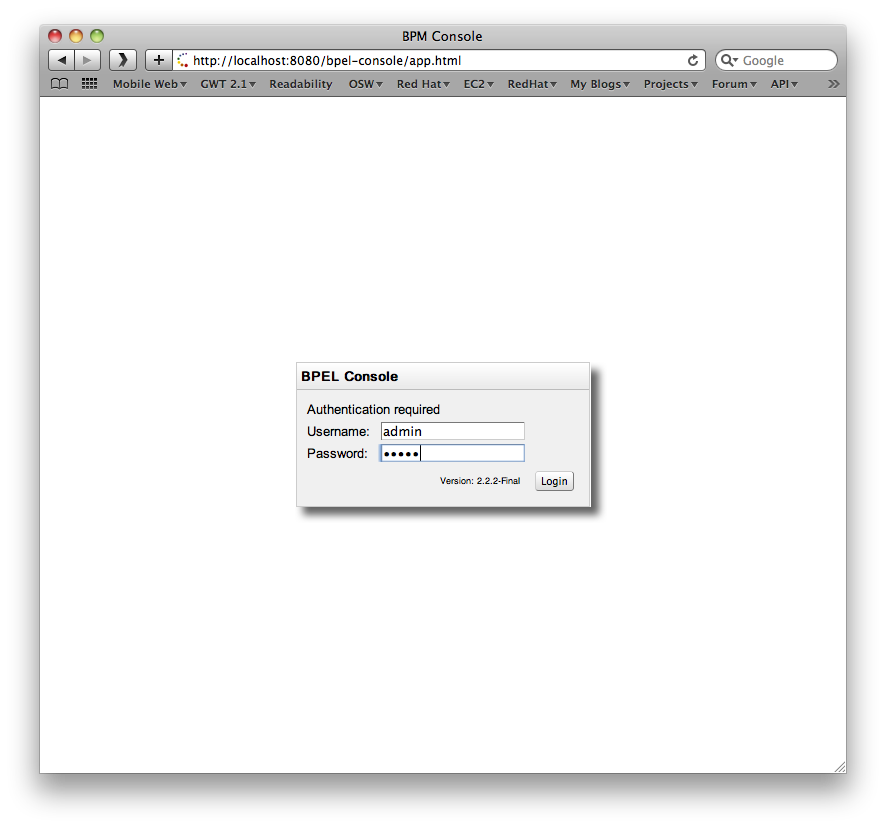

The first screen that is presented is the login screen:

The default username is admin with password password.

The Access Control mechanism used by the admin console is configured in the $deployFolder/bpel-console/bpel-identity.sar/META-INF/jboss-service.xml. The JAAS login module is initially set to use a property file based access mechanism, but can be replaced to use any appropriate alternative implementation.

The users for the default mechanism are configured in the property file $deployFolder/bpel-console/bpel-identity.sar/bpel-users.properties. The entries in this file represent username=password.

The user roles for the default mechanism are configured in the property file $deployFolder/bpel-console/bpel-identity.sar/bpel-roles.properties. The entries in this file represent username=role. The only role of interest currently is administrator.

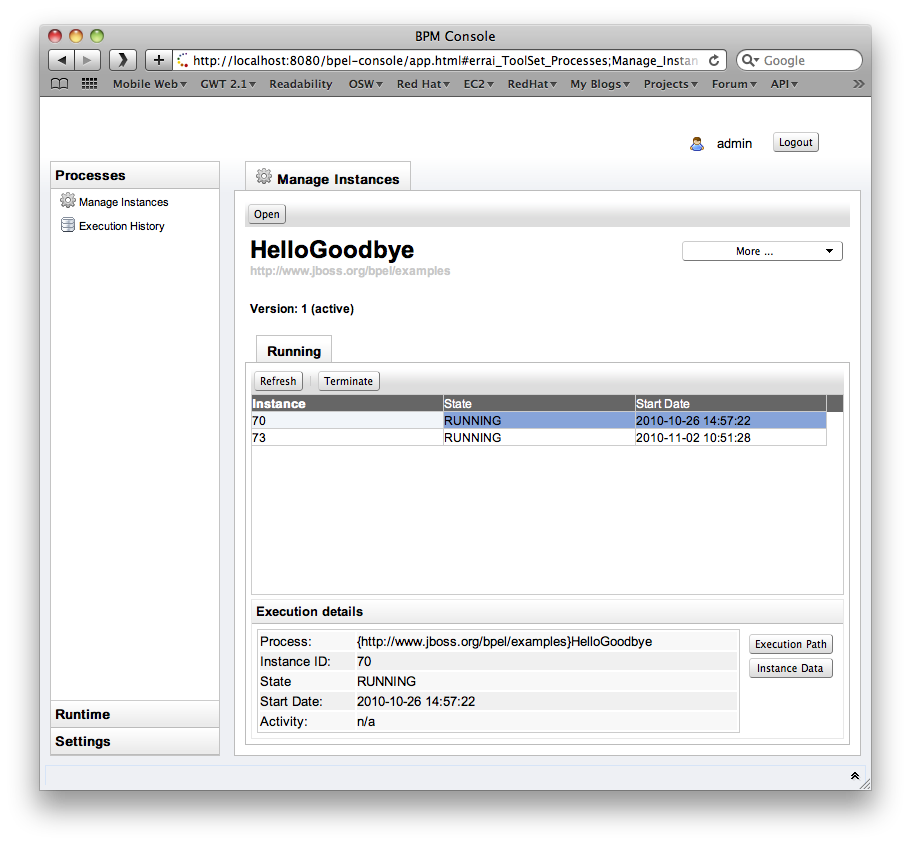

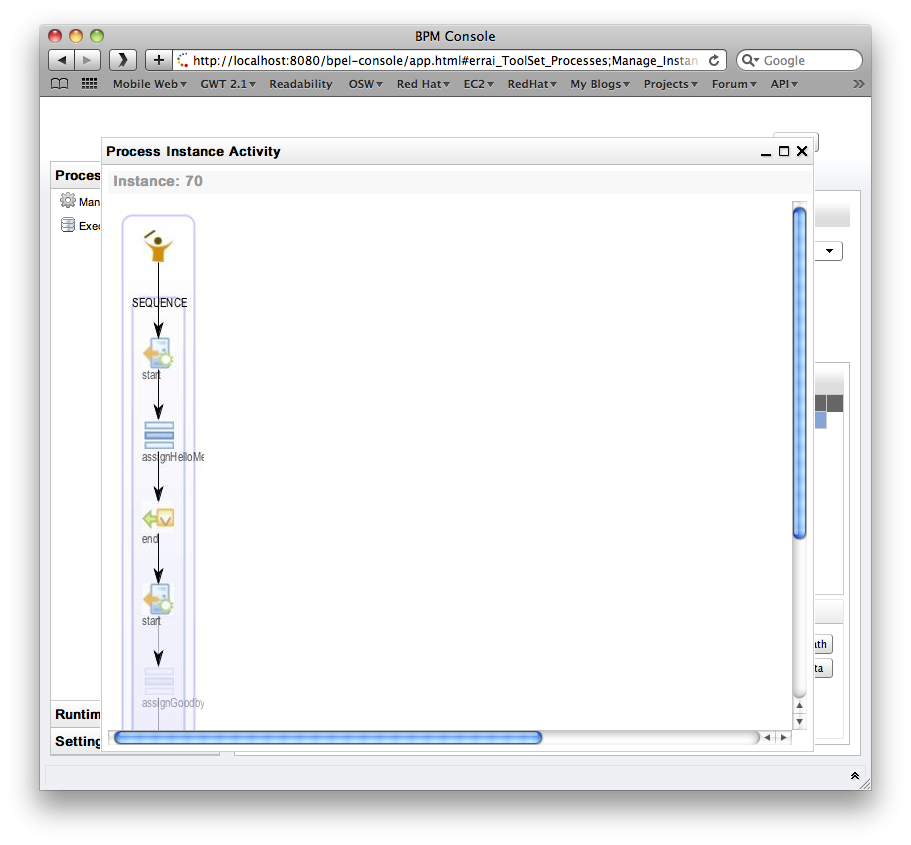

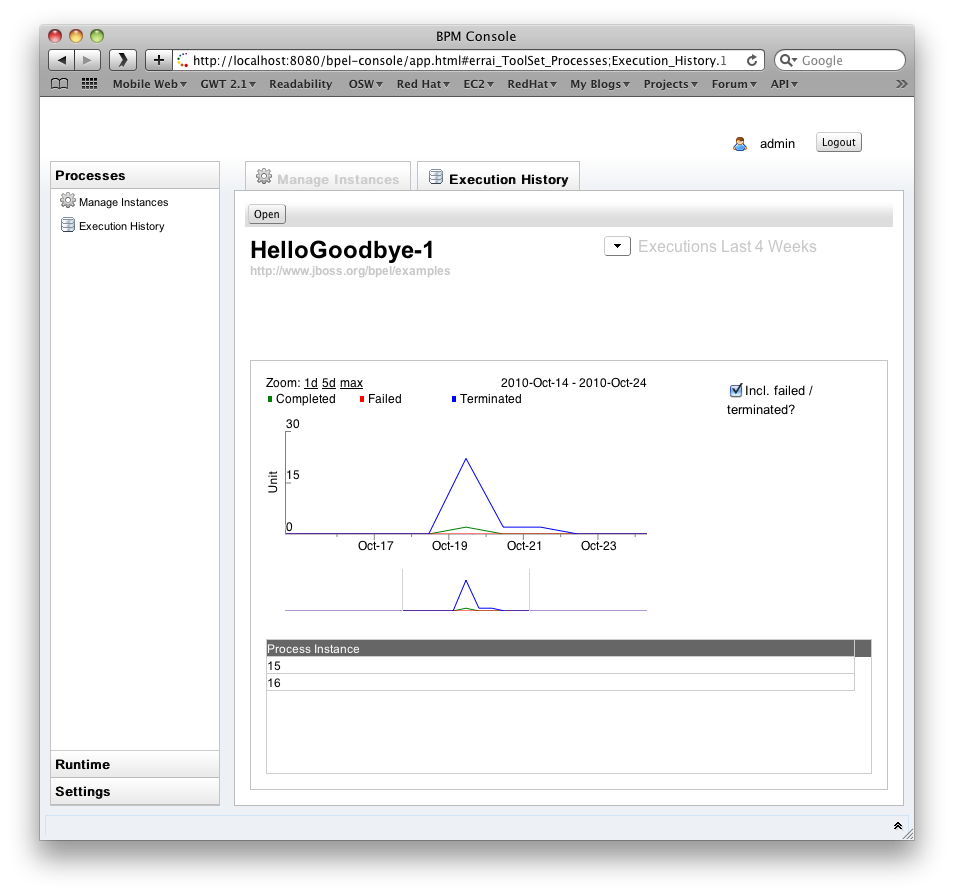

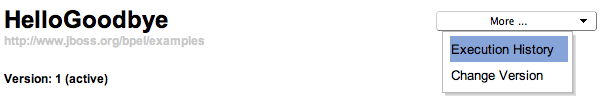

The Execution History allows you to inspect the BPAF history data associated with a process. You can specify a timespan and wether or not you'd like to see failed/terminated instances included in the chart.

The chart has various keyboard bindings to browse through the displayed execution data:

Keyboard and Mouse Commands
Up Arrow Zoom In Down Arrow Zoom Out
Left Arrow Half-Page Left Right Arrow Half-Page Right
Page-Up Page Left Page-Down Page Right
TAB Next Focus Shift-TAB Previous Focus
HOME Max Zoom Out ENTER Max Zoom In to Focus
Mouse Drag Scroll Chart Shift Mouse Drag Drag Select/Zoom
Mouse Wheel Up/Z Zoom In Mouse Wheel Down/X Zoom Out
Backspace/Back Button Back Right Mouse Button Context Menu
Left Click Set Focus Double Click Max Zoom In to Focus

When a process definition is initially deployed (i.e. the first version of the process), it automatically becomes the active process definition. If that BPEL process definition is subsequently change and redeployed, then the previous version is retired, and the new version becomes the active version.

The only difference between an active and retired process definition is that a retired process definition can no longer create new process instances. However if there are current process instances associated with the retired process definition version, then these will continue to execute.

On some occasions, the administrator may wish to change which version of a process definition is considered the active version. Or they may simply want to retire the currently active process definition, so that no more process instances can be created, only allowing the already running process instances to continue until completed.

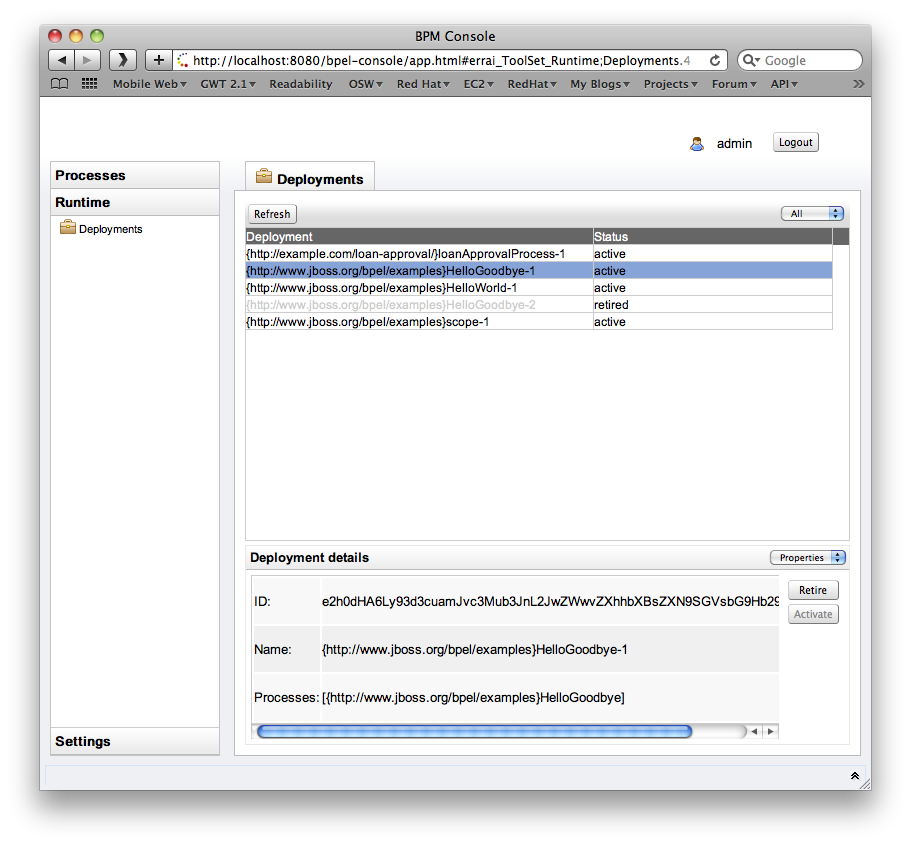

To change the status of a process definition, the administrator should select the Runtime tab from the lefthand panel, and then select the Deployments option. This will show the process definitions, their versions and their current status (active or retired).

To change a particular version from retired to active, simply select the retired version and press the Activate button in the bottom right.

To retire a currently active process definition, simply select the particular version and then press the Retire button in the bottom right.


If you deploy a process definition version into RiftSaw server, the previous version of that process definition will go to 'retire' process automatically. Also please noted that if you undeploy a process, the associated endpoints get deactivated only if it doesn't have any previous version of that process.

When RiftSaw has been installed within the JBossAS environment, there is a property file located at ${JBossAS}/server/default/deploy/riftsaw.sar/bpel.properties.

This property file contains a number of properties that are specific to ODE, and if interested in these properties, then you should refer to the ODE documentation. Only one point to note, the name of the property in this file maybe prefixed with bpel., however in the ODE documentation the prefix would be ode..

This section will present the properties that are specific to RiftSaw.

RiftSaw specific properties
bpel.uddi.* These properties relate to the UDDI support, which is discussed in a subsequent chapter.
bpel.jaxws.client.initializer.impl This property is automatically set upon installation, based on the JAXWS stack being used. This value should not be changed.
bpel.ws.stableInterface (default false) This property determines whether the Web Service interface, associated with a BPEL process, will be updated when a new version of the BPEL process is deployed. The benefit of setting this to false is that changes to the WSDL will be made active with the BPEL process. However the issue is that during the transition between the interfaces, the web service will momentarily be unavailble - which may cause heavily used services to reject requests. By setting this value to true, then the web service will remain available while the BPEL process is updated, however any changes in the WSDL will not be made available.
bpel.event.listeners (org.jboss.soa.bpel.console.bpaf.BPAFLogAdapter) Enables the BPAF logging used by the console to display the process execution history.

Apache ODE generates a set of events on the process running. below is the steps for you to enable it. for more detail information on this, please consult the ODE's Execution events guide.

  • In deploy.xml, adding <process-events generate="all"/>.
  • Adding following two properties in the bpel.properties.

    bpel.event.listeners=org.apache.ode.bpel.common.evt.DebugBpelEventListener debugeventlistener.dumpToStdOut=on

    By registering the DebugBpelEventListener, it will use the log's DEBUG level for the BpelEvent information. By setting the debugeventlistener.dumpToStdOut=on, it will render the information on the console as well.

We've also provided an out-of-box example to demonstrate the adding a custom listener. Please see the bpel_event_listener example for more information.

If an active process definition is undeployed, any active process instances will be terminated. If this is not desired behaviour, then the administrator should first retire the process definition (version) using the BPEL console, and then when all active process instances for the version have completed, it can be safely undeployed.

So below is the recommended steps for safely undeploy processes.
