Chapter 7. Conversations and workspace management

7.1. Seam's conversation model
7.2. Nested conversations
7.3. Starting conversations with GET requests
7.4. Using <s:link> and <s:button>
7.5. Success messages
7.6. Natural conversation ids
7.7. Creating a natural conversation
7.8. Redirecting to a natural conversation
7.9. Workspace management
7.9.1. Workspace management and JSF navigation
7.9.2. Workspace management and jPDL pageflow
7.9.3. The conversation switcher
7.9.4. The conversation list
7.9.5. Breadcrumbs
7.10. Conversational components and JSF component bindings
7.11. Concurrent calls to conversational components
7.11.1. How should we design our conversational AJAX application?
7.11.2. Dealing with errors
7.11.3. RichFaces Ajax

It's time to understand Seam's conversation model in more detail.

Historically, the notion of a Seam "conversation" came about as a merger of three different ideas:

By unifying these ideas and providing deep support in the framework, we have a powerful construct that lets us build richer and more efficient applications with less code than before.

The examples we have seen so far make use of a very simple conversation model that follows these rules:

Seam transparently propagates the conversation context (including the temporary conversation context) across JSF postbacks and redirects. If you don't do anything special, a non-faces request (a GET request for example) will not propagate the conversation context and will be processed in a new temporary conversation. This is usually - but not always - the desired behavior.

If you want to propagate a Seam conversation across a non-faces request, you need to explicitly code the Seam conversation id as a request parameter:

<a href="main.jsf?#{manager.conversationIdParameter}=#{}">Continue</a>

Or, the more JSF-ish:

<h:outputLink value="main.jsf">
    <f:param name="#{manager.conversationIdParameter}" value="#{}"/>
    <h:outputText value="Continue"/>

If you use the Seam tag library, this is equivalent:

<h:outputLink value="main.jsf">
    <h:outputText value="Continue"/>

If you wish to disable propagation of the conversation context for a postback, a similar trick is used:

<h:commandLink action="main" value="Exit">
    <f:param name="conversationPropagation" value="none"/>

If you use the Seam tag library, this is equivalent:

<h:commandLink action="main" value="Exit">
    <s:conversationPropagation type="none"/>

Note that disabling conversation context propagation is absolutely not the same thing as ending the conversation.

The conversationPropagation request parameter, or the <s:conversationPropagation> tag may even be used to begin and end conversation, or begin a nested conversation.

<h:commandLink action="main" value="Exit">
    <s:conversationPropagation type="end"/>

<h:commandLink action="main" value="Select Child">
    <s:conversationPropagation type="nested"/>

<h:commandLink action="main" value="Select Hotel">
    <s:conversationPropagation type="begin"/>

<h:commandLink action="main" value="Select Hotel">
    <s:conversationPropagation type="join"/>

This conversation model makes it easy to build applications which behave correctly with respect to multi-window operation. For many applications, this is all that is needed. Some complex applications have either or both of the following additional requirements:

A nested conversation is created by invoking a method marked @Begin(nested=true) inside the scope of an existing conversation. A nested conversation has its own conversation context, but can read values from the outer conversation's context. The outer conversation's context is read-only within a nested conversation, but because objects are obtained by reference, changes to the objects themselves will be reflected in the outer context.

When an @End is subsequently encountered, the nested conversation will be destroyed, and the outer conversation will resume, by "popping" the conversation stack. Conversations may be nested to any arbitrary depth.

Certain user activity (workspace management, or the back button) can cause the outer conversation to be resumed before the inner conversation is ended. In this case it is possible to have multiple concurrent nested conversations belonging to the same outer conversation. If the outer conversation ends before a nested conversation ends, Seam destroys all nested conversation contexts along with the outer context.

The conversation at the bottom of the conversation stack is the root conversation. Destroying this conversation always destroy all of its descendents. You can achieve this declaratively by specifying @End(root=true).

A conversation may be thought of as a continuable state. Nested conversations allow the application to capture a consistent continuable state at various points in a user interaction, thus ensuring truly correct behavior in the face of backbuttoning and workspace management.

As mentioned previously, if a component exists in a parent conversation of the current nested conversation, the nested conversation will use the same instance. Occasionally, it is useful to have a different instance in each nested conversation, so that the component instance that exists in the parent conversation is invisible to its child conversations. You can achieve this behavior by annotating the component @PerNestedConversation.

JSF does not define any kind of action listener that is triggered when a page is accessed via a non-faces request (for example, a HTTP GET request). This can occur if the user bookmarks the page, or if we navigate to the page via an <h:outputLink>.

Sometimes we want to begin a conversation immediately the page is accessed. Since there is no JSF action method, we can't solve the problem in the usual way, by annotating the action with @Begin.

A further problem arises if the page needs some state to be fetched into a context variable. We've already seen two ways to solve this problem. If that state is held in a Seam component, we can fetch the state in a @Create method. If not, we can define a @Factory method for the context variable.

If none of these options works for you, Seam lets you define a page action in the pages.xml file.

    <page view-id="/messageList.jsp" action="#{messageManager.list}"/>

This action method is called at the beginning of the render response phase, any time the page is about to be rendered. If a page action returns a non-null outcome, Seam will process any appropriate JSF and Seam navigation rules, possibly resulting in a completely different page being rendered.

If all you want to do before rendering the page is begin a conversation, you could use a built-in action method that does just that:

    <page view-id="/messageList.jsp" action="#{conversation.begin}"/>

Note that you can also call this built-in action from a JSF control, and, similarly, you can use #{conversation.end} to end conversations.

If you want more control, to join existing conversations or begin a nested conversion, to begin a pageflow or an atomic conversation, you should use the <begin-conversation> element.

    <page view-id="/messageList.jsp">
       <begin-conversation nested="true" pageflow="AddItem"/>

There is also an <end-conversation> element.

    <page view-id="/home.jsp">

To solve the first problem, we now have five options:

JSF command links always perform a form submission via JavaScript, which breaks the web browser's "open in new window" or "open in new tab" feature. In plain JSF, you need to use an <h:outputLink> if you need this functionality. But there are two major limitations to <h:outputLink>.

Seam provides the notion of a page action to help solve the first problem, but this does nothing to help us with the second problem. We could work around this by using the RESTful approach of passing a request parameter and requerying for the selected object on the server side. In some cases—such as the Seam blog example application—this is indeed the best approach. The RESTful style supports bookmarking, since it does not require server-side state. In other cases, where we don't care about bookmarks, the use of @DataModel and @DataModelSelection is just so convenient and transparent!

To fill in this missing functionality, and to make conversation propagation even simpler to manage, Seam provides the <s:link> JSF tag.

The link may specify just the JSF view id:

<s:link view="/login.xhtml" value="Login"/>

Or, it may specify an action method (in which case the action outcome determines the page that results):

<s:link action="#{login.logout}" value="Logout"/>

If you specify both a JSF view id and an action method, the 'view' will be used unless the action method returns a non-null outcome:

<s:link view="/loggedOut.xhtml"  action="#{login.logout}" value="Logout"/>

The link automatically propagates the selected row of a DataModel using inside <h:dataTable>:

<s:link view="/hotel.xhtml" action="#{hotelSearch.selectHotel}" value="#{}"/>

You can leave the scope of an existing conversation:

<s:link view="/main.xhtml" propagation="none"/>

You can begin, end, or nest conversations:

<s:link action="#{issueEditor.viewComment}" propagation="nest"/>

If the link begins a conversation, you can even specify a pageflow to be used:

<s:link action="#{documentEditor.getDocument}" propagation="begin"

The taskInstance attribute if for use in jBPM task lists:

<s:link action="#{documentApproval.approveOrReject}" taskInstance="#{task}"/>

(See the DVD Store demo application for examples of this.)

Finally, if you need the "link" to be rendered as a button, use <s:button>:

<s:button action="#{login.logout}" value="Logout"/>

It is quite common to display a message to the user indicating success or failure of an action. It is convenient to use a JSF FacesMessage for this. Unfortunately, a successful action often requires a browser redirect, and JSF does not propagate faces messages across redirects. This makes it quite difficult to display success messages in plain JSF.

The built in conversation-scoped Seam component named facesMessages solves this problem. (You must have the Seam redirect filter installed.)


public class EditDocumentBean implements EditDocument {
    @In EntityManager em;
    @In Document document;
    @In FacesMessages facesMessages;
    public String update() {
        facesMessages.add("Document updated");

Any message added to facesMessages is used in the very next render response phase for the current conversation. This even works when there is no long-running conversation since Seam preserves even temporary conversation contexts across redirects.

You can even include JSF EL expressions in a faces message summary:

facesMessages.add("Document #{document.title} was updated");

You may display the messages in the usual way, for example:

<h:messages globalOnly="true"/>

When working with conversations that deal with persistent objects, it may be desirable to use the natural business key of the object instead of the standard, "surrogate" conversation id:

Easy redirect to existing conversation

It can be useful to redirect to an existing conversation if the user requests the same operation twice. Take this example: “ You are on ebay, half way through paying for an item you just won as a Christmas present for your parents. Lets say you're sending it straight to them - you enter your payment details but you can't remember their address. You accidentally reuse the same browser window finding out their address. Now you need to return to the payment for the item.

With a natural conversation its really easy to have the user rejoin the existing conversation, and pick up where they left off - just have them to rejoin the payForItem conversation with the itemId as the conversation id.

User friendly URLs

For me this consists of a navigable hierarchy (I can navigate by editing the url) and a meaningful URL (like this Wiki uses - so don't identify things by random ids). For some applications user friendly URLs are less important, of course.

With a natural conversations, when you are building your hotel booking system (or, of course, whatever your app is) you can generate a URL like http://seam-hotels/book.seam?hotel=BestWesternAntwerpen (of course, whatever parameter hotel maps to on your domain model must be unique) and with URLRewrite easily transform this to http://seam-hotels/book/BestWesternAntwerpen.

Much better!

Natural conversations are defined in pages.xml:

  <conversation name="PlaceBid"

The first thing to note from the above definition is that the conversation has a name, in this case PlaceBid. This name uniquely identifies this particular named conversation, and is used by the page definition to identify a named conversation to participate in.

The next attribute, parameter-name defines the request parameter that will contain the natural conversation id, in place of the default conversation id parameter. In this example, the parameter-name is auctionId. This means that instead of a conversation parameter like cid=123 appearing in the URL for your page, it will contain auctionId=765432 instead.

The last attribute in the above configuration, parameter-value, defines an EL expression used to evaluate the value of the natural business key to use as the conversation id. In this example, the conversation id will be the primary key value of the auction instance currently in scope.

Next, we define which pages will participate in the named conversation. This is done by specifying the conversation attribute for a page definition:

  <page view-id="/bid.xhtml" conversation="PlaceBid" login-required="true">
      <navigation from-action="#{bidAction.confirmBid}">
          <rule if-outcome="success">
              <redirect view-id="/auction.xhtml">
                  <param name="id" value="#{}"/>

When starting, or redirecting to, a natural conversation there are a number of options for specifying the natural conversation name. Let's start by looking at the following page definition:

  <page view-id="/auction.xhtml">
    <param name="id" value="#{auctionDetail.selectedAuctionId}"/>
    <navigation from-action="#{bidAction.placeBid}">
      <redirect view-id="/bid.xhtml"/>

From here, we can see that invoking the action #{bidAction.placeBid} from our auction view (by the way, all these examples are taken from the seamBay example in Seam), that we will be redirected to /bid.xhtml, which, as we saw previously, is configured with the natural conversation PlaceBid. The declaration for our action method looks like this:

   @Begin(join = true)

   public void placeBid()

When named conversations are specified in the <page/> element, redirection to the named conversation occurs as part of navigation rules, after the action method has already been invoked. This is a problem when redirecting to an existing conversation, as redirection needs to be occur before the action method is invoked. Therefore it is necessary to specify the conversation name when the action is invoked. One way of doing this is by using the s:conversationName tag:

  <h:commandButton id="placeBidWithAmount" styleClass="placeBid" action="#{bidAction.placeBid}">
    <s:conversationName value="PlaceBid"/>

Another alternative is to specify the conversationName attribute when using either s:link or s:button:

  <s:link value="Place Bid" action="#{bidAction.placeBid}" conversationName="PlaceBid"/>

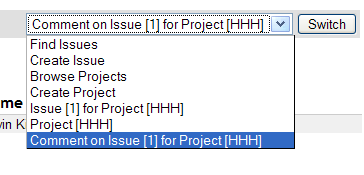

Workspace management is the ability to "switch" conversations in a single window. Seam makes workspace management completely transparent at the level of the Java code. To enable workspace management, all you need to do is:

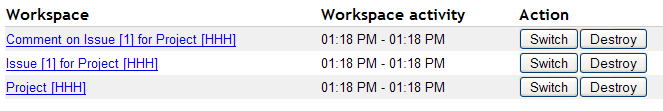

The conversation list is very similar to the conversation switcher, except that it is displayed as a table:

<h:dataTable value="#{conversationList}" var="entry"
        rendered="#{not empty conversationList}">
        <f:facet name="header">Workspace</f:facet>
        <h:commandLink action="#{}" value="#{entry.description}"/>
        <h:outputText value="[current]" rendered="#{entry.current}"/>
        <f:facet name="header">Activity</f:facet>
        <h:outputText value="#{entry.startDatetime}">
            <f:convertDateTime type="time" pattern="hh:mm a"/>
        <h:outputText value=" - "/>
        <h:outputText value="#{entry.lastDatetime}">
            <f:convertDateTime type="time" pattern="hh:mm a"/>
        <f:facet name="header">Action</f:facet>
        <h:commandButton action="#{}" value="#{msg.Switch}"/>
        <h:commandButton action="#{entry.destroy}" value="#{msg.Destroy}"/>

We imagine that you will want to customize this for your own application.

Only conversations with a description will be included in the list.

Notice that the conversation list lets the user destroy workspaces.

Conversational components have one minor limitation: they cannot be used to hold bindings to JSF components. (We generally prefer not to use this feature of JSF unless absolutely necessary, since it creates a hard dependency from application logic to the view.) On a postback request, component bindings are updated during the Restore View phase, before the Seam conversation context has been restored.

To work around this use an event scoped component to store the component bindings and inject it into the conversation scoped component that requires it.


public class Grid
    private HtmlPanelGrid htmlPanelGrid;
    // getters and setters

public class GridEditor
    private Grid grid;

Also, you can't inject a conversation scoped component into an event scoped component which you bind a JSF control to. This includes Seam built in components like facesMessages.

Alternatively, you can access the JSF component tree through the implicit uiComponent handle. The following example accesses getRowIndex()of the UIData component which backs the data table during iteration, it prints the current row number:

<h:dataTable id="lineItemTable" var="lineItem" value="#{orderHome.lineItems}">
      Row: #{uiComponent['lineItemTable'].rowIndex}

JSF UI components are available with their client identifier in this map.

A general discussion of concurrent calls to Seam components can be found in Section 4.1.10, “Concurrency model”. Here we will discuss the most common situation in which you will encounter concurrency — accessing conversational components from AJAX requests. We're going to discuss the options that a Ajax client library should provide to control events originating at the client — and we'll look at the options RichFaces gives you.

Conversational components don't allow real concurrent access therefore Seam queues each request to process them serially. This allows each request to be executed in a deterministic fashion. However, a simple queue isn't that great — firstly, if a method is, for some reason, taking a very long time to complete, running it over and over again whenever the client generates a request is bad idea (potential for Denial of Service attacks), and, secondly, AJAX is often to used to provide a quick status update to the user, so continuing to run the action after a long time isn't useful.

Therefore, when you are working inside a long running conversation, Seam queues the action event for a period of time (the concurrent request timeout); if it can't process the event in time, it creates a temporary conversation and prints out a message to the user to let them know what's going on. It's therefore very important not to flood the server with AJAX events!

We can set a sensible default for the concurrent request timeout (in ms) in components.xml:

<core:manager concurrent-request-timeout="500" />

We can also fine tune the concurrent request timeout on a page-by-page basis:

<page view-id="/book.xhtml"
         concurrent-request-timeout="2000" />

So far we've discussed AJAX requests which appear serial to the user - the client tells the server that an event has occur, and then rerenders part of the page based on the result. This approach is great when the AJAX request is lightweight (the methods called are simple e.g. calculating the sum of a column of numbers). But what if we need to do a complex computation thats going to take a minute?

For heavy computation we should use a poll based approach — the client sends an AJAX request to the server, which causes action to be executed asynchronously on the server (the response to the client is immediate) and the client then polls the server for updates. This is good approach when you have a long-running action for which it is important that every action executes (you don't want some to timeout).

However carefully you design your application to queue concurrent requests to your conversational component, there is a risk that the server will become overloaded and be unable to process all the requests before the request will have to wait longer than the concurrent-request-timeout. In this case Seam will throw a ConcurrentRequestTimeoutException which can be handled in pages.xml. We recommend sending an HTTP 503 error:

   <exception class="org.jboss.seam.ConcurrentRequestTimeoutException" logLevel="trace">
      <http-error error-code="503" />

Alternatively you could redirect to an error page:

<exception class="org.jboss.seam.ConcurrentRequestTimeoutException" logLevel="trace">
   <redirect view-id="/error.xhtml">
      <message>The server is too busy to process your request, please try again later</message>

ICEfaces, RichFaces Ajax and Seam Remoting can all handle HTTP error codes. Seam Remoting will pop up a dialog box showing the HTTP error and ICEfaces will indicate the error in it's connection status component. RichFaces Ajax provides the most complete support for handling HTTP errors by providing a user definable callback. For example, to show the error message to the user:

<script type="text/javascript">
   A4J.AJAX.onError = function(req,status,message) {
