Chapter 33. Security - Identity Management

33.1. Overview
33.2. Configuring Seam to use Identity Management with JPA
33.2.1. Recommended database schema
33.2.2. The @IdentityEntity and @IdentityProperty annotations
33.2.3. Identity Object
33.2.4. Credential
33.2.5. Identity Object Relationship
33.2.6. Attributes
33.3. Managing Users, Groups and Roles
33.3.1. Managing Users and Groups
33.3.2. Managing Relationships
33.3.3. Managing Roles

Identity Management is a feature that allows you to manage the users, groups and roles in your application. The Identity Management features in Seam Security are provided by PicketLink IDM. The best place to find more information about PicketLink IDM is the reference documentation, available here.

PicketLink provides two identity store implementations to allow you to use Hibernate or LDAP to store identity-related data (please refer to the PicketLink IDM documentation for details on configuring these). Seam Security provides an additional implementation called JpaIdentityStore, which allows you to store your identity data using JPA.

In a Seam-based application it probably makes more sense to use the standards-based JpaIdentityStore rather than HibernateIdentityStore, as you will most likely be running in an Java EE container that supports JPA. JpaIdentityStore is an implementation of the PicketLink IdentityStore interface, provided by Seam Security. This identity store allows you to store your identity model inside a relational database, accessible via JPA. It provides an immense amount of flexibility in the way you define your identity model, and in most cases should be compatible with existing database schemas.


See the idmconsole example application (included in the Seam distribution) for a demonstration of Seam's Identity Management features.

Like all authentication providers in Seam, Identity Management is supported via a concrete Authenticator implementation called IdmAuthenticator. To use Identity Management in your own application, you don't need to do anything! Simply don't configure any authenticator, and as long as you have an identity store configured (see the next section), the Identity Management API will be used to authenticate automatically.


public @interface IdentityProperty {
   PropertyType value();
   String attributeName() default "";

The value() member is of type PropertyType, which is an enum that defines the following values:

public enum PropertyType {


By placing the IdentityProperty annotation on various fields of your entity beans, JpaIdentityStore can determine how identity-related data must be stored within your database tables.

In the following sections we'll look at how each of the main entities are configured.

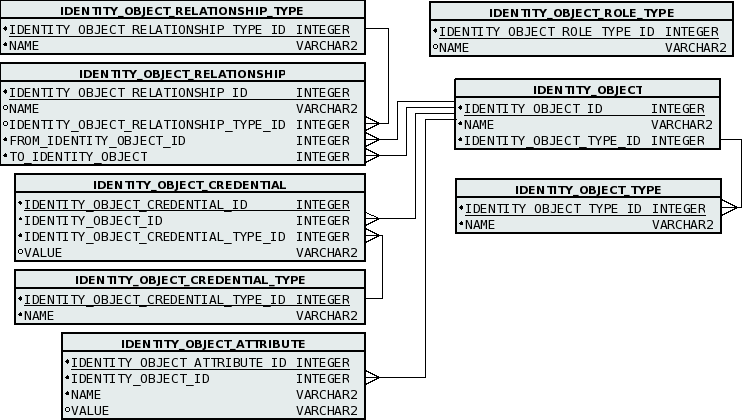

Let's start by looking at identity object. In the recommended database schema, the IDENTITY_OBJECT table is responsible for storing objects such as users and groups. This table may be represented by the following entity bean:


public class IdentityObject implements Serializable {
    @Id @GeneratedValue private Long id;
    private String name;
    @ManyToOne @IdentityProperty(PropertyType.TYPE)
    @JoinColumn(name = "IDENTITY_OBJECT_TYPE_ID")
    private IdentityObjectType type;
    // snip getter and setter methods

In the above code both the name and type fields are annotated with @IdentityProperty. This tells JpaIdentityStore that these two fields are significant in terms of identity management-related state. By annotating the name field with @IdentityProperty(PropertyType.NAME), JpaIdentityStore knows that this field is used to store the name of the identity object. Likewise, the @IdentityProperty(PropertyType.TYPE) annotation on the type field indicates that the value of this field is used to represent the type of identity object.

The IdentityObjectType entity is simply a lookup table containing the names of the valid identity types. The field representing the actual name of the type itself should be annotated with @IdentityProperty(PropertyType.NAME):


public class IdentityObjectType implements Serializable {
   @Id @GeneratedValue private Long id;
   @IdentityProperty(PropertyType.NAME) private String name;
   // snip getter and setter methods

The relationship table stores associations between identity objects. Here's an example of an entity bean that has been configured to store identity object relationships:


public class IdentityObjectRelationship implements Serializable
   @Id @GeneratedValue private Long id;
   private String name;
   @ManyToOne @IdentityProperty(PropertyType.TYPE) @JoinColumn(name = "RELATIONSHIP_TYPE_ID")
   private IdentityObjectRelationshipType relationshipType;
   @ManyToOne @IdentityProperty(PropertyType.RELATIONSHIP_FROM) @JoinColumn(name = "FROM_IDENTITY_ID")
   private IdentityObject from;
   @ManyToOne @IdentityProperty(PropertyType.RELATIONSHIP_TO) @JoinColumn(name = "TO_IDENTITY_ID")
   private IdentityObject to;
   // snip getter and setter methods

The name property is annotated with @IdentityProperty(PropertyType.NAME) to indicate that this field contains the name value for named relationships. An example of a named relationship is a role, which uses the name property to store the role type name.

The relationshipType property is annotated with @IdentityProperty(PropertyType.TYPE) to indicate that this field represents the type of relationship. This is typically a value in a lookup table.

The from property is annotated with @IdentityProperty(PropertyType.RELATIONSHIP_FROM) to indicate that this field represents the IdentityObject on the from side of the relationship.

The to property is annotated with @IdentityProperty(PropertyType.RELATIONSHIP_TO) to indicate that this field represents the IdentityObject on the to side of the relationship.

The IdentityObjectRelationshipType entity is a lookup table containing the valid relationship types. The @IdentityProperty(PropertyType.NAME) annotation is used to indicate the field containing the relationship type names:


public class IdentityObjectRelationshipType implements Serializable {
   @Id @GeneratedValue private Long id;
   private String name;
   // snip getter and setter methods

The Identity Management features are provided by a number of manager objects, which can be access from an IdentitySession. The IdentitySession may be injected directly into your beans like so:

import org.picketlink.idm.api.IdentitySession;

  public @Model class IdentityAction {
    @Inject IdentitySession identitySession;
    // code goes here...

Once you have the IdentitySession object, you can use it to perform various identity management operations. You should refer to the PicketLink documentation for a complete description of the available features, however the following sections contain a brief overview.
