The code generation mechanism in Hibernate Tools™ consists of a few core concepts. This section explains their overall structure, which is the same for the Ant™ and Eclipse™ tools.
The meta model is the model used by Hibernate Core™ to perform its object relational mapping. The model includes information about tables, columns, classes, properties, components, values, collections etc. The API is in the org.hibernate.mapping
package and its main entry point is the Configuration
class: the same class that is used to build a session factory.
The model represented by the Configuration
class can be built in many ways:
A Core configuration uses Hibernate Core™ and supports reading hbm.xml
files, and requires a hibernate.cfg.xml
file. This is referred to as Core in Eclipse and <configuration>
in Ant.
An Annotation configuration uses Hibernate Annotations™, supports hbm.xml
files and annotated classes, and requires a hibernate.cfg.xml
file. This is referred to as Annotations in Eclipse and <annotationconfiguration>
in Ant.
A JPA configuration uses a Hibernate EntityManager™ and supports hbm.xml
files and annotated classes, and requires that the project has a META-INF/persistence.xml
file in its classpath. This is referred to as JPA in Eclipse and <jpaconfiguration>
in Ant.
A JDBC configuration uses Hibernate Tools reverse engineering and reads its mappings via JDBC metadata + additional reverse engineering files (reveng.xml
). Automatically used in Eclipse when doing reverse engineering from JDBC and referred to as <jdbcconfiguration>
in Ant.
In most projects you will normally use only one of the Core, Annotation or JPA configuration and possibly the JDBC configuration if you are using the reverse engineering facilities of Hibernate Tools™.
Hibernate Tools has support for all kinds of Hibernate Configurations.

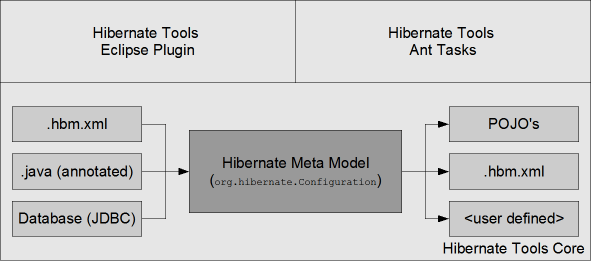

The following drawing illustrates the core concepts:
The code generation is performed based on the Configuration model no matter which type of configuration has been used to create the meta model, and thus the code generation is independent on the source of the meta model and represented via Exporters.
Code generation is performed by an Exporters. An Exporter is handed a Hibernate Meta Model represented as a Configuration
instance, and it is then the job of the exporter to generate a set of code artifacts.
The tool provides a default set of Exporter's which can be used in both Ant and the Eclipse UI. Documentation for these Exporters can be found in Chapter 5, Ant Tools and Chapter 4, Eclipse Plugins.
Users can provide their own custom Exporter's, either through custom classes implementing the Exporter
interface or simply through custom templates. This is documented at in Section 5.4.7, “Generic Hibernate metamodel exporter (<hbmtemplate>)”.
