This section covers the core messaging concepts of the ErraiBus messaging framework.

ErraiBus forms the backbone of the Errai framework's approach to application design. Most importantly, it provides a straight-forward approach to a complex problem space. Providing common APIs across the client and server, developers will have no trouble working with complex messaging scenarios from building instant messaging clients, stock tickers, to monitoring instruments. There's no more messing with RPC APIs, or unweildy AJAX or COMET frameworks. We've built it all in to one, consice messaging framework. It's single-paradigm, and it's fun to work with.

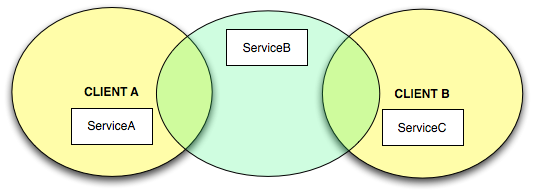

It's important to understand the concept of how messaging works in ErraiBus. Service endpoints are given string-based names that are referenced by message senders. There is no difference between sending a message to a client-based service, or sending a message to a server-based service. In fact, a service of the same name may co-exist on both the client and the server and both will receive all messages bound for that service name, whether they are sent from the client or from the server.

Services are lightweight in ErraiBus, and can be declared liberally and extensively within your application to provide a message-based infrastructure for your web application. It can be tempting to think of ErraiBus simply as a client-server communication platform, but there is a plethora of possibilities for using ErraiBus purely with the GWT client context, such as a way to advertise and expose components dynamically, to get around the lack of reflection in GWT.

In fact, ErraiBus was originally designed to run completely within the client but quickly evolved into having the capabilities it now has today. So keep that in mind when you run up against problems in the client space that could benefit from runtime federation.

The MessageBuilder is the heart of the messaging API in ErraiBus. It provides a fluent / builder API, that is used for constructing messages. All three major message patterns can be constructed from the MessageBuilder .

Components that want to receive messages need to implement the MessageCallback interface.

But before we dive into the details, let look at some use cases first.

In order to send a message from a client you need to create a Message and send it through an instance of MessageBus . In this simple example we send it to the subject 'HelloWorldService'.

In the above example we build and send a message every time the button is clicked. Here's an explanation of what's going on as annotated above:

In the following example we extend our server side component to reply with a message when the callback method is invoked. It will create a message and address it to the subject ' HelloWorldClient ':

The above example shows a service which sends a message in response to receiving a message. Here's what's going on:

Conversations are message exchanges which are between a single client and a service. They are a fundmentally important concept in ErraiBus, since by default, a message will be broadcast to all client services listening on a particular channel.

When you create a reply with an incoming message, you ensure that the message you are sending back is received by the same client which sent the incoming message. A simple example:

Note that the only difference between the example in the previous section and this is the use of the createConversation() method with MessageBuilder .

Asynchronous messaging necessitates the need for asynchronous error handling. Luckily, support for handling errors is built directly into the MessageBuilder API, utilizing the ErrorCallback interface. In the examples shown in previous exceptions, error handing has been glossed over with aubiquitous usage of the noErrorHandling() method while building messaging. We chose to require the explicit use of such a method to remind developers of the fact that they are responsible for their own error handling, requiring you to explicitly make the decision to forego handling potential errors.

As a general rule, you should always handle your errors . It will lead to faster and quicker identification of problems with your applications if you have error handlers, and generally help you build more robust code.

The addition of error handling at first may put off developers as it makes code more verbose and less-readable. This is nothing that some good practice can't fix. In fact, you may find cases where the same error handler can appropriately be shared between multiple different calls.

The error handler is required to return a boolean value. This is to indicate whether or not Errai should perform the default error handling actions it would normally take during a failure. You will almost always want to return true here, unless you are trying to explicitly surpress some undesirably activity by Errai, such as automatic subject-termination in conversations. But this is almost never the case.

Errai further provides a subject to subscribe to for handling global errors on the client (such as a disconnected server bus or an invalid response code) that occur outside a regular application message exchange. Subscribing to this subject is useful to detect errors early (e.g. due to failing heartbeat requests). A use case that comes to mind here is activating your application's offline mode.

You may need to detect problems which occur on the bus at runtime. The client bus API provides a facility for doing this in the org.jboss.errai.bus.client.framework.ClientMessageBus using the addTransportErrorHandler() method.

A TransportErrorHandler is an interface which you can use to define error handling behavior in the event of a transport problem.

For example:

The TransportError interface represents the details of an an error from the bus. It contains a set of methods which can be used for determining information on the initial request which triggered the error, if the error occurred over HTTP or WebSockets, status code information, etc. See the JavaDoc for more information.

It is possible to contruct a message and a default response handler as part of the MessageBuilder API. It should be noted, that multiple replies will not be possible and will result an exception if attempted. Using this aspect of the API is very useful for doing simple psuedo-synchronous conversive things.

You can do this by specifying a MessageCallback using the repliesTo() method in the MessageBuilder API after specifying the error handling of the message.

See the next section on how to build conversational services that can respond to such messages.

Broadcasting messages to all clients listening on a specific subject is quite simple and involves nothing more than forgoing use of the reply API. For instance:

If sent from the server, all clients currently connected, who are listening to the subject "MessageListener" will receive the message. It's as simple as that.

Communication from one client to another client is not directly possible within the bus federation, by design. This isn't to say that it's not possible. But one client cannot see a service within the federation of another client. We institute this limitation as a matter of basic security. But many software engineers will likely find the prospects of such communication appealing, so this section will provide some basic pointers on how to go about accomplishing it.

In some applications, it may be necessary or desirable to delay transmission of, or continually stream data to a remote client or group of clients (or from a client to the server). In cases like this, you can utilize the replyRepeating() , replyDelayed() , sendRepeating() and sendDelayed() methods in the MessageBuilder .

Delayed TasksSending a task with a delay is straight forward. Simply utilize the appropriate method (either replyDelayed() or sendDelayed() ).


A repeating task is sent using one of the MessageBuilder's repeatXXX() methods. The task will repeat indefinitely until cancelled (see next section).

The above example sends a message very 1 second with a message part called "time" , containing a formatted time string. Note the use of the withProvided() method; a provided message part is calculated at the time of transmission as opposed to when the message is constructed.

Cancelling an Asynchronous TaskA delayed or repeating task can be cancelled by calling the cancel() method of the AsyncTask instance which is returned when creating a task. Reference to the AsyncTask object can be retained and cancelled by any other thread.

It is possible for the sender to infer, to whatever conversational service it is calling, what subject it would like the reply to go to. This is accomplished by utilizing the standard MessageParts.ReplyTo message part. Using this methodology for building conversations is generally encouraged.

Consider the following client side code:

And the conversational code on the server (for service ObjectService ):

In the above examples, assuming that the latter example is inside a service called " ObjectService " and is referencing the incoming message that was sent in the former example, the message created will automatically reference the ReplyTo subject that was provided by the sender, and send the message back to the subject desired by the client on the client that sent the message.

Every message that is sent between a local and remote (or server and client) buses contain session routing information. This information is used by the bus to determine what outbound queues to use to deliver the message to, so they will reach their intended recipients. It is possible to manually specify this information to indicate to the bus, where you want a specific message to go.

You can obtain the SessionID directly from a Message by getting the QueueSession resource:

You can extract the SessionID from a message so that you may use it for routing by obtaining the QueueSession resource from the Message . For example:

The SessionID can then be stored in a medium, say a Map, to cross-reference specific users or whatever identifier you wish to allow one client to obtain a reference to the specific SessionID of another client. In which case, you can then provide the SessionID as a MessagePart to indicate to the bus where you want the message to go.

By providing the SessionID part in the message, the bus will see this and use it for routing the message to the relevant queue.

It may be tempting however, to try and include destination SessionIDs at the client level, assuming that this will make the infrastructure simpler. But this will not achieve the desired results, as the bus treats SessionIDs as transient. Meaning, the SessionID information is not ever transmitted from bus-to-bus, and therefore is only directly relevant to the proximate bus.

The ErraiBus maintains it's own seperate session management on-top of the regular HTTP session management. While the queue sessions are tied to, and dependant on HTTP sessions for the most part (meaning they die when HTTP sessions die), they provide extra layers of session tracking to make dealing with complex applications built on Errai easier.

ErraiBus implements a JSON-based wire protocol which is used for the federated communication between different buses. The protocol specification encompasses a standard JSON payload structure, a set of verbs, and an object marshalling protocol. The protocol is named J.REP. Which stands for JSON Rich Event Protocol.

All wire messages sent across are assumed to be JSON arrays at the outermost element, contained in which, there are 0..n messages. An empty array is considered a no-operation, but should be counted as activity against any idle timeout limit between federated buses.

In Figure 1 , we see an example of a J.REP payload containing two messages. One bound for an endpoint named "SomeEndpoint" and the other bound for the endpoint "SomeOtherEndpoint" . They both include a payload element "Value" which contain strings. Let's take a look at the anatomy of an individual message.

The message shown in Figure 2 shows a very vanilla J.REP message. The keys of the JSON Object represent individual message parts , with the values representing their corresponding values. The standard J.REP protocol encompasses a set of standard message parts and values, which for the purposes of this specification we'll collectively refer to as the protocol verbs.

The following table describes all of the message parts that a J.REP capable client is expected to understand:








Specifies the subject within the bus, and its federation, which the message should be routed to.




Specifies a command verb to be transmitted to the receiving subject. This is an optional part of a message contract, but is required for using management services




Specifies to the receiver what subject it should reply to in response to this message.




A recommended but not required standard payload part for sending data to services




A processing order salience attribute. Messages which specify priority processing will be processed first if they are competing for resources with other messages in flight. Note: the current version of ErraiBus only supports two salience levels (0 and >1). Any non-zero salience in ErraiBus will be given the same priority relative to 0 salience messages




An accompanying error message with any serialized exception




If applicable, an encoded object representing any remote exception that was thrown while dispatching the specified service

Federation between buses requires management traffic to negotiate connections and manage visibility of services between buses. This is accomplished through services named ClientBus and ServerBus which both implement the same protocol contracts which are defined in this section.

Both bus services share the same management protocols, by implementing verbs (or commands) that perform different actions. These are specified in the protocol with the CommandType message part. The following table describes these commands:








A comma delimited string of capabilities the bus is capable of us




The subject to subscribe or unsubscribe from




An array of strings representing a list of subjects to subscribe to

ErraiBus has support for WebSocket-based communication. When WebSockets are enabled, capable web browsers will attempt to upgrade their COMET-based communication with the server-side bus to use a WebSocket channel.

There are two different ways the bus can enable WebSockets. The first uses a sideband server, which is a small, lightweight server which runs on a different port from the application server. The second is native JBoss AS 7-based integration.

It is currently necessary use the native connector in JBoss AS for WebSockets to work. So the first step is to configure your JBoss AS instance to use the native connector by changing the domain/configuration/domain.xml file, and change the line:


You will then need to configure the servlet in your application's web.xml which will provide WebSocket upgrade support within AS7.

Add the following to the web.xml :

This will tell the bus to enable web sockets support. The websocket-path-element specified the path element within a URL which the client bus should request in order to negotiate a websocket connection. For instance, specifying in.erraiBusWS as we have in the snippit above, will result in attempted negotiation at http://<your_server>:<your_port>/<context_path>/in.erraiBusWS . For this to have any meaningful result, we must add a servlet mapping that will match this pattern:
