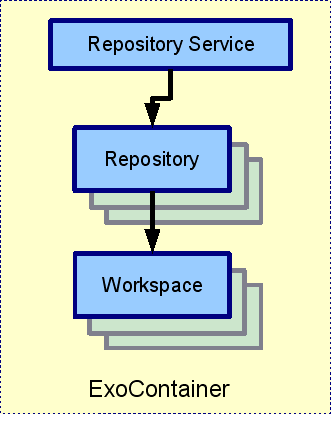

Repository Service contains information about repositories, eXo JCR is able to manage many Repositories

Repository Implementation of javax.jcr.Repository. It holds references to one or more Workspace(s)

Workspace container of a single rooted tree of Items (Note that here it is not exactly the same as javax.jcr.Workspace as it is not a per Session object)

Obtaining Repository object by getting RepositoryService from current ExoContainer (eXo "native" way) or via JNDI lookup if eXo repository is bound to the naming context using (see Service configuration for details)

Creating javax.jcr.Session object that calls Repository.login(..)

Creating javax.jcr.Session object that calls Repository.login(..)

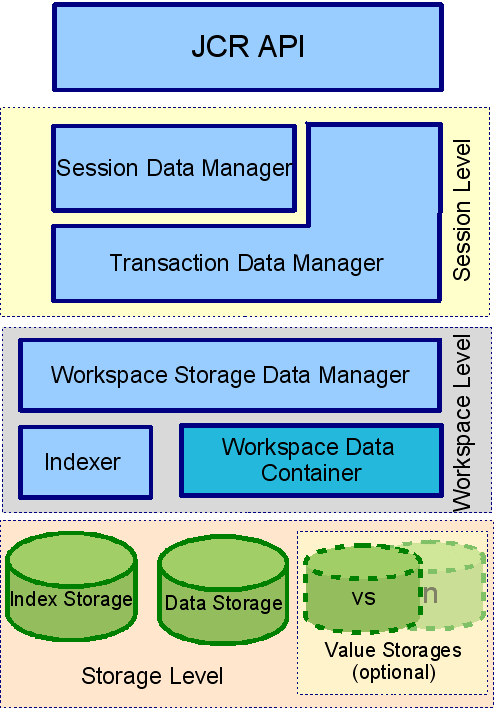

eXo JCR core implements JCR API intefaces such as Item, Node, Property. It contains JCR "logical" view on stored data

Session Level isolates transient data viewable inside one JCR Session and interacts with API level using eXo JCR internal API

Session Data Manager maintains transient session data. Along with data accessing/modification/validation logic it contains Modified Items Storage to hold the data changed between subsequent save() calling and Session Items Cache

Transaction Data Manager maintains session data between save() and transaction commit/rollback if the current session is part of a transaction

Workspace Level operates for particular workspace shared data. It contains per-Workspace objects

Workspace Storage Data Manager maintains workspace data including final validation, events firing, caching.

Workspace Data Container implements physical data storage. It allows different types of backend (like RDB, FS files etc) to be used as a storage for JCR data. Along with the main Data Container other storages for persisted Property Values can be configured and used.

Indexer maintains workspace data indexing for further queries.

Storage Level persistent storages for:
