A gadget is a mini web application, embedded in a web page and running on an application server platform. These small applications help users perform various tasks.
GateIn 3.2 supports gadgets such as: Todo gadget, Calendar gadget, Calculator gadget, Weather Forecasts and and RSS Reader.
Default Gadgets:
- Calendar
The calendar gadget allows users to switch easily between daily, monthly and yearly view and, again, is customizable to match your portal's theme.

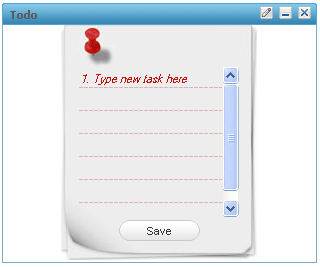

- ToDo
This application helps you organize your day and work group. It is designed to keep track of your tasks in a convenient and transparent way. Tasks can be highlighted with different colors.

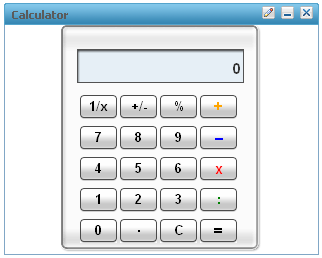

- Calculator
This mini-application lets you perform most basic arithmetic operations and can be themed to match the rest of your portal.
- RSS Reader
An RSS reader, or aggregator, collates content from various, user-specified feed sources and displays them in one location. This content can include, but isn't limited to, news headlines, blog posts or email. The RSS Reader gadget displays this content in a single window on your Portal page.
- More Gadgets
Further gadgets can be obtained from the Google Gadget site. GateIn 3.2 is compatible with most of the gadgets available here.
Important
The following sections require more textual information.

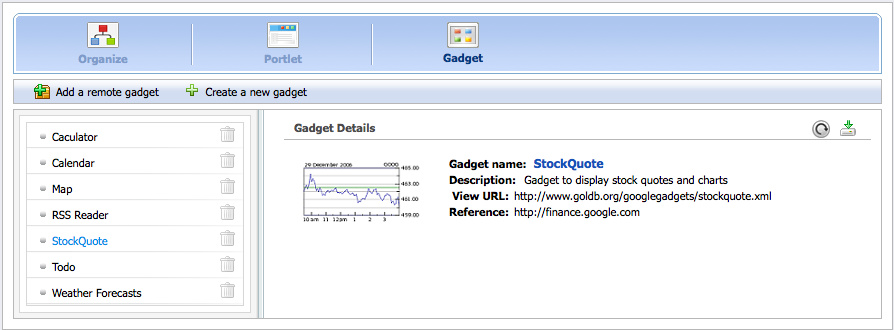

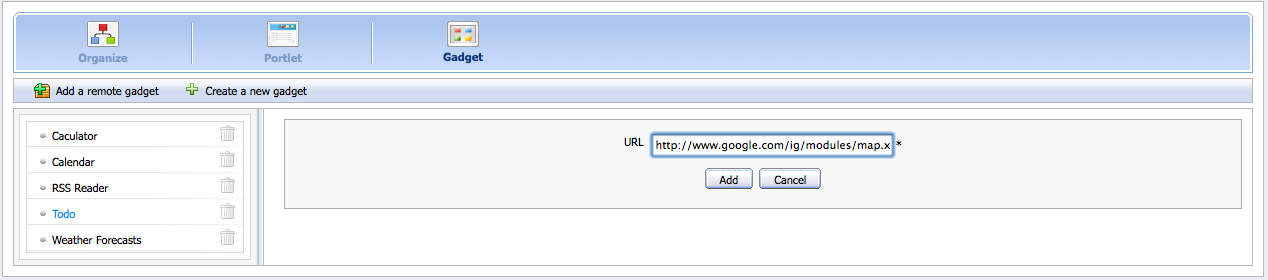

After referencing the gadget successfully, then import it into the local repository.
GateIn 3.2 recommends using two virtual hosts for security. If the gadget is running on a different domain than the container (the website that 'contains' the app), it is unable to interfere with the portal by modifying code or cookies.
An example would hosting the portal from http://www.sample.com and the gadgets from http://www.samplemodules.com.
To do this, configure a parameter called gadgets.hostName. The value is the path/to/gadgetServer in GadgetRegisteryService:
<component>
<key>org.exoplatform.application.gadget.GadgetRegistryService</key>
<type>org.exoplatform.application.gadget.jcr.GadgetRegistryServiceImpl</type>
<init-params>
<value-param>
<name>gadgets.hostName</name>
<description>Gadget server url</description>
<value>http://localhost:8080/GateInGadgetServer/gadgets/</value>
</value-param>
</init-params>
</component>
It is also possible to have multiple rendering servers. This helps to balance the rendering load across multiple servers.
When deploying on the same server, ensure the gadget initiates before anything that calls it (for example; the webapp GateInGadgets which uses org.exoplatform.application.gadget.GadgetRegister).
In GateIn, the gadget container is using three security files for authentication and authorization gadgets:
key.txt
oauthkey.pem
oauthkey_pub.pem
By default, they are located in the $JBOSS_HOME/server/default/conf/gatein/gadgets or For Tomcat: $TOMCAT_HOME/gatein/conf/gadgets folder and are configured by system variables in the $JBOSS_HOME/server/default/conf/gatein/configuration.properties or For Tomcat: $TOMCAT_HOME/gatein/conf/configuration.properties file:
gatein.gadgets.securitytokenkeyfile=${gatein.conf.dir}/gadgets/key.txt
gatein.gadgets.signingkeyfile=${gatein.conf.dir}/gadgets/oauthkey.pem
In case you have other files, you can change these variables to point to them.
The key.txt file contains a secret key used to encrypt the security token used for the user authentication. When starting GateIn, this file is read via the gatein.gadgets.securitytokenkeyfile path. In case the key.txt file is not found, GateIn automatically generates a new key.txt one and save it to the gatein.gadgets.securitytokenkeyfile path.
oauthkey.pem and oauthkey_pub.pem are a key pair of RSA cryptography standard. oauthkey.pem is known as a private key and oauthkey_pub.pem is a public key. They are the default keys of the gadget container which OAuth gadgets will use to authorize with external service providers.
These servers have to be on the same domain as the gadget server. You can configure the container in eXoGadgetServer:/WEB-INF/classes/containers/default/container.js.
"gadgets.content-rewrite" : {
"include-urls": ".*",
"exclude-urls": "",
"include-tags": ["link", "script", "embed", "img", "style"],
"expires": "86400",
"proxy-url": "http://localhost:8080/eXoGadgetServer/gadgets/proxy?url=",
"concat-url": "http://localhost:8080/eXoGadgetServer/gadgets/concat?"
},
