So far we have used the default configuration source for Bean
Validation, namely annotations. However, there also exist two kinds of XML
descriptors allowing configuration via XML. The first descriptor describes
general Bean Validation behaviour and is provided as
META-INF/validation.xml
. The second one describes
constraint declarations and closely matches the constraint declaration
approach via annotations. Let's have a look at these two document
types.
The XSD files are available via http://www.jboss.org/xml/ns/javax/validation/configuration and http://www.jboss.org/xml/ns/javax/validation/mapping.
The key to enable XML configuration for Hibernate Validator is the
file META-INF/validation.xml
. If this file exists on
the classpath its configuration will be applied when the
ValidatorFactory
gets created. Example 7.1, “validation-configuration-1.1.xsd” shows a model view of the XML
schema to which validation.xml
has to adhere.
Example 7.2, “validation.xml” shows the several
configuration options of validation.xml
. All settings
are optional and the same configuration options are also available
programmatically through
javax.validation.Configuration
. In fact the XML
configuration will be overridden by values explicitly specified via the
programmatic API. It is even possible to ignore the XML configuration
completely via
Configuration#ignoreXmlConfiguration()
. See also
Section 8.2, “Configuring a ValidatorFactory”.
Example 7.2. validation.xml
<validation-config
xmlns="http://jboss.org/xml/ns/javax/validation/configuration"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://jboss.org/xml/ns/javax/validation/configuration">
<default-provider>com.acme.ValidationProvider</default-provider>
<message-interpolator>com.acme.MessageInterpolator</message-interpolator>
<traversable-resolver>com.acme.TraversableResolver</traversable-resolver>
<constraint-validator-factory>
com.acme.ConstraintValidatorFactory
</constraint-validator-factory>
<parameter-name-provider>com.acme.ParameterNameProvider</parameter-name-provider>
<executable-validation enabled="true">
<default-validated-executable-types>
<executable-type>CONSTRUCTORS</executable-type>
<executable-type>NON_GETTER_METHODS</executable-type>
<executable-type>GETTER_METHODS</executable-type>
</default-validated-executable-types>
</executable-validation>
<constraint-mapping>META-INF/validation/constraints-car.xml</constraint-mapping>
<property name="hibernate.validator.fail_fast">false</property>
</validation-config>
There must only be one file named
META-INF/validation.xml
on the classpath. If more
than one is found an exception is thrown.
The node default-provider allows to choose the
Bean Validation provider. This is useful if there is more than one
provider on the classpath. message-interpolator,
traversable-resolver,
constraint-validator-factory and
parameter-name-provider allow to customize the used
implementations for the interfaces
MessageInterpolator
,
TraversableResolver
,
ConstraintValidatorFactory
and
ParameterNameProvider
defined in the
javax.validation
package. See the sub-sections of
Section 8.2, “Configuring a ValidatorFactory” for more
information about these interfaces.
executable-validation and its subnodes define defaults for method validation. The Bean Validation specification defines constructor and non getter methods as defaults. The enabled attribute acts as global switch to turn method validation on and off (see also Chapter 3, Declaring and validating method constraints).
Via the constraint-mapping element you can list an arbitrary number of additional XML files containing the actual constraint configuration. Mapping file names must be specified using their fully-qualified name on the classpath. Details on writing mapping files can be found in the next section.
Last but not least, you can specify provider specific properties via the property nodes. In the example we are using the Hibernate Validator specific hibernate.validator.fail_fast property (see Section 11.2, “Fail fast mode”).

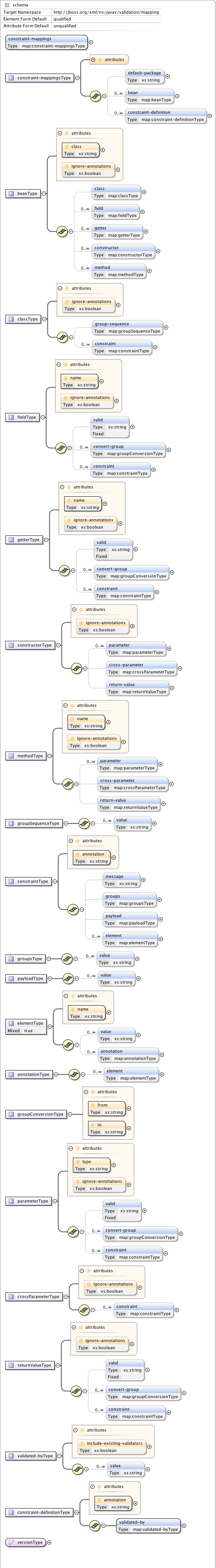

Expressing constraints in XML is possible via files adhering to the
schema seen in Example 7.3, “validation-mapping-1.1.xsd”. Note that
these mapping files are only processed if listed via
constraint-mapping in
validation.xml
.
Example 7.4, “Bean constraints configured via XML” shows how the classes
Car
and RentalCar
from Example 5.3, “Car” resp. Example 5.7, “Class RentalCar with redefined default
group” could
be mapped in XML.
Example 7.4. Bean constraints configured via XML
<constraint-mappings
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://jboss.org/xml/ns/javax/validation/mapping validation-mapping-1.1.xsd"
xmlns="http://jboss.org/xml/ns/javax/validation/mapping" version="1.1">
<default-package>org.hibernate.validator.referenceguide.chapter05</default-package>
<bean class="Car" ignore-annotations="true">
<field name="manufacturer">
<constraint annotation="javax.validation.constraints.NotNull"/>
</field>
<field name="licensePlate">
<constraint annotation="javax.validation.constraints.NotNull"/>
</field>
<field name="seatCount">
<constraint annotation="javax.validation.constraints.Min">
<element name="value">2</element>
</constraint>
</field>
<field name="driver">
<valid/>
</field>
<getter name="passedVehicleInspection" ignore-annotations="true">
<constraint annotation="javax.validation.constraints.AssertTrue">
<message>The car has to pass the vehicle inspection first</message>
<groups>
<value>CarChecks</value>
</groups>
<element name="max">10</element>
</constraint>
</getter>
</bean>
<bean class="RentalCar" ignore-annotations="true">
<class ignore-annotations="true">
<group-sequence>
<value>RentalCar</value>
<value>CarChecks</value>
</group-sequence>
</class>
</bean>
<constraint-definition annotation="org.mycompany.CheckCase">
<validated-by include-existing-validators="false">
<value>org.mycompany.CheckCaseValidator</value>
</validated-by>
</constraint-definition>
</constraint-mappings>
Example 7.5, “Method constraints configured via XML” shows how the constraints from Example 3.1, “Declaring method and constructor parameter constraints”, Example 3.4, “Declaring method and constructor return value constraints” and Example 3.3, “Specifying a constraint's target” can be expressed in XML.
Example 7.5. Method constraints configured via XML
<constraint-mappings
xmlns="http://jboss.org/xml/ns/javax/validation/mapping"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation=
"http://jboss.org/xml/ns/javax/validation/mapping validation-mapping-1.1.xsd" version="1.1">
<default-package>org.hibernate.validator.referenceguide.chapter07</default-package>
<bean class="RentalStation" ignore-annotations="true">
<constructor>
<return-value>
<constraint annotation="ValidRentalStation"/>
</return-value>
</constructor>
<constructor>
<parameter type="java.lang.String">
<constraint annotation="javax.validation.constraints.NotNull"/>
</parameter>
</constructor>
<method name="getCustomers">
<return-value>
<constraint annotation="javax.validation.constraints.NotNull"/>
<constraint annotation="javax.validation.constraints.Size">
<element name="min">1</element>
</constraint>
</return-value>
</method>
<method name="rentCar">
<parameter type="Customer">
<constraint annotation="javax.validation.constraints.NotNull"/>
</parameter>
<parameter type="java.util.Date">
<constraint annotation="javax.validation.constraints.NotNull"/>
<constraint annotation="javax.validation.constraints.Future"/>
</parameter>
<parameter type="int">
<constraint annotation="javax.validation.constraints.Min">
<element name="value">1</element>
</constraint>
</parameter>
</method>
</bean>
<bean class="Garage" ignore-annotations="true">
<method name="buildCar">
<parameter type="java.util.List"/>
<cross-parameter>
<constraint annotation="ELAssert">
<element name="expression">...</element>
<element name="validationAppliesTo">PARAMETERS</element>
</constraint>
</cross-parameter>
</method>
<method name="paintCar">
<parameter type="int"/>
<return-value>
<constraint annotation="ELAssert">
<element name="expression">...</element>
<element name="validationAppliesTo">RETURN_VALUE</element>
</constraint>
</return-value>
</method>
</bean>
</constraint-mappings>
The XML configuration is closely mirroring the programmatic API. For this reason it should suffice to just add some comments. default-package is used for all fields where a class name is expected. If the specified class is not fully qualified the configured default package will be used. Every mapping file can then have several bean nodes, each describing the constraints on the entity with the specified class name.
A given entity can only be configured once across all
configuration files. The same applies for constraint definitions for a
given constraint annotation. It can only occur in one mapping file. If
these rules are violated a ValidationException
is thrown.
Setting ignore-annotations to
true
means that constraint annotations placed on the
configured bean are ignored. The default for this value is
true
. ignore-annotations is also available for the
nodes class, fields,
getter, constructor,
method, parameter,
cross-parameter and
return-value. If not explicitly specified on these
levels the configured bean value applies.
The nodes class, field, getter, constructor and method (and its sub node parameter) determine on which level the constraint gets placed. The constraint node is then used to add a constraint on the corresponding level. Each constraint definition must define the class via the annotation attribute. The constraint attributes required by the Bean Validation specification (message, groups and payload) have dedicated nodes. All other constraint specific attributes are configured using the element node.
The class node also allows to reconfigure the default group sequence (see Section 5.3, “Redefining the default group sequence”) via the group-sequence node. Not shown in the example is the use of convert-group to specify group conversions (see Section 5.4, “Group conversion”). This node is available on field, getter, parameter and return-value and specifies a from and to attribute to specify the groups.
Last but not least, the list of
ConstraintValidator
s associated to a given
constraint can be altered via the
constraint-definition node. The
annotation attribute represents the constraint
annotation being altered. The validated-by elements
represent the (ordered) list of ConstraintValidator
implementations associated to the constraint. If
include-existing-validator is set to
false
, validators defined on the constraint
annotation are ignored. If set to true
, the list of
constraint validators described in XML is concatenated to the list of
validators specified on the annotation.
