Have you ever caught yourself by unintentionally doing things like
specifying constraint annotations at unsupported data types (e.g. by annotating a String with
@Past)annotating the setter of a JavaBeans property (instead of the getter method)
annotating static fields/methods with constraint annotations (which is not supported)?
Then the Hibernate Validator Annotation Processor is the right thing for you. It helps preventing such mistakes by plugging into the build process and raising compilation errors whenever constraint annotations are incorrectly used.
Tip
You can find the Hibernate Validator Annotation Processor as part of the distribution bundle on Sourceforge or in the usual Maven repositories such as Maven Central under the GAV org.hibernate:hibernate-validator-annotation-processor:5.1.3.Final.
The Hibernate Validator Annotation Processor is based on the "Pluggable Annotation Processing API" as defined by JSR 269 which is part of the Java Platform since Java 6.
As of Hibernate Validator 5.1.3.Final the Hibernate Validator Annotation Processor checks that:
constraint annotations are allowed for the type of the annotated element
only non-static fields or methods are annotated with constraint annotations
only non-primitive fields or methods are annotated with
@Validonly such methods are annotated with constraint annotations which are valid JavaBeans getter methods (optionally, see below)
only such annotation types are annotated with constraint annotations which are constraint annotations themselves
definition of dynamic default group sequence with
@GroupSequenceProvideris valid
The behavior of the Hibernate Validator Annotation Processor can be controlled using the processor options listed in table Table 12.1, “Hibernate Validator Annotation Processor options”:
Table 12.1. Hibernate Validator Annotation Processor options
| Option | Explanation |
|---|---|
diagnosticKind | Controls how constraint problems are reported. Must be the
string representation of one of the values from the enum
javax.tools.Diagnostic.Kind, e.g.
WARNING. A value of
ERROR will cause compilation to halt
whenever the AP detects a constraint problem. Defaults to
ERROR. |
methodConstraintsSupported | Controls whether constraints are allowed at methods of any
kind. Must be set to true when working with
method level constraints as supported by Hibernate Validator. Can
be set to false to allow constraints only at
JavaBeans getter methods as defined by the Bean Validation API.
Defaults to true. |
verbose | Controls whether detailed processing information shall be
displayed or not, useful for debugging purposes. Must be either
true or false. Defaults to
false. |
This section shows in detail how to integrate the Hibernate Validator Annotation Processor into command line builds (javac, Ant, Maven) as well as IDE-based builds (Eclipse, IntelliJ IDEA, NetBeans).
When compiling on the command line using javac, specify the JAR hibernate-validator-annotation-processor-5.1.3.Final.jar using the "processorpath" option as shown in the following listing. The processor will be detected automatically by the compiler and invoked during compilation.
Example 12.1. Using the annotation processor with javac
javac src/main/java/org/hibernate/validator/ap/demo/Car.java \ -cp /path/to/validation-api-1.1.0.Final.jar \ -processorpath /path/to/hibernate-validator-annotation-processor-5.1.3.Final.jar
Similar to directly working with javac, the annotation processor can be added as as compiler argument when invoking the javac task for Apache Ant:
Example 12.2. Using the annotation processor with Ant
<javac srcdir="src/main"
destdir="build/classes"
classpath="/path/to/validation-api-1.1.0.Final.jar">
<compilerarg value="-processorpath" />
<compilerarg value="/path/to/hibernate-validator-annotation-processor-5.1.3.Final.jar"/>
</javac>
There are several options for integrating the annotation processor with Apache Maven. Generally it is sufficient to add the Hibernate Validator Annotation Processor as dependency to your project:
Example 12.3. Adding the HV Annotation Processor as dependency
...
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator-annotation-processor</artifactId>
<version>5.1.3.Final</version>
</dependency>
...
The processor will then be executed automatically by the compiler. This basically works, but comes with the disadavantage that in some cases messages from the annotation processor are not displayed (see MCOMPILER-66).
Another option is using the Maven Annotation Plugin. To work with this plugin, disable the standard annotation processing performed by the compiler plugin and configure the annotation plugin by specifying an execution and adding the Hibernate Validator Annotation Processor as plugin dependency (that way the processor is not visible on the project's actual classpath):
Example 12.4. Configuring the Maven Annotation Plugin
...
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>1.6</source>
<target>1.6</target>
<compilerArgument>-proc:none</compilerArgument>
</configuration>
</plugin>
<plugin>
<groupId>org.bsc.maven</groupId>
<artifactId>maven-processor-plugin</artifactId>
<version>2.2.1</version>
<executions>
<execution>
<id>process</id>
<goals>
<goal>process</goal>
</goals>
<phase>process-sources</phase>
</execution>
</executions>
<dependencies>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator-annotation-processor</artifactId>
<version>5.1.3.Final</version>
</dependency>
</dependencies>
</plugin>
...
Do the following to use the annotation processor within the Eclipse IDE:
Right-click your project, choose "Properties"
Go to "Java Compiler" and make sure, that "Compiler compliance level" is set to "1.6". Otherwise the processor won't be activated
Go to "Java Compiler - Annotation Processing" and choose "Enable annotation processing"
Go to "Java Compiler - Annotation Processing - Factory Path" and add the JAR hibernate-validator-annotation-processor-5.1.3.Final.jar
Confirm the workspace rebuild
You now should see any annotation problems as regular error markers within the editor and in the "Problem" view:
The following steps must be followed to use the annotation processor within IntelliJ IDEA (version 9 and above):
Go to "File", then "Settings",
Expand the node "Compiler", then "Annotation Processors"
Choose "Enable annotation processing" and enter the following as "Processor path": /path/to/hibernate-validator-annotation-processor-5.1.3.Final.jar
Add the processor's fully qualified name
org.hibernate.validator.ap.ConstraintValidationProcessorto the "Annotation Processors" listIf applicable add you module to the "Processed Modules" list
Rebuilding your project then should show any erronous constraint annotations:
Starting with version 6.9, also the NetBeans IDE supports using annotation processors within the IDE build. To do so, do the following:
Right-click your project, choose "Properties"
Go to "Libraries", tab "Processor", and add the JAR hibernate-validator-annotation-processor-5.1.3.Final.jar
Go to "Build - Compiling", select "Enable Annotation Processing" and "Enable Annotation Processing in Editor". Add the annotation processor by specifying its fully qualified name
org.hibernate.validator.ap.ConstraintValidationProcessor

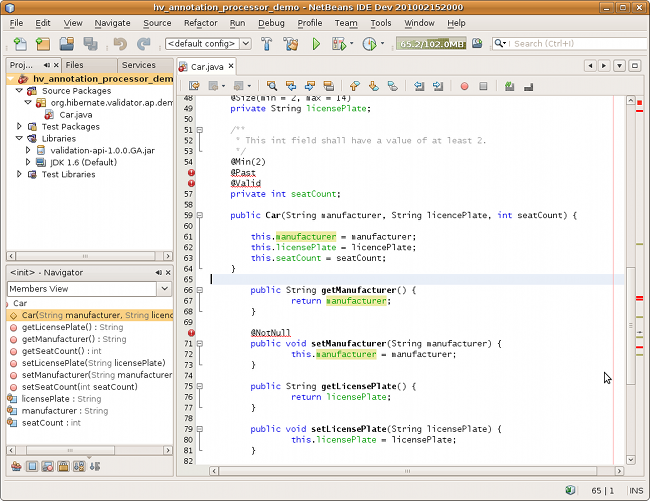

Any constraint annotation problems will then be marked directly within the editor:
The following known issues exist as of May 2010:
HV-308: Additional validators registered for a constraint using XML are not evaluated by the annotation processor.
Sometimes custom constraints can't be properly evaluated when using the processor within Eclipse. Cleaning the project can help in these situations. This seems to be an issue with the Eclipse JSR 269 API implementation, but further investigation is required here.
When using the processor within Eclipse, the check of dynamic default group sequence definitions doesn't work. After further investigation, it seems to be an issue with the Eclipse JSR 269 API implementation.
