We define high availability as the ability for the system to continue functioning after failure of one or more of the servers.
A part of high availability is failover which we define as the ability for client connections to migrate from one server to another in event of server failure so client applications can continue to operate.
HornetQ allows servers to be linked together as live - backup groups where each live server can have 1 or more backup servers. A backup server is owned by only one live server. Backup servers are not operational until failover occurs, however 1 chosen backup, which will be in passive mode, announces its status and waits to take over the live servers work
Before failover, only the live server is serving the HornetQ clients while the backup servers remain passive or awaiting to become a backup server. When a live server crashes or is brought down in the correct mode, the backup server currently in passive mode will become live and another backup server will become passive. If a live server restarts after a failover then it will have priority and be the next server to become live when the current live server goes down, if the current live server is configured to allow automatic failback then it will detect the live server coming back up and automatically stop.
HornetQ supports two different strategies for backing up a server shared store and replication.
Only persistent message data will survive failover. Any non persistent message data will not be available after failover.
Replication is supported since version 2.3.

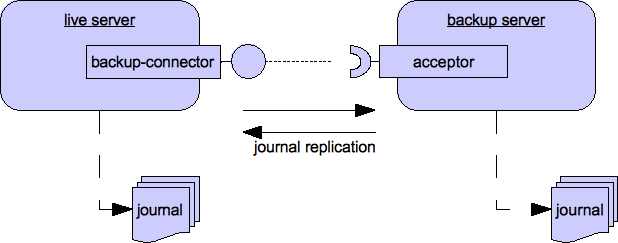

When using replication, the live and the backup servers do not share the same data directories, all data synchronization is done through network traffic. Therefore all (persistent) data traffic received by the live server will be duplicated to the backup.
Notice that upon start-up the backup server will first need to synchronize all existing data from the live server, before becoming capable of replacing the live server should it fail. So unlike the shared store case, a replicating backup will not be a fully operational backup right after start, but only after it finishes synchronizing the data. The time it will take for this to happen will depend on the amount of data to be synchronized and the connection speed.
Replication will create a copy of the data at the backup. One issue to be aware of is: in case of a successful fail-over, the backup's data will be newer than the one at the live's storage. If you configure your live server to perform a Section 39.1.4, “Failing Back to live Server” when restarted, it will synchronize its data with the backup's. If both servers are shutdown, the administrator will have to determine which one has the lastest data.
The replicating live and backup pair must be part of a cluster. The Cluster Connection also defines how backup servers will find the remote live servers to pair with. Refer to Chapter 38, Clusters for details on how this is done, and how to configure a cluster connection. Notice that:
Within a cluster, there are two ways that a backup server will locate a live server to replicate from, these are:
specifying a node group
. You can specify a group of live servers that a backup
server can connect to. This is done by configuring backup-group-name
in the main
hornetq-configuration.xml
. A Backup server will only connect to a live server that
shares the same node group name
connecting to any live
. Simply put not configuring backup-group-name
will allow a backup server to connect to any live server
backup-group-name
example: suppose you have 5 live servers and 6 backup servers:
live1
, live2
, live3
: with backup-group-name=fish
live4
, live5
: with backup-group-name=bird
backup1
, backup2
, backup3
, backup4
: with backup-group-name=fish
backup5
, backup6
: with backup-group-name=bird
After joining the cluster the backups with backup-group-name=fish
will search for live servers with backup-group-name=fish
to pair with. Since there is one backup too many, the fish
will remain with one spare backup.
The 2 backups with backup-group-name=bird
(backup5
and backup6
) will pair with live servers live4
and live5
.
The backup will search for any live server that it is configured to connect to. It then tries to replicate with each live server in turn until it finds a live server that has no current backup configured. If no live server is available it will wait until the cluster topology changes and repeats the process.
backup=true
to backup=false
.Much like in the shared-store case, when the live server stops or crashes, its replicating backup will become active and take over its duties. Specifically, the backup will become active when it loses connection to its live server. This can be problematic because this can also happen because of a temporary network problem. In order to address this issue, the backup will try to determine whether it still can connect to the other servers in the cluster. If it can connect to more than half the servers, it will become active, if more than half the servers also disappeared with the live, the backup will wait and try reconnecting with the live. This avoids a split brain situation.
To configure the live and backup servers to be a replicating pair, configure
both servers' hornetq-configuration.xml
to have:
<!-- FOR BOTH LIVE AND BACKUP SERVERS' --> <shared-store>false</shared-store> . . <cluster-connections> <cluster-connection name="my-cluster"> ... </cluster-connection> </cluster-connections>
The backup server must also be configured as a backup.
<backup>true</backup>

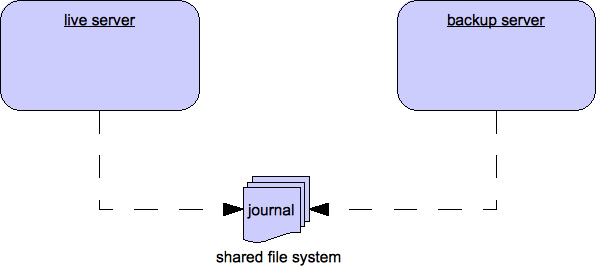

When using a shared store, both live and backup servers share the same entire data directory using a shared file system. This means the paging directory, journal directory, large messages and binding journal.
When failover occurs and a backup server takes over, it will load the persistent storage from the shared file system and clients can connect to it.
This style of high availability differs from data replication in that it requires a shared file system which is accessible by both the live and backup nodes. Typically this will be some kind of high performance Storage Area Network (SAN). We do not recommend you use Network Attached Storage (NAS), e.g. NFS mounts to store any shared journal (NFS is slow).
The advantage of shared-store high availability is that no replication occurs between the live and backup nodes, this means it does not suffer any performance penalties due to the overhead of replication during normal operation.
The disadvantage of shared store replication is that it requires a shared file system, and when the backup server activates it needs to load the journal from the shared store which can take some time depending on the amount of data in the store.
If you require the highest performance during normal operation, have access to a fast SAN, and can live with a slightly slower failover (depending on amount of data), we recommend shared store high availability
To configure the live and backup servers to share their store, configure
all hornetq-configuration.xml
:
<shared-store>true</shared-store>
Additionally, each backup server must be flagged explicitly as a backup:
<backup>true</backup>
In order for live - backup groups to operate properly with a shared store, both servers must have configured the location of journal directory to point to the same shared location (as explained in Section 15.3, “Configuring the message journal”)
todo write something about GFS
Also each node, live and backups, will need to have a cluster connection defined even if not part of a cluster. The Cluster Connection info defines how backup servers announce there presence to its live server or any other nodes in the cluster. Refer to Chapter 38, Clusters for details on how this is done.
After a live server has failed and a backup taken has taken over its duties, you may want to restart the live server and have clients fail back.
In case of "shared disk", simply restart the original live server and kill the new live server. You can do this by killing the process itself or just waiting for the server to crash naturally.
In case of a replicating live server that has been replaced by a remote backup you will need to also set check-for-live-server. This option is necessary because a starting server cannot know whether there is a (remote) server running in its place, so with this option set, the server will check the cluster for another server using its node-ID and if it finds one it will try initiate a fail-back. This option only applies to live servers that are restarting, it is ignored by backup servers.
It is also possible to cause failover to occur on normal server shutdown, to enable
this set the following property to true in the hornetq-configuration.xml
configuration file like so:
<failover-on-shutdown>true</failover-on-shutdown>
By default this is set to false, if by some chance you have set this to false but still want to stop the server normally and cause failover then you can do this by using the management API as explained at Section 30.1.1.1, “Core Server Management”
You can also force the running live server to shutdown when the old live server comes back up allowing
the original live server to take over automatically by setting the following property in the
hornetq-configuration.xml
configuration file as follows:
<allow-failback>true</allow-failback>
In replication HA mode you need to set an extra property check-for-live-server
to true
. If set to true, during start-up a live server will first search the cluster for another server using its nodeID. If it finds one, it will contact this server and try to "fail-back". Since this is a remote replication scenario, the "starting live" will have to synchronize its data with the server running with its ID, once they are in sync, it will request the other server (which it assumes it is a back that has assumed its duties) to shutdown for it to take over. This is necessary because otherwise the live server has no means to know whether there was a fail-over or not, and if there was if the server that took its duties is still running or not. To configure this option at your hornetq-configuration.xml
configuration file as follows:
<check-for-live-server>true</check-for-live-server>
HornetQ defines two types of client failover:
Automatic client failover
Application-level client failover
HornetQ also provides 100% transparent automatic reattachment of connections to the same server (e.g. in case of transient network problems). This is similar to failover, except it is reconnecting to the same server and is discussed in Chapter 34, Client Reconnection and Session Reattachment
During failover, if the client has consumers on any non persistent or temporary queues, those queues will be automatically recreated during failover on the backup node, since the backup node will not have any knowledge of non persistent queues.
HornetQ clients can be configured to receive knowledge of all live and backup servers, so that in event of connection failure at the client - live server connection, the client will detect this and reconnect to the backup server. The backup server will then automatically recreate any sessions and consumers that existed on each connection before failover, thus saving the user from having to hand-code manual reconnection logic.
HornetQ clients detect connection failure when it has not received packets from
the server within the time given by client-failure-check-period
as explained in section Chapter 17, Detecting Dead Connections. If the client does not
receive data in good time, it will assume the connection has failed and attempt
failover. Also if the socket is closed by the OS, usually if the server process is
killed rather than the machine itself crashing, then the client will failover straight away.
HornetQ clients can be configured to discover the list of live-backup server groups in a number of different ways. They can be configured explicitly or probably the most common way of doing this is to use server discovery for the client to automatically discover the list. For full details on how to configure server discovery, please see Chapter 38, Clusters. Alternatively, the clients can explicitly connect to a specific server and download the current servers and backups see Chapter 38, Clusters.
To enable automatic client failover, the client must be configured to allow non-zero reconnection attempts (as explained in Chapter 34, Client Reconnection and Session Reattachment).
By default failover will only occur after at least one connection has been made to the live server. In other words, by default, failover will not occur if the client fails to make an initial connection to the live server - in this case it will simply retry connecting to the live server according to the reconnect-attempts property and fail after this number of attempts.
Since the client does not learn about the full topology until after the first
connection is made there is a window where it does not know about the backup. If a failure happens at
this point the client can only try reconnecting to the original live server. To configure
how many attempts the client will make you can set the property initialConnectAttempts
on the ClientSessionFactoryImpl
or HornetQConnectionFactory
or
initial-connect-attempts
in xml. The default for this is 0
, that
is try only once. Once the number of attempts has been made an exception will be thrown.
For examples of automatic failover with transacted and non-transacted JMS sessions, please see Section 11.1.81, “Transaction Failover” and Section 11.1.47, “Non-Transaction Failover With Server Data Replication”.
HornetQ does not replicate full server state between live and backup servers. When the new session is automatically recreated on the backup it won't have any knowledge of messages already sent or acknowledged in that session. Any in-flight sends or acknowledgements at the time of failover might also be lost.
By replicating full server state, theoretically we could provide a 100% transparent seamless failover, which would avoid any lost messages or acknowledgements, however this comes at a great cost: replicating the full server state (including the queues, session, etc.). This would require replication of the entire server state machine; every operation on the live server would have to replicated on the replica server(s) in the exact same global order to ensure a consistent replica state. This is extremely hard to do in a performant and scalable way, especially when one considers that multiple threads are changing the live server state concurrently.
It is possible to provide full state machine replication using techniques such as virtual synchrony, but this does not scale well and effectively serializes all operations to a single thread, dramatically reducing concurrency.
Other techniques for multi-threaded active replication exist such as replicating lock states or replicating thread scheduling but this is very hard to achieve at a Java level.
Consequently it has decided it was not worth massively reducing performance and concurrency for the sake of 100% transparent failover. Even without 100% transparent failover, it is simple to guarantee once and only once delivery, even in the case of failure, by using a combination of duplicate detection and retrying of transactions. However this is not 100% transparent to the client code.
If the client code is in a blocking call to the server, waiting for a response to continue its execution, when failover occurs, the new session will not have any knowledge of the call that was in progress. This call might otherwise hang for ever, waiting for a response that will never come.
To prevent this, HornetQ will unblock any blocking calls that were in progress
at the time of failover by making them throw a javax.jms.JMSException
(if using JMS), or a HornetQException
with error code HornetQException.UNBLOCKED
. It is up to the client code to catch
this exception and retry any operations if desired.
If the method being unblocked is a call to commit(), or prepare(), then the
transaction will be automatically rolled back and HornetQ will throw a javax.jms.TransactionRolledBackException
(if using JMS), or a
HornetQException
with error code HornetQException.TRANSACTION_ROLLED_BACK
if using the core
API.
If the session is transactional and messages have already been sent or acknowledged in the current transaction, then the server cannot be sure that messages sent or acknowledgements have not been lost during the failover.
Consequently the transaction will be marked as rollback-only, and any
subsequent attempt to commit it will throw a javax.jms.TransactionRolledBackException
(if using JMS), or a
HornetQException
with error code HornetQException.TRANSACTION_ROLLED_BACK
if using the core
API.
The caveat to this rule is when XA is used either via JMS or through the core API.
If 2 phase commit is used and prepare has already been called then rolling back could
cause a HeuristicMixedException
. Because of this the commit will throw
a XAException.XA_RETRY
exception. This informs the Transaction Manager
that it should retry the commit at some later point in time, a side effect of this is
that any non persistent messages will be lost. To avoid this use persistent
messages when using XA. With acknowledgements this is not an issue since they are
flushed to the server before prepare gets called.
It is up to the user to catch the exception, and perform any client side local rollback code as necessary. There is no need to manually rollback the session - it is already rolled back. The user can then just retry the transactional operations again on the same session.
HornetQ ships with a fully functioning example demonstrating how to do this, please see Section 11.1.81, “Transaction Failover”
If failover occurs when a commit call is being executed, the server, as previously described, will unblock the call to prevent a hang, since no response will come back. In this case it is not easy for the client to determine whether the transaction commit was actually processed on the live server before failure occurred.
If XA is being used either via JMS or through the core API then an XAException.XA_RETRY
is thrown. This is to inform Transaction Managers that a retry should occur at some point. At
some later point in time the Transaction Manager will retry the commit. If the original
commit has not occurred then it will still exist and be committed, if it does not exist
then it is assumed to have been committed although the transaction manager may log a warning.
To remedy this, the client can simply enable duplicate detection (Chapter 37, Duplicate Message Detection) in the transaction, and retry the transaction operations again after the call is unblocked. If the transaction had indeed been committed on the live server successfully before failover, then when the transaction is retried, duplicate detection will ensure that any durable messages resent in the transaction will be ignored on the server to prevent them getting sent more than once.
By catching the rollback exceptions and retrying, catching unblocked calls and enabling duplicate detection, once and only once delivery guarantees for messages can be provided in the case of failure, guaranteeing 100% no loss or duplication of messages.
If the session is non transactional, messages or acknowledgements can be lost in the event of failover.
If you wish to provide once and only once delivery guarantees for non transacted sessions too, enabled duplicate detection, and catch unblock exceptions as described in Section 39.2.1.3, “Handling Blocking Calls During Failover”
JMS provides a standard mechanism for getting notified asynchronously of
connection failure: java.jms.ExceptionListener
. Please consult
the JMS javadoc or any good JMS tutorial for more information on how to use
this.
The HornetQ core API also provides a similar feature in the form of the class
org.hornet.core.client.SessionFailureListener
Any ExceptionListener or SessionFailureListener instance will always be called by
HornetQ on event of connection failure, irrespective of whether the connection was successfully failed over,
reconnected or reattached, however you can find out if reconnect or reattach has happened
by either the failedOver
flag passed in on the connectionFailed
on SessionfailureListener
or by inspecting the error code on the
javax.jms.JMSException
which will be one of the following:
Table 39.1. JMSException error codes
error code | Description |
---|---|
FAILOVER | Failover has occurred and we have successfully reattached or reconnected. |
DISCONNECT | No failover has occurred and we are disconnected. |
In some cases you may not want automatic client failover, and prefer to handle any connection failure yourself, and code your own manually reconnection logic in your own failure handler. We define this as application-level failover, since the failover is handled at the user application level.
To implement application-level failover, if you're using JMS then you need to set
an ExceptionListener
class on the JMS connection. The ExceptionListener
will be called by HornetQ in the event that
connection failure is detected. In your ExceptionListener
, you
would close your old JMS connections, potentially look up new connection factory
instances from JNDI and creating new connections. In this case you may well be using
HA-JNDI
to ensure that the new connection factory is looked up from a different
server.
For a working example of application-level failover, please see Section 11.1.3, “Application-Layer Failover”.
If you are using the core API, then the procedure is very similar: you would set a
FailureListener
on the core ClientSession
instances.
