3.2.3.4. The Attributes

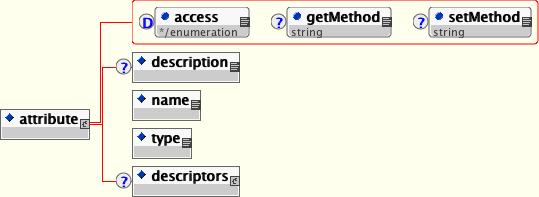

The attribute element(s) specifies the management attributes exposed by the MBean. The attribute element and its content model are shown in Figure 3.9, “The XMBean attribute element and its content model”.

The XMBean attribute element and its content model

Figure 3.9. The XMBean attribute element and its content model


The attribute element supported attributes include:

  • access : The optional access attribute defines the read/write access modes of an attribute. It must be one of:

    • read-only : The attribute may only be read.

    • write-only : The attribute may only be written.

    • read-write : The attribute is both readable and writable. This is the implied default.

  • getMethod : The getMethod attribute defines the name of the method which reads the named attribute. This must be specified if the managed attribute should be obtained from the MBean instance.

  • setMethod : The setMethod attribute defines the name of the method which writes the named attribute. This must be specified if the managed attribute should be obtained from the MBean instance.

The key child elements of the attribute element include:

  • description : A description of the attribute.

  • name : The name of the attribute as would be used in the MBeanServer.getAttribute() operation.

  • type : The fully qualified class name of the attribute type.

  • descriptors : Any additional descriptors that affect the attribute persistence, caching, default value, etc.
