8.3.1. Enabling Declarative Security in JBoss Revisited

Earlier in this chapter, the discussion of the J2EE standard security model ended with a requirement for the use of JBoss server-specific deployment descriptor to enable security. The details of this configuration are presented here. Figure 8.10, “The security element subsets of the JBoss server jboss.xml and jboss-web.xml deployment descriptors.” shows the JBoss-specific EJB and web application deployment descriptor's security-related elements.

The security element subsets of the JBoss server jboss.xml and jboss-web.xml deployment descriptors.

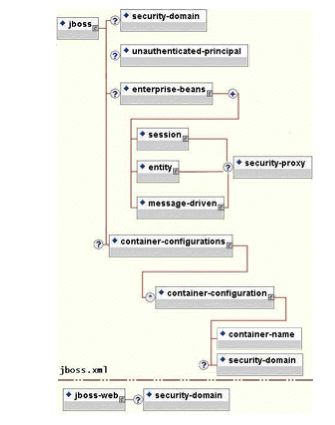

Figure 8.10. The security element subsets of the JBoss server jboss.xml and jboss-web.xml deployment descriptors.

The value of a security-domain element specifies the JNDI name of the security manager interface implementation that JBoss uses for the EJB and web containers. This is an object that implements both of the AuthenticationManager and RealmMapping interfaces. When specified as a top-level element it defines what security domain in effect for all EJBs in the deployment unit. This is the typical usage because mixing security managers within a deployment unit complicates inter-component operation and administration.

To specify the security domain for an individual EJB, you specify the security-domain at the container configuration level. This will override any top-level security-domain element.

The unauthenticated-principal element specifies the name to use for the Principal object returned by the EJBContext.getUserPrincipal method when an unauthenticated user invokes an EJB. Note that this conveys no special permissions to an unauthenticated caller. Its primary purpose is to allow unsecured servlets and JSP pages to invoke unsecured EJBs and allow the target EJB to obtain a non-null Principal for the caller using the getUserPrincipal method. This is a J2EE specification requirement.

The security-proxy element identifies a custom security proxy implementation that allows per-request security checks outside the scope of the EJB declarative security model without embedding security logic into the EJB implementation. This may be an implementation of the org.jboss.security.SecurityProxy interface, or just an object that implements methods in the home, remote, local home or local interfaces of the EJB to secure without implementing any common interface. If the given class does not implement the SecurityProxy interface, the instance must be wrapped in a SecurityProxy implementation that delegates the method invocations to the object. The org.jboss.security.SubjectSecurityProxy is an example SecurityProxy implementation used by the default JBossSX installation.

Take a look at a simple example of a custom SecurityProxy in the context of a trivial stateless session bean. The custom SecurityProxy validates that no one invokes the bean's echo method with a four-letter word as its argument. This is a check that is not possible with role-based security; you cannot define a FourLetterEchoInvoker role because the security context is the method argument, not a property of the caller. The code for the custom SecurityProxy is given in Example 8.7, “The example 1 custom EchoSecurityProxy implementation that enforces the echo argument-based security constraint.”, and the full source code is available in the src/main/org/jboss/book/security/ex1 directory of the book examples.

package org.jboss.book.security.ex1;
import java.lang.reflect.Method;
import javax.ejb.EJBContext;
import org.apache.log4j.Category;
import org.jboss.security.SecurityProxy;
/** A simple example of a custom SecurityProxy implementation
 *  that demonstrates method argument based security checks.
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.12 $
public class EchoSecurityProxy implements SecurityProxy
    Category log = Category.getInstance(EchoSecurityProxy.class);
    Method echo;
    public void init(Class beanHome, Class beanRemote,
                     Object securityMgr)
        throws InstantiationException
        log.debug("init, beanHome="+beanHome
                  + ", beanRemote="+beanRemote
                  + ", securityMgr="+securityMgr);
        // Get the echo method for equality testing in invoke
        try {
            Class[] params = {String.class};
            echo = beanRemote.getDeclaredMethod("echo", params);
        } catch(Exception e) {
            String msg = "Failed to finde an echo(String) method";
            log.error(msg, e);
            throw new InstantiationException(msg);
    public void setEJBContext(EJBContext ctx)
        log.debug("setEJBContext, ctx="+ctx);
    public void invokeHome(Method m, Object[] args)
        throws SecurityException
        // We don't validate access to home methods

    public void invoke(Method m, Object[] args, Object bean)
        throws SecurityException
        log.debug("invoke, m="+m);
        // Check for the echo method
        if (m.equals(echo)) {
            // Validate that the msg arg is not 4 letter word
            String arg = (String) args[0];
            if (arg == null || arg.length() == 4)
                throw new SecurityException("No 4 letter words");
        // We are not responsible for doing the invoke

Example 8.7. The example 1 custom EchoSecurityProxy implementation that enforces the echo argument-based security constraint.

The EchoSecurityProxy checks that the method to be invoked on the bean instance corresponds to the echo(String) method loaded the init method. If there is a match, the method argument is obtained and its length compared against 4 or null. Either case results in a SecurityException being thrown. Certainly this is a contrived example, but only in its application. It is a common requirement that applications must perform security checks based on the value of method arguments. The point of the example is to demonstrate how custom security beyond the scope of the standard declarative security model can be introduced independent of the bean implementation. This allows the specification and coding of the security requirements to be delegated to security experts. Since the security proxy layer can be done independent of the bean implementation, security can be changed to match the deployment environment requirements.

The associated jboss.xml descriptor that installs the EchoSecurityProxy as the custom proxy for the EchoBean is given in Example 8.8, “The jboss.xml descriptor, which configures the EchoSecurityProxy as the custom security proxy for the EchoBean.”.


Example 8.8. The jboss.xml descriptor, which configures the EchoSecurityProxy as the custom security proxy for the EchoBean.

Now test the custom proxy by running a client that attempts to invoke the EchoBean.echo method with the arguments Hello and Four as illustrated in this fragment:

public class ExClient
    public static void main(String args[])
        throws Exception
        Logger log = Logger.getLogger("ExClient");
        log.info("Looking up EchoBean");

        InitialContext iniCtx = new InitialContext();
        Object ref = iniCtx.lookup("EchoBean");
        EchoHome home = (EchoHome) ref;
        Echo echo = home.create();

        log.info("Created Echo");
        log.info("Echo.echo('Hello') = "+echo.echo("Hello"));
        log.info("Echo.echo('Four') = "+echo.echo("Four"));

The first call should succeed, while the second should fail due to the fact that Four is a four-letter word. Run the client as follows using Ant from the examples directory:

[examples]$ ant -Dchap=security -Dex=1 run-example
     [echo] Waiting for 5 seconds for deploy...
     [java] [INFO,ExClient] Looking up EchoBean
     [java] [INFO,ExClient] Created Echo
     [java] [INFO,ExClient] Echo.echo('Hello') = Hello
     [java] Exception in thread "main" java.rmi.AccessException: SecurityException; nested exception is:
     [java]     java.lang.SecurityException: No 4 letter words
     [java] Caused by: java.lang.SecurityException: No 4 letter words

The result is that the echo('Hello') method call succeeds as expected and the echo('Four') method call results in a rather messy looking exception, which is also expected. The above output has been truncated to fit in the book. The key part to the exception is that the SecurityException("No 4 letter words") generated by the EchoSecurityProxy was thrown to abort the attempted method invocation as desired.
