This section describes TxCore and Transactional Objects for Java (TXOJ) in more detail, and shows how to use TxCore to construct transactional applications.
TxCore needs to be able to remember the state of an object for several purposes, including recovery (the state represents some past state of the object), and for persistence (the state represents the final state of an object at application termination). Since all of these requirements require common functionality they are all implemented using the same mechanism - the classes Input/OutputObjectState and Input/OutputBuffer.
Example 3.1. OutputBuffer and InputBuffer
public class OutputBuffer
{
public OutputBuffer ();
public final synchronized boolean valid ();
public synchronized byte[] buffer();
public synchronized int length ();
/* pack operations for standard Java types */
public synchronized void packByte (byte b) throws IOException;
public synchronized void packBytes (byte[] b) throws IOException;
public synchronized void packBoolean (boolean b) throws IOException;
public synchronized void packChar (char c) throws IOException;
public synchronized void packShort (short s) throws IOException;
public synchronized void packInt (int i) throws IOException;
public synchronized void packLong (long l) throws IOException;
public synchronized void packFloat (float f) throws IOException;
public synchronized void packDouble (double d) throws IOException;
public synchronized void packString (String s) throws IOException;
};
public class InputBuffer
{
public InputBuffer ();
public final synchronized boolean valid ();
public synchronized byte[] buffer();
public synchronized int length ();
/* unpack operations for standard Java types */
public synchronized byte unpackByte () throws IOException;
public synchronized byte[] unpackBytes () throws IOException;
public synchronized boolean unpackBoolean () throws IOException;
public synchronized char unpackChar () throws IOException;
public synchronized short unpackShort () throws IOException;
public synchronized int unpackInt () throws IOException;
public synchronized long unpackLong () throws IOException;
public synchronized float unpackFloat () throws IOException;
public synchronized double unpackDouble () throws IOException;
public synchronized String unpackString () throws IOException;
};
The InputBuffer and OutputBuffer classes maintain an internal
array into which instances of the standard Java types can be contiguously packed or unpacked, using the
pack or unpack operations. This buffer is automatically
resized as required should it have insufficient space. The instances are all stored in the buffer in a
standard form called network byte order to make them machine independent.
Example 3.2. OutputObjectState and InputObjectState
class OutputObjectState extends OutputBuffer
{
public OutputObjectState (Uid newUid, String typeName);
public boolean notempty ();
public int size ();
public Uid stateUid ();
public String type ();
};
class InputObjectState extends InputBuffer
{
public OutputObjectState (Uid newUid, String typeName, byte[] b);
public boolean notempty ();
public int size ();
public Uid stateUid ();
public String type ();
};
The InputObjectState and OutputObjectState classes provides all
the functionality of InputBuffer and OutputBuffer, through
inheritance, and add two additional instance variables that signify the Uid and type of the object for which
the InputObjectStat or OutputObjectState instance is a
compressed image. These are used when accessing the object store during storage and retrieval of the object
state.
The object store provided with TxCore deliberately has a fairly restricted interface so that it can be implemented in a variety of ways. For example, object stores are implemented in shared memory, on the Unix file system (in several different forms), and as a remotely accessible store. More complete information about the object stores available in TxCore can be found in the Appendix.
Note
As with all TxCore classes, the default object stores are pure Java implementations. to access the shared memory and other more complex object store implementations, you need to use native methods.
All of the object stores hold and retrieve instances of the class InputObjectState or
OutputObjectState. These instances are named by the Uid and Type of the object that they
represent. States are read using the read_committed operation and written by the system
using the write_uncommitted operation. Under normal operation new object states do not
overwrite old object states but are written to the store as shadow copies. These shadows replace the original
only when the commit_state operation is invoked. Normally all interaction with the
object store is performed by TxCore system components as appropriate thus the existence of any shadow versions
of objects in the store are hidden from the programmer.
Example 3.3. StateStatus
public StateStatus
{
public static final int OS_COMMITTED;
public static final int OS_UNCOMMITTED;
public static final int OS_COMMITTED_HIDDEN;
public static final int OS_UNCOMMITTED_HIDDEN;
public static final int OS_UNKNOWN;
}
Example 3.4. ObjectStore
public abstract class ObjectStore
{
/* The abstract interface */
public abstract boolean commit_state (Uid u, String name)
throws ObjectStoreException;
public abstract InputObjectState read_committed (Uid u, String name)
throws ObjectStoreException;
public abstract boolean write_uncommitted (Uid u, String name,
OutputObjectState os) throws ObjectStoreException;
. . .
};
When a transactional object is committing, it must make certain state changes persistent, so it can recover in
the event of a failure and either continue to commit, or rollback. When using TXOJ,
TxCore will take care of this automatically. To guarantee ACID properties, these state
changes must be flushed to the persistence store implementation before the transaction can proceed to
commit. Otherwise, the application may assume that the transaction has committed when in fact the state changes
may still reside within an operating system cache, and may be lost by a subsequent machine failure. By default,
TxCore ensures that such state changes are flushed. However, doing so can impose a significant performance
penalty on the application.
To prevent transactional object state flushes, set the
ObjectStoreEnvironmentBean.objectStoreSync variable to OFF.
TxCore comes with support for several different object store implementations. The Appendix
describes these implementations, how to select and configure a given implementation on a per-object basis using
the ObjectStoreEnvironmentBean.objectStoreType property variable, and indicates how
additional implementations can be provided.
The TxCore class StateManager manages the state of an object and provides all of the
basic support mechanisms required by an object for state management
purposes. StateManager is responsible for creating and registering appropriate
resources concerned with the persistence and recovery of the transactional object. If a transaction is nested,
then StateManager will also propagate these resources between child transactions and
their parents at commit time.
Objects are assumed to be of three possible flavors.
Three Flavors of Objects
- Recoverable
StateManagerattempts to generate and maintain appropriate recovery information for the object. Such objects have lifetimes that do not exceed the application program that creates them.- Recoverable and Persistent
The lifetime of the object is assumed to be greater than that of the creating or accessing application, so that in addition to maintaining recovery information,
StateManagerattempts to automatically load or unload any existing persistent state for the object by calling theactivateordeactivateoperation at appropriate times.- Neither Recoverable nor Persistent
No recovery information is ever kept, nor is object activation or deactivation ever automatically attempted.
This object property is selected at object construction time and cannot be changed thereafter. Thus an object cannot gain (or lose) recovery capabilities at some arbitrary point during its lifetime.
Example 3.5. Object Store Implementation Using StateManager
public class ObjectStatus
{
public static final int PASSIVE;
public static final int PASSIVE_NEW;
public static final int ACTIVE;
public static final int ACTIVE_NEW;
public static final int UNKNOWN_STATUS;
};
public class ObjectType
{
public static final int RECOVERABLE;
public static final int ANDPERSISTENT;
public static final int NEITHER;
};
public abstract class StateManager
{
public synchronized boolean activate ();
public synchronized boolean activate (String storeRoot);
public synchronized boolean deactivate ();
public synchronized boolean deactivate (String storeRoot, boolean commit);
public synchronized void destroy ();
public final Uid get_uid ();
public boolean restore_state (InputObjectState, int ObjectType);
public boolean save_state (OutputObjectState, int ObjectType);
public String type ();
. . .
protected StateManager ();
protected StateManager (int ObjectType, int objectModel);
protected StateManager (Uid uid);
protected StateManager (Uid uid, int objectModel);
. . .
protected final void modified ();
. . .
};
public class ObjectModel
{
public static final int SINGLE;
public static final int MULTIPLE;
};
If an object is recoverable or persistent, StateManager will invoke the operations
save_state (while performing deactivation), restore_state
(while performing activation), and type at various points during the execution of the
application. These operations must be implemented by the programmer since StateManager
does not have access to a runtime description of the layout of an arbitrary Java object in memory and thus
cannot implement a default policy for converting the in memory version of the object to its passive
form. However, the capabilities provided by InputObjectState and
OutputObjectState make the writing of these routines fairly simple. For example, the
save_state implementation for a class Example that had member
variables called A, B, and C could simply be Example 3.6, “Example Implementation of Methods for StateManager”.
Example 3.6. Example Implementation of Methods for StateManager
public boolean save_state ( OutputObjectState os, int ObjectType )
{
if (!super.save_state(os, ObjectType))
return false;
try
{
os.packInt(A);
os.packString(B);
os.packFloat(C);
return true;
}
catch (IOException e)
{
return false;
}
}
In order to support crash recovery for persistent objects, all save_state and
restore_state methods of user objects must call
super.save_state and super.restore_state.
Note
The type method is used to determine the location in the object store where the
state of instances of that class will be saved and ultimately restored. This location can actually be any
valid string. However, you should avoid using the hash character (#) as this is reserved for special
directories that TxCore requires.
The get_uid operation of StateManager provides read-only
access to an object’s internal system name for whatever purpose the programmer requires, such as registration
of the name in a name server. The value of the internal system name can only be set when an object is
initially constructed, either by the provision of an explicit parameter or by generating a new identifier when
the object is created.
The destroy method can be used to remove the object’s state from the object
store. This is an atomic operation, and therefore will only remove the state if the top-level transaction
within which it is invoked eventually commits. The programmer must obtain exclusive access to the object prior
to invoking this operation.
Since object recovery and persistence essentially have complimentary requirements (the only difference being
where state information is stored and for what purpose), StateManager effectively
combines the management of these two properties into a single mechanism. It uses instances of the classes
InputObjectState and OutputObjectState both for recovery and
persistence purposes. An additional argument passed to the save_state and
restore_state operations allows the programmer to determine the purpose for which any
given invocation is being made. This allows different information to be saved for recovery and persistence
purposes.
TxCore supports two models for objects, which affect how an objects state and concurrency control are implemented.
TxCore Object Models
- Single
Only a single copy of the object exists within the application. This copy resides within a single JVM, and all clients must address their invocations to this server. This model provides better performance, but represents a single point of failure, and in a multi-threaded environment may not protect the object from corruption if a single thread fails.

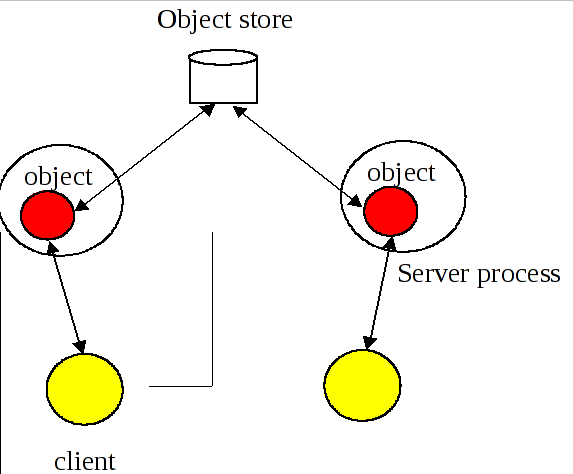

- Multiple
Logically, a single instance of the object exists, but copies of it are distributed across different JVMs. The performance of this model is worse than the SINGLE model, but it provides better failure isolation.
The default model is SINGLE. The programmer can override this on a per-object basis by using the appropriate constructor.
In summary, the TxCore class StateManager manages the state of an object and provides
all of the basic support mechanisms required by an object for state management purposes. Some operations must
be defined by the class developer. These operations are: save_state,
restore_state, and type.
- boolean
save_state(OutputObjectStatestate, intObjectType) Invoked whenever the state of an object might need to be saved for future use, primarily for recovery or persistence purposes. The
ObjectTypeparameter indicates the reason thatsave_statewas invoked by TxCore. This enables the programmer to save different pieces of information into theOutputObjectStatesupplied as the first parameter depending upon whether the state is needed for recovery or persistence purposes. For example, pointers to other TxCore objects might be saved simply as pointers for recovery purposes but as Uids for persistence purposes. As shown earlier, theOutputObjectStateclass provides convenient operations to allow the saving of instances of all of the basic types in Java. In order to support crash recovery for persistent objects it is necessary for allsave_statemethods to callsuper.save_state.save_stateassumes that an object is internally consistent and that all variables saved have valid values. It is the programmer's responsibility to ensure that this is the case.- boolean
restore_state(InputObjectStatestate, intObjectType) Invoked whenever the state of an object needs to be restored to the one supplied. Once again the second parameter allows different interpretations of the supplied state. In order to support crash recovery for persistent objects it is necessary for all
restore_statemethods to callsuper.restore_state.- String
type() The TxCore persistence mechanism requires a means of determining the type of an object as a string so that it can save or restore the state of the object into or from the object store. By convention this information indicates the position of the class in the hierarchy. For example,
/StateManager/LockManager/Object.The
typemethod is used to determine the location in the object store where the state of instances of that class will be saved and ultimately restored. This can actually be any valid string. However, you should avoid using the hash character (#) as this is reserved for special directories that TxCore requires.
Consider the following basic Array class derived from the
StateManager class. In this example, to illustrate saving and restoring of an object’s
state, the highestIndex variable is used to keep track of the highest element of the array
that has a non-zero value.
Example 3.7. Array Class
public class Array extends StateManager
{
public Array ();
public Array (Uid objUid);
public void finalize ( super.terminate(); };
/* Class specific operations. */
public boolean set (int index, int value);
public int get (int index);
/* State management specific operations. */
public boolean save_state (OutputObjectState os, int ObjectType);
public boolean restore_state (InputObjectState os, int ObjectType);
public String type ();
public static final int ARRAY_SIZE = 10;
private int[] elements = new int[ARRAY_SIZE];
private int highestIndex;
};
The save_state, restore_state and type operations can be defined as follows:
/* Ignore ObjectType parameter for simplicity */
public boolean save_state (OutputObjectState os, int ObjectType)
{
if (!super.save_state(os, ObjectType))
return false;
try
{
packInt(highestIndex);
/*
* Traverse array state that we wish to save. Only save active elements
*/
for (int i = 0; i <= highestIndex; i++)
os.packInt(elements[i]);
return true;
}
catch (IOException e)
{
return false;
}
}
public boolean restore_state (InputObjectState os, int ObjectType)
{
if (!super.restore_state(os, ObjectType))
return false;
try
{
int i = 0;
highestIndex = os.unpackInt();
while (i < ARRAY_SIZE)
{
if (i <= highestIndex)
elements[i] = os.unpackInt();
else
elements[i] = 0;
i++;
}
return true;
}
catch (IOException e)
{
return false;
}
}
public String type ()
{
return "/StateManager/Array";
}
Concurrency control information within TxCore is maintained by locks. Locks which are required to be shared between objects in different processes may be held within a lock store, similar to the object store facility presented previously. The lock store provided with TxCore deliberately has a fairly restricted interface so that it can be implemented in a variety of ways. For example, lock stores are implemented in shared memory, on the Unix file system (in several different forms), and as a remotely accessible store. More information about the object stores available in TxCore can be found in the Appendix.
Note
As with all TxCore classes, the default lock stores are pure Java implementations. To access the shared memory and other more complex lock store implementations it is necessary to use native methods.
Example 3.8. LockStore
public class LockStore
{
public abstract InputObjectState read_state (Uid u, String tName)
throws LockStoreException;
public abstract boolean remove_state (Uid u, String tname);
public abstract boolean write_committed (Uid u, String tName,
OutputObjectState state);
};
TxCore comes with support for several different object store implementations. If the object model being used is
SINGLE, then no lock store is required for maintaining locks, since the information about the object is not
exported from it. However, if the MULTIPLE model is used, then different run-time environments (processes, Java
virtual machines) may need to share concurrency control information. The implementation type of the lock store
to use can be specified for all objects within a given execution environment using the
TxojEnvironmentBean.lockStoreType property variable. Currently this can have one of the
following values:
- BasicLockStore
This is an in-memory implementation which does not, by default, allow sharing of stored information between execution environments. The application programmer is responsible for sharing the store information.
- BasicPersistentLockStore
This is the default implementation, and stores locking information within the local file system. Therefore execution environments that share the same file store can share concurrency control information. The root of the file system into which locking information is written is the
LockStoredirectory within the TxCore installation directory. You can override this at runtime by setting theTxojEnvironmentBean.lockStoreDirproperty variable accordingly, or placing the location within theCLASSPATH.java -D TxojEnvironmentBean.lockStoreDir=/var/tmp/LockStore myprogram
java –classpath $CLASSPATH;/var/tmp/LockStore myprogram
If neither of these approaches is taken, then the default location will be at the same level as the
etcdirectory of the installation.
The concurrency controller is implemented by the class LockManager, which provides
sensible default behavior, while allowing the programmer to override it if deemed necessary by the particular
semantics of the class being programmed. The primary programmer interface to the concurrency controller is via
the setlock operation. By default, the TxCore runtime system enforces strict two-phase
locking following a multiple reader, single writer policy on a per object basis. Lock acquisition is under
programmer control, since just as StateManager cannot determine if an operation modifies
an object, LockManager cannot determine if an operation requires a read or write
lock. Lock release, however, is normally under control of the system and requires no further intervention by the
programmer. This ensures that the two-phase property can be correctly maintained.
The LockManager class is primarily responsible for managing requests to set a lock on an
object or to release a lock as appropriate. However, since it is derived from
StateManager, it can also control when some of the inherited facilities are invoked. For
example, if a request to set a write lock is granted, then LockManager invokes modified
directly assuming that the setting of a write lock implies that the invoking operation must be about to modify
the object. This may in turn cause recovery information to be saved if the object is recoverable. In a similar
fashion, successful lock acquisition causes activate to be invoked.
Therefore, LockManager is directly responsible for activating and deactivating persistent
objects, as well as registering Resources for managing concurrency control. By driving
the StateManager class, it is also responsible for registering
Resources for persistent or recoverable state manipulation and object recovery. The
application programmer simply sets appropriate locks, starts and ends transactions, and extends the
save_state and restore_state methods of
StateManager.
Example 3.9. LockResult
public class LockResult
{
public static final int GRANTED;
public static final int REFUSED;
public static final int RELEASED;
};
public class ConflictType
{
public static final int CONFLICT;
public static final int COMPATIBLE;
public static final int PRESENT;
};
public abstract class LockManager extends StateManager
{
public static final int defaultTimeout;
public static final int defaultRetry;
public static final int waitTotalTimeout;
public synchronized int setlock (Lock l);
public synchronized int setlock (Lock l, int retry);
public synchronized int setlock (Lock l, int retry, int sleepTime);
public synchronized boolean releaselock (Uid uid);
/* abstract methods inherited from StateManager */
public boolean restore_state (InputObjectState os, int ObjectType);
public boolean save_state (OutputObjectState os, int ObjectType);
public String type ();
protected LockManager ();
protected LockManager (int ObjectType, int objectModel);
protected LockManager (Uid storeUid);
protected LockManager (Uid storeUid, int ObjectType, int objectModel);
. . .
};
The setlock operation must be parametrized with the type of lock required (READ or
WRITE), and the number of retries to acquire the lock before giving up. If a lock conflict occurs, one of the
following scenarios will take place:
If the retry value is equal to
LockManager.waitTotalTimeout, then the thread which calledsetlockwill be blocked until the lock is released, or the total timeout specified has elapsed, and in whichREFUSEDwill be returned.If the lock cannot be obtained initially then
LockManagerwill try for the specified number of retries, waiting for the specified timeout value between each failed attempt. The default is 100 attempts, each attempt being separated by a 0.25 seconds delay. The time between retries is specified in micro-seconds.If a lock conflict occurs the current implementation simply times out lock requests, thereby preventing deadlocks, rather than providing a full deadlock detection scheme. If the requested lock is obtained, the
setlockoperation will return the value GRANTED, otherwise the valueREFUSEDis returned. It is the responsibility of the programmer to ensure that the remainder of the code for an operation is only executed if a lock request is granted. Below are examples of the use of the setlock operation.
Example 3.10. setlock Method Usage
res = setlock(new Lock(WRITE), 10); // Will attempt to set a
// write lock 11 times (10
// retries) on the object
// before giving up.
res = setlock(new Lock(READ), 0); // Will attempt to set a read
// lock 1 time (no retries) on
// the object before giving up.
res = setlock(new Lock(WRITE); // Will attempt to set a write
// lock 101 times (default of
// 100 retries) on the object
// before giving up.
The concurrency control mechanism is integrated into the atomic action mechanism, thus ensuring that as locks
are granted on an object appropriate information is registered with the currently running atomic action to
ensure that the locks are released at the correct time. This frees the programmer from the burden of explicitly
freeing any acquired locks if they were acquired within atomic actions. However, if locks are acquired on an
object outside of the scope of an atomic action, it is the programmer's responsibility to release the locks when
required, using the corresponding releaselock operation.
Unlike many other systems, locks in TxCore are not special system types. Instead they are simply instances of
other TxCore objects (the class Lock which is also derived from
StateManager so that locks may be made persistent if required and can also be named in a
simple fashion). Furthermore, LockManager deliberately has no knowledge of the semantics
of the actual policy by which lock requests are granted. Such information is maintained by the actual
Lock class instances which provide operations (the conflictsWith
operation) by which LockManager can determine if two locks conflict or not. This
separation is important in that it allows the programmer to derive new lock types from the basic
Lock class and by providing appropriate definitions of the conflict operations enhanced
levels of concurrency may be possible.
Example 3.11. LockMode Class
public class LockMode
{
public static final int READ;
public static final int WRITE;
};
public class LockStatus
{
public static final int LOCKFREE;
public static final int LOCKHELD;
public static final int LOCKRETAINED;
};
public class Lock extends StateManager
{
public Lock (int lockMode);
public boolean conflictsWith (Lock otherLock);
public boolean modifiesObject ();
public boolean restore_state (InputObjectState os, int ObjectType);
public boolean save_state (OutputObjectState os, int ObjectType);
public String type ();
. . .
};
The Lock class provides a modifiesObject operation which
LockManager uses to determine if granting this locking request requires a call on
modified. This operation is provided so that locking modes other than simple read and write can be
supported. The supplied Lock class supports the traditional multiple reader/single writer
policy.
Recall that TxCore objects can be recoverable, recoverable and persistent, or neither. Additionally each object
possesses a unique internal name. These attributes can only be set when that object is constructed. Thus
LockManager provides two protected constructors for use by derived classes, each of which
fulfills a distinct purpose
Protected Constructors Provided by LockManager
LockManager ()This constructor allows the creation of new objects, having no prior state.
LockManager(intObjectType, intobjectModel)As above, this constructor allows the creation of new objects having no prior state. exist. The
ObjectTypeparameter determines whether an object is simply recoverable (indicated byRECOVERABLE), recoverable and persistent (indicated byANDPERSISTENT), or neither (indicated byNEITHER). If an object is marked as being persistent then the state of the object will be stored in one of the object stores. The shared parameter only has meaning if it isRECOVERABLE. If the object model isSINGLE(the default behavior) then the recoverable state of the object is maintained within the object itself, and has no external representation). Otherwise an in-memory (volatile) object store is used to store the state of the object between atomic actions.Constructors for new persistent objects should make use of atomic actions within themselves. This will ensure that the state of the object is automatically written to the object store either when the action in the constructor commits or, if an enclosing action exists, when the appropriate top-level action commits. Later examples in this chapter illustrate this point further.
LockManager(UidobjUid)This constructor allows access to an existing persistent object, whose internal name is given by the
objUidparameter. Objects constructed using this operation will normally have their prior state (identified byobjUid) loaded from an object store automatically by the system.LockManager(UidobjUid, intobjectModel)As above, this constructor allows access to an existing persistent object, whose internal name is given by the
objUidparameter. Objects constructed using this operation will normally have their prior state (identified byobjUid) loaded from an object store automatically by the system. If the object model isSINGLE(the default behavior), then the object will not be reactivated at the start of each top-level transaction.
The destructor of a programmer-defined class must invoke the inherited operation
terminate to inform the state management mechanism that the object is about to be
destroyed. Otherwise, unpredictable results may occur.
