The transaction bridge resides in the package org.jboss.jbossts.txbridge and its subpackages.. It consists of two distinct sets of classes, one for bridging in each direction.

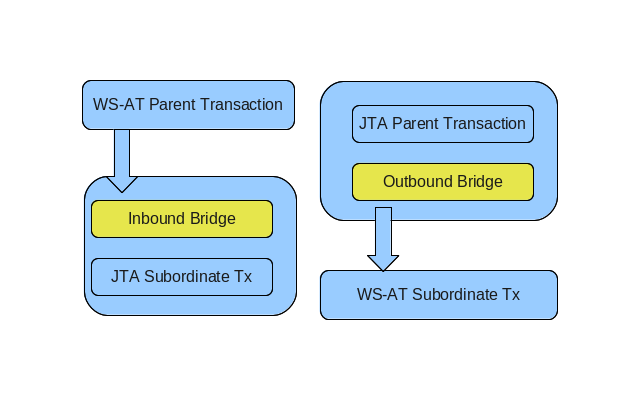

The process of inflowing a WS-AT transaction context on a Web Service call into the container and converting it to a local JTA transaction context such that existing transactional JavaEE code (e.g. EJBs) may be called within its scope, is termed Inbound Transaction Bridging. When using inbound bridging, a parent WS-AT transaction coordinator has a subordinate JTA coordinator interposed into it via the transaction bridge.
The process of outflowing a WS-AT transaction context on a call to a transactional Web Service from a business logic method operating in a JavaEE transaction scope, is termed Outbound Transaction Bridging. When using outbound bridging, a parent JTA transaction coordinator has a subordinate WS-AT coordinator interposed into it via the transaction bridge.
For the purpose of understanding this naming convention, it is simplest to view the JTA as being local to the container in which it operates, whilst the Web Service protocol provides for transaction context propagation between servers. This is an accurate representation of the situation that exists where the local JTA version of JBossTS is being used alongside JBossTS XTS in an application server. However, it is an oversimplification of the situation where the JTS option is used. We will return to this case later.
The design of the inbound and outbound bridges is conceptually very similar. Each provides the following:
A BridgeManager , essentially a factory singleton, providing a means of managing Bridge and resource/participant instances. The chief role of the BridgeManager is to ensure a distinct mapping of a parent transaction context to a single Bridge and resource/participant instance.
A Bridge , which provides Thread to transaction context association and disassociation functions for the subordinate transaction. The Bridge is usually called from the Handler, but may optionally be driven directly.
A Handler , which is registered into the JAX-WS processing pipeline to provide minimally invasive management of Thread to transaction context bindings via the Bridge, an appropriate instance of which it obtains from the BridgeManager. Whilst the bridge provides handlers only for JAX-WS, it's possible to use these as a model for the implementation of JAX-RPC versions if desired.
A VolatileParticipant and DurableParticipant (in the case of the InboundBridge) or Synchronization and XAResource (in the case of the OutboundBridge) which are enlisted into the parent transaction and wrap the Subordinate transaction coordinator, providing mapping of the transaction termination protocol operations.
A RecoveryManager , which is responsible for automatically restoring the state of crashed transactions and allowing them to complete correctly.
The process flow when using the inbound bridge is as follows:
A remote client starts a WS-AT transaction and invokes a transactional Web Service in the scope of that transaction. The inbound WS invocation therefore has SOAP headers containing the WS-AT transaction context. The coordinator used for this transaction is the root coordinator. It may be remote from either or both of the client and the service it is invoking. The client needs access to a WS-AT implementation, but not a JTA or the transaction bridge deployed.
The call arrives at a web service container, which must have JBossTS JTA or JTS, XTS and the transaction bridge deployed. The JAX-WS handler chain for the web service should have both the XTS WS-AT transaction header processor and the inbound bridge handler registered, such that they are invoked in that order.
The transaction header processor takes the WS-AT transaction context from XML, creates a corresponding WS-AT TxContext and associates it to the Thread. The bridge handler calls the InboundBridgeManager to obtain an InboundBridge instance corresponding to the TxContext.
As the BridgeManager is seeing the TxContext for the first time, it creates a new Bridge instance. It also creates a new Bridge VolatileParticipant and DurableParticipant and registers them with the WS-AT transaction coordinator. These Participants wrap a subordinate JTA transaction.
The bridge header processor starts the bridge, which associates the JTA subordinate transaction context to the Thread. At this point the Thread has transaction contexts for both WS-AT and JTA.
The JAX-WS pipeline processing continues, eventually calling whatever business logic is exposed. This may be e.g. an EJB using JSR-181 annotations. The business logic may use the JTA transaction in the normal manner e.g. enlisting Synchronizations and XAResources or performing other transactional activity either directly or though the usual JavaEE abstractions.
On the return path, the bridge header processor disassociates the JTA transaction context from the Thread via the Bridge. The XTS context processor then does likewise for the WS-AT TxContext.
On subsequent web services calls to the same or other web services from the same client, the process is repeated. However, the BridgeManager will, upon seeing the same WS-AT transaction context again, return the existing Bridge instance and not register further Participant instances. This allows substantially better performance than registering one Participant per web service invocation.
Upon transaction termination by the client, the WS-AT transaction coordinator will drive the enlisted bridge Participants through the transaction termination protocol. The Participants maps these calls down to the JTA subtransaction coordinator, which in turn passes them on to any Synchronizations or XAResources enlisted in the transaction. This process is not visible to the business logic, except in so far as it may have registered its own Synchronizations, XAResources or Participants with the transaction.
The process flow when using the outbound bridge is as follows:
A client starts a JTA transaction and invokes a remote transactional Web Service in the scope of that transaction. The client must have JBossTS JTA (or JTS) and XTS deployed, as well as the transaction bridge. The coordinator used for the JTA transaction is the root coordinator. The server hosting the target web service needs a WS-AT transaction implementation but not a JTA or the transaction bridge.
The outbound WS invocation flows though a handler chain that has the outbound transaction bridge handler and XTS header context processor registered, such that they are invoked in that order.
The bridge handler calls the outbound bridge manager to obtain an outbound bridge instance corresponding to the JTA transaction context. As the BridgeManager is seeing the context for the first time, it creates a new Bridge instance. It also creates a Synchronization and XAResource instance to wrap the subordinate WS-AT transaction and registers these with the JTA transaction.
The bridge handler starts the bridge, which associates the subordinate WS-AT transaction context to the Thread. The WS-AT header context processor then serializes this into XML in the headers of the outbound Web Services call.
The receiving Web Service sees a WS-AT context and can work with it in the normal manner, without knowing it is a subordinate context.
On the return path, the bridge handler disassociates the WS-AT TxContext from the Thread via the Bridge.
On subsequent calls to the same or other transactional Web Services in the scope of the same JTA transaction, the process is repeated. However, the BridgeManager will, upon seeing the same JTA transaction context again, return the existing Bridge and not register another Synchronization or XAResource with the parent JTA transaction. This allows substantially better performance than registering once per web service invocation.
Upon transaction termination by the client, the JTA transaction coordinator will drive the enlisted bridge Synchronization and XAResource through the transaction termination protocol. The XAResource maps these calls down to the WS-AT subtransaction coordinator, which in turn passes them on to any Volatile or Durable Participants enlisted in the transaction. This process is not visible to the business logic, except in so far as it may have registered its own Participants, XAResources or Synchronizatons with the transaction.
The bridge includes independent crash recovery systems for the inbound and outbound sides. These are automatically installed and activated as part of the bridge deployment. They rely upon the recovery mechanisms in the JTA and XTS components, which are likewise deployed and activated by default as part of their respective components.
It is the responsibility of the application(s) to use suitable XAResources (inbound) or DurableParticipants (outbound). In general the former will be from XA datasources or messaging systems, whilst the latter will be custom implementations. In either case it is important to ensure recovery is correctly configured for the resource manager(s) before using them in production, via the bridge or otherwise. The JBossTS documentation set details crash recovery configuration, as does the application server administration guide. For resource manager specific information e.g. Oracle db permissions settings for recovery connections, please consult the vendor's documentation.
A bridged transaction will involve several distinct log writes, potentially on multiple hosts. Resolving the transaction may require more than one crash recovery cycle, due to ordering constrains on the events taking place during recovery. If a transaction fails to recover after all servers have been restored to service for more than two recovery cycles duration, the JBossTS objectstore browser and server logs may be useful for diagnosing the issue. Where a transaction involves multiple bridges the number of recovery cycles required to resolve it may further increase. For systems requiring maximum availability it is therefore not recommended to span a transaction through more than one bridge.
Note that the 1PC commit optimization should not be used with outbound bridged transactions in which the subordinate may contain more than one Participant. Even where only one Participant is used, crash recovery logs may not correctly reflect the actual transaction outcome. The 1PC optimization is on be default and may be disabled by setting <property name="commitOnePhase">false </property> on CoordinatorEnvironmentBean.
See the 'Design Notes' appendix for detailed information on potential crash recovery scenarios and how each is handled.
