This guide will assist you in installing and running a demo setup of the various components of the jBPM project. If you have any feedback on how to improve this guide, if you encounter problems, or if you want to help out, do not hesitate to contact the jBPM community as described in the "What to do if I encounter problems or have questions?" section.
This script assumes you have Java JDK 1.5+ (set as JAVA_HOME), and Ant 1.7+ installed. If you don't, use the following links to download and install them:
First of all, you need to download the installer. There are two versions, a full installer (which already contains a lot of the dependencies that are necessary during the installation) and a minimal installer (which only contains the installer and will download all dependencies). In general, it is probably best to download the full installer: jBPM-{version}-installer-full.zip
You can also find the latest snapshot release here (only minimal installer) here:
https://hudson.jboss.org/jenkins/job/jBPM/lastSuccessfulBuild/artifact/jbpm-distribution/target/
The easiest way to get started is to simply run the installation script to install the demo setup. Simply go into the install folder and run:
ant install.demo
This will:
This could take a while (REALLY, not kidding, we are downloading an application server and Eclipse installation, even if you downloaded the full installer). The script however always shows which file it is downloading (you could for example check whether it is still downloading by checking the whether the size of the file in question in the jbpm-installer/lib folder is still increasing). If you want to avoid downloading specific components (because you will not be using them or you already have them installed somewhere else), check below for running only specific parts of the demo or directing the installer to an already installed component.
To limit the amount of data that needs to be downloaded, we have disabled the download of the Eclipse BIRT plugin for reporting by default. If you want to try out reporting as well in the jBPM console, make sure to put the jBPM.birt.download property in the build.properties file to true before running the installer.
Once the demo setup has finished, you can start playing with the various components by starting the demo setup:
ant start.demo
This will:
Once everything is started, you can start playing with the Eclipse tooling, Guvnor repository and jBPM console, as explained in the next three sections.
The following screencast gives an overview of how to run a simple demo process in Eclipse. It shows you:
Figure 3.1.
Do the following:
You could also create a new project using the jBPM project wizard. This sample project contains a simple HelloWorld BPMN2 process and an associated Java file to start the process. Simple select "File - New ... - Project ..." and under the "jBPM" category, select "jBPM project" and click "Next". Give the project a name and click "Finish". You should see a new project containing a "sample.bpmn" process and a "com.sample.ProcessTest" Java class. You can open the BPMN2 process by double-clicking it. To execute the process, right-click on ProcessTest.java and select "Run As - Java Application". You should see a "Hello World" statement in the output console.
Open up the process management console:
http://localhost:8080/jbpm-console

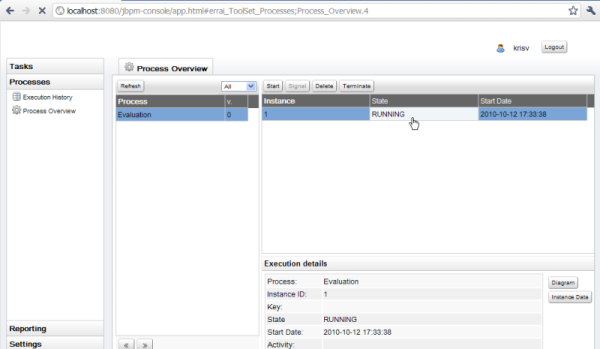

Log in, using krisv / krisv as username / password. The following screencast gives an overview of how to manage your process instances. It shows you:
Figure 3.2.
The Guvnor repository can be used as a process repository to store business processes. It also offers a web-based interface to manage your processes. This includes a web-based editor for viewing and editing processes.
Open up Drools Guvnor:
http://localhost:8080/drools-guvnor
Log in, using any non-empty username / password (we disabled authentication for demo purposes). The following screencast gives an overview of how to manage your repository. It shows you:
Figure 3.3.
If you want to know more, we recommend you take a look at the rest of the Drools Guvnor documentation.
Once you're done playing:
ant stop.demo
and simply close all the rest.
You can always contact the jBPM community for assistance.
Email: jbpm-dev@lists.jboss.org
IRC: #jbpm at irc.codehaus.org
Some common issues are explained below.
Q: What if the installer complains it cannot download component X?
A: Are you connected to the internet? Do you have a firewall turned on? Do you require a proxy? It might be possible that one of the locations we're downloading the components from is temporarly offline. Try downloading the components manually (possibly from alternate locations) and put them in the jbpm-installer/lib folder.
Q: What if the installer complains it cannot extract / unzip a certain jar/war/zip?
A: If your download failed while downloading a component, it is possible that the installer is trying to use an incomplete file. Try deleting the component in question from the jbpm-installer/lib folder and reinstall, so it will be downloaded again.
Q: What if I have been changing my installation (and it no longer works) and I want to start over again with a clean installation?
A: You can use ant clean.demo to remove all the installed components, so you end up with a fresh installation again.
Q: I sometimes see exceptions when trying to stop or restart certain services, what should I do?
A: If you see errors during shutdown, are you sure the services were still running? If you see exceptions during restart, are you sure the service you started earlier was successfully shutdown? Maybe try killing the services manually if necessary.
Q: Something seems to be going wrong when running Eclipse but I have no idea what. What can I do?
A: Always check the consoles for output like error messages or stack traces. You can also check the Eclipse Error Log for exceptions. Try adding an audit logger to your session to figure out what's happening at runtime, or try debugging your application.
Q: Something seems to be going wrong when running the a web-based application like the jbpm-console, Guvnor and the Designer. What can I do?
A: You can check the server log for possible exceptions in the jbpm-installer/jboss-4.2.3.GA/server/default/log directory.
For all other questions, try contacting the jBPM community as described above.
