We are working on a new BPMN 2.0 Eclipse editor that allows you to specify business processes, choreographies, etc. using the BPMN 2.0 XML syntax (including BPMNDI for the graphical information). The editor itself is based on the Eclipse Graphiti framework and the Eclipse BPMN 2.0 EMF meta-model.
Features:
- It supports almost all BPMN 2.0 process constructs and attributes (including lanes and pools, annotations and all the BPMN2 node types).
- Support for the few custom attributes that jBPM5 introduces.
- Allows you to configure which elements and attributes you want use when modeling processes (so we can limit the constructs for example to the subset currently supported by jBPM5, which is a profile we will support by default, or even more if you like).
Many thanks go out to the people at Codehoop that did a great job in creating a first version of this editor.
Requirements
- Eclipse 3.6 (Helios) or newer
To install, startup Eclipse and install the Eclipse BPMN2 Modeler from the following update site (from menu Help -> Install new software and then add the update site in question by clicking the Add button, filling in a name and the correct URL as shown below). It will automatically download all other dependencies as well (e.g. Graphiti etc.)
Eclipse 3.6 (Helios): http://download.eclipse.org/bpmn2-modeler/site-helios/
Eclipse 3.7 (Indigo): http://download.eclipse.org/bpmn2-modeler/site/
The project is hosted at eclipse.org and open for anyone to contribute. The project home page can he found here. Sources are available here
You can use a simple wizard to create a new BPMN 2.0 process (under File -> New - Other ... select BPMN - BPMN2 Diagram).

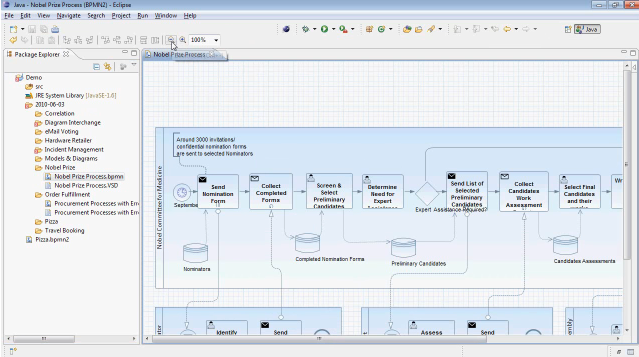

A video that shows some sample BPMN 2.0 processes from the examples that are part of the BPMN 2.0 specification:
Figure 10.1.

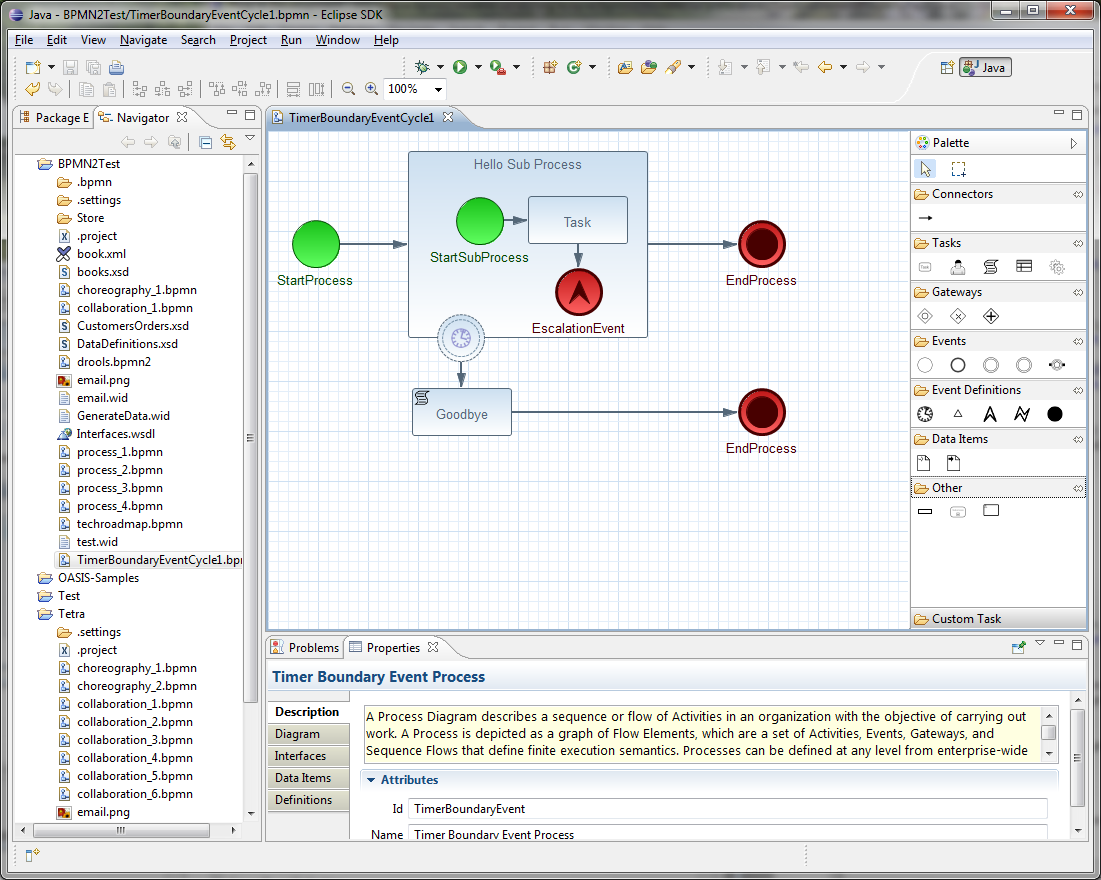

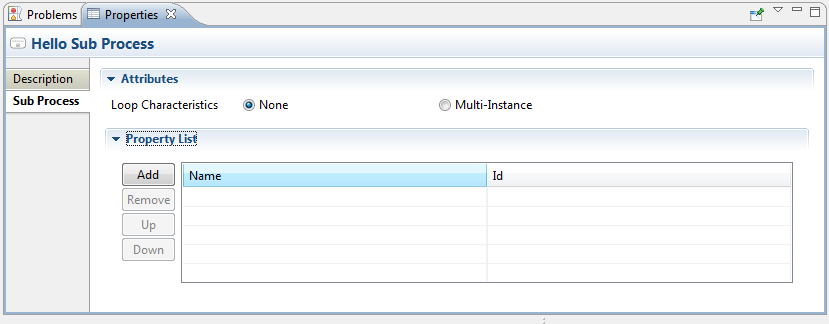

Here are some screenshots of the editor in action.

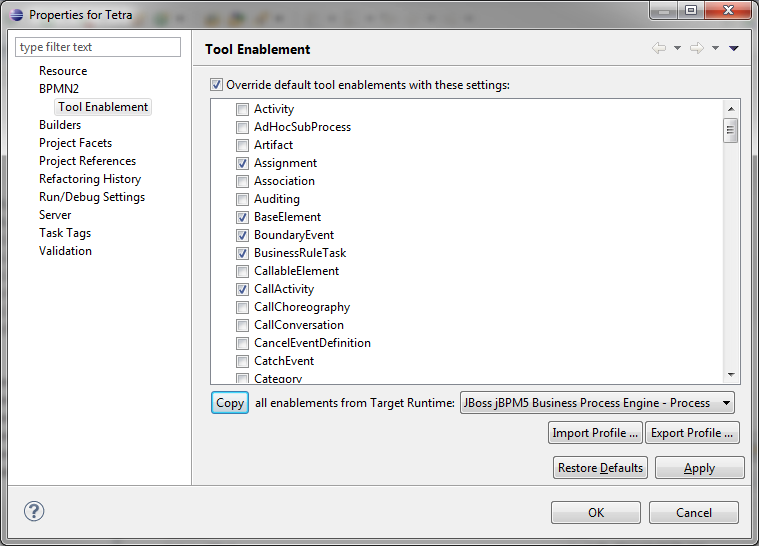

You can define which of the BPMN 2.0 elements and attributes you want to use when describing your BPMN 2.0 diagrams. Since the BPMN 2.0 specification is rather complex and includes a very large set of different node types and attributes for each of those nodes, you may not want to use all of these elements and attributes in your project. Elements and attributes can be enablement / disabled at the project level using the BPMN2 preferences category (right-click your project folder and select Properties ... which will open up a new dialog). The BPMN2 preferences contain an entry for all supported elements and attributes (per node type) and you can enable or disable each of those by (un)checking the box for each of those elements and attributes.
The "General settings" tab in the User Preferences lets you specify a "Target Runtime" which customizes the editor's behavior for a specific BPMN execution environment. Currently only jBPM5 and a generic runtime are defined for the editor, but others are in the works.

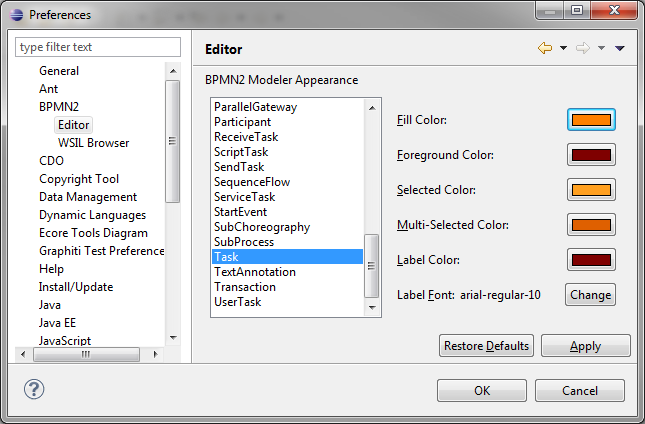

This preference page (shown below) also lets you configure default values for BPMN Diagram Interchange (or "DI") attributes.
