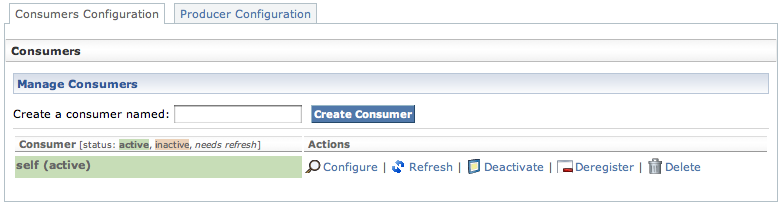

As of Portal 2.6, a configuration portlet is provided to configure access to remote WSRP Producers grahically. You can access it at http://{hostname}:{port}/portal/auth/portal/admin/WSRP or by logging in as a Portal administrator and clicking on the WSRP tab in the Admin portal. If all went well, you should see something similar to this:

This screen presents all the configured producers associated with their status and possible actions on them. A Consumer can be active or inactive. Activating a Consumer means that it is ready to act as a portlet provider. Deactivating it will remove it from the list of available portlet providers. Note also that a Consumer can be marked as requiring refresh meaning that the information held about it might not be up to date and refreshing it from the remote Producer might be a good idea. This can happen for several reasons: the service description for that remote Producer has not been fetched yet, the cached version has expired or modifications have been made to the configuration that could potentially invalidate it, thus requiring re-validation of the information.

Next, we create a new Consumer which we will callbea. Type "bea" in the "Create a consumer named:" field then click on "Create consumer":

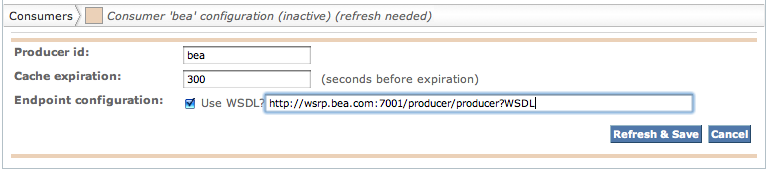

You should now see a form allowing you to enter/modify the information about the Consumer. Set the cache expiration value to 300 seconds and enter the WSDL URL for the producer in the text field and press the "Refresh & Save" button:

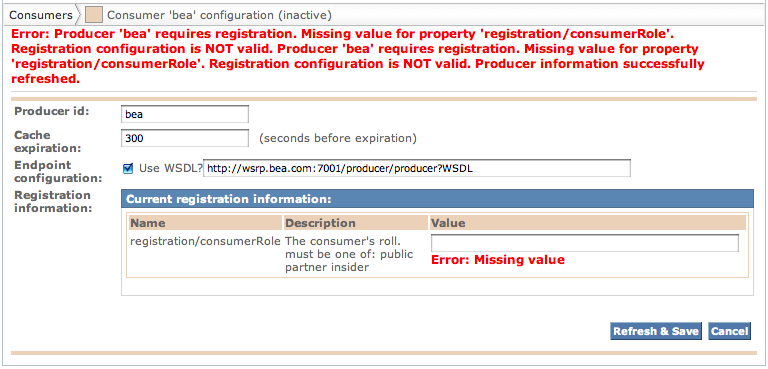

This will retrieve the service description associated with the Producer which WSRP is described by the WSDL file found at the URL you just entered. In our case, querying the service description will allow us to learn that the Producer requires registration and that it expects a value for the registration property named registration/consumerRole:

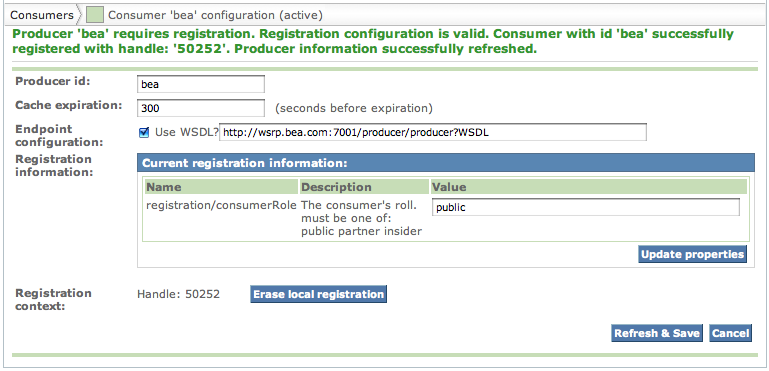

Enter "public" as the value for the registration property and press "Save & Refresh" once more. You should now see something similar to:

The Consumer for the bea Producer should now be available as a portlet provider and is ready to be used.

A producer is configured, by default, by retrieving the producer's information via a WSDL URL. There are rare cases, however, where URLs need to be provided for each of the producer's end points. You can do exactly that by unchecking the "Use WSDL?" checkbox, as is the case for the self producer:

We will create a public-bea-wsrp.xml descriptor. Note that the actual name does not matter as long as it ends with -wsrp.xml:

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE deployments PUBLIC "-//JBoss Portal//DTD WSRP Remote Producer Configuration 2.6//EN"
   "http://www.jboss.org/portal/dtd/jboss-wsrp-consumer_2_6.dtd">
<deployments>
  <deployment>
    <wsrp-producer id="bea" expiration-cache="300">
      <endpoint-wsdl-url>http://wsrp.bea.com:7001/producer/producer?WSDL</endpoint-wsdl-url>
      <registration-data>
        <property>
          <name>registration/consumerRole</name>
          <lang>en</lang>
          <value>public</value>
        </property>
      </registration-data>
    </wsrp-producer>
  </deployment>
</deployments>

This producer descriptor gives access to BEA's public WSRP producer. We will look at the details of the different elements later. Note for now the producer-id element with a "bea" value. Put this file in the deploy directory and start the server (with JBoss Portal and its WSRP service deployed).

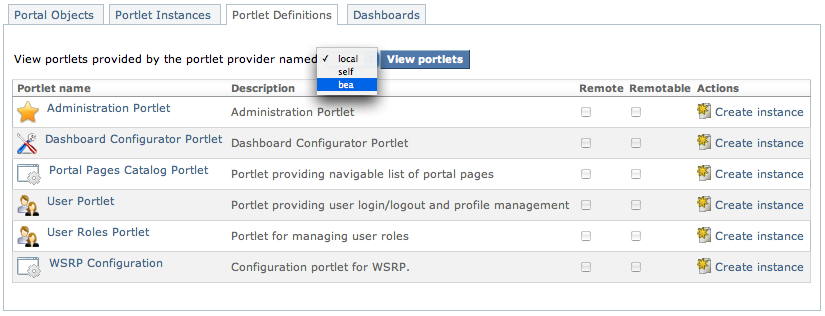

Let's now look at the Admin page and the Management portlet. Click on the "Portlet definitions" tab at the top. Once this is done, look at the list of available portlet providers. If all went well, you should see something similar to this:

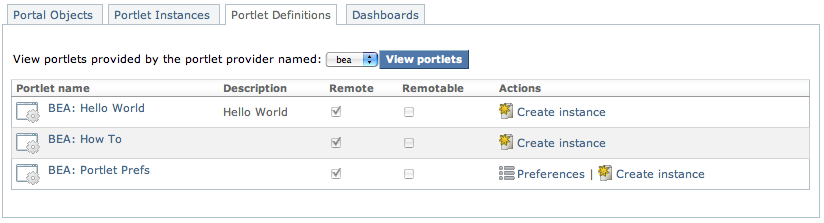

We have 3 available portlet providers: local, self andbea. The local portlet provider exposes all the portlets deployed in this particular instance of Portal. As explained above, the self provider refers to the default WSRP consumer bundled with Portal that consumes the portlets exposed by the default WSRP producer. The bea provider corresponds to BEA's public producer we just configured. Select it and click on "View portlets". You should now see something similar to:

From there on out, you should be able to configure WSRP portlets just as any other. In particular, you can create an instance of one of the remote portlets offered by BEA's public producer just like you would create an instance of a local portlet and then assign it to a window in a page. If you go to that page, you should see something similar to below for this portlet:

Let's now look at which information needs to be provided to configure access to a remote producer.

First, we need to provide an identifier for the producer we are configuring so that we can refer to it afterwards. This is accomplished via the mandatory id attribute of the <wsrp-producer> element.

JBoss Portal also needs to learn about the remote producer's endpoints to be able to connect to the remote web services and perform WSRP invocations. Two options are currently supported to provide this information:

Both the id attribute and either <endpoint-config> or <endpoint-wsdl-url> elements are required for a functional remote producer configuration.

It is also possible to provide addtional configuration, which, in some cases, might be important to establish a proper connection to the remote producer.

One such optional configuration concerns caching. To prevent useless roundtrips between the local consumer and the remote producer, it is possible to cache some of the information sent by the producer (such as the list of offered portlets) for a given duration. The rate at which the information is refreshed is defined by the expiration-cache attribute of the <wsrp-producer> element which specifies the refreshing period in seconds. For example, providing a value of 120 for expiration-cache means that the producer information will not be refreshed for 2 minutes after it has been somehow accessed. If no value is provided, JBoss Portal will always access the remote producer regardless of whether the remote information has changed or not. Since, in most instances, the information provided by the producer does not change often, we recommend that you use this caching facility to minimize bandwidth usage.

Additionally, some producers require consumers to register with them before authorizing them to access their offered portlets. If you know that information beforehand, you can provide the required registration information in the producer configuration so that the Portal consumer can register with the remote producer when required.

Registration configuration is done via the <registration-data> element. Since JBoss Portal can generate the mandatory information for you, if the remote producer does not require any registration properties, you only need to provide an empty <registration-data> element. Values for the registration properties required by the remote producer can be provided via <property> elements. See the example below for more details. Additionally, you can override the default consumer name automatically provided by JBoss Portal via the <consumer-name> element. If you choose to provide a consumer name, please remember that this should uniquely identify your consumer.

Producers often offer several levels of service depending on consumers' subscription levels (for example). This is implemented at the WSRP level with the registration concept: producers assert which level of service to provide to consumers based on the values of given registration properties.

It is therefore sometimes necessary to modify the registration that concretizes the service agreement between a consumer and a producer. An example of easily available producer offering different level of services is BEA's public producer. We configured access to that producer in Section 14.6.2.1, “Using the configuration portlet”. If you recall, the producer was requiring registration and required a value to be provided for the registration/consumerRole property. The description of that property indicated that three values were possible: public, partner or insider each corresponding to a different service level. We registered using the public service level. This gave us access to three portlets as shown here:

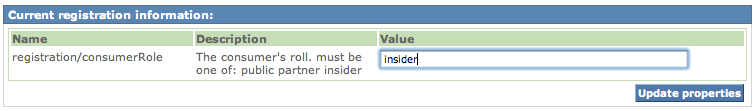

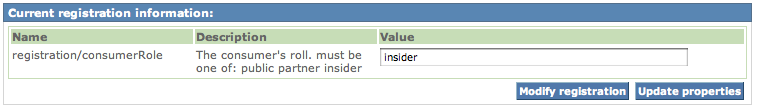

Suppose now that we would like to upgrade our service level to the "insider" level. We will need to tell BEA's producer that our registration data has been modified. Let's see how to do this. Assuming you have configured access to the producer as previously described, please go to the configuration screen for the bea producer and modify the value of the registration/consumerRole to insider instead of public:

Now click on "Update properties" to save the change. A "Modify registration" button should now appear to let you send this new data to the remote producer:

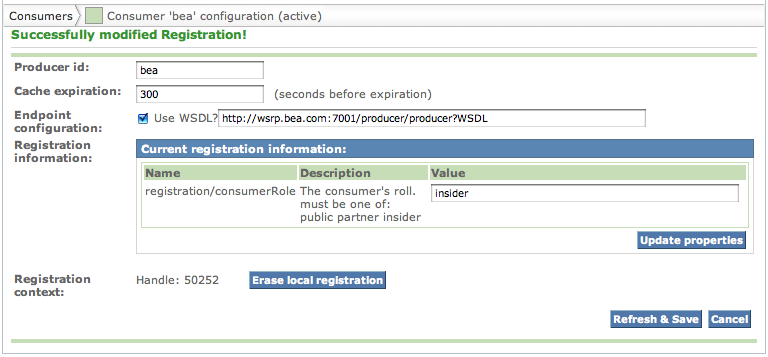

Click on this new button and, if everything went well and your updated registration has been accepted by the remote producer, you should see something similar to:

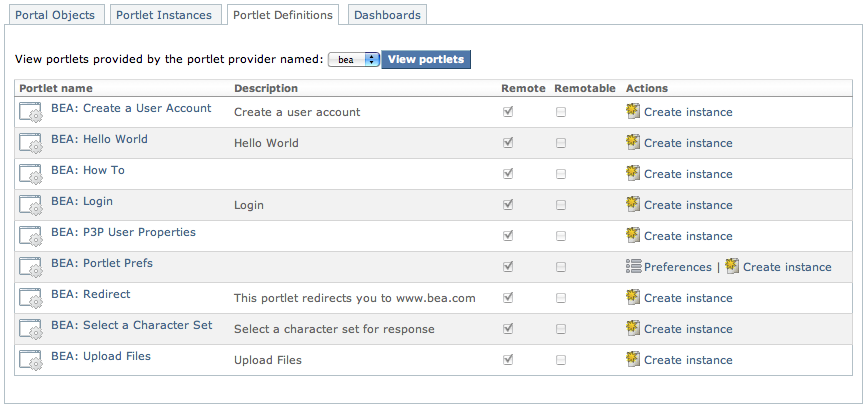

You can now check the list of available portlets from the bea provider and verify that new portlets are now available:

It can also happen that a producer administrator decided to require more information from registered consumers. In this case, invoking operations on the producer will fail with an OperationFailedFault. JBoss Portal will attempt to help you in this situation. Let's walk through an example using the self producer. Let's assume that registration is required without any registration properties (as is the case by default). If you go to the configuration screen for this producer, you should see:

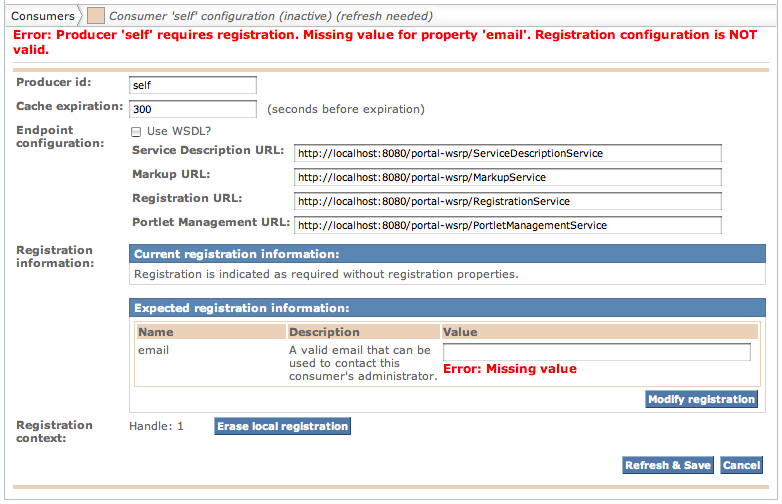

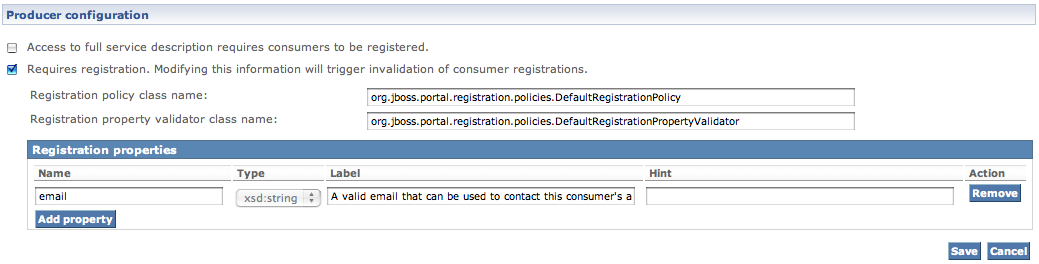

Now suppose that the administrator of the producer now requires a value to be provided for an email registration property. We will actually see how to do perform this operation in JBoss Portal when we examine how to configure Portal's producer in Section 14.8, “Configuring JBoss Portal's WSRP Producer”. Operations with this producer will now fail. If you suspect that a registration modification is required, you should go to the configuration screen for this remote producer and refresh the information held by the consumer by pressing "Refresh & Save":

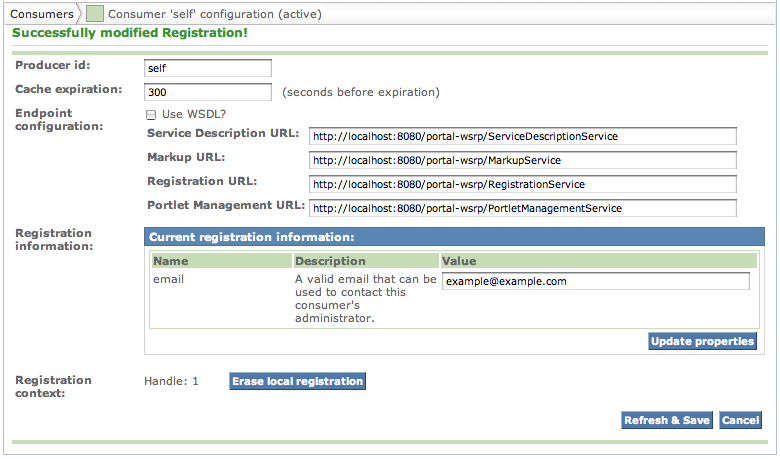

As you can see, the configuration screen now shows the currently held registration information and the expected information from the producer. Enter a value for the email property and then click on "Modify registration". If all went well and the producer accepted your new registration data, you should see something similar to:

Registration handling behavior can be customized by users to suit their Producer needs. This is accomplished by providing an implementation of the RegistrationPolicy interface. This interface defines methods that are called by Portal's Registration service so that decisions can be made appropriately. A default registration policy that provides basic behavior is provided and should be enough for most user needs.

While the default registration policy provides default behavior for most registration-related aspects, there is still one aspect that requires configuration: whether a given value for a registration property is acceptable by the WSRP Producer. This is accomplished by plugging a RegistrationPropertyValidator in the default registration policy. This allows users to define their own validation mechanism.

Please refer to the Javadoc™ for org.jboss.portal.registration.RegistrationPolicy and org.jboss.portal.Registration.policies.RegistrationPropertyValidator for more details on what is expected of each method.

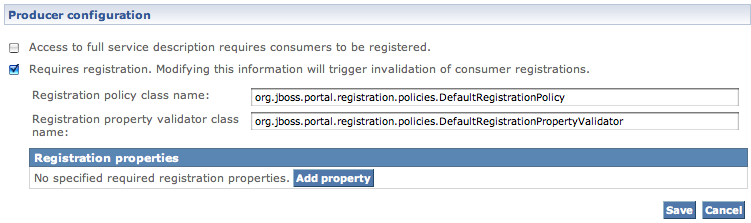

Defining a registration policy is required for the producer to be correctly configured. This is accomplished by specifying the qualified class name of the registration policy. Since we anticipate that most users will use the default registration policy, it is possible to provide the class name of your custom property validator instead to customize the default registration policy behavior. Note that property validators are only used by the default policy.
