Welcome

1. Kogito business automation

Kogito is a cloud-native business automation technology for building cloud-ready business applications. The name Kogito derives from the Latin "Cogito", as in "Cogito, ergo sum" ("I think, therefore I am"), and is pronounced [ˈkoː.d͡ʒi.to] (KO-jee-to). The letter K refers to Kubernetes, the base for OpenShift as the target cloud platform for Kogito, and to the Knowledge Is Everything (KIE) open source business automation project from which Kogito originates.

Kogito is optimized for a hybrid cloud environment and adapts to your domain and tooling needs. The core objective of Kogito is to help you mold a set of business processes and decisions into your own domain-specific cloud-native set of services.

Image of business assets moving to cloud services
Figure 1. Business processes and decisions to cloud services

When you use Kogito, you are building a cloud-native application as a set of independent domain-specific services to achieve some business value. The processes and decisions that you use to describe the target behavior are executed as part of the services that you create. The resulting services are highly distributed and scalable with no centralized orchestration service, and the runtime that your service uses is optimized for what your service needs.

Kogito includes components that are based on well-known business automation KIE projects, specifically Drools, jBPM, and OptaPlanner, to offer dependable open source solutions for business rules, business processes, and constraint solving.

1.1. Cloud-first priority

Kogito is designed to run and scale on a cloud infrastructure. You can use Kogito with the latest cloud-based technologies, such as Quarkus, Knative, and Apache Kafka, to increase start times and instant scaling on container application platforms, such as OpenShift.

Image of cloud-based technologies
Figure 2. Technologies used with Kogito

For example, Kogito is compatible with the following technologies:

  • OpenShift, based on Kubernetes, is the target platform for building and managing containerized applications.

  • Quarkus is native Java stack for Kubernetes that you can use to build applications with Kogito services.

  • Spring Boot is also supported with Kogito so that you can use the Spring Framework with Kogito.

  • GraalVM with Quarkus enables you to use native compilation with Kogito, resulting in fast start-up times and minimal footprint. For example, a native Kogito service starts in about 0.003ms, about 100 times faster than a non-native start-up. Fast start-up is almost a necessity in a cloud ecosystem, especially if you need small serverless applications.

  • Knative enables you to build serverless applications with Kogito that you can scale up or down (to zero) as needed.

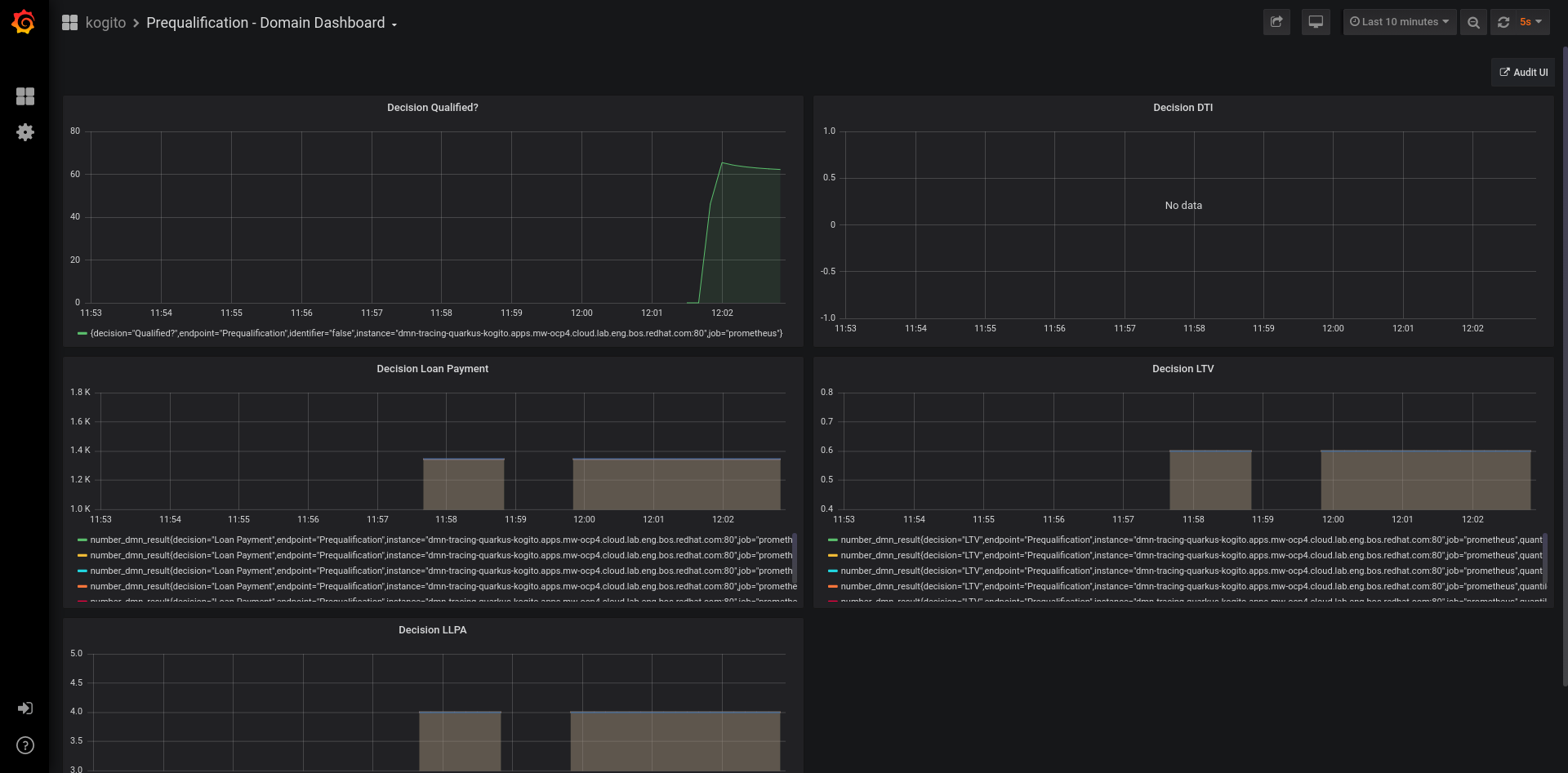

  • Prometheus and Grafana are compatible with Kogito services for monitoring and analytics with optional extensions.

  • Infinispan and MongoDB are middleware technologies that Kogito supports for persistence.

  • Kafka and Keycloak are middleware technologies that Kogito supports for messaging and security.

1.2. Domain-specific flexibility

Kogito adapts to your business domain instead of forcing you to modify your domain to work with Kogito. You can expose your Kogito services with domain-specific APIs, based on the processes and decisions that you have defined. Domain-specific APIs for Kogito services do not require third-party or internal APIs.

For example, a process for onboarding employees could generate remote REST API endpoints that you can use to onboard new employees or get information on their status, all using domain-specific JSON data.

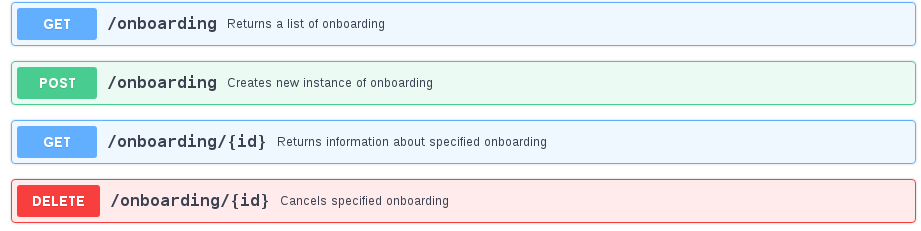

Image of REST API endpoints in Swagger UI
Figure 3. Example custom API endpoints in Swagger

You can also expose domain-specific data through events or in a data index so that the data can be consumed and queried by other services.

1.3. Developer-centered experience

Another focus of Kogito is optimal developer experience. You can use much or all of your existing tooling and workflow to develop, build, and deploy Kogito services, whether locally for testing or into the cloud. Quarkus offers development-mode features to help with local testing, such as live reload of your processes and decisions in your running applications for advanced debugging.

Kogito tooling is embeddable so that you can continue using the workflow you already use for cloud-native services. For example, the Kogito Bundle VSCode extension enables you to edit your Business Process Model and Notation (BPMN) 2.0 business processes and Decision Model and Notation (DMN) decision models directly in your VSCode IDE, next to your other application code.

Demo of Kogito BPMN2 extension in VSCode
Figure 4. Building a Kogito process service in VSCode

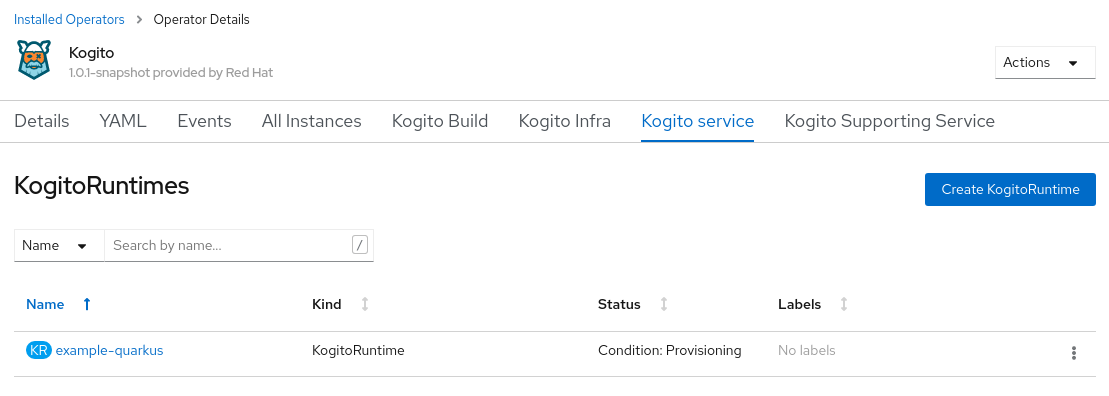

To deploy your services into the cloud, you can use the Kogito Operator, which guides you through every step. The Kogito Operator is based on the Operator SDK and automates many of the deployment steps for you. For example, when you give the operator a link to the Git repository that contains your application, the operator can automatically configure the components required to build your project from source and deploy the resulting services. Kogito also offers a command-line interface (CLI) to simplify some of these deployment tasks.

1.4. Kogito on Quarkus and Spring Boot

The primary Java frameworks that Kogito supports are Quarkus (recommended) and Spring Boot.

Quarkus is a Kubernetes-native Java framework with a container-first approach to building Java applications, especially for Java virtual machines (JVMs) such as GraalVM and HotSpot. Quarkus optimizes Java specifically for Kubernetes by reducing the size of both the Java application and container image footprint, eliminating some of the Java programming workload from previous generations, and reducing the amount of memory required to run those images.

For Kogito services, Quarkus is the preferred framework for optimal Kubernetes compatibility and enhanced developer features, such as live reload in development mode for advanced debugging.

Spring Boot is a Java-based framework for building standalone production-ready Spring applications. Spring Boot enables you to develop Spring applications with minimal configurations and without an entire Spring configuration setup.

For Kogito services, Spring Boot is supported for developers who need to use Kogito in an existing Spring Framework environment.

2. Creating and running your first Kogito services

As a developer of business processes and decisions, you can use Kogito business automation to build cloud-native applications that adapt to your business domain and tooling.

Prerequisites

  • JDK 11 or later is installed.

  • Apache Maven 3.6.2 or later is installed.

2.1. Example applications with Kogito services

Kogito includes example applications in the kogito-examples repository in GitHub. These example applications contain various types of Kogito services on Quarkus or Spring Boot to help you develop your own applications. The services use one or more Business Process Model and Notation (BPMN) process models, Decision Model and Notation (DMN) decision models, Drools Rule Language (DRL) rule units, XLS spreadsheet decision tables, or Java classes to define the service logic.

For information about each example application and instructions for using them, see the README file in the relevant application folder.

In the kogito-examples repository in GitHub, the example applications in the default stable branch use the latest version of Kogito. When you run examples in a local environment, ensure that the environment matches the requirements that are listed in the README file of the relevant application folder. Also, this might require making the necessary network ports available, as configured for Quarkus, Spring Boot, and docker-compose where applicable.

The following list describes some of the examples provided with Kogito:

Decision services

  • dmn-quarkus-example and dmn-springboot-example: A decision service (on Quarkus or Spring Boot) that uses DMN to determine driver penalty and suspension based on traffic violations.

  • rules-quarkus-helloworld: A Hello World decision service on Quarkus with a single DRL rule unit.

  • ruleunit-quarkus-example and ruleunit-springboot-example: A decision service (on Quarkus or Spring Boot) that uses DRL with rule units to validate a loan application and that exposes REST operations to view application status.

  • dmn-event-driven-quarkus and dmn-event-driven-springboot: A DMN decision service on Quarkus and Spring Boot that demonstrates the capability of the Kogito Event-Driven decisions add-on.

Decision services that use the Kogito Trusty Service and Explainability Service

  • dmn-tracing-quarkus: A DMN decision service on Quarkus that uses the kogito-addons-quarkus-tracing-decision add-on to generate tracing events that the Kogito Trusty Service and Explainability Service can consume and expose.

  • trusty-demonstration: A tutorial for deploying the dmn-tracing-quarkus example application on Kubernetes as a demonstration of Kogito Trusty Service and Explainability Service capabilities in a cloud environment.

  • dmn-tracing-quarkus: A DMN service on Quarkus to evaluate a loan approval and generate tracing events that might be consumed by the Trusty service.

Process services

  • process-quarkus-example and process-springboot-example: A process service (on Quarkus or Spring Boot) for ordering items and that exposes REST operations to create new orders or to list and delete active orders.

  • onboarding-example: A combination of a process service and two decision services that use DMN and DRL for onboarding new employees.

  • flexible-process-quarkus and flexible-process-springboot: A process service (on Quarkus or Spring Boot) that uses flexible processes for case management in Kogito.

  • process-usertasks-quarkus-with-console and process-usertasks-springboot-with-console: A process service with user tasks (on Quarkus or Spring Boot), displaying the entire user task lifecycle using the Kogito Management and Task Console.

  • process-springboot-example: A process service on Spring Boot for ordering items using add-ons.

  • process-usertasks-with-security-oidc-quarkus-with-console: A quickstart project using add-ons to show typical user task orchestration.

Process services that use Decision services

  • process-decision-quarkus: A process service integrated with decisions services, using an embedded method, in which business rule tasks are used for communication. The decisions are declared with DMN and DRL.

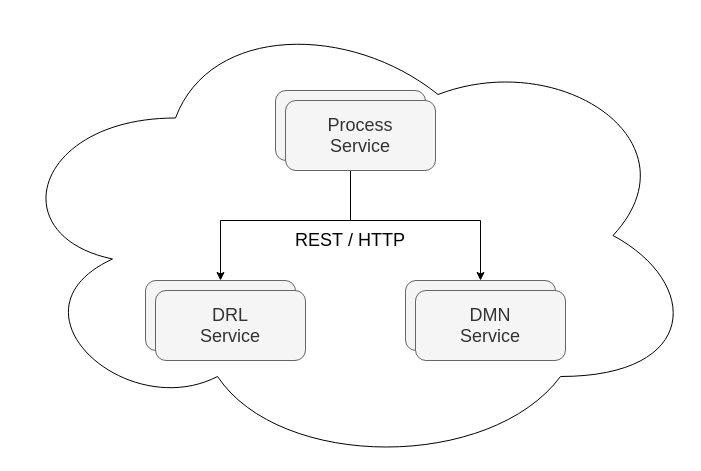

  • process-decision-rest-quarkus: A process service integrated with decisions services, using REST endpoints for remote communication. The decisions are declared with DMN and DRL.

Process services that use OptaPlanner

  • process-optaplanner-quarkus and process-optaplanner-springboot: A process service (on Quarkus or Spring Boot) that uses OptaPlanner to optimize airline flight schedules and seat assignments. For information about OptaPlanner integration with Kogito, see the OptaPlanner documentation.

Process services for OpenShift deployment

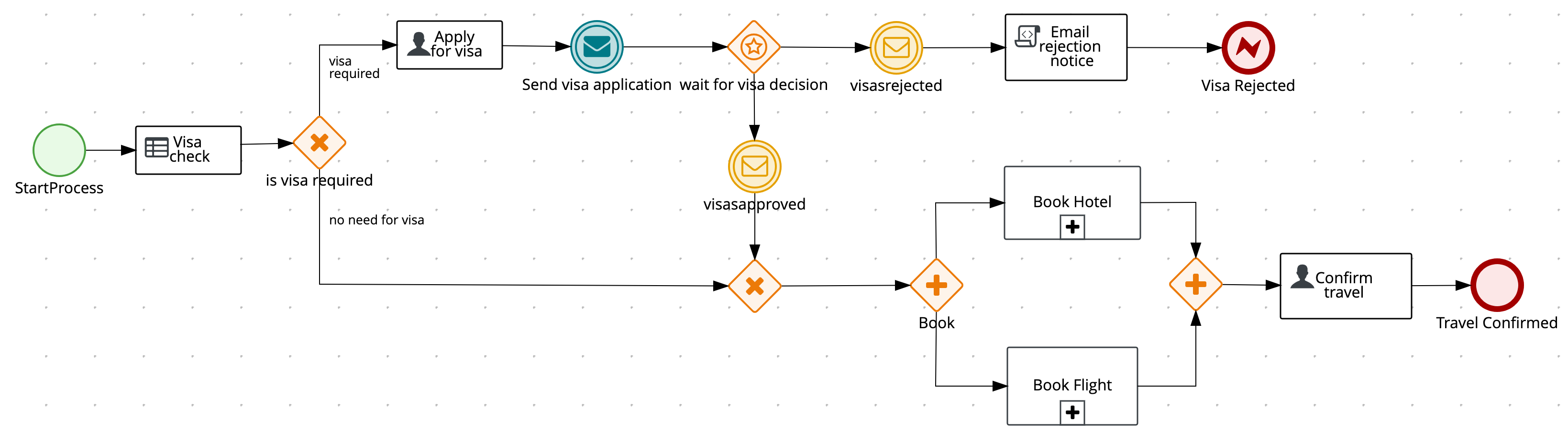

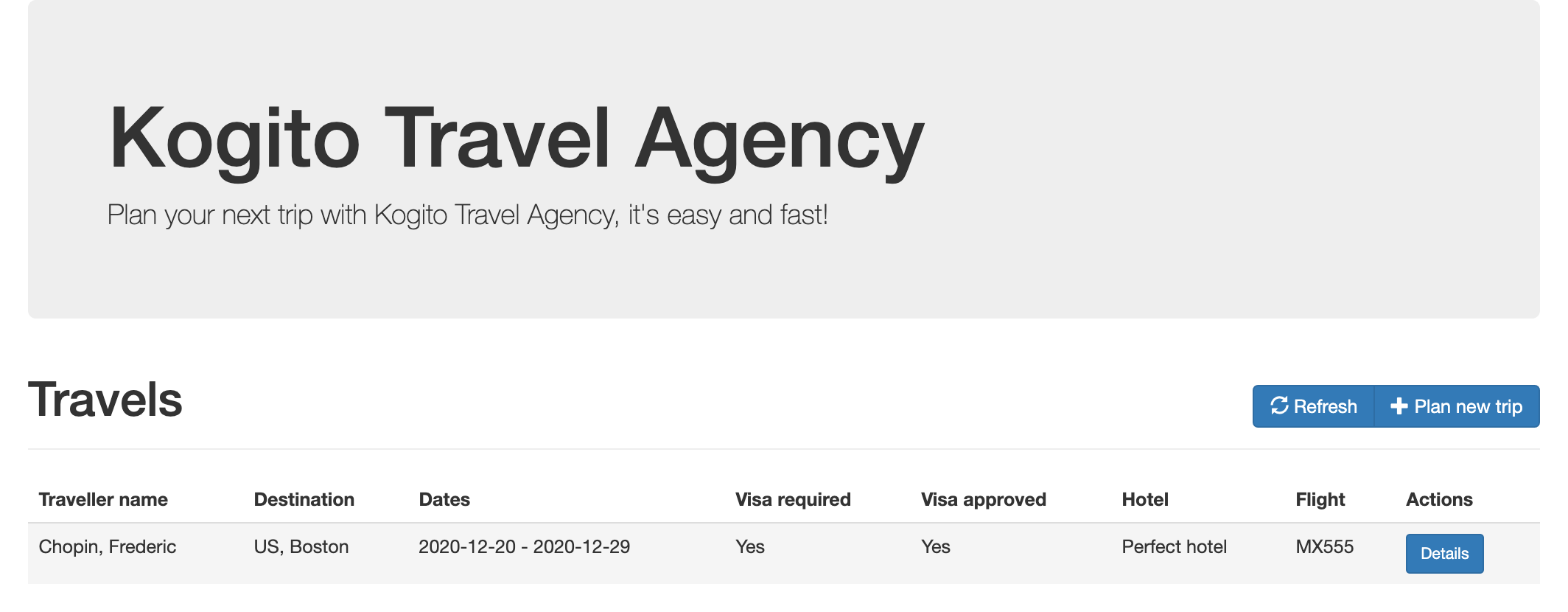

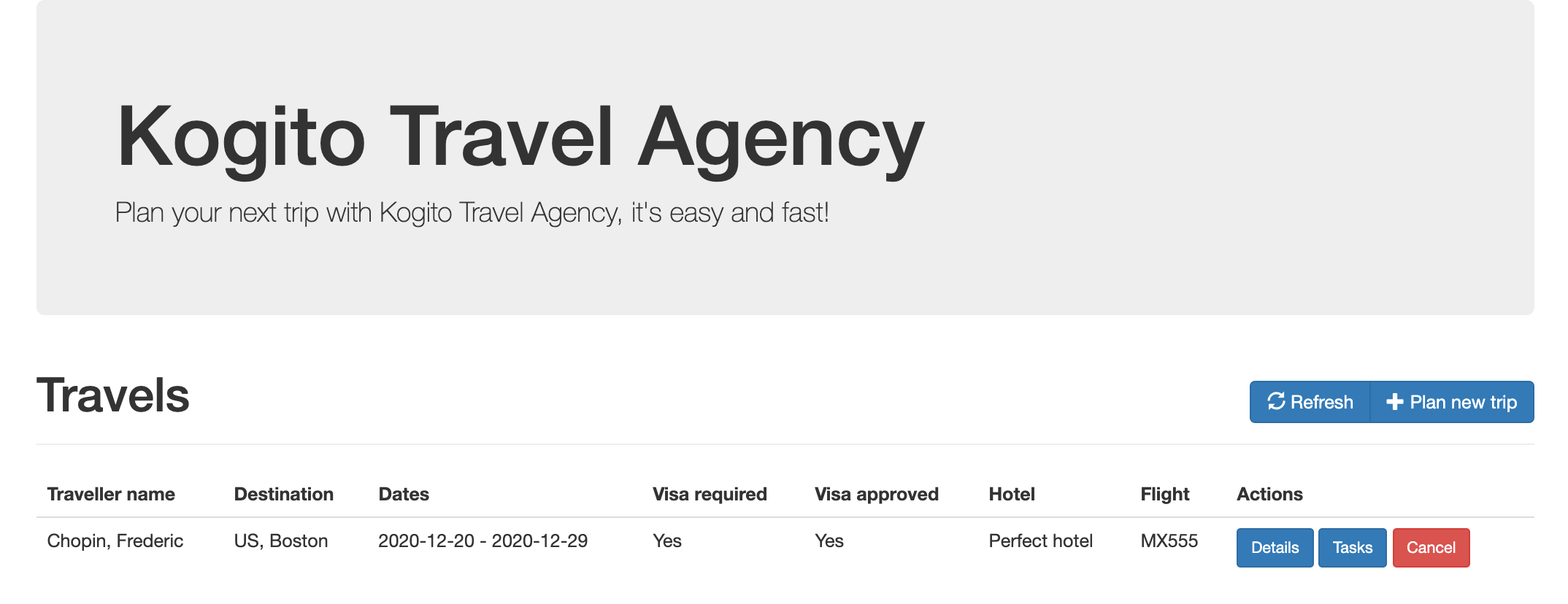

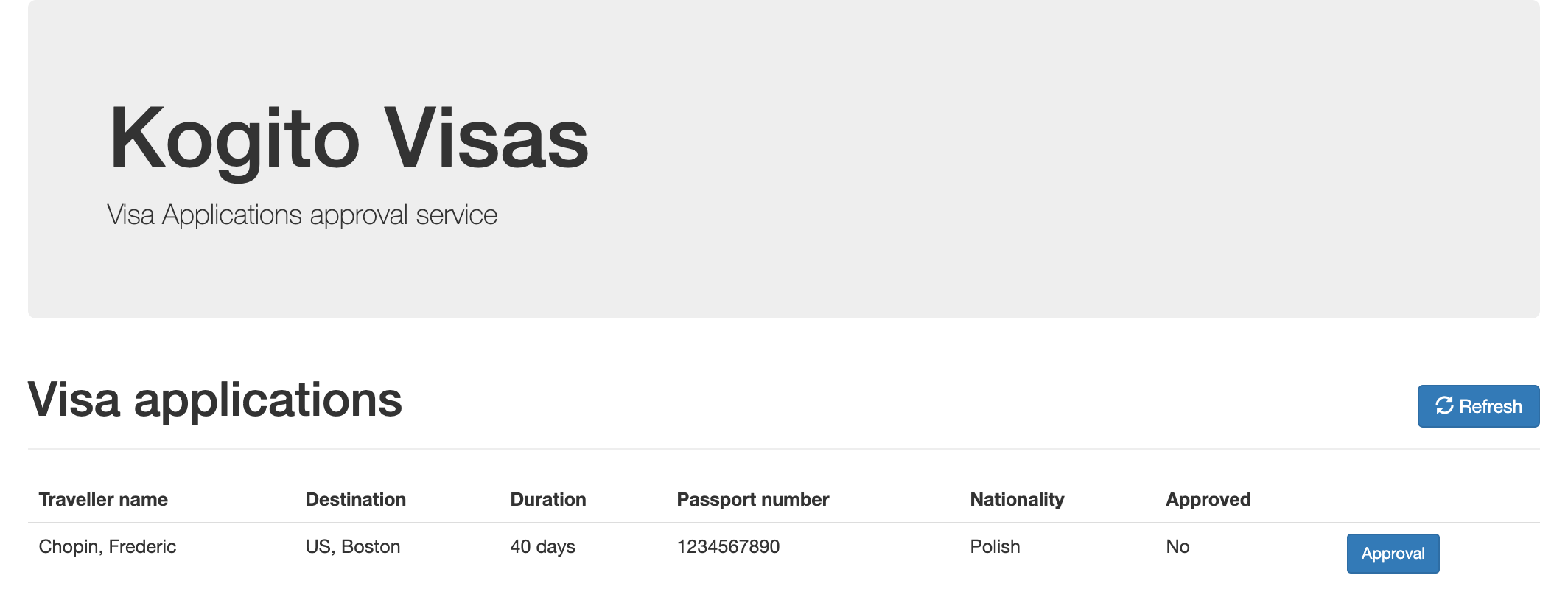

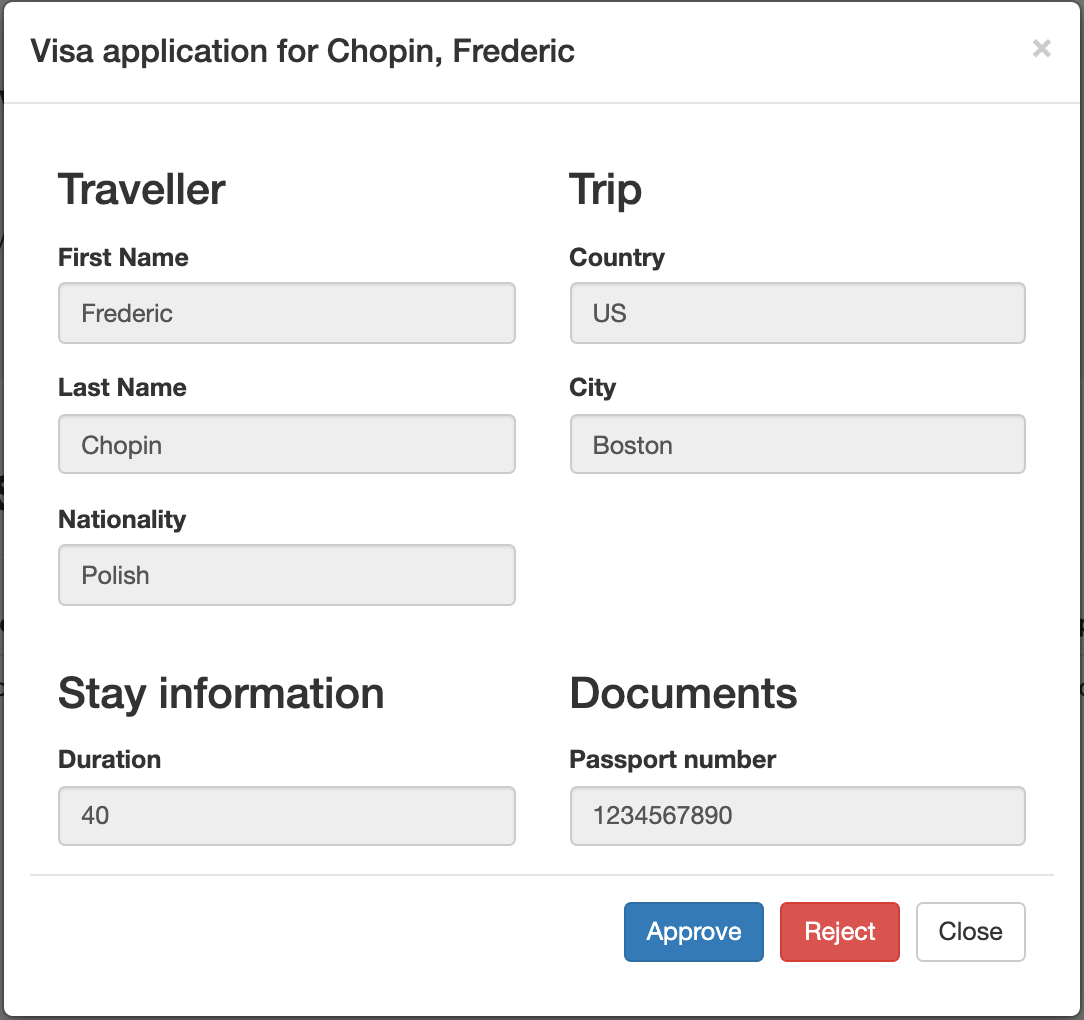

  • kogito-travel-agency: A combination of process services and decision services that use DRL and XLS for travel booking, intended for deployment on OpenShift.

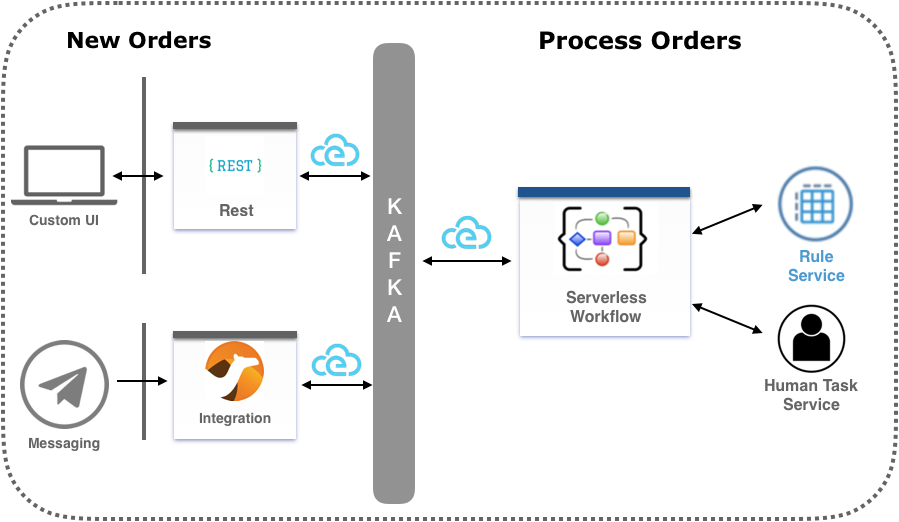

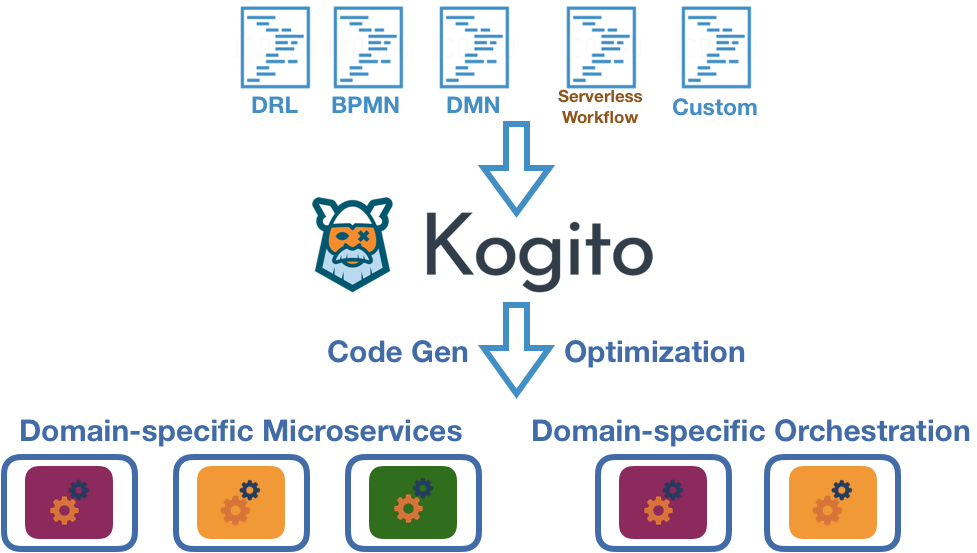

Serverless Workflow services

  • serverless-workflow-greeting-quarkus and serverless-workflow-greeting-springboot: A Serverless Workflow greeting service with both JSON and YAML workflow definitions.

  • serverless-workflow-service-calls-quarkus and serverless-workflow-service-calls-springboot: A Serverless Workflow service for returning country information.

  • serverless-workflow-events-quarkus: A Serverless Workflow service for processing job applicant approvals and that showcases event-driven services.

  • serverless-workflow-github-showcase: A Serverless Workflow service deployed as a GitHub bot application that reacts upon a new PR being opened in a given GitHub project.

Process services that use MongoDB

  • process-mongodb-persistence-quarkus and process-mongodb-persistence-springboot: A quickstart project on (Quarkus and Spring Boot) using add-ons that process deals for travelers using MongoDB.

2.1.1. Running the Kogito example applications

To get started quickly with Kogito, you can run any of the example applications in the kogito-examples repository in GitHub and experiment with the Kogito services.

For this procedure, use the process-quarkus-example or process-springboot-example application. You can follow similar steps with the other Kogito examples on Quarkus or Spring Boot.

In the process-quarkus-example and process-springboot-example applications, the orders.bpmn2 process describes the steps that need to be followed when ordering items. The process includes a script task for writing debug information and a call activity for invoking a subprocess, using a custom Order data object.

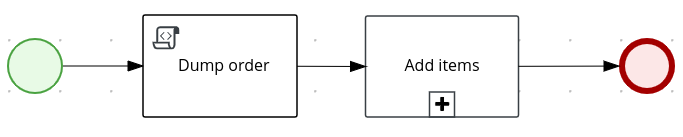

Image of `orders.bpmn` example process
Figure 5. Example orders.bpmn2 process

The Add items subprocess invokes the following orderItems.bpmn2 process, which uses a CalculationService.calculateTotal custom Java service and a user task to verify the order.

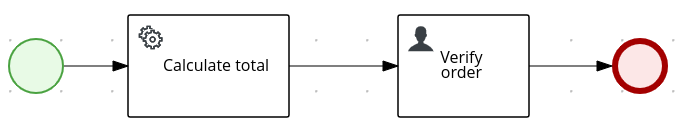

Image of `orderItems.bpmn` example process
Figure 6. Example orderItems.bpmn2 process invoked as a subprocess

The persons.bpmn2 process invokes a Drools Rule Language (DRL) rule unit in a business rule task to determine customer age, followed by a user task for special handling requirements for children, if applicable.

Image of `persons` process diagram
Figure 7. Example persons.bpmn2 process invoked as a subprocess

Based on these processes and on application configurations, this example service exposes REST operations to create new orders, to list and delete active orders, and to determine the age of a specified person.

Procedure

  1. Download the latest kogito-examples release to a local directory and extract the file.

  2. In a command terminal, navigate to the extracted kogito-examples-RELEASE/process-PLATFORM-example folder, and enter one of the following commands to build and run the example.

    Quarkus and Spring Boot support the following run modes:

    • Development mode: For local testing. On Quarkus, development mode also offers live reload of your processes and decisions in your running applications for advanced debugging.

    • JVM mode: For compatibility with a Java virtual machine (JVM).

    • Native mode: (Quarkus only, requires GraalVM or Mandrel) For direct binary execution as native code.

    The command that you use depends on your preferred run mode and application environment:

    • For development mode:

      On Quarkus
      $ mvn clean compile quarkus:dev
      On Sprint Boot
      $ mvn clean compile spring-boot:run

    • For JVM mode:

      On Quarkus
      $ mvn clean package
$ java -jar target/quarkus-app/quarkus-run.jar
      On Spring Boot
      $ mvn clean package
$ java -jar target/sample-kogito-1.0-SNAPSHOT-runner.jar

    • For native mode (requires GraalVM or Mandrel):

      On Quarkus only
      $ mvn clean package -Dnative
$ ./target/sample-kogito-1.0-SNAPSHOT-runner

  3. After the Kogito service is running, use a REST client, curl utility, or the Swagger UI configured for the application (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html) to send API requests with the following components:

    • URL: http://localhost:8080/

    • HTTP headers: For POST and PUT requests only:

      • accept: application/json

      • content-type: application/json

    • HTTP methods: GET, POST, PUT or DELETE

    Example POST request body to create an order (JSON)
    {
  "approver": "john",
  "order": {
    "orderNumber": "12345",
    "shipped": false
  }
}
    Example curl command to create an order
    curl -X POST http://localhost:8080/orders -H 'content-type: application/json' -H 'accept: application/json' -d '{"approver" : "john", "order" : {"orderNumber" : "12345", "shipped" : false}}'
    Example response (JSON)
    {
  "approver": "john",
  "id": "6b53c227-6d5e-40b7-8c8c-a541a2a47d58",
  "order": {
    "orderNumber": "12345",
    "shipped": false,
    "total": 0.3845152065899532
  }
}
    Image of Swagger UI for example application
    Figure 8. Swagger UI to interact with all application endpoints (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html)
    For the predefined Kogito example applications, the Swagger UI for interacting with service endpoints is available only on Quarkus examples that you run in development mode or in native mode.

    This example procedure uses the following curl commands for convenience:

    • Create an order:

      Example request
      curl -X POST http://localhost:8080/orders -H 'content-type: application/json' -H 'accept: application/json' -d '{"approver" : "john", "order" : {"orderNumber" : "12345", "shipped" : false}}'
      Example response
      {"approver":"john","id":"6b53c227-6d5e-40b7-8c8c-a541a2a47d58","order":{"orderNumber":"12345","shipped":false,"total":0.3845152065899532}}

      The new order has an "id" field with a generated UUID that you can use to retrieve details about this specific order, if needed.

    • View active orders:

      Example request
      curl -X GET http://localhost:8080/orders -H 'content-type: application/json' -H 'accept: application/json'
      Example response
      [{"approver":"john","id":"6b53c227-6d5e-40b7-8c8c-a541a2a47d58","order":{"orderNumber":"12345","shipped":false,"total":0.3845152065899532}}]

    • View order details using the returned UUID:

      Example request
      curl -X GET http://localhost:8080/orders/6b53c227-6d5e-40b7-8c8c-a541a2a47d58 -H 'content-type: application/json' -H 'accept: application/json'
      Example response
      {"approver":"john","id":"6b53c227-6d5e-40b7-8c8c-a541a2a47d58","order":{"orderNumber":"12345","shipped":false,"total":0.3845152065899532}}

      You use the "id" value for the order that was returned when you created the order or when you retrieved active orders.

    • Cancel the order using the returned UUID:

      Example request
      curl -X DELETE http://localhost:8080/orders/6b53c227-6d5e-40b7-8c8c-a541a2a47d58 -H 'content-type: application/json' -H 'accept: application/json'

2.1.2. Interacting with Kogito Management and Task Console using example applications

You can interact with the Kogito Management and Task Console to run the processes using the example applications in the kogito-examples repository in GitHub. The example applications containing the with-consoles suffix, allow you to experiment with the Kogito services and Kogito Management and Task Console.

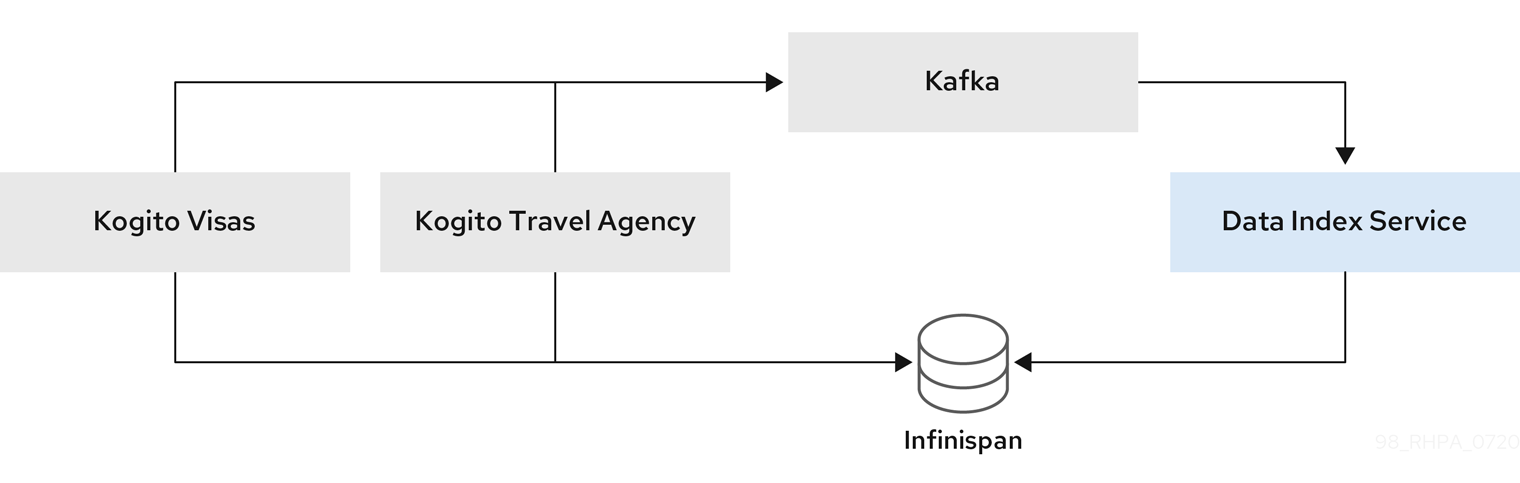

The Management and Task Console need to interact with the Kogito Data Index service using minimal persistence configuration, which you can perform using docker-compose configuration. The example applications provide docker-compose configuration to configure and start the required services, including Kafka, Infinispan, Kogito Data Index, Kogito Management Console, and Kogito Task Console.

Image of default services started by docker-compose 'with-console' examples
Figure 9. Default services started by docker-compose 'with-console' example applications
In each example application, the docker-compose starts the needed services to run the project. The docker-compose also configures additional services such as Keycloak (process-usertasks-with-security-oidc-PLATFORM-with-console) or Kogito Jobs (process-usertasks-timer-quarkus-with-console).
Procedure

  1. Download the latest kogito-examples release to a local directory and extract the file.

  2. In a command terminal, navigate to the extracted kogito-examples-RELEASE/process-usertask-PLATFORM__-with-console folder

  3. Compile the project to generate the persistence file descriptor, which docker-compose uses.

  4. From the docker-compose folder, execute ./startServices.sh to start the containers with the services needed in each case.

  5. Enter one of the following commands to build and run the example:

    Quarkus and Spring Boot support the following run modes:

    • Development mode: For local testing. On Quarkus, development mode also offers live reload of your processes and decisions in your running applications for advanced debugging.

    • JVM mode: For compatibility with a Java virtual machine (JVM).

    • Native mode: (Quarkus only, requires GraalVM or Mandrel) For direct binary execution as native code.

    The command that you use depends on your preferred run mode and application environment:

    • For development mode:

      On Quarkus
      $ mvn clean compile quarkus:dev
      On Sprint Boot
      $ mvn clean compile spring-boot:run

    • For JVM mode:

      On Quarkus
      $ mvn clean package
$ java -jar target/quarkus-app/quarkus-run.jar
      On Spring Boot
      $ mvn clean package
$ java -jar target/sample-kogito-1.0-SNAPSHOT-runner.jar

    • For native mode (requires GraalVM or Mandrel):

      On Quarkus only
      $ mvn clean package -Dnative
$ ./target/sample-kogito-1.0-SNAPSHOT-runner

  6. When the Kogito service is running, use a REST client, curl utility, or the Swagger UI (if configured for the application) to start a new request.

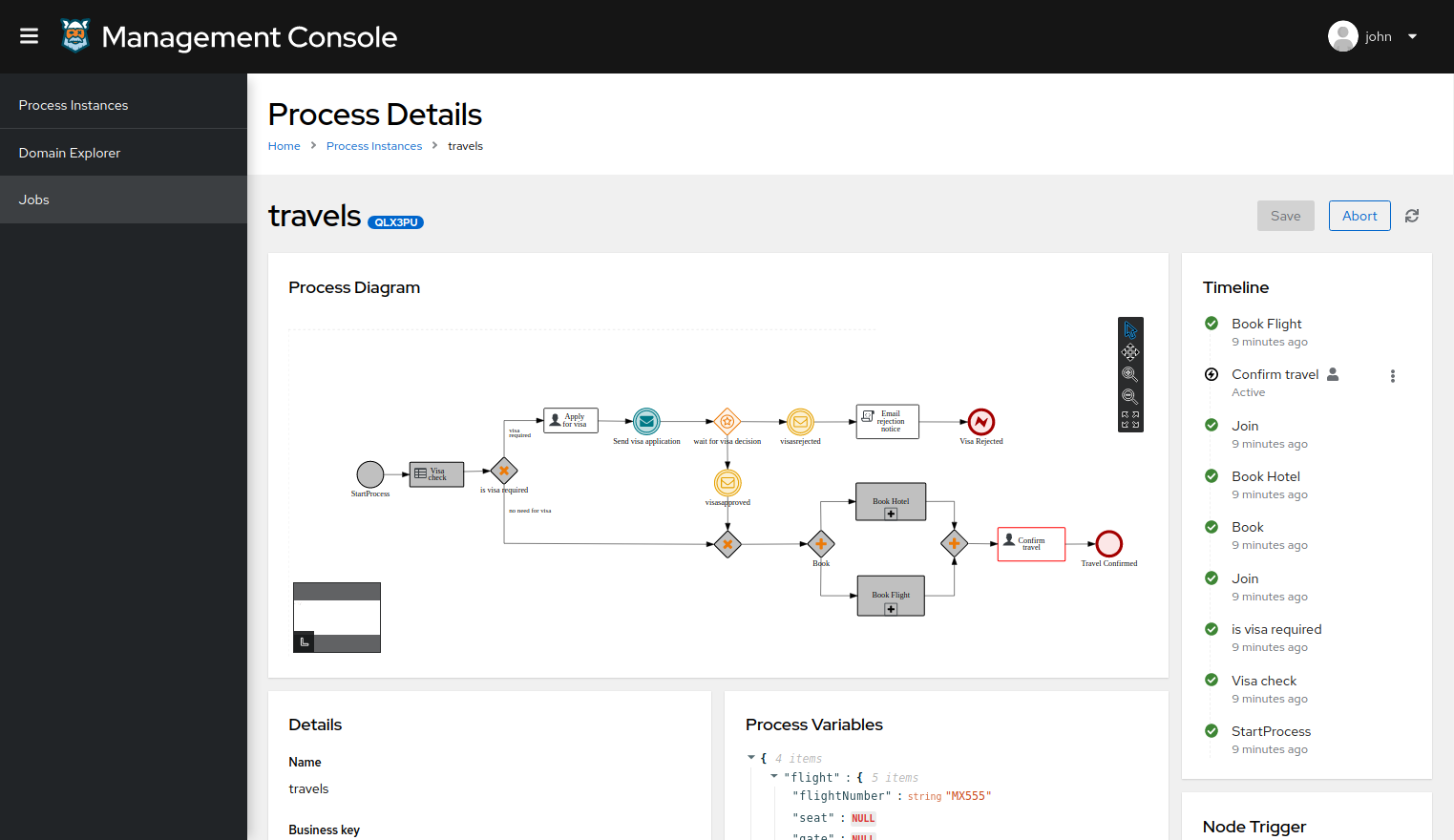

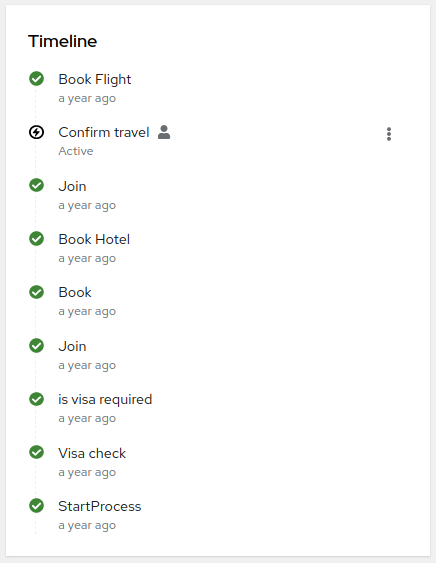

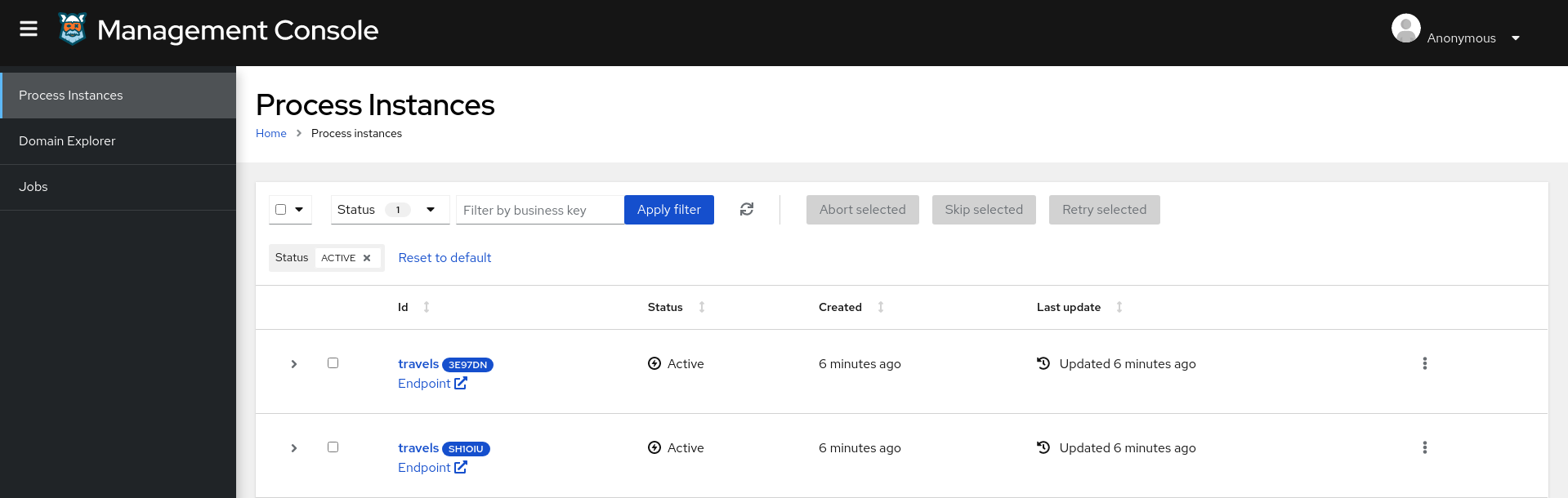

  7. Use the Kogito Management console to see the created process instance available by default at http://localhost:8280.

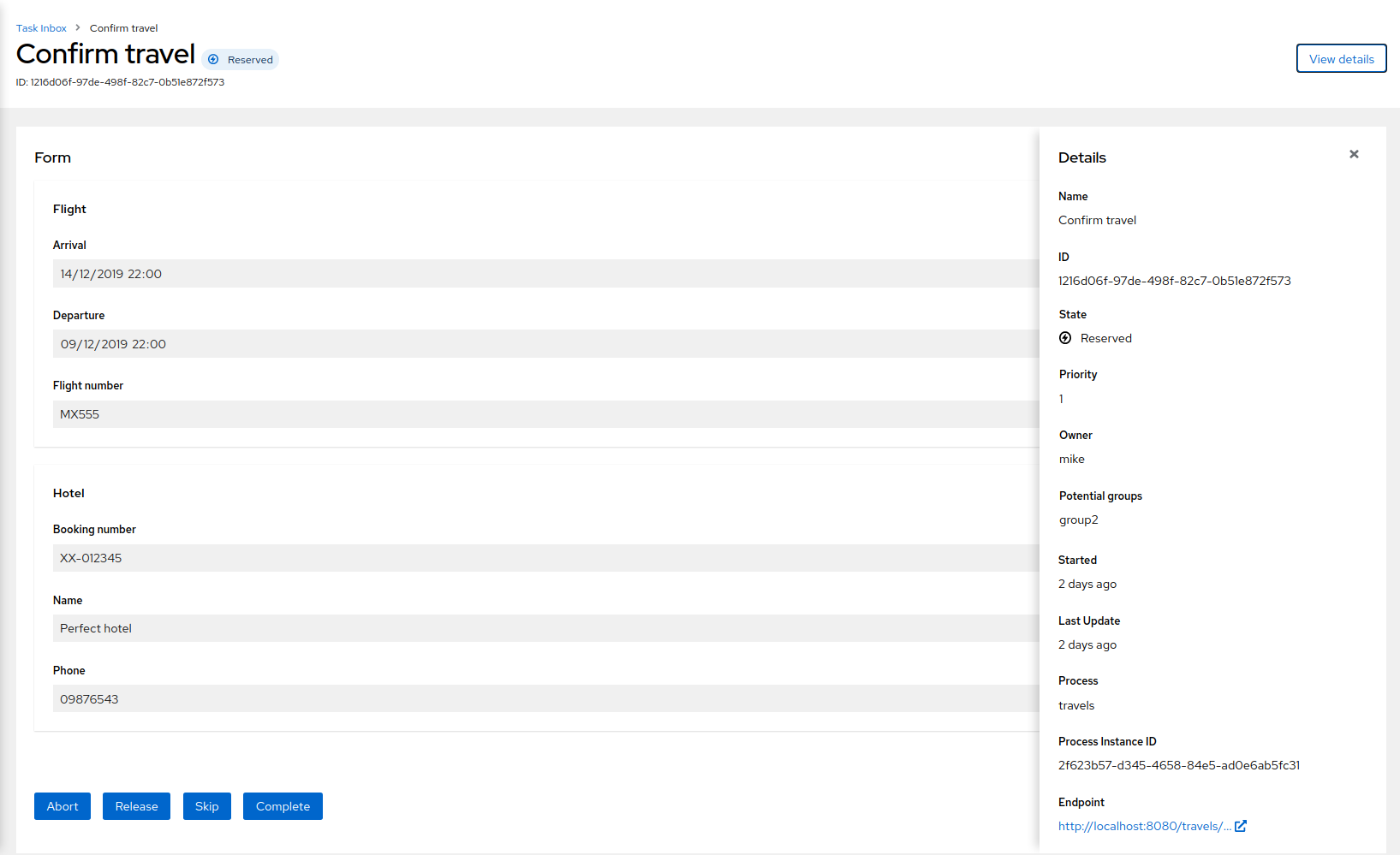

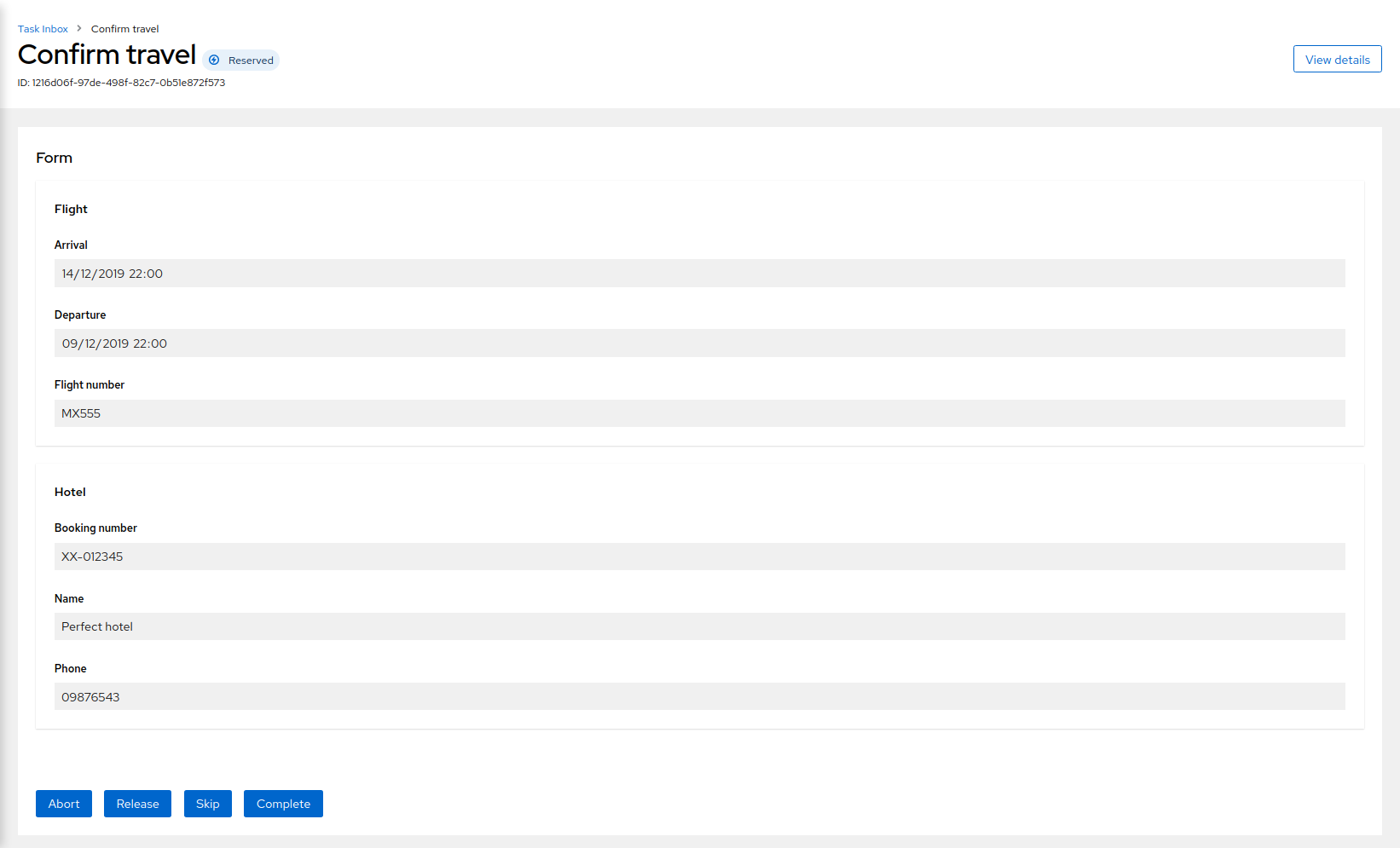

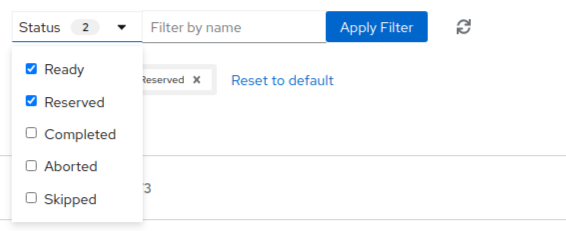

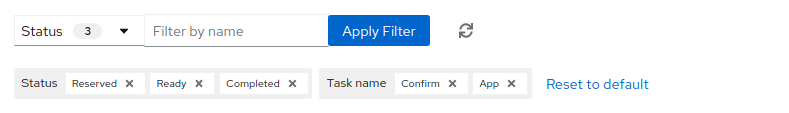

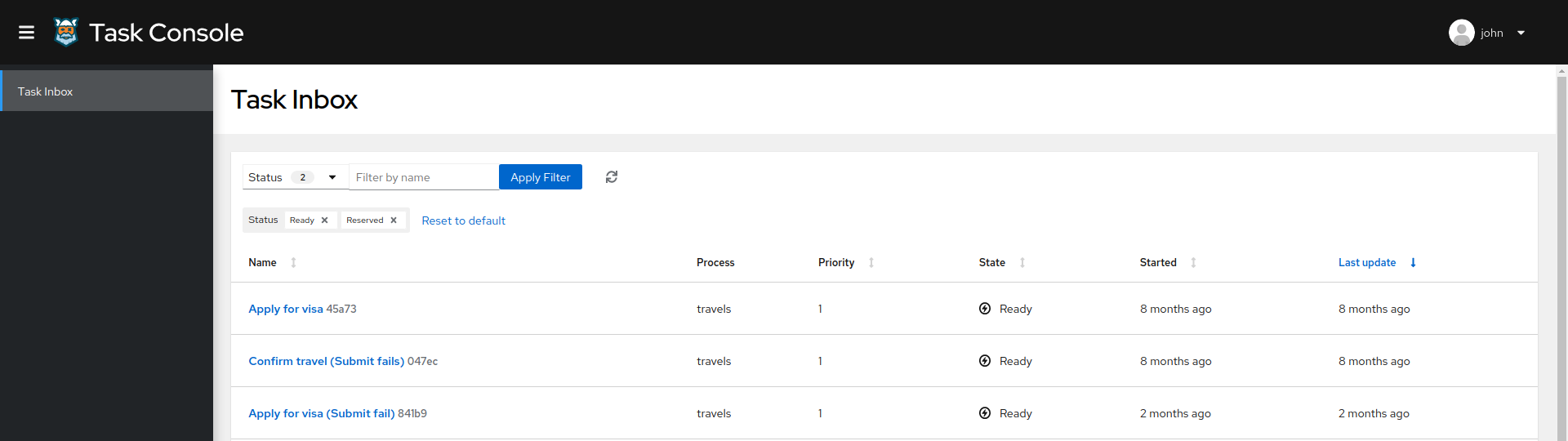

  8. Use the Kogito Task console available by default at http://localhost:8380 to execute the user tasks.

In case some ports need to be changed, you can find the configuration of the containers in the docker-compose/docker-compose.yml file.

2.2. Kogito BPMN and DMN modelers

Kogito provides the following extensions or applications that you can use to design Business Process Model and Notation (BPMN) process models and Decision Model and Notation (DMN) decision models for your Kogito services using graphical modelers.

  • Kogito VSCode extension: (Recommended) Enables you to view and design BPMN models, DMN models, and test scenario files in Visual Studio Code (VSCode). The VSCode extension in the Kogito requires VSCode 1.46.0 or later.

    To install the Kogito VSCode extension select the Extensions menu option in VSCode and search for and install the Kogito Bundle extension.

  • Kogito GitHub Chrome extension: Enables you to view and design BPMN and DMN models in GitHub repositories in Google Chrome.

    To install the Kogito GitHub Chrome extension download and extract the chrome_extension_kogito_kie_editors_VERSION.zip file from the kogito-tooling release page in GitHub, and then in the upper-right corner in Chrome, go to Customize and control → Settings → Extensions → Load unpacked and open the extracted dist folder.

  • Business Modeler online viewer: Enables you to view and design BPMN and DMN models online at https://kiegroup.github.io/kogito-online/. The online modeler supports the .new format, so you can also enter bpmn.new or dmn.new in a web browser to start designing a new BPMN or DMN model in the online modeler.

  • Business Modeler standalone editors: Enable you to view and design BPMN and DMN models embedded in your web applications. To download the necessary files, you can either use the NPM artifacts from the Kogito tooling repository or download the JavaScript files directly for the DMN standalone editor library at https://kiegroup.github.io/kogito-online/standalone/dmn/index.js and for the BPMN standalone editor library at https://kiegroup.github.io/kogito-online/standalone/bpmn/index.js.

2.2.1. Installing the Kogito VSCode extension

VSCode is the preferred integrated development environment (IDE) for developing Kogito services. Kogito provides a Kogito Bundle VSCode extension that enables you to design Decision Model and Notation (DMN) decision models, Business Process Model and Notation (BPMN) 2.0 business processes, and test scenarios directly in VSCode. Kogito also provides individual DMN Editor and BPMN Editor VSCode extensions for DMN or BPMN support only, if needed.

Prerequisites

  • VSCode 1.46.0 or later is installed.

Procedure

  1. In your VSCode IDE, select the Extensions menu option and search for Kogito Bundle for DMN, BPMN, and test scenario file support.

    For DMN or BPMN file support only, you can also search for the individual DMN Editor or BPMN Editor extensions.

  2. When the Kogito extension appears in the extension list in VSCode, select it and click Install.

  3. For optimal VSCode editor behavior, after the extension installation is complete, reload or close and re-launch your instance of VSCode.

After you install the VSCode extension bundle, any .dmn or .bpmn2 files that you open in VSCode are automatically displayed as graphical models. Additionally, any .scesim files that you open are automatically displayed as tabular test scenario models for testing the functionality of your business decisions.

If the Kogito DMN, BPMN, or test scenario modelers open only the XML source of a DMN, BPMN, or test scenario file and displays an error message, review the reported errors and the model file to ensure that all elements are correctly defined.

For new DMN or BPMN models, you can also enter dmn.new or bpmn.new in a web browser to design your DMN or BPMN model in the Kogito online modeler. When you finish creating your model, you can click Download in the online modeler page to import your DMN or BPMN file into your Kogito project in VSCode.

2.2.2. Configuring the Kogito standalone editors

The Kogito standalone editors are distributed in a self-contained library that provides an all-in-one JavaScript file for each editor. The JavaScript file uses a comprehensive API to set and control the editor.

You can install the standalone editors in three ways:

  • Use hosted JavaScript files directly

  • Download each JavaScript file manually

  • Use the NPM package

Procedure

  1. Install the Kogito standalone editors using one of the following methods:

    Use hosted JavaScript files directly: For this method, add the following <script> tags to your HTML page:

    Script tags for your HTML page
    <script src="https://kiegroup.github.io/kogito-online/standalone/dmn/index.js"></script>
<script src="https://kiegroup.github.io/kogito-online/standalone/bpmn/index.js"></script>

    Download each JavaScript file manually: For this method, follow these steps:

    1. Download the JavaScript files:

    2. Add the downloaded Javascript files to your hosted application.

    3. Add the following <script> tag to your HTML page:

      Script tag for your HTML page
      <script src="https://<YOUR_PAGE>/dmn/index.js"></script>

    Use the NPM package: For this method, follow these steps:

    1. Go to the Kogito tooling repository in NPM and download the NPM package.

    2. Add the NPM package to your package.json file:

      Adding the NPM package
      npm install @kogito-tooling/kie-editors-standalone

    3. Import each editor library to your TypeScript file:

      Importing each editor
      import * as DmnEditor from "@kogito-tooling/kie-editors-standalone/dist/dmn"
import * as BpmnEditor from "@kogito-tooling/kie-editors-standalone/dist/bpmn"

  2. After you install the standalone editors, open the required editor by using the provided editor API, as shown in the following example for opening a DMN editor. The API is the same for each editor.

    Opening the DMN standalone editor
    const editor = DmnEditor.open({
  container: document.getElementById("dmn-editor-container"),
  initialContent: Promise.resolve(""),
  readOnly: false,
  origin: "",
  resources: new Map([
    [
      "MyIncludedModel.dmn",
      {
        contentType: "text",
        content: Promise.resolve("")
      }
    ]
  ])
});

    Use the following parameters with the editor API:

    Table 1. Example parameters
    Parameter Description

    container

    HTML element in which the editor is appended.

    initialContent

    Promise to a DMN model content. This parameter can be empty, as shown in the following examples:

    • Promise.resolve("")

    • Promise.resolve("<DIAGRAM_CONTENT_DIRECTLY_HERE>")

    • fetch("MyDmnModel.dmn").then(content ⇒ content.text())

    readOnly (Optional)

    Enables you to allow changes in the editor. Set to false (default) to allow content editing and true for read-only mode in editor.

    origin (Optional)

    Origin of the repository. The default value is window.location.origin.

    resources (Optional)

    Map of resources for the editor. For example, this parameter is used to provide included models for the DMN editor or work item definitions for the BPMN editor. Each entry in the map contains a resource name and an object that consists of content-type (text or binary) and content (similar to the initialContent parameter).

    The returned object contains the methods that are required to manipulate the editor.

    Table 2. Returned object methods
    Method Description

    getContent(): Promise<string>

    Returns a promise containing the editor content.

    setContent(path: string, content: string): void

    Sets the content of the editor.

    getPreview(): Promise<string>

    Returns a promise containing an SVG string of the current diagram.

    subscribeToContentChanges(callback: (isDirty: boolean) ⇒ void): (isDirty: boolean) ⇒ void

    Sets a callback to be called when the content changes in the editor and returns the same callback to be used for unsubscription.

    unsubscribeToContentChanges(callback: (isDirty: boolean) ⇒ void): void

    Unsubscribes the passed callback when the content changes in the editor.

    markAsSaved(): void

    Resets the editor state that indicates that the content in the editor is saved. Also, it activates the subscribed callbacks related to content change.

    undo(): void

    Undoes the last change in the editor. Also, it activates the subscribed callbacks related to content change.

    redo(): void

    Redoes the last undone change in the editor. Also, it activates the subscribed callbacks related to content change.

    close(): void

    Closes the editor.

    getElementPosition(selector: string): Promise<Rect>

    Provides an alternative to extend the standard query selector when an element lives inside a canvas or a video component. The selector parameter must follow the <PROVIDER>:::<SELECT> format, such as Canvas:::MySquare or Video:::PresenterHand. This method returns a Rect representing the element position.

    envelopeApi: MessageBusClientApi<KogitoEditorEnvelopeApi>

    This is an advanced editor API. For more information about advanced editor API, see MessageBusClientApi and KogitoEditorEnvelopeApi.

2.3. Creating a Maven project for a Kogito service

Before you can begin developing Kogito services, you need to create a Maven project where you can build your Kogito assets and any other related resources for your application.

Procedure

  1. In a command terminal, navigate to a local folder where you want to store the new Kogito project.

  2. Enter the following command to generate a project within a defined folder:

    On Quarkus
    $ mvn io.quarkus:quarkus-maven-plugin:create \
    -DprojectGroupId=org.acme -DprojectArtifactId=sample-kogito \
    -DprojectVersion=1.0.0-SNAPSHOT -Dextensions=kogito-quarkus

    Alternatively, you can generate a project using the Quarkus website.

    On Spring Boot
    $ mvn archetype:generate \
    -DarchetypeGroupId=org.kie.kogito \
    -DarchetypeArtifactId=kogito-spring-boot-archetype \
    -DgroupId=org.acme -DartifactId=sample-kogito \
    -DarchetypeVersion=1.43.0.Final \
    -Dversion=1.0-SNAPSHOT

    These commands generate a sample-kogito Maven project and import the Kogito extension for all required dependencies and configurations to prepare your application for business automation.

  3. Open or import the project in your VSCode IDE to view the contents.

2.3.1. Creating a custom Kogito Spring Boot project

With Spring Boot, you can create custom Maven projects using Kogito Spring Boot archetype. This archetype enables adding Kogito Spring Boot starters or add-ons in the project creation. The Kogito Spring Boot starters include:

  • decisions

  • processes

  • rules

  • serverless-workflows

  • predictions

Procedure

  1. In a command terminal, navigate to a local folder where you want to store the new Kogito project.

  2. Enter any of the following command to generate a project using starters or addons property:

    • To generate a project based on Kogito process services using the starters property, enter the following command:

      $ mvn archetype:generate \
    -DarchetypeGroupId=org.kie.kogito \
    -DarchetypeArtifactId=kogito-springboot-archetype \
    -DgroupId=org.acme -DartifactId=sample-kogito \
    -DarchetypeVersion=1.43.0.Final \
    -Dversion=1.0-SNAPSHOT
    -Dstarters=processes

      The new project includes the dependencies required to run Kogito process services. You can combine multiple Kogito Spring Boot starters using a comma-separated list. For example starters=processes,rules.

    • To generate a project containing Prometheus monitoring and Infinispan persistence using the Kogito add-ons property, enter the following command:

      $ mvn archetype:generate \
    -DarchetypeGroupId=org.kie.kogito \
    -DarchetypeArtifactId=kogito-springboot-archetype \
    -DgroupId=org.acme -DartifactId=sample-kogito \
    -DarchetypeVersion=1.43.0.Final \
    -Dversion=1.0-SNAPSHOT
    -Dstarters=processes
    -Daddons=monitoring-prometheus,persistence-infinispan
      When you pass an add-on to the property, the add-on name does not require the kogito-addons-springboot prefix. Also, you can combine the add-ons and starters properties to customize the project.

  3. Open or import the project in your IDE to view the contents.

For more information about Kogito Spring Boot starters and Kogito add-ons, see Spring Boot Starters for your Kogito project.

2.3.2. Creating a custom Kogito project using code scaffolding

This feature is experimental and might be substantially modified or removed in a future release. This feature also requires a special project setup. The generated code uses APIs that are not final in Kogito and will not function the same way in future releases.

The Quarkus extension and Maven plug-in within a standard Kogito project generate all the required code and boilerplate for your Kogito services so that you do not have to write the project setup code yourself. By default, a Kogito project generates a REST service from business assets automatically. The generated service usually exposes default REST endpoints using the information that is inferred from the business assets that you include in your project.

If you want to customize the code for your Kogito project, such as adding more REST endpoints, you can use code scaffolding to generate the project code to a specified user directory and then modify the code as needed.

With code scaffolding, you generate your Kogito project with the Kogito Maven archetype as usual, but you disable the project ability to automatically regenerate the project code and explicitly instruct Kogito to generate the code in a custom target directory. The code is generated one time in the specified target directory and is not regenerated at build time unless you explicitly request it. You can customize the project code in the specified target directory as needed.

On Quarkus, disabling code regeneration also disables hot reload of business assets in development mode. This limitation will be improved in a future release.
Procedure

  1. In a command terminal, navigate to a local folder where you want to store the custom Kogito project and enter the following command to generate your Kogito project with the Kogito Maven archetype as usual:

    On Quarkus
    $ mvn io.quarkus:quarkus-maven-plugin:create \
    -DprojectGroupId=org.acme -DprojectArtifactId=sample-kogito \
    -DprojectVersion=1.0.0-SNAPSHOT -Dextensions=kogito-quarkus

    Alternatively, you can generate a project using the Quarkus website.

    On Spring Boot
    $ mvn archetype:generate \
    -DarchetypeGroupId=org.kie.kogito \
    -DarchetypeArtifactId=kogito-spring-boot-archetype \
    -DgroupId=org.acme -DartifactId=sample-kogito \
    -DarchetypeVersion=1.43.0.Final \
    -Dversion=1.0-SNAPSHOT

    This command generates a sample-kogito Maven project and imports the Kogito extension for all required dependencies and configurations to prepare your application for business automation.

  2. In the project pom.xml file, modify the project dependencies and plug-ins to disable code regeneration:

    • On Quarkus: Delete the kogito-quarkus dependency and add the kogito-maven-plugin plug-in, as shown in the following examples:

      Deleting the kogito-quarkus dependency
      <dependencies>
  ...
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-quarkus</artifactId>
  </dependency>
  ...
</dependencies>
      Adding the kogito-maven-plugin plug-in
      <build>
  ...
  <plugins>
    ...
    <plugin>
      <groupId>org.kie.kogito</groupId>
      <artifactId>kogito-maven-plugin</artifactId>
      <configuration>
        <onDemand>true</onDemand>
      </configuration>
    </plugin>
    ...
  </plugins>
  ...
</build>

    • On Spring Boot: Modify the existing kogito-maven-plugin plug-in as shown in the following example:

      Modifying the kogito-maven-plugin plug-in
      <build>
  ...
  <plugins>
    ...
    <plugin>
      <groupId>org.kie.kogito</groupId>
      <artifactId>kogito-maven-plugin</artifactId>
      <configuration>
        <onDemand>true</onDemand>
      </configuration>
    </plugin>
    ...
  </plugins>
  ...
</build>

  3. In a command terminal, navigate to the root of your Kogito project and enter the following command to generate your modified project using code scaffolding:

    Generating the Kogito project using code scaffolding
     $ mvn compile kogito:scaffold

    This command compiles the assets in your project and generates the code in the src/main/java directory. In the automatic Kogito project build, the default directory is target/generated-sources/kogito.

    If you want to override the default location for code generation, use the following command to define a custom target directory:

    Generating the Kogito project using code scaffolding with a custom directory
     $ mvn compile kogito:scaffold -Dkogito.codegen.sources.directory=src/main/generated-java

    The kogito.codegen.sources.directory parameter defines the custom target directory where you want the code to be generated, such as src/main/generated-java in this example.

    If you invoke the generation command again with the same target directory, the files are overwritten. This limitation will be fixed in a future release.

    After you run the scaffolding command, either the default src/main/java directory or the custom target directory that you defined now contains the following resources:

    • Your existing project files

    • Generated data classes corresponding to process variables or Decision Model and Notation (DMN) definitions

    • Generated REST endpoints

    This example project contains a persons Business Process Model and Notation (BPMN) process model, so the generated REST endpoints are modified as shown in the following Java object:

    Modified REST endpoints for a person BPMN process model
    package org.acme.travels;

// Imports

@Path("/persons")
@ApplicationScoped
public class PersonsResource {

    @Inject
    @Named("persons")
    Process<PersonsModel> process;

    @POST
    @Produces(MediaType.APPLICATION_JSON)
    @Consumes(MediaType.APPLICATION_JSON)
    public PersonsModelOutput createResource_persons(
            @Context HttpHeaders httpHeaders,
            @QueryParam("businessKey") String businessKey,
            @Valid @NotNull PersonsModelInput resource) {
        ...
    }

    // Other endpoints
}

    The PersonsModel, PersonsModelInput, and PersonsModelOutput elements are the generated data models. These models are inferred automatically from the process variables in the process. Input and output models are inferred by how you tagged your process variables.

    Similar endpoints are generated for any available rule units. This example project contains a PersonValidationService class for a rule unit model, so the generated REST endpoints are modified as shown in the following Java object:

    Modified REST endpoints for a PersonValidationService rule unit class
    package org.acme.travels;

// Imports

@Path("/persons-validation-service")
@ApplicationScoped
public class PersonsValidationServiceResource {

    @Inject
    RuleUnit<PersonValidationService> unit;

    @POST
    @Produces(MediaType.APPLICATION_JSON)
    @Consumes(MediaType.APPLICATION_JSON)
    public QueryResult fireRules(PersonValidationService resource) {
        ...
    }

    // Other endpoints
}
Additional resources

2.4. Creating custom REST endpoints using Kogito API

Kogito enables you to create custom REST endpoints using Kogito API.

Prerequisites

  • JDK 11 or later is installed.

  • Apache Maven is installed.

The Kogito API is only available for Quarkus and is currently experimental. This feature is available to the adopters to collect feedback and modify in a future release.
Procedure

  1. Create a Kogito project using the Maven plugin or Quarkus CLI.

    Example project using the Quarkus Maven plugin
    mvn io.quarkus:quarkus-maven-plugin:create \
   -DprojectGroupId=com.company \
   -DprojectArtifactId=sample-kogito \
   -Dextensions="kogito"

  2. Add a business asset to the resource folder such as a DMN file. To create the example DMN model, copy the following PersonDecisions.dmn file content:

    Example PersonDecisions.dmn file
    <dmn:definitions xmlns:dmn="http://www.omg.org/spec/DMN/20180521/MODEL/" xmlns="https://kiegroup.org/dmn/rest-example" xmlns:di="http://www.omg.org/spec/DMN/20180521/DI/" xmlns:kie="http://www.drools.org/kie/dmn/1.2" xmlns:dmndi="http://www.omg.org/spec/DMN/20180521/DMNDI/" xmlns:dc="http://www.omg.org/spec/DMN/20180521/DC/" xmlns:feel="http://www.omg.org/spec/DMN/20180521/FEEL/" id="_84B432F5-87E7-43B1-9101-1BAFE3D18FC5" name="PersonDecisions" typeLanguage="http://www.omg.org/spec/DMN/20180521/FEEL/" namespace="https://kiegroup.org/dmn/rest-example">
  <dmn:extensionElements/>
  <dmn:inputData id="_F9685B74-0C69-4982-B3B6-B04A14D79EDB" name="age">
    <dmn:extensionElements/>
    <dmn:variable id="_0E345A3C-BB1F-4FB2-B00F-C5691FD1D36C" name="age" typeRef="number"/>
  </dmn:inputData>
  <dmn:decision id="_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" name="adult">
    <dmn:extensionElements/>
    <dmn:variable id="_54CD509F-452F-40E5-941C-AFB2667D4D45" name="adult" typeRef="boolean"/>
    <dmn:informationRequirement id="_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75">
      <dmn:requiredInput href="#_F9685B74-0C69-4982-B3B6-B04A14D79EDB"/>
    </dmn:informationRequirement>
    <dmn:decisionTable id="_58370567-05DE-4EC0-AC2D-A23803C1EAAE" hitPolicy="UNIQUE" preferredOrientation="Rule-as-Row">
      <dmn:input id="_ADEF36CD-286A-454A-ABD8-9CF96014021B">
        <dmn:inputExpression id="_4930C2E5-7401-46DD-8329-EAC523BFA492" typeRef="number">
          <dmn:text>age</dmn:text>
        </dmn:inputExpression>
      </dmn:input>
      <dmn:output id="_9867E9A3-CBF6-4D66-9804-D2206F6B4F86"/>
      <dmn:annotation name=""/>
      <dmn:rule id="_59D6BFF0-35B4-4B7E-8D7B-E31CB0DB8242">
        <dmn:inputEntry id="_7DC55D63-234F-497B-A12A-93DA358C0136">
          <dmn:text>&gt; 18</dmn:text>
        </dmn:inputEntry>
        <dmn:outputEntry id="_B3BB5B97-05B9-464A-AB39-58A33A9C7C00">
          <dmn:text>true</dmn:text>
        </dmn:outputEntry>
        <dmn:annotationEntry>
          <dmn:text/>
        </dmn:annotationEntry>
      </dmn:rule>
      <dmn:rule id="_8FCD63FE-8AD8-4F56-AD12-923E87AFD1B1">
        <dmn:inputEntry id="_B4EF7F13-E486-46CB-B14E-1D21647258D9">
          <dmn:text>&lt;= 18</dmn:text>
        </dmn:inputEntry>
        <dmn:outputEntry id="_F3A9EC8E-A96B-42A0-BF87-9FB1F2FDB15A">
          <dmn:text>false</dmn:text>
        </dmn:outputEntry>
        <dmn:annotationEntry>
          <dmn:text/>
        </dmn:annotationEntry>
      </dmn:rule>
    </dmn:decisionTable>
  </dmn:decision>
  <dmndi:DMNDI>
    <dmndi:DMNDiagram id="_8D228582-6DE6-4164-B7E9-52E249EB7F9F" name="DRG">
      <di:extension>
        <kie:ComponentsWidthsExtension>
          <kie:ComponentWidths dmnElementRef="_58370567-05DE-4EC0-AC2D-A23803C1EAAE">
            <kie:width>50</kie:width>
            <kie:width>100</kie:width>
            <kie:width>100</kie:width>
            <kie:width>100</kie:width>
          </kie:ComponentWidths>
        </kie:ComponentsWidthsExtension>
      </di:extension>
      <dmndi:DMNShape id="dmnshape-drg-_F9685B74-0C69-4982-B3B6-B04A14D79EDB" dmnElementRef="_F9685B74-0C69-4982-B3B6-B04A14D79EDB" isCollapsed="false">
        <dmndi:DMNStyle>
          <dmndi:FillColor red="255" green="255" blue="255"/>
          <dmndi:StrokeColor red="0" green="0" blue="0"/>
          <dmndi:FontColor red="0" green="0" blue="0"/>
        </dmndi:DMNStyle>
        <dc:Bounds x="404" y="464" width="100" height="50"/>
        <dmndi:DMNLabel/>
      </dmndi:DMNShape>
      <dmndi:DMNShape id="dmnshape-drg-_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" dmnElementRef="_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" isCollapsed="false">
        <dmndi:DMNStyle>
          <dmndi:FillColor red="255" green="255" blue="255"/>
          <dmndi:StrokeColor red="0" green="0" blue="0"/>
          <dmndi:FontColor red="0" green="0" blue="0"/>
        </dmndi:DMNStyle>
        <dc:Bounds x="613" y="324" width="100" height="50"/>
        <dmndi:DMNLabel/>
      </dmndi:DMNShape>
      <dmndi:DMNEdge id="dmnedge-drg-_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75" dmnElementRef="_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75">
        <di:waypoint x="504" y="489"/>
        <di:waypoint x="613" y="349"/>
      </dmndi:DMNEdge>
    </dmndi:DMNDiagram>
  </dmndi:DMNDI>
</dmn:definitions>

    The PersonDecisions.dmn file defines a DMN model with https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1 namespace and PersonDecisions name.

  3. Create a source file for the custom REST endpoint:

    Example REST endpoint
    package org.acme;

import java.util.Map;

import javax.inject.Inject;
import javax.ws.rs.Consumes;
import javax.ws.rs.POST;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;

import org.kie.kogito.incubation.application.AppRoot;
import org.kie.kogito.incubation.common.DataContext;
import org.kie.kogito.incubation.common.MapDataContext;
import org.kie.kogito.incubation.decisions.DecisionIds;
import org.kie.kogito.incubation.decisions.services.DecisionService;

@Path("/hello")
public class GreetingResource {

    // Inject the application root
    @Inject AppRoot appRoot;
    // Inject a decision service
    @Inject DecisionService svc;

    @POST
    @Consumes(MediaType.APPLICATION_JSON)
    @Produces(MediaType.APPLICATION_JSON)
    public DataContext hello(Map<String, Object> payload) {
        var id = appRoot
                .get(DecisionIds.class)
                .get("https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1",
                        "PersonDecisions");
        var ctx = MapDataContext.from(payload);
        return svc.evaluate(id, ctx);
    }
}

    The previous example of REST endpoints contains the following aspects:

    • The AppRoot object is injected that is used to create identifiers for resources to be evaluated.

    • The @Inject DecisionService svc injects the DecisionService, which is used to evaluate a DMN model. The following list describes different types of services:

      • StraightThroughProcessService for BPMN processes that terminate immediately and do not suspend into intermediate states

      • DecisionService for DMN decision models

      • PredictionService for PMML predictive models

      • RuleUnitService for Rule Unit evaluation

        Each service can be injected (@inject) and provides an evaluate(Id, DataContext) method. For more information about how to invoke the services, you can see dmn-incubation-api-quarkus, pmml-incubation-api-quarkus, process-incubation-api-quarkus, and rules-incubation-api-quarkus example applications.

    • The REST endpoint expects an arbitrary Map<String, Object> of values.

    • In the body of the REST handler, the Map is converted into a DataContext. Each service expects a DataContext to evaluate together with the identifier.

    • The evaluate(id, ctx) method returns a DataContext. The DataContext be returned directly by the REST handler: the system knows how to handle the response.

    A DataContext is a class that implements the DataContext interface. DataContext provides <T extends DataContext> T as(Class<T>) method to convert a type of data context to another. The root type of data context provides the as() method only, because the root type does not contain additional behavior.

    In the previous example, DataContext is converted into a MapDataContext and Person object. The following is an example of using a DataContext:

    Example of using a DataContext
    DataContext ctx = ...;
MapDataContext mctx = ctx.as(MapDataContext.class);
Person person = mctx.as(Person.class);

    In the previous example, MapDataContext is a type of built-in data context (Map<String, Object>) and provides get() and set() methods to access the data. The get() method pulls the entered data by performing an internal conversion if applicable.

    Example of using MapDataContext
    DataContext ctx = ...;
MapDataContext mctx = ctx.as(MapDataContext.class);
ctx.set("Paul", new Person("Paul", 79));
Object o = ctx.get("Paul");
Person p = ctx.get("Paul", Paul.class);

    Also, you can customize the example REST endpoint further by expecting a DataContext in the method signature:

    Example REST endpoint
        @POST
    @Consumes(MediaType.APPLICATION_JSON)
    @Produces(MediaType.APPLICATION_JSON)
    public DataContext hello(MapDataContext ctx) { // use ctx here
        var id = appRoot
                .get(DecisionIds.class)
                .get("https://kiegroup.org/dmn/rest-example",
                        "PersonDecisions");
        return svc.evaluate(id, ctx);
    }

    In addition, you can transform the Map data context into a Java class. This mapping is performed automatically using field naming conventions as shown in the following example:

    Example Java class
    import org.kie.kogito.incubation.common.*;
public class Person implements DataContext, DefaultCastable {
    String name;
    int age;
    // constructors...
    // getters and setters...
}

    The DataContext interface marks the Java class as a bindable context, enabling you to convert another DataContext using the as(Class<DataContext>) method:

    Example conversion of a MapDataContext into a Person
        public DataContext hello(MapDataContext ctx) {
        ...
        Person person = ctx.as(Person.class);
        return svc.evaluate(id, person);
    }

    Also, you can use the converted DataContext directly as an argument. In the following example, the Person is used as an argument:

    Example REST endpoint using Person as an argument
        public DataContext hello(Person person) {
        ...
        return svc.evaluate(id, ctx);
    }

    The custom data contexts can also be used in the return type as shown in the following example:

    Example REST endpoint using Person as an argument and a custom return type
        class MyCustomDataContext implements DataContext, DefaultCastable {...}
    public MyCustomDataContext hello(Person person) {
        ...
        DataContext result = svc.evaluate(id, ctx);
        MyCustomDataContext typedResult = result.as(MyCustomDataContext.class)
        return result;
    }

  4. Optionally, you can disable automated generation of the REST endpoint by setting kogito.generate.rest.decisions property to false in the application.properties file:

    application.properties file
    kogito.generate.rest.decisions=false

  5. Test the created custom REST endpoint:

    Example of invoking a REST endpoint
    # starts the application in devmode
$ mvn quarkus:dev
# invoke the REST service
$ curl -X POST \
    -H 'Accept: application/json' \
    -H 'Content-Type: application/json' \
    -d '{"name": "Paul" , "age" : 79}' \
    http://localhost:8080/hello
    Example response
    {
  "name":"Paul",
  "adult":true,
  "age":79
}

2.5. Spring Boot Starters for your Kogito project

The Spring Boot starters are a set of dependency descriptors that you can include in your Kogito application. Using Spring Boot starters, you can eliminate the need to go through sample code, and copy and pasting dependency descriptors.

When you create a project, the pom.xml file contains all the necessary starters. You can also include a new starter if required. For more information on creating projects using Kogito Spring Boot archetype, see Creating a custom Kogito Spring Boot project.

2.5.1. Kogito Spring Boot Starters

The Kogito Spring Boot starter is an all-in-one descriptor for the Kogito projects that require business automation engines provided by Kogito. The Kogito Spring Boot starter includes decisions, rules, processes, predictions, and the Serverless Workflow implementation.

When your project consists of all the assets and you want a quick way to get started with Kogito, you can use the kogito-spring-boot-starter. For more granular approach, you can use the specific starters or a combination of starters.

You can add a Kogito Spring Boot starter to your project as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-spring-boot-starter</artifactId>
  </dependency>
</dependencies>
If you plan to use Serverless Workflow with events, you can add kogito-serverless-workflow-spring-boot-starter to the project. The kogito-serverless-workflow-spring-boot-starter includes CloudEvents support required by Serverless Workflows.

The following list describes the different Spring Boot starters:

Kogito decisions Spring Boot starter

Starter for decisions such as DMN support for your Kogito Spring Boot project. You can add a Kogito decisions Spring Boot starter as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-decisions-spring-boot-starter</artifactId>
  </dependency>
</dependencies>
Kogito predictions Spring Boot starter

Starter for predictions such as PMML support for your Kogito Spring Boot project. You can add a Kogito predictions Spring Boot starter as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-predictions-spring-boot-starter</artifactId>
  </dependency>
</dependencies>
Kogito processes Spring Boot starter

Starter for processes such as BPMN support for your Kogito Spring Boot project. You can add a Kogito processes Spring Boot starter as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-processes-spring-boot-starter</artifactId>
  </dependency>
</dependencies>
Kogito rules Spring Boot starter

Starter for rules such as DRL support for your Kogito Spring Boot project. You can add a Kogito rules Spring Boot starter as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-rules-spring-boot-starter</artifactId>
  </dependency>
</dependencies>
Kogito Serverless Workflow Spring Boot starter

Starter for the Serverless Workflow support for your Kogito Spring Boot project. You can add a Kogito Serverless Workflow starter as follows:

<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-serverless-workflow-spring-boot-starter</artifactId>
  </dependency>
</dependencies>

2.6. Kogito add-ons

You can extend Kogito core capabilities by using add-ons modules. The add-on modules extend persistence, monitoring, messaging, and other features of Kogito services.

The following tables list all the supported add-ons:

Table 3. Kogito add-ons for Quarkus
Name Artifact Id Since

Messaging

kogito-addons-quarkus-messaging

1.0.0

Events Decisions

kogito-addons-quarkus-events-decisions

1.2.0

Events Process

kogito-addons-quarkus-events-process

0.3.0

Explainability

kogito-addons-quarkus-explainability

0.15.0

Jobs Management

kogito-addons-quarkus-jobs-management

0.6.0

Knative Eventing

kogito-addons-quarkus-knative-eventing

1.10.0

Mail

kogito-addons-quarkus-mail

1.6.0

Elastic Monitoring

kogito-addons-quarkus-monitoring-elastic

1.2.0

Prometheus Monitoring

kogito-addons-quarkus-monitoring-prometheus

0.1.0

Persistence ISPN Health

kogito-addons-quarkus-persistence-infinispan-health

0.8.0

Persistence Kafka

kogito-addons-quarkus-persistence-kafka

1.4.0

Process Management

kogito-addons-quarkus-process-management

0.3.0

Process SVG

kogito-addons-quarkus-process-svg

1.0.0

Task Management

kogito-addons-quarkus-task-management

1.4.0

Task Notification

kogito-addons-quarkus-task-notification

1.6.0

Tracing Decision

kogito-addons-quarkus-tracing-decision

0.11.0

Events MongoDB

kogito-addons-quarkus-events-mongodb

1.11.0

Source Files

kogito-addons-quarkus-source-files

1.20.0
Table 4. Kogito add-ons for Spring Boot
Name Artifact Id Since

Messaging

kogito-addons-springboot-messaging

1.0.0

Events Decisions

kogito-addons-springboot-events-decisions

1.2.0

Events Kafka

kogito-addons-springboot-events-kafka

0.3.0

Explainability

kogito-addons-springboot-explainability

0.15.0

Jobs Management

kogito-addons-springboot-jobs-management

0.6.0

Mail

kogito-addons-springboot-mail

1.6.0

Elastic Monitoring

kogito-addons-springboot-monitoring-elastic

1.2.0

Prometheus Monitoring

kogito-addons-springboot-monitoring-prometheus

0.1.0

Process Management

kogito-addons-springboot-process-management

0.3.0

Process SVG

kogito-addons-springboot-process-svg

1.0.0

Task Management

kogito-addons-springboot-task-management

1.4.0

Task Notification

kogito-addons-springboot-task-notification

1.6.0

Tracing Decision

kogito-addons-springboot-tracing-decision

0.11.0

Events MongoDB

kogito-addons-springboot-events-mongodb

1.11.0

2.6.1. Kogito messaging add-on

Kogito provides a messaging add-on, enabling a process to register an event listener. The messaging add-on uses events in the Kogito projects. For more information, see the following sections:

To configure messaging capabilities for your Kogito services, you must add the messaging add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable messaging operations in Quarkus projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-messaging</artifactId>
  <version>1.43</version>
</dependency>
Project dependency to enable messaging operations in Spring Boot projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-messaging</artifactId>
  <version>1.43</version>
</dependency>

For Quarkus, the Kogito process event add-on implementation is based on Smallrye Messaging library, which provides a set of connectors for event brokers, such as JMS, AMQP, and Kafka. Therefore, the Kogito process event add-on is not specifically combined with any event broker, but also requires additional configuration to use a suitable Smallrye connector.

For example, to use Kafka as an event broker in Quarkus, you must add the following dependency in the pom.xml file of your Kogito project:

Project dependency to enable event broker in Quarkus
<dependency>
   <groupId>io.quarkus</groupId>
   <artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
</dependency>

Smallrye uses an abstraction named channel. The implementation of channels depends on the underlying event broker. For example, when using Kafka, every channel is mapped to a topic.

Channels are configured by using properties. The pattern for these properties is mp.messaging.[incoming|outgoing].<channel name>.<property_name>.

Kogito allows different channel mapping strategies:

  • Define one default incoming channel to receive all the incoming messages and one default outgoing channel to store all the published messages.

  • Define a channel for each message name so that every message type has a dedicated channel.

  • Define a channel for certain message names and let the not mapped message names to use the default incoming or outgoing channel.

Kogito first searches for channel name equals to message name in the properties. If found, it uses that channel for that message name. If not, it searches for default channel definition. If also not existing, then an error will be reported.

The name for the default incoming channel is kogito_incoming_stream and for the default outgoing channel is kogito_outgoing_stream.

You can change the default incoming and outgoing topic name as follows:

Quarkus
kogito.addon.messaging.incoming.defaultName=<default channel name>
kogito.addon.messaging.outgoing.defaultName=<default channel name>
Spring Boot
kogito.addon.cloudevents.kafka.kogito_incoming_stream=<default channel name>
kogito.addon.cloudevents.kafka.kogito_outgoing_stream=<default channel name>

Optionally, for Kafka connector, you can define the Kafka topic to be used for that channel using the following form:

mp.messaging.[incoming|outgoing].<channel name>.topic = <topic name>

If the topic property is not found, then the topic name is considered to be the same as Kafka name. Note that you can map different channels to the same topic, if you wish to do so.

2.6.1.1. Providing a key for a Kafka record

To specify the key to your Kafka record, you can use a custom MessageDecorator implementation.

For an example, see StringKeyDecorator.java

2.6.1.2. Customizing message format

By default, Kogito uses Cloud event JSON format for messaging. However, you can change the default format by providing your own event marshaler implementation. For an example, see AvroEventMarshaller.java example

2.6.2. Kogito Decision Model and Notation (DMN) event-driven add-on

Quarkus

To use the DMN event-driven add-on, add the following code to the pom.xml file of your project:

<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-events-decisions</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-events-decisions</artifactId>
  <version>1.43</version>
</dependency>

2.6.3. Kogito explainability add-on

The Explainability add-on in Kogito provides integration with Explainability and Trusty Services. You can also use trusty-demonstration example application.

For more information, see the Kogito Trusty Service and Explainability Service.

To use the explainability add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-explainability</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-explainability</artifactId>
  <version>1.43</version>
</dependency>

2.6.4. Kogito jobs management add-on

The Jobs Management add-on provides integration and configuration for a project using the supporting services related to Jobs. For more information, see the documentation.

To use the Jobs Management add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-jobs-management</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-jobs-management</artifactId>
  <version>1.43</version>
</dependency>

2.6.5. Kogito Knative Eventing add-on

The Knative Eventing add-on is used in the Kogito project for messaging. The Kogito Knative Eventing add-on enables your project to connect to a sink or make it a KogitoSource.

The add-on processes the K_SINK and K_CE_OVERRIDES environment variables injected by Knative Eventing controllers (SinkBinding or KogitoSource).

The service requires the Kogito Messaging and Quarkus HTTP connector libraries to wire the Kogito service with a given sink. The Kogito Messaging and Quarkus HTTP connector perform as dependencies for the Knative Eventing add-on.

Spring Boot does not support Knative Eventing currently.

For more information, see Knative Eventing in Kogito services.

To use the Knative Eventing add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-knative-eventing</artifactId>
  <version>1.43</version>
</dependency>
2.6.5.1. Auto-generated Knative resources

The Knative Eventing add-on can generate Knative Eventing resources by inspecting your BPMN or Serverless Workflow files for event definitions. For more information about creating BPMN files using message trigger events, see Knative Eventing in Kogito services. You can also see Orchestrating microservices with Serverless Workflow in Kogito to know more about the Serverless Workflow events.

To enable the auto-generation of Knative resources, add the following dependency to your project:

<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-kubernetes</artifactId>
</dependency>

After adding the previous dependency, the add-on generates Knative Eventing resources to handle the events that are produced or consumed by your BPMN or Serverless Workflow resources on Knative Eventing platform.

For each consumed event, the add-on generates a Knative Eventing Trigger as shown in the following example:

Example Knative Trigger custom resource for a Kogito service with Broker binding
apiVersion: eventing.knative.dev/v1
kind: Trigger
metadata:
  name: travellers-trigger-process-knative-quickstart-quarkus
spec:
  broker: default
  filter:
    attributes:
      type: travellers
  subscriber:
    ref:
      apiVersion: serving.knative.dev/v1
      kind: Service
      name: process-knative-quickstart-quarkus

The Trigger resource requires a subscriber to receive the events that are routed by the Broker. In this case, the current Kogito service work as a subscriber, and the Knative Eventing add-on uses the Kogito service deployment, which is configured by Quarkus Kubernetes.

If a Broker is not specified, the Knative Eventing add-on generates a default InMemoryChannel as follows:

Example Broker custom resource for Knative Eventing with default InMemoryChannel
apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  name: default

If a Broker is configured in the target namespace, you can specify the Broker using the following property: org.kie.kogito.addons.knative.eventing.broker=myKafkaBroker.

If the Kogito service contains any produced event definitions, the Knative Eventing add-on generates a Knative Eventing SinkBinding, or a Knative Eventing KogitoSource. By default, the SinkBinding is generated, but you can change this behavior by setting org.kie.kogito.addons.knative.eventing.generate-kogito-source property to true.

Example SinkBinding custom resource for Knative Eventing
apiVersion: sources.knative.dev/v1
kind: SinkBinding
metadata:
  name: sb-process-knative-quickstart-quarkus
spec:
  sink:
    ref:
      apiVersion: eventing.knative.dev/v1
      kind: Broker
      name: default
  subject:
    apiVersion: serving.knative.dev/v1
    kind: Service
    name: process-knative-quickstart-quarkus
Example KogitoSource custom resource for Knative Eventing
apiVersion: kogito.knative.dev/v1alpha1
kind: KogitoSource
metadata:
  name: process-knative-quickstart-quarkus
spec:
  sink:
    ref:
      apiVersion: eventing.knative.dev/v1
      kind: Broker
      name: default
      namespace: ""
  subject:
    apiVersion: serving.knative.dev/v1
    kind: Service
    name: process-knative-quickstart-quarkus

The target deployment defined in the Quarkus Kubernetes plugin work as the subject for SinkBinding and KogitoSource. You can configure the sink using the application properties. By default, the generated Broker is defined as the sink.

The following table lists all the available properties for the Knative Eventing add-on:

Table 5. Kogito Knative Eventing Add-on properties
Property Description Example value

org.kie.kogito.addons.knative.eventing.sink.namespace

Property for set sink namespace

default

org.kie.kogito.addons.knative.eventing.sink.name

Property to set sink name

my-sink

org.kie.kogito.addons.knative.eventing.sink.api-version

Property to set Kubernetes API version of the sink

eventing.knative.dev/v1

org.kie.kogito.addons.knative.eventing.sink.kind

Property to set Kubernetes resource kind of the sink

Broker

org.kie.kogito.addons.knative.eventing.broker

Property to set name of the pre-defined Broker

myKafkaBroker

org.kie.kogito.addons.knative.eventing.generate-kogito-source

Property to enable the generation of KogitoSource instead of SinkBinding

false

org.kie.kogito.addons.knative.eventing.auto-generate-broker

Property to enable the generation of default in-memory Broker

true

For more information about the Knative Eventing add-on, see the following example applications:

2.6.6. Kogito mail add-on

The mail add-on is used to send emails in a process project. To use the mail add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-mail</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-mail</artifactId>
  <version>1.43</version>
</dependency>

2.6.7. Kogito events add-on

The events add-on provides a default implementation in supported target platforms for EventEmitter and EventReceiver interfaces. You can use EventEmitter and EventReceiver interfaces to enable messaging by process, serverless workflow events, and event decision handling. For more information, see Knative Eventing in Kogito services, [con-serverless-workflow-definitions_kogito-orchestrating-serverless], and Enabling Kafka messaging for Kogito services.

2.6.7.1. Implementing message payload decorator

Any dependant add-on can implement the MessagePayloadDecorator.

Prerequisites

  • You have installed the Events add-on in Kogito.

Procedure

  1. Create a file named META-INF/services/org.kie.kogito.add-on.cloudevents.message.MessagePayloadDecorator in your class path.

  2. Open the file.

  3. Enter the full name of your implementation class in the file.

  4. Save the file.

The MessagePayloadDecoratorProvider loads the file upon application startup and adds the file to the decoration chain. When Kogito calls the MessagePayloadDecoratorProvider#decorate, your implementation is part of the decoration algorithm.

To use the events add-on, add the following code to the pom.xml file of your project:

Events smallrye add-on for Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-events-smallrye</artifactId>
  <version>1.43</version>
</dependency>
Events decisions add-on for Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-events-decisions</artifactId>
  <version>1.43</version>
</dependency>
Events Kafka add-on for Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-events-kafka</artifactId>
  <version>1.43</version>
</dependency>
Events decisions add-on for Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-events-decisions</artifactId>
  <version>1.43</version>
</dependency>

2.6.8. Kogito monitoring add-on

The monitoring add-on provides monitoring capabilities in the Kogito project. For more information, see Metrics monitoring in Kogito.

To use the monitoring add-on, add the following code to the pom.xml file of your project:

Quarkus dependency for elastic search
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-monitoring-elastic</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for Prometheus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-monitoring-prometheus</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for elastic search
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-monitoring-elastic</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for Prometheus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-monitoring-prometheus</artifactId>
  <version>1.43</version>
</dependency>

2.6.9. Kogito persistence add-on

The persistence add-on provides persistence capability in your Kogito project. For more information, Persistence in Kogito services.

To use the Persistence add-on, add the following code to the pom.xml file of your project:

Quarkus dependency for persistence filesystem
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-filesystem</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence filesystem
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-filesystem</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for persistence Infinispan
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-infinispan</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence Infinispan
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-infinispan</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for persistence JDBC
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-jdbc</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence JDBC
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-jdbc</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for persistence MongoDB
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-mongodb</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence MongoDB
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-mongodb</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for persistence PostgreSQL
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-postgresql</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence PostgreSQL
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-postgresql</artifactId>
  <version>1.43</version>
</dependency>
Quarkus dependency for persistence Kafka
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-kafka</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot dependency for persistence Kafka
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-kafka</artifactId>
  <version>1.43</version>
</dependency>

2.6.10. Kogito process management add-on

Kogito provides a kogito-addons-quarkus-process-management add-on that enables basic REST operations that you can use to manage process instances. These REST operations are supplemental to any other specific REST operations that you have configured in your application.

To configure process management REST capabilities for your Kogito services, you can add the process management add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process management REST operations
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-management</artifactId>
</dependency>

The Kogito process management add-on provides REST support for the following basic operations:

  • Process instances: Abort an active process instance

  • Node instances: Cancel or re-trigger a node instance, or trigger a new node instance

  • Error handling: Retrieve error details for a process instance, or skip or re-trigger a failed node instance

In addition to exposed REST operations, the process management add-on also provides the following REST exception mappers to generate more meaningful error messages for typical exception types:

  • ProcessInstanceNotFound

  • NodeInstanceNotFound

  • NodeNotFound

  • ProcessInstanceExecutionError

  • NotAuthorized

  • InvalidTransition (for work items)

  • InvalidLifeCyclePhase (for work items)

These exception mappers produce a valid HTTP error code with JSON payload with the context that caused the exception.

For example, the following is a ProcessInstanceNotFoundException error generated at runtime:

Example error with JSON payload at runtime
HTTP code : 404

{
  "processInstanceId" : "c6862071-0f2e-4f21-9bc8-586245a76c3aa",
  "message" : "Process instance with id c6862071-0f2e-4f21-9bc8-586245a76c3aa not found"
}

2.6.11. Kogito process SVG add-on

Kogito provides an add-on named process-svg-addon, enabling the basic REST operations that you can use to visualize the process diagram and execution path of the related process instances. The REST operations are supplemental to any other specific REST operation that is configured in your application.

The add-on requires the access of process SVG files. The process SVG files can be placed in a file system, which is accessible to the service or available in META-INF/processSVG/ folder in the class path. For example, when the SVG files are generated, rename the files to {processId}.svg. The {processId}.svg file is used by the add-on and placed in a file system folder (accessible by the service) or in META-INF/processSVG folder in the class path. The configuration property kogito.svg.folder.path of the add-on points to the file system folder, otherwise the files are searched in the class path.

The VSCode extension enables you to export the process to SVG format:

Manually export to SVG at VSCode

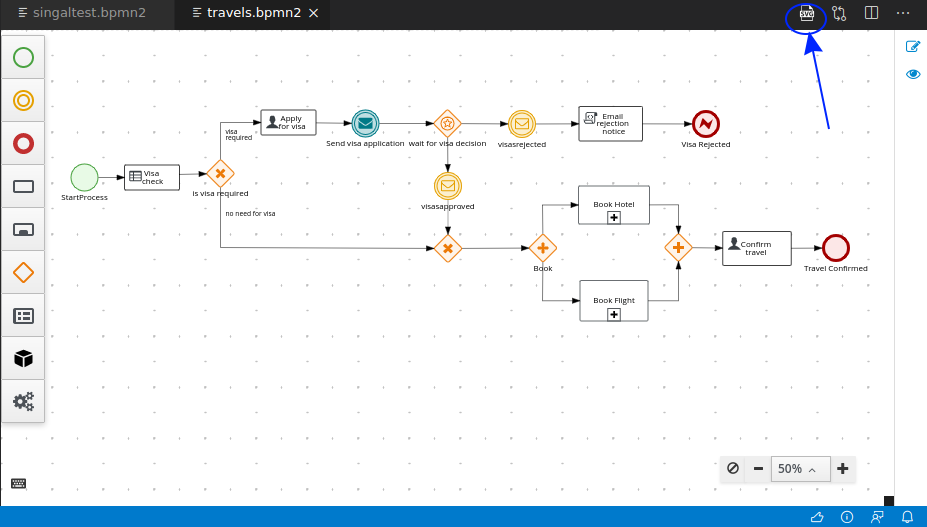

Figure 10. Export process diagram at VSCode

When you export a process to SVG format, the generated SVG is named to {processFileName}-svg.svg.

The process code generation searches this export and, if this file exists, copies and renames it to `META-INF/processSVG/{processId}.svg allowing the process SVG addon to consume it directly.

To configure process SVG REST capabilities for your Kogito services, you can add the process SVG add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process SVG REST operations in Quarkus projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-svg</artifactId>
</dependency>
Project dependency to enable process SVG REST operations in Spring Boot projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-process-svg</artifactId>
</dependency>

The process SVG add-on provides the following set of configuration properties:

Table 6. Process SVG add-on configuration properties in Kogito

Property

Description

kogito.svg.folder.path

Determines the folder in which the add-on searches the initial process diagrams. If this property is not enabled, then the add-on searches META-INF/processSVG/ folder in the class path.

Default value: empty

Example: kogito.svg.folder.path=/home/user/diagrams

kogito.svg.color.completed

Changes the color to fill the completed nodes when showing the execution path.

Default value: #C0C0C0

Example: kogito.svg.color.completed=#C2C0C1

kogito.svg.color.completed.border

Changes the color of the border of the completed node when showing the execution path.

Default value: #030303

Example: kogito.svg.color.completed.border=#C2C0C1

kogito.svg.color.active.border

Changes the color of the border of the active node when showing the execution path.

Default value: #FF0000

Example: kogito.svg.color.active.border=#C2C0C1

The Kogito process SVG add-on provides REST support for the following basic operations:

  • Process Diagram: Return the process SVG diagram

  • Process instance diagram: Return the process SVG diagram displaying the executed path of a specific process instance

2.6.12. Kogito process event add-on

Kogito provides a process event add-on, which you can use to send processes, tasks, and variable events to an external event listener. In this case, the processes, tasks, and variable events are generated as a result of the execution of an operation, which modifies a process state; such events are known as runtime events.

In Kogito, every modifying operation is executed within an abstraction called a unit of work. Examples of such operations include creating a process instance, transitioning a task, and modifying a variable. A runtime event is published when a unit of work is completed.

You can use the Kogito process event add-on to build a historical representation of all process instance executions. Also, you can use this add-on with process REST API to build a custom graphical user interface to handle the user tasks.

By default, the event format follows CloudEvent specification. The CloudEvent specification allows sending information using the data field, which contains a JSON of one of the following types:

To configure process event capabilities for your Kogito services, you can add the process event add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process event operations in Quarkus projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-events-process</artifactId>
</dependency>
Project dependency to enable process event operations in Spring Boot projects
<dependency>
  	<groupId>org.kie.kogito</groupId>
  	<artifactId>kogito-addons-springboot-events-process-kafka</artifactId>
</dependency>
The Kogito process event add-on for Spring Boot is specific to Kafka. Therefore, you do not need to add additional dependencies to your pom.xml file to use an event broker.

For Quarkus, the Kogito process event add-on implementation is based on Smallrye Messaging library, which provides a set of connectors for event brokers, such as JMS, AMQP, and Kafka. Therefore, the Kogito process event add-on is not specifically combined with any event broker in Quarkus, but requires additional configuration to use a suitable Smallrye connector.

For example, to use Kafka as an event broker in Quarkus, you can add the following dependency in the pom.xml file of your Kogito project:

Project dependency to enable Kafka event broker in Quarkus
 <dependency>
  	<groupId>io.quarkus</groupId>
  	<artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
</dependency>

Smallrye defines an abstraction named channel to enable multi-broker support. For every channel that you define in your Kogito application, you can specify the connector to use for that channel using the following form:

mp.messaging.[incoming|outgoing].<channel name>.connector = <connector name>

Optionally, for Kafka connector, you can define the Kafka topic to be used for that channel using the following form:

mp.messaging.[incoming|outgoing].<channel name>.topic = <topic name>

You can also set up a channel property using the following form:

mp.messaging.[incoming|outgoing].<channel name>.<property name>= <property value>

If the defined property is not found, then the topic name is considered to be the same as Kafka name.

The Kogito process event add-on defines a channel for each event type, such as kogito-processinstances-events, kogito-usertaskinstances-events, and kogito-variables-events. Therefore, when the process event add-on is enabled, you must add the event types to your application.properties file using the following properties:

Properties to define event types in application.properties file
mp.messaging.outgoing.kogito-processinstances-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-processinstances-events.topic=kogito-processinstances-events
mp.messaging.outgoing.kogito-processinstances-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

mp.messaging.outgoing.kogito-usertaskinstances-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-usertaskinstances-events.topic=kogito-usertaskinstances-events
mp.messaging.outgoing.kogito-usertaskinstances-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

mp.messaging.outgoing.kogito-variables-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-variables-events.topic=kogito-variables-events
mp.messaging.outgoing.kogito-variables-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

Additionally, you can disable the publishing on any channel by setting the related property to false as shown in the following example:

Example properties to disable publishing
kogito.events.usertasks.enabled=false
kogito.events.variables.enabled=false

2.6.13. Kogito task management add-on

The Task Management add-on provides integration with the Task Console. For more information, see Kogito Task Console.

To use the Task Management add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-task-management</artifactId>
  <version>1.43</version>
</dependency>
Spring Boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-task-management</artifactId>
  <version>1.43</version>
</dependency>

2.6.14. Kogito tracing add-on

The Tracing add-on provides Decision model and notation (DMN) services tracing capability. For more information, see the https://docs.jboss.org/kogito/release/latest/html_single/#con-trusty-service_kogito-configuring [documentation].

To use the Tracing add-on, add the following code to the pom.xml file of your project:

Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-tracing-decision</artifactId>
  <version>1.43</version>
</dependency>
Spring boot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-tracing-decision</artifactId>
  <version>1.43</version>
</dependency>

2.6.15. Kogito source files add-on

The Kogito Source Files Add-on adds the capability of listing and downloading source files to Kogito projects.

⚠️ This add-on isn’t supposed to be used by end-users, if not needed for internal integrations, since it can be a potential security breach for some users' use cases.

To add the endpoints to download your services' source files, you can add the source files add-on as a dependency in your pom.xml file.

Project dependency to enable source files endpoints
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-source-files</artifactId>
</dependency>

Access to all the endpoints is granted to the role source-files-client. To define basic authentication, you can add the following code to your application.properties file:

Example of credentials for the user scott and password jb0ss
quarkus.security.users.embedded.enabled=true
quarkus.security.users.embedded.plain-text=true
quarkus.security.users.embedded.users.scott=jb0ss
quarkus.security.users.embedded.roles.scott=source-files-client

You can also disable plain-text passwords by setting the quarkus.security.users.embedded.plain-text property to false or just removing it from the configuration. In this case, the passwords are encrypted using MD5.

Example of credentials for the user scott and password jb0ss encrypted using MD5
quarkus.security.users.embedded.enabled=true
quarkus.security.users.embedded.users.scott=4960d03c13b5aff4ca6886758a8be019
quarkus.security.users.embedded.roles.scott=source-files-client

To define a more robust authentication mechanism, you can refer to the Quarkus documentation.

The Source Files Add-on provides REST support for the following operation:

2.6.15.1. List all the source files for the specified process

  • GET: /management/processes/{processId}/sources

    • parameters:

      • processId: process identifier

    • output:

      • JSON with related source files URIs

Example: to list the source files for the process with id petstore_http, you can use the following command:
$ curl -X 'GET' \
  'http://localhost:8080/management/processes/petstore_http/sources' \
  -H 'accept: application/json' \
  -H 'Authorization: Basic c2NvdHQ6amIwc3M='
Output
[
  {
    "uri": "https://raw.githubusercontent.com/OAI/OpenAPI-Specification/main/examples/v2.0/json/petstore-simple.json"
  },
  {
    "uri": "/sources/org/kie/kogito/examples/petstore_http.sw.json"
  }
]
2.6.15.2. Download the specified source file

  • GET: /management/processes/{processId}/source

    • parameters:

      • processId: process identifier

    • output:

      • Source file content used by the editor

Example: to list the source file for the process with id petstore_http, you can use the following command:
$ curl -X 'GET' \
  'http://localhost:8080/management/processes/petstore_http/source' \
  -H 'accept: application/json' \
  -H 'Authorization: Basic c2NvdHQ6amIwc3M='
Output
{
  "id": "petstore_http",
  "version": "1.0",
  "name": "Send CloudEvent after creating Pluto",
  "start": "AddPluto",
  "functions": [
    {
      "name": "addPet",
      "operation": "https://raw.githubusercontent.com/OAI/OpenAPI-Specification/main/examples/v2.0/json/petstore-simple.json#addPet"
    }
  ],
  "states": [
    {
      "name": "AddPluto",
      "type": "operation",
      "actions": [
        {
          "functionRef": {
            "refName": "addPet",
            "parameters": {
              "body": {
                "name": "Pluto"
              }
            }
          }
        }
      ],
      "end": true
    }
  ]
}
Example: to download the source file located at org/kie/kogito/examples/petstore_http.sw.json, you can use the following command:
$ curl -X 'GET' \
  'http://localhost:8080/sources?uri=org/kie/kogito/examples/petstore_http.sw.json' \
  -H 'accept: */*' \
  -H 'Authorization: Basic c2NvdHQ6amIwc3M='

2.7. Designing the application logic for a Kogito service using DMN and BPMN

After you create your Kogito project, you can create or import Business Process Model and Notation (BPMN) 2.0 business processes, Decision Model and Notation (DMN) decision models, Drools Rule Language (DRL) business rules, XLS or XLSX decision tables, and other assets in the src/main/resources folder of your project. You can also include Java classes in the src/main/java folder of your project that act as Java services or provide implementations that you call from your business processes or decisions.

The example for this procedure is a basic Kogito service that provides a REST endpoint /persons. This endpoint is automatically generated based on an example PersonProcess.bpmn2 business process that employs an example PersonDecisions.dmn DMN model to make decisions based on the data being processed.

The business process contains the business logic of the Kogito service. The process provides the complete set of steps to achieve the business goal. The process is also the entry point to the service that can be consumed by other services.

The business decision contains the decision logic of the Kogito service. In this example, the decision logic is invoked as part of the business process. You can define business rules and decisions in several ways, such as with DMN models, DRL rules, or XLS or XLSX decision tables. The example for this procedure uses a DMN model.

Procedure

  1. In the Maven project that you generated for your Kogito service, navigate to the src/main/java/org/acme folder and add the following Person.java file:

    Example person Java object
    package org.acme;

import java.io.Serializable;

public class Person {

	private String name;
	private int age;
	private boolean adult;

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public int getAge() {
		return age;
	}

	public void setAge(int age) {
		this.age = age;
	}

	public boolean isAdult() {
		return adult;
	}

	public void setAdult(boolean adult) {
		this.adult = adult;
	}

	@Override
	public String toString() {
		return "Person [name=" + name + ", age=" + age + ", adult=" + adult + "]";
	}

}

    This example Java object sets and retrieves a person’s name, age, and adult status.

  2. Navigate to the src/main/resources folder and add the following PersonDecisions.dmn DMN decision model:

    Image of PersonDecisions decision diagram
    Figure 11. Example PersonDecisions DMN decision requirements diagram (DRD)
    Image of PersonDecisions decision table
    Figure 12. Example DMN boxed expression for isAdult decision
    Image of PersonDecisions data types

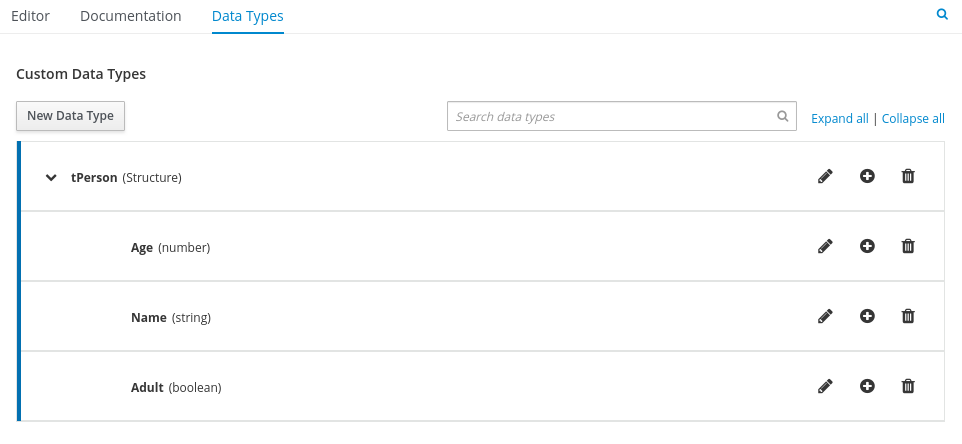

    Figure 13. Example DMN data types

    This example DMN model consists of a basic DMN input node and a decision node defined by a DMN decision table with a custom structured data type.

    In VSCode (recommended), you can add the Kogito Bundle VSCode extension to design the decision requirements diagram (DRD), boxed expression, and data types with the Kogito DMN modeler.

    To create this example DMN model quickly, you can copy the following PersonDecisions.dmn file content:

    Example DMN file
    <dmn:definitions xmlns:dmn="http://www.omg.org/spec/DMN/20180521/MODEL/" xmlns="https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1" xmlns:di="http://www.omg.org/spec/DMN/20180521/DI/" xmlns:kie="http://www.drools.org/kie/dmn/1.2" xmlns:dmndi="http://www.omg.org/spec/DMN/20180521/DMNDI/" xmlns:dc="http://www.omg.org/spec/DMN/20180521/DC/" xmlns:feel="http://www.omg.org/spec/DMN/20180521/FEEL/" id="_84B432F5-87E7-43B1-9101-1BAFE3D18FC5" name="PersonDecisions" typeLanguage="http://www.omg.org/spec/DMN/20180521/FEEL/" namespace="https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1">
  <dmn:extensionElements/>
  <dmn:itemDefinition id="_DEF2C3A7-F3A9-4ABA-8D0A-C823E4EB43AB" name="tPerson" isCollection="false">
    <dmn:itemComponent id="_DB46DB27-0752-433F-ABE3-FC9E3BDECC97" name="Age" isCollection="false">
      <dmn:typeRef>number</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_8C6D865F-E9C8-43B0-AB4D-3F2075A4ECA6" name="Name" isCollection="false">
      <dmn:typeRef>string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_9033704B-4E1C-42D3-AC5E-0D94107303A1" name="Adult" isCollection="false">
      <dmn:typeRef>boolean</dmn:typeRef>
    </dmn:itemComponent>
  </dmn:itemDefinition>
  <dmn:inputData id="_F9685B74-0C69-4982-B3B6-B04A14D79EDB" name="Person">
    <dmn:extensionElements/>
    <dmn:variable id="_0E345A3C-BB1F-4FB2-B00F-C5691FD1D36C" name="Person" typeRef="tPerson"/>
  </dmn:inputData>
  <dmn:decision id="_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" name="isAdult">
    <dmn:extensionElements/>
    <dmn:variable id="_54CD509F-452F-40E5-941C-AFB2667D4D45" name="isAdult" typeRef="boolean"/>
    <dmn:informationRequirement id="_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75">
      <dmn:requiredInput href="#_F9685B74-0C69-4982-B3B6-B04A14D79EDB"/>
    </dmn:informationRequirement>
    <dmn:decisionTable id="_58370567-05DE-4EC0-AC2D-A23803C1EAAE" hitPolicy="UNIQUE" preferredOrientation="Rule-as-Row">
      <dmn:input id="_ADEF36CD-286A-454A-ABD8-9CF96014021B">
        <dmn:inputExpression id="_4930C2E5-7401-46DD-8329-EAC523BFA492" typeRef="number">
          <dmn:text>Person.Age</dmn:text>
        </dmn:inputExpression>
      </dmn:input>
      <dmn:output id="_9867E9A3-CBF6-4D66-9804-D2206F6B4F86" typeRef="boolean"/>
      <dmn:rule id="_59D6BFF0-35B4-4B7E-8D7B-E31CB0DB8242">
        <dmn:inputEntry id="_7DC55D63-234F-497B-A12A-93DA358C0136">
          <dmn:text>&gt; 18</dmn:text>
        </dmn:inputEntry>
        <dmn:outputEntry id="_B3BB5B97-05B9-464A-AB39-58A33A9C7C00">
          <dmn:text>true</dmn:text>
        </dmn:outputEntry>
      </dmn:rule>
      <dmn:rule id="_8FCD63FE-8AD8-4F56-AD12-923E87AFD1B1">
        <dmn:inputEntry id="_B4EF7F13-E486-46CB-B14E-1D21647258D9">
          <dmn:text>&lt;= 18</dmn:text>
        </dmn:inputEntry>
        <dmn:outputEntry id="_F3A9EC8E-A96B-42A0-BF87-9FB1F2FDB15A">
          <dmn:text>false</dmn:text>
        </dmn:outputEntry>
      </dmn:rule>
    </dmn:decisionTable>
  </dmn:decision>
  <dmndi:DMNDI>
    <dmndi:DMNDiagram>
      <di:extension>
        <kie:ComponentsWidthsExtension>
          <kie:ComponentWidths dmnElementRef="_58370567-05DE-4EC0-AC2D-A23803C1EAAE">
            <kie:width>50</kie:width>
            <kie:width>100</kie:width>
            <kie:width>100</kie:width>
            <kie:width>100</kie:width>
          </kie:ComponentWidths>
        </kie:ComponentsWidthsExtension>
      </di:extension>
      <dmndi:DMNShape id="dmnshape-_F9685B74-0C69-4982-B3B6-B04A14D79EDB" dmnElementRef="_F9685B74-0C69-4982-B3B6-B04A14D79EDB" isCollapsed="false">
        <dmndi:DMNStyle>
          <dmndi:FillColor red="255" green="255" blue="255"/>
          <dmndi:StrokeColor red="0" green="0" blue="0"/>
          <dmndi:FontColor red="0" green="0" blue="0"/>
        </dmndi:DMNStyle>
        <dc:Bounds x="404" y="464" width="100" height="50"/>
        <dmndi:DMNLabel/>
      </dmndi:DMNShape>
      <dmndi:DMNShape id="dmnshape-_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" dmnElementRef="_0D2BD7A9-ACA1-49BE-97AD-19699E0C9852" isCollapsed="false">
        <dmndi:DMNStyle>
          <dmndi:FillColor red="255" green="255" blue="255"/>
          <dmndi:StrokeColor red="0" green="0" blue="0"/>
          <dmndi:FontColor red="0" green="0" blue="0"/>
        </dmndi:DMNStyle>
        <dc:Bounds x="404" y="311" width="100" height="50"/>
        <dmndi:DMNLabel/>
      </dmndi:DMNShape>
      <dmndi:DMNEdge id="dmnedge-_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75" dmnElementRef="_2F819B03-36B7-4DEB-AED6-2B46AE3ADB75">
        <di:waypoint x="504" y="489"/>
        <di:waypoint x="404" y="336"/>
      </dmndi:DMNEdge>
    </dmndi:DMNDiagram>
  </dmndi:DMNDI>
</dmn:definitions>

    To create this example DMN model in VSCode using the Kogito DMN modeler, follow these steps:

    1. Open the empty PersonDecisions.dmn file and in the upper-right corner of the DMN modeler, click the Properties icon and confirm that the DMN model Name is set to PersonDecisions.

    2. In the left palette, select DMN Input Data, drag the node to the canvas, and double-click the node to name it Person.

    3. In the left palette, select DMN Decision, drag the node to the canvas, double-click the node to name it isAdult, and link to it from the input node.

    4. Select the decision node to display the node options and click the Edit icon to open the DMN boxed expression editor to define the decision logic for the node.

    5. Click the undefined expression field and select Decision Table.

    6. Click the upper-left corner of the decision table to set the hit policy to Unique.

    7. Set the input and output columns so that the input source Person.Age with type number determines the age limit and the output target isAdult with type boolean determines adult status:

      Image of PersonDecisions decision table
      Figure 14. Example DMN decision table for isAdult decision

    8. In the upper tab options, select the Data Types tab and add the following tPerson structured data type and nested data types:

      Image of PersonDecisions data types
      Figure 15. Example DMN data types

    9. After you define the data types, select the Editor tab to return to the DMN modeler canvas.

    10. Select the Person input node, click the Properties icon, and under Information item, set the Data type to tPerson.

    11. Select the isAdult decision node, click the Properties icon, and under Information item, confirm that the Data type is still set to boolean. You previously set this data type when you created the decision table.

    12. Save the DMN decision file.

  3. In the src/main/resources folder, add the following PersonProcess.bpmn2 BPMN process model:

    Image of person process diagram
    Figure 16. Example PersonProcess BPMN process

    This example process consists of the following basic BPMN components:

    • Start event

    • Business rule task

    • Exclusive gateway

    • User task

    • End events

    In VSCode (recommended), you can add the Kogito Bundle VSCode extension to model the business process with the Kogito BPMN modeler.

    To create this example process quickly, you can copy the following PersonProcess.bpmn2 file content:

    Example BPMN file
    <bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:bpsim="http://www.bpsim.org/schemas/1.0" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:drools="http://www.jboss.org/drools" id="_J4ElsVJgEDiScotxwBQ14Q" exporter="jBPM Process Modeler" exporterVersion="2.0" targetNamespace="http://www.omg.org/bpmn20">
  <bpmn2:itemDefinition id="_personItem" structureRef="org.acme.Person"/>
  <bpmn2:itemDefinition id="_isAdultItem" structureRef="Boolean"/>
  <bpmn2:itemDefinition id="_UserTask_1_SkippableInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_PriorityInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_CommentInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_DescriptionInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_CreatedByInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_TaskNameInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_GroupIdInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_ContentInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_NotStartedReassignInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_NotCompletedReassignInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_NotStartedNotifyInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_NotCompletedNotifyInputXItem" structureRef="Object"/>
  <bpmn2:itemDefinition id="_UserTask_1_personInputXItem" structureRef="org.acme.Person"/>
  <bpmn2:itemDefinition id="_BusinessRuleTask_1_namespaceInputXItem" structureRef="java.lang.String"/>
  <bpmn2:itemDefinition id="_BusinessRuleTask_1_modelInputXItem" structureRef="java.lang.String"/>
  <bpmn2:itemDefinition id="_BusinessRuleTask_1_decisionInputXItem" structureRef="java.lang.String"/>
  <bpmn2:itemDefinition id="_BusinessRuleTask_1_PersonInputXItem" structureRef="org.acme.Person"/>
  <bpmn2:itemDefinition id="_BusinessRuleTask_1_isAdultOutputXItem" structureRef="Boolean"/>
  <bpmn2:process id="persons" drools:packageName="org.acme" drools:version="1.0" drools:adHoc="false" name="Person Process" isExecutable="true" processType="Public">
    <bpmn2:property id="person" itemSubjectRef="_personItem" name="person"/>
    <bpmn2:property id="isAdult" itemSubjectRef="_isAdultItem" name="isAdult"/>
    <bpmn2:sequenceFlow id="SequenceFlow_1" sourceRef="StartEvent_1" targetRef="BusinessRuleTask_1"/>
    <bpmn2:sequenceFlow id="SequenceFlow_2" sourceRef="BusinessRuleTask_1" targetRef="ExclusiveGateway_1"/>
    <bpmn2:sequenceFlow id="SequenceFlow_3" sourceRef="ExclusiveGateway_1" targetRef="UserTask_1">
      <bpmn2:conditionExpression xsi:type="bpmn2:tFormalExpression" language="http://www.java.com/java">return isAdult == false;</bpmn2:conditionExpression>
    </bpmn2:sequenceFlow>
    <bpmn2:sequenceFlow id="SequenceFlow_4" sourceRef="UserTask_1" targetRef="EndEvent_1"/>
    <bpmn2:sequenceFlow id="SequenceFlow_5" sourceRef="ExclusiveGateway_1" targetRef="EndEvent_2">
      <bpmn2:conditionExpression xsi:type="bpmn2:tFormalExpression" language="http://www.java.com/java">return isAdult == true;</bpmn2:conditionExpression>
    </bpmn2:sequenceFlow>
    <bpmn2:startEvent id="StartEvent_1" name="StartProcess">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>StartProcess</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:outgoing>SequenceFlow_1</bpmn2:outgoing>
    </bpmn2:startEvent>
    <bpmn2:businessRuleTask id="BusinessRuleTask_1" name="Evaluate person" implementation="http://www.jboss.org/drools/dmn">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>Evaluate person</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>SequenceFlow_1</bpmn2:incoming>
      <bpmn2:outgoing>SequenceFlow_2</bpmn2:outgoing>
      <bpmn2:ioSpecification>
        <bpmn2:dataInput id="BusinessRuleTask_1_namespaceInputX" drools:dtype="java.lang.String" itemSubjectRef="_BusinessRuleTask_1_namespaceInputXItem" name="namespace"/>
        <bpmn2:dataInput id="BusinessRuleTask_1_decisionInputX" drools:dtype="java.lang.String" itemSubjectRef="_BusinessRuleTask_1_decisionInputXItem" name="decision"/>
        <bpmn2:dataInput id="BusinessRuleTask_1_modelInputX" drools:dtype="java.lang.String" itemSubjectRef="_BusinessRuleTask_1_modelInputXItem" name="model"/>
        <bpmn2:dataInput id="BusinessRuleTask_1_PersonInputX" drools:dtype="org.acme.Person" itemSubjectRef="_BusinessRuleTask_1_PersonInputXItem" name="Person"/>
        <bpmn2:dataOutput id="BusinessRuleTask_1_isAdultOutputX" drools:dtype="Boolean" itemSubjectRef="_BusinessRuleTask_1_isAdultOutputXItem" name="isAdult"/>
        <bpmn2:inputSet>
          <bpmn2:dataInputRefs>BusinessRuleTask_1_namespaceInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>BusinessRuleTask_1_decisionInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>BusinessRuleTask_1_modelInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>BusinessRuleTask_1_PersonInputX</bpmn2:dataInputRefs>
        </bpmn2:inputSet>
        <bpmn2:outputSet>
          <bpmn2:dataOutputRefs>BusinessRuleTask_1_isAdultOutputX</bpmn2:dataOutputRefs>
        </bpmn2:outputSet>
      </bpmn2:ioSpecification>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>BusinessRuleTask_1_namespaceInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">BusinessRuleTask_1_namespaceInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>BusinessRuleTask_1_decisionInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">isAdult</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">BusinessRuleTask_1_decisionInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>BusinessRuleTask_1_modelInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">PersonDecisions</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">BusinessRuleTask_1_modelInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:sourceRef>person</bpmn2:sourceRef>
        <bpmn2:targetRef>BusinessRuleTask_1_PersonInputX</bpmn2:targetRef>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataOutputAssociation>
        <bpmn2:sourceRef>BusinessRuleTask_1_isAdultOutputX</bpmn2:sourceRef>
        <bpmn2:targetRef>isAdult</bpmn2:targetRef>
      </bpmn2:dataOutputAssociation>
    </bpmn2:businessRuleTask>
    <bpmn2:exclusiveGateway id="ExclusiveGateway_1" name="Exclusive Gateway 1" gatewayDirection="Diverging">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>Exclusive Gateway 1</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>SequenceFlow_2</bpmn2:incoming>
      <bpmn2:outgoing>SequenceFlow_5</bpmn2:outgoing>
      <bpmn2:outgoing>SequenceFlow_3</bpmn2:outgoing>
    </bpmn2:exclusiveGateway>
    <bpmn2:userTask id="UserTask_1" name="Special handling for children">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>Special handling for children</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>SequenceFlow_3</bpmn2:incoming>
      <bpmn2:outgoing>SequenceFlow_4</bpmn2:outgoing>
      <bpmn2:ioSpecification>
        <bpmn2:dataInput id="UserTask_1_TaskNameInputX" drools:dtype="Object" itemSubjectRef="_UserTask_1_TaskNameInputXItem" name="TaskName"/>
        <bpmn2:dataInput id="UserTask_1_personInputX" drools:dtype="org.acme.Person" itemSubjectRef="_UserTask_1_personInputXItem" name="person"/>
        <bpmn2:dataInput id="UserTask_1_SkippableInputX" drools:dtype="Object" itemSubjectRef="_UserTask_1_SkippableInputXItem" name="Skippable"/>
        <bpmn2:dataInput id="UserTask_1_PriorityInputX" drools:dtype="Object" itemSubjectRef="_UserTask_1_PriorityInputXItem" name="Priority"/>
        <bpmn2:inputSet>
          <bpmn2:dataInputRefs>UserTask_1_TaskNameInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>UserTask_1_personInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>UserTask_1_SkippableInputX</bpmn2:dataInputRefs>
          <bpmn2:dataInputRefs>UserTask_1_PriorityInputX</bpmn2:dataInputRefs>
        </bpmn2:inputSet>
      </bpmn2:ioSpecification>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>UserTask_1_TaskNameInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">ChildrenHandling</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">UserTask_1_TaskNameInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:sourceRef>person</bpmn2:sourceRef>
        <bpmn2:targetRef>UserTask_1_personInputX</bpmn2:targetRef>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>UserTask_1_SkippableInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">true</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">UserTask_1_SkippableInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataInputAssociation>
        <bpmn2:targetRef>UserTask_1_PriorityInputX</bpmn2:targetRef>
        <bpmn2:assignment>
          <bpmn2:from xsi:type="bpmn2:tFormalExpression">1</bpmn2:from>
          <bpmn2:to xsi:type="bpmn2:tFormalExpression">UserTask_1_PriorityInputX</bpmn2:to>
        </bpmn2:assignment>
      </bpmn2:dataInputAssociation>
    </bpmn2:userTask>
    <bpmn2:endEvent id="EndEvent_1" name="End Event 1">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>End Event 1</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>SequenceFlow_4</bpmn2:incoming>
    </bpmn2:endEvent>
    <bpmn2:endEvent id="EndEvent_2" name="End Event 2">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue>End Event 2</drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>SequenceFlow_5</bpmn2:incoming>
    </bpmn2:endEvent>
  </bpmn2:process>
  <bpmndi:BPMNDiagram>
    <bpmndi:BPMNPlane bpmnElement="persons">
      <bpmndi:BPMNShape id="shape_EndEvent_2" bpmnElement="EndEvent_2">
        <dc:Bounds height="56" width="56" x="622" y="201"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape_EndEvent_1" bpmnElement="EndEvent_1">
        <dc:Bounds height="56" width="56" x="622" y="105"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape_UserTask_1" bpmnElement="UserTask_1">
        <dc:Bounds height="78" width="134" x="449" y="94"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape_ExclusiveGateway_1" bpmnElement="ExclusiveGateway_1">
        <dc:Bounds height="56" width="56" x="365" y="105"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape_BusinessRuleTask_1" bpmnElement="BusinessRuleTask_1">
        <dc:Bounds height="71" width="141" x="180" y="97"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape_StartEvent_1" bpmnElement="StartEvent_1">
        <dc:Bounds height="56" width="56" x="80" y="105"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="edge_shape_ExclusiveGateway_1_to_shape_EndEvent_2" bpmnElement="SequenceFlow_5">
        <di:waypoint x="390" y="155"/>
        <di:waypoint x="393" y="231"/>
        <di:waypoint x="622" y="219"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape_UserTask_1_to_shape_EndEvent_1" bpmnElement="SequenceFlow_4">
        <di:waypoint x="583" y="133"/>
        <di:waypoint x="622" y="123"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape_ExclusiveGateway_1_to_shape_UserTask_1" bpmnElement="SequenceFlow_3">
        <di:waypoint x="415" y="130"/>
        <di:waypoint x="449" y="133"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape_BusinessRuleTask_1_to_shape_ExclusiveGateway_1" bpmnElement="SequenceFlow_2">
        <di:waypoint x="321" y="132.5"/>
        <di:waypoint x="365" y="130"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape_StartEvent_1_to_shape_BusinessRuleTask_1" bpmnElement="SequenceFlow_1">
        <di:waypoint x="116" y="123"/>
        <di:waypoint x="180" y="132.5"/>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
  <bpmn2:relationship type="BPSimData">
    <bpmn2:extensionElements>
      <bpsim:BPSimData>
        <bpsim:Scenario id="default" name="Simulationscenario">
          <bpsim:ScenarioParameters/>
          <bpsim:ElementParameters elementRef="UserTask_1">
            <bpsim:TimeParameters>
              <bpsim:ProcessingTime>
                <bpsim:NormalDistribution mean="0" standardDeviation="0"/>
              </bpsim:ProcessingTime>
            </bpsim:TimeParameters>
            <bpsim:ResourceParameters>
              <bpsim:Availability>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:Availability>
              <bpsim:Quantity>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:Quantity>
            </bpsim:ResourceParameters>
            <bpsim:CostParameters>
              <bpsim:UnitCost>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:UnitCost>
            </bpsim:CostParameters>
          </bpsim:ElementParameters>
          <bpsim:ElementParameters elementRef="BusinessRuleTask_1">
            <bpsim:TimeParameters>
              <bpsim:ProcessingTime>
                <bpsim:NormalDistribution mean="0" standardDeviation="0"/>
              </bpsim:ProcessingTime>
            </bpsim:TimeParameters>
            <bpsim:ResourceParameters>
              <bpsim:Availability>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:Availability>
              <bpsim:Quantity>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:Quantity>
            </bpsim:ResourceParameters>
            <bpsim:CostParameters>
              <bpsim:UnitCost>
                <bpsim:FloatingParameter value="0"/>
              </bpsim:UnitCost>
            </bpsim:CostParameters>
          </bpsim:ElementParameters>
          <bpsim:ElementParameters elementRef="StartEvent_1">
            <bpsim:TimeParameters>
              <bpsim:ProcessingTime>
                <bpsim:NormalDistribution mean="0" standardDeviation="0"/>
              </bpsim:ProcessingTime>
            </bpsim:TimeParameters>
          </bpsim:ElementParameters>
        </bpsim:Scenario>
      </bpsim:BPSimData>
    </bpmn2:extensionElements>
    <bpmn2:source>_J4ElsVJgEDiScotxwBQ14Q</bpmn2:source>
    <bpmn2:target>_J4ElsVJgEDiScotxwBQ14Q</bpmn2:target>
  </bpmn2:relationship>
</bpmn2:definitions>

    To create this example BPMN process in VSCode using the Kogito BPMN modeler, follow these steps:

    1. Open the empty PersonProcess.bpmn2 file and in the upper-right corner of the BPMN modeler, click the Properties icon and define the following properties:

      • Process: Set the following values:

        • Name: Person Process

        • ID: persons

        • Package: org.acme

      • Process Data: Add the following process variables:

        • person with the type org.acme.Person (Use the Custom data type option to define the custom type.)

        • isAdult with the type Boolean

    2. In the left palette, select Activities → Business Rule, drag the task to the canvas, and link to it from the start event.

    3. Select the business rule task and define the following properties:

      • General: Set the rule task Name to Evaluate person.

      • Implementation/Execution: Set the following values:

        • Rule Language: DMN

        • Namespace: The namespace property value from the PersonDecisions.dmn file that you created previously, such as https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1

        • Decision Name: isAdult

        • DMN Model Name: PersonDecisions

      • Data Assignments: Add the following assignments:

        • Data Input: Add a data input with the name Person, with the type org.acme.Person, and with the source person.

        • Data Output: Add a data output with the name isAdult, with the type Boolean, and with the source isAdult.

    4. In the left palette, select Gateways → Exclusive, drag the gateway to the canvas, and link to it from the rule task.

    5. In the left palette, select Activities → User, drag the user task to the canvas, and link to it from the exclusive gateway.

    6. Select the user task and define the following properties:

      • General: Set the user task Name to Special handling for children.

      • Implementation/Execution: Set the Task Name to ChildrenHandling, and add a data input with the name person, the type org.acme.Person, and the source person.

    7. In the left palette, select End Events → End, drag two end events to the canvas, and link to one end event from the user task and to the other end event from the exclusive gateway.

    8. Select the connector that connects the exclusive gateway to the end event and for the Implementation/Execution property, set the Condition Expression to Java and enter the condition return isAdult == true;.

    9. Select the connector that connects the exclusive gateway to the user task and for the Implementation/Execution property, set the Condition Expression to Java and enter the condition to return isAdult == false;

    10. Save the BPMN process file.

2.7.1. Using DRL rule units as an alternative decision service

As an alternative to using Decision Model and Notation (DMN) to define this example decision service, you can also use a Drools Rule Language (DRL) file implemented as a rule unit.

A DRL rule unit is a module for rules and a unit of execution. A rule unit collects a set of rules with the declaration of the type of facts that the rules act on. A rule unit also serves as a unique namespace for each group of rules. A single rule base can contain multiple rule units. You typically store all the rules for a unit in the same file as the unit declaration so that the unit is self-contained. For more information about rule units, see Developing decision services with Kogito.

Procedure

  1. In the src/main/resources folder of your example Kogito project, instead of using a DMN file, add the following PersonRules.drl file:

    Example PersonRules DRL file
    package org.acme
unit PersonRules;

import org.acme.Person;

rule isAdult
	when
		$person: /person[ age > 18 ]
	then
    modify($person) {
    	setAdult(true)
    };
end

    This example rule determines that any person who is older than 18 is classified as an adult. The rule file also declares that the rule belongs to the rule unit PersonRules. This is the rule unit that you define as part of the business rule task in the example BPMN process. When you build the project, the rule unit is generated and associated with the DRL file.

    The rule also defines the condition using OOPath notation. OOPath is an object-oriented syntax extension to XPath for navigating through related elements while handling collections and filtering constraints.

    You can also rewrite the same rule condition in a more explicit form using the traditional rule pattern syntax, as shown in the following example:

    Example PersonRules DRL file using traditional notation
    package org.acme
unit PersonRules;

import org.acme.Person;

rule isAdult
	when
		$person: Person(age > 18) from person
	then
    modify($person) {
    	setAdult(true)
    };
end

  2. In the src/main/resources folder, use the Kogito BPMN modeler in VSCode to open the PersonProcess.bpmn2 process diagram that you created.

  3. Select the Evaluate person business rule task and modify the following properties:

    • Implementation/Execution: Set the following values:

      • Rule Language: DRL (instead of DMN)

      • Rule Flow Group: unit:org.acme.PersonRules

        This rule unit syntax in the Rule Flow Group field specifies that you are using the org.acme.PersonRules rule unit instead of a traditional rule flow group. This is the rule unit that you referenced in the example DRL file. When you build the project, the business process implicitly declares the rule unit as part of the business rule task to execute the DRL file.

    • Data Assignments: Open the assignment settings and change the data input Name to person (instead of Person). This accommodates the input variable syntax required by the DRL file.

  4. Select the connector that connects the exclusive gateway to the end event and for the Implementation/Execution property, verify that the Condition Expression is set to Java and change the condition to return person.isAdult();.

  5. Select the connector that connects the exclusive gateway to the user task and for the Implementation/Execution property, verify that the Condition Expression is set to Java and change the condition return ! person.isAdult();.

  6. Save the process file to update the model.

2.8. Testing the decision logic for a Kogito service using test scenarios

As you develop business decisions in your Kogito services, you can use test scenarios to validate the functionality of your decisions before you begin running and using your Kogito services. With a test scenario, you use data from your project to set given conditions and expected results based on one or more defined business decisions. When you run the scenario, the expected results and actual results of the decision instance are compared. If the expected results match the actual results, the test is successful. If the expected results do not match the actual results, then the test fails.

You define test scenarios in .scesim (scenario simulation) files that you can model in Visual Studio Code (VSCode) using the Kogito Bundle VSCode extension. You can use one or multiple .scesim files in your Kogito project, and each .scesim file can contain one or multiple test scenarios based on the defined decision data.

The example for this procedure uses a basic PersonDecisionsTest.scesim test scenario file that validates the decision logic in the example PersonDecisions.dmn Decision Model and Notation (DMN) model that you created previously.

Test scenarios in Kogito currently support DMN decision services only. Test scenarios will support Drools Rule Language (DRL) decision services in a future release.
Prerequisites
Procedure

  1. In the Maven project that contains your Kogito decision services, add the following dependency to the pom.xml file to enable test scenario execution for your project:

    Dependency to enable test scenario execution
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-scenario-simulation</artifactId>
  <scope>test</scope>
</dependency>

  2. Navigate to the src/main folder of the project and create a test folder with the following subfolders. If you have an existing test folder structure, you can adapt the steps that follow according to your project layout.

    Test folder structure for test scenarios
    src/main/test/
          └── java/testscenario
          └── resources

  3. Navigate to the test/java/testscenario folder and add the following KogitoScenarioJunitActivatorTest.java class:

    Activator class for test scenarios
    package testscenario;

@org.junit.runner.RunWith(org.kogito.scenariosimulation.runner.KogitoJunitActivator.class)
public class KogitoScenarioJunitActivatorTest {

}

    This activator class is a custom JUnit 5 runner that enables the execution of test scenario files in your Kogito project. When you run test scenarios, this class loads all .scesim files available in the project and executes them. For each row (scenario) in a test scenario file, the activator class generates a JUnit test result.

  4. Navigate to the test/resources folder and add the following PersonDecisionsTest.scesim test scenario file:

    Image of PersonDecisionsTest test scenario
    Figure 17. Example test scenarios for PersonDecisions DMN decision logic

    The GIVEN columns specify input conditions based on the corresponding decision service. The EXPECT column specifies the expected results of the decision service based on the defined GIVEN conditions. Each row in the table is a defined scenario with example values for the GIVEN and EXPECT definitions to test the decision logic of the corresponding decision service.

    This example test scenario file tests the decision logic for the following PersonDecisions.dmn model that you created previously. This DMN model determines whether a specified person is an adult or is underage.

    Image of PersonDecisions decision diagram
    Figure 18. Example PersonDecisions DMN decision requirements diagram (DRD)
    Image of PersonDecisions decision table
    Figure 19. Example DMN boxed expression for isAdult decision

    In VSCode (recommended), you can add the Kogito Bundle VSCode extension to design the test scenarios with the test scenario modeler.

    To create these example test scenarios quickly, you can copy the following PersonDecisionsTest.scesim file content:

    Example test scenario file
    <ScenarioSimulationModel version="1.8">
  <simulation>
    <scesimModelDescriptor>
      <factMappings>
        <FactMapping>
          <expressionElements/>
          <expressionIdentifier>
            <name>Index</name>
            <type>OTHER</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>#</name>
            <className>java.lang.Integer</className>
          </factIdentifier>
          <className>java.lang.Integer</className>
          <factAlias>#</factAlias>
          <columnWidth>70</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
        <FactMapping>
          <expressionElements/>
          <expressionIdentifier>
            <name>Description</name>
            <type>OTHER</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>Scenario description</name>
            <className>java.lang.String</className>
          </factIdentifier>
          <className>java.lang.String</className>
          <factAlias>Scenario description</factAlias>
          <columnWidth>300</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
        <FactMapping>
          <expressionElements>
            <ExpressionElement>
              <step>Person</step>
            </ExpressionElement>
            <ExpressionElement>
              <step>Age</step>
            </ExpressionElement>
          </expressionElements>
          <expressionIdentifier>
            <name>1|1</name>
            <type>GIVEN</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>Person</name>
            <className>Person</className>
          </factIdentifier>
          <className>number</className>
          <factAlias>Person</factAlias>
          <expressionAlias>Age</expressionAlias>
          <genericTypes/>
          <columnWidth>114</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
        <FactMapping>
          <expressionElements>
            <ExpressionElement>
              <step>Person</step>
            </ExpressionElement>
            <ExpressionElement>
              <step>Name</step>
            </ExpressionElement>
          </expressionElements>
          <expressionIdentifier>
            <name>1|2</name>
            <type>GIVEN</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>Person</name>
            <className>Person</className>
          </factIdentifier>
          <className>string</className>
          <factAlias>Person</factAlias>
          <expressionAlias>Name</expressionAlias>
          <genericTypes/>
          <columnWidth>114</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
        <FactMapping>
          <expressionElements>
            <ExpressionElement>
              <step>isAdult</step>
            </ExpressionElement>
          </expressionElements>
          <expressionIdentifier>
            <name>1|4</name>
            <type>EXPECT</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>isAdult</name>
            <className>isAdult</className>
          </factIdentifier>
          <className>boolean</className>
          <factAlias>isAdult</factAlias>
          <expressionAlias>value</expressionAlias>
          <genericTypes/>
          <columnWidth>114</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
      </factMappings>
    </scesimModelDescriptor>
    <scesimData>
      <Scenario>
        <factMappingValues>
          <FactMappingValue>
            <factIdentifier>
              <name>Scenario description</name>
              <className>java.lang.String</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>Description</name>
              <type>OTHER</type>
            </expressionIdentifier>
            <rawValue class="string">Is an adult</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>Person</name>
              <className>Person</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|1</name>
              <type>GIVEN</type>
            </expressionIdentifier>
            <rawValue class="string">20</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>Person</name>
              <className>Person</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|2</name>
              <type>GIVEN</type>
            </expressionIdentifier>
            <rawValue class="string">"John Quark"</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>isAdult</name>
              <className>isAdult</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|4</name>
              <type>EXPECT</type>
            </expressionIdentifier>
            <rawValue class="string">true</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>#</name>
              <className>java.lang.Integer</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>Index</name>
              <type>OTHER</type>
            </expressionIdentifier>
            <rawValue class="string">1</rawValue>
          </FactMappingValue>
        </factMappingValues>
      </Scenario>
      <Scenario>
        <factMappingValues>
          <FactMappingValue>
            <factIdentifier>
              <name>Scenario description</name>
              <className>java.lang.String</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>Description</name>
              <type>OTHER</type>
            </expressionIdentifier>
            <rawValue class="string">Is underage</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>Person</name>
              <className>Person</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|1</name>
              <type>GIVEN</type>
            </expressionIdentifier>
            <rawValue class="string">15</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>Person</name>
              <className>Person</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|2</name>
              <type>GIVEN</type>
            </expressionIdentifier>
            <rawValue class="string">"Jenny Quark"</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>isAdult</name>
              <className>isAdult</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|4</name>
              <type>EXPECT</type>
            </expressionIdentifier>
            <rawValue class="string">false</rawValue>
          </FactMappingValue>
          <FactMappingValue>
            <factIdentifier>
              <name>#</name>
              <className>java.lang.Integer</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>Index</name>
              <type>OTHER</type>
            </expressionIdentifier>
            <rawValue class="string">2</rawValue>
          </FactMappingValue>
        </factMappingValues>
      </Scenario>
    </scesimData>
  </simulation>
  <background>
    <scesimModelDescriptor>
      <factMappings>
        <FactMapping>
          <expressionElements/>
          <expressionIdentifier>
            <name>1|1</name>
            <type>GIVEN</type>
          </expressionIdentifier>
          <factIdentifier>
            <name>Empty</name>
            <className>java.lang.Void</className>
          </factIdentifier>
          <className>java.lang.Void</className>
          <factAlias>INSTANCE 1</factAlias>
          <expressionAlias>PROPERTY 1</expressionAlias>
          <columnWidth>114</columnWidth>
          <factMappingValueType>NOT_EXPRESSION</factMappingValueType>
        </FactMapping>
      </factMappings>
    </scesimModelDescriptor>
    <scesimData>
      <BackgroundData>
        <factMappingValues>
          <FactMappingValue>
            <factIdentifier>
              <name>Empty</name>
              <className>java.lang.Void</className>
            </factIdentifier>
            <expressionIdentifier>
              <name>1|1</name>
              <type>GIVEN</type>
            </expressionIdentifier>
          </FactMappingValue>
        </factMappingValues>
      </BackgroundData>
    </scesimData>
  </background>
  <settings>
    <dmnFilePath>src/main/resources/PersonDecisions.dmn</dmnFilePath>
    <type>DMN</type>
    <dmnNamespace>https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1</dmnNamespace>
    <dmnName>PersonDecisions</dmnName>
    <skipFromBuild>false</skipFromBuild>
    <stateless>false</stateless>
  </settings>
  <imports>
    <imports/>
  </imports>
</ScenarioSimulationModel>

    To create this example test scenario file in VSCode using the Kogito test scenario modeler, follow these steps:

    1. Open the empty PersonDecisionsTest.scesim file and in the Create Test Scenario window that appears, set the Source type to DMN, select the PersonDecisions.dmn DMN model from the drop-down options, and click Create.

      Image of Create Test Scenario window
      Figure 20. Create test scenario definition

      The test scenario modeler automatically generates a scenario template based on the available DMN data types and fields that you defined in the DMN model.

      You can right-click the relevant header cells to insert or delete columns as needed to modify the table structure. You can also select the relevant header cells to modify or insert data objects from the Test Tools panel in the right toolbar.

    2. For this example, modify the generated test scenario header cells and specified data objects as needed to create the following test scenario template. Use the Test Tools panel in the right toolbar to select and insert the data objects as needed. Many of the header cell values might already be defined for you.

      • GIVEN: Verify that the first header cell (instance) is set to the Person data object and that the subheader cells (properties) are set to the Age and Name data objects. Delete any other columns under GIVEN that were automatically generated, if applicable.

      • EXPECT: Verify that the first header cell (instance) is set to the isAdult data object and that the subheader cell (property) is set to the value data object. Delete any other columns under EXPECT that were automatically generated, if applicable.

        Image of test scenario template
        Figure 21. Define test scenario header cells

    3. In row 1, create a test scenario with the following values:

      • Scenario description: Is an adult

      • GIVEN: Set the following values:

        • Person → Age: 20

        • Person → Name: John Quark

      • EXPECT: Set the following value:

        • isAdult → value: true

      This example scenario tests whether the person John Quark with 20 years of age is correctly identified by the isAdult DMN decision as an adult (true), based on the decision logic that adults are more than 18 years old.

    4. Right-click any cell in row 1, select Insert row below, and in row 2, create another test scenario with the following values:

      • Scenario description: Is underage

      • GIVEN: Set the following values:

        • Person → Age: 15

        • Person → Name: Jenny Quark

      • EXPECT: Set the following value:

        • isAdult → value: false

      This example scenario tests whether the person Jenny Quark with 15 years of age is correctly identified by the isAdult DMN decision as not an adult (false), based on the decision logic that adults are more than 18 years old.

    5. Save the test scenario file.

  5. After you define and save the test scenarios, in a command terminal, navigate to the project that contains your Kogito decision service and test scenarios and enter the following command to run the test scenarios:

    Run the test scenarios
    mvn clean test

    A summary of the test scenario execution appears in the command terminal, and detailed reports are generated in the target/surefire-reports folder of your Kogito project.

    In the following example output, the test scenarios were executed successfully and encountered no errors:

    Terminal output for successful test scenarios
    [INFO] --- maven-surefire-plugin:2.22.1:test (default-test) @ sample-kogito ---
[INFO]
[INFO] -------------------------------------------------------
[INFO]  T E S T S
[INFO] -------------------------------------------------------
[INFO] Running testscenario.KogitoScenarioJunitActivatorTest
./target/classes/PersonDecisions.dmn
./src/main/resources/PersonDecisions.dmn
./target/classes/PersonDecisions.dmn
./src/main/resources/PersonDecisions.dmn
[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.535 s - in testscenario.KogitoScenarioJunitActivatorTest
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 2, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  52.884 s
[INFO] Finished at: 2020-05-05T15:19:53-04:00
[INFO] ------------------------------------------------------------------------

    The expected results defined in the test scenarios matched the actual results of the isAdult DMN decision instance in the PersonDecisions.dmn file. This match of expected and actual results for the decision instance means that the decision logic functions as intended.

    In the following example output, the test scenarios were executed and the Is underage scenario encountered an error:

    Terminal output for a test scenario that encountered a decision error
    [INFO] --- maven-surefire-plugin:2.22.1:test (default-test) @ sample-kogito ---
[INFO]
[INFO] -------------------------------------------------------
[INFO]  T E S T S
[INFO] -------------------------------------------------------
[INFO] Running testscenario.KogitoScenarioJunitActivatorTest
./target/classes/PersonDecisions.dmn
./src/main/resources/PersonDecisions.dmn
./target/classes/PersonDecisions.dmn
./src/main/resources/PersonDecisions.dmn
[ERROR] Tests run: 2, Failures: 0, Errors: 1, Skipped: 0, Time elapsed: 0.534 s <<< FAILURE! - in testscenario.KogitoScenarioJunitActivatorTest
[ERROR] #2: Is underage  Time elapsed: 0.06 s  <<< ERROR!
org.drools.scenariosimulation.backend.runner.IndexedScenarioException: #2: Scenario 'Is underage' failed(/home/jsmith/sample-kogito/target/test-classes/PersonDecisionsTest.scesim)
Caused by: org.drools.scenariosimulation.backend.runner.ScenarioException: Scenario 'Is underage' failed

[INFO]
[INFO] Results:
[INFO]
[ERROR] Errors:
[ERROR]   KogitoScenarioJunitActivatorTest » IndexedScenario #2: Scenario 'Is underage' ...
[INFO]
[ERROR] Tests run: 2, Failures: 0, Errors: 1, Skipped: 0
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  6.521 s
[INFO] Finished at: 2020-05-05T15:26:10-04:00
[INFO] ------------------------------------------------------------------------
[ERROR] Failed to execute goal org.apache.maven.plugins:maven-surefire-plugin:2.22.1:test (default-test) on project sample-kogito: There are test failures.
[ERROR]
[ERROR] Please refer to /home/jsmith/sample-kogito/target/surefire-reports for the individual test results.
[ERROR] Please refer to dump files (if any exist) [date].dump, [date]-jvmRun[N].dump and [date].dumpstream.

    The expected results defined in the Is underage test scenario did not match the actual results of the isAdult DMN decision instance in the PersonDecisions.dmn file. This mismatch of expected and actual results for the decision instance means that either the test scenario identified a flaw in the decision logic or the test scenario is incorrectly defined. In this case, the Is underage test scenario was intentionally modified incorrectly with an age of 20 instead of an age of 18 or less. Reverting the age to 15 as shown in the previous example resolves the error.

2.9. Running a Kogito service

After you design the business decisions and processes for your Kogito service, you can run your Quarkus or Spring Boot application in one of the following modes:

  • Development mode: For local testing. On Quarkus, development mode also offers live reload of your processes and decisions in your running applications for advanced debugging.

  • JVM mode: For compatibility with a Java virtual machine (JVM).

  • Native mode: (Quarkus only, requires GraalVM or Mandrel) For direct binary execution as native code.

Procedure

In a command terminal, navigate to the project that contains your Kogito service and enter one of the following commands, depending on your preferred run mode and application environment:

  • For development mode:

    On Quarkus
    $ mvn clean compile quarkus:dev
    On Spring Boot
    $ mvn clean compile spring-boot:run

  • For JVM mode:

    On Quarkus
    $ mvn clean package
$ java -jar target/quarkus-app/quarkus-run.jar
    On Spring Boot
    $ mvn clean package
$ java -jar target/sample-kogito-1.0-SNAPSHOT-runner.jar

  • For native mode (requires GraalVM):

    On Quarkus only
    $ mvn clean package -Dnative
$ ./target/sample-kogito-1.0-SNAPSHOT-runner

Alternatively, you can use a container builder image. You do not need to install GraalVM because a container containing GraalVM is pulled automatically. Note that the executable targets a Linux kernel by default. For example:

On Quarkus only (GraalVM native build using container)
$ mvn clean package -Dnative -Dquarkus.native.container-build

To use Mandrel instead of GraalVM, run the following command:

On Quarkus only (Mandrel native build using container)
$ mvn clean package -Dnative -Dquarkus.native.container-build -Dquarkus.native.builder-image=quay.io/quarkus/ubi-quarkus-mandrel:21.1-java11

For further information about building a native image, see Quarkus - Building a Native Executable.

2.10. Interacting with a running Kogito service

After your Kogito service is running, you can send REST API requests to interact with your application and execute your services according to how you set up the application.

This example tests the /persons REST API endpoint that is automatically generated based on the PersonProcess.bpmn2 business process, according to the decisions in the PersonDecisions.dmn file (or the rules in the PersonRules.drl file if you used a DRL rule unit).

For this example, use a REST client, curl utility, or the Swagger UI configured for the application (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html) to send API requests with the following components:

  • URL: http://localhost:8080/persons

  • HTTP headers: For POST requests only:

    • accept: application/json

    • content-type: application/json

  • HTTP methods: GET, POST, or DELETE

Example POST request body to add an adult (JSON)
{
  "person": {
    "name": "John Quark",
    "age": 20
  }
}
Example curl command to add an adult
curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
Example response (JSON)
{
  "id": "3af806dd-8819-4734-a934-728f4c819682",
  "person": {
    "name": "John Quark",
    "age": 20,
    "adult": false
  },
  "isAdult": true
}
Image of Swagger UI for example application
Figure 22. Swagger UI to interact with all application endpoints (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html)

This example procedure uses curl commands for convenience.

Procedure

In a command terminal window that is separate from your running application, navigate to the project that contains your Kogito service and use any of the following curl commands with JSON requests to interact with your running service:

On Spring Boot, you might need to modify how your application exposes API endpoints in order for these example requests to function. For more information, see the README file included in the example Spring Boot project that you created for this tutorial.

  • Add an adult person:

    Example request
    curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
    Example response
    {"id":"3af806dd-8819-4734-a934-728f4c819682","person":{"name":"John Quark","age":20,"adult":false},"isAdult":true}

  • Add an underage person:

    Example request
    curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"Jenny Quark", "age": 15}}'
    Example response
    {"id":"8eef502b-012b-4628-acb7-73418a089c08","person":{"name":"Jenny Quark","age":15,"adult":false},"isAdult":false}

  • View active process instances:

    Example request
    curl -X GET http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json'
    Example response
    [{"id":"8eef502b-012b-4628-acb7-73418a089c08","person":{"name":"Jenny Quark","age":15,"adult":false},"isAdult":false}]

  • View process instance details using the returned process UUID:

    Example request
    curl -X GET http://localhost:8080/persons/8eef502b-012b-4628-acb7-73418a089c08/tasks -H 'content-type: application/json' -H 'accept: application/json'
    Example response (JSON)
    {"cdec4241-d676-47de-8c55-4ee4f9598bac":"ChildrenHandling"}

  • View task instance details using the returned process and task UUIDs:

    Example request
    curl -X GET http://localhost:8080/persons/8eef502b-012b-4628-acb7-73418a089c08/ChildrenHandling/cdec4241-d676-47de-8c55-4ee4f9598bac -H 'content-type: application/json' -H 'accept: application/json'
    Example response
    {"person":{"name":"Jenny Quark","age":15,"adult":false},"name":"ChildrenHandling","id":"cdec4241-d676-47de-8c55-4ee4f9598bac"}

  • Complete the evaluation using the returned UUIDs:

    Example request
    curl -X POST http://localhost:8080/persons/8eef502b-012b-4628-acb7-73418a089c08/ChildrenHandling/cdec4241-d676-47de-8c55-4ee4f9598bac -H 'content-type: application/json' -H 'accept: application/json' -d '{}'

3. Deploying Kogito services on OpenShift

As a developer of business processes and decisions, you can deploy Kogito services on OpenShift for cloud implementation. The Kogito Operator automates many of the deployment steps for you or guides you through the deployment process. You can use the Kogito command-line interface (CLI) to interact with the Kogito Operator for deployment tasks.

Prerequisites

  • OpenShift 4.3 or later is installed.

  • The OpenShift project for the deployment is created.

3.1. Kogito on OpenShift

You can deploy Kogito services on OpenShift for cloud implementation. In this architecture, Kogito services are deployed as OpenShift pods that you can scale up and down individually to provide as few or as many containers as required for a particular service. You can use standard OpenShift methods to manage the pods and balance the load.

To help you deploy your services on OpenShift, Kogito provides an operator and a command-line interface (CLI):

  • Kogito Operator: An operator that guides you through the deployment process. The Kogito Operator is based on the Operator SDK and automates many of the deployment steps for you. For example, when you give the operator a link to the Git repository that contains your application, the operator can automatically configure the components required to build your project from source and deploy the resulting services.

  • Kogito command-line interface (CLI): A CLI tool that enables you to interact with the Kogito Operator for deployment tasks. The Kogito CLI also enables you to deploy Kogito services from source instead of relying on custom resources and YAML files. You can use the Kogito CLI as a command-line alternative for deploying Kogito services without the OpenShift web console.

3.2. Probes for Kogito services on OpenShift

The probes in OpenShift and Kubernetes verify that an application is working or it needs to be restarted. For Kogito services on Quarkus and Spring Boot, probes interact with the application using an HTTP request, defaulting to the endpoints that are exposed by an extension. Therefore, to run your Kogito services on OpenShift or Kubernetes, you must import the extensions to enable the liveness, readiness, and startup probes for your application.

3.2.1. Enabling probes for Quarkus-based Kogito services on OpenShift

You can enable the probes for the Quarkus-based Kogito services on OpenShift.

Procedure

  1. In a command terminal, navigate to the pom.xml file of your Kogito project and add the following dependency for the Quarkus smallrye-health extension:

SmallRye Health dependency for Quarkus applications on OpenShift
<dependencies>
  <dependency>
    <groupId>io.quarkus</groupId>
    <artifactId>quarkus-smallrye-health</artifactId>
  </dependency>
</dependencies>

3.2.2. Enabling probes for Spring Boot-based Kogito services on OpenShift

You can enable the probes for the Spring Boot-based Kogito services on OpenShift.

Procedure

  1. In a command terminal, navigate to the pom.xml file of your Kogito project and add the following Spring Boot actuator dependency:

Spring Boot actuator dependency for Spring Boot applications on OpenShift
<dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
  </dependency>
</dependencies>

3.2.3. Setting custom probes for Kogito services on OpenShift

You can also configure the custom endpoints for the liveness, readiness, and startup probes.

Procedure

  1. Define the probes in the KogitoRuntime YAML file of your Kogito project, as shown in the following example:

Example Kogito service custom resource with custom probe endpoints
apiVersion: app.kiegroup.org/v1beta1 # Kogito API for this service
kind: KogitoRuntime
metadata:
  name: process-quarkus-example # Application name
spec:
  replicas: 1
  probes:
    livenessProbe:
      httpGet:
        path: /probes/live # Liveness endpoint
        port: 8080
    readinessProbe:
      httpGet:
        path: /probes/ready # Readiness endpoint
        port: 8080
    startupProbe:
      tcpSocket:
        port: 8080

3.3. Kogito Operator installation

This section describes different ways of installing Kogito Operator on various platforms. You can install the Kogito Operator on OpenShift or on Kubernetes.

3.3.1. Installing the Kogito Operator on OpenShift

You can install the Kogito Operator on OpenShift using different ways, including:

  • Installing Kogito Operator using Operator Hub and OpenShift Web Console

  • Installing Kogito Operator using OC CLI

  • Installing Kogito Operator using OC CLI and Operator Lifecycle Manager (OLM)

This section describes different ways of installing Kogito Operator on OpenShift.

3.3.1.1. Installing Kogito Operator using Operator Hub and OpenShift Web Console

To install the Kogito Operator on OpenShift, you can use the Kogito Operator from Operator Hub and OpenShift Web Console.

Prerequisites

  • OpenShift cluster is started and running.

  • You have access to the OpenShift web console with cluster-admin permissions.

    You can use the Red Hat CodeReady containers for development and testing purposes.

  • kubectl and Red Hat OpenShift Container platform (oc) is installed on your local machine.

  • Operator Lifecycle Manager (OLM) is running on the OpenShift Cluster. For more information about OLM, see Operator Lifecycle Manager concepts and resources.

Procedure

  1. Navigate to your OpenShift console and open the Operator Hub.

  2. Enter kogito in the text box under the All Items label.

  3. Click on the operator containing the Community label.

  4. Click Continue.

    A window appears consisting of the information related to the Kogito Operator.

  5. Click Install.

  6. Keep the default options as-is and click Install.

    The message as Installed operator - ready for use indicates that Kogito Operator is installed and ready for use.

  7. To verify that Kogito Operator is installed, click on View Operator and scroll down.

  8. Review the conditions and search for InstallSucceeded.

3.3.1.2. Installing Kogito Operator using oc CLI

You can install the Kogito Operator using oc CLI.

Prerequisites

  • OpenShift cluster is started and running.

  • kubectl and Red Hat OpenShift Container platform (oc) is installed on your local machine.

Procedure

  1. Create a project or namespace in OpenShift using oc CLI.

  2. Open a terminal and run the following command:

    $ oc new-project kogito-operator-system --display-name="Kogito Operator" --description="Kogito Operator Project"
    Ensure that oc CLI is connected to your OpenShift cluster.

  3. Replace the current_operator_version with the latest Kogito Operator version and run the following command:

    $ export NAMESPACE=kogito-operator-system
$ export VERSION=<current_operator_version>
$ oc apply -n "${NAMESPACE}" -f "https://github.com/kiegroup/kogito-operator/releases/download/${VERSION}/kogito-operator.yaml"

  4. To verify the Kogito Operator installation, execute the following command and ensure that kogito-operator-controller-manager is running:

    $ oc get pods -n kogito-operator-system
NAME                                                  READY   STATUS    RESTARTS   AGE
kogito-operator-controller-manager-aaaaa-bbbbb   2/2     Running   0          2m2

  5. Review the logs to ensure that there is no issue with the Kogito Operator installation:

    $  oc logs kogito-operator-controller-manager-aaaaa-bbbbb -c manager -n kogito-operator-system

$ oc logs kogito-operator-controller-manager-aaaaa-bbbbb -c kube-rbac-proxy -n kogito-operator-system

    If you do not see any issues, that means the installation is successful and Kogito Operator is ready for use.

3.3.1.3. Installing Kogito Operator using oc CLI and Operator Lifecycle Manager (OLM)

You can also use the Operator Lifecycle Manager (OLM) to install the Kogito Operator on OpenShift.

Prerequisites

  • OpenShift cluster is started and running.

  • kubectl and Red Hat OpenShift Container platform (oc) is installed on your local machine.

  • Operator Lifecycle Manager (OLM) is running on the OpenShift Cluster. For more information about OLM, see Operator Lifecycle Manager concepts and resources.

Procedure

  1. Create a Subscription object and update startingCSV with the Kogito Operator version that you want to install using oc CLI:

    Example of creating a Subscrition object
    kogito-subscription.yml
---
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: kogito-operator
  namespace: openshift-operators
spec:
  channel: 1.x
  installPlanApproval: Automatic
  name: kogito-operator
  source: community-operators
  sourceNamespace: openshift-marketplace
  startingCSV: kogito-operator.v1.13.0

$ oc create -f kogito-subscription.yml

    This makes the Kogito Operator globally available in the OpenShift cluster.

  2. Run the following command to verify the health of installed operator:

    $ oc describe sub kogito-operator -n openshift-operators

    In the command output, check the Conditions section to verify the status of Operator subscription condition types. The CatalogSourcesUnhealthy condition type contains the status as false since all available catalog sources are healthy.

    If you do not see any issues, that means the installation is successful and Kogito Operator is ready for use.

3.3.2. Supported commands and operations in Kogito CLI

The Kogito command-line interface (CLI) supports the following operations on Linux, Mac, and Windows operating systems. The syntax of some operations might vary for Windows users, such as a backslash (\) instead of a forward slash (/).

Table 7. Supported commands and operations in the Kogito CLI
Operation Kogito CLI command Example

Create an OpenShift project for Kogito services.

kogito new-project PROJECT_NAME

kogito new-project kogito-travel-agency

Connect the Kogito Operator to an existing OpenShift project with Kogito services.

kogito use-project PROJECT_NAME

kogito use-project kogito-travel-agency

Install the Infinispan infrastructure for process data persistence in Kogito services.

kogito install infra INFINISPAN_INFRA_NAME --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan

kogito install infra kogito-infinispan-infra --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan

Install the Apache Kafka infrastructure for messaging in Kogito services.

kogito install infra KAFKA_INFRA_NAME --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka

kogito install infra kogito-kafka-infra --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka

Install the Kogito Data Index Service for data management in Kogito services and provision the Data Index Service to connect to the specified Infinispan and Kafka infrastructures.

kogito install data-index --infra INFINISPAN_INFRA_NAME --infra KAFKA_INFRA_NAME

kogito install data-index --infra kogito-infinispan-infra --infra kogito-kafka-infra

Install the Kogito Jobs Service for job scheduling in Kogito services and provision the Jobs Service to connect to the specified Infinispan and Kafka infrastructures.

kogito install jobs-service --infra INFINISPAN_INFRA_NAME --infra KAFKA_INFRA_NAME

kogito install jobs-service --infra kogito-infinispan-infra --infra kogito-kafka-infra

Install the Kogito Management Console for managing process instance details in Kogito services.

kogito install mgmt-console

kogito install mgmt-console

Install the Kogito Trusty Service to store tracing events and provide advanced analytical capabilities in Kogito services, and provision the Trusty Service to connect to the specified Infinispan and Kafka infrastructures.

kogito install trusty --infra INFINISPAN_INFRA_NAME --infra KAFKA_INFRA_NAME

kogito install trusty --infra kogito-infinispan-infra --infra kogito-kafka-infra

Install the Kogito Explainability Service to analyze decisions made in Kogito services and provision the Explainability Service to connect to the specified Kafka infrastructure.

kogito install explainability --infra KAFKA_INFRA_NAME

kogito install explainability --infra kogito-kafka-infra

Install the Kogito Task Console for viewing and interacting with user tasks in Kogito process services.

kogito install task-console

kogito install task-console

Install Kogito supporting services or infrastructure components for a specified Kogito project. Use this syntax if you did not use the new-project or use-project commands to connect the Kogito Operator to a specified project.

kogito install KOGITO_SUPPORTING_SERVICE --infra KOGITO_INFRA_NAME -p PROJECT_NAME

kogito install infra KOGITO_INFRA_NAME KOGITO_INFRA_DETAILS -p PROJECT_NAME

kogito install data-index --infra kogito-infinispan-infra --infra kogito-kafka-infra -p kogito-travel-agency

kogito install infra kogito-infinispan-infra --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan -p kogito-travel-agency

kogito install infra kogito-kafka-infra --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka -p kogito-travel-agency

Create a Kogito service definition from a local source or a Git repository and deploy the service. In a local directory source, if the pom.xml file is present, then the entire directory is zipped and uploaded to OCP and the build is initiated. However, if the pom.xml is not present, then only supported extension files (including .dmn, .drl, .bpmn, .bpmn2, .properties, .sw.json, and .sw.yaml) are uploaded from the directory to initiate the build. In a binary build configuration, this command creates the service definition but does not deploy the service.

kogito deploy-service SERVICE_NAME

kogito deploy-service SERVICE_NAME GIT_REPOSITORY_URL --context-dir PROJECT_DIRECTORY

kogito deploy-service travels

kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels

Enable Infinispan persistence and Apache Kafka messaging for a Kogito service during deployment. Use this command if you installed the relevant infrastructures using the Kogito Operator. In a binary build configuration, this command creates the service definition but does not deploy the service.

kogito deploy-service SERVICE_NAME --infra INFINISPAN_INFRA_NAME --infra KAFKA_INFRA_NAME

kogito deploy-service SERVICE_NAME GIT_REPOSITORY_URL --context-dir PROJECT_DIRECTORY --infra INFINISPAN_INFRA_NAME --infra KAFKA_INFRA_NAME

kogito deploy-service travels --infra kogito-infinispan-infra --infra kogito-kafka-infra

kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels --infra kogito-infinispan-infra --infra kogito-kafka-infra

Create a Kogito service definition from a local or Git source and deploy the service using a native build.

kogito deploy-service SERVICE_NAME --native

kogito deploy-service SERVICE_NAME GIT_REPOSITORY_URL --context-dir PROJECT_DIRECTORY --native

kogito deploy-service travels --native

kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels --native

Upload a Kogito service file, such as a Decision Model and Notation (DMN) or Business Process Model and Notation (BPMN) file, or a file directory with multiple files to an OpenShift Cluster and trigger a new Source-to-Image (S2I) build. For single files, you can specify a local file system path or Git repository URL. For file directories, you can specify a local file system path only.

kogito deploy-service SERVICE_NAME PATH_TO_FILE_OR_DIR

kogito deploy-service SERVICE_NAME GIT_FILE_URL

kogito deploy-service travels /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2

kogito deploy-service travels /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels

kogito deploy-service travels https://github.com/kiegroup/kogito-examples/blob/stable/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2

Delete a Kogito service.

kogito delete-service SERVICE_NAME

kogito delete-service travels

3.4. OpenShift build options with the Kogito Operator and CLI

The Kogito Operator and command-line interface (CLI) support the following options for building and deploying Kogito services on OpenShift:

  • Git source build and deployment

  • Binary build and deployment

  • File build and deployment

  • Native build and deployment

Kogito provides the relevant Source-to-Image (S2I) build configuration depending the deployment option that you use.

For all deployment options, you must be logged in to the relevant OpenShift cluster using the oc login command.

3.4.1. Git source build and deployment

In most use cases, you can use the standard runtime build and deployment method to deploy Kogito services on OpenShift from a Git repository source, as shown in the following examples. These examples are based on the kogito-travel-agency extended example application.

Example Kogito service deployment from existing namespace
// Uses the provisioned namespace in your OpenShift cluster
$ kogito use-project PROJECT_NAME

// Deploys a new Kogito service from a Git source
$ kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels

The Kogito Operator uses the default branch in the specified Git repository, usually master.

Alternatively, you can generate a new namespace in your cluster during deployment:

Example Kogito service deployment from new namespace
// Creates a new namespace in your cluster
$ kogito new-project NEW_PROJECT_NAME

// Deploys a new Kogito service from a Git source
$ kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels
If you are developing or testing your Kogito service locally, you can use the binary build or file build option to build and deploy from a local source instead of from a Git repository.

3.4.2. Binary build and deployment

OpenShift builds can require extensive amounts of time. As a faster alternative for building and deploying your Kogito services on OpenShift, you can use a binary build. In a binary build, you build the application locally and push the built application to an OpenShift BuildConfig configuration to be packaged into the runtime container image.

The following example creates a Kogito service from a local directory, builds the project binaries, and deploys the binary build to OpenShift. This example is based on the kogito-travel-agency extended example application.

Example Kogito service deployment from binary build
// Creates the Kogito service
$ cd ~/kogito-travel-agency/extended/travels
$ kogito deploy-service travels

// Builds the project and generates binary resources in target folder
$ mvn clean package

// Deploys to OpenShift using binary build
$ oc start-build travels-binary --from-dir=target/

Uploading directory "target/" as binary input for the build ...
....
Uploading finished
build.build.openshift.io/travels-1 started

In this example, the following resources are generated in the target folder to prepare for the binary build:

  • quarkus-app/app/travels.jar: Standard JAR file that contains the classes and resources of the project.

  • quarkus-app/quarkus: Contains the generated resources required by the Quarkus application to run.

  • quarkus-app/lib: Directory that contains the project dependencies.

  • quarkus-app/quarkus-run.jar: Executable JAR file for the project. Note that quarkus-run.jar is not an uber-JAR file, and also requires the folders quarkus-app/app, quarkus-app/quarkus, and quarkus-app/lib.

The Kogito images are handling the binary build directly from the target folder, and the content of the target/quarkus-app folder is copied directly.

After the binary build is complete, the result is pushed to the travels Image Stream that was created by the Kogito Operator and triggers a new deployment.

3.4.3. File build and deployment

You can build and deploy your Kogito services from a single file, such as a Decision Model and Notation (DMN), Business Process Model and Notation (BPMN or BPMN2), Drools Rule Language (DRL), or properties file, or from a directory with multiple files. You can specify a single file from your local file system path or from a Git repository URL, or specify a file directory from a local file system path only. When you upload the file or directory to an OpenShift cluster, a new Source-to-Image (S2I) build is automatically triggered.

You cannot upload a file directory from a Git repository. The file directory must be in your local file system. However, you can upload single files from either a Git repository or your local file system.

The following examples upload a single BPMN file from a local directory or Git repository to an OpenShift cluster for an S2I build. These examples are based on the kogito-travel-agency extended example application.

Example Kogito service deployment from a local file
$ kogito deploy-service travels /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2

File found: /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2.
...
The requested file(s) was successfully uploaded to OpenShift, a build with this file(s) should now be running. To see the logs, run 'oc logs -f bc/kogito-travel-agency-builder -n kogito'
Example Kogito service deployment from a Git repository file
$ kogito deploy-service travels https://github.com/kiegroup/kogito-examples/blob/stable/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2

Asset found: travels.bpmn2.
...
The requested file(s) was successfully uploaded to OpenShift, a build with this file(s) should now be running. To see the logs, run 'oc logs -f bc/kogito-travel-agency-builder -n kogito'

As instructed in the terminal output, you can run the following command to see the build logs:

Example build log for BPMN file build
$ oc logs -f bc/kogito-travel-agency-builder -n kogito

Receiving source from STDIN as file travels.bpmn2
Using docker-registry.default.svc:5000/openshift/kogito-builder as the s2i builder image

The following examples upload multiple files within a local directory to an OpenShift cluster for an S2I build:

Example Kogito service deployment from multiple files in a local directory
$ kogito deploy-service travels /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels

The provided source is a dir, packing files.
File(s) found: [/tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/flightBooking.bpmn2 /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/hotelBooking.bpmn2 /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2].
...
The requested file(s) was successfully uploaded to OpenShift, a build with this file(s) should now be running. To see the logs, run 'oc logs -f bc/travels-builder -n kogito'

For every valid file type (DMN, BPMN, BPMN2, DRL) in the specified directory, the Kogito CLI compresses the files and uploads them to the OpenShift cluster. Any other unsupported file types are not uploaded. To ensure that other file types are uploaded, consider using a source build or a binary build.

If you need to update an uploaded file or directory after you create the build, you can use the oc start-build command to re-upload the file or directory, as shown in the following example. An S2I build cannot identify only changed files in a directory, so you must re-upload the entire directory of files to update the build.

Example command to re-upload a single local file to update the S2I build
$ oc start-build kogito-travel-agency-builder --from-file tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels/travels.bpmn2
Example command to re-upload multiple files from a local directory to update the S2I build
$ oc start-build kogito-travel-agency-builder --from-dir tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels

If a build fails, use the OpenShift environment variable BUILD_LOGLEVEL with the desired level as part of your deployment command, as shown in the following example:

Example command to troubleshoot failed build from directory
$ kogito --verbose deploy-service travels /tmp/kogito-examples/kogito-quarkus-examples/kogito-travel-agency/extended/travels/src/main/resources/org/acme/travels --build-env BUILD_LOGLEVEL=5

3.4.4. Native build and deployment

Native build and deployment is for Quarkus only and requires GraalVM or Mandrel.

By default, the Kogito Operator and CLI build services with traditional java compilers to save time and resources. The final generated artifact is a JAR file for the relevant runtime (defaults to Quarkus) with dependencies in the image user’s home directory, such as /home/kogito/bin/lib.

However, for Kogito services on Quarkus with GraalVM or Mandrel (required), the Kogito Operator and CLI can build the services in native mode for direct binary execution as native code. Building in native mode uses a very low footprint on the runtime, although many resources are consumed during build time.

For more information about native build performance, see the GraalVM Performance examples for Java.

For more information about ahead-of-time (AOT) compilation, see the GraalVM Native Image documentation.

The following examples build a Kogito service on Quarkus in native mode using the --native parameter. These examples are based on the kogito-travel-agency extended example application.

Example Kogito service native build from a local source directory
$ cd ~/kogito-travel-agency/extended/travels
$ kogito deploy-service travels --native
Example Kogito service native build from a Git repository source directory
$ kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels --native

In Kogito Operator tests, native builds take approximately 10 minutes and the build pod can consume up to 10GB of RAM and 1.5 CPU cores.

By default, a Kogito project does not contain resource requests or limits. As a result, a native build might be terminated due to insufficient memory. To prevent this behavior, you can create a minimum memory request configuration for the Kogito application build, ensuring that the build pod is allocated on an OpenShift node with enough free memory. The side effect of this configuration is that OpenShift prioritizes the build pod.

For more information about OpenShift pod prioritization based on pod requests and limits, see Quality of Service Tiers in the OpenShift documentation.

The following example is a memory request configuration for the kogito-travel-agency extended example application:

Example memory request configuration for kogito-travel-agency
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoBuild
metadata:
  name: travels
  namespace: kogito
spec:
  type: RemoteSource
  gitSource:
    contextDir: kogito-travel-agency/extended/travels
    uri: "https://github.com/kiegroup/kogito-examples/"
  resources:
    requests:
        memory: "4Gi"
Ensure that you have these resources available on your OpenShift nodes when you run native builds. If the resources are not available, the S2I build fails. You can verify currently allocated and total resources of your nodes by using the command oc describe nodes invoked with admin permission.

You can limit the maximum heap space for the JVM used for a native build. You can apply the limitation by setting the quarkus.native.native-image-xmx property in the application.properties file of your Kogito project. In this case, the build pod requires roughly -Xmx plus 2 GB of memory. The -Xmx value depends on the complexity of the application. For example, for the process-quarkus-example example application, the -Xmx value 2g is sufficient, resulting in the builder pod consuming up to 4.2 GB of memory.

You can also set resource limits for a native build pod. In the process-quarkus-example application, 80 percent of the memory limit is used for heap space in the JVM responsible for the native build. If the computed heap space limit for the JVM is less than 1024 MB, then all the memory from resource limits is used.

The following example is a memory limit configuration for the process-quarkus-example example application:

Example memory request configuration for process-quarkus-example
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoBuild
metadata:
  name: process-quarkus-example
  namespace: kogito
spec:
  type: RemoteSource
  gitSource:
    contextDir: process-quarkus-example
    uri: "https://github.com/kiegroup/kogito-examples/"
  resources:
    limits:
        memory: "4Gi"
3.4.4.1. Building a native image with Kogito

You can build an application as a native executable in Kogito using GraalVM or Mandrel.

Prerequisites

  • JDK 11 or later is installed.

  • Apache Maven 3.6.2 or later is installed.

  • Optional: Quarkus CLI is installed.

    Native build and deployment is Quarkus-only and requires GraalVM or Mandrel.
Procedure

  1. Create a Kogito project using the Maven plugin or Quarkus CLI.

    Example project creation using Quarkus Maven plugin
    mvn io.quarkus:quarkus-maven-plugin:create \
   -DprojectGroupId=com.company \
   -DprojectArtifactId=sample-kogito \
   -Dextensions="kogito"
    Example project creation using Quarkus CLI
    quarkus create -x kogito sample-kogito

    In the previous example, an application named sample-kogito is created. The sample-kogito application is pre-configured to support the native executables.

    For more information about creating a Kogito project, see Creating and running your first Kogito services.

  2. Build a native image using Maven or Quarkus CLI.

    Example of building a native image using Maven plugin
    $ mvn verify -Dnative
# running
$ ./target/sample-kogito-1.0-SNAPSHOT-runner
    Example of building a native image using the Quarkus CLI
    $ quarkus build --native
# running
$ ./target/sample-kogito-1.0-SNAPSHOT-runner

  3. Build a native executable using a container image or Mandrel as follows:

    • You can build a native executable using a container builder image, in which you do not need to insrall GraalVM. However, a container that contains GraalVM is pulled automatically. Note that the native executable targets a Linux kernel by default. For example:

    Example of building a native image using a container image
    $ mvn verify -Dnative -Dquarkus.native.container-build
# alternatively
$ quarkus build --native -Dquarkus.native.container-build=true

    • Alternatively, run the following command to use Mandrel instead of GraalVM to build a native image using container image:

    Example of building a native image using a container image (Mandrel)
    $ mvn verify -Dnative -Dquarkus.native.container-build -Dquarkus.native.builder-image=quay.io/quarkus/ubi-quarkus-mandrel:21.1-java11
# alternatively
$ quarkus build --native -Dquarkus.native.container-build -Dquarkus.native.builder-image=quay.io/quarkus/ubi-quarkus-mandrel:21.1-java11

    For more information about building a native image, see Quarkus - Building a Native Executable.

  4. Create a container image using Quarkus.

    For more information about creating a container image using Quarkus, see extensions for building (and pushing) container images.

  5. Deploy the container image using kubctl or oc.

3.5. Kogito service properties configuration

When a Kogito service is deployed, a configMap resource is created for the application.properties configuration of the Kogito service.

The name of the configMap resource consists of the name of the Kogito service and the suffix -properties, as shown in the following example:

Example configMap resource generated during Kogito service deployment
kind: ConfigMap
apiVersion: v1
metadata:
  name: kogito-travel-agency-properties
data:
  application.properties : |-
    property1=value1
    property2=value2

The application.properties data of the configMap resource is mounted in a volume to the container of the Kogito service. Any runtime properties that you add to the application.properties section override the default application configuration properties of the Kogito service.

When the application.properties data of the configMap is changed, a rolling update modifies the deployment and configuration of the Kogito service.

3.5.1. Deploying a Kogito service using OpenShift web console

After you create your Kogito services as part of a business application, you can use the OpenShift web console to deploy your services. The Kogito Operator page in the OpenShift web console guides you through the deployment process. The Kogito Operator is based on the Operator SDK and automates many of the deployment steps for you. For example, when you give the operator a link to the Git repository that contains your application, the operator can automatically configure the components required to build your project from source and deploy the resulting services.

Prerequisites

  • The application with your Kogito services is in a Git repository that is reachable from your OpenShift environment.

  • You have access to the OpenShift web console with cluster-admin permissions.

  • (Quarkus only) The pom.xml file of your Kogito project contains the following dependency for the Quarkus smallrye-health extension. This extension enables the liveness and readiness probes that are required for Quarkus-based projects on OpenShift or Kubernetes.

    SmallRye Heath dependency for Quarkus applications on OpenShift
    <dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-smallrye-health</artifactId>
</dependency>
Procedure

  1. In the OpenShift web console, go to Operators → OperatorHub in the left menu, search for and select Kogito, and follow the on-screen instructions to install the latest operator version.

  2. After you install the Kogito Operator, in the OpenShift web console, go to Operators → Installed Operators and select Kogito.

  3. In the operator page, select the Kogito Build tab and click Create KogitoBuild to create the Kogito build definition.

    Image of Kogito build page in web console

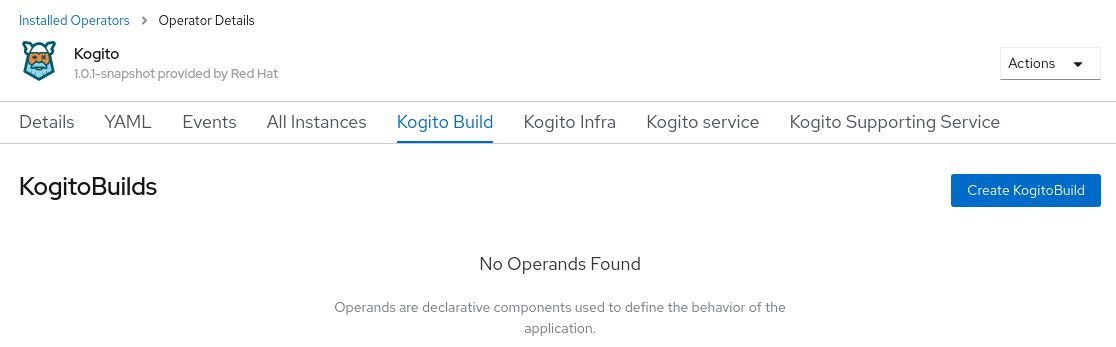

    Figure 23. Create a Kogito build definition

  4. In the application window, use the Form View or YAML View to configure the build definition.

    At a minimum, define the application configurations shown in the following example YAML file:

    Example YAML definition for an application with Kogito build
    apiVersion: app.kiegroup.org/v1beta1 # Kogito API for this service
kind: KogitoBuild  # Application type
metadata:
  name: example-quarkus  # Application name
  namespace: kogito  # OpenShift project namespace
spec:
  type: RemoteSource
  gitSource:
    uri: 'https://github.com/kiegroup/kogito-examples'  # Git repository containing application (uses default branch)
    contextDir: process-quarkus-example  # Git folder location of application

    If you have configured an internal Maven repository, you can use it as a Maven mirror service and specify the Maven mirror URL in your Kogito build definition to substantially shorten build time:

    spec:
  mavenMirrorURL: http://nexus3-nexus.apps-crc.testing/repository/maven-public/

    For more information about internal Maven repositories, see the Apache Maven documentation.

  5. After you define your application data, click Create to generate the Kogito build.

    Your application is listed in the KogitoBuilds page:

    Image of Kogito build listed in web console
    Figure 24. New Kogito build instance

    You can select the application name to view or modify application settings and YAML details:

    Image of Kogito service details page in web console
    Figure 25. View Kogito build details

  6. In the operator page, select the Kogito Service tab and click Create KogitoRuntime to create the Kogito service definition.

    Image of Kogito service page in web console
    Figure 26. Create a Kogito service definition

  7. In the application window, use the Form View or YAML View to configure the service definition.

    At a minimum, define the application configurations shown in the following example YAML file:

    Example YAML definition for an application with Kogito services
    apiVersion: app.kiegroup.org/v1beta1 # Kogito API for this service
kind: KogitoRuntime  # Application type
metadata:
  name: example-quarkus  # Application name
  namespace: kogito  # OpenShift project namespace

  8. After you define your application data, click Create to generate the Kogito service.

    Your application is listed in the Kogito service page:

    Image of Kogito service listed in web console
    Figure 27. New Kogito service instance

    You can select the application name to view or modify application settings and YAML details:

    Image of Kogito service details page in web console
    Figure 28. View Kogito service details

  9. In the left menu of the web console, go to Builds → Builds to view the status of your application build.

    You can select a specific build to view build details:

    Image of Kogito service build details page in web console

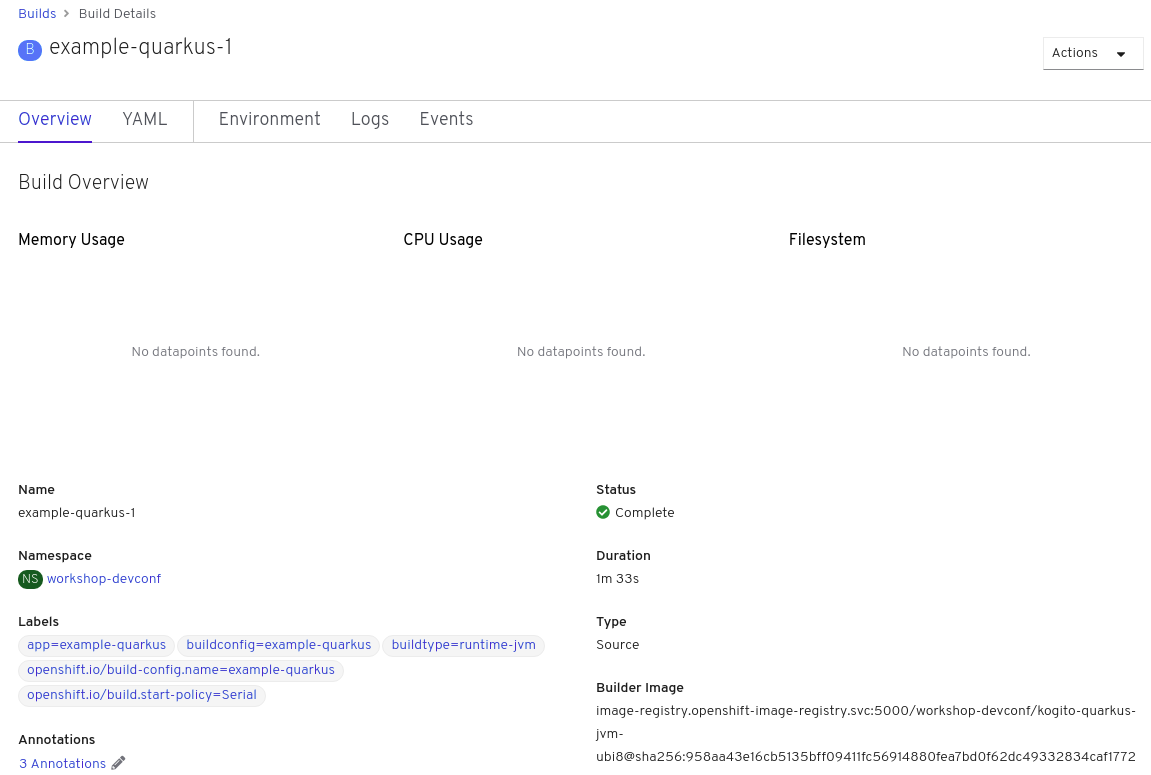

    Figure 29. View Kogito service build details

    For every Kogito service that you create for OpenShift deployment, two builds are generated and listed in the Builds page in the web console: a traditional runtime build and a Source-to-Image (S2I) build with the suffix -builder. The S2I mechanism builds the application in an OpenShift build and then passes the built application to the next OpenShift build to be packaged into the runtime container image. The Kogito S2I build configuration also enables you to build the project directly from a Git repository on the OpenShift platform.

  10. After the application build is complete, go to Workloads → Deployments to view the application deployments, pod status, and other details.

    You can select the application name to increase or decrease the pod count or modify deployment settings:

    Image of Kogito service deployment details page in web console
    Figure 30. View Kogito service deployment details

  11. After your Kogito service is deployed, in the left menu of the web console, go to Networking → Routes to view the access link to the deployed application.

    You can select the application name to view or modify route settings:

    Image of Kogito service route details page in web console
    Figure 31. View Kogito service route details

    With the application route, you can integrate your Kogito services with your business automation solutions as needed.

3.5.2. Deploying Kogito services on OpenShift or Kubernetes using the Kogito CLI

The Kogito command-line interface (CLI) enables you to interact with the Kogito Operator for deployment tasks. The Kogito CLI also enables you to deploy Kogito services from source instead of relying on custom resources and YAML files. You can use the Kogito CLI as a command-line alternative for deploying Kogito services without the OpenShift web console.

Prerequisites

  • The oc OpenShift CLI is installed and you are logged in to the relevant OpenShift cluster. For oc installation and login instructions, see the OpenShift documentation.

  • You have OpenShift permissions to create resources in a specified namespace.

  • (Quarkus only) The pom.xml file of your Kogito project contains the following dependency for the Quarkus smallrye-health extension. This extension enables the liveness and readiness probes that are required for Quarkus-based projects on OpenShift or Kubernetes.

    SmallRye Heath dependency for Quarkus applications on OpenShift
    <dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-smallrye-health</artifactId>
</dependency>
Procedure

  1. Go to the kogito-cloud-operator releases page in GitHub and download the latest version of the kogito-cli-RELEASE binary file that is specific to your operating system.

  2. Extract the kogito-cli-RELEASE binary file to a local directory:

    • On Linux or Mac: In a command terminal, navigate to the directory where you downloaded the kogito-cli-RELEASE binary file and enter the following command to extract the contents:

      Extract the Kogito CLI distribution
      $ tar -xvf kogito-cli-RELEASE.tar.gz

    • On Windows: In your file browser, navigate to the directory where you downloaded the kogito-cli-RELEASE binary file and extract the ZIP file.

    The kogito executable file appears.

  3. Move the extracted kogito file to an existing directory in your PATH variable:

    • On Linux or Mac: In a command terminal, enter the following command:

      Move the kogito file
      $ cp /PATH_TO_KOGITO /usr/local/bin

    • On Windows: Update the relevant PATH environment variables in your system settings to include the path to the Kogito CLI folder. For example, on Windows 10, go to Settings → System Info → Advanced System Settings → Advanced → Environment Variables and in the User or System variables, add the path for the Kogito CLI folder to the PATH variable. Close and reopen your Windows command prompt to apply the changes.

  4. With the Kogito CLI now installed, enter the following commands to deploy your Kogito services on OpenShift from source:

    You must be logged in to the relevant OpenShift cluster using the oc login command.
    Example Kogito service deployment from existing namespace
    // Uses the provisioned namespace in your OpenShift cluster
$ kogito use-project PROJECT_NAME

// Deploys a new Kogito service from a Git source
$ kogito deploy-service example-quarkus https://github.com/kiegroup/kogito-examples --context-dir process-quarkus-example

    The Kogito Operator uses the default branch in the specified Git repository, usually master.

    The first time that you use the Kogito CLI to interact with a project or service, the Kogito Operator is automatically installed and used to execute the relevant tasks.

    Alternatively, you can generate a new namespace in your cluster during deployment:

    Example Kogito service deployment from new namespace
    // Creates a new namespace in your cluster
$ kogito new-project NEW_PROJECT_NAME

// Deploys a new Kogito service from a Git source
$ kogito deploy-service example-quarkus https://github.com/kiegroup/kogito-examples --context-dir process-quarkus-example

    You can also combine the commands to create the namespace and deploy the service using the following abbreviated syntax:

    Abbreviated command for Kogito service deployment
    $ kogito deploy-service example-quarkus https://github.com/kiegroup/kogito-examples --context-dir process-quarkus-example --project PROJECT_NAME

3.5.3. Integrating a custom Kogito service with Infinispan

You can integrate a custom Kogito service with the Infinispan cluster using the following configuration modes:

  • Automatic configuration

  • Manual configuration

3.5.3.1. Integrating a custom Kogito service with Infinispan using automatic configuration mode

In automatic configuration mode the Kogito operator automatically fetches the relevant Infinispan connection details from the Infinispan custom resource and provides it to the custom Kogito service.

The Infinispan operator provides operational intelligence and reduces management complexity for deploying Infinispan on Kubernetes and OpenShift.

For more information about installing the Infinispan operator and setting up the Infinispan cluster, see the Infinispan operator 2.2 Guide.

KogitoInfra defines the relevant infrastructure component or the third-party operator for the Kogito service, such as Infinispan and MongoDB for persistence or Apache Kafka for messaging.

Prerequisites

  • Infinispan cluster is configured by using the Infinispan operator.

Procedure

  1. Install a KogitoInfra custom resource instance with spec.resource.name and spec.resource.namespace configurations.

    spec.resource.name refers to the Infinispan custom resource name and spec.resource.namespace refers to the Infinispan custom resource namespace.

    Example Kogito infrastructure resource for Infinispan persistence
    apiVersion: app.kiegroup.org/v1beta1
kind: KogitoInfra
metadata:
  name: kogito-infinispan-infra
spec:
  resource:
    apiVersion: infinispan.org/v1
    kind: Infinispan
    name: kogito-infinispan
    namespace: infinispan-cluster-namespace

  2. To enable Infinispan persistence, bind KogitoInfra with the Kogito service by performing one of the following tasks:

    • Use the --infra INFINISPAN_INFRA_NAME flag during deployment using the Kogito CLI, for example:

      $ kogito deploy-service travels --infra kogito-infinispan-infra

    • Edit the spec.infra configuration in the Kogito Runtime custom resource, for example:

      apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: travels
spec:
  infra:
    - kogito-infinispan-infra
3.5.3.2. Integrating a custom Kogito service with Infinispan using manual configurations

If you set up a custom Infinispan cluster, you can refer to it in the Kogito runtime custom resource by configuring the following environment variables and application properties:

Example Kogito service deployment with Infinispan persistence enabled using the Kogito CLI
$ kogito deploy-service
Required environment variables for a custom Infinispan cluster
ENABLE_PERSISTENCE=true

# On Quarkus
`QUARKUS_INFINISPAN_CLIENT_AUTH_USERNAME`
`QUARKUS_INFINISPAN_CLIENT_AUTH_PASSWORD`

# On Spring Boot
`INFINISPAN_REMOTE_AUTH_USERNAME`
`INFINISPAN_REMOTE_AUTH_PASSWORD`
Required application properties for a custom Infinispan cluster
# On Quarkus
quarkus.infinispan-client.server-list=
quarkus.infinispan-client.use-auth=
quarkus.infinispan-client.sasl-mechanism=
quarkus.infinispan-client.auth-realm=

# On Spring Boot
infinispan.remote.server-list=
infinispan.remote.use-auth=
infinispan.remote.sasl-mechanism=
infinispan.remote.auth-realm=
3.5.3.3. Infinispan persistence in Kogito services

After you install the KogitoInfra custom resource to connect with the Infinispan infrastructure, to enable Infinispan persistence for a Kogito service using the Kogito Operator, use the --infra INFINISPAN_INFRA_NAME flag during deployment in the Kogito CLI or edit the spec.infra configuration in the KogitoRuntime custom resource:

Example Kogito service deployment with Infinispan persistence enabled using the Kogito CLI
$ kogito deploy-service travels --infra INFINISPAN_INFRA_NAME
Example Kogito service custom resource with Infinispan persistence enabled
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: travels
spec:
  infra:
    - INFINISPAN_INFRA_NAME

If you set up a custom Infinispan cluster, you can refer to it in the KogitoRuntime custom resource by configuring the following environment variables and application properties:

Required environment variables for a custom Infinispan cluster
ENABLE_PERSISTENCE=true

# On Quarkus
QUARKUS_INFINISPAN_CLIENT_AUTH_USERNAME
QUARKUS_INFINISPAN_CLIENT_AUTH_PASSWORD

# On Spring Boot
INFINISPAN_REMOTE_AUTH_USERNAME
INFINISPAN_REMOTE_AUTH_PASSWORD
Required application properties for a custom Infinispan cluster
# On Quarkus
quarkus.infinispan-client.server-list=
quarkus.infinispan-client.use-auth=
quarkus.infinispan-client.sasl-mechanism=
quarkus.infinispan-client.auth-realm=

# On Spring Boot
infinispan.remote.server-list=
infinispan.remote.use-auth=
infinispan.remote.sasl-mechanism=
infinispan.remote.auth-realm=
Additional resources

3.5.4. Integrating a custom Kogito service with Apache Kafka

You can integrate a custom Kogito service with Apache Kafka using the following configuration modes:

  • Automatic configuration

  • Manual configuration

3.5.4.1. Integrating a custom Kogito service with Apache Kafka using the automatic configuration mode

In automatic configuration mode, the Kogito operator automatically fetches the relevant Kafka connection details from the Kafka custom resource and provides it to the custom Kogito service.

Prerequisites

  • A Kafka cluster is configured by using the Strimzi Operator.

    You can use the Strimzi Operator to run an Apache Kafka cluster on Kubernetes or OpenShift in various deployment configurations. For more information about Strimzi Operator, see Strimzi Operator. For more information about installing Strimzi Operator and Kafka cluster configuration, see Strimzi Quickstarts.
Procedure

  1. Specify your custom infrastructure resource in the spec.resource.name and spec.resource.namespace configurations:

    spec.resource.name refers to the Kafka custom resource name and spec.resource.namespace refers to the Kafka custom resource namespace.

    Example: Kogito infrastructure resource for Kafka persistence
      apiVersion: app.kiegroup.org/v1beta1
  kind: KogitoInfra
  metadata:
    name: kogito-kafka-infra
  spec:
    resource:
      apiVersion: kafka.strimzi.io/v1beta2
      kind: Kafka
      name: kogito-kafka
      namespace: kafka-cluster-namespace

  2. To enable Kafka messaging for a Kogito service using the Kogito Operator, bind KogitoInfra with the Kogito service by performing one of the following tasks:

    • Use the --infra KAFKA_INFRA_NAME flag during deployment using the Kogito CLI, for example:

      $ kogito deploy-service travels --infra kogito-kafka-infra

    • Edit the spec.infra configuration in the Kogito runtime custom resource, for example:

      apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: travels
spec:
  infra:
    - kogito-kafka-infra
3.5.4.2. Integrating a custom Kogito service with Kafka using manual configurations

If you set up a custom Kafka cluster, you can refer to it in the Kogito runtime custom resource by configuring the following environment variables and application properties:

Required environment variables for a custom Kafka cluster
ENABLE_EVENTS=true
Required application properties for a custom Kafka cluster
# On Quarkus
kafka.bootstrap.servers=

# On Spring Boot
spring.kafka.bootstrap-servers=
3.5.4.3. Apache Kafka messaging in Kogito services

After you install the KogitoInfra custom resource to connect with the Apache Kafka infrastructure, to enable Kafka messaging for a Kogito service using the Kogito Operator, use the --infra KAFKA_INFRA_NAME flag during deployment in the Kogito CLI or edit the spec.infra configuration in the KogitoRuntime custom resource:

Example Kogito service deployment with Kafka messaging enabled using the Kogito CLI
$ kogito deploy-service travels --infra KAFKA_INFRA_NAME
Example Kogito service custom resource with Kafka messaging enabled
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: travels
spec:
  infra:
    - KAFKA_INFRA_NAME

When you enable Kafka messaging, a variable named KAFKA_BOOTSTRAP_SERVERS is injected into the service container. On Quarkus, this is the default behavior when you use Kafka Client 1.x or later. On Spring Boot, you might need to use a property substitution in the application.properties file, such as the following example:

Example application property substitution for Kafka on Spring Boot
spring.kafka.bootstrap.servers=${KAFKA_BOOTSTRAP_SERVERS}

If the service container has any environment variables with the suffix _BOOTSTRAP_SERVERS, the variables are also injected by the value of the KAFKA_BOOTSTRAP_SERVERS variable.

For example, when you deploy the following Kogito service, the variables MP_MESSAGING_INCOMING_TRAVELLERS_BOOTSTRAP_SERVERS and MP_MESSAGING_OUTGOING_PROCESSEDTRAVELLERS_BOOTSTRAP_SERVERS are injected with the deployed Kafka service URL:

Example Kogito service deployment with injected Kafka variable values
$ kogito deploy-service travels https://github.com/kiegroup/kogito-examples/tree/stable/kogito-quarkus-examples/kogito-travel-agency/extended --context-dir travels --infra kogito-kafka-infra \
--build-env MAVEN_ARGS_APPEND="-Pevents" \
-e MP_MESSAGING_INCOMING_TRAVELLERS_BOOTSTRAP_SERVERS
-e MP_MESSAGING_OUTGOING_PROCESSEDTRAVELLERS_BOOTSTRAP_SERVERS

If you set up a custom Kafka cluster, you can refer to it in the KogitoRuntime custom resource by configuring the following environment variable and application property:

Required environment variable for a custom Kafka cluster
ENABLE_EVENTS=true
Required application property for a custom Kafka cluster
# On Quarkus
kafka.bootstrap.servers=

# On Spring Boot
spring.kafka.bootstrap-servers=
Additional resources
3.5.4.4. MongoDB persistence in Kogito services

After you install the KogitoInfra custom resource to connect with the MongoDB infrastructure, to enable MongoDB persistence for a Kogito service using the Kogito Operator, use the --infra MONGODB_INFRA_NAME flag during deployment in the Kogito CLI or edit the spec.infra configuration in the KogitoRuntime custom resource:

Example Kogito service deployment with MongoDB persistence enabled using the Kogito CLI
$ kogito deploy-service travels --infra MONGODB_INFRA_NAME
Example Kogito service custom resource with MongoDB persistence enabled
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: travels
spec:
  infra:
    - MONGODB_INFRA_NAME

If you set up a custom MongoDB cluster and do not use a KogitoInfra resource, you can refer to it in the KogitoRuntime custom resource by configuring the following environment variables and application properties:

Required environment variables for a custom MongoDB cluster
ENABLE_PERSISTENCE=true

# On Quarkus
QUARKUS_MONGODB_CREDENTIALS_AUTH_SOURCE
QUARKUS_MONGODB_CREDENTIALS_USERNAME
QUARKUS_MONGODB_CREDENTIALS_PASSWORD
QUARKUS_MONGODB_DATABASE

# On Spring Boot
SPRING_DATA_MONGODB_AUTHENTICATION_DATABASE
SPRING_DATA_MONGODB_USERNAME
SPRING_DATA_MONGODB_PASSWORD
SPRING_DATA_MONGODB_DATABASE
Required application properties for a custom MongoDB cluster
# On Quarkus
quarkus.mongodb.connection-string=

# On Spring Boot
spring.data.mongodb.host=
spring.data.mongodb.port=

On Spring Boot, spring.data.mongodb.uri does not work simultaneously with host, port, and credentials properties (Spring Boot). Also, it is recommended to set the password in Kubernetes.

Additional resources

3.5.5. Integrating a custom Kogito service with Knative Eventing

Knative Eventing is a serverless platform you can use to create event producers and consumers for your applications. For more information about Knative Eventing, see Knative Eventing and the Knative docs repository on GitHub.

When you integrate a custom Kogito service with Knative Eventing you can create a Knative broker, bind that Knative broker with the Kogito Operator, and include a cross-reference link for Knative Eventing.

Knative events conform to the CloudEvents specification. For more information, see CloudEvents.

You can use the Knative Eventing add-on to include your Kogito Services in the Knative Eventing platform. For more information about the Knative Eventing add-on, see Knative Eventing add-on on GitHub.

To use all features, in addition to those available as part of the Kogito Knative Eventing Source Operator, you must integrate the custom Kogito service with Knative Eventing.

3.5.5.1. Creating a Knative Broker

Knative brokers and triggers provide an "event mesh" model that enables an event producer to deliver events to a broker. The broker then uniformly distributes the events to consumers by using triggers. For more information about brokers, see Broker - Knative. For more information about triggers, see Triggers - Knative.

Consumers can register different types of events without needing to negotiate directly with event producers. You can use specific filter conditions to optimize event routing on the underlying platform.

To integrate your custom Kogito Service with Knative Eventing you need at least one broker that collects the events produced by your custom Kogito Service. You can create a broker by applying a YAML file by using kubectl.

Prerequisites

  • Administrative privileges are available in the target cluster.

  • Knative Eventing is installed or the OpenShift Serverless Platform is available.

    For more information about installing Knative Eventing, see About installing Knative. For more information about OpenShift Serverless, see OpenShift Serverless

Procedure

  1. Create a <filename.yaml> YAML file containing the following template:

    apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  name: <broker-name>

    The YAML file creates a broker with the desired name in the current namespace. For more information about configuring broker options using YAML, see Broker configuration example - Knative.

  2. To apply the YAML file, enter the following command:

    kubectl apply -f <filename>.yaml>

    Where <filename> is the name of the file you created in the previous step.

  3. Optional: To verify that the broker is working correctly, enter the following command:

    kubectl -n <namespace> get broker <broker-name>

    The information about your broker is displayed:

    If the broker is working correctly, it shows a READY status of True, for example:

    NAME READY REASON URL AGE

    <broker-name>

    True

    http://broker-ingress.knative-eventing.svc.cluster.local/event-example/<broker-name>;

    1m

    If the READY status is False, wait a few moments and then run the command again.

3.5.5.2. Binding Knative Broker with Kogito operator

  1. Create your Kogito project locally. For more information about Serverless Workflow, see Orchestrating microservices with Serverless Workflow in Kogito.

  2. Build the image with your project. For an example project, see Process with Knative Eventing on GitHub.

  3. Deploy the project as either a Knative Service or a regular deployment.

  4. Create the Kogito source CR, for example:

    apiVersion: kogito.knative.dev/v1alpha1
kind: KogitoSource
metadata:
  name: my-kogito-source
spec:
  subject:
    apiVesion: serving.knative.dev/v1
    kind: Service
    # Put the name of your custom Kogito Service [3]
    name: my-kogito-service
  sink:
    ref:
      apiVersion: eventing.knative.dev/v1
      kind: Broker
      name: <broker-name>

  5. To deploy your source, enter the following command:

    kubectl apply -f <path to the source>.yaml

The custom {KOGITO} Service is now configured to produce cloud events that will be collected by the broker.

If you want the custom {KOGITO} Service to consume Knative Events you can use Knative triggers. For more information, see Knative Eventing in Kogito Services.

3.5.5.3. Using the {KOGITO} Knative add-on

You can use the Kogito add-on instead of manually configuring definitions of the YAML file descriptors for your custom Kogito service.

To use the Kogito Knative add-on to generate the needed YAML files for your custom Kogito service, you add the YAML file to your pom.xml configuration file and compile your project using the Knative profile.

Example

Procedure

  1. Add the the following example to your pom.xml file:

    <profile>
  <id>knative</id>
  <properties>
    <!-- Shortcuts -->
    <namespace>default</namespace>
    <deploy>false</deploy>
    <!-- Quarkus Knative integration to build and deploy -->
    <quarkus.kubernetes.namespace>${namespace}</quarkus.kubernetes.namespace>
    <quarkus.kubernetes.deploy>${deploy}</quarkus.kubernetes.deploy>
    <quarkus.container-image.build>true</quarkus.container-image.build>
    <quarkus.profile>knative</quarkus.profile>
  </properties>
  <dependencies>
    <dependency>
      <groupId>io.quarkus</groupId>
      <artifactId>quarkus-kubernetes</artifactId>
    </dependency>
    <dependency>
      <groupId>io.quarkus</groupId>
      <artifactId>quarkus-container-image-jib</artifactId>
    </dependency>
  </dependencies>
</profile>

    For more information, see pom.xml example in the Kogito examples on GitHub.

  2. To create the knative.yml and kogito.yml YAML files, enter the following:

    mvn clean install -Pknative -Dnamespace=<your namespace>

  3. To deploy the objects from the knative.yml and kogito.yml YAML files, enter the following command:

    kubectl apply -f target/kubernetes/knative.yml,target/kubernetes/kogito.yml
3.5.5.4. Postgresql persistence with Kogito service

The Kogito Operator does not manage Postgres instances. If Kogito service persistence type is reactive(kogito.persistence.type=postgresql), then you can refer to it in the KogitoRuntime custom resource by configuring the following environment variables. Reactive persistence with kogito.persistence.type=postgresql only worked with Springboot.

Required environment variables for a custom Postgresql persistence
# for Spring Boot
PGUSER
PGHOST
PGPASSWORD
PGDATABASE
PGPORT
Example Kogito service custom resource with reactive Postgresql persistence
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: process-postgresql-persistence-quarkus
spec:
  image: quay.io/kiegroup/process-postgresql-persistence-quarkus:persistence
  runtime: springboot
  env:
    - name: PGUSER
      value: postgresql
    - name: PGDATABASE
      value: runtimeapp
    - name: PGPASSWORD
      valueFrom:
        secretKeyRef:
          name: kogito-postgresql
          key: postgresql-password
    - name: PGHOST
      value: kogito-postgresql.default.svc.cluster.local
    - name: PGPORT
      value: '5432'

or with the connection string

kogito.persistence.postgresql.connection.uri

whereas if the persistence type is jdbc(kogito.persistence.type=jdbc), then you can refer to it in the KogitoRuntime custom resource by configuring the following environment variables:

Required environment variables for a custom Postgresql persistence
# On Quarkus
QUARKUS_DATASOURCE_DB-KIND
QUARKUS_DATASOURCE_USERNAME
QUARKUS_DATASOURCE_PASSWORD
QUARKUS_DATASOURCE_JDBC_URL

# On Spring Boot
SPRING_DATASOURCE_USERNAME
SPRING_DATASOURCE_PASSWORD
SPRING_DATASOURCE_URL
Example Kogito service custom resource with JDBC Postgresql persistence
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: process-postgresql-persistence-quarkus
spec:
  image: quay.io/kiegroup/process-postgresql-persistence-quarkus:jdbc
  env:
    - name: QUARKUS_DATASOURCE_DB-KIND
      value: postgresql
    - name: QUARKUS_DATASOURCE_USERNAME
      value: postgres
    - name: QUARKUS_DATASOURCE_PASSWORD
      valueFrom:
        secretKeyRef:
          name: kogito-postgresql
          key: postgresql-password
    - name: QUARKUS_DATASOURCE_JDBC_URL
      value: jdbc:postgresql://kogito-postgresql.default.svc.cluster.local:5432/runtimeapp

3.5.6. Kogito Data Index Service properties configuration

When the Kogito Data Index Service is deployed, a configMap resource is created for the application.properties configuration of the Data Index Service.

The name of the configMap resource consists of the name of the Data Index Service and the suffix -properties, as shown in the following example:

Example configMap resource generated during Kogito Data Index Service deployment
kind: ConfigMap
apiVersion: v1
metadata:
  name: data-index-properties
data:
  application.properties : |-
    property1=value1
    property2=value2

The application.properties data of the configMap resource is mounted in a volume to the container of the Data Index Service. Any runtime properties that you add to the application.properties section override the default application configuration properties of the Data Index Service.

When the application.properties data of the configMap is changed, a rolling update modifies the deployment and configuration of the Data Index Service.

If your Kogito project uses the Infinispan or MongoDB Persistence Kogito add-on to enable Infinispan or MongoDB persistence explicitly, the Kogito Operator mounts a volume based on a configMap resource created for you during the deployment of the service. This configMap resource has the -protobuf-files suffix and lists the protobuf (protocol buffers) files that your service generated during build time.

Example configMap resource with protobuf files listed
kind: ConfigMap
apiVersion: v1
metadata:
  name: example-quarkus-protobuf-files
  labels:
    kogito-protobuf: true
data:
  visaApplications.proto: |-
    syntax = "proto2";
    package org.acme.travels.visaApplications;
    import "kogito-index.proto";
    import "kogito-types.proto";
    option kogito_model = "VisaApplications";
    option kogito_id = "visaApplications";
    ...

When a new persistent Kogito service is deployed, a new set of protobuf files is generated and the Data Index Service creates a new pod instance that refers to the new volume.

Updated protobuf files are automatically refreshed by Kubernetes volumes, so if you add a new property in your domain data, this data is reflected automatically in the Data Index Service without restarts.

If a Kogito service is removed, the associated protobuf files are also removed and are no longer visible in the Data Index Service, but the data is still persisted in Infinispan or MongoDB.

3.5.7. PostgreSQL persistence with the Kogito Data Index Service

Data Index Service does not initialize its database schema automatically. To initialize the database schema, you need to either enable automatic schema initialization using Hibernate or create the schema using the DDL script.

Automatic schema initialization using Hibernate can be enabled using the quarkus.hibernate-orm.database.generation property. For possible values of quarkus.hibernate-orm.database.generation property, see Quarkus docs for database generation options. The value can also be set as an environment variable QUARKUS_HIBERNATE_ORM_DATABASE_GENERATION.

Example DataIndex resource with PostgreSQL persistence enabled (requires Kafka KogitoInfra to be available):
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoSupportingService
metadata:
  name: data-index
spec:
  serviceType: DataIndex
  image: quay.io/kiegroup/kogito-data-index-postgresql:latest
  infra:
    - kogito-kafka-infra
  env:
    - name: QUARKUS_DATASOURCE_DB-KIND
      value: postgresql
    - name: QUARKUS_DATASOURCE_USERNAME
      value: postgres
    - name: QUARKUS_DATASOURCE_PASSWORD
      valueFrom:
        secretKeyRef:
          name: kogito-postgresql
          key: postgresql-password
    - name: QUARKUS_DATASOURCE_JDBC_URL
      value: jdbc:postgresql://kogito-postgresql.default.svc.cluster.local:5432/kogito
    - name: QUARKUS_HIBERNATE_ORM_DATABASE_GENERATION
      value: update

3.5.8. Infinispan persistence with the Kogito Jobs Service

To enable Infinispan persistence for the Kogito Jobs Service, you install the Infinispan infrastructure and then you can use the --infra INFINISPAN_INFRA_NAME flag during deployment in the Kogito CLI or edit the spec.infra configuration in the KogitoSupportingService custom resource that contains the JobsService service type:

Example Jobs Service deployment with Infinispan persistence enabled
$ kogito install infra INFINISPAN_INFRA_NAME --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan -p PROJECT_NAME
$ kogito install jobs-service --infra INFINISPAN_INFRA_NAME
Example JobsService resource with Infinispan persistence enabled
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoSupportingService
metadata:
  name: jobs-service
spec:
  serviceType: JobsService
  infra:
    - kogito-infinispan-infra

You can refine the Infinispan integration by setting the spec.infra property in the KogitoSupportingService custom resource that contains the JobsService service type. With this property set, the Kogito Operator ensures that the Jobs Service has access to the persistence infrastructure configurations.

3.5.9. Kogito Jobs Service properties configuration

When the Kogito Jobs Service is deployed, a configMap resource is created for the application.properties configuration of the Jobs Service.

The name of the configMap resource consists of the name of the Jobs Service and the suffix -properties, as shown in the following example:

Example configMap resource generated during Kogito Jobs Service deployment
kind: ConfigMap
apiVersion: v1
metadata:
  name: jobs-service-properties
data:
  application.properties : |-
    property1=value1
    property2=value2

The application.properties data of the configMap resource is mounted in a volume to the container of the Jobs Service. Any runtime properties that you add to the application.properties section override the default application configuration properties of the Jobs Service.

When the application.properties data of the configMap is changed, a rolling update modifies the deployment and configuration of the Jobs Service.

3.6. Kogito Operator interaction with Prometheus and Grafana

Kogito provides a monitoring-prometheus-addon add-on that enables Prometheus metrics monitoring for Kogito services and generates Grafana dashboards that consume the default metrics exported by the add-on. The Kogito Operator uses the Prometheus Operator to expose the metrics from your Kogito project for Prometheus to scrape. Due to this dependency, the Prometheus Operator must be installed in the same namespace as your Kogito project.

When you deploy a Kogito service that uses the monitoring-prometheus-addon add-on and the Prometheus Operator is installed, the Kogito Operator creates a ServiceMonitor custom resource to expose the metrics for Prometheus, as shown in the following example:

Example ServiceMonitor resource for Prometheus
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app: onboarding-service
  name: onboarding-service
  namespace: kogito
spec:
  endpoints:
  - path: /q/metrics
    targetPort: 8080
    scheme: http
  namespaceSelector:
    matchNames:
    - kogito
  selector:
    matchLabels:
      app: onboarding-service
For Spring Boot application, the metrics path is /actuator/prometheus

You must manually configure your Prometheus custom resource that is managed by the Prometheus Operator to select the ServiceMonitor resource:

Example Prometheus resource
apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  name: prometheus
spec:
  serviceAccountName: prometheus
  serviceMonitorSelector:
    matchLabels:
      app: onboarding-service

After you configure your Prometheus resource with the ServiceMonitor resource, you can see the endpoint being scraped by Prometheus in the Targets page in the Prometheus web console:

Image of Kogito service targets view in Prometheus

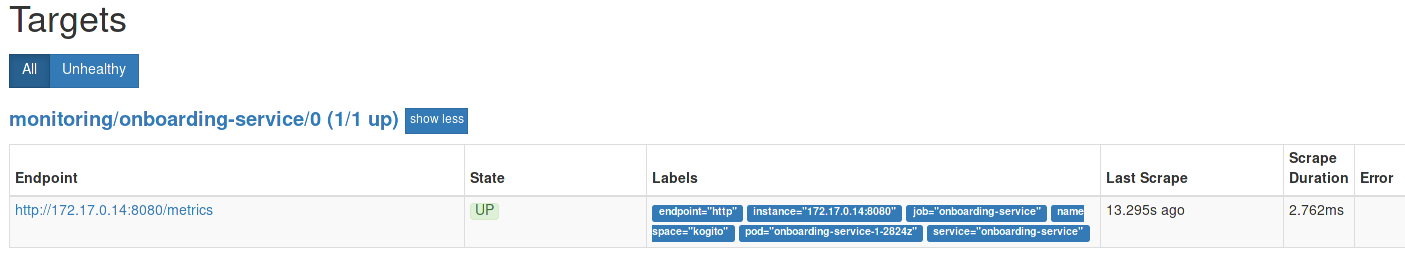

Figure 32. Targets page in Prometheus web console

The metrics exposed by the Kogito service appear in the Graph view:

Image of Kogito service graph view in Prometheus

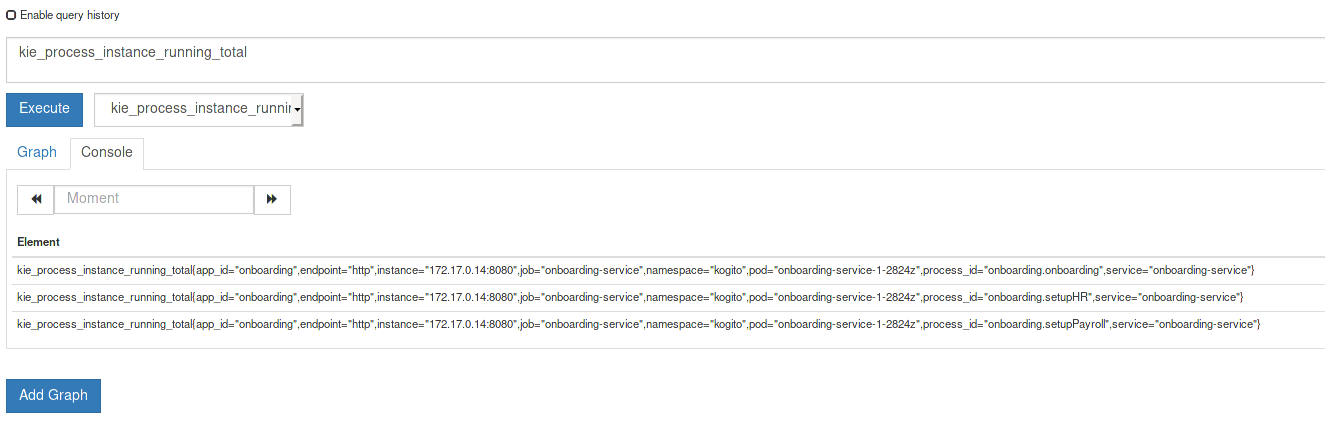

Figure 33. Graph view in Prometheus web console

The Kogito Operator also creates a GrafanaDashboard custom resource defined by the Grafana Operator for each of the Grafana dashboards generated by the add-on. The app label for the dashboards is the name of the deployed Kogito service. You must set the dashboardLabelSelector property of the Grafana custom resource according to the relevant Kogito service.

Example Grafana resource
apiVersion: integreatly.org/v1alpha1
kind: Grafana
metadata:
  name: example-grafana
spec:
  ingress:
    enabled: true
  config:
    auth:
      disable_signout_menu: true
    auth.anonymous:
      enabled: true
    log:
      level: warn
      mode: console
    security:
      admin_password: secret
      admin_user: root
  dashboardLabelSelector:
    - matchExpressions:
        - key: app
          operator: In
          values:
            - my-kogito-application
Additional resources

3.6.1. Replacing Kogito services TrustStores

You can replace the default Java TrustStore that comes in Kogito images. Replacement of Java TrustStore is required when a given Kogito service makes HTTPS calls to services that require encrypted connections using a private Certificate Authority (CA).

Prerequisites

  • The Java TrustStore replaces the default one. You must add the trusted certificates to the default JKS. As an alternative, you can create a new TrustStore that consists of the required Kogito service certificates.

Any Kogito service that is deployed in a given namespace can access the Java TrustStore if required.

To manipulate the Java TrustStore, you can use KeyExplorer or keytool that consists of JDK.

Procedure

  1. Create a Kubernetes Secret based on the customized Java TrustStore:

    Example Kuberbetes Secret
    $ oc create secret generic kogito-truststore --from-file=cacerts=<path to your JKS> --from-literal=keyStorePassword=<TrustStore Password>

    You must define the secret keys as shown in the previous command. cacerts is used for the TrustStore file and keyStorePassword is used for the TrustStore password.

  2. Deploy the Kogito service that uses the TrustStore. For example:

    Example Kogito service deployment
    piVersion: app.kiegroup.org/v1beta1
kind: KogitoRuntime
metadata:
  name: my-service
spec:
  replicas: 1
  image: quay.io/my-namespace/my-service:latest
  trustStoreSecret: kogito-truststore

  3. Alternatively, you can use Kogito CLI to deploy the Kogito service using truststore-secret as follows:

    Example Kogito service deployment using Kogito CLI
    $ kogito deploy my-service https://mygitrepository/my-service.git --truststore-secret kogito-truststore

3.6.2. Deploying Kogito services on Kubernetes

3.7. Examples provided with Kogito Operator

Several examples are shipped with {KOGITO}. You can review the code for examples and modify it as necessary to suit your needs.

3.7.1. Travel agency tutorial for Kogito services on OpenShift

The kogito-travel-agency extended example application in GitHub contains Kogito services related to travel booking. The purpose of this example application is to help you get started with deploying Kogito services on OpenShift.

The example application illustrates many of the configuration options you can use whether you are deploying services locally or on OpenShift, such as process persistence with Infinispan, messaging with Apache Kafka, and application data indexing with the Kogito Data Index Service.

For more information about this example application, see the README file in the application folder.

This tutorial demonstrates the following two related services in the kogito-travel-agency extended example application:

  • travels: Service for booking a trip to a specified destination, including flight and hotel

  • visas: Service for managing travel visas, if required

The following Business Model and Notation (BPMN) 2.0 process models are the core processes in these services:

Image of travel agency example process
Figure 34. Travels core process
Image of visas example process

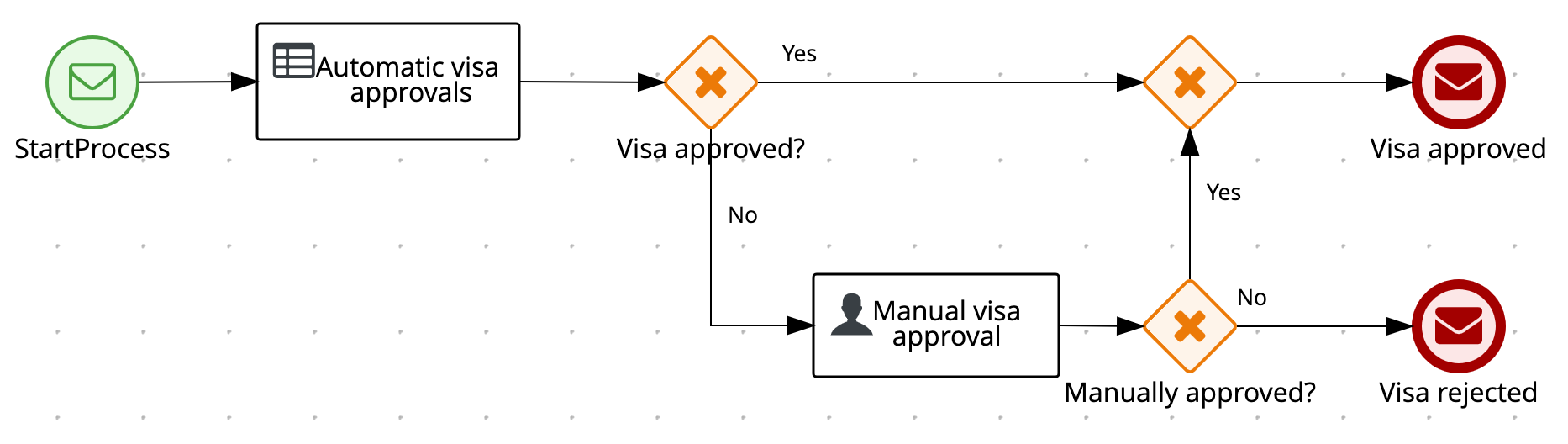

Figure 35. Visas core process

These two services communicate with each other through events. The travel agency service schedules specified travel plans and sends visa applications for travelers that require visas to visit a specified country. The visa service then evaluates any visa applications and responds with the visa approval or rejection.

The services expose REST API endpoints that are generated from the BPMN business process definitions in the services. Internally, the services communicate using Apache Kafka messaging. The logic to interact with Kafka to produce and consume messages is also generated from the BPMN process definitions.

Tutorial objectives

  • Deploy an application with advanced Kogito services, including supporting services and infrastructure.

  • Deploy Kogito infrastructures (Infinispan, Kafka, and Data Index Service) using the Kogito Operator and Kogito CLI.

  • Deploy Kogito service definitions using the Kogito CLI.

  • Use binary builds to deploy Kogito services on OpenShift.

Prerequisites

  • VSCode 1.46.0 or later is installed.

  • The Kogito Bundle VSCode extension is installed and enabled in your VSCode IDE.

  • OpenShift 4.3 or later is installed.

  • The oc OpenShift CLI is installed. For oc installation instructions, see the OpenShift documentation.

  • You have access to the OpenShift web console with cluster-admin permissions.

  • The Kogito command-line interface (CLI) is installed from the latest Kogito CLI distribution.

  • Git is installed.

  • JDK 11 or later is installed. (GraalVM is recommended.)

  • Apache Maven 3.6.2 or later is installed.

  • (Quarkus only) The pom.xml file of your Kogito project contains the following dependency for the Quarkus smallrye-health extension. This extension enables the liveness and readiness probes that are required for Quarkus-based projects on OpenShift or Kubernetes.

    SmallRye Heath dependency for Quarkus applications on OpenShift
    <dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-smallrye-health</artifactId>
</dependency>
3.7.1.1. Cloning the Kogito examples Git repository

For this travel agency tutorial, you need local access to the example services, so you must first clone the kogito-examples Git repository to your local system.

Procedure

In a command terminal, navigate to a directory where you want to store the Kogito example applications and enter the following command to clone the repository:

Cloning the Kogito examples repository
$ git clone https://github.com/kiegroup/kogito-examples.git

The cloned kogito-examples repository contains various types of Kogito services on Quarkus or Spring Boot to help you develop your own applications.

For this travel agency tutorial, you need the kogito-travel-agency extended example application, which contains the following services:

  • travels: Service for booking a trip to a specified destination, including flight and hotel

  • visas: Service for managing travel visas, if required

3.7.1.2. Configuring access to your OpenShift environment

To complete the travel agency tutorial, you must ensure that you have proper access to both the OpenShift web console and to the oc CLI.

You can use different types of OpenShift 4.x environments, such as a full OpenShift cluster or a small CodeReady Containers environment. However, the OpenShift environment must have access to the public Internet in order to be able to pull in the required container images and build artifacts.
Procedure

  1. Log in to the OpenShift web console and in the upper-right corner of the screen, select your profile and click Copy Login Command.

  2. In the new window that appears, log in again to re-authenticate your user and then click Display Token.

  3. Copy the oc login command and enter it in a command terminal:

    Example oc CLI login token
    $ oc login --token=OPENSHIFT_TOKEN --server=https://WEB_CONSOLE_SERVER

    If your authentication fails or you do not have cluster-admin permissions, contact your OpenShift administrator.

3.7.1.3. Creating an OpenShift project and installing the Kogito Operator using the Kogito CLI

To set up an example application with Kogito services for deployment on OpenShift, you must create a project (namespace) in OpenShift in which you can install the application and the Kogito Operator. The Kogito Operator is based on the Operator SDK and automates many of the deployment steps for you. The first time that you use the Kogito CLI to interact with a project or service, the Kogito Operator is automatically installed and used to execute the relevant tasks.

You can create the project and install the Kogito Operator using the OpenShift web console or using the Kogito CLI. This example uses the Kogito CLI.

Procedure

In a command terminal, enter the following command to create an OpenShift project for the kogito-travel-agency extended example application using the Kogito CLI:

Creating the OpenShift project
$ kogito new-project kogito-travel-agency
Project `kogito-travel-agency` created successfully

If you do not have cluster-admin permissions and another user created the kogito-travel-agency project for you, you can alternatively use the following command to connect the Kogito CLI tooling to the existing project:

Connecting to an existing OpenShift project
$ kogito use-project kogito-travel-agency
Project set to 'kogito-travel-agency'

The kogito new-project and kogito use-project commands automatically install the Kogito Operator if it is not installed already.

If your Kogito project requires persistence and messaging infrastructures, you can use the left menu of the OpenShift web console to navigate to Operators → OperatorHub and install the Infinispan operator for persistence and the Strimzi Operator for Apache Kafka clusters and messaging. You can also install these operators manually using the Infinispan operator Guide or the Strimzi Quick Start guide. The Kogito Operator uses these operators to create the needed persistence and messaging infrastructures.

After you create the OpenShift project using the Kogito CLI and install the Kogito Operator, the operator is listed with any other installed operators in the OpenShift web console in Operators → Installed Operators:

Image of installed operators in web console

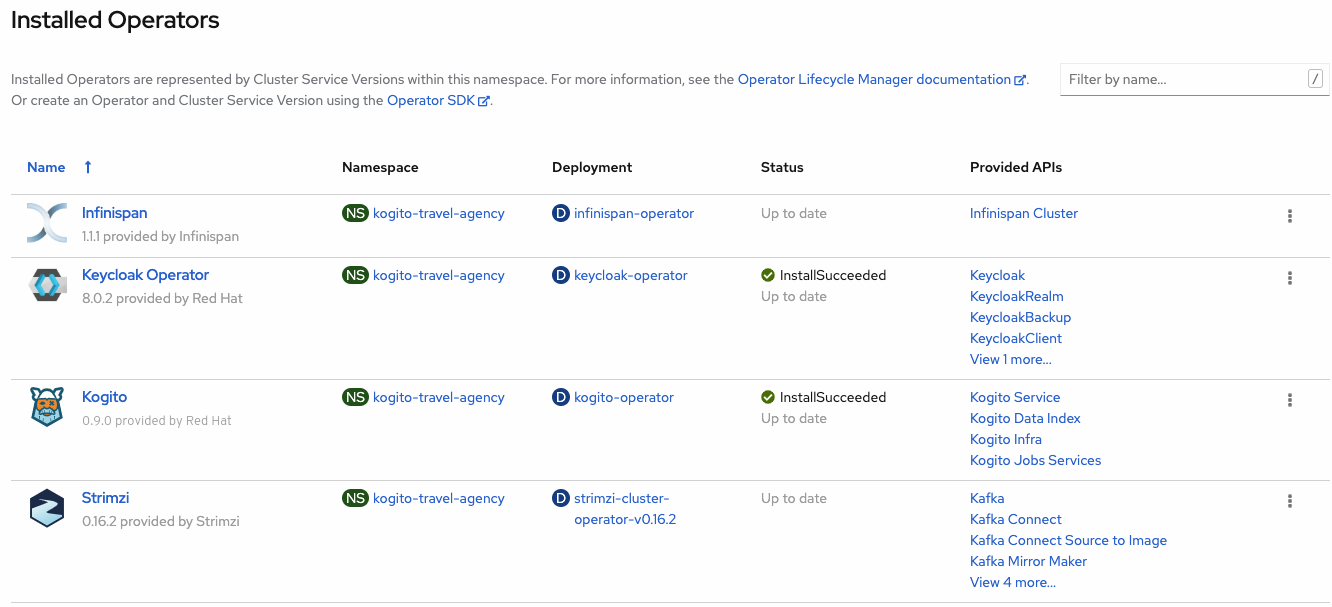

Figure 36. Installed operators in web console
3.7.1.4. Installing the Infinispan persistence infrastructure for Kogito services on OpenShift

Kogito supports runtime persistence for process data in your services. Kogito persistence is based on Infinispan and enables you to configure key-value storage definitions to persist data, such as active nodes and process instance variables, so that the data is preserved across application restarts.

The Kogito Operator uses the Infinispan operator to deploy the Infinispan infrastructure in a Kogito project. For optimal Kogito deployment on OpenShift, install the Infinispan operator and enable Infinispan persistence for your Kogito services. You can install the Infinispan infrastructure using the Kogito Operator page in the OpenShift web console or using the Kogito CLI.

This example uses the Kogito CLI to install the Infinispan infrastructure and the Kogito Operator page in the web console to verify that the infrastructure is enabled.

Prerequisites

  • The Infinispan operator is installed in the same OpenShift namespace as your Kogito project. You can install the Infinispan operator using the Operators → OperatorHub page in the OpenShift web console or manually as described in the Infinispan operator Guide.

  • An Infinispan Server resource is deployed in the same OpenShift namespace as your Kogito project. You can try one of the examples as described in the Infinispan operator Guide. For this procedure, set kogito-infinispan as the name of the Infinispan Server resource.

Procedure

  1. In a command terminal, enter the following command to install the Infinispan infrastructure for the Kogito services:

    Installing Infinispan infrastructure
    $ kogito install infra kogito-infinispan-infra --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan

  2. In the OpenShift web console, use the left menu to navigate to the following windows to verify the installed Infinispan infrastructure:

    • Operators → Installed Operators → Kogito → Kogito Infra: A new kogito-infinispan-infra custom resource is listed.

      Image of Kogito Infra page in web console
      Figure 37. Kogito infrastructure resource for Infinispan

    • Operators → Installed Operators → Infinispan → Infinispan Cluster: A kogito-infinispan custom resource is listed.

      Image of Infinispan Cluster page in web console
      Figure 38. Infinispan cluster resource

    • Workloads → Stateful Sets: A kogito-infinispan stateful set is deployed.

      Image of Stateful Sets page in web console
      Figure 39. Stateful set for Infinispan
3.7.1.5. Installing the Kafka messaging infrastructure for Kogito services on OpenShift

Kogito supports the MicroProfile Reactive Messaging specification for messaging in your services. Kogito messaging is based on Apache Kafka and enables you to configure messages as either input or output of business process execution.

The Kogito Operator uses the Strimzi Operator to deploy and manage the Kafka infrastructure in a Kogito project. For optimal Kogito deployment on OpenShift, install the Strimzi Operator and enable Kafka messaging for your Kogito services. You can install the Kafka infrastructure using the Kogito Operator page in the OpenShift web console or using the Kogito CLI.

This example uses the Kogito CLI to auto-configure an existing Kafka infrastructure and the Kogito Operator page in the web console to verify that the infrastructure is enabled.

Prerequisites

  • The Strimzi Operator is installed in the same OpenShift namespace as your Kogito project. You can install the Strimzi Operator using the Operators → OperatorHub page in the OpenShift web console or manually as described in the Strimzi Quick Start guide.

  • A Kafka Cluster resource is deployed in the same OpenShift cluster as your Kogito project. You can try one of the examples as described in the Strimzi Guide. For this procedure, set kogito-kafka as the name of the Kafka Cluster resource.

Procedure

  1. In a command terminal, enter the following command to install the Kafka infrastructure for the Kogito services:

    Installing Kafka infrastructure
    $ kogito install infra kogito-kafka-infra --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka

  2. In the OpenShift web console, use the left menu to navigate to the following windows to verify the installed Kafka infrastructure:

    • Operators → Installed Operators → Kogito → Kogito Infra: A new kogito-kafka-infra custom resource is listed.

      Image of Kogito infra details in web console
      Figure 40. Kafka enabled

    • Operators → Installed Operators → Strimzi → Kafka: A kogito-kafka custom resource is listed.

      Image of Kafkas page in web console
      Figure 41. Kafka custom resource

    • Workloads → Stateful Sets: kogito-kafka-kafka and kogito-kafka-zookeeper stateful sets are deployed.

      Image of Stateful Sets page in web console
      Figure 42. Stateful sets for Kafka
3.7.1.6. Installing the Kogito Data Index Service for Kogito services on OpenShift

Kogito provides a Data Index Service that stores all Kogito events related to processes, tasks, and domain data. The Data Index Service uses Kafka messaging to consume CloudEvents messages from Kogito services, and then indexes the returned data for future GraphQL queries and stores the data in the Infinispan persistence store. The Data Index Service is at the core of all Kogito search, insight, and management capabilities.

The Kogito Operator uses the Data Index Service for data management in a Kogito project. For optimal Kogito deployment on OpenShift, enable the Data Index Service for your Kogito services. You can install the Data Index Service using the Kogito Operator page in the OpenShift web console (under Kogito Supporting Service with serviceType set to DataIndex) or using the Kogito CLI.

This example uses the Kogito CLI to install the Data Index Service and the Kogito Operator page in the web console to verify that the service is enabled.

Prerequisites

  • You have installed the following Infinispan persistence and Kafka messaging infrastructure components for your Kogito services, as shown in the following example commands:

    Installing Infinispan and Kafka infrastructure components
    $ kogito install infra kogito-infinispan-infra --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan
$ kogito install infra kogito-kafka-infra --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka
Procedure

  1. In a command terminal, enter the following command to install the Kogito Data Index Service for the Kogito services:

    Installing Data Index Service
    $ kogito install data-index --infra kogito-infinispan-infra --infra kogito-kafka-infra

    When you enter this command, the Kogito Operator provisions the Data Index Service to connect to the specified infrastructures.

  2. In the OpenShift web console, use the left menu to navigate to the following windows to verify the installed Data Index Service:

    • Operators → Installed Operators → Kogito → Kogito Supporting Service: A new kogito-data-index custom resource is listed.

      Image of Kogito Data Index page in web console
      Figure 43. Data Index Service resource

    • Workloads → Deployments: A new kogito-data-index deployment is listed.

      Image of Data Index deployment page in web console
      Figure 44. Data Index Service deployment

    • Networking → Routes: A new kogito-data-index route is listed.

      Image of Data Index route page in web console
      Figure 45. Data Index Service route

      You can click the Location URL to view the Kogito Data Index Service GraphQL interface (GraphiQL) and enter GraphQL queries for stored data.

      Image of Data Index GraphiQL interface
      Figure 46. Example GraphQL query in GraphiQL interface for Data Index Service
3.7.1.7. Creating Kogito service definitions on OpenShift using the Kogito CLI

After you set up the required infrastructures for your application, you can create the Kogito service definitions and provision the OpenShift resources required for deployment with a binary build. You can create the service definitions using the OpenShift web console or using the Kogito CLI.

This example uses the Kogito CLI to create the service definitions for the kogito-travel-agency extended example application and uses the Kogito Operator page in the web console to verify that the services are created.

The travel agency example application includes the following key OpenShift resources:

  • BuildConfig: Configures the application to support a binary build in addition to a traditional OpenShift build for deployment. In a binary build, you build the application locally and push the built application to the OpenShift build to be packaged into the runtime container image. A binary build enables services to be deployed faster than a traditional OpenShift build and deployment.

  • ImageStream: Defines the set of container images identified by tags.

  • Deployments: Describes the desired state of the application as a pod template.

  • Service: Functions as a Kubernetes-internal load balancer to serve the application pods.

  • Route: Exposes the Service at a host name.

Prerequisites

  • You have installed the following Infinispan persistence and Kafka messaging infrastructure components for your Kogito services, and you have installed the Kogito Data Index Service accordingly, as shown in the following example commands:

    Installing Infinispan, Kafka, and Data Index Service components
    $ kogito install infra kogito-infinispan-infra --kind Infinispan --apiVersion infinispan.org/v1 --resource-name kogito-infinispan
$ kogito install infra kogito-kafka-infra --kind Kafka --apiVersion kafka.strimzi.io/v1beta2 --resource-name kogito-kafka
$ kogito install data-index --infra kogito-infinispan-infra --infra kogito-kafka-infra
Procedure

  1. In a command terminal, navigate to the kogito-travel-agency extended example application and enter the following commands to create Kogito service definitions for the travels and visas services with Infinispan persistence and Kafka messaging enabled:

    Creating the travels service with persistence and messaging enabled
    $ kogito deploy-service travels --infra kogito-infinispan-infra --infra kogito-kafka-infra
    Creating the visas service with persistence and messaging enabled
    $ kogito deploy-service visas --infra kogito-infinispan-infra --infra kogito-kafka-infra

    When the deployment configuration of this service is generated, the Kogito Operator automatically configures the environment variables to point to the location of the Kafka and Infinispan environments that you deployed previously. For Kafka messaging, the operator sets the incoming and outgoing messaging channels and properties as needed. For Infinispan persistence, the operator sets the authorization configuration based on the credentials generated by the Infinispan operator.

    You can also provide a Git repository location to create your services remotely instead of creating your services from a local source. However, this example uses local applications to demonstrate how to prepare the Kogito project on a development machine for a direct push to the cloud.

  2. In the OpenShift web console, use the left menu to navigate to Operators → Installed Operators → Kogito → Kogito Service and verify the new travels and visas services:

    Image of travels and visas services listed in web console
    Figure 47. New travel agency and visas services listed

    The new services are available but not yet deployed on OpenShift until you build and deploy the service projects from source using a binary build.

3.7.1.8. Deploying Kogito services on OpenShift using a binary build

OpenShift builds can require extensive amounts of time. As a faster alternative for building and deploying your Kogito services on OpenShift, you can use a binary build. In a binary build, you build the application locally and push the built application to an OpenShift BuildConfig configuration to be packaged into the runtime container image.

The kogito-travel-agency extended example application includes a BuildConfig configuration to support a binary build in addition to traditional building for deployment.

Kogito also supports Source-to-Image (S2I) builds, which build the application in an OpenShift build and then pass the built application to the next OpenShift build to be packaged into the runtime container image. The Kogito S2I build configuration also enables you to build the project directly from a Git repository on the OpenShift platform.

However, this example uses the local applications to demonstrate how to prepare the Kogito project on a development machine for a direct push to the cloud.
Prerequisites
Procedure

  1. In a command terminal, navigate to the kogito-travel-agency/extended/travels example service and build the project using Maven:

    Building the local travels project
    $ cd kogito-travel-agency/extended/travels
$ mvn clean package

    This command builds the project in standard JDK mode to package the application as a runner JAR file and include any dependencies in a lib folder.

    Alternatively, you can also build the project in native mode (requires GraalVM and SubstrateVM) to build and compile the application into a native executable for your system.

    The following resources are generated in the target/quarkus-app folder in preparation for deployment from binary build:

    • quarkus-app/app/travels.jar: Standard JAR file that contains the classes and resources of the project.

    • quarkus-app/quarkus: Contains the generated resources required by the Quarkus application to run.

    • quarkus-app/lib: Directory that contains the project dependencies.

    • quarkus-app/quarkus-run.jar: Executable JAR file for the project. Note that quarkus-run.jar is not an uber-JAR file, and also requires the folders quarkus-app/app, quarkus-app/quarkus, and quarkus-app/lib.

  2. From the same kogito-travel-agency/extended/travels directory location where you built the project, enter the following command to deploy the travels service to OpenShift using a binary build:

    Deploying to OpenShift using binary build
    $ oc start-build travels-binary --from-dir=target/

Uploading directory "target/" as binary input for the build ...
....
Uploading finished
build.build.openshift.io/travels-1 started
    The Kogito images are handling the binary build directly from the target folder, and the content of the target/quarkus-app folder is copied directly.

    You can use the following command to check the logs of the builder pod if needed:

    Checking logs of builder pod
    $ oc logs -f build/travels-binary-1

    After the binary build is complete, the result is pushed to the travels Image Stream that was created by the Kogito Operator and triggers a new deployment.

  3. In the OpenShift web console, use the left menu to navigate to the following windows to verify the deployed service:

    • Workloads → Deployments: Select the travels deployment to view the application deployment details, pod status, and other details.

      Image of travels service deployment details page in web console
      Figure 48. Travels deployment details

    • Networking → Routes: Select the Location URL for the travels route to view the main page of the Kogito travel agency application.

      Image of Travel Agency application main page
      Figure 49. Travel agency application interface

    After you verify that the travel agency application is deployed, repeat the same steps to deploy the visas application.

  4. In a command terminal, navigate to the kogito-travel-agency/extended/visas example service and build the project using Maven:

    Building the local visas project
    $ cd kogito-travel-agency/extended/visas
$ mvn clean package

  5. Deploy the visas service to OpenShift using a binary build:

    Deploying to OpenShift using binary build
    $ oc start-build visas-binary --from-dir=target/

Uploading directory "target/" as binary input for the build ...
....
Uploading finished
build.build.openshift.io/visas-1 started

    You can use the following command to check the logs of the builder pod if needed:

    Checking logs of builder pod
    $ oc logs -f build/visas-binary-1

    After the binary build is complete, the result is pushed to the visas Image Stream that was created by the Kogito Operator and triggers a new deployment.

  6. In the OpenShift web console, use the left menu to navigate to the following windows to verify the deployed service:

    • Workloads → Deployment Configs: Select the visas deployment to view the application deployment configurations, pod status, and other details.

      Image of visas service deployment details page in web console
      Figure 50. Visas deployment details

    • Networking → Routes: Select the Location URL for the visas route to view the main page of the Kogito visas application.

      Image of Visas application main page
      Figure 51. Visas application interface
3.7.1.9. Interacting with the deployed travel agency services on OpenShift

After you deploy the example travel agency services on OpenShift, you can interact with the application interfaces to create a new travel plan.

You can also use a REST client or curl utility to send a REST request, such as the following example request body:

Example REST request body to add a traveler and trip
{
  "traveller": {
    "firstName": "Jan",
    "lastName": "Kowalski",
    "email": "jan@email.com",
    "nationality": "Polish",
    "address": {
      "street": "Polna",
      "city": "Krakow",
      "zipCode": "32-000",
      "country": "Poland"
    }
  },
  "trip": {
    "country": "US",
    "city": "New York",
    "begin": "2019-11-04T00:00:00.000+02:00",
    "end": "2019-11-07T00:00:00.000+02:00"
  }
}

The travels service enables users to book a trip to a certain destination, including flight and hotel. A rule set determines whether a visa is required for the specified destination. The visa approval logic is then implemented as needed by the visas service.

For this tutorial, use the application interfaces for the travels and visas services to book a trip from one country to another and approve the required visa.

Prerequisites
Procedure

  1. In the OpenShift web console, use the left menu to navigate to Networking → Routes and select the Location URL for the travels route to view the main page of the Kogito travel agency application:

    Image of Routes page in web console
    Figure 52. Routes for available services in web console
    Image of Travel Agency application main page
    Figure 53. Travel agency application interface

  2. In the travel agency application interface, click Plan new trip, enter details for a trip from one country to another, and click Book your trip to finish.

    Ensure that the Nationality is different from the destination country so that a visa is required.

    This example uses a traveler from Poland who is traveling to the United States:

    Image of new trip details

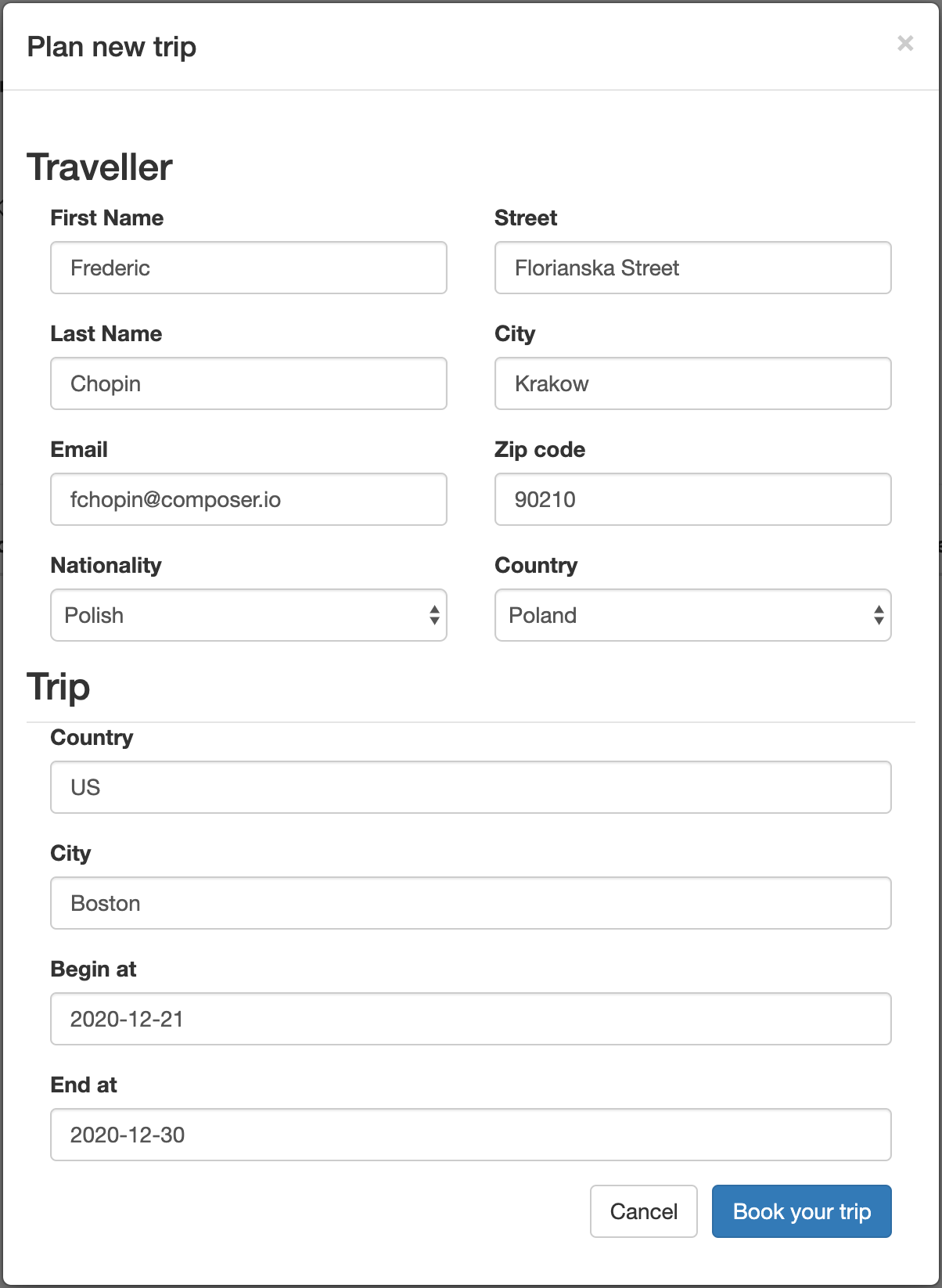

    Figure 54. Book a new trip

    The new trip is displayed in the main page of the application interface:

    Image of new trip in application main page
    Figure 55. New trip listed in main page of application interface

  3. Next to the new trip, click Tasks to view the pending tasks for that trip.

    Image of new trip tasks

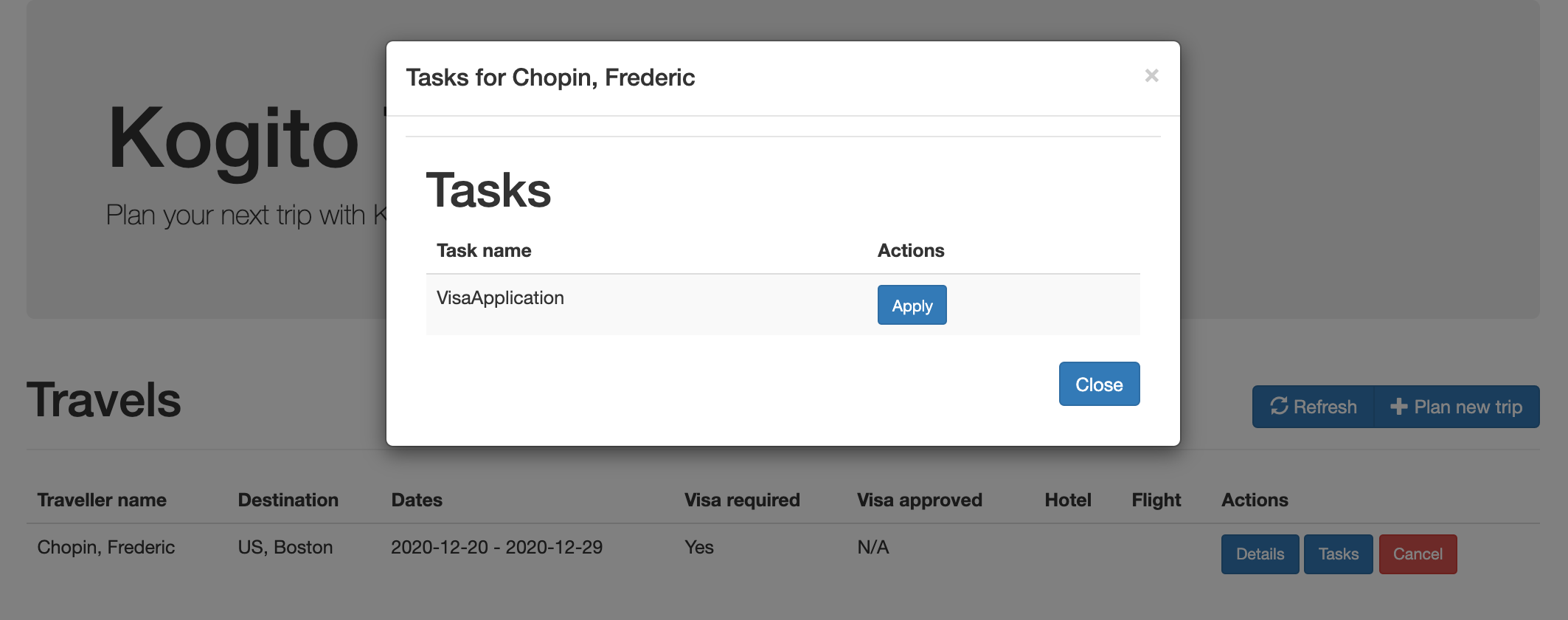

    Figure 56. Tasks for the new trip

  4. Next to the VisaApplication task, click Apply, enter random passport details in the application window, and click Submit application.

    Image of new trip tasks

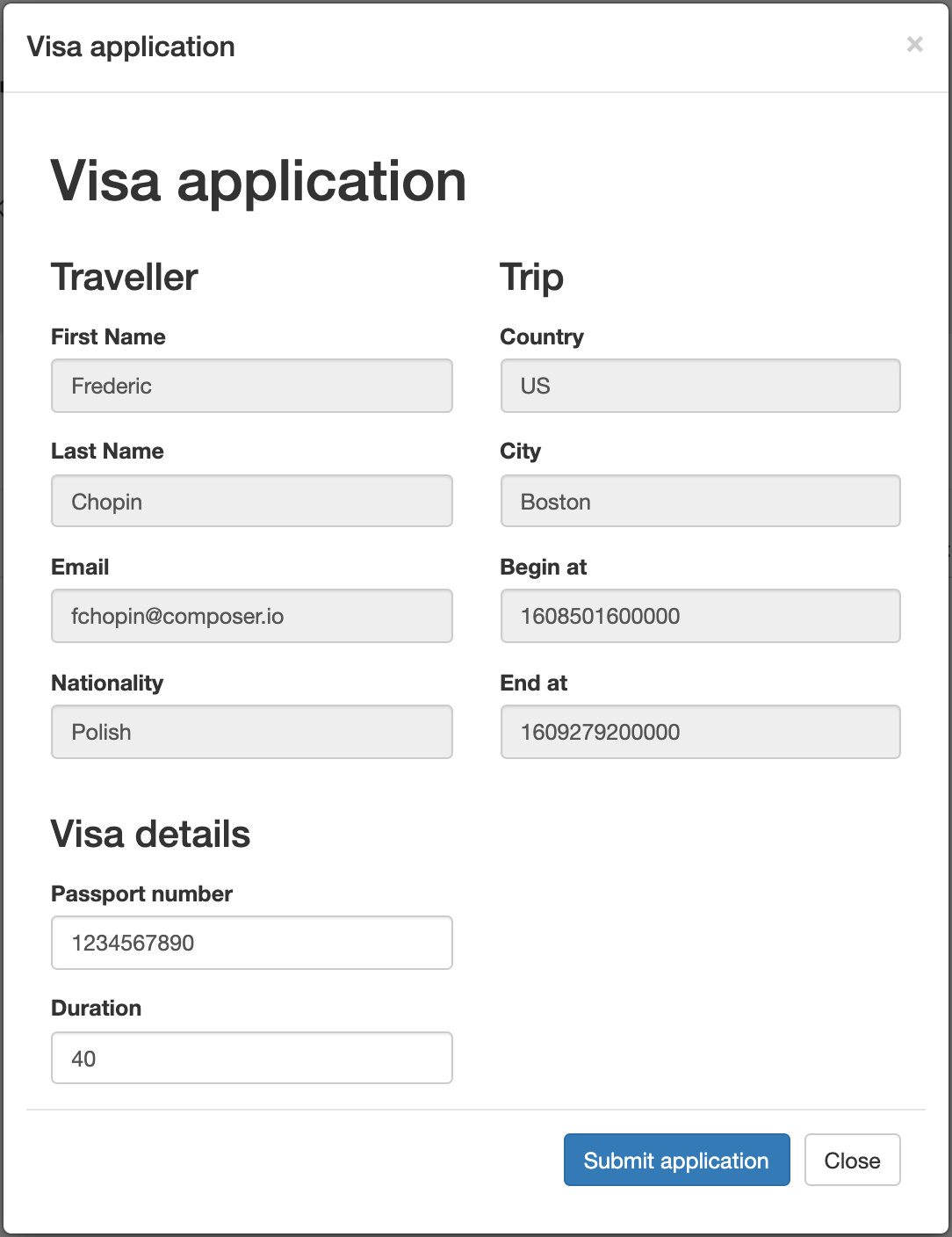

    Figure 57. Submit visa application

  5. In the OpenShift web console, use the left menu to navigate to Networking → Routes and select the Location URL for the visas route to view the main page of the Kogito visas application.

    The traveler visa application is displayed in the visas service interface.

    Image of new visa application in visas service interface
    Figure 58. New visa application listed in visas service interface

  6. Next to the listed visa application, click Approval → Approve to approve the visa application.

    Image of visa application approval
    Figure 59. Approve visa application

  7. Return to the travel agency application interface, and next to the approved trip, click Tasks and then click Complete for the pending ConfirmTravel task to complete the trip:

    Image of approved trip
    Figure 60. Trip listed and visa approved
    Image of pending completion task
    Figure 61. Complete trip confirmation task
    Image of completed trip
    Figure 62. Trip confirmed and complete

    Now that the application activity is complete, you can inspect the data that was created and stored by the Kogito Data Index Service that you configured for your application. In this case, you can search for data from booked trips and visa applications (Travels and VisaApplications) or for data from the underlying processes and tasks (ProcessInstances and UserTaskInstances).

  8. In the OpenShift web console, use the left menu to navigate to Networking → Routes and select the Location URL for the kogito-data-index route to view the Kogito Data Index Service GraphQL interface (GraphiQL):

    Image of Data Index GraphiQL interface

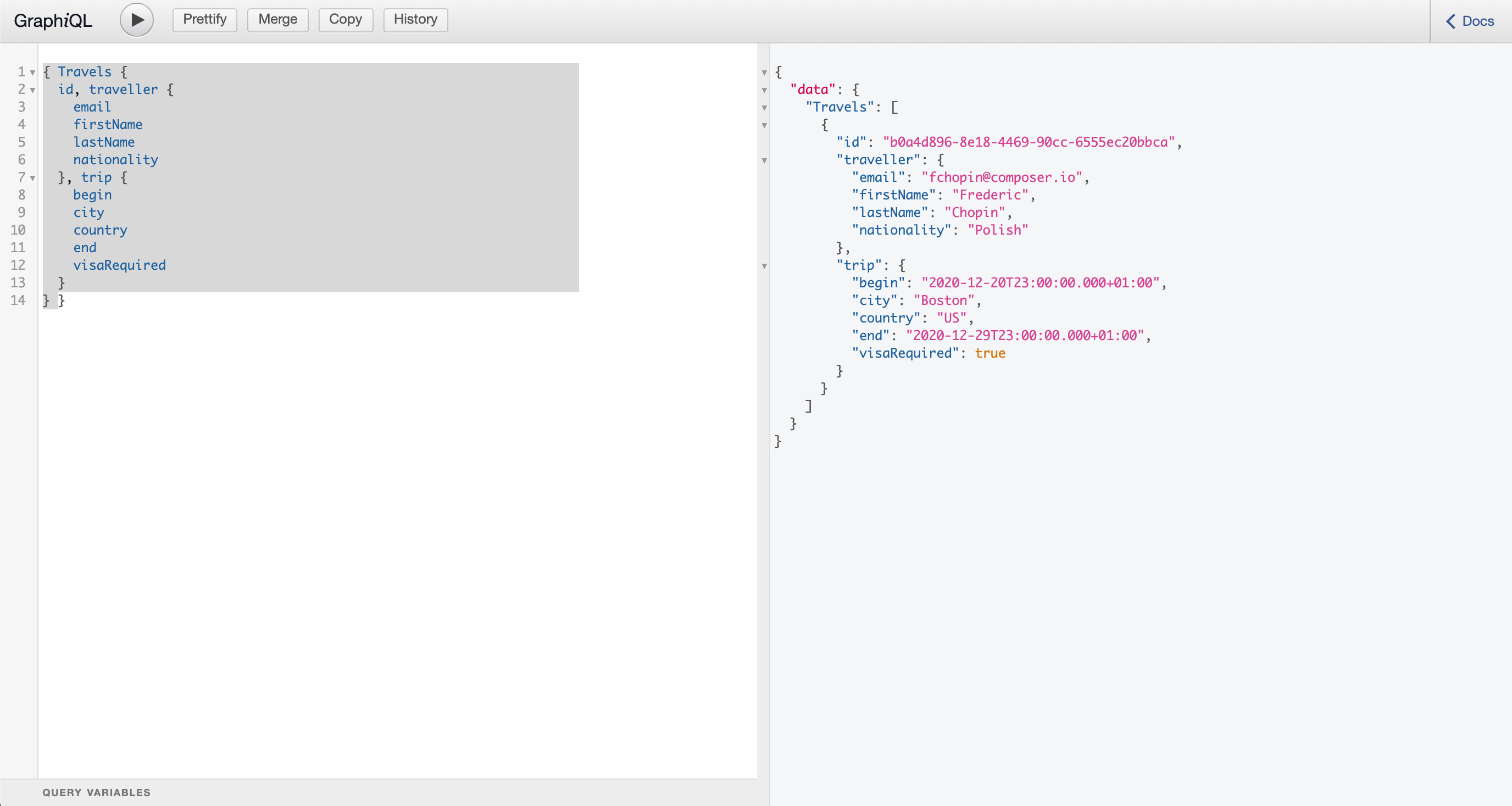

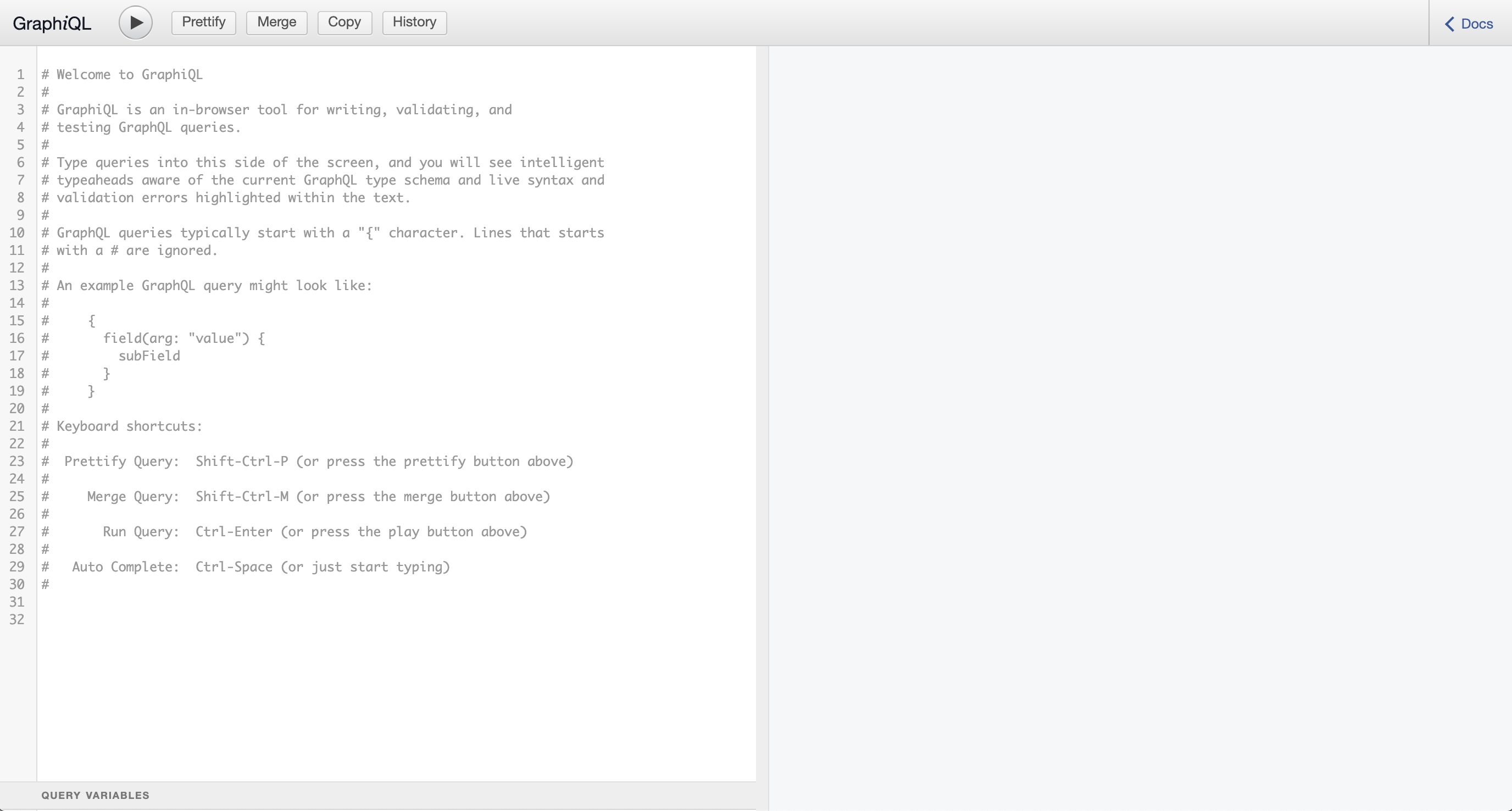

    Figure 63. GraphiQL interface for Data Index Service

  9. In the GraphiQL interface, enter any of the following GraphQL queries to retrieve stored application data:

    • Retrieve data from booked trips (Travels):

      Example query
      { Travels {
  id, traveller {
    email
    firstName
    lastName
    nationality
  }, trip {
    begin
    city
    country
    end
    visaRequired
  }
} }
      Image of GraphQL query and response for travels
      Figure 64. Example response

    • Retrieve data from booked trips by traveler last name (like: "Chop*"):

      Example query
      { Travels (where: {traveller: {lastName: {like: "Chop*"}}}) {
  id, traveller {
    email
    firstName
    lastName
    nationality
  }, trip {
    begin
    city
    country
    end
    visaRequired
  }
} }

    • Retrieve data from visa applications (VisaApplications):

      Example query
      { VisaApplications {
  visaApplication {
    approved
    city
    country
    duration
    firstName
    lastName
    nationality
    passportNumber
  }
} }
      Image of GraphQL query and response for visa applications
      Figure 65. Example response

    • Retrieve data from process instances (ProcessInstances):

      Example query
      { ProcessInstances {
  id,
  processId,
  processName,
  state,
  nodes {
    name,
    type,
    enter,
    exit
  }
} }
      Image of GraphQL query and response for process instances
      Figure 66. Example response

    • Retrieve data from user task instances (UserTaskInstances):

      Example query
      { UserTaskInstances {
  name,
  priority,
  processId,
  processInstanceId
} }
      Image of GraphQL query and response for user task instances
      Figure 67. Example response

3.8. Kogito Operator architecture

The Kogito Operator is written in Go and is built with the Operator SDK. The Kogito Operator uses the Kubernetes API for most of the deployment tasks that the operator facilitates and for other internal operations.

The Kogito Operator uses the following custom resources to deploy Kogito domain-specific services (the services that you develop), Kogito supporting services, and middleware infrastructure components:

  • KogitoBuild: Defines the build configurations for Kogito domain-specific services deployed on OpenShift

  • KogitoRuntime: Defines the deployment configurations for Kogito domain-specific services deployed on Kubernetes or OpenShift from a container image in an image registry

  • KogitoSupportingService: Defines the deployment configurations for Kogito supporting services, such as the Kogito Data Index Service, Jobs Service, and Management Console

  • KogitoInfra: Defines the relevant middleware infrastructure component or third-party operator for the Kogito service, such as Infinispan and MongoDB for persistence or Apache Kafka for messaging

Additional resources

3.8.1. Kogito Operator dependencies on third-party operators

The Kogito Operator uses the following third-party operators to auto-configure the Kogito service infrastructure components:

  • Infinispan operator: Used to interact with Infinispan Server instances for process data persistence in the Kogito services

  • Strimzi Operator: Used to interact with Apache Kafka clusters with Zookeeper for messaging in Kogito services

  • Keycloak Operator: Used to interact with Keycloak server instances for security and single sign-on capabilities in Kogito services

  • MongoDB Operator: Used to interact with MongoDB instances for process data persistence in Kogito services

You can find a list of third-party operators tested using the Kogito Operator on Kogito Operator README

When you enable an infrastructure mechanism through KogitoInfra deployment, the Kogito Operator uses the relevant third-party operator to configure the infrastructure.

You must define your custom infrastructure resource and link it in the KogitoInfra. You can specify your custom infrastructure resource in the spec.resource.name and spec.resource.namespace configurations:

Example Kogito infrastructure resource for custom messaging
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoInfra
metadata:
  name: my-kafka-infra
spec:
  resource:
    apiVersion: kafka.strimzi.io/v1beta2
    kind: Kafka
    name: my-kafka-instance
    namespace: my-namespace

In this example, the KogitoInfra custom resource connects to the Kafka cluster named my-kafka-instance from the my-namespace for event messaging.

Similarly, you can define a KogitoInfra resource for MongoDB to allow your processes to connect to it. In this case, you also need to define extra properties into the KogitoInfra resource for the Kogito Operator to interact with the MongoDB instance:

Example Kogito infrastructure resource for MongoDB
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoInfra
metadata:
  name: my-mongodb-infra
spec:
  resource:
    apiVersion: mongodb.com/v1
    kind: MongoDB
    name: custom-mongodb
    namespace: my-namespace
  infraProperties:
    username: kogitouser
    database: kogitodatabase

The Kogito Data Index Service similarly depends on Infinispan and Kafka infrastructure components. Without Infinispan or MongoDB persistence and Kafka messaging, the Data Index Service cannot function properly. However, you can specify whether the Data Index Service uses the general infrastructure components that the Kogito Operator generates or a custom alternative for that component.

For example, by default, the KogitoSupportingService custom resource that contains the DataIndex service type specifies the infra configuration for both Infinispan and Kafka in order to use the corresponding infrastructure components:

Default DataIndex resource configuration with Infinispan persistence and messaging
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoSupportingService
metadata:
  name: data-index
spec:
  serviceType: DataIndex
  replicas: 1
  infra:
     - kogito-infinispan-infra
     - kogito-kafka-infra

You typically create kogito-infinispan-infra and kogito-kafka-infra custom resources before configuring the KogitoSupportingService custom resource that contains the DataIndex service type.

You can also connect the Kogito Data Index Service to a MongoDB instance instead:

Default DataIndex resource configuration with MongoDB persistence and messaging
apiVersion: app.kiegroup.org/v1beta1
kind: KogitoSupportingService
metadata:
  name: data-index
spec:
  serviceType: DataIndex
  replicas: 1
  infra:
     - my-mongodb-infra
     - kogito-kafka-infra

3.8.2. Kogito Operator core package structure

The Kogito Operator uses the following core packages. Your understanding of the Kogito Operator package structure can help you use the operator more effectively or contribute to the development of the operator.

Image of Kogito Operator package layout

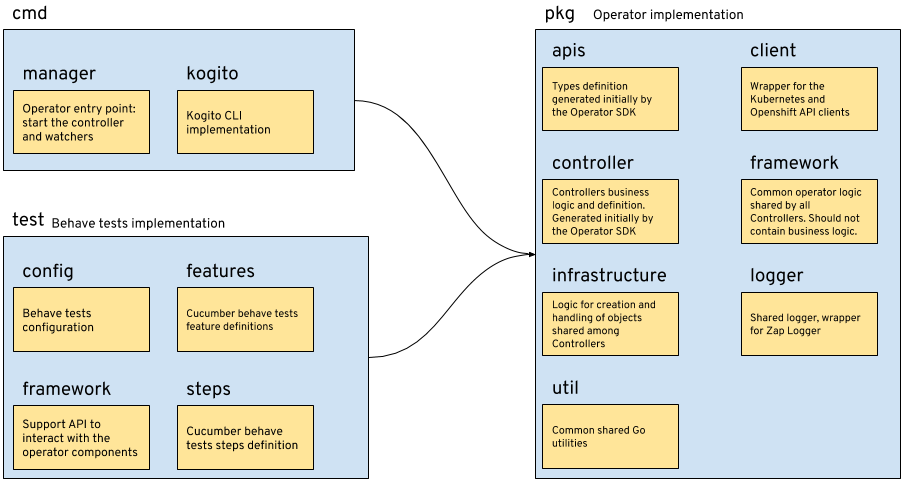

Figure 68. Kogito Operator core package structure

The following list describes the function and interaction of these core packages:

  • cmd: Contains the operator entry point and CLI implementation

    • manager: Serves as the entry point for the Kogito Operator image

    • kogito: Provides the implementation for the Kogito CLI

  • test: Contains the implementation for Behavior Driven Development (BDD) tests based on Godog (by Cucumber for Go)

    • config: Provides the configuration for BDD tests

    • features: Defines the features for BDD tests

    • framework: Provides the support API framework to interact with other operator components

    • steps: Defines BDD test steps

  • pkg: Contains the implementation for the Kogito Operator

    • apis: Defines the custom resource definition types for the resources that are managed by the Kogito Operator

    • client: Serves as a wrapper for the Kubernetes and OpenShift clients

    • controller: Defines the business logic for how the Kogito Operator responds to changes to the resources that are managed by the operator

    • framework: Provides the common code related to any Kubernetes operator for all controllers

    • infrastructure: Provides the common code related to the Kogito Operator infrastructure for all controllers, such as external endpoints among the services that are managed by the operator

    • logger: Provides the implementation for the common logger for all other packages, based on Zap (by Uber Go)

    • util: Provides the common Go utilities used across the project

To explore Kogito Operator packages or contribute to the operator development, see the Kogito Operator source repository in GitHub.

4. Developing decision services with Kogito

As a developer of business decisions, you can use Kogito business automation to develop decision services using Decision Model and Notation (DMN) models, Drools Rule Language (DRL) rules, XLS or XLSX spreadsheet decision tables, or a combination of all three methods.

4.1. Using DMN models in Kogito services

As a developer of business decisions, you can use Decision Model and Notation (DMN) to model a decision service graphically. The decision requirements of a DMN decision model are determined by a decision requirements graph (DRG) that is depicted in one or more decision requirements diagrams (DRDs). A DRD can represent part or all of the overall DRG for the DMN model. DRDs trace business decisions from start to finish, with each decision node using logic defined in DMN boxed expressions such as decision tables.

Kogito provides runtime support for DMN 1.1, 1.2, 1.3, and 1.4 models at conformance level 3 and design support for DMN 1.2 models at conformance level 3. You can design your DMN models with the Kogito DMN modeler in VSCode or import existing DMN models into your Kogito projects for deployment and execution. Any DMN 1.1 and 1.3 models (do not contain DMN 1.3 features) that you import, open in the DMN designer, and save are converted to DMN 1.2 models.

For more information about DMN, see the Object Management Group (OMG) Decision Model and Notation specification.

4.1.1. Decision-authoring assets in Kogito

Kogito supports several assets that you can use to define business decisions for your decision service. Each decision-authoring asset has different advantages, and you might prefer to use one or a combination of multiple assets depending on your goals and needs.

The following table highlights the main decision-authoring assets supported in Kogito projects to help you decide or confirm the best method for defining decisions in your decision service.

Table 8. Decision-authoring assets supported in Kogito
Asset Highlights Authoring tools Documentation

Decision Model and Notation (DMN) models

  • Are decision models based on a notation standard defined by the Object Management Group (OMG)

  • Use graphical decision requirements diagrams (DRDs) that represent part or all of the overall decision requirements graph (DRG) to trace business decision flows

  • Use an XML schema that allows the DMN models to be shared between DMN-compliant platforms

  • Support Friendly Enough Expression Language (FEEL) to define decision logic in DMN decision tables and other DMN boxed expressions

  • Can be integrated efficiently with Business Process Model and Notation (BPMN) process models

  • Are optimal for creating comprehensive, illustrative, and stable decision flows

Kogito DMN modeler in VSCode or other DMN-compliant editor

Decision Model and Notation (DMN)

DRL rules

  • Are individual rules that you define directly in .drl text files

  • Provide the most flexibility for defining rules and other technicalities of rule behavior

  • Are optimal for creating rules that require advanced DRL options, such as rule units

  • Have strict syntax requirements for rules to be compiled properly

Any integrated development environment (IDE)

Drools Rule Language (DRL)

Spreadsheet decision tables

  • Are tabular sets of rules that you define in .xls or .xlsx spreadsheet files

  • Support template keys and values for creating rule templates

  • Are optimal for business environments that already rely on decision tables for rules

  • Have strict syntax requirements for rules to be compiled properly when used in Kogito

Spreadsheet editor

Spreadsheet decision tables

4.1.2. Decision Model and Notation (DMN)

Decision Model and Notation (DMN) is a standard established by the Object Management Group (OMG) for describing and modeling operational decisions. DMN defines an XML schema that enables DMN models to be shared between DMN-compliant platforms and across organizations so that business analysts and business rules developers can collaborate in designing and implementing DMN decision services. The DMN standard is similar to and can be used together with the Business Process Model and Notation (BPMN) standard for designing and modeling business processes.

For more information about the background and applications of DMN, see the OMG Decision Model and Notation specification.

4.1.2.1. DMN conformance levels

The DMN specification defines three incremental levels of conformance in a software implementation. A product that claims compliance at one level must also be compliant with any preceding levels. For example, a conformance level 3 implementation must also include the supported components in conformance levels 1 and 2. For the formal definitions of each conformance level, see the OMG Decision Model and Notation specification.

The following list summarizes the three DMN conformance levels:

Conformance level 1

A DMN conformance level 1 implementation supports decision requirement diagrams (DRDs), decision logic, and decision tables, but decision models are not executable. Any language can be used to define the expressions, including natural, unstructured languages.

Conformance level 2

A DMN conformance level 2 implementation includes the requirements in conformance level 1, and supports Simplified Friendly Enough Expression Language (S-FEEL) expressions and fully executable decision models.

Conformance level 3

A DMN conformance level 3 implementation includes the requirements in conformance levels 1 and 2, and supports Friendly Enough Expression Language (FEEL) expressions, the full set of boxed expressions, and fully executable decision models.

Kogito provides runtime support for DMN 1.1, 1.2, 1.3, and 1.4 models at conformance level 3 and design support for DMN 1.2 models at conformance level 3. You can design your DMN models with the Kogito DMN modeler in VSCode or import existing DMN models into your Kogito projects for deployment and execution. Any DMN 1.1 and 1.3 models (do not contain DMN 1.3 features) that you import, open in the DMN designer, and save are converted to DMN 1.2 models.

4.1.2.2. DMN decision requirements diagram (DRD) components

A decision requirements diagram (DRD) is a visual representation of your DMN model. A DRD can represent part or all of the overall decision requirements graph (DRG) for the DMN model. DRDs trace business decisions using decision nodes, business knowledge models, sources of business knowledge, input data, and decision services.

The following table summarizes the components in a DRD:

Table 9. DRD components
Component Description Notation

Elements

Decision

Node where one or more input elements determine an output based on defined decision logic.
dmn decision node

Business knowledge model

Reusable function with one or more decision elements. Decisions that have the same logic but depend on different sub-input data or sub-decisions use business knowledge models to determine which procedure to follow.
dmn bkm node

Knowledge source

External authorities, documents, committees, or policies that regulate a decision or business knowledge model. Knowledge sources are references to real-world factors rather than executable business rules.
dmn knowledge source node

Input data

Information used in a decision node or a business knowledge model. Input data usually includes business-level concepts or objects relevant to the business, such as loan applicant data used in a lending strategy.
dmn input data node

Decision service

Top-level decision containing a set of reusable decisions published as a service for invocation. A decision service can be invoked from an external application or a BPMN business process.
dmn decision service node

Requirement connectors

Information requirement

Connection from an input data node or decision node to another decision node that requires the information.
dmn info connector

Knowledge requirement

Connection from a business knowledge model to a decision node or to another business knowledge model that invokes the decision logic.
dmn knowledge connector

Authority requirement

Connection from an input data node or a decision node to a dependent knowledge source or from a knowledge source to a decision node, business knowledge model, or another knowledge source.
dmn authority connector

Artifacts

Text annotation

Explanatory note associated with an input data node, decision node, business knowledge model, or knowledge source.
dmn annotation node

Association

Connection from an input data node, decision node, business knowledge model, or knowledge source to a text annotation.
dmn association connector

The following table summarizes the permitted connectors between DRD elements:

Table 10. DRD connector rules
Starts from Connects to Connection type Example

Decision

Decision

Information requirement
dmn decision to decision

Business knowledge model

Decision

Knowledge requirement
dmn bkm to decision

Business knowledge model
dmn bkm to bkm

Decision service

Decision

Knowledge requirement
dmn decision service to decision

Business knowledge model
dmn decision service to bkm

Input data

Decision

Information requirement
dmn input to decision

Knowledge source

Authority requirement
dmn input to knowledge source

Knowledge source

Decision

Authority requirement
dmn knowledge source to decision

Business knowledge model
dmn knowledge source to bkm

Knowledge source
dmn knowledge source to knowledge source

Decision

Text annotation

Association
dmn decision to annotation

Business knowledge model
dmn bkm to annotation

Knowledge source
dmn knowledge source to annotation

Input data
dmn input to annotation

The following example DRD illustrates some of these DMN components in practice:

dmn example drd

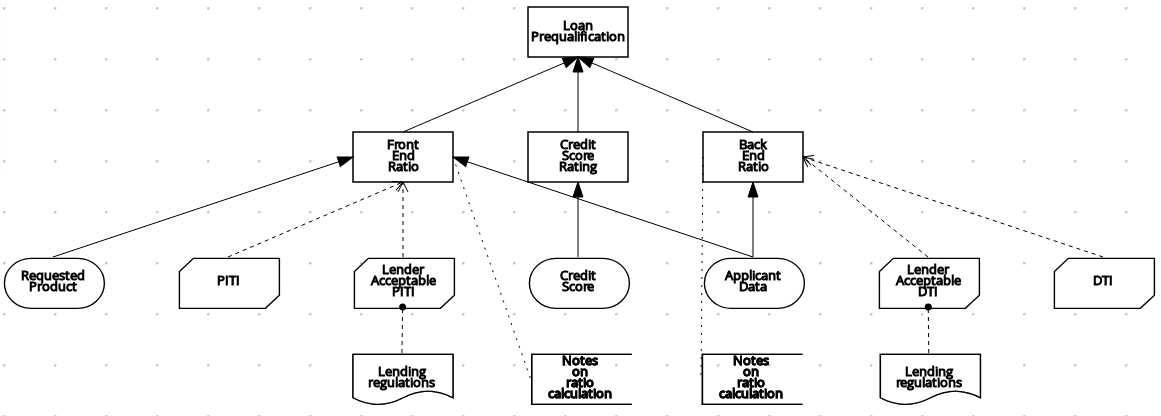

Figure 69. Example DRD: Loan prequalification

The following example DRD illustrates DMN components that are part of a reusable decision service:

dmn example drd3
Figure 70. Example DRD: Phone call handling as a decision service

In a DMN decision service node, the decision nodes in the bottom segment incorporate input data from outside of the decision service to arrive at a final decision in the top segment of the decision service node. The resulting top-level decisions from the decision service are then implemented in any subsequent decisions or business knowledge requirements of the DMN model. You can reuse DMN decision services in other DMN models to apply the same decision logic with different input data and different outgoing connections.

4.1.2.3. Rule expressions in FEEL

Friendly Enough Expression Language (FEEL) is an expression language defined by the Object Management Group (OMG) DMN specification. FEEL expressions define the logic of a decision in a DMN model. FEEL is designed to facilitate both decision modeling and execution by assigning semantics to the decision model constructs. FEEL expressions in decision requirements diagrams (DRDs) occupy table cells in boxed expressions for decision nodes and business knowledge models.

For more information about FEEL in DMN, see the OMG Decision Model and Notation specification.

Data types in FEEL

Friendly Enough Expression Language (FEEL) supports the following data types:

  • Numbers

  • Strings

  • Boolean values

  • Dates

  • Time

  • Date and time

  • Days and time duration

  • Years and months duration

  • Functions

  • Contexts

  • Ranges (or intervals)

  • Lists

The DMN specification currently does not provide an explicit way of declaring a variable as a function, context, range, or list, but Kogito extends the DMN built-in types to support variables of these types.

The following list describes each data type:

Numbers

Numbers in FEEL are based on the IEEE 754-2008 Decimal 128 format, with 34 digits of precision. Internally, numbers are represented in Java as BigDecimals with MathContext DECIMAL128. FEEL supports only one number data type, so the same type is used to represent both integers and floating point numbers.

FEEL numbers use a dot (.) as a decimal separator. FEEL does not support -INF, +INF, or NaN. FEEL uses null to represent invalid numbers.

Kogito extends the DMN specification and supports additional number notations:

  • Scientific: You can use scientific notation with the suffix e<exp> or E<exp>. For example, 1.2e3 is the same as writing the expression 1.2*10**3, but is a literal instead of an expression.

  • Hexadecimal: You can use hexadecimal numbers with the prefix 0x. For example, 0xff is the same as the decimal number 255. Both uppercase and lowercase letters are supported. For example, 0XFF is the same as 0xff.

  • Type suffixes: You can use the type suffixes f, F, d, D, l, and L. These suffixes are ignored.

Strings

Strings in FEEL are any sequence of characters delimited by double quotation marks.

Example
"John Doe"
Boolean values

FEEL uses three-valued boolean logic, so a boolean logic expression may have values true, false, or null.

Dates

Date literals are not supported in FEEL, but you can use the built-in date() function to construct date values. Date strings in FEEL follow the format defined in the XML Schema Part 2: Datatypes document. The format is "YYYY-MM-DD" where YYYY is the year with four digits, MM is the number of the month with two digits, and DD is the number of the day.

Example:

date( "2017-06-23" )

Date objects have time equal to "00:00:00", which is midnight. The dates are considered to be local, without a timezone.

Time

Time literals are not supported in FEEL, but you can use the built-in time() function to construct time values. Time strings in FEEL follow the format defined in the XML Schema Part 2: Datatypes document. The format is "hh:mm:ss[.uuu][(+-)hh:mm]" where hh is the hour of the day (from 00 to 23), mm is the minutes in the hour, and ss is the number of seconds in the minute. Optionally, the string may define the number of milliseconds (uuu) within the second and contain a positive (+) or negative (-) offset from UTC time to define its timezone. Instead of using an offset, you can use the letter z to represent the UTC time, which is the same as an offset of -00:00. If no offset is defined, the time is considered to be local.

Examples:

time( "04:25:12" )
time( "14:10:00+02:00" )
time( "22:35:40.345-05:00" )
time( "15:00:30z" )

Time values that define an offset or a timezone cannot be compared to local times that do not define an offset or a timezone.

Date and time

Date and time literals are not supported in FEEL, but you can use the built-in date and time() function to construct date and time values. Date and time strings in FEEL follow the format defined in the XML Schema Part 2: Datatypes document. The format is "<date>T<time>", where <date> and <time> follow the prescribed XML schema formatting, conjoined by T.

Examples:

date and time( "2017-10-22T23:59:00" )
date and time( "2017-06-13T14:10:00+02:00" )
date and time( "2017-02-05T22:35:40.345-05:00" )
date and time( "2017-06-13T15:00:30z" )

Date and time values that define an offset or a timezone cannot be compared to local date and time values that do not define an offset or a timezone.

If your implementation of the DMN specification does not support spaces in the XML schema, use the keyword dateTime as a synonym of date and time.
Days and time duration

Days and time duration literals are not supported in FEEL, but you can use the built-in duration() function to construct days and time duration values. Days and time duration strings in FEEL follow the format defined in the XML Schema Part 2: Datatypes document, but are restricted to only days, hours, minutes and seconds. Months and years are not supported.

Examples:

duration( "P1DT23H12M30S" )
duration( "P23D" )
duration( "PT12H" )
duration( "PT35M" )
If your implementation of the DMN specification does not support spaces in the XML schema, use the keyword dayTimeDuration as a synonym of days and time duration.
Years and months duration

Years and months duration literals are not supported in FEEL, but you can use the built-in duration() function to construct days and time duration values. Years and months duration strings in FEEL follow the format defined in the XML Schema Part 2: Datatypes document, but are restricted to only years and months. Days, hours, minutes, or seconds are not supported.

Examples:

duration( "P3Y5M" )
duration( "P2Y" )
duration( "P10M" )
duration( "P25M" )
If your implementation of the DMN specification does not support spaces in the XML schema, use the keyword yearMonthDuration as a synonym of years and months duration.
Functions

FEEL has function literals (or anonymous functions) that you can use to create functions. The DMN specification currently does not provide an explicit way of declaring a variable as a function, but Kogito extends the DMN built-in types to support variables of functions.

Example:

function(a, b) a + b

In this example, the FEEL expression creates a function that adds the parameters a and b and returns the result.

Contexts

FEEL has context literals that you can use to create contexts. A context in FEEL is a list of key and value pairs, similar to maps in languages like Java. The DMN specification currently does not provide an explicit way of declaring a variable as a context, but Kogito extends the DMN built-in types to support variables of contexts.

Example:

{ x : 5, y : 3 }

In this example, the expression creates a context with two entries, x and y, representing a coordinate in a chart.

In DMN 1.2, another way to create contexts is to create an item definition that contains the list of keys as attributes, and then declare the variable as having that item definition type.

The Kogito DMN API supports DMN ItemDefinition structural types in a DMNContext represented in two ways:

  • User-defined Java type: Must be a valid JavaBeans object defining properties and getters for each of the components in the DMN ItemDefinition. If necessary, you can also use the @FEELProperty annotation for those getters representing a component name which would result in an invalid Java identifier.

  • java.util.Map interface: The map needs to define the appropriate entries, with the keys corresponding to the component name in the DMN ItemDefinition.

Ranges (or intervals)

FEEL has range literals that you can use to create ranges or intervals. A range in FEEL is a value that defines a lower and an upper bound, where either can be open or closed. The DMN specification currently does not provide an explicit way of declaring a variable as a range, but Kogito extends the DMN built-in types to support variables of ranges.

The syntax of a range is defined in the following formats:

range          := interval_start endpoint '..' endpoint interval_end
interval_start := open_start | closed_start
open_start     := '(' | ']'
closed_start   := '['
interval_end   := open_end | closed_end
open_end       := ')' | '['
closed_end     := ']'
endpoint       := expression

The expression for the endpoint must return a comparable value, and the lower bound endpoint must be lower than the upper bound endpoint.

For example, the following literal expression defines an interval between 1 and 10, including the boundaries (a closed interval on both endpoints):

[ 1 .. 10 ]

The following literal expression defines an interval between 1 hour and 12 hours, including the lower boundary (a closed interval), but excluding the upper boundary (an open interval):

[ duration("PT1H") .. duration("PT12H") )

You can use ranges in decision tables to test for ranges of values, or use ranges in simple literal expressions. For example, the following literal expression returns true if the value of a variable x is between 0 and 100:

x in [ 1 .. 100 ]
Lists

FEEL has list literals that you can use to create lists of items. A list in FEEL is represented by a comma-separated list of values enclosed in square brackets. The DMN specification currently does not provide an explicit way of declaring a variable as a list, but Kogito extends the DMN built-in types to support variables of lists.

Example:

[ 2, 3, 4, 5 ]

All lists in FEEL contain elements of the same type and are immutable. Elements in a list can be accessed by index, where the first element is 1. Negative indexes can access elements starting from the end of the list so that -1 is the last element.

For example, the following expression returns the second element of a list x:

x[2]

The following expression returns the second-to-last element of a list x:

x[-2]

Elements in a list can also be counted by the function count, which uses the list of elements as the parameter.

For example, the following expression returns 4:

count([ 2, 3, 4, 5 ])
Built-in functions in FEEL

To promote interoperability with other platforms and systems, Friendly Enough Expression Language (FEEL) includes a library of built-in functions. The built-in FEEL functions are implemented in the Drools Decision Model and Notation (DMN) engine so that you can use the functions in your DMN decision services.

The following sections describe each built-in FEEL function, listed in the format NAME( PARAMETERS ). For more information about FEEL functions in DMN, see the OMG Decision Model and Notation specification.

Conversion functions

The following functions support conversion between values of different types. Some of these functions use specific string formats, such as the following examples:

  • date string: Follows the format defined in the XML Schema Part 2: Datatypes document, such as 2020-06-01

  • time string: Follows one of the following formats:

    • Format defined in the XML Schema Part 2: Datatypes document, such as 23:59:00z

    • Format for a local time defined by ISO 8601 followed by @ and an IANA Timezone, such as 00:01:00@Etc/UTC

  • date time string: Follows the format of a date string followed by T and a time string, such as 2012-12-25T11:00:00Z

  • duration string: Follows the format of days and time duration and years and months duration defined in the XQuery 1.0 and XPath 2.0 Data Model, such as P1Y2M

date( from ) - using date

Converts from to a date value.

Table 11. Parameters
Parameter Type Format

from

string

date string
Example
date( "2012-12-25" ) - date( "2012-12-24" ) = duration( "P1D" )
date( from ) - using date and time

Converts from to a date value and sets time components to null.

Table 12. Parameters
Parameter Type

from

date and time
Example
date(date and time( "2012-12-25T11:00:00Z" )) = date( "2012-12-25" )
date( year, month, day )

Produces a date from the specified year, month, and day values.

Table 13. Parameters
Parameter Type

year

number

month

number

day

number
Example
date( 2012, 12, 25 ) = date( "2012-12-25" )
date and time( date, time )

Produces a date and time from the specified date and ignores any time components and the specified time.

Table 14. Parameters
Parameter Type

date

date or date and time

time

time
Example
date and time ( "2012-12-24T23:59:00" ) = date and time(date( "2012-12-24" ), time( "23:59:00" ))
date and time( from )

Produces a date and time from the specified string.

Table 15. Parameters
Parameter Type Format

from

string

date time string
Example
date and time( "2012-12-24T23:59:00" ) + duration( "PT1M" ) = date and time( "2012-12-25T00:00:00" )
time( from )

Produces a time from the specified string.

Table 16. Parameters
Parameter Type Format

from

string

time string
Example
time( "23:59:00z" ) + duration( "PT2M" ) = time( "00:01:00@Etc/UTC" )
time( from )

Produces a time from the specified parameter and ignores any date components.

Table 17. Parameters
Parameter Type

from

time or date and time
Example
time(date and time( "2012-12-25T11:00:00Z" )) = time( "11:00:00Z" )
time( hour, minute, second, offset? )

Produces a time from the specified hour, minute, and second component values.

Table 18. Parameters
Parameter Type

hour

number

minute

number

second

number

offset (Optional)

days and time duration or null
Example
time( "23:59:00z" ) = time(23, 59, 0, duration( "PT0H" ))
number( from, grouping separator, decimal separator )

Converts from to a number using the specified separators.

Table 19. Parameters
Parameter Type

from

string representing a valid number

grouping separator

Space ( ), comma (,), period (.), or null

decimal separator

Same types as grouping separator, but the values cannot match
Example
number( "1 000,0", " ", "," ) = number( "1,000.0", ",", "." )
string( from )

Provides a string representation of the specified parameter.

Table 20. Parameters
Parameter Type

from

Non-null value
Examples
string( 1.1 ) = "1.1"
string( null ) = null
duration( from )

Converts from to a days and time duration value or years and months duration value.

Table 21. Parameters
Parameter Type Format

from

string

duration string
Examples
date and time( "2012-12-24T23:59:00" ) - date and time( "2012-12-22T03:45:00" ) = duration( "P2DT20H14M" )
duration( "P2Y2M" ) = duration( "P26M" )
years and months duration( from, to )

Calculates the years and months duration between the two specified parameters.

Table 22. Parameters
Parameter Type

from

date or date and time

to

date or date and time
Example
years and months duration( date( "2011-12-22" ), date( "2013-08-24" ) ) = duration( "P1Y8M" )
Boolean functions

The following functions support Boolean operations.

not( negand )

Performs the logical negation of the negand operand.

Table 23. Parameters
Parameter Type

negand

boolean
Examples
not( true ) = false
not( null ) = null
String functions

The following functions support string operations.

In FEEL, Unicode characters are counted based on their code points.
substring( string, start position, length? )

Returns the substring from the start position for the specified length. The first character is at position value 1.

Table 24. Parameters
Parameter Type

string

string

start position

number

length (Optional)

number
Examples
substring( "testing",3 ) = "sting"
substring( "testing",3,3 ) = "sti"
substring( "testing", -2, 1 ) = "n"
substring( "\U01F40Eab", 2 ) = "ab"
In FEEL, the string literal "\U01F40Eab" is the 🐎ab string (horse symbol followed by a and b).
string length( string )

Calculates the length of the specified string.

Table 25. Parameters
Parameter Type

string

string
Examples
string length( "tes" ) = 3
string length( "\U01F40Eab" ) = 3
upper case( string )

Produces an uppercase version of the specified string.

Table 26. Parameters
Parameter Type

string

string
Example
upper case( "aBc4" ) = "ABC4"
lower case( string )

Produces a lowercase version of the specified string.

Table 27. Parameters
Parameter Type

string

string
Example
lower case( "aBc4" ) = "abc4"
substring before( string, match )

Calculates the substring before the match.

Table 28. Parameters
Parameter Type

string

string

match

string
Examples
substring before( "testing", "ing" ) = "test"
substring before( "testing", "xyz" ) = ""
substring after( string, match )

Calculates the substring after the match.

Table 29. Parameters
Parameter Type

string

string

match

string
Examples
substring after( "testing", "test" ) = "ing"
substring after( "", "a" ) = ""
replace( input, pattern, replacement, flags? )

Calculates the regular expression replacement.

Table 30. Parameters
Parameter Type

input

string

pattern

string

replacement

string

flags (Optional)

string
This function uses regular expression parameters as defined in XQuery 1.0 and XPath 2.0 Functions and Operators.
Example
replace( "banana", "a", "o" ) = "bonono"
replace( "abcd", "(ab)|(a)", "[1=$1][2=$2]" ) = "[1=ab][2=]cd"
contains( string, match )

Returns true if the string contains the match.

Table 31. Parameters
Parameter Type

string

string

match

string
Example
contains( "testing", "to" ) = false
starts with( string, match )

Returns true if the string starts with the match

Table 32. Parameters
Parameter Type

string

string

match

string
Example
starts with( "testing", "te" ) = true
ends with( string, match )

Returns true if the string ends with the match.

Table 33. Parameters
Parameter Type

string

string

match

string
Example
ends with( "testing", "g" ) = true
matches( input, pattern, flags? )

Returns true if the input matches the regular expression.

Table 34. Parameters
Parameter Type

input

string

pattern

string

flags (Optional)

string
This function uses regular expression parameters as defined in XQuery 1.0 and XPath 2.0 Functions and Operators.
Example
matches( "teeesting", "^te*sting" ) = true
split( string, delimiter )

Returns a list of the original string and splits it at the delimiter regular expression pattern.

Table 35. Parameters
Parameter Type

string

string

delimiter

string for a regular expression pattern
This function uses regular expression parameters as defined in XQuery 1.0 and XPath 2.0 Functions and Operators.
Examples
split( "John Doe", "\\s" ) = ["John", "Doe"]
split( "a;b;c;;", ";" ) = ["a","b","c","",""]
string join( list, delimiter )

Returns a string which is composed by joining all the string elements from the list parameter, separated by the delimiter. The delimiter can be an empty string. Null elements in the list parameter are ignored. If list is empty, the result is the empty string. If delimiter is null, the string elements are joined without a separator.

Table 36. Parameters
Parameter Type

list

list of string

delimiter

string
Examples
string join(["a","b","c"], "_and_") = "a_and_b_and_c"
string join(["a","b","c"], "") = "abc"
string join(["a","b","c"], null) = "abc"
string join(["a"], "X") = "a"
string join(["a",null,"c"], "X") = "aXc"
string join([], "X") = ""
string join( list )

Returns a string which is composed by joining all the string elements from the list parameter. Null elements in the list parameter are ignored. If list is empty, the result is the empty string.

Table 37. Parameters
Parameter Type

list

list of string
Examples
string join(["a","b","c"]) = "abc"
string join(["a",null,"c"]) = "ac"
string join([]) = ""
List functions

The following functions support list operations.

In FEEL, the index of the first element in a list is 1. The index of the last element in a list can be identified as -1.
list contains( list, element )

Returns true if the list contains the element.

Table 38. Parameters
Parameter Type

list

list

element

Any type, including null
Example
list contains( [1,2,3], 2 ) = true
count( list )

Counts the elements in the list.

Table 39. Parameters
Parameter Type

list

list
Examples
count( [1,2,3] ) = 3
count( [] ) = 0
count( [1,[2,3]] ) = 2
min( list )

Returns the minimum comparable element in the list.

Table 40. Parameters
Parameter Type

list

list
Alternative signature
min( e1, e2, ..., eN )
Examples
min( [1,2,3] ) = 1
min( 1 ) = 1
min( [1] ) = 1
max( list )

Returns the maximum comparable element in the list.

Table 41. Parameters
Parameter Type

list

list
Alternative signature
max( e1, e2, ..., eN )
Examples
max( 1,2,3 ) = 3
max( [] ) = null
sum( list )

Returns the sum of the numbers in the list.

Table 42. Parameters
Parameter Type

list

list of number elements
Alternative signature
sum( n1, n2, ..., nN )
Examples
sum( [1,2,3] ) = 6
sum( 1,2,3 ) = 6
sum( 1 ) = 1
sum( [] ) = null
mean( list )

Calculates the average (arithmetic mean) of the elements in the list.

Table 43. Parameters
Parameter Type

list

list of number elements
Alternative signature
mean( n1, n2, ..., nN )
Examples
mean( [1,2,3] ) = 2
mean( 1,2,3 ) = 2
mean( 1 ) = 1
mean( [] ) = null
all( list )

Returns true if all elements in the list are true.

Table 44. Parameters
Parameter Type

list

list of boolean elements
Alternative signature
all( b1, b2, ..., bN )
Examples
all( [false,null,true] ) = false
all( true ) = true
all( [true] ) = true
all( [] ) = true
all( 0 ) = null
any( list )

Returns true if any element in the list is true.

Table 45. Parameters
Parameter Type

list

list of boolean elements
Alternative signature
any( b1, b2, ..., bN )
Examples
any( [false,null,true] ) = true
any( false ) = false
any( [] ) = false
any( 0 ) = null
sublist( list, start position, length? )

Returns the sublist from the start position, limited to the length elements.

Table 46. Parameters
Parameter Type

list

list

start position

number

length (Optional)

number
Example
sublist( [4,5,6], 1, 2 ) = [4,5]
append( list, item )

Creates a list that is appended to the item or items.

Table 47. Parameters
Parameter Type

list

list

item

Any type
Example
append( [1], 2, 3 ) = [1,2,3]
concatenate( list )

Creates a list that is the result of the concatenated lists.

Table 48. Parameters
Parameter Type

list

list
Example
concatenate( [1,2],[3] ) = [1,2,3]
insert before( list, position, newItem )

Creates a list with the newItem inserted at the specified position.

Table 49. Parameters
Parameter Type

list

list

position

number

newItem

Any type
Example
insert before( [1,3],1,2 ) = [2,1,3]
remove( list, position )

Creates a list with the removed element excluded from the specified position.

Table 50. Parameters
Parameter Type

list

list

position

number
Example
remove( [1,2,3], 2 ) = [1,3]
reverse( list )

Returns a reversed list.

Table 51. Parameters
Parameter Type

list

list
Example
reverse( [1,2,3] ) = [3,2,1]
index of( list, match )

Returns indexes matching the element.

Parameters

  • list of type list

  • match of any type

Table 52. Parameters
Parameter Type

list

list

match

Any type
Example
index of( [1,2,3,2],2 ) = [2,4]
union( list )

Returns a list of all the elements from multiple lists and excludes duplicates.

Table 53. Parameters
Parameter Type

list

list
Example
union( [1,2],[2,3] ) = [1,2,3]
distinct values( list )

Returns a list of elements from a single list and excludes duplicates.

Table 54. Parameters
Parameter Type

list

list
Example
distinct values( [1,2,3,2,1] ) = [1,2,3]
flatten( list )

Returns a flattened list.

Table 55. Parameters
Parameter Type

list

list
Example
flatten( [[1,2],[[3]], 4] ) = [1,2,3,4]
product( list )

Returns the product of the numbers in the list.

Table 56. Parameters
Parameter Type

list

list of number elements
Alternative signature
product( n1, n2, ..., nN )
Examples
product( [2, 3, 4] ) = 24
product( [] ) = null
product( 2, 3, 4 ) = 24
median( list )

Returns the median of the numbers in the list. If the number of elements is odd, the result is the middle element. If the number of elements is even, the result is the average of the two middle elements.

Table 57. Parameters
Parameter Type

list

list of number elements
Alternative signature
median( n1, n2, ..., nN )
Examples
median( 8, 2, 5, 3, 4 ) = 4
median( [6, 1, 2, 3] ) = 2.5
median( [ ] ) = null
stddev( list )

Returns the standard deviation of the numbers in the list.

Table 58. Parameters
Parameter Type

list

list of number elements
Alternative signature
stddev( n1, n2, ..., nN )
Examples
stddev( 2, 4, 7, 5 ) = 2.081665999466132735282297706979931
stddev( [47] ) = null
stddev( 47 ) = null
stddev( [ ] ) = null
mode( list )

Returns the mode of the numbers in the list. If multiple elements are returned, the numbers are sorted in ascending order.

Table 59. Parameters
Parameter Type

list

list of number elements
Alternative signature
mode( n1, n2, ..., nN )
Examples
mode( 6, 3, 9, 6, 6 ) = [6]
mode( [6, 1, 9, 6, 1] ) = [1, 6]
mode( [ ] ) = [ ]
Numeric functions

The following functions support number operations.

decimal( n, scale )

Returns a number with the specified scale.

Table 60. Parameters
Parameter Type

n

number

scale

number in the range [−6111..6176]
This function is implemented to be consistent with the FEEL:number definition for rounding decimal numbers to the nearest even decimal number.
Examples
decimal( 1/3, 2 ) = .33
decimal( 1.5, 0 ) = 2
decimal( 2.5, 0 ) = 2
decimal( 1.035, 2 ) = 1.04
decimal( 1.045, 2 ) = 1.04
decimal( 1.055, 2 ) = 1.06
decimal( 1.065, 2 ) = 1.06
floor( n )

Returns n with given scale and rounding mode flooring. If at least one of n or scale is null, the result is null.

Table 61. Parameters
Parameter Type

n

number
Alternative signature
floor( n, scale )
Examples
floor( 1.5 ) = 1
floor( -1.56, 1 ) = -1.6
floor( -1.5 ) = -2
ceiling( n )

Returns n with given scale and rounding mode ceiling. If at least one of n or scale is null, the result is null.

Table 62. Parameters
Parameter Type

n

number
Alternative signature
ceiling( n, scale )
Examples
ceiling( 1.5 ) = 2
ceiling( -1.56, 1 ) = -1.5
ceiling( -1.5 ) = -1
round up( n, scale )

Returns n with given scale and rounding mode round up. If at least one of n or scale is null, the result is null.

Table 63. Parameters
Parameter Type

n

number

scale

number
Examples
round up( 5.5, 0 ) = 6
round up( -5.5, 0 ) = -6
round up( 1.121, 2 ) = 1.13
round up( -1.126, 2 ) = -1.13
round down( n, scale )

Returns n with given scale and rounding mode round down. If at least one of n or scale is null, the result is null.

Table 64. Parameters
Parameter Type

n

number

scale

number
Examples
round down( 5.5, 0 ) = 5
round down( -5.5, 0 ) = -5
round down( 1.121, 2 ) = 1.12
round down( -1.126, 2 ) = -1.12
round half up( n, scale )

Returns n with given scale and rounding mode round half up. If at least one of n or scale is null, the result is null.

Table 65. Parameters
Parameter Type

n

number

scale

number
Examples
round half up( 5.5, 0 ) = 6
round half up( -5.5, 0 ) = -6
round half up( 1.121, 2 ) = 1.12
round half up( -1.126, 2 ) = -1.13
round half down( n, scale )

Returns n with given scale and rounding mode round half down. If at least one of n or scale is null, the result is null.

Table 66. Parameters
Parameter Type

n

number

scale

number
Examples
round half down( 5.5, 0 ) = 5
round half down( -5.5, 0 ) = -5
round half down( 1.121, 2 ) = 1.12
round half down( -1.126, 2 ) = -1.13
abs( n )

Returns the absolute value.

Table 67. Parameters
Parameter Type

n

number, days and time duration, or years and months duration
Examples
abs( 10 ) = 10
abs( -10 ) = 10
abs( @"PT5H" ) = @"PT5H"
abs( @"-PT5H" ) = @"PT5H"
modulo( dividend, divisor )

Returns the remainder of the division of the dividend by the divisor. If either the dividend or divisor is negative, the result is of the same sign as the divisor.

This function is also expressed as modulo(dividend, divisor) = dividend - divisor*floor(dividen d/divisor).
Table 68. Parameters
Parameter Type

dividend

number

divisor

number
Examples
modulo( 12, 5 ) = 2
modulo( -12,5 )= 3
modulo( 12,-5 )= -3
modulo( -12,-5 )= -2
modulo( 10.1, 4.5 )= 1.1
modulo( -10.1, 4.5 )= 3.4
modulo( 10.1, -4.5 )= -3.4
modulo( -10.1, -4.5 )= -1.1
sqrt( number )

Returns the square root of the specified number.

Table 69. Parameters
Parameter Type

n

number
Example
sqrt( 16 ) = 4
log( number )

Returns the logarithm of the specified number.

Table 70. Parameters
Parameter Type

n

number
Example
decimal( log( 10 ), 2 ) = 2.30
exp( number )

Returns Euler’s number e raised to the power of the specified number.

Table 71. Parameters
Parameter Type

n

number
Example
decimal( exp( 5 ), 2 ) = 148.41
odd( number )

Returns true if the specified number is odd.

Table 72. Parameters
Parameter Type

n

number
Examples
odd( 5 ) = true
odd( 2 ) = false
even( number )

Returns true if the specified number is even.

Table 73. Parameters
Parameter Type

n

number
Examples
even( 5 ) = false
even ( 2 ) = true
Date and time functions

The following functions support date and time operations.

is( value1, value2 )

Returns true if both values are the same element in the FEEL semantic domain.

Table 74. Parameters
Parameter Type

value1

Any type

value2

Any type
Examples
is( date( "2012-12-25" ), time( "23:00:50" ) ) = false
is( date( "2012-12-25" ), date( "2012-12-25" ) ) = true
is( time( "23:00:50z" ), time( "23:00:50" ) ) = false
is( time( "23:00:50z" ), time( "23:00:50+00:00" ) ) = true
Range functions

The following functions support temporal ordering operations to establish relationships between single scalar values and ranges of such values. These functions are similar to the components in the Health Level Seven (HL7) International Clinical Quality Language (CQL) 1.4 syntax.

before( )

Returns true when an element A is before an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. before( point1 point2 )

  2. before( point range )

  3. before( range point )

  4. before( range1,range2 )

Requirements for evaluating to true

  1. point1 < point2

  2. point < range.start or ( point = range.start and not(range.start included) )

  3. range.end < point or ( range.end = point and not(range.end included) )

  4. range1.end < range2.start or (( not(range1.end included) or not(range2.start included) ) and range1.end = range2.start )

Examples
before( 1, 10 ) = true
before( 10, 1 ) = false
before( 1, [1..10] ) = false
before( 1, (1..10] ) = true
before( 1, [5..10] ) = true
before( [1..10], 10 ) = false
before( [1..10), 10 ) = true
before( [1..10], 15 ) = true
before( [1..10], [15..20] ) = true
before( [1..10], [10..20] ) = false
before( [1..10), [10..20] ) = true
before( [1..10], (10..20] ) = true
after( )

Returns true when an element A is after an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. after( point1 point2 )

  2. after( point range )

  3. after( range, point )

  4. after( range1 range2 )

Requirements for evaluating to true

  1. point1 > point2

  2. point > range.end or ( point = range.end and not(range.end included) )

  3. range.start > point or ( range.start = point and not(range.start included) )

  4. range1.start > range2.end or (( not(range1.start included) or not(range2.end included) ) and range1.start = range2.end )

Examples
after( 10, 5 ) = true
after( 5, 10 ) = false
after( 12, [1..10] ) = true
after( 10, [1..10) ) = true
after( 10, [1..10] ) = false
after( [11..20], 12 ) = false
after( [11..20], 10 ) = true
after( (11..20], 11 ) = true
after( [11..20], 11 ) = false
after( [11..20], [1..10] ) = true
after( [1..10], [11..20] ) = false
after( [11..20], [1..11) ) = true
after( (11..20], [1..11] ) = true
meets( )

Returns true when an element A meets an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. meets( range1, range2 )

Requirements for evaluating to true

  1. range1.end included and range2.start included and range1.end = range2.start

Examples
meets( [1..5], [5..10] ) = true
meets( [1..5), [5..10] ) = false
meets( [1..5], (5..10] ) = false
meets( [1..5], [6..10] ) = false
met by( )

Returns true when an element A is met by an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. met by( range1, range2 )

Requirements for evaluating to true

  1. range1.start included and range2.end included and range1.start = range2.end

Examples
met by( [5..10], [1..5] ) = true
met by( [5..10], [1..5) ) = false
met by( (5..10], [1..5] ) = false
met by( [6..10], [1..5] ) = false
overlaps( )

Returns true when an element A overlaps an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. overlaps( range1, range2 )

Requirements for evaluating to true

  1. ( range1.end > range2.start or (range1.end = range2.start and range1.end included and range2.end included) ) and ( range1.start < range2.end or (range1.start = range2.end and range1.start included and range2.end included) )

Examples
overlaps( [1..5], [3..8] ) = true
overlaps( [3..8], [1..5] ) = true
overlaps( [1..8], [3..5] ) = true
overlaps( [3..5], [1..8] ) = true
overlaps( [1..5], [6..8] ) = false
overlaps( [6..8], [1..5] ) = false
overlaps( [1..5], [5..8] ) = true
overlaps( [1..5], (5..8] ) = false
overlaps( [1..5), [5..8] ) = false
overlaps( [1..5), (5..8] ) = false
overlaps( [5..8], [1..5] ) = true
overlaps( (5..8], [1..5] ) = false
overlaps( [5..8], [1..5) ) = false
overlaps( (5..8], [1..5) ) = false
overlaps before( )

Returns true when an element A overlaps before an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. overlaps before( range1 range2 )

Requirements for evaluating to true

  1. ( range1.start < range2.start or (range1.start = range2.start and range1.start included and not(range2.start included)) ) and ( range1.end > range2.start or (range1.end = range2.start and range1.end included and range2.start included) ) and ( range1.end < range2.end or (range1.end = range2.end and (not(range1.end included) or range2.end included )) )

Examples
overlaps before( [1..5], [3..8] ) = true
overlaps before( [1..5], [6..8] ) = false
overlaps before( [1..5], [5..8] ) = true
overlaps before( [1..5], (5..8] ) = false
overlaps before( [1..5), [5..8] ) = false
overlaps before( [1..5), (1..5] ) = true
overlaps before( [1..5], (1..5] ) = true
overlaps before( [1..5), [1..5] ) = false
overlaps before( [1..5], [1..5] ) = false
overlaps after( )

Returns true when an element A overlaps after an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. overlaps after( range1 range2 )

Requirements for evaluating to true

  1. ( range2.start < range1.start or (range2.start = range1.start and range2.start included and not( range1.start included)) ) and ( range2.end > range1.start or (range2.end = range1.start and range2.end included and range1.start included) ) and ( range2.end < range1.end or (range2.end = range1.end and (not(range2.end included) or range1.end included)) )

Examples
overlaps after( [3..8], [1..5] )= true
overlaps after( [6..8], [1..5] )= false
overlaps after( [5..8], [1..5] )= true
overlaps after( (5..8], [1..5] )= false
overlaps after( [5..8], [1..5) )= false
overlaps after( (1..5], [1..5) )= true
overlaps after( (1..5], [1..5] )= true
overlaps after( [1..5], [1..5) )= false
overlaps after( [1..5], [1..5] )= false
overlaps after( (1..5), [1..5] )= false
overlaps after( (1..5], [1..6] )= false
overlaps after( (1..5], (1..5] )= false
overlaps after( (1..5], [2..5] )= false
finishes( )

Returns true when an element A finishes an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. finishes( point, range )

  2. finishes( range1, range2 )

Requirements for evaluating to true

  1. range.end included and range.end = point

  2. range1.end included = range2.end included and range1.end = range2.end and ( range1.start > range2.start or (range1.start = range2.start and (not(range1.start included) or range2.start included)) )

Examples
finishes( 10, [1..10] ) = true
finishes( 10, [1..10) ) = false
finishes( [5..10], [1..10] ) = true
finishes( [5..10), [1..10] ) = false
finishes( [5..10), [1..10) ) = true
finishes( [1..10], [1..10] ) = true
finishes( (1..10], [1..10] ) = true
finished by( )

Returns true when an element A is finished by an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. finished by( range, point )

  2. finished by( range1 range2 )

Requirements for evaluating to true

  1. range.end included and range.end = point

  2. range1.end included = range2.end included and range1.end = range2.end and ( range1.start < range2.start or (range1.start = range2.start and (range1.start included or not(range2.start included))) )

Examples
finished by( [1..10], 10 ) = true
finished by( [1..10), 10 ) = false
finished by( [1..10], [5..10] ) = true
finished by( [1..10], [5..10) ) = false
finished by( [1..10), [5..10) ) = true
finished by( [1..10], [1..10] ) = true
finished by( [1..10], (1..10] ) = true
includes( )

Returns true when an element A includes an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. includes( range, point )

  2. includes( range1, range2 )

Requirements for evaluating to true

  1. (range.start < point and range.end > point) or (range.start = point and range.start included) or (range.end = point and range.end included)

  2. ( range1.start < range2.start or (range1.start = range2.start and (range1.start included or not(range2.start included))) ) and ( range1.end > range2.end or (range1.end = range2.end and (range1.end included or not(range2.end included))) )

Examples
includes( [1..10], 5 ) = true
includes( [1..10], 12 ) = false
includes( [1..10], 1 ) = true
includes( [1..10], 10 ) = true
includes( (1..10], 1 ) = false
includes( [1..10), 10 ) = false
includes( [1..10], [4..6] ) = true
includes( [1..10], [1..5] ) = true
includes( (1..10], (1..5] ) = true
includes( [1..10], (1..10) ) = true
includes( [1..10), [5..10) ) = true
includes( [1..10], [1..10) ) = true
includes( [1..10], (1..10] ) = true
includes( [1..10], [1..10] ) = true
during( )

Returns true when an element A is during an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. during( point, range )

  2. during( range1 range2 )

Requirements for evaluating to true

  1. (range.start < point and range.end > point) or (range.start = point and range.start included) or (range.end = point and range.end included)

  2. ( range2.start < range1.start or (range2.start = range1.start and (range2.start included or not(range1.start included))) ) and ( range2.end > range1.end or (range2.end = range1.end and (range2.end included or not(range1.end included))) )

Examples
during( 5, [1..10] ) = true
during( 12, [1..10] ) = false
during( 1, [1..10] ) = true
during( 10, [1..10] ) = true
during( 1, (1..10] ) = false
during( 10, [1..10) ) = false
during( [4..6], [1..10] ) = true
during( [1..5], [1..10] ) = true
during( (1..5], (1..10] ) = true
during( (1..10), [1..10] ) = true
during( [5..10), [1..10) ) = true
during( [1..10), [1..10] ) = true
during( (1..10], [1..10] ) = true
during( [1..10], [1..10] ) = true
starts( )

Returns true when an element A starts an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. starts( point, range )

  2. starts( range1, range2 )

Requirements for evaluating to true

  1. range.start = point and range.start included

  2. range1.start = range2.start and range1.start included = range2.start included and ( range1.end < range2.end or (range1.end = range2.end and (not(range1.end included) or range2.end included)) )

Examples
starts( 1, [1..10] ) = true
starts( 1, (1..10] ) = false
starts( 2, [1..10] ) = false
starts( [1..5], [1..10] ) = true
starts( (1..5], (1..10] ) = true
starts( (1..5], [1..10] ) = false
starts( [1..5], (1..10] ) = false
starts( [1..10], [1..10] ) = true
starts( [1..10), [1..10] ) = true
starts( (1..10), (1..10) ) = true
started by( )

Returns true when an element A is started by an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. started by( range, point )

  2. started by( range1, range2 )

Requirements for evaluating to true

  1. range.start = point and range.start included

  2. range1.start = range2.start and range1.start included = range2.start included and ( range2.end < range1.end or (range2.end = range1.end and (not(range2.end included) or range1.end included)) )

Examples
started by( [1..10], 1 ) = true
started by( (1..10], 1 ) = false
started by( [1..10], 2 ) = false
started by( [1..10], [1..5] ) = true
started by( (1..10], (1..5] ) = true
started by( [1..10], (1..5] ) = false
started by( (1..10], [1..5] ) = false
started by( [1..10], [1..10] ) = true
started by( [1..10], [1..10) ) = true
started by( (1..10), (1..10) ) = true
coincides( )

Returns true when an element A coincides with an element B and when the relevant requirements for evaluating to true are also met.

Signatures

  1. coincides( point1, point2 )

  2. coincides( range1, range2 )

Requirements for evaluating to true

  1. point1 = point2

  2. range1.start = range2.start and range1.start included = range2.start included and range1.end = range2.end and range1.end included = range2.end included

Examples
coincides( 5, 5 ) = true
coincides( 3, 4 ) = false
coincides( [1..5], [1..5] ) = true
coincides( (1..5), [1..5] ) = false
coincides( [1..5], [2..6] ) = false
Temporal functions

The following functions support general temporal operations.

day of year( date )

Returns the Gregorian number of the day of the year.

Table 75. Parameters
Parameter Type

date

date or date and time
Example
day of year( date(2019, 9, 17) ) = 260
day of week( date )

Returns the Gregorian day of the week: "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", or "Sunday".

Table 76. Parameters
Parameter Type

date

date or date and time
Example
day of week( date(2019, 9, 17) ) = "Tuesday"
month of year( date )

Returns the Gregorian month of the year: "January", "February", "March", "April", "May", "June", "July", "August", "September", "October", "November", or "December".

Table 77. Parameters
Parameter Type

date

date or date and time
Example
month of year( date(2019, 9, 17) ) = "September"
month of year( date )

Returns the Gregorian week of the year as defined by ISO 8601.

Table 78. Parameters
Parameter Type

date

date or date and time
Examples
week of year( date(2019, 9, 17) ) = 38
week of year( date(2003, 12, 29) ) = 1
week of year( date(2004, 1, 4) ) = 1
week of year( date(2005, 1, 1) ) = 53
week of year( date(2005, 1, 3) ) = 1
week of year( date(2005, 1, 9) ) = 1
Sort functions

The following functions support sorting operations.

sort( list, precedes )

Returns a list of the same elements but ordered according to the sorting function.

Table 79. Parameters
Parameter Type

list

list

precedes

function
Example
sort( list: [3,1,4,5,2], precedes: function(x,y) x < y ) = [1,2,3,4,5]
Context functions

The following functions support context operations.

get value( m, key )

Returns the value from the context for the specified entry key.

Table 80. Parameters
Parameter Type

m

context

key

string
Examples
get value( {key1 : "value1"}, "key1" ) = "value1"
get value( {key1 : "value1"}, "unexistent-key" ) = null
get entries( m )

Returns a list of key-value pairs for the specified context.

Table 81. Parameters
Parameter Type

m

context
Example
get entries( {key1 : "value1", key2 : "value2"} ) = [ { key : "key1", value : "value1" }, {key : "key2", value : "value2"} ]
context( entries )

Returns a new context that includes all specified entries. If a context item contains additional entries beyond the required "key" and "value" entries, the additional entries are ignored. If a context item is missing the required "key" and "value" entries, the final result is null. See also: get entries() built-in function.

Table 82. Parameters
Parameter Type

entries

list of context , each item SHALL have two entries having keys named "key" and "value" respectively
Examples
context([{key:"a", value:1}, {key:"b", value:2}]) = {a:1, b:2}
context([{key:"a", value:1}, {key:"b", value:2, something: "else"}]) = {a:1, b:2}
context([{key:"a", value:1}, {key:"b"}]) = null
context put( context, key, value )

Returns a new context that includes the new entry, or overrides the existing value if an entry for the same key already exists in the supplied context parameter. A new entry is added as the last entry of the new context. If overriding an existing entry, the order of the keys maintains the same order as in the original context.

Table 83. Parameters
Parameter Type

context

context

key

string

value

Any type
Examples
context put({x:1}, "y", 2) = {x:1, y:2}
context put({x:1, y:0}, "y", 2) = {x:1, y:2}
context put({x:1, y:0, z:0}, "y", 2) = {x:1, y:2, z:0}
context put( context, keys, value )

Returns the composite of nested invocations to context put() for each item in keys hierarchy in context.

If keys is a list of 1 element, this is equivalent to context put(context, key', value), where key' is the only element in the list keys.

If keys is a list of 2 or more elements, this is equivalent of calling context put(context, key', value'), with:
key' is the head element in the list keys,
value' is the result of invocation of context put(context', keys', value), where:
context' is the result of context.key',
keys' is the remainder of the list keys without the head element key'.

If keys is an empty list or null, the result is null.

Table 84. Parameters
Parameter Type

context

context

keys

list of string

value

Any type
Examples
context put({x:1}, ["y"], 2) = context put({x:1}, "y", 2)
context put({x:1}, ["y"], 2) = {x:1, y:2}
context put({x:1, y: {a: 0} }, ["y", "a"], 2) = context put({x:1, y: {a: 0} }, "y", context put({a: 0}, ["a"], 2))
context put({x:1, y: {a: 0} }, ["y", "a"], 2) = {x:1, y: {a: 2} }
context put({x:1, y: {a: 0} }, [], 2) = null
context merge( contexts )

Returns a new context that includes all entries from the given contexts; if some of the keys are equal, the entries are overridden. The entries are overridden in the same order as specified by the supplied parameter, with new entries added as the last entry in the new context.

Table 85. Parameters
Parameter Type

contexts

list of context
Examples
context merge([{x:1}, {y:2}]) = {x:1, y:2}
context merge([{x:1, y:0}, {y:2}]) = {x:1, y:2}
Miscellaneous functions

These functions provide support utilities for several miscellaneous use-cases. For example, when a decision depends on the current date, like deciding the support SLA over the weekends, additional charges for weekend delivery, etc.

It is important to note that the functions in this section are intended to be side-effect-free, but they are not deterministic and not idempotent from the perspective of an external observer.

As a user, you are encouraged to isolate the decision logic that uses these functions in specific DRG elements, such as Decisions. The encapsulation enables them to be overridden with synthetic values during scenario testing, that remain constant across executions of the DMN model’s test cases.

now()

Returns the current date and time.

Examples
now()
today()

Returns the current date.

Examples
today()
KIE Extended functions

These functions are provided as an extension to the DMN Standard to enable support for various use-cases on top of the Drools DMN Engine.

invoke( namespace, modelName, decisionName, parameters )

Returns the result of the decision evaluation in the specified DMN model available to the DMNRuntime environment in the current DMN model is executed.

This function is deprecated in favor of encouraging the usage of DMN Standard capabilities wherever possible; since DMNv1.2 it shall be possible to use the DMN standard’s Import functionality to import Business Knowledge Model (BKM) nodes and Decision Service nodes, to be invoked from another model.

Table 86. Parameters
Parameter Type

namespace

string

modelName

string

decisionName

string

parameter

context
Examples
invoke(
    "http://namespace_of_model",
    "my model name",
    "my decision name",
    { a:1, b:2 }
)
4.1.2.4. Variable and function names in FEEL

Unlike many traditional expression languages, Friendly Enough Expression Language (FEEL) supports spaces and a few special characters as part of variable and function names. A FEEL name must start with a letter, ?, or _ element. The unicode letter characters are also allowed. Variable names cannot start with a language keyword, such as and, true, or every. The remaining characters in a variable name can be any of the starting characters, as well as digits, white spaces, and special characters such as +, -, /, *, ', and ..

For example, the following names are all valid FEEL names:

  • Age

  • Birth Date

  • Flight 234 pre-check procedure

Several limitations apply to variable and function names in FEEL:

Ambiguity

The use of spaces, keywords, and other special characters as part of names can make FEEL ambiguous. The ambiguities are resolved in the context of the expression, matching names from left to right. The parser resolves the variable name as the longest name matched in scope. You can use ( ) to disambiguate names if necessary.

Spaces in names

The DMN specification limits the use of spaces in FEEL names. According to the DMN specification, names can contain multiple spaces but not two consecutive spaces.

In order to make the language easier to use and avoid common errors due to spaces, Kogito removes the limitation on the use of consecutive spaces. Kogito supports variable names with any number of consecutive spaces, but normalizes them into a single space. For example, the variable references First Name with one space and First Name with two spaces are both acceptable in Kogito.

Kogito also normalizes the use of other white spaces, like the non-breakable white space that is common in web pages, tabs, and line breaks. From a Kogito FEEL engine perspective, all of these characters are normalized into a single white space before processing.

The keyword in

The keyword in is the only keyword in the language that cannot be used as part of a variable name. Although the specifications allow the use of keywords in the middle of variable names, the use of in in variable names conflicts with the grammar definition of for, every and some expression constructs.

4.1.2.5. DMN decision logic in boxed expressions

Boxed expressions in DMN are tables that you use to define the underlying logic of decision nodes and business knowledge models in a decision requirements diagram (DRD). Some boxed expressions can contain other boxed expressions, but the top-level boxed expression corresponds to the decision logic of a single DRD artifact. While DRDs represent the flow of a DMN decision model, boxed expressions define the actual decision logic of individual nodes. DRDs and boxed expressions together form a complete and functional DMN decision model.

The following are the types of DMN boxed expressions:

  • Decision tables

  • Literal expressions

  • Contexts

  • Relations

  • Functions

  • Invocations

  • Lists

All Friendly Enough Expression Language (FEEL) expressions that you use in your boxed expressions must conform to the FEEL syntax requirements in the OMG Decision Model and Notation specification.

DMN decision tables

A decision table in DMN is a visual representation of one or more business rules in a tabular format. You use decision tables to define rules for a decision node that applies those rules at a given point in the decision model. Each rule consists of a single row in the table, and includes columns that define the conditions (input) and outcome (output) for that particular row. The definition of each row is precise enough to derive the outcome using the values of the conditions. Input and output values can be FEEL expressions or defined data type values.

For example, the following decision table determines credit score ratings based on a defined range of a loan applicant’s credit score:

dmn decision table example

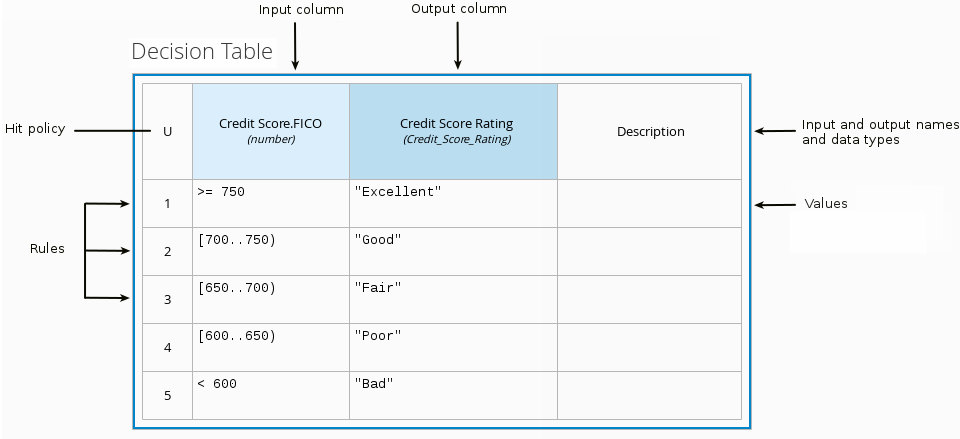

Figure 71. Decision table for credit score rating

The following decision table determines the next step in a lending strategy for applicants depending on applicant loan eligibility and the bureau call type:

dmn decision table example2

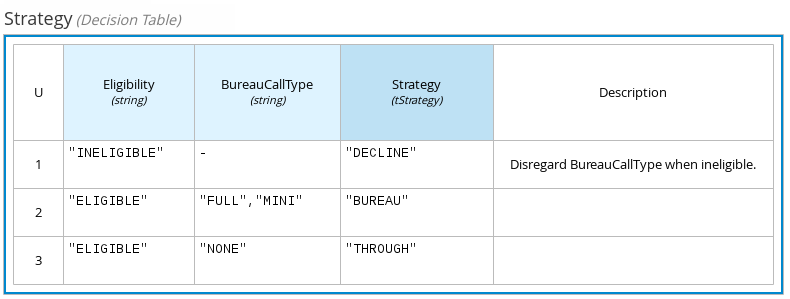

Figure 72. Decision table for lending strategy

The following decision table determines applicant qualification for a loan as the concluding decision node in a loan prequalification decision model:

dmn decision table example3

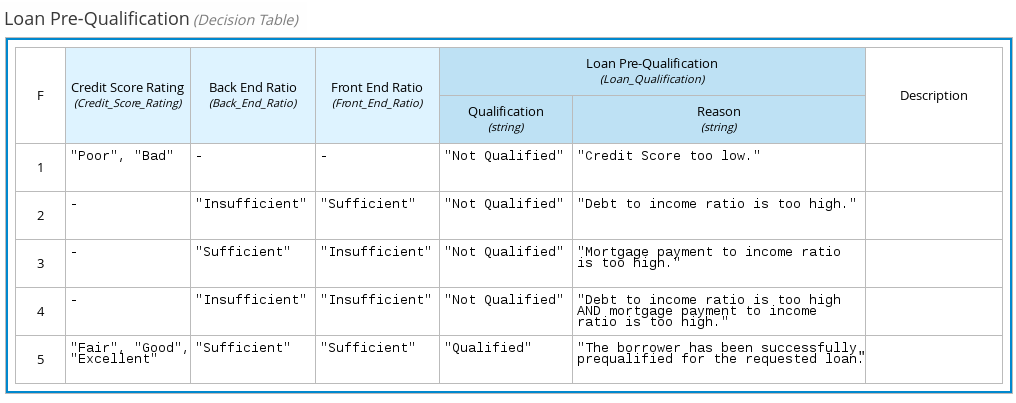

Figure 73. Decision table for loan prequalification

Decision tables are a popular way of modeling rules and decision logic, and are used in many methodologies (such as DMN) and implementation frameworks (such as Drools).

Kogito supports both DMN decision tables and Drools-native decision tables, but they are different types of assets with different syntax requirements and are not interchangeable. For more information about Drools-native decision tables in Kogito, see Spreadsheet decision tables.
Hit policies in DMN decision tables

Hit policies determine how to reach an outcome when multiple rules in a decision table match the provided input values. For example, if one rule in a decision table applies a sales discount to military personnel and another rule applies a discount to students, then when a customer is both a student and in the military, the decision table hit policy must indicate whether to apply one discount or the other (Unique, First) or both discounts (Collect Sum). You specify the single character of the hit policy (U, F, C+) in the upper-left corner of the decision table.

The following decision table hit policies are supported in DMN:

  • Unique (U): Permits only one rule to match. Any overlap raises an error.

  • Any (A): Permits multiple rules to match, but they must all have the same output. If multiple matching rules do not have the same output, an error is raised.

  • Priority (P): Permits multiple rules to match, with different outputs. The output that comes first in the output values list is selected.

  • First (F): Uses the first match in rule order.

  • Collect (C+, C>, C<, C#): Aggregates output from multiple rules based on an aggregation function.

    • Collect ( C ): Aggregates values in an arbitrary list.

    • Collect Sum (C+): Outputs the sum of all collected values. Values must be numeric.

    • Collect Min (C<): Outputs the minimum value among the matches. The resulting values must be comparable, such as numbers, dates, or text (lexicographic order).

    • Collect Max (C>): Outputs the maximum value among the matches. The resulting values must be comparable, such as numbers, dates or text (lexicographic order).

    • Collect Count (C#): Outputs the number of matching rules.

    • Rule Order ®: Collects output from multiple rules into a list ordered according to rules order. It is very similar to 'Collect' without any aggregation function, but with explicit consistent ordering in the final list as defined in the table.

    • Output Order (O): Collects output from multiple rules into a list ordered using the same sorting mechanism as the 'Priority' hit policy.

Boxed literal expressions

A boxed literal expression in DMN is a literal FEEL expression as text in a table cell, typically with a labeled column and an assigned data type. You use boxed literal expressions to define simple or complex node logic or decision data directly in FEEL for a particular node in a decision. Literal FEEL expressions must conform to FEEL syntax requirements in the OMG Decision Model and Notation specification.

For example, the following boxed literal expression defines the minimum acceptable PITI calculation (principal, interest, taxes, and insurance) in a lending decision, where acceptable rate is a variable defined in the DMN model:

dmn literal expression example2

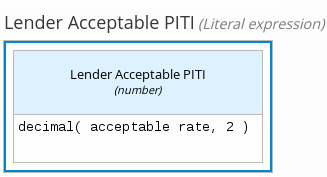

Figure 74. Boxed literal expression for minimum PITI value

The following boxed literal expression sorts a list of possible dating candidates (soul mates) in an online dating application based on their score on criteria such as age, location, and interests:

dmn literal expression example3b

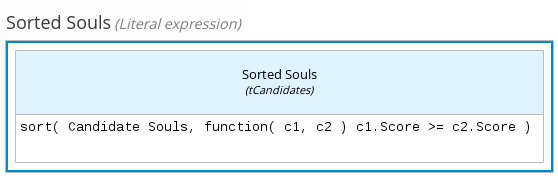

Figure 75. Boxed literal expression for matching online dating candidates
Boxed context expressions

A boxed context expression in DMN is a set of variable names and values with a result value. Each name-value pair is a context entry. You use context expressions to represent data definitions in decision logic and set a value for a desired decision element within the DMN decision model. A value in a boxed context expression can be a data type value or FEEL expression, or can contain a nested sub-expression of any type, such as a decision table, a literal expression, or another context expression.

For example, the following boxed context expression defines the factors for sorting delayed passengers in a flight-rebooking decision model, based on defined data types (tPassengerTable, tFlightNumberList):

dmn context expression example
Figure 76. Boxed context expression for flight passenger waiting list

The following boxed context expression defines the factors that determine whether a loan applicant can meet minimum mortgage payments based on principal, interest, taxes, and insurance (PITI), represented as a front-end ratio calculation with a sub-context expression:

dmn context expression example2

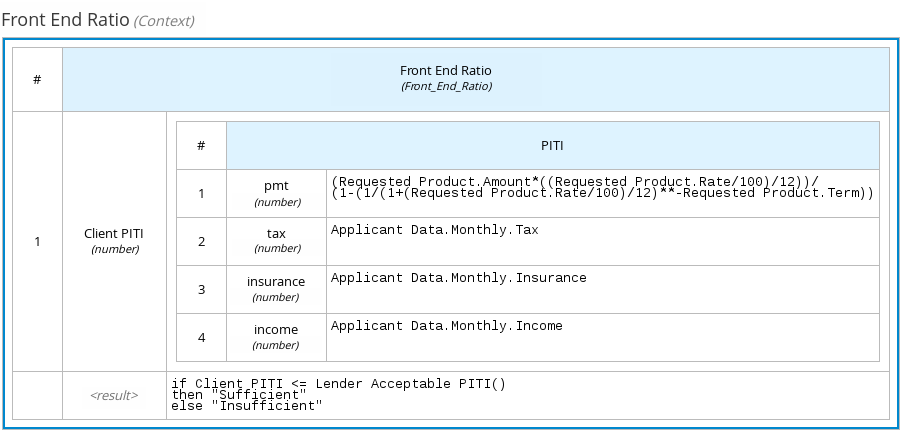

Figure 77. Boxed context expression for front-end client PITI ratio
Boxed relation expressions

A boxed relation expression in DMN is a traditional data table with information about given entities, listed as rows. You use boxed relation tables to define decision data for relevant entities in a decision at a particular node. Boxed relation expressions are similar to context expressions in that they set variable names and values, but relation expressions contain no result value and list all variable values based on a single defined variable in each column.

For example, the following boxed relation expression provides information about employees in an employee rostering decision:

dmn relation expression example

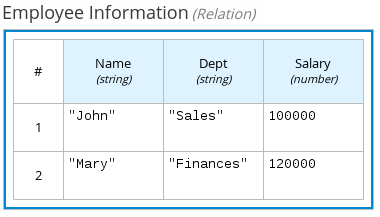

Figure 78. Boxed relation expression with employee information
Boxed function expressions

A boxed function expression in DMN is a parameterized boxed expression containing a literal FEEL expression, a nested context expression of an external JAVA or PMML function, or a nested boxed expression of any type. By default, all business knowledge models are defined as boxed function expressions. You use boxed function expressions to call functions on your decision logic and to define all business knowledge models.

For example, the following boxed function expression determines airline flight capacity in a flight-rebooking decision model:

dmn function expression example
Figure 79. Boxed function expression for flight capacity

The following boxed function expression contains a basic Java function as a context expression for determining absolute value in a decision model calculation:

dmn function expression example2
Figure 80. Boxed function expression for absolute value

The following boxed function expression determines a monthly mortgage installment as a business knowledge model in a lending decision, with the function value defined as a nested context expression:

dmn function expression example3

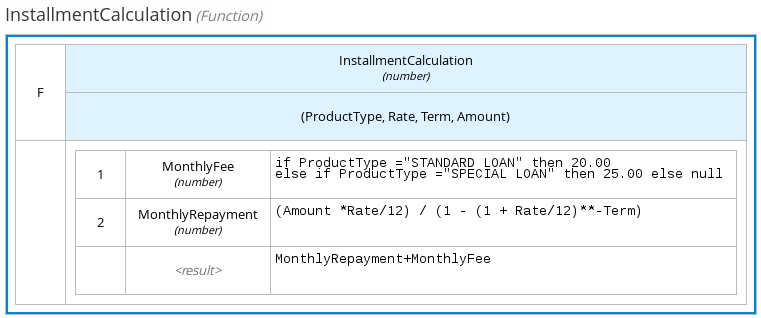

Figure 81. Boxed function expression for installment calculation in business knowledge model

The following boxed function expression uses a PMML model included in the DMN file to define the minimum acceptable PITI calculation (principal, interest, taxes, and insurance) in a lending decision:

Boxed invocation expressions

A boxed invocation expression in DMN is a boxed expression that invokes a business knowledge model. A boxed invocation expression contains the name of the business knowledge model to be invoked and a list of parameter bindings. Each binding is represented by two boxed expressions on a row: The box on the left contains the name of a parameter and the box on the right contains the binding expression whose value is assigned to the parameter to evaluate the invoked business knowledge model. You use boxed invocations to invoke at a particular decision node a business knowledge model defined in the decision model.

For example, the following boxed invocation expression invokes a Reassign Next Passenger business knowledge model as the concluding decision node in a flight-rebooking decision model:

dmn invocation example

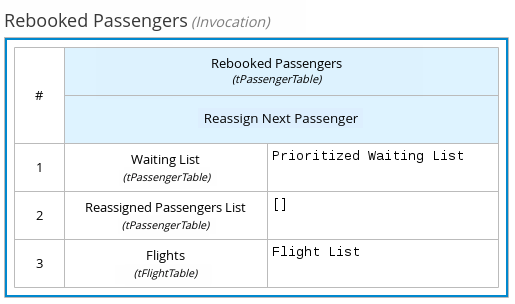

Figure 82. Boxed invocation expression to reassign flight passengers

The following boxed invocation expression invokes an InstallmentCalculation business knowledge model to calculate a monthly installment amount for a loan before proceeding to affordability decisions:

dmn invocation example2

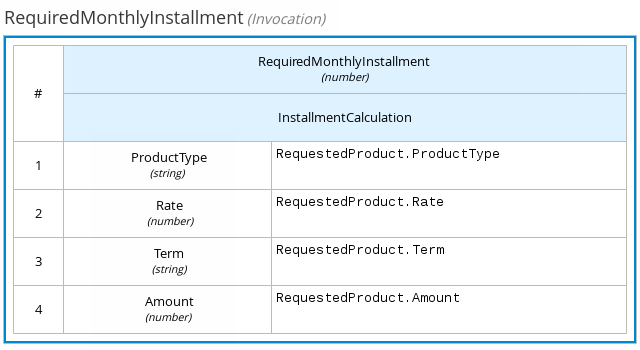

Figure 83. Boxed invocation expression for required monthly installment
Boxed list expressions

A boxed list expression in DMN represents a FEEL list of items. You use boxed lists to define lists of relevant items for a particular node in a decision. You can also use literal FEEL expressions for list items in cells to create more complex lists.

For example, the following boxed list expression identifies approved credit score agencies in a loan application decision service:

dmn list expression example

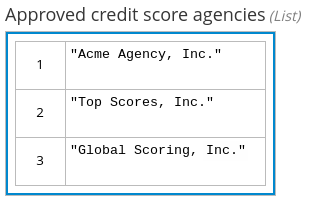

Figure 84. Boxed list expression for approved credit score agencies

The following boxed list expression also identifies approved credit score agencies but uses FEEL logic to define the agency status (Inc., LLC, SA, GA) based on a DMN input node:

dmn list expression example2

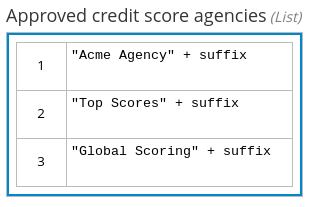

Figure 85. Boxed list expression using FEEL logic for approved credit score agency status
dmn list expression example2a
4.1.2.6. DMN model example

The following is a real-world DMN model example that demonstrates how you can use decision modeling to reach a decision based on input data, circumstances, and company guidelines. In this scenario, a flight from San Diego to New York is canceled, requiring the affected airline to find alternate arrangements for its inconvenienced passengers.

First, the airline collects the information necessary to determine how best to get the travelers to their destinations:

Input data

  • List of flights

  • List of passengers

Decisions

  • Prioritize the passengers who will get seats on a new flight

  • Determine which flights those passengers will be offered

Business knowledge models

  • The company process for determining passenger priority

  • Any flights that have space available

  • Company rules for determining how best to reassign inconvenienced passengers

The airline then uses the DMN standard to model its decision process in the following decision requirements diagram (DRD) for determining the best rebooking solution:

dmn passenger rebooking drd

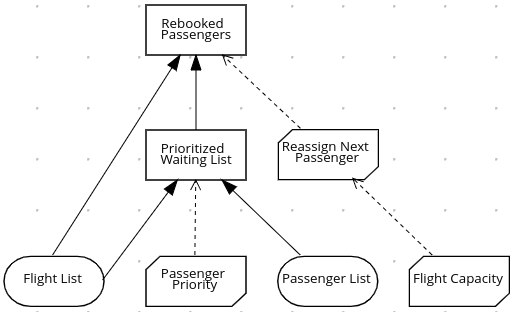

Figure 86. DRD for flight rebooking

Similar to flowcharts, DRDs use shapes to represent the different elements in a process. Ovals contain the two necessary input data, rectangles contain the decision points in the model, and rectangles with clipped corners (business knowledge models) contain reusable logic that can be repeatedly invoked.

The DRD draws logic for each element from boxed expressions that provide variable definitions using FEEL expressions or data type values.

Some boxed expressions are basic, such as the following decision for establishing a prioritized waiting list:

dmn context expression example
Figure 87. Boxed context expression example for prioritized wait list

Some boxed expressions are more complex with greater detail and calculation, such as the following business knowledge model for reassigning the next delayed passenger:

dmn reassign passenger

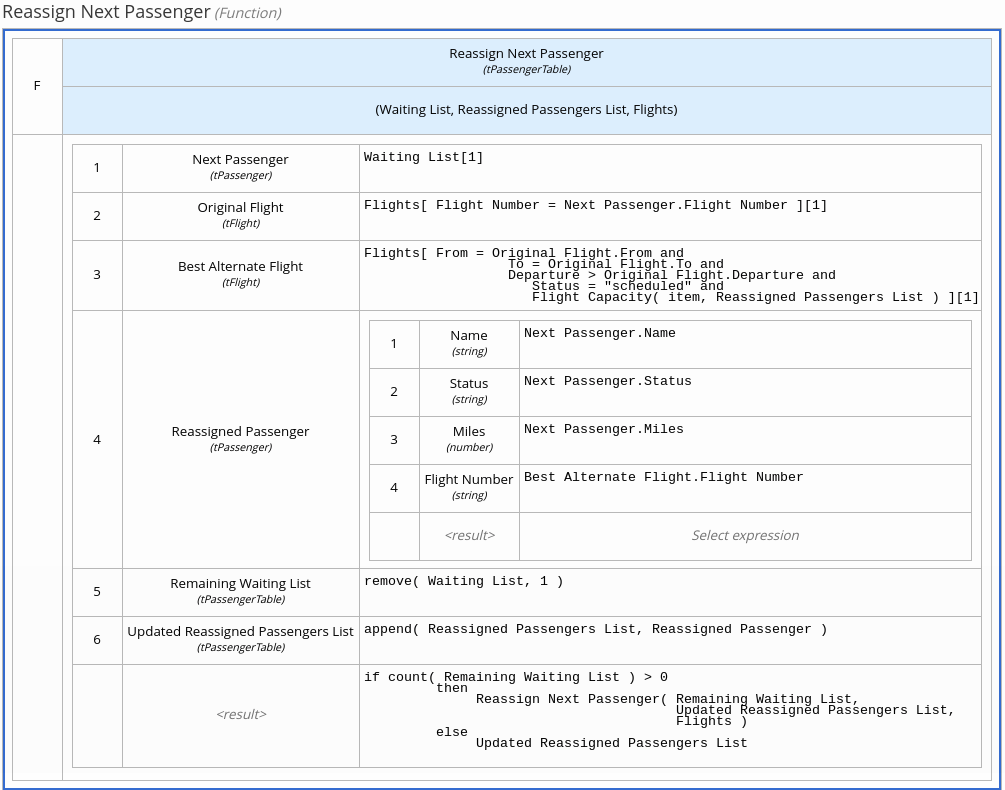

Figure 88. Boxed function expression for passenger reassignment

The following is the DMN source file for this decision model:

<dmn:definitions xmlns="https://www.drools.org/kie-dmn/Flight-rebooking" xmlns:dmn="http://www.omg.org/spec/DMN/20151101/dmn.xsd" xmlns:feel="http://www.omg.org/spec/FEEL/20140401" id="_0019_flight_rebooking" name="0019-flight-rebooking" namespace="https://www.drools.org/kie-dmn/Flight-rebooking">
  <dmn:itemDefinition id="_tFlight" name="tFlight">
    <dmn:itemComponent id="_tFlight_Flight" name="Flight Number">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_From" name="From">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_To" name="To">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_Dep" name="Departure">
      <dmn:typeRef>feel:dateTime</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_Arr" name="Arrival">
      <dmn:typeRef>feel:dateTime</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_Capacity" name="Capacity">
      <dmn:typeRef>feel:number</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tFlight_Status" name="Status">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
  </dmn:itemDefinition>
  <dmn:itemDefinition id="_tFlightTable" isCollection="true" name="tFlightTable">
    <dmn:typeRef>tFlight</dmn:typeRef>
  </dmn:itemDefinition>
  <dmn:itemDefinition id="_tPassenger" name="tPassenger">
    <dmn:itemComponent id="_tPassenger_Name" name="Name">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tPassenger_Status" name="Status">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tPassenger_Miles" name="Miles">
      <dmn:typeRef>feel:number</dmn:typeRef>
    </dmn:itemComponent>
    <dmn:itemComponent id="_tPassenger_Flight" name="Flight Number">
      <dmn:typeRef>feel:string</dmn:typeRef>
    </dmn:itemComponent>
  </dmn:itemDefinition>
  <dmn:itemDefinition id="_tPassengerTable" isCollection="true" name="tPassengerTable">
    <dmn:typeRef>tPassenger</dmn:typeRef>
  </dmn:itemDefinition>
  <dmn:itemDefinition id="_tFlightNumberList" isCollection="true" name="tFlightNumberList">
    <dmn:typeRef>feel:string</dmn:typeRef>
  </dmn:itemDefinition>
  <dmn:inputData id="i_Flight_List" name="Flight List">
    <dmn:variable name="Flight List" typeRef="tFlightTable"/>
  </dmn:inputData>
  <dmn:inputData id="i_Passenger_List" name="Passenger List">
    <dmn:variable name="Passenger List" typeRef="tPassengerTable"/>
  </dmn:inputData>
  <dmn:decision name="Prioritized Waiting List" id="d_PrioritizedWaitingList">
    <dmn:variable name="Prioritized Waiting List" typeRef="tPassengerTable"/>
    <dmn:informationRequirement>
      <dmn:requiredInput href="#i_Passenger_List"/>
    </dmn:informationRequirement>
    <dmn:informationRequirement>
      <dmn:requiredInput href="#i_Flight_List"/>
    </dmn:informationRequirement>
    <dmn:knowledgeRequirement>
      <dmn:requiredKnowledge href="#b_PassengerPriority"/>
    </dmn:knowledgeRequirement>
    <dmn:context>
      <dmn:contextEntry>
        <dmn:variable name="Cancelled Flights" typeRef="tFlightNumberList"/>
        <dmn:literalExpression>
          <dmn:text>Flight List[ Status = "cancelled" ].Flight Number</dmn:text>
        </dmn:literalExpression>
      </dmn:contextEntry>
      <dmn:contextEntry>
        <dmn:variable name="Waiting List" typeRef="tPassengerTable"/>
        <dmn:literalExpression>
          <dmn:text>Passenger List[ list contains( Cancelled Flights, Flight Number ) ]</dmn:text>
        </dmn:literalExpression>
      </dmn:contextEntry>
      <dmn:contextEntry>
        <dmn:literalExpression>
          <dmn:text>sort( Waiting List, passenger priority )</dmn:text>
        </dmn:literalExpression>
      </dmn:contextEntry>
    </dmn:context>
  </dmn:decision>
  <dmn:decision name="Rebooked Passengers" id="d_RebookedPassengers">
    <dmn:variable name="Rebooked Passengers" typeRef="tPassengerTable"/>
    <dmn:informationRequirement>
      <dmn:requiredDecision href="#d_PrioritizedWaitingList"/>
    </dmn:informationRequirement>
    <dmn:informationRequirement>
      <dmn:requiredInput href="#i_Flight_List"/>
    </dmn:informationRequirement>
    <dmn:knowledgeRequirement>
      <dmn:requiredKnowledge href="#b_ReassignNextPassenger"/>
    </dmn:knowledgeRequirement>
    <dmn:invocation>
      <dmn:literalExpression>
        <dmn:text>reassign next passenger</dmn:text>
      </dmn:literalExpression>
      <dmn:binding>
        <dmn:parameter name="Waiting List"/>
        <dmn:literalExpression>
          <dmn:text>Prioritized Waiting List</dmn:text>
        </dmn:literalExpression>
      </dmn:binding>
      <dmn:binding>
        <dmn:parameter name="Reassigned Passengers List"/>
        <dmn:literalExpression>
          <dmn:text>[]</dmn:text>
        </dmn:literalExpression>
      </dmn:binding>
      <dmn:binding>
        <dmn:parameter name="Flights"/>
        <dmn:literalExpression>
          <dmn:text>Flight List</dmn:text>
        </dmn:literalExpression>
      </dmn:binding>
    </dmn:invocation>
  </dmn:decision>
  <dmn:businessKnowledgeModel id="b_PassengerPriority" name="passenger priority">
    <dmn:encapsulatedLogic>
      <dmn:formalParameter name="Passenger1" typeRef="tPassenger"/>
      <dmn:formalParameter name="Passenger2" typeRef="tPassenger"/>
      <dmn:decisionTable hitPolicy="UNIQUE">
        <dmn:input id="b_Passenger_Priority_dt_i_P1_Status" label="Passenger1.Status">
          <dmn:inputExpression typeRef="feel:string">
            <dmn:text>Passenger1.Status</dmn:text>
          </dmn:inputExpression>
          <dmn:inputValues>
            <dmn:text>"gold", "silver", "bronze"</dmn:text>
          </dmn:inputValues>
        </dmn:input>
        <dmn:input id="b_Passenger_Priority_dt_i_P2_Status" label="Passenger2.Status">
          <dmn:inputExpression typeRef="feel:string">
            <dmn:text>Passenger2.Status</dmn:text>
          </dmn:inputExpression>
          <dmn:inputValues>
            <dmn:text>"gold", "silver", "bronze"</dmn:text>
          </dmn:inputValues>
        </dmn:input>
        <dmn:input id="b_Passenger_Priority_dt_i_P1_Miles" label="Passenger1.Miles">
          <dmn:inputExpression typeRef="feel:string">
            <dmn:text>Passenger1.Miles</dmn:text>
          </dmn:inputExpression>
        </dmn:input>
        <dmn:output id="b_Status_Priority_dt_o" label="Passenger1 has priority">
          <dmn:outputValues>
            <dmn:text>true, false</dmn:text>
          </dmn:outputValues>
          <dmn:defaultOutputEntry>
            <dmn:text>false</dmn:text>
          </dmn:defaultOutputEntry>
        </dmn:output>
        <dmn:rule id="b_Passenger_Priority_dt_r1">
          <dmn:inputEntry id="b_Passenger_Priority_dt_r1_i1">
            <dmn:text>"gold"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r1_i2">
            <dmn:text>"gold"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r1_i3">
            <dmn:text>>= Passenger2.Miles</dmn:text>
          </dmn:inputEntry>
          <dmn:outputEntry id="b_Passenger_Priority_dt_r1_o1">
            <dmn:text>true</dmn:text>
          </dmn:outputEntry>
        </dmn:rule>
        <dmn:rule id="b_Passenger_Priority_dt_r2">
          <dmn:inputEntry id="b_Passenger_Priority_dt_r2_i1">
            <dmn:text>"gold"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r2_i2">
            <dmn:text>"silver","bronze"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r2_i3">
            <dmn:text>-</dmn:text>
          </dmn:inputEntry>
          <dmn:outputEntry id="b_Passenger_Priority_dt_r2_o1">
            <dmn:text>true</dmn:text>
          </dmn:outputEntry>
        </dmn:rule>
        <dmn:rule id="b_Passenger_Priority_dt_r3">
          <dmn:inputEntry id="b_Passenger_Priority_dt_r3_i1">
            <dmn:text>"silver"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r3_i2">
            <dmn:text>"silver"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r3_i3">
            <dmn:text>>= Passenger2.Miles</dmn:text>
          </dmn:inputEntry>
          <dmn:outputEntry id="b_Passenger_Priority_dt_r3_o1">
            <dmn:text>true</dmn:text>
          </dmn:outputEntry>
        </dmn:rule>
        <dmn:rule id="b_Passenger_Priority_dt_r4">
          <dmn:inputEntry id="b_Passenger_Priority_dt_r4_i1">
            <dmn:text>"silver"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r4_i2">
            <dmn:text>"bronze"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r4_i3">
            <dmn:text>-</dmn:text>
          </dmn:inputEntry>
          <dmn:outputEntry id="b_Passenger_Priority_dt_r4_o1">
            <dmn:text>true</dmn:text>
          </dmn:outputEntry>
        </dmn:rule>
        <dmn:rule id="b_Passenger_Priority_dt_r5">
          <dmn:inputEntry id="b_Passenger_Priority_dt_r5_i1">
            <dmn:text>"bronze"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r5_i2">
            <dmn:text>"bronze"</dmn:text>
          </dmn:inputEntry>
          <dmn:inputEntry id="b_Passenger_Priority_dt_r5_i3">
            <dmn:text>>= Passenger2.Miles</dmn:text>
          </dmn:inputEntry>
          <dmn:outputEntry id="b_Passenger_Priority_dt_r5_o1">
            <dmn:text>true</dmn:text>
          </dmn:outputEntry>
        </dmn:rule>
      </dmn:decisionTable>
    </dmn:encapsulatedLogic>
    <dmn:variable name="passenger priority" typeRef="feel:boolean"/>
  </dmn:businessKnowledgeModel>
  <dmn:businessKnowledgeModel id="b_ReassignNextPassenger" name="reassign next passenger">
    <dmn:encapsulatedLogic>
      <dmn:formalParameter name="Waiting List" typeRef="tPassengerTable"/>
      <dmn:formalParameter name="Reassigned Passengers List" typeRef="tPassengerTable"/>
      <dmn:formalParameter name="Flights" typeRef="tFlightTable"/>
      <dmn:context>
        <dmn:contextEntry>
          <dmn:variable name="Next Passenger" typeRef="tPassenger"/>
          <dmn:literalExpression>
            <dmn:text>Waiting List[1]</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:variable name="Original Flight" typeRef="tFlight"/>
          <dmn:literalExpression>
            <dmn:text>Flights[ Flight Number = Next Passenger.Flight Number ][1]</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:variable name="Best Alternate Flight" typeRef="tFlight"/>
          <dmn:literalExpression>
            <dmn:text>Flights[ From = Original Flight.From and To = Original Flight.To and Departure > Original Flight.Departure and Status = "scheduled" and has capacity( item, Reassigned Passengers List ) ][1]</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:variable name="Reassigned Passenger" typeRef="tPassenger"/>
          <dmn:context>
            <dmn:contextEntry>
              <dmn:variable name="Name" typeRef="feel:string"/>
              <dmn:literalExpression>
                <dmn:text>Next Passenger.Name</dmn:text>
              </dmn:literalExpression>
            </dmn:contextEntry>
            <dmn:contextEntry>
              <dmn:variable name="Status" typeRef="feel:string"/>
              <dmn:literalExpression>
                <dmn:text>Next Passenger.Status</dmn:text>
              </dmn:literalExpression>
            </dmn:contextEntry>
            <dmn:contextEntry>
              <dmn:variable name="Miles" typeRef="feel:number"/>
              <dmn:literalExpression>
                <dmn:text>Next Passenger.Miles</dmn:text>
              </dmn:literalExpression>
            </dmn:contextEntry>
            <dmn:contextEntry>
              <dmn:variable name="Flight Number" typeRef="feel:string"/>
              <dmn:literalExpression>
                <dmn:text>Best Alternate Flight.Flight Number</dmn:text>
              </dmn:literalExpression>
            </dmn:contextEntry>
          </dmn:context>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:variable name="Remaining Waiting List" typeRef="tPassengerTable"/>
          <dmn:literalExpression>
            <dmn:text>remove( Waiting List, 1 )</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:variable name="Updated Reassigned Passengers List" typeRef="tPassengerTable"/>
          <dmn:literalExpression>
            <dmn:text>append( Reassigned Passengers List, Reassigned Passenger )</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
        <dmn:contextEntry>
          <dmn:literalExpression>
            <dmn:text>if count( Remaining Waiting List ) > 0 then reassign next passenger( Remaining Waiting List, Updated Reassigned Passengers List, Flights ) else Updated Reassigned Passengers List</dmn:text>
          </dmn:literalExpression>
        </dmn:contextEntry>
      </dmn:context>
    </dmn:encapsulatedLogic>
    <dmn:variable name="reassign next passenger" typeRef="tPassengerTable"/>
    <dmn:knowledgeRequirement>
      <dmn:requiredKnowledge href="#b_HasCapacity"/>
    </dmn:knowledgeRequirement>
  </dmn:businessKnowledgeModel>
  <dmn:businessKnowledgeModel id="b_HasCapacity" name="has capacity">
    <dmn:encapsulatedLogic>
      <dmn:formalParameter name="flight" typeRef="tFlight"/>
      <dmn:formalParameter name="rebooked list" typeRef="tPassengerTable"/>
      <dmn:literalExpression>
        <dmn:text>flight.Capacity > count( rebooked list[ Flight Number = flight.Flight Number ] )</dmn:text>
      </dmn:literalExpression>
    </dmn:encapsulatedLogic>
    <dmn:variable name="has capacity" typeRef="feel:boolean"/>
  </dmn:businessKnowledgeModel>
</dmn:definitions>

4.1.3. DMN support in Kogito

Kogito provides runtime support for DMN 1.1, 1.2, 1.3, and 1.4 models at conformance level 3 and design support for DMN 1.2 models at conformance level 3. You can design your DMN models with the Kogito DMN modeler in VSCode or import existing DMN models into your Kogito projects for deployment and execution. Any DMN 1.1 and 1.3 models (do not contain DMN 1.3 features) that you import, open in the DMN designer, and save are converted to DMN 1.2 models.

The following table summarizes the design and runtime support for each DMN version in Kogito:

Table 87. DMN support in Kogito

DMN version

DMN engine support

DMN modeler support

Execution

Open

Save

DMN 1.1

grn check

grn check

bk x

DMN 1.2

grn check

grn check

grn check

DMN 1.3

grn check

grn check

bk x

DMN 1.4

grn check

bk x

bk x

In addition to all DMN conformance level 3 requirements, Kogito also includes enhancements and fixes to FEEL and DMN model components to optimize the experience of implementing DMN decision services with Kogito. From a platform perspective, DMN models are like any other business asset in Kogito, such as DRL files or spreadsheet decision tables, that you can include in your Kogito project and execute to start your DMN decision services.

4.1.3.1. Configurable DMN validation in Kogito

By default, the Kogito CodeGen component uses the kogito.decisions.validation=ENABLED configuration to perform pre-compilation validation of DMN model assets and to perform DMN decision table static analysis.

When this configuration is enabled, Kogito performs the following DMN validations:

  • DMN model files are verified against the DMN specification XSD schema to ensure that the files are valid XML and compliant with the specification.

  • The pre-compilation analysis is performed for the DMN model to ensure that the basic semantic is aligned with the DMN specification.

  • DMN decision tables are statically analyzed for gaps or overlaps and to ensure that the semantic of the decision table follows best practices.

Any DMN validation error causes the Kogito CodeGen build to fail and errors are reported accordingly, as shown in the following example:

Image of DMN validation errors

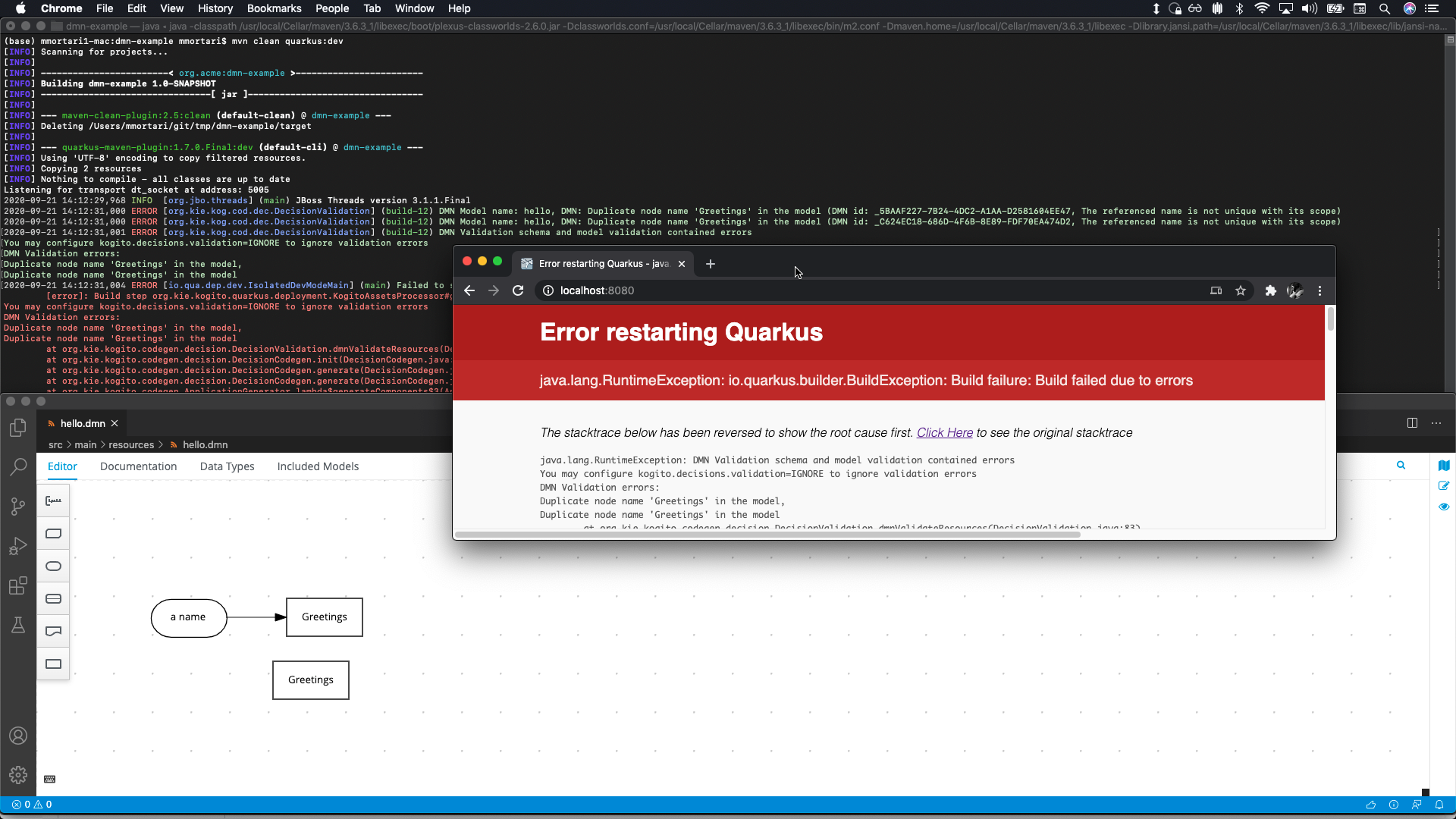

Figure 89. DMN validation errors

You can modify the default DMN validation and DMN decision table analysis behavior to ignore errors during the project build, or you can disable this default behavior completely, as shown in the following examples:

Default configuration for DMN validation and decision table analysis
kogito.decisions.validation=ENABLED
Configuration to validate DMN models and DMN decision tables but ignore errors
kogito.decisions.validation=IGNORE
Configuration to disable all DMN validation
kogito.decisions.validation=DISABLED
If you enter an unrecognized kogito.decisions.validation configuration flag, all pre-compilation validation features are disabled and the Kogito CodeGen emits related log messages.
4.1.3.2. FEEL enhancements in Kogito

Kogito includes the following enhancements and other changes to FEEL in the current DMN implementation:

  • Space Sensitivity: This DMN implementation of the FEEL language is space insensitive. The goal is to avoid non-deterministic behavior based on the context and differences in behavior based on invisible characters, such as white spaces. This means that for this implementation, a variable named first name with one space is exactly the same as first name with two spaces in it.

  • List functions or() and and() : The specification defines two list functions named or() and and(). However, according to the FEEL grammar, these are not valid function names, as and and or are reserved keywords. This implementation renames these functions to any() and all() respectively, in anticipation for DMN 1.2.

  • Keyword in cannot be used in variable names: The specification defines that any keyword can be reused as part of a variable name, but the ambiguities caused with the for …​ in …​ return loop prevent the reuse of the in keyword. All other keywords are supported as part of variable names.

  • Keywords are not supported in attributes of anonymous types: FEEL is not a strongly typed language and the parser must resolve ambiguity in name parts of an attribute of an anonymous type. The parser supports reusable keywords as part of a variable name defined in the scope, but the parser does not support keywords in attributes of an anonymous type. For example, for item in Order.items return Federal Tax for Item( item ) is a valid and supported FEEL expression, where a function named Federal Tax for Item(…​) can be defined and invoked correctly in the scope. However, the expression for i in [ {x and y : true, n : 1}, {x and y : false, n: 2} ] return i.x and y is not supported because anonymous types are defined in the iteration context of the for expression and the parser cannot resolve the ambiguity.

  • Support for date and time literals on ranges: According to the grammar rules #8, #18, #19, #34 and #62, date and time literals are supported in ranges (pages 110-111). Chapter 10.3.2.7 on page 114, on the other hand, contradicts the grammar and says they are not supported. This implementation chose to follow the grammar and support date and time literals on ranges, as well as extend the specification to support any arbitrary expression (see extensions below).

  • Invalid time syntax: Chapter 10.3.2.3.4 on page 112 and bullet point about time on page 131 both state that the time string lexical representation follows the XML Schema Datatypes specification as well as ISO 8601. According to the XML Schema specification (https://www.w3.org/TR/xmlschema-2/#time), the lexical representation of a time follows the pattern hh:mm:ss.sss without any leading character. The DMN specification uses a leading "T" in several examples, that we understand is a typo and not in accordance with the standard.

  • Support for scientific and hexadecimal notations: This implementation supports scientific and hexadecimal notation for numbers. For example, 1.2e5 (scientific notation), 0xD5 (hexadecimal notation).

  • Support for expressions as end points in ranges: This implementation supports expressions as endpoints for ranges. For example, [date("2016-11-24")..date("2016-11-27")]

  • Support for additional types: The specification only defines the following as basic types of the language:

    • number

    • string

    • boolean

    • days and time duration

    • years and month duration

    • time

    • date and time

      For completeness and orthogonality, this implementation also supports the following types:

    • context

    • list

    • range

    • function

    • unary test

  • Support for unary tests: For completeness and orthogonality, unary tests are supported as first class citizens in the language. They are functions with an implicit single parameter and can be invoked in the same way as functions. For example,

    UnaryTestAsFunction.feel
      {
      is minor : < 18,
      Bob is minor : is minor( bob.age )
  }

  • Support for additional built-in functions: The following additional functions are supported:

    • now() : Returns the current local date and time.

    • today() : Returns the current local date.

    • decision table() : Returns a decision table function, although the specification mentions a decision table. The function on page 114 is not implementable as defined.

    • string( mask, p…​ ) : Returns a string formatted as per the mask. See Java String.format() for details on the mask syntax. For example, string( "%4.2f", 7.1298 ) returns the string "7.12".

  • Support for additional date and time arithmetics: Subtracting two dates returns a day and time duration with the number of days between the two dates, ignoring daylight savings. For example,

    DateArithmetic.feel
    date( "2017-05-12" ) - date( "2017-04-25" ) = duration( "P17D" )
4.1.3.3. DMN model enhancements in Kogito

Kogito includes the following enhancements to DMN model support in the current DMN implementation:

  • Support for types with spaces on names: The DMN XML schema defines type refs such as QNames. The QNames do not allow spaces. Therefore, it is not possible to use types like FEEL date and time, days and time duration or years and months duration. This implementation does parse such typerefs as strings and allows type names with spaces. However, in order to comply with the XML schema, it also adds the following aliases to such types that can be used instead:

    • date and time = dateTime

    • days and time duration = duration or dayTimeDuration

    • years and months duration = duration or yearMonthDuration

      Note that, for the "duration" types, the user can simply use duration and the decision engine will infer the proper duration, either days and time duration or years and months duration.

  • Lists support heterogeneous element types: Currently this implementation supports lists with heterogeneous element types. This is an experimental extension and does limit the functionality of some functions and filters. This decision will be re-evaluated in the future.

  • TypeRef link between Decision Tables and Item Definitions: On decision tables/input clause, if no values list is defined, the decision engine automatically checks the type reference and applies the allowed values check if it is defined.

4.1.4. Creating and editing DMN models in the Kogito DMN modeler

You can use the Kogito DMN modeler in VSCode to design DMN decision requirements diagrams (DRDs) and define decision logic for a complete and functional DMN decision model. Kogito provides design support for DMN 1.2 models at conformance level 3, and includes enhancements and fixes to FEEL and DMN model components to optimize the experience of implementing DMN decision services with Kogito. Kogito also provides runtime support for DMN 1.1, 1.2, 1.3, and 1.4 models at conformance level 3. Any DMN 1.1 and 1.3 models (do not contain DMN 1.3 features) that you import, open in the DMN designer, and save are converted to DMN 1.2 models.

Prerequisites
Procedure

  1. In your VSCode IDE, create or import a DMN file in the relevant folder of your Kogito project, typically in src/main/resources.

    For a new DMN file, you can also enter dmn.new in a web browser to design your decision model in the Kogito online DMN modeler. When you finish creating your decision model, you can click Download in the online modeler page to import your DMN file into your Kogito project.

  2. Open the new or imported DMN file to view the decision requirements diagram (DRD) in the Kogito DMN modeler.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  3. Begin adding components to your new or imported DRD by clicking and dragging one of the DMN nodes from the left toolbar:

    dmn drag decision node

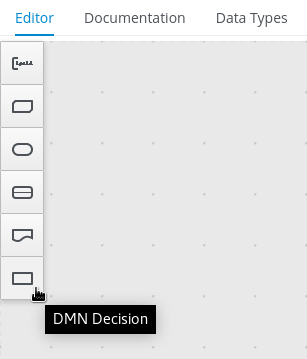

    Figure 90. Adding DRD components

    The following DRD components are available:

    • Decision: Use this node for a DMN decision, where one or more input elements determine an output based on defined decision logic.

    • Business knowledge model: Use this node for reusable functions with one or more decision elements. Decisions that have the same logic but depend on different sub-input data or sub-decisions use business knowledge models to determine which procedure to follow.

    • Knowledge source: Use this node for external authorities, documents, committees, or policies that regulate a decision or business knowledge model. Knowledge sources are references to real-world factors rather than executable business rules.

    • Input data: Use this node for information used in a decision node or a business knowledge model. Input data usually includes business-level concepts or objects relevant to the business, such as loan applicant data used in a lending strategy.

    • Text annotation: Use this node for explanatory notes associated with an input data node, decision node, business knowledge model, or knowledge source.

    • Decision service: Use this node to enclose a set of reusable decisions implemented as a decision service for invocation. A decision service can be used in other DMN models and can be invoked from an external application or a BPMN business process.

  4. In the DMN modeler canvas, double-click the new DRD node to enter an informative node name.

  5. If the node is a decision or business knowledge model, select the node to display the node options and click the Edit icon to open the DMN boxed expression editor to define the decision logic for the node:

    dmn decision edit
    Figure 91. Opening a new decision node boxed expression
    dmn bkm edit

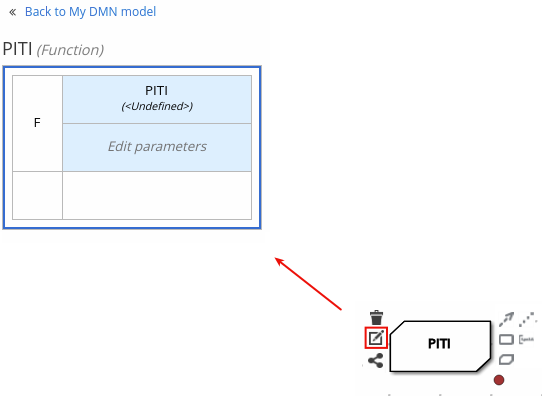

    Figure 92. Opening a new business knowledge model boxed expression

    By default, all business knowledge models are defined as boxed function expressions containing a literal FEEL expression, a nested context expression of an external JAVA or PMML function, or a nested boxed expression of any type.

    For decision nodes, you click the undefined table to select the type of boxed expression you want to use, such as a boxed literal expression, boxed context expression, decision table, or other DMN boxed expression.

    dmn decision boxed expression options

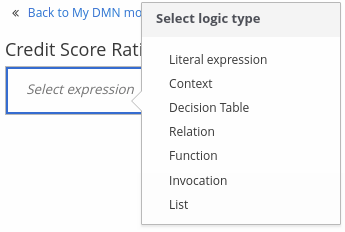

    Figure 93. Selecting the logic type for a decision node

    For business knowledge models, you click the upper-left function cell to select the function type, or right-click the function value cell, select Clear, and select a boxed expression of another type.

    dmn bkm define

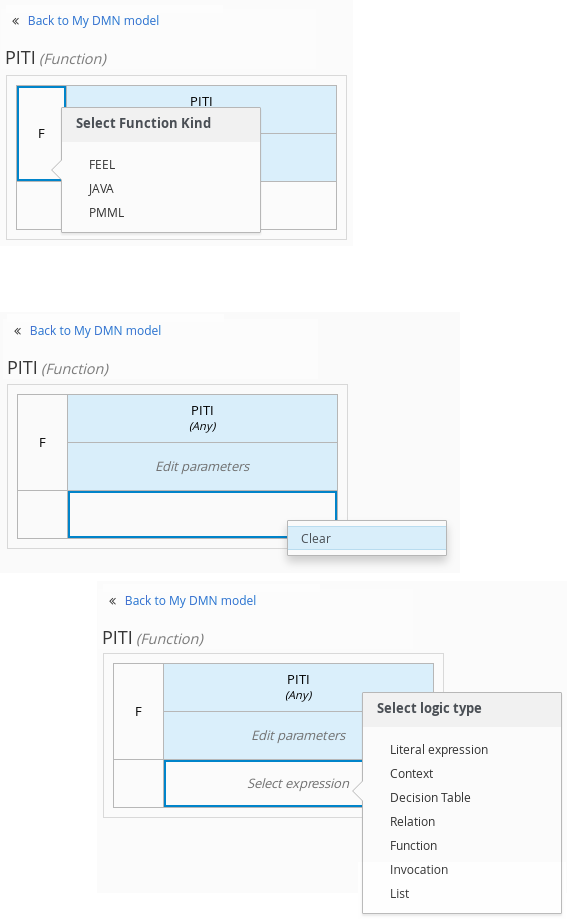

    Figure 94. Selecting the function or other logic type for a business knowledge model

  6. In the selected boxed expression editor for either a decision node (any expression type) or business knowledge model (function expression), click the applicable table cells to define the table name, variable data types, variable names and values, function parameters and bindings, or FEEL expressions to include in the decision logic.

    You can right-click cells for additional actions where applicable, such as inserting or removing table rows and columns or clearing table contents.

    The following is an example decision table for a decision node that determines credit score ratings based on a defined range of a loan applicant’s credit score:

    dmn decision table example1a

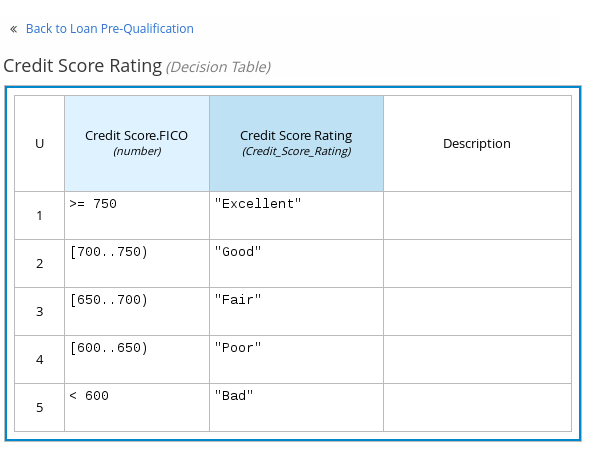

    Figure 95. Decision node decision table for credit score rating

    The following is an example boxed function expression for a business knowledge model that calculates mortgage payments based on principal, interest, taxes, and insurance (PITI) as a literal expression:

    dmn function expression example4

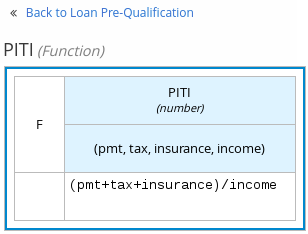

    Figure 96. Business knowledge model function for PITI calculation

  7. After you define the decision logic for the selected node, click Back to MODEL_NAME to return to the DRD view.

  8. For the selected DRD node, use the available connection options to create and connect to the next node in the DRD, or click and drag a new node onto the DRD canvas from the left toolbar.

    The node type determines which connection options are supported. For example, an Input data node can connect to a decision node, knowledge source, or text annotation using the applicable connection type, whereas a Knowledge source node can connect to any DRD element. A Decision node can connect only to another decision or a text annotation.

    The following connection types are available, depending on the node type:

    • Information requirement: Use this connection from an input data node or decision node to another decision node that requires the information.

    • Knowledge requirement: Use this connection from a business knowledge model to a decision node or to another business knowledge model that invokes the decision logic.

    • Authority requirement: Use this connection from an input data node or a decision node to a dependent knowledge source or from a knowledge source to a decision node, business knowledge model, or another knowledge source.

    • Association: Use this connection from an input data node, decision node, business knowledge model, or knowledge source to a text annotation.

    dmn input connection example
    Figure 97. Connecting credit score input to the credit score rating decision
    dmn input connection example2

  9. Continue adding and defining the remaining DRD components of your decision model and save the completed DRD.

    The following is an example DRD for a loan prequalification decision model:

    dmn example drd
    Figure 98. Completed DRD for loan prequalification

    The following is an example DRD for a phone call handling decision model using a reusable decision service:

    dmn example drd3
    Figure 99. Completed DRD for phone call handling with a decision service

    In a DMN decision service node, the decision nodes in the bottom segment incorporate input data from outside of the decision service to arrive at a final decision in the top segment of the decision service node. The resulting top-level decisions from the decision service are then implemented in any subsequent decisions or business knowledge requirements of the DMN model. You can reuse DMN decision services in other DMN models to apply the same decision logic with different input data and different outgoing connections.

4.1.4.1. Defining DMN decision logic in boxed expressions in the Kogito DMN modeler

Boxed expressions in DMN are tables that you use to define the underlying logic of decision nodes and business knowledge models in a decision requirements diagram (DRD). Some boxed expressions can contain other boxed expressions, but the top-level boxed expression corresponds to the decision logic of a single DRD artifact. While DRDs represent the flow of a DMN decision model, boxed expressions define the actual decision logic of individual nodes. DRDs and boxed expressions together form a complete and functional DMN decision model.

You can use the Kogito DMN modeler in VSCode to define decision logic for your DRD components using built-in boxed expressions.

Prerequisites

  • A DMN file is created or imported in your Kogito project in VSCode.

Procedure

  1. In your VSCode IDE, open the DMN file to view the decision requirements diagram (DRD) in the Kogito DMN modeler.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  2. In the DMN modeler canvas, select a decision node or business knowledge model node that you want to define and click the Edit icon to open the DMN boxed expression editor:

    dmn decision edit
    Figure 100. Opening a new decision node boxed expression
    dmn bkm edit
    Figure 101. Opening a new business knowledge model boxed expression

    By default, all business knowledge models are defined as boxed function expressions containing a literal FEEL expression, a nested context expression of an external JAVA or PMML function, or a nested boxed expression of any type.

    For decision nodes, you click the undefined table to select the type of boxed expression you want to use, such as a boxed literal expression, boxed context expression, decision table, or other DMN boxed expression.

    dmn decision boxed expression options
    Figure 102. Selecting the logic type for a decision node

    For business knowledge model nodes, you click the upper-left function cell to select the function type, or right-click the function value cell, select Clear, and select a boxed expression of another type.

    dmn bkm define
    Figure 103. Selecting the function or other logic type for a business knowledge model

  3. For this example, use a decision node and select Decision Table as the boxed expression type.

    A decision table in DMN is a visual representation of one or more rules in a tabular format. Each rule consists of a single row in the table, and includes columns that define the conditions (input) and outcome (output) for that particular row.

  4. Click the input column header to define the name and data type for the input condition. For example, name the input column Credit Score.FICO with a number data type. This column specifies numeric credit score values or ranges of loan applicants.

  5. Click the output column header to define the name and data type for the output values. For example, name the output column Credit Score Rating and next to the Data Type option, click Manage to go to the Data Types page where you can create a custom data type with score ratings as constraints.

    dmn manage data types

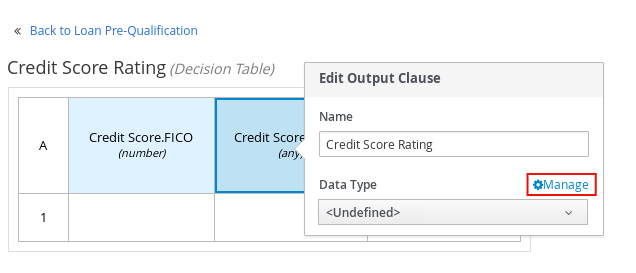

    Figure 104. Managing data types for a column header value

  6. On the Data Types page, click New Data Type to add a new data type.

    For this example, click New Data Type and create a Credit_Score_Rating data type as a string:

    dmn custom data type add

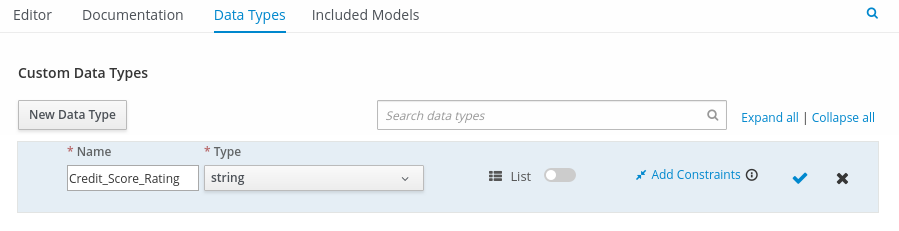

    Figure 105. Adding a new data type

  7. Click Add Constraints, select Enumeration from the drop-down options, and add the following constraints:

    • "Excellent"

    • "Good"

    • "Fair"

    • "Poor"

    • "Bad"

    dmn custom data type constraints
    Figure 106. Adding constraints to the new data type

    To change the order of data type constraints, you can click the left end of the constraint row and drag the row as needed:

    dmn custom data type constraints drag

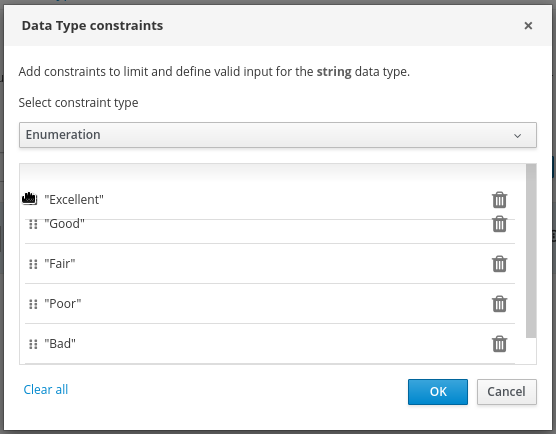

    Figure 107. Dragging constraints to change constraint order

    For information about constraint types and syntax requirements for the specified data type, see the Decision Model and Notation specification.

  8. Click OK to save the constraints and click the check mark to the right of the data type to save the data type.

  9. Return to the Credit Score Rating decision table, click the Credit Score Rating column header, and set the data type to this new custom data type.

  10. Use the Credit Score.FICO input column to define credit score values or ranges of values, and use the Credit Score Rating column to specify one of the corresponding ratings you defined in the Credit_Score_Rating data type.

    Right-click any value cell to insert or delete rows (rules) or columns (clauses).

    dmn decision table example1a
    Figure 108. Decision node decision table for credit score rating

  11. After you define all rules, click the upper-left corner of the decision table to define the rule Hit Policy and Builtin Aggregator (for COLLECT hit policy only).

    The hit policy determines how to reach an outcome when multiple rules in a decision table match the provided input values. The built-in aggregator determines how to aggregate rule values when you use the COLLECT hit policy.

    dmn hit policies

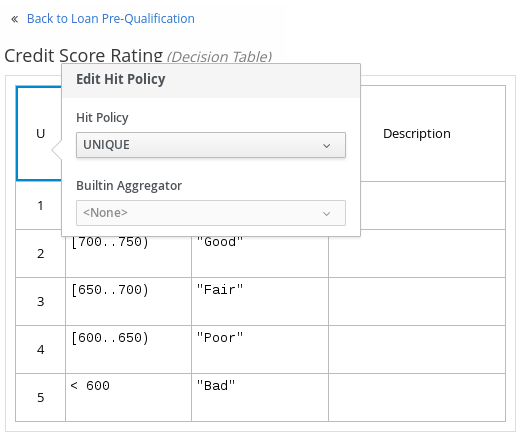

    Figure 109. Defining the decision table hit policy

    The following example is a more complex decision table that determines applicant qualification for a loan as the concluding decision node in the same loan prequalification decision model:

    dmn decision table example3
    Figure 110. Decision table for loan prequalification

For boxed expression types other than decision tables, you follow these guidelines similarly to navigate the boxed expression tables and define variables and parameters for decision logic, but according to the requirements of the boxed expression type. Some boxed expressions, such as boxed literal expressions, can be single-column tables, while other boxed expressions, such as function, context, and invocation expressions, can be multi-column tables with nested boxed expressions of other types.

For example, the following boxed context expression defines the parameters that determine whether a loan applicant can meet minimum mortgage payments based on principal, interest, taxes, and insurance (PITI), represented as a front-end ratio calculation with a sub-context expression:

dmn context expression example2
Figure 111. Boxed context expression for front-end client PITI ratio

The following boxed function expression determines a monthly mortgage installment as a business knowledge model in a lending decision, with the function value defined as a nested context expression:

dmn function expression example3
Figure 112. Boxed function expression for installment calculation in business knowledge model

For more information and examples of each boxed expression type, see DMN decision logic in boxed expressions.

4.1.4.2. Creating custom data types for DMN boxed expressions in the Kogito DMN modeler

In DMN boxed expressions in the Kogito DMN modeler, data types determine the structure of the data that you use within an associated table, column, or field in the boxed expression. You can use default DMN data types (such as String, Number, Boolean) or you can create custom data types to specify additional fields and constraints that you want to implement for the boxed expression values.

Custom data types that you create for a boxed expression can be simple or structured:

  • Simple data types have only a name and a type assignment. Example: Age (number).

  • Structured data types contain multiple fields associated with a parent data type. Example: A single type Person containing the fields Name (string), Age (number), Email (string).

Prerequisites

  • A DMN file is created or imported in your Kogito project in VSCode.

Procedure

  1. In your VSCode IDE, open the DMN file to view the decision requirements diagram (DRD) in the Kogito DMN modeler.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  2. In the DMN modeler canvas, select a decision node or business knowledge model for which you want to define the data types and click the Edit icon to open the DMN boxed expression editor.

  3. If the boxed expression is for a decision node that is not yet defined, click the undefined table to select the type of boxed expression you want to use, such as a boxed literal expression, boxed context expression, decision table, or other DMN boxed expression.

    dmn decision boxed expression options
    Figure 113. Selecting the logic type for a decision node

  4. Click the cell for the table header, column header, or parameter field (depending on the boxed expression type) for which you want to define the data type and click Manage to go to the Data Types page where you can create a custom data type.

    dmn manage data types
    Figure 114. Managing data types for a column header value

    You can also set and manage custom data types for a specified decision node or business knowledge model node by selecting the Properties icon in the upper-right corner of the DMN modeler:

    dmn manage data types1a
    Figure 115. Managing data types in decision requirements diagram (DRD) properties

    The data type that you define for a specified cell in a boxed expression determines the structure of the data that you use within that associated table, column, or field in the boxed expression.

    In this example, an output column Credit Score Rating for a DMN decision table defines a set of custom credit score ratings based on an applicant’s credit score.

  5. On the Data Types page, click New Data Type to add a new data type.

    For this example, click New Data Type and create a Credit_Score_Rating data type as a string:

    dmn custom data type add
    Figure 116. Adding a new data type

    If the data type requires a list of items, enable the List setting.

  6. Click Add Constraints, select Enumeration from the drop-down options, and add the following constraints:

    • "Excellent"

    • "Good"

    • "Fair"

    • "Poor"

    • "Bad"

    dmn custom data type constraints
    Figure 117. Adding constraints to the new data type

    To change the order of data type constraints, you can click the left end of the constraint row and drag the row as needed:

    dmn custom data type constraints drag
    Figure 118. Dragging constraints to change constraint order

    For information about constraint types and syntax requirements for the specified data type, see the Decision Model and Notation specification.

  7. Click OK to save the constraints and click the check mark to the right of the data type to save the data type.

  8. Return to the Credit Score Rating decision table, click the Credit Score Rating column header, set the data type to this new custom data type, and define the rule values for that column with the rating constraints that you specified.

    dmn decision table example1a
    Figure 119. Decision table for credit score rating

    In the DMN decision model for this scenario, the Credit Score Rating decision flows into the following Loan Prequalification decision that also requires custom data types:

    dmn manage data types blank
    Figure 120. Decision table for loan prequalification

  9. Continuing with this example, return to the Data Types window, click New Data Type, and create a Loan_Qualification data type as a Structure with no constraints.

    When you save the new structured data type, the first sub-field appears so that you can begin defining nested data fields in this parent data type. You can use these sub-fields in association with the parent structured data type in boxed expressions, such as nested column headers in decision tables or nested table parameters in context or function expressions.

    For additional sub-fields, select the addition icon next to the Loan_Qualification data type:

    dmn manage data types structured

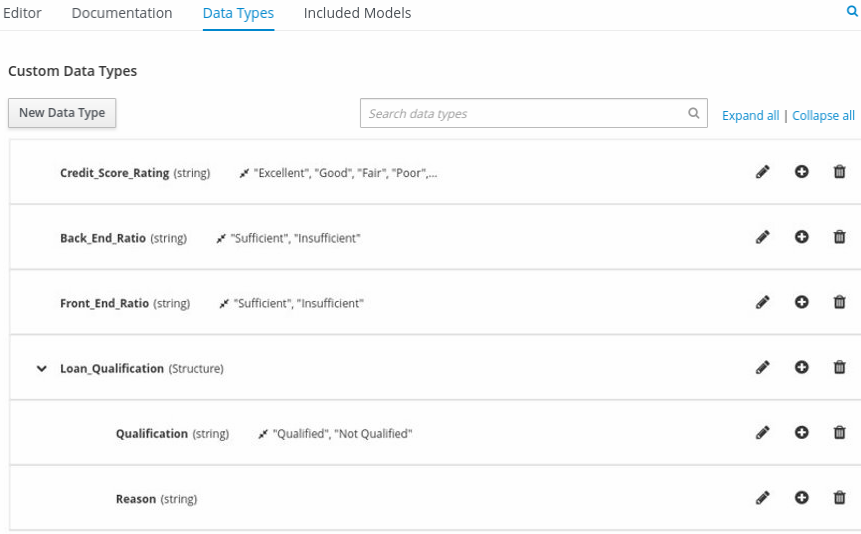

    Figure 121. Adding a new structured data type with nested fields

  10. For this example, under the structured Loan_Qualification data type, add a Qualification field with "Qualified" and "Not Qualified" enumeration constraints, and a Reason field with no constraints. Add also a simple Back_End_Ratio and a Front_End_Ratio data type, both with "Sufficient" and "Insufficient" enumeration constraints.

    Click the check mark to the right of each data type that you create to save your changes.

    dmn manage data types structured2
    Figure 122. Adding nested data types with constraints

    To change the order or nesting of data types, you can click the left end of the data type row and drag the row as needed:

    dmn manage data types structured2 drag

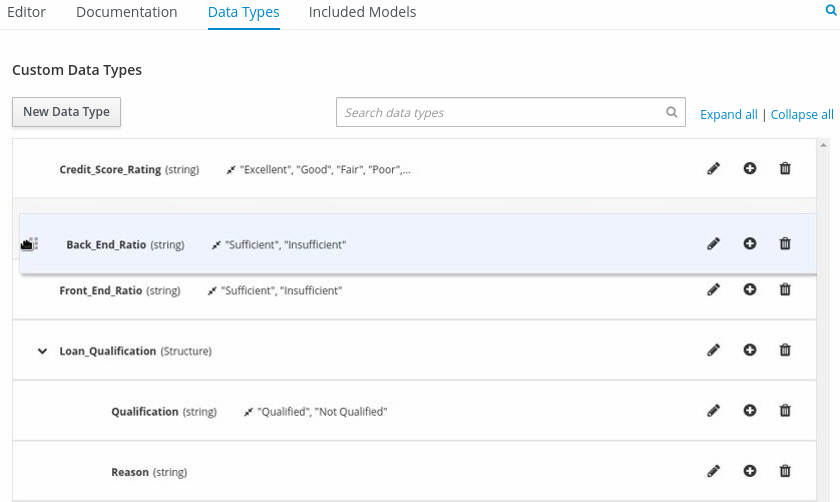

    Figure 123. Dragging data types to change data type order or nesting

  11. Return to the decision table and, for each column, click the column header cell, set the data type to the new corresponding custom data type, and define the rule values as needed for the column with the constraints that you specified, if applicable.

    dmn decision table example3

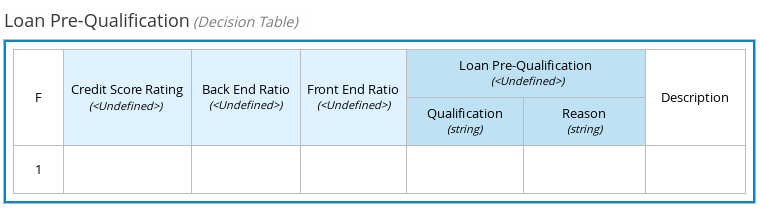

    Figure 124. Decision table for loan prequalification

For boxed expression types other than decision tables, you follow these guidelines similarly to navigate the boxed expression tables and define custom data types as needed.

For example, the following boxed function expression uses custom tCandidate and tProfile structured data types to associate data for online dating compatibility:

dmn manage data types structured3

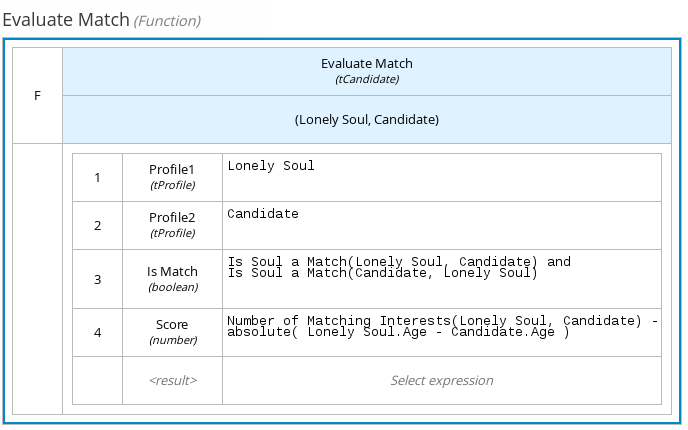

Figure 125. Boxed function expression for online dating compatibility
dmn manage data types structured3a
Figure 126. Custom data type definitions for online dating compatibility
dmn manage data types structured3b

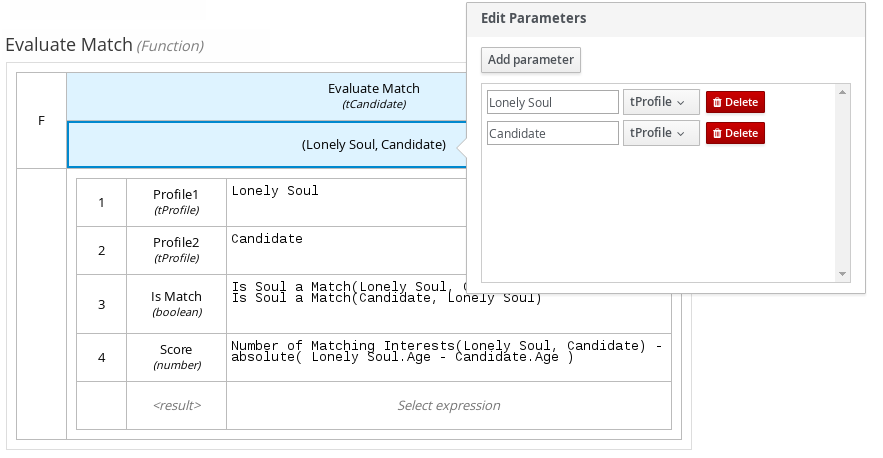

Figure 127. Parameter definitions with custom data types for online dating compatibility
4.1.4.3. Included models in DMN files in the Kogito VSCode DMN modeler

In the Kogito DMN modeler in VSCode, you can use the Included Models tab to include other DMN models and Predictive Model Markup Language (PMML) models from your project in a specified DMN file. When you include a DMN model within another DMN file, you can use all of the nodes and logic from both models in the same decision requirements diagram (DRD). When you include a PMML model within a DMN file, you can invoke that PMML model as a boxed function expression for a DMN decision node or business knowledge model node.

You cannot include DMN or PMML models from different directories within your Kogito project or from other Kogito projects.

Included models are supported in the Kogito DMN modeler in VSCode only. In other Kogito modeling tools, such as the Business Modeler desktop application or Business Modeler online viewer, the Kogito DMN modeler does not support DMN or PMML included models.
Including other DMN models within a DMN file in the Kogito VSCode DMN modeler

In the Kogito DMN modeler in VSCode, you can include other DMN models from the same directory of your Kogito project in a specified DMN file. When you include a DMN model within another DMN file, you can use all of the nodes and logic from both models in the same decision requirements diagram (DRD), but you cannot edit the nodes from the included model. To edit nodes from included models, you must update the source file for the included model directly. If you update the source file for an included DMN model, open the DMN file where the DMN model is included (or close and re-open) to verify the changes.

You cannot include DMN models from different directories within your Kogito project or from other Kogito projects.

Prerequisites

  • The DMN models are created or imported (as .dmn files) in the same directory of your Kogito project as the DMN file in which you want to include the models, such as in src/main/resources.

Procedure

  1. In your VSCode IDE, open the DMN file to view the decision requirements diagram (DRD) in the Kogito DMN modeler.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  2. In the DMN modeler, click the Included Models tab.

  3. Click Include Model, select a DMN model from your directory in the Models list, enter a unique name for the included model, and click Include:

    dmn include model

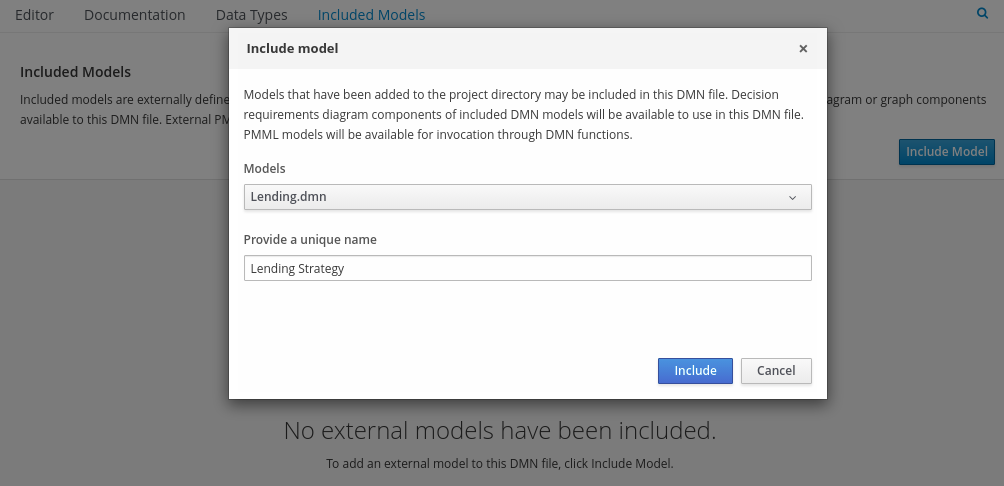

    Figure 128. Including a DMN model

    The DMN model is added to this DMN file, and all DRD nodes from the included model are listed under Decision Components in the Decision Navigator view:

    dmn include model list

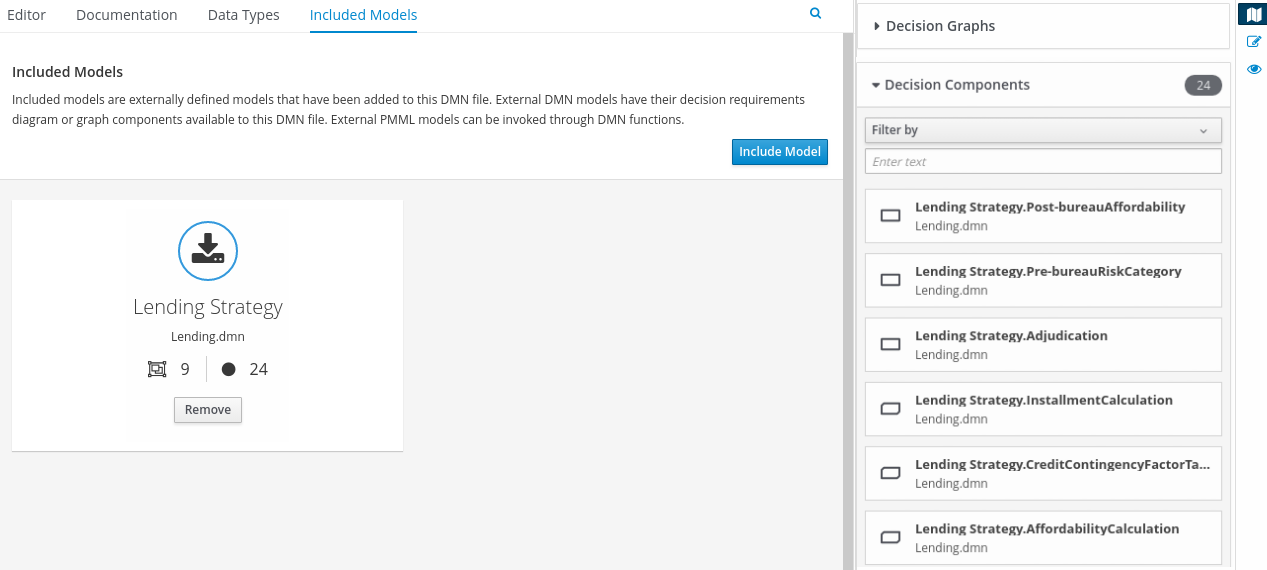

    Figure 129. DMN file with decision components from the included DMN model

    All data types from the included model are also listed in read-only mode in the Data Types tab for the DMN file:

    dmn include model data types
    Figure 130. DMN file with data types from the included DMN model

  4. In the Editor tab of the DMN modeler, click and drag the included DRD components onto the canvas to begin implementing them in your DRD:

    dmn include model drd

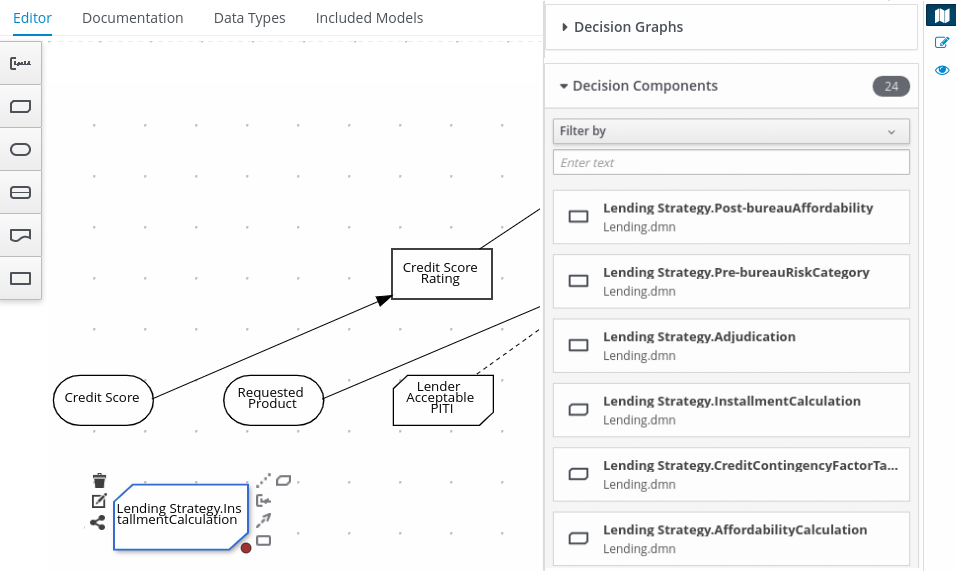

    Figure 131. Adding DRD components from the included DMN model

    To edit DRD nodes or data types from included models, you must update the source file for the included model directly. If you update the source file for an included DMN model, open the DMN file where the DMN model is included (or close and re-open) to verify the changes.

    To edit the included model name or to remove the included model from the DMN file, use the Included Models tab in the DMN modeler.

    When you remove an included model, any nodes from that included model that are currently used in the DRD are also removed.
Including PMML models within a DMN file in the Kogito VSCode DMN modeler

In the Kogito DMN modeler in VSCode, you can include Predictive Model Markup Language (PMML) models from your project in a specified DMN file. When you include a PMML model within a DMN file, you can invoke that PMML model as a boxed function expression for a DMN decision node or business knowledge model node. If you update the source file for an included PMML model, you must remove and re-include the PMML model in the DMN file to apply the source changes.

You cannot include PMML models from different directories within your Kogito project or from other Kogito projects.

Prerequisites

  • The PMML models are created or imported (as .pmml files) in the same directory of your Kogito project as the DMN file in which you want to include the models, such as in src/main/resources.

Procedure

  1. In your VSCode IDE, open the DMN file to view the decision requirements diagram (DRD) in the Kogito DMN modeler.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  2. In the DMN modeler, click the Included Models tab.

  3. Click Include Model, select a PMML model from your directory in the Models list, enter a unique name for the included model, and click Include:

    dmn include model pmml

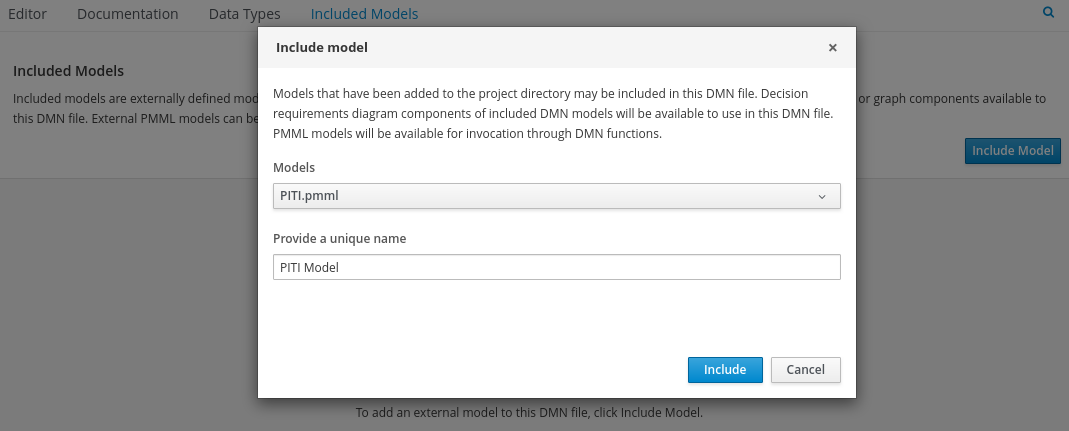

    Figure 132. Including a PMML model

    The PMML model is added to this DMN file:

    dmn include model list pmml

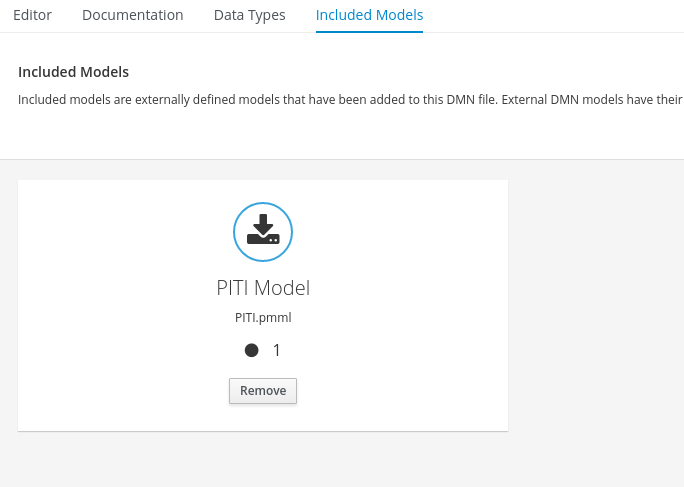

    Figure 133. DMN file with included PMML model

  4. In the Editor tab of the DMN modeler, select or create the decision node or business knowledge model node in which you want to invoke the PMML model and click the Edit icon to open the DMN boxed expression editor:

    dmn decision edit
    Figure 134. Opening a new decision node boxed expression
    dmn bkm edit
    Figure 135. Opening a new business knowledge model boxed expression

  5. Set the expression type to Function (default for business knowledge model nodes), click the upper-left function cell, and select PMML.

  6. In the document and model rows in the table, double-click the undefined cells to specify the included PMML document and the relevant PMML model within that document:

    dmn include model expression pmml
    Figure 136. Adding a PMML model in a DMN business knowledge model
    dmn function expression example5

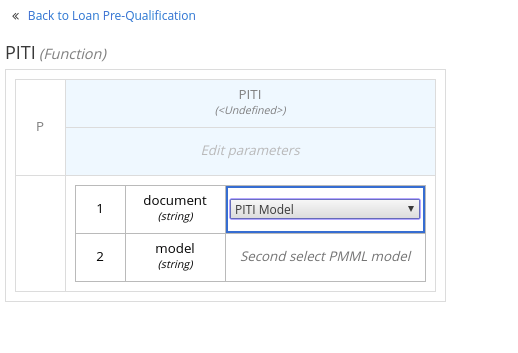

    Figure 137. Example PMML definition in a DMN business knowledge model

    If you update the source file for an included PMML model, you must remove and re-include the PMML model in the DMN file to apply the source changes.

    To edit the included model name or to remove the included model from the DMN file, use the Included Models tab in the DMN modeler.

4.1.4.4. Creating DMN models with multiple diagrams in the Kogito DMN modeler

For complex DMN models, you can use the Kogito DMN modeler in VSCode to design multiple DMN decision requirements diagrams (DRDs) that represent parts of the overall decision requirements graph (DRG) for the DMN decision model. In simple cases, you can use a single DRD to represent all of the overall DRG for the decision model, but in complex cases, a single DRD can become large and difficult to follow. Therefore, to better organize DMN decision models with many decision requirements, you can divide the model into smaller nested DRDs that constitute the larger central DRD representation of the overall DRG.

Prerequisites
Procedure

  1. In your VSCode IDE, create or import a DMN file in the relevant folder of your Kogito project, typically in src/main/resources.

    For a new DMN file, you can also enter dmn.new in a web browser to design your decision model in the Kogito online DMN modeler. When you finish creating your decision model, you can click Download in the online modeler page to import your DMN file into your Kogito project.

  2. Open the new or imported DMN file to view the DRD in the Kogito DMN modeler, and begin designing or modifying the DRD using the DMN nodes in the left toolbar.

    If the DRD does not open in the Kogito DMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito DMN modeler opens only the XML source of the DMN file and displays an error message, review the reported errors and the DMN model file to ensure that all DMN elements are correctly defined.

  3. For any DMN nodes that you want to define in a separate nested DRD, select the node, click the DRD Actions icon, and select from the available options.

    dmn drd actions
    Figure 138. DRD actions icon for subdividing a DRD

    The following options are available:

    • Create: Use this option to create a nested DRD where you can separately define the DMN components and diagram for the selected node.

    • Add to: If you already created a nested DRD, use this option to add the selected node to an existing DRD.

    • Remove: If the node that you selected is already within a nested DRD, use this option to remove the node from that nested DRD.

    After you create a nested DRD within your DMN decision model, the new DRD opens in a separate DRD canvas and the available DRD and components are listed in the Decision Navigator right menu. You can use the Decision Navigator menu to rename or remove a nested DRD.

    dmn drd actions rename

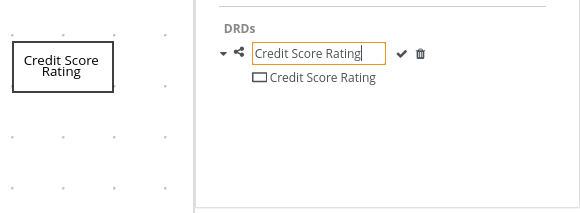

    Figure 139. Rename new nested DRD in the Decision Navigator menu

  4. In the separate canvas for the new nested DRD, design the flow and logic for all required components in this portion of the DMN model, as usual.

  5. Continue adding and defining any other nested DRDs for your decision model and save the completed DMN file.

    For example, the following DRD for a loan prequalification decision model contains all DMN components for the model without any nested DRDs. This example relies on the single DRD for all components and logic, resulting in a large and complex diagram.

    dmn example drd
    Figure 140. Single DRD for loan prequalification

    Alternatively, by following the steps in this procedure, you can divide this example DRD into multiple nested DRDs to better organize the decision requirements, as shown in the following example:

    dmn drd multiple

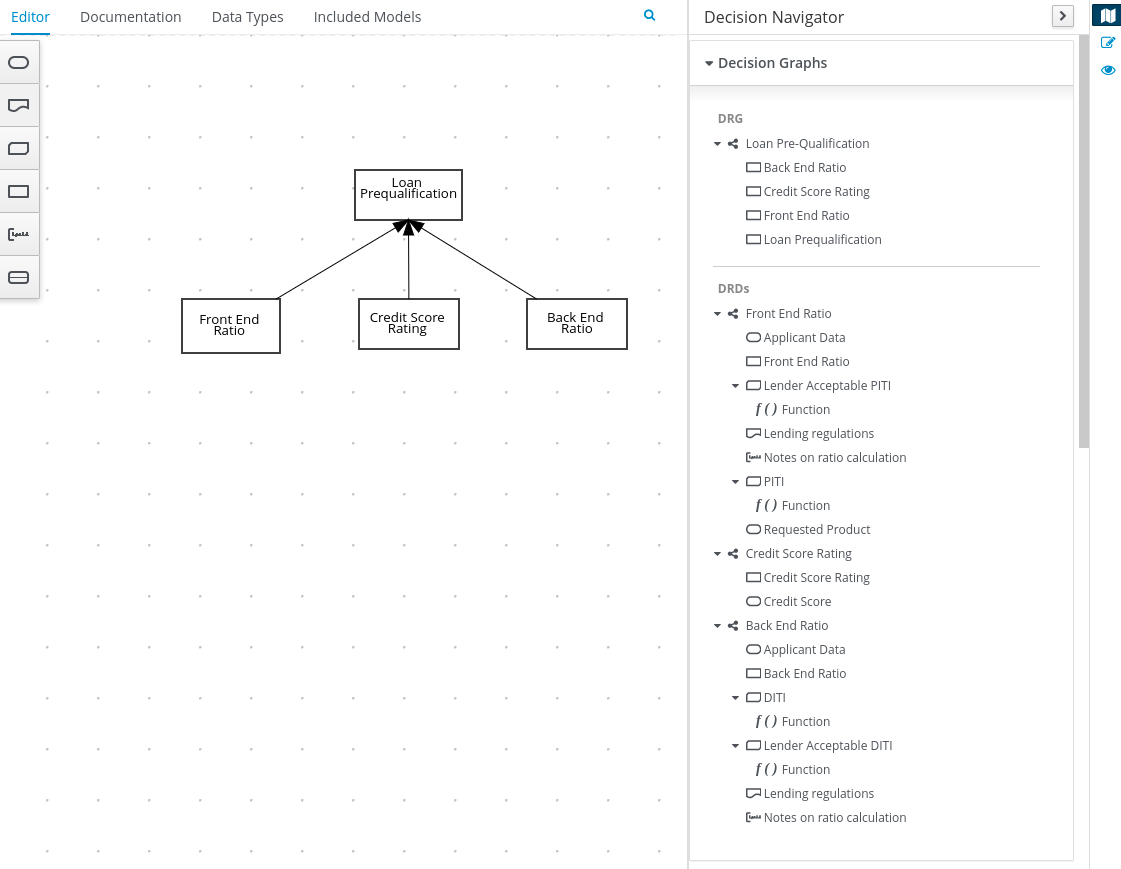

    Figure 141. Multiple nested DRDs for loan prequalification
    dmn drd multiple front end

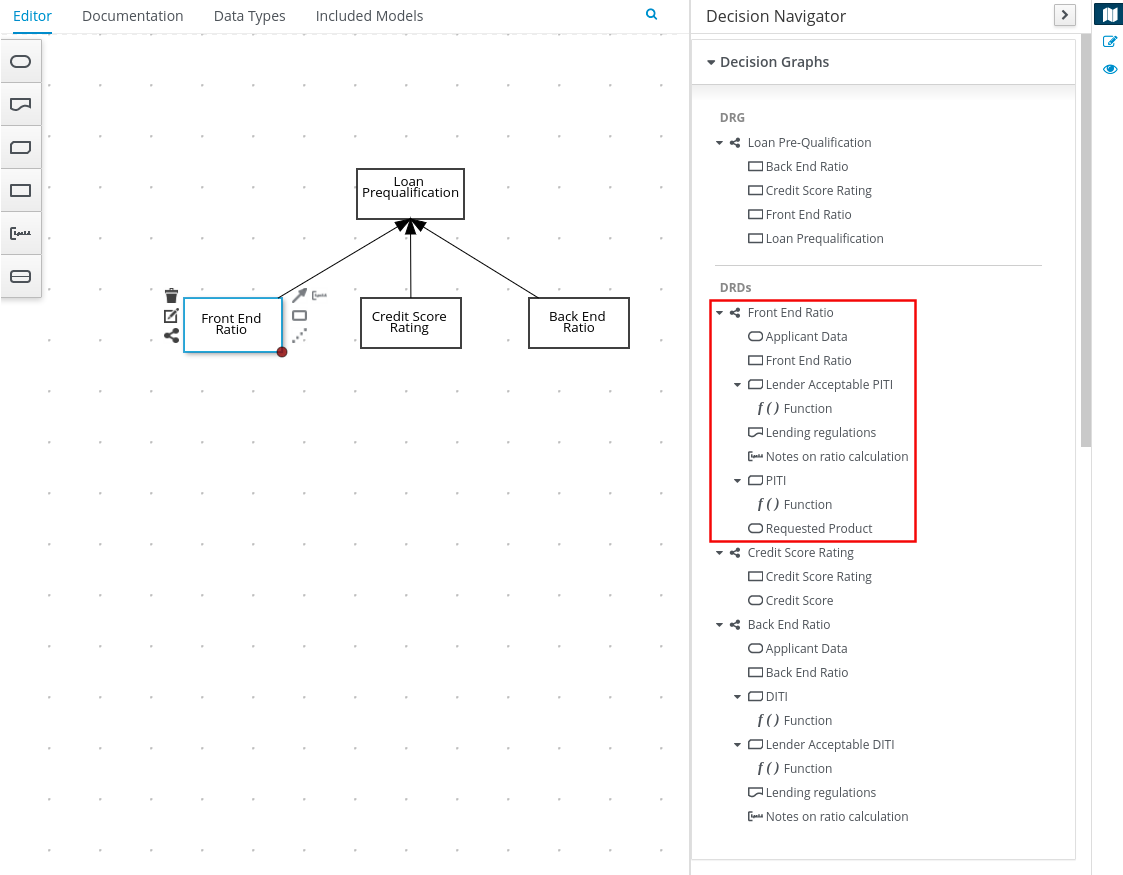

    Figure 142. Overview of front end ratio DRD
    dmn drd multiple front end details

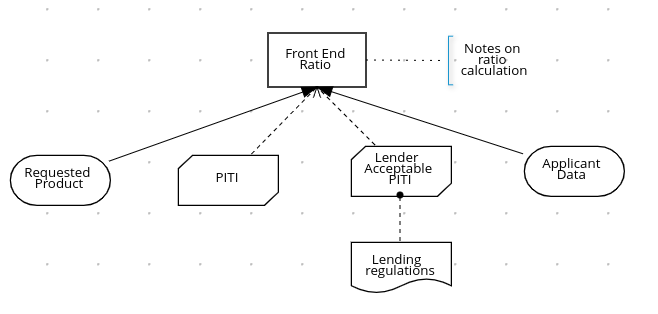

    Figure 143. DRD for front end ratio
    dmn drd multiple credit score
    Figure 144. Overview of credit score rating DRD
    dmn drd multiple credit score details

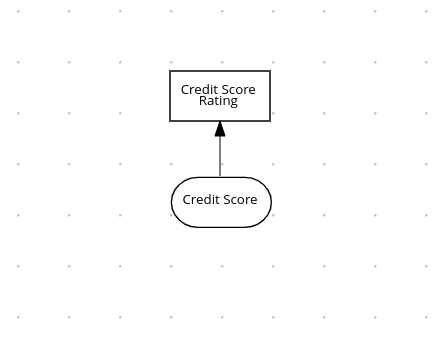

    Figure 145. DRD for credit score rating
    dmn drd multiple back end
    Figure 146. Overview of back end ratio DRD
    dmn drd multiple back end details

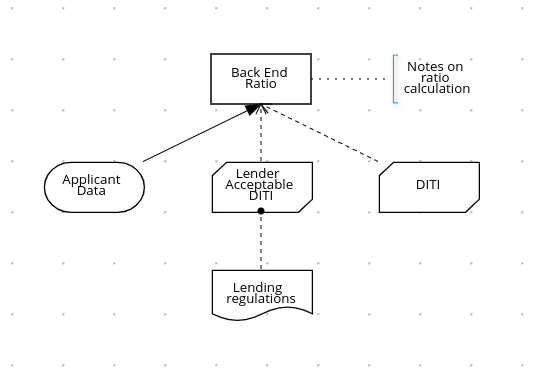

    Figure 147. DRD for back end ratio
4.1.4.5. DMN model documentation in the Kogito DMN modeler

In the Kogito DMN modeler, you can use the Documentation tab to generate a report of your DMN model. The DMN model report contains all decision requirements diagrams (DRDs), data types, and boxed expressions in your DMN model. You can use this report to share your DMN model details or as part of your internal reporting workflow.

dmn documentation

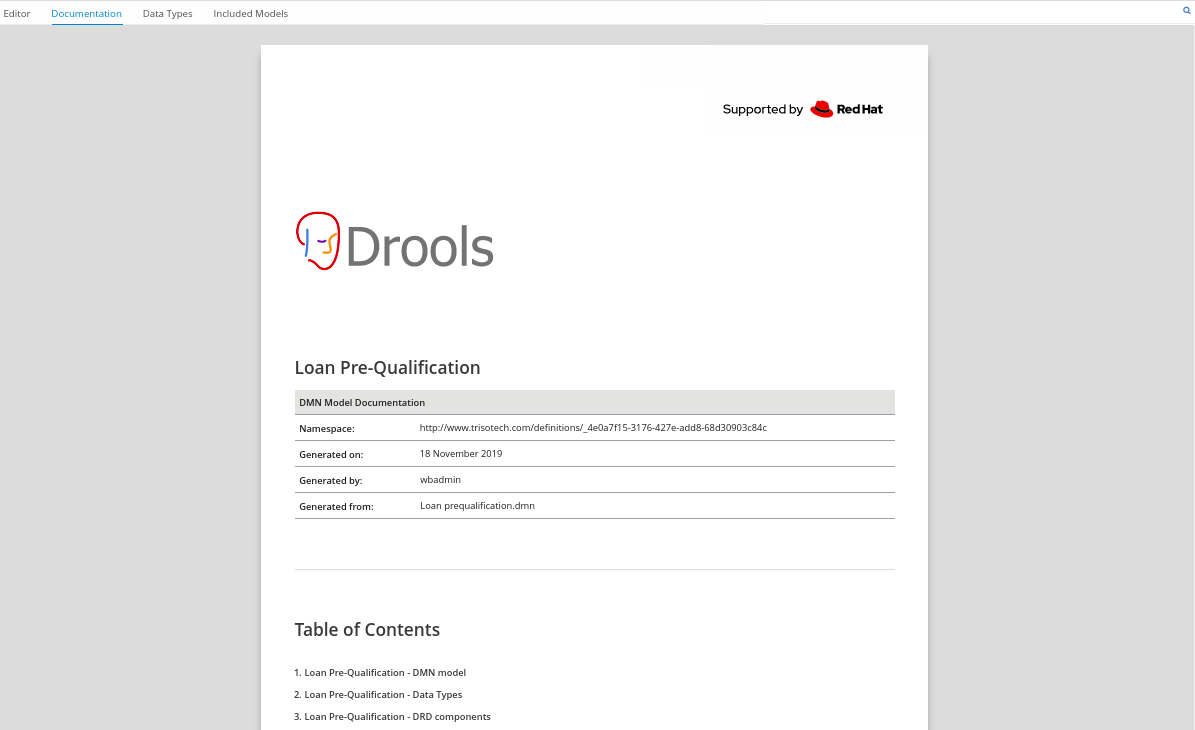

Figure 148. Example DMN model report
4.1.4.6. Kogito DMN modeler navigation and properties

The Kogito DMN modeler provides the following additional features to help you navigate through the components and properties of decision requirements diagrams (DRDs).

DMN decision and diagram views

In the upper-right corner of the DMN modeler, select the Decision Navigator view to navigate between the decision components, graphs, and boxed expressions of a selected DRD:

dmn designer nav view
Figure 149. Decision Navigator view
dmn designer nav view2
The DRD components from any DMN models included in the DMN file (in the Included Models tab) are also listed in the Decision Components panel for the DMN file.

In the upper-right corner of the DMN modeler, select the Preview icon to view an elevated preview of the DRD:

dmn designer preview

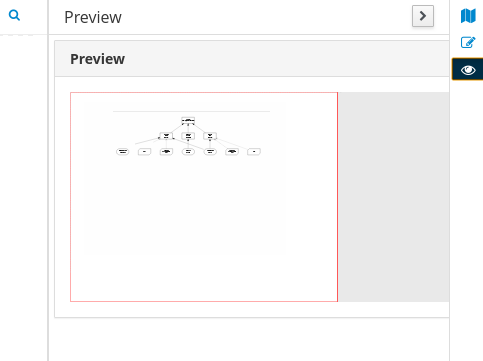

Figure 150. Diagram preview
DRD properties and design

In the upper-right corner of the DMN modeler, select the Properties icon to modify the identifying information, data types, and appearance of a selected DRD, DRD node, or boxed expression cell:

dmn designer properties

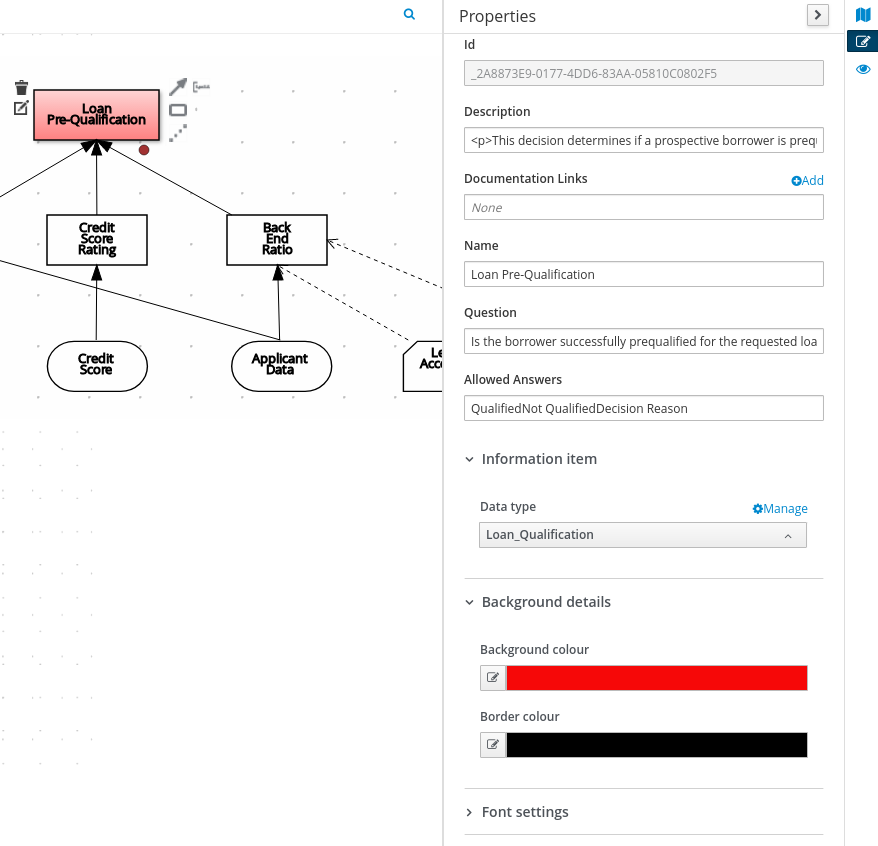

Figure 151. DRD node properties

To view the properties of the entire DRD, click the DRD canvas background instead of a specific node.

DRD search

In the upper-right corner of the DMN modeler, use the search bar to search for text that appears in your DRD. The search feature is especially helpful in complex DRDs with many nodes:

dmn designer search
Figure 152. DRD search
DMN decision service details

Select a decision service node in the DMN designer to view additional properties, including Input Data, Encapsulated Decisions, and Output Decisions in the Properties panel.

dmn decision service details

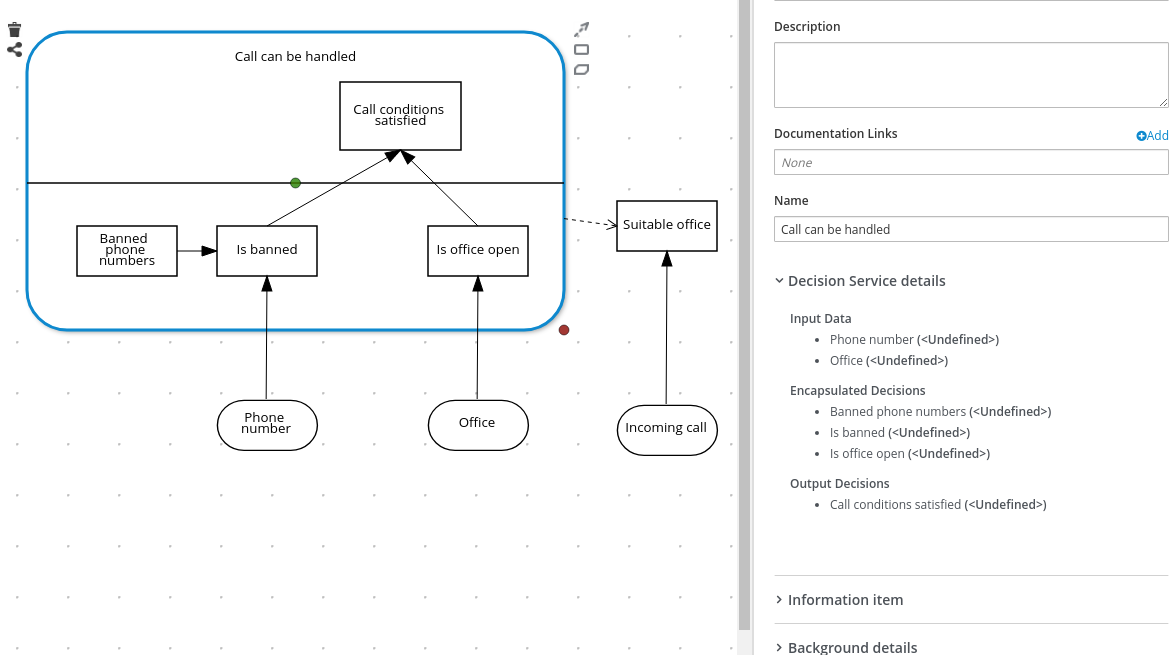

Figure 153. Decision Service details

4.1.5. Kogito service execution

After you design your Kogito service, you can build and run your application and then send REST API requests to the application to execute your services. The exact REST API requests that you can use depend on how you set up the application.

For example, consider a Kogito service that is set up to generate a /persons REST API endpoint and determines whether a specified customer is an adult or is underage. In this example, you can send the following POST request using a REST client or curl utility to add an adult and execute the service:

Example POST request body to add an adult (JSON)
{
  "person": {
    "name": "John Quark",
    "age": 20
  }
}
Example curl command to add an adult
curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
Example response (JSON)
{
  "id": "3af806dd-8819-4734-a934-728f4c819682",
  "person": {
    "name": "John Quark",
    "age": 20,
    "adult": false
  },
  "isAdult": true
}

Note that for JSON marshaling, Kogito is relying on the default mappers of Quarkus and SpringBoot, which can be configured according to the specific requirements.

For information about creating, running, and testing an example application with Kogito services, see Creating and running your first Kogito services.

For information about deploying your Kogito service to OpenShift, see Deploying Kogito services on OpenShift.

4.1.5.1. REST endpoints for DMN models in Kogito

For each DMN model in a Kogito application, the following REST endpoints are automatically generated based on the content of the model:

  • [POST] /{modelName}: A business-domain endpoint for evaluating the entire DMN model

  • [POST] /{modelName}/{decisionServiceName}: A business-domain endpoint for evaluating a specified decision service component in the DMN model

  • [POST] /{modelName}/dmnresult: An endpoint for evaluating the entire DMN model and returning a DMNResult response, including the business-domain context, helper messages, and helper decision pointers for the DMN model

  • [POST] /{modelName}/{decisionServiceName}/dmnresult: An endpoint for evaluating a specified decision service component in the DMN model and returning a DMNResult response, including the business-domain context, helper messages, and helper decision pointers for the decision service

  • [GET] /{modelName}: An endpoint for returning the DMN XML without decision logic, typically for DMN model introspection

You can use these endpoints to interact with a DMN model or a specific decision service within a model. As you decide between using business-domain and dmnresult variants of these REST endpoints, review the following considerations:

  • REST business-domain endpoints: Use this endpoint type if a client application is only concerned with a positive evaluation outcome, is not interested in parsing Info or Warn messages, and only needs an HTTP 5xx response for any errors. This type of endpoint is also helpful for single-page application-like clients, due to singleton coercion of decision service results that resemble the DMN modeling behavior.

  • REST dmnresult endpoints: Use this endpoint type if a client needs to parse Info, Warn, or Error messages in all cases.

For each endpoint, use a REST client, curl utility, or Swagger UI (if configured for the application) to send requests with the following components:

  • Base URL: http://HOST:PORT/{modelName}

  • Path parameters:

    • {modelName}: The string identifier of the DMN model, such as Traffic Violation

    • {decisionServiceName}: The string identifier of the decision service component in the DMN DRG, such as TrafficViolationDecisionService

    • dmnresult: The string identifier that enables the endpoint to return a full DMNResult response with more detailed Info, Warn, and Error messaging

  • HTTP headers: For POST requests only:

    • accept: application/json

    • content-type: application/json

  • HTTP methods: GET or POST

The examples in the following endpoints are based on a Traffic Violation DMN model that contains a TrafficViolationDecisionService decision service component.

For all of these endpoints, if a DMN evaluation Error message occurs, a DMNResult response is returned along with an HTTP 5xx error. If a DMN Info or Warn message occurs, the relevant response is returned along with the business-domain REST body, in the X-Kogito-decision-messages extended HTTP header, to be used for client-side business logic. When more refined client-side business logic is required, the client can use the dmnresult variant of the endpoints.

Return the DMN XML without decision logic

[GET] /{modelName}

Example REST endpoint

http://localhost:8080/Traffic Violation

Example curl request
curl -X GET http://localhost:8080/Traffic Violation
Example response (XML)
<?xml version="1.0" encoding="UTF-8"?>
<dmn:definitions xmlns:dmn="http://www.omg.org/spec/DMN/20180521/MODEL/" xmlns="https://github.com/kiegroup/drools/kie-dmn/_A4BCA8B8-CF08-433F-93B2-A2598F19ECFF" xmlns:di="http://www.omg.org/spec/DMN/20180521/DI/" xmlns:kie="http://www.drools.org/kie/dmn/1.2" xmlns:feel="http://www.omg.org/spec/DMN/20180521/FEEL/" xmlns:dmndi="http://www.omg.org/spec/DMN/20180521/DMNDI/" xmlns:dc="http://www.omg.org/spec/DMN/20180521/DC/" id="_1C792953-80DB-4B32-99EB-25FBE32BAF9E" name="Traffic Violation" expressionLanguage="http://www.omg.org/spec/DMN/20180521/FEEL/" typeLanguage="http://www.omg.org/spec/DMN/20180521/FEEL/" namespace="https://github.com/kiegroup/drools/kie-dmn/_A4BCA8B8-CF08-433F-93B2-A2598F19ECFF">
  <dmn:itemDefinition id="_63824D3F-9173-446D-A940-6A7F0FA056BB" name="tDriver" isCollection="false">
    ...
  </dmn:itemDefinition>
  <dmn:itemDefinition id="_2D4F30EE-21A6-4A78-A524-A5C238D433AE" name="tFine" isCollection="false">
    ...
  </dmn:itemDefinition>
  <dmn:decision id="_4055D956-1C47-479C-B3F4-BAEB61F1C929" name="Fine">
    <dmn:variable id="_8C1EAC83-F251-4D94-8A9E-B03ACF6849CD" name="Fine" typeRef="tFine">
    </dmn:variable>
    <dmn:informationRequirement id="_800A3BBB-90A3-4D9D-BA5E-A311DED0134F">
      <dmn:requiredInput href="#_1929CBD5-40E0-442D-B909-49CEDE0101DC">
      </dmn:requiredInput>
    </dmn:informationRequirement>
  </dmn:decision>
  <dmn:decision id="_8A408366-D8E9-4626-ABF3-5F69AA01F880" name="Should the driver be suspended?">
    <dmn:question>Should the driver be suspended due to points on his license?</dmn:question>
    <dmn:allowedAnswers>"Yes", "No"</dmn:allowedAnswers>
    <dmn:variable id="_40387B66-5D00-48C8-BB90-E83EE3332C72" name="Should the driver be suspended?" typeRef="string">
    </dmn:variable>
    <dmn:informationRequirement id="_982211B1-5246-49CD-BE85-3211F71253CF">
      <dmn:requiredInput href="#_1F9350D7-146D-46F1-85D8-15B5B68AF22A">
      </dmn:requiredInput>
    </dmn:informationRequirement>
    <dmn:informationRequirement id="_AEC4AA5F-50C3-4FED-A0C2-261F90290731">
      <dmn:requiredDecision href="#_4055D956-1C47-479C-B3F4-BAEB61F1C929">
      </dmn:requiredDecision>
    </dmn:informationRequirement>
  </dmn:decision>
  <dmn:inputData id="_1929CBD5-40E0-442D-B909-49CEDE0101DC" name="Violation">
    <dmn:variable id="_C16CF9B1-5FAB-48A0-95E0-5FCD661E0406" name="Violation" typeRef="tViolation">
    </dmn:variable>
  </dmn:inputData>
  <dmn:inputData id="_1F9350D7-146D-46F1-85D8-15B5B68AF22A" name="Driver">
    <dmn:variable id="_A80F16DF-0DB4-43A2-B041-32900B1A3F3D" name="Driver" typeRef="tDriver">
    </dmn:variable>
  </dmn:inputData>
</dmn:definitions>
Evaluate a specified DMN model

[POST] /{modelName}

For this endpoint, the request body must contain all input data of the DMN model. The response is the resulting DMN context of the model, including the decision values, the original input values, and all other parametric DRG components in serialized form. For example, a business knowledge model is available in string-serialized form in its signature.

Image of Traffic Violation DMN model
Figure 154. Example Traffic Violation DMN model
Example REST endpoint

http://localhost:8080/Traffic Violation

Example POST request body with input data
{
  "Driver": {
    "Points": 2
  },
  "Violation": {
    "Type": "speed",
    "Actual Speed": 120,
    "Speed Limit": 100
  }
}
Example curl request
curl -X POST http://localhost:8080/Traffic Violation -H 'content-type: application/json' -H 'accept: application/json' -d '{"Driver": {"Points": 2}, "Violation": {"Type": "speed", "Actual Speed": 120, "Speed Limit": 100}}'
Example response (JSON)
{
  "Violation": {
    "Type": "speed",
    "Speed Limit": 100,
    "Actual Speed": 120
  },
  "Driver": {
    "Points": 2
  },
  "Fine": {
    "Points": 3,
    "Amount": 500
  },
  "Should the driver be suspended?": "No"
}
Evaluate a specified decision service within a DMN model

[POST] /{modelName}/{decisionServiceName}

For this endpoint, the request body must contain all the requirements of the decision service. The response is the resulting DMN context of the decision service, including the decision values, the original input values, and all other parametric DRG components in serialized form. For example, a business knowledge model is available in string-serialized form in its signature.

If the decision service is composed of a single-output decision, the response is the resulting value of that specific decision. This behavior provides an equivalent value at the API level of a specification feature when invoking the decision service in the model itself. As a result, you can, for example, interact with a DMN decision service from single-page web applications.

Image of decision service in Traffic Violation DMN model

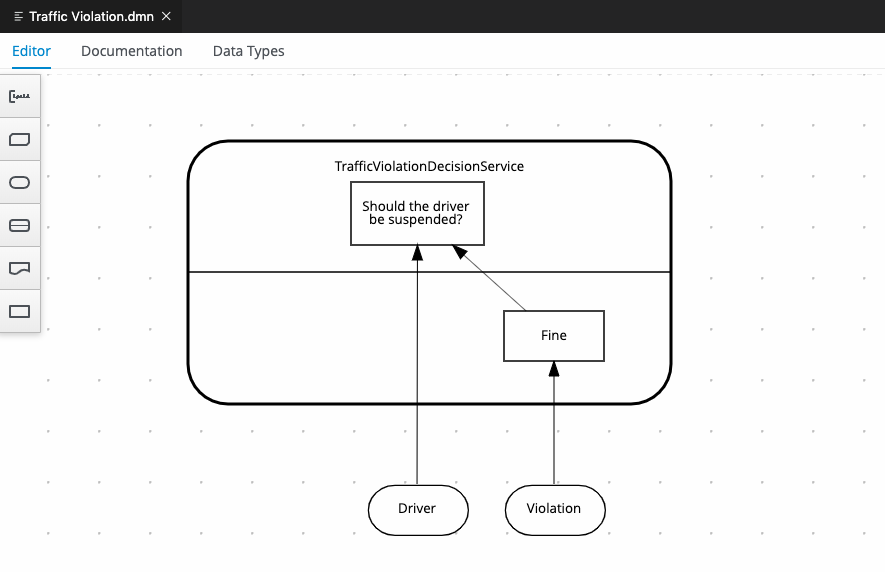

Figure 155. Example TrafficViolationDecisionService decision service with single-output decision
Image of decision service in Traffic Violation DMN model
Figure 156. Example TrafficViolationDecisionService decision service with multiple-output decision
Example REST endpoint

http://localhost:8080/Traffic Violation/TrafficViolationDecisionService

Example POST request body with input data
{
  "Driver": {
    "Points": 2
  },
  "Violation": {
    "Type": "speed",
    "Actual Speed": 120,
    "Speed Limit": 100
  }
}
Example curl request
curl -X POST http://localhost:8080/Traffic Violation/TrafficViolationDecisionService -H 'content-type: application/json' -H 'accept: application/json' -d '{"Driver": {"Points": 2}, "Violation": {"Type": "speed", "Actual Speed": 120, "Speed Limit": 100}}'
Example response for single-output decision (JSON)
"No"
Example response for multiple-output decision (JSON)
{
  "Violation": {
    "Type": "speed",
    "Speed Limit": 100,
    "Actual Speed": 120
  },
  "Driver": {
    "Points": 2
  },
  "Fine": {
    "Points": 3,
    "Amount": 500
  },
  "Should the driver be suspended?": "No"
}
Evaluate a specified DMN model and return a DMNResult response

[POST] /{modelName}/dmnresult

Example REST endpoint

http://localhost:8080/Traffic Violation

Example POST request body with input data
{
  "Driver": {
    "Points": 2
  },
  "Violation": {
    "Type": "speed",
    "Actual Speed": 120,
    "Speed Limit": 100
  }
}
Example curl request
curl -X POST http://localhost:8080/Traffic Violation -H 'content-type: application/json' -H 'accept: application/json' -d '{"Driver": {"Points": 2}, "Violation": {"Type": "speed", "Actual Speed": 120, "Speed Limit": 100}}'
Example response (JSON)
{
  "namespace": "https://github.com/kiegroup/drools/kie-dmn/_A4BCA8B8-CF08-433F-93B2-A2598F19ECFF",
  "modelName": "Traffic Violation",
  "dmnContext": {
    "Violation": {
      "Type": "speed",
      "Speed Limit": 100,
      "Actual Speed": 120,
      "Code": null,
      "Date": null
    },
    "Driver": {
      "Points": 2,
      "State": null,
      "City": null,
      "Age": null,
      "Name": null
    },
    "Fine": {
      "Points": 3,
      "Amount": 500
    },
    "Should the driver be suspended?": "No"
  },
  "messages": [],
  "decisionResults": [
    {
      "decisionId": "_4055D956-1C47-479C-B3F4-BAEB61F1C929",
      "decisionName": "Fine",
      "result": {
        "Points": 3,
        "Amount": 500
      },
      "messages": [],
      "evaluationStatus": "SUCCEEDED"
    },
    {
      "decisionId": "_8A408366-D8E9-4626-ABF3-5F69AA01F880",
      "decisionName": "Should the driver be suspended?",
      "result": "No",
      "messages": [],
      "evaluationStatus": "SUCCEEDED"
    }
  ]
}
Evaluate a specified decision service within a DMN model and return a DMNResult response

[POST] /{modelName}/{decisionServiceName}/dmnresult

Example REST endpoint

http://localhost:8080/Traffic Violation/TrafficViolationDecisionService

Example POST request body with input data
{
  "Driver": {
    "Points": 2
  },
  "Violation": {
    "Type": "speed",
    "Actual Speed": 120,
    "Speed Limit": 100
  }
}
Example curl request
curl -X POST http://localhost:8080/Traffic Violation/TrafficViolationDecisionService -H 'content-type: application/json' -H 'accept: application/json' -d '{"Driver": {"Points": 2}, "Violation": {"Type": "speed", "Actual Speed": 120, "Speed Limit": 100}}'
Example response (JSON)
{
  "namespace": "https://github.com/kiegroup/drools/kie-dmn/_A4BCA8B8-CF08-433F-93B2-A2598F19ECFF",
  "modelName": "Traffic Violation",
  "dmnContext": {
    "Violation": {
      "Type": "speed",
      "Speed Limit": 100,
      "Actual Speed": 120,
      "Code": null,
      "Date": null
    },
    "Driver": {
      "Points": 2,
      "State": null,
      "City": null,
      "Age": null,
      "Name": null
    },
    "Should the driver be suspended?": "No"
  },
  "messages": [],
  "decisionResults": [
    {
      "decisionId": "_8A408366-D8E9-4626-ABF3-5F69AA01F880",
      "decisionName": "Should the driver be suspended?",
      "result": "No",
      "messages": [],
      "evaluationStatus": "SUCCEEDED"
    }
  ]
}

4.1.6. Kogito Audit Investigation Console

The Kogito Audit Investigation Console is a user interface for monitoring and investigating Decision Model and Notation (DMN) model executions in Kogito.

Image of Kogito Audit Investigation Console
Figure 157. Kogito Audit Investigation Console

You can use the Audit Investigation Console to browse DMN model executions, verify execution status, retrieve execution details, such as decision outcomes, input data, and model preview, and obtain explanation information about how the processed decisions were made.

The Audit Investigation Console requires your Kogito services to use the following Kogito components:

  • Kogito Trusty Service: Enables the Audit Investigation Console to access stored events related to decision tracing from your Kogito services. The Kogito Trusty Service requires Infinispan persistence and Apache Kafka messaging for your Kogito service. For more information about the Trusty Service, see Configuring Kogito supporting services and runtime capabilities.

  • Kogito Explainability Service: Generates explainability data that is stored in the Kogito Trusty Service. The Audit Investigation Console accesses the explainbility information from tracing-event data for decisions in your Kogito services. The Kogito Explainbility Service requires Apache Kafka messaging for your Kogito service.

  • Kogito Tracing decision add-on: Enables the Kogito service to produce tracing events and publish the events to Apache Kafka. The add-on also exposes the REST endpoint /predict for the Kogito Explainbility Service.

4.1.6.1. Supported configurations for the tracing add-on

The Kogito Audit Investigation Console requires the following project dependency for the tracing add-on:

Project dependency to enable tracing capability on Quarkus
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-tracing-decision</artifactId>
</dependency>
Project dependency to enable tracing capability on SpringBoot
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-tracing-decision</artifactId>
</dependency>

The tracing add-on enables the Trusty Service to interact with the decision-tracing data through the CloudEvents messages. The default configuration for the add-on pushes the decision-tracing events to the kogito-tracing-decision Apache Kafka topic and pushes the DMN models used by the Kogito service to the kogito-tracing-model topic under the group ID kogito-runtimes.

To specify the Kafka bootstrap server for your Kogito service, set the following property in the application.properties file of your Kogito project:

Application property for Kafka bootstrap server
kafka.bootstrap.servers=http://HOST:PORT
In a Kubernetes or OpenShift environment, if you specified the KAFKA_BOOTSTRAP_SERVERS environment variable in the relevant container, this application property in your Kogito project is not required.

On Quarkus, to customize the tracing add-on configurations, use the format mp.messaging.outgoing.kogito-tracing-decision.PROPERTY_NAME for the decisions, and the format mp.messaging.outgoing.kogito-tracing-model.PROPERTY_NAME for the DMN models.

For example, to change the topic name for the decision-tracing events, add the following line to the application.properties file:

Example property to change the topic name for decision-tracing events
mp.messaging.outgoing.kogito-tracing-decision.topic=my-kogito-tracing-decision

On SpringBoot, to customize the tracing add-on configurations, set the following properties in the application.properties file of your Kogito project as needed:

Table 88. Application properties for the tracing add-on on SpringBoot
Property Description

kogito.addon.tracing.decision.kafka.bootstrapAddress

Sets the address used in the initial connection to find a bootstrap server on the cluster of n brokers

Default value: None (must be set by user)

kogito.addon.tracing.decision.kafka.topic.name

Sets the topic name for the decision-tracing events

Default value: kogito-tracing-decision

kogito.addon.tracing.decision.kafka.topic.partitions

Sets the number of partitions to use for the decision-tracing events topic

Default value: 1

kogito.addon.tracing.decision.kafka.topic.replicationFactor

Sets the factor of the data for the decision-tracing events topic

Default value: 1

kogito.addon.tracing.decision.asyncEnabled

Enables asynchronous callback with the results of the send (success or failure) instead of waiting to complete

Default value: true

kogito.addon.tracing.model.kafka.topic.name

Sets the topic name for the DMN models used by the Kogito service

Default value: kogito-tracing-model
Additional resources
4.1.6.2. Using the Kogito Audit Investigation Console to view DMN model execution details

You can use the Kogito Audit Investigation Console to view DMN model execution details for your Kogito services. You can run the Audit Investigation Console for local Kogito services or add it to your Kogito infrastructure on OpenShift.

Prerequisites

  • A Kogito Trusty Service instance and Explainbility Service instance are configured and running for your Kogito service. The Trusty Service enables the Audit Investigation Console to access stored DMN model execution data. The Trusty Service requires Infinispan persistence and Apache Kafka messaging for your Kogito service. For information about the Trusty Service, see Configuring Kogito supporting services and runtime capabilities.

  • The pom.xml file of your Kogito project contains the following dependency for the tracing add-on:

    Project dependency to enable tracing capability on Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-tracing-decision</artifactId>
</dependency>
    Project dependency to enable tracing capability SpringBoot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-tracing-decision</artifactId>
</dependency>

  • The application.properties file of your Kogito project contains the following system properties:

    Application property for REST URLs
    kogito.service.url=http://HOST:PORT
    In a Kubernetes or OpenShift environment, if you specified the KOGITO_SERVICE_URL environment variable in the relevant container, this application property in your Kogito project is not required for the Explainability Service.
    Application property for Kafka bootstrap server
    kafka.bootstrap.servers=http://HOST:PORT
    In a Kubernetes or OpenShift environment, if you specified the KAFKA_BOOTSTRAP_SERVERS environment variable in the relevant container, this application property in your Kogito project is not required.

    The service URL property defines the location where the Kogito service is deployed, such as http://localhost:8080. This property enables the Explainability Service to generate the URLs to interact with Kogito and enrich tracing data with explainbility. The bootstrap property defines the Kafka bootstrap server for your Kogito service.

Procedure

  1. Go to the trusty-ui artifacts page, select the latest release of the Kogito Audit Investigation Console, and download the trusty-ui-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded trusty-ui-VERSION-runner.jar file and enter the following command to run the Audit Investigation Console:

    Running the Audit Investigation Console
    $ java -Dquarkus.http.port=9000 -Dkogito.trusty.http.url=http://HOST:PORT -jar trusty-ui-VERSION-runner.jar

    The default port for the Audit Investigation Console is 8080, but this example specifies port 9000 to avoid conflicts with the example Kogito service running at port 8080.

    In an OpenShift environment, you can use the Kogito command-line interface (CLI) or the OpenShift web console to add the Audit Investigation Console to your Kogito infrastructure.

    In the trusty-ui CLI command, replace the Trusty Service host and port values with the host and port of your running Trusty Service instance. This command includes a KOGITO_TRUSTY_ENDPOINT environment variable that injects the specified Trusty Service endpoint into the Audit Investigation Console service container.

    Adding the Audit Investigation Console to your OpenShift infrastructure using the Kogito CLI
    $ kogito install trusty-ui --env KOGITO_TRUSTY_ENDPOINT=http://trusty:8080
    Image of Kogito Audit Investigation Console instance on OpenShift
    Figure 158. Kogito Audit Investigation Console instance on OpenShift web console

    If you did not already install the required Trusty Service and Explainability Service, you can likewise use the OpenShift web console to add these instances under the Kogito Supporting Service tab and try again to add the Audit Investigation Console instance.

    Image of Kogito Trusty Service and Explainability Service instances on OpenShift
    Figure 159. Kogito Trusty Service and Explainability Service instances on OpenShift web console

  3. In a web browser, navigate to http://localhost:9000 to open the Audit Investigation Console. If you modified the configured Trusty UI port, use the modified location.

    On OpenShift, navigate to the route URL for the Audit Investigation Console instance.

    Image of Kogito Audit Investigation Console
    Figure 160. Kogito Audit Investigation Console

    The Audit Investigation Console displays data for all available DMN model executions. By default, executions are filtered to display results from the last month. To modify the list view, you can use the search or sort fields at the top of the screen.

  4. In the DMN model executions list, select an execution ID to view and navigate through the details for the selected execution.

    Image of execution details page

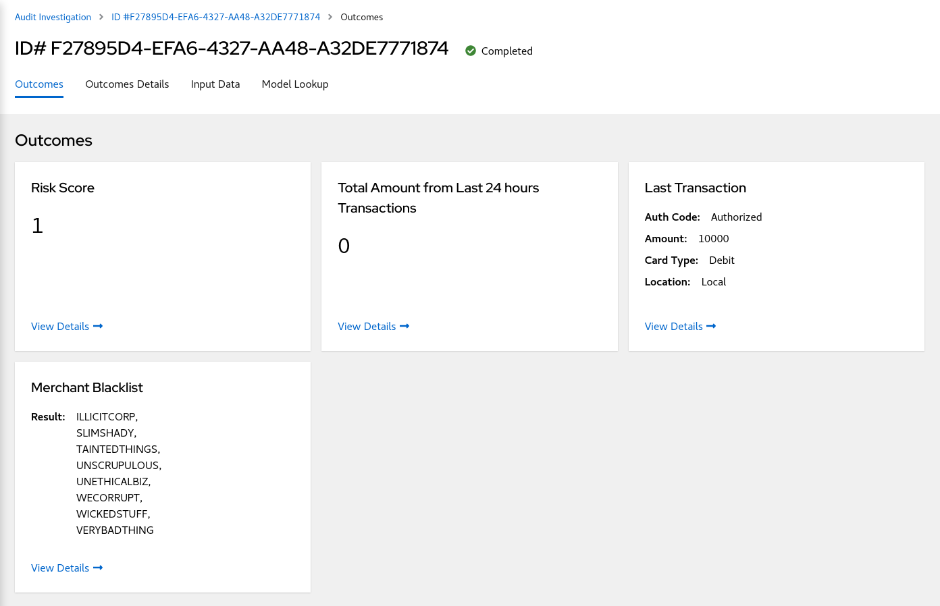

    Figure 161. Execution details page

    At the top of the execution details page, you can hover your cursor over the execution status to view information about execution date, time, and executor.

    Image of Execution Status Tooltip
    Figure 162. Execution status tooltip

  5. In the execution details page, use the following tabs in the top menu to view different aspects of the DMN model execution:

    • Outcomes: Use this page to view a list of the decision outcomes in the current execution. Each outcome is a card containing the output of the decision. You can click View Details for each card to open the Outcome Details section for that specific outcome.

    • Outcome Details: Use this page to view information about decision outcomes of the execution.

      Image of Outcome Details page
      Figure 163. Outcome Details page

      You can change which outcome to view by selecting from the drop-down options in the top menu.

      Image of Outcomes selection
      Figure 164. Outcomes selection

      The Explanation section provides insight about how the inputs of the model influenced the decision outcome. A score from -1 to 1 is assigned to each input, representing its positive or negative effect on the decision result. Score values are rounded to the second decimal digit. If you hover your cursor over the graph bars, you can also see the full score value. Next to the Features Score Chart panel, the Features Weight panel contains the same scores in a tabular view, grouped by positive and negative weight.

      The Outcome Influencing Inputs section provides a list of the inputs that were considered during the elaboration of the current decision outcome. The inputs typically consist of a sub-set of the inputs provided to the DMN model, or may consist of all provided inputs. For complex input structures, you can select from the Browse Sections options to view different input sections.

    • Input Data: Use this page to view all inputs submitted to the DMN model for the current execution, including all inputs that were not incorporated in the outcomes processing. For complex input structures, you can select from the Browse Sections options to view different input sections.

      Image of Input Data page
      Figure 165. Input Data page

    • Model Lookup: Use this page to view the decision requirements diagram (DRD) of the executed DMN model.

      Image of Model Lookup page
      Figure 166. Model Lookup page

      The Model Lookup viewer currently does not support DMN models that include other DMN models or PMML models.

For example Kogito services that use the Trusty Service and Explainability Service, see the following example applications in GitHub:

  • dmn-tracing-quarkus: A DMN decision service on Quarkus that uses the kogito-addons-quarkus-tracing-decision add-on to generate tracing events that the Kogito Trusty Service and Explainability Service can consume and expose.

  • trusty-demonstration: A tutorial for deploying the dmn-tracing-quarkus example application on Kubernetes as a demonstration of Kogito Trusty Service and Explainability Service capabilities in a cloud environment.

4.1.6.3. Enabling Kogito Audit Console security with OpenID Connect

For Quarkus-based Kogito services, you can use the Quarkus OpenID Connect adapter with the Kogito Audit Console to enable the console to interact with the Kogito Trusty Service using bearer token authorization. These tokens are issued by OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Audit Console repository in GitHub.
Prerequisites
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Audit Console repository and enter the following command to run the application with security enabled:

    Run the Audit Console with security enabled
    mvn clean compile quarkus:dev -Dquarkus.profile=keycloak
    Ensure that the service is not started at the same port as the security server. You can change the port by adding -Dquarkus.http.port=PORT_NUMBER to the start-up properties.

    The Kogito Audit Console contains a Quarkus profile to encapsulate the security configuration, so if the service requires security, you can specify the quarkus.profile=keycloak property at build time to enable the needed security. If the keycloak Quarkus profile is not added, the OpenID Connect extension is disabled.

  2. Navigate to the src/main/resources/application.properties file of the Audit Console project and add the following properties:

    Required security properties in applications.properties file
    # OpenID Connect configurations
%keycloak.quarkus.oidc.enabled=true
%keycloak.quarkus.oidc.tenant-enabled=true
%keycloak.quarkus.oidc.auth-server-url=http://localhost:8280/auth/realms/kogito
%keycloak.quarkus.oidc.client-id=kogito-console-quarkus
%keycloak.quarkus.oidc.credentials.secret=secret
%keycloak.quarkus.oidc.application-type=web-app
%keycloak.quarkus.oidc.logout.path=/logout
%keycloak.quarkus.oidc.logout.post-logout-path=/

# HTTP security configurations
%keycloak.quarkus.http.auth.permission.authenticated.paths=/*
%keycloak.quarkus.http.auth.permission.authenticated.policy=authenticated
    The quarkus.oidc.enabled property enables or disables security at build time, while the quarkus.oidc.tenant-enabled property enables or disables security at runtime.

  3. Replace any property definitions with those of your specific environment, especially the following properties:

    • quarkus.oidc.auth-server-url: The base URL of the OpenID Connect (OIDC) server, such as https://localhost:8280/auth. All other OIDC server page and service URLs are derived from this URL. If you work with Keycloak OIDC server, ensure that the base URL is in the following format: https://HOST:PORT/auth/realms/KEYCLOAK_REALM.

    • quarkus.oidc.client-id: The client ID of the application. Each application has a client ID that is used to identify the application.

    • quarkus.oidc.credentials.secret: The client secret for the application.

  4. In the same application.properties file, also configure the resources to be exposed and the required permissions for accessing the resources.

    If you are enabling security at runtime using the quarkus.oidc.tenant-enabled property, the quarkus.http.auth.permission path and policy must specify how authentication is applied. By default, if security is enabled, the user must be authenticated to access any path.

  5. Stop and restart the Kogito Audit Console to ensure that the security changes are applied.

Additional resources

4.2. Using DRL rules in Kogito services

As a developer of business decisions, you can define business rules using Drools Rule Language (DRL) directly in free-form .drl text files. A DRL file can contain one or more rules that define at a minimum the rule conditions (when) and actions (then).

4.2.1. Decision-authoring assets in Kogito

Kogito supports several assets that you can use to define business decisions for your decision service. Each decision-authoring asset has different advantages, and you might prefer to use one or a combination of multiple assets depending on your goals and needs.

The following table highlights the main decision-authoring assets supported in Kogito projects to help you decide or confirm the best method for defining decisions in your decision service.

Table 89. Decision-authoring assets supported in Kogito
Asset Highlights Authoring tools Documentation

Decision Model and Notation (DMN) models

  • Are decision models based on a notation standard defined by the Object Management Group (OMG)

  • Use graphical decision requirements diagrams (DRDs) that represent part or all of the overall decision requirements graph (DRG) to trace business decision flows

  • Use an XML schema that allows the DMN models to be shared between DMN-compliant platforms

  • Support Friendly Enough Expression Language (FEEL) to define decision logic in DMN decision tables and other DMN boxed expressions

  • Can be integrated efficiently with Business Process Model and Notation (BPMN) process models

  • Are optimal for creating comprehensive, illustrative, and stable decision flows

Kogito DMN modeler in VSCode or other DMN-compliant editor

Decision Model and Notation (DMN)

DRL rules

  • Are individual rules that you define directly in .drl text files

  • Provide the most flexibility for defining rules and other technicalities of rule behavior

  • Are optimal for creating rules that require advanced DRL options, such as rule units

  • Have strict syntax requirements for rules to be compiled properly

Any integrated development environment (IDE)

Drools Rule Language (DRL)

Spreadsheet decision tables

  • Are tabular sets of rules that you define in .xls or .xlsx spreadsheet files

  • Support template keys and values for creating rule templates

  • Are optimal for business environments that already rely on decision tables for rules

  • Have strict syntax requirements for rules to be compiled properly when used in Kogito

Spreadsheet editor

Spreadsheet decision tables

4.2.2. Drools Rule Language (DRL)

Drools Rule Language (DRL) is a notation established by the Drools open source business automation project for defining and describing business rules. You define DRL rules in .drl text files. A DRL file can contain one or more rules that define at a minimum the rule conditions (when) and actions (then).

DRL files consist of the following components:

Components in a DRL file
package
unit

import

declare   // Optional

query  // Optional

rule "rule name"
    // Attributes
    when
        // Conditions
    then
        // Actions
end

rule "rule2 name"

...

The following example DRL rule determines the age limit in a loan application decision service:

Example rule for loan application age limit
rule "Underage"
  when
    /applicant[ applicantName : name, age < 21 ]
    $application : /loanApplication[ applicant == applicantName ]
  then
    $application.setApproved( false );
    $application.setExplanation( "Underage" );
end

A DRL file can contain single or multiple rules and queries, and can define resource declarations and attributes that are assigned and used by your rules and queries. The components in a DRL file are grouped in a defined rule unit that serves as a unique namespace for each group of rules. The DRL package followed by the rule unit definition must be listed at the top of a DRL file, and the rules are typically listed last. All other DRL components can follow any order.

Each rule must have a unique name within the rule unit. If you use the same rule name more than once in any DRL file in the unit, the rules fail to compile. Rule names generally must follow standard Java identifier conventions. However, you can enclose rule names with double quotation marks (rule "rule name") to prevent possible compilation errors, especially if you use spaces in rule names.

4.2.2.1. Packages in DRL

A package is a folder of related assets in Kogito, such as data objects, DRL files, decision tables, and other asset types. A package also serves as a unique namespace for each group of rules. A single rule base can contain multiple packages. You typically store all the rules for a package in the same file as the package declaration so that the package is self-contained. However, you can import objects from other packages that you want to use in the rules.

The following example is a package name and namespace for a DRL file in a mortgage application decision service:

Example package definition in a DRL file
package org.mortgages;

The following railroad diagram shows all the components that may make up a package:

package

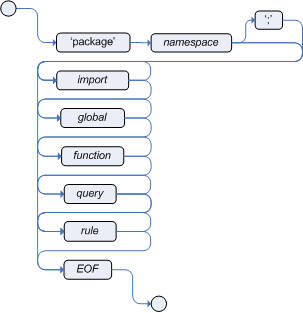

Figure 167. Package

Note that a package must have a namespace and be declared using standard Java conventions for package names; i.e., no spaces, unlike rule names which allow spaces. In terms of the order of elements, they can appear in any order in the rule file, with the exception of the package and unit statements, which must be at the top of the file. In all cases, the semicolons are optional.

Notice that any rule attribute (as described in the section [rules-attributes-ref-drl-rules]) may also be written at package level, superseding the attribute’s default value. The modified default may still be replaced by an attribute setting within a rule.

4.2.2.2. Rule units in DRL

A DRL rule unit is a module for rules and a unit of execution. A rule unit collects a set of rules with the declaration of the type of facts that the rules act on. A rule unit also serves as a unique namespace for each group of rules. A single rule base can contain multiple rule units. You typically store all the rules for a unit in the same file as the unit declaration so that the unit is self-contained.

The following example is a rule unit designated in a DRL file in a mortgage application decision service:

Example package definition and rule unit designation in a DRL file
package org.mortgages;
unit MortgageRules;

To define a rule unit, you declare the relevant fact types and declare the data sources for the types by implementing the RuleUnitData interface, and then define the rules in the unit:

Example DRL rule unit file
package org.mortgages;
unit MortgageRules;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

declare Person
    name : String
    dateOfBirth : Date
    address : Address
end

declare MortgageRules extends RuleUnitData
  person: DataStream<Person> = DataSource.createStream()
end

rule "Using a rule unit with a declared type"
  when
    $p : /person[ name == "James" ]
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    person.append( mark );
end

To separate the fact types from the rule unit for use with other DRL rules, you can declare the types in a separate DRL file and then use the DRL rule file to declare the data sources by using the RuleUnitData interface implementation:

Example DRL type declaration as a separate file
package org.mortgages;

declare Person
    name : String
    dateOfBirth : Date
    address : Address
end
Example DRL rule unit file without explicitly defined types
package org.mortgages;
unit MortgageRules;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

declare MortgageRules extends RuleUnitData
  person: DataStream<Person> = DataSource.createStream()
end

rule "Using a rule unit with a declared type"
  when
    $p : /person[ name == "James" ]
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    person.append( mark );
end

In this example, persons is a DataStream data source for facts of type Person. Data sources are typed sources of data that rule units can subscribe to for updates. You interact with the rule unit through the data sources it exposes. A data source can be a DataStream source for append-only storage, a DataStore source for writable storage to add or remove data, or a SingletonStore source for writable storage to set and clear a single element.

As part of your data source declaration, you also import org.kie.kogito.rules.DataSource and the relevant data source support, such as import org.kie.kogito.rules.DataStream in this example.

You can add several rules to the same DRL file, or further break down the rule set and type declarations by creating more files. However you construct your rule sets, ensure that all DRL rule files exist in the same directory and start with the correct package and unit declarations.

Rule unit use case

As an additional rule unit use case, consider the following example decision service that evaluates incoming data from a heat sensor for temperature measurements and produces alerts when the temperature is above a specified threshold.

This example service uses the following types.drl file in the src/main/resources/org/acme folder of the Kogito project to declare the Temperature and the Alert fact types:

Example DRL type declarations
package com.acme;

declare Temperature
  value: double
end

declare Alert
    severity: String
    message: String
end

To define DRL rules that pattern-match against Temperature values, the example service must expose an entry point for the incoming data to the decision engine and publish alerts on a separate channel. To establish this data source for decision data, the example service uses a rule unit with DataStream data sources for Temperature objects and for Alert objects.

The DataStream data source is an append-only store for incoming data, similar to a queue. This type of data source is logical for both sources in this example because the temperature data is coming from an external source (the sensor) and the service publishes the alerts externally as they are produced.

The example service uses the following MonitoringService.drl file in the same src/main/resources/com/acme folder of the Kogito project to declare the data sources for the fact types and defines the rules for the rule unit:

Example DRL rule unit file
package com.acme;
unit MonitoringService;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

declare MonitoringService extends RuleUnitData
  temperature: DataStream<Temperature> = DataSource.createStream()
  alertData: DataStream<Alert> = DataSource.createStream()
end

rule "tooHot"
when
    $temp : /temperature[value >= 80]
then
    alertData.append(new Alert("HIGH", "Temperature exceeds threshold: " + temp.value));
end

The rule unit implements the required RuleUnitData interface and declares the data sources for the previously defined types. The sample rule raises an alert when the temperature reaches or exceeds 80 degrees.

Data sources for DRL rule units

Data sources are typed sources of data that rule units can subscribe to for updates. You interact with the rule unit through the data sources it exposes.

Kogito supports the following types of data sources. When you declare data sources in DRL rule files, the sources are internally rendered as shown in these examples.

  • DataStream: An append-only storage option. Use this storage option when you want to publish or share data values. You can use the notation DataSource.createStream() to return a DataStream<T> object and use the method append(T) to add more data.

    Example DataStream data source definition
    DataStream<Temperature> temperature = DataSource.createStream();
// Append value and notify all subscribers
temperature.append(new Temperature(100));

  • DataStore: A writable storage option for adding or removing data and then notifying all subscribers that mutable data has been modified. Rules can pattern-match against incoming values and update or remove available values. For users familiar with Drools, this option is equivalent to a typed version of an entry point. In fact, a DataStore<Object> is equivalent to an old-style entry point.

    Example DataStore data source definition
    DataStore<Temperature> temperature = DataSource.createStore();
Temperature temp = new Temperature(100);
// Add value `t` and notify all subscribers
DataHandle t = temperature.add(temp);
temp.setValue(50);
// Notify all subscribers that the value referenced by `t` has changed
temperature.update(t, temp);
// Remove value referenced by `t` and notify all subscribers
temperature.remove(t);

  • SingletonStore: A writable storage option for setting or clearing a single element and then notifying all subscribers that the element has been modified. Rules can pattern-match against the value and update or clear available values. For users familiar with Drools, this option is equivalent to a global. In fact, a Singleton<Object> is similar to an old-style global, except that when used in conjuction with rules, you can pattern-match against it.

    Example SingletonStore data source definition
    SingletonStore<Temperature> temperature = DataSource.createSingleton();
Temperature temp = new Temperature(100);
// Add value `temp` and notify all subscribers
temperature.set(temp);
temp.setValue(50);
// Notify all subscribers that the value has changed
temperature.update();

Temperature temp2 = new Temperature(200);
// Overwrite contained value with `temp2` and notify all subscribers
temperature.set(temp2);
temp2.setValue(150);
// Notify all subscribers that the value has changed
temperature.update();

// Clear store and notify all subscribers
temperature.clear();

Subscribers to a data source are known as data processors. A data processor implements the DataProcessor<T> interface. This interface contains callbacks to all the events that a subscribed data source can trigger.

Example DataStream data processor
public interface DataProcessor<T> {
    void insert(DataHandle handle, T object);
    void update(DataHandle handle, T object);
    void delete(DataHandle handle);
}

The DataHandle method is an internal reference to an object of a data source. Each callaback method might or might not be invoked, depending on whether the corresponding data source implements the capability. For example, a DataStream source invokes only the insert callback, whereas a SingletonStore source invokes the insert callback on set and the delete callback on clear or before an overwriting set.

DRL rule unit declaration using Java

As an alternative to declaring fact types and rule units in DRL files, you can also declare types and units using Java classes. In this case, you add the source code to the src/main/java folder of your Kogito project instead of src/main/resources.

For example, the following Java classes define the type and rule unit declarations for the example temperature monitoring service:

Example Temperature class
package com.acme;

public class Temperature {
    private final double value;
    public Temperature(double value) { this.value = value; }
    public double getValue() { return value; }
}
Example Alert class
package com.acme;

public class Alert {
    private final String severity
    private final String message;
    public Temperature(String severity, String message) {
        this.severity = severity;
        this.message = message;
    }
    public String getSeverity() { return severity; }
    public String getMessage() { return message; }
}
Example rule unit class
package com.acme;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

public class MonitoringService implements RuleUnitData {
    private DataStream<Temperature> temperature = DataSource.createStream();
    private DataStream<Alert> alertData = DataSource.createStream();
    public DataStream<Temperature> getTemperature() { return temperature; }
    public DataStream<Alert> getAlertData() { return alertData; }
}

In this scenario, the DRL rule files then stand alone in the src/main/resources folder and consist of the unit and the rules, with no direct declarations, as shown in the following example:

Example DRL rule unit file without declarations
package com.acme;
unit MonitoringService;

rule "tooHot"
  when
    $temp : /temperature[value >= 80]
  then
    alertData.append(new Alert("HIGH", "Temperature exceeds threshold: " + temp.value));
end
DRL rule units with BPMN processes

If you use a DRL rule unit as part of a business rule task in a Business Process Model and Notation (BPMN) process in your Kogito project, you do not need to create an explicit data type declaration or a rule unit class that implements the RuleUnitData interface. Instead, you designate the rule unit in the DRL file as usual and specify the rule unit in the format unit:PACKAGE_NAME.UNIT_NAME in the implementation details for the business rule task in the BPMN process. When you build the project, the business process implicitly declares the rule unit as part of the business rule task to execute the DRL file.

For example, the following is a DRL file with a rule unit designation:

Example DRL rule unit file
package com.acme;
unit MonitoringService;

rule "tooHot"
  when
    $temp : Temperature( value >= 80 ) from temperature
  then
    alertData.add(new Alert("HIGH", "Temperature exceeds threshold: " + temp.value));
end

In the relevant business process in a BPMN 2.0 process modeler, you select the business rule task and for the Implementation/Execution property, you set the rule language to DRL and the rule flow group to unit:com.acme.MonitoringService.

This rule unit syntax specifies that you are using the com.acme.MonitoringService rule unit instead of a traditional rule flow group. This is the rule unit that you referenced in the example DRL file. When you build the project, the business process implicitly declares the rule unit as part of the business rule task to execute the DRL file.

4.2.2.3. Import statements in DRL
import
Figure 168. Import

Similar to import statements in Java, imports in DRL files identify the fully qualified paths and type names for any objects that you want to use in the rules. You specify the package and data object in the format packageName.objectName, with multiple imports on separate lines. The decision engine automatically imports classes from the Java package with the same name as the DRL package and from the package java.lang.

The following example is an import statement for a loan application object in a mortgage application decision service:

Example import statement in a DRL file
import org.mortgages.LoanApplication;
4.2.2.4. Type declarations and metadata in DRL
type declaration

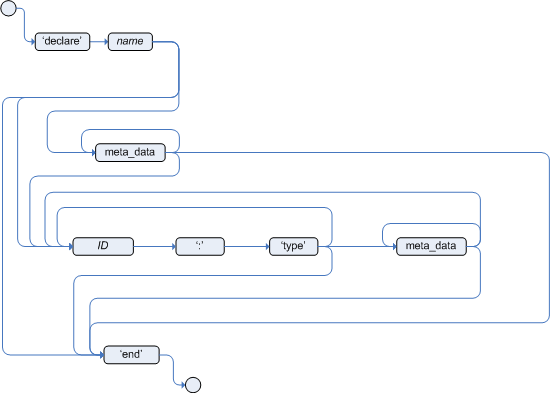

Figure 169. Type declaration
meta data
Figure 170. Metadata

Declarations in DRL files define new fact types or metadata for fact types to be used by rules in the DRL file:

  • New fact types: The default fact type in the java.lang package of Kogito is Object, but you can declare other types in DRL files as needed. Declaring fact types in DRL files enables you to define a new fact model directly in the decision engine, without creating models in a lower-level language like Java. You can also declare a new type when a domain model is already built and you want to complement this model with additional entities that are used mainly during the reasoning process.

  • Metadata for fact types: You can associate metadata in the format @KEY( VALUE ) with new or existing facts. Metadata can be any kind of data that is not represented by the fact attributes and is consistent among all instances of that fact type. The metadata can be queried at run time by the decision engine and used in the reasoning process.

Type declarations without metadata in DRL

A declaration of a new fact does not require any metadata, but must include a list of attributes or fields. If a type declaration does not include identifying attributes, the decision engine searches for an existing fact class in the classpath and raises an error if the class is missing.

For example, the following DRL file contains a declaration of a new fact type Person from a person data source and uses no metadata:

Example declaration of a new fact type with a rule
declare Person
  name : String
  dateOfBirth : java.util.Date
  address : Address
end

rule "Using a declared type"
  when
    $p : /person[ name == "James" ]
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    person.append( mark );
end

In this example, the new fact type Person has the three attributes name, dateOfBirth, and address. Each attribute has a type that can be any valid Java type, including another class that you create or a fact type that you previously declared. The dateOfBirth attribute has the type java.util.Date, from the Java API, and the address attribute has the previously defined fact type Address.

To avoid writing the fully qualified name of a class every time you declare it, you can define the full class name as part of the import clause:

Example type declaration with the fully qualified class name in the import
import java.util.Date

declare Person
    name : String
    dateOfBirth : Date
    address : Address
end

When you declare a new fact type, the decision engine generates at compile time a Java class representing the fact type. The generated Java class is a one-to-one JavaBeans mapping of the type definition.

For example, the following Java class is generated from the example Person type declaration:

Generated Java class for the Person fact type declaration
public class Person implements Serializable {
    private String name;
    private java.util.Date dateOfBirth;
    private Address address;

    // Empty constructor
    public Person() {...}

    // Constructor with all fields
    public Person( String name, Date dateOfBirth, Address address ) {...}

    // If keys are defined, constructor with keys
    public Person( ...keys... ) {...}

    // Getters and setters
    // `equals` and `hashCode`
    // `toString`
}

You can then use the generated class in your rules like any other fact, as illustrated in the previous rule example with the Person type declaration from a person data source:

Example rule that uses the declared Person fact type
rule "Using a declared type"
  when
    $p : /person[ name == "James" ]
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    person.append( mark );
end
Enumerative type declarations in DRL

DRL supports the declaration of enumerative types in the format declare enum FACT_TYPE, followed by a comma-separated list of values ending with a semicolon. You can then use the enumerative list in the rules in the DRL file.

For example, the following enumerative type declaration defines days of the week for an employee scheduling rule:

Example enumerative type declaration with a scheduling rule
declare enum DaysOfWeek
   SUN("Sunday"),MON("Monday"),TUE("Tuesday"),WED("Wednesday"),THU("Thursday"),FRI("Friday"),SAT("Saturday");

   fullName : String
end

rule "Using a declared Enum"
  when
    $emp : /employee[ dayOff == DaysOfWeek.MONDAY ]
  then
    ...
end
Extended type declarations in DRL

DRL supports type declaration inheritance in the format declare FACT_TYPE_1 extends FACT_TYPE_2. To extend a type declared in Java by a subtype declared in DRL, you repeat the parent type in a declaration statement without any fields.

For example, the following type declarations extend a Student type from a top-level Person type, and a LongTermStudent type from the Student subtype:

Example extended type declarations
import org.people.Person

declare Person end

declare Student extends Person
    school : String
end

declare LongTermStudent extends Student
    years : int
    course : String
end
Type declarations with metadata in DRL

You can associate metadata in the format @KEY( VALUE ) (the value is optional) with fact types or fact attributes. Metadata can be any kind of data that is not represented by the fact attributes and is consistent among all instances of that fact type. The metadata can be queried at run time by the decision engine and used in the reasoning process. Any metadata that you declare before the attributes of a fact type are assigned to the fact type, while metadata that you declare after an attribute are assigned to that particular attribute.

In the following example, the two metadata attributes @author and @dateOfCreation are declared for the Person fact type, and the two metadata items @key (literal) and @maxLength are declared for the name attribute. The @key literal metadata attribute has no required value, so the parentheses and the value are omitted.

Example metadata declaration for fact types and attributes
import java.util.Date

declare Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )

    name : String @key @maxLength( 30 )
    dateOfBirth : Date
    address : Address
end

For declarations of metadata attributes for existing types, you can identify the fully qualified class name as part of the import clause for all declarations or as part of the individual declare clause:

Example metadata declaration for an imported type
import org.drools.examples.Person

declare Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )
end
Example metadata declaration for a declared type
declare org.drools.examples.Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )
end
Metadata tags for fact type and attribute declarations in DRL

Although you can define custom metadata attributes in DRL declarations, the decision engine also supports the following predefined metadata tags for declarations of fact types or fact type attributes.

The examples in this section that refer to the VoiceCall class assume that the sample application domain model includes the following class details:

VoiceCall fact class in an example Telecom domain model
public class VoiceCall {
  private String  originNumber;
  private String  destinationNumber;
  private Date    callDateTime;
  private long    callDuration;  // in milliseconds

  // Constructors, getters, and setters
}
@role

This tag determines whether a given fact type is handled as a regular fact or an event in the decision engine during complex event processing.

Default parameter: fact

Supported parameters: fact, event

@role( fact | event )
Example: Declare VoiceCall as event type
declare VoiceCall
  @role( event )
end
@timestamp

This tag is automatically assigned to every event in the decision engine. By default, the time is provided by the session clock and assigned to the event when it is inserted into the working memory of the decision engine. You can specify a custom time stamp attribute instead of the default time stamp added by the session clock.

Default parameter: The time added by the decision engine session clock

Supported parameters: Session clock time or custom time stamp attribute

@timestamp( ATTRIBUTE_NAME )
Example: Declare VoiceCall timestamp attribute
declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
end
@duration

This tag determines the duration time for events in the decision engine. Events can be interval-based events or point-in-time events. Interval-based events have a duration time and persist in the working memory of the decision engine until their duration time has lapsed. Point-in-time events have no duration and are essentially interval-based events with a duration of zero. By default, every event in the decision engine has a duration of zero. You can specify a custom duration attribute instead of the default.

Default parameter: Null (zero)

Supported parameters: Custom duration attribute

@duration( ATTRIBUTE_NAME )
Example: Declare VoiceCall duration attribute
declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
  @duration( callDuration )
end
@expires

This tag determines the time duration before an event expires in the working memory of the decision engine. By default, an event expires when the event can no longer match and activate any of the current rules. You can define an amount of time after which an event should expire. This tag definition also overrides the implicit expiration offset calculated from temporal constraints and sliding windows in the KIE base. This tag is available only when the decision engine is running in stream mode.

Default parameter: Null (event expires after event can no longer match and activate rules)

Supported parameters: Custom timeOffset attribute in the format [#d][#h][#m][#s][[ms]]

@expires( TIME_OFFSET )
Example: Declare expiration offset for VoiceCall events
declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
  @duration( callDuration )
  @expires( 1h35m )
end
@typesafe

This tab determines whether a given fact type is compiled with or without type safety. By default, all type declarations are compiled with type safety enabled. You can override this behavior to type-unsafe evaluation, where all constraints are generated as MVEL constraints and executed dynamically. This is useful when dealing with collections that do not have any generics or mixed type collections.

Default parameter: true

Supported parameters: true, false

@typesafe( BOOLEAN )
Example: Declare VoiceCall for type-unsafe evaluation
declare VoiceCall
  @role( fact )
  @typesafe( false )
end
@serialVersionUID

This tag defines an identifying serialVersionUID value for a serializable class in a fact declaration. If a serializable class does not explicitly declare a serialVersionUID, the serialization run time calculates a default serialVersionUID value for that class based on various aspects of the class, as described in the Java Object Serialization Specification. However, for optimal deserialization results and for greater compatibility with serialized KIE sessions, set the serialVersionUID as needed in the relevant class or in your DRL declarations.

Default parameter: Null

Supported parameters: Custom serialVersionUID integer

@serialVersionUID( INTEGER )
Example: Declare serialVersionUID for a VoiceCall class
declare VoiceCall
  @serialVersionUID( 42 )
end
@key

This tag enables a fact type attribute to be used as a key identifier for the fact type. The generated class can then implement the equals() and hashCode() methods to determine if two instances of the type are equal to each other. The decision engine can also generate a constructor using all the key attributes as parameters.

Default parameter: None

Supported parameters: None

ATTRIBUTE_DEFINITION @key
Example: Declare Person type attributes as keys
declare Person
    firstName : String @key
    lastName : String @key
    age : int
end

For this example, the decision engine checks the firstName and lastName attributes to determine if two instances of Person are equal to each other, but it does not check the age attribute. The decision engine also implicitly generates three constructors: one without parameters, one with the @key fields, and one with all fields:

Example constructors from the key declarations
Person() // Empty constructor

Person( String firstName, String lastName )

Person( String firstName, String lastName, int age )

You can then create instances of the type based on the key constructors, as shown in the following example:

Example instance using the key constructor
Person person = new Person( "John", "Doe" );
4.2.2.5. Queries in DRL
query

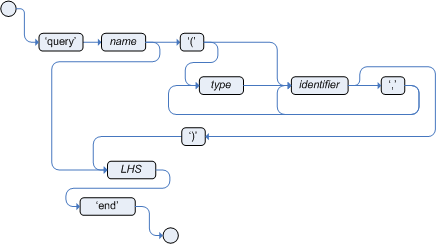

Figure 171. Query

Queries in DRL files search the working memory of the decision engine for facts related to the rules in the DRL file. You add the query definitions in DRL files and then obtain the matching results in your application code. Queries search for a set of defined conditions and do not require when or then specifications. Query names are scoped to the rule unit, so each query name must be unique within the same rule unit. In Kogito, queries are automatically exposed as REST endpoints.

The following example is a query definition for an Alert object with a severity field set to HIGH:

Example query definition in a DRL file
package com.acme;
unit MonitoringService;

query highSeverity
    alerts : /alertData[ severity == "HIGH" ]
end

Kogito automatically exposes this query through an endpoint /high-severity.

For this example, assume that the MonitoringService rule unit class has the following form:

Example Java rule unit class
package com.acme;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

public class MonitoringService implements RuleUnitData {
    private DataStream<Temperature> temperature = DataSource.createStream();
    private DataStream<Alert> alertData = DataSource.createStream();
    public DataStream<Temperature> getTemperature() { return temperature; }
    public DataStream<Alert> getAlertData() { return alertData; }
}

In this case, you can invoke the query using the following command:

Example POST request to the /high-severity endpoint
$ curl -X POST \
        -H 'Accept: application/json' \
        -H 'Content-Type: application/json' \
        -d '{ "eventData": [ { "type": "temperature", "value" : 20 }, { "type": "temperature", "value" : 100 } ] }' \
        http://localhost:8080/high-severity
Example response (JSON)
{
    "alerts" : [
        {
            "severity" : "HIGH",
            "message" : "Temperature exceeds threshold: 100"
        }
    ]
}

This example submits the data to the eventData data source and returns the result of the highSeverity query as a response.

4.2.2.6. Property-change settings and listeners for fact types

By default, the decision engine does not re-evaluate all fact patterns for fact types each time a rule is triggered, but instead reacts only to modified properties that are constrained or bound inside a given pattern. For example, if a rule calls modify() on a fact as part of the rule actions, this modification does not automatically trigger the re-evaluation of all patterns referring to the modified type. Only the patterns constrained on the changed properties of that fact are re-evaluated. This property reactivity behavior prevents unwanted recursions and results in more efficient rule evaluation. This behavior also avoids the need of using the no-loop rule attribute to prevent infinite recursion.

You can modify or disable this property reactivity behavior with the following options, and then use a property-change setting in your Java class or DRL files to fine-tune property reactivity as needed:

  • ALWAYS: (Default) All types are property reactive, but you can disable property reactivity for a specific type by using the @classReactive property-change setting.

  • ALLOWED: No types are property reactive, but you can enable property reactivity for a specific type by using the @propertyReactive property-change setting.

  • DISABLED: No types are property reactive. All property-change listeners are ignored.

To set the property reactivity behavior, update the drools.propertySpecific system property in the application.properties file of your Kogito project:

Example property reactivity setting in system properties
drools.propertySpecific=ALLOWED

The decision engine supports the following property-change settings and listeners for fact classes or declared DRL fact types:

@classReactive

If property reactivity is set to ALWAYS in the decision engine (all types are property reactive), this tag disables the default property reactivity behavior for a specific Java class or a declared DRL fact type. You can use this tag if you want the decision engine to re-evaluate all fact patterns for the specified fact type each time the rule is triggered, instead of reacting only to modified properties that are constrained or bound inside a given pattern.

Example: Disable default property reactivity in a DRL type declaration
declare Person
  @classReactive
    firstName : String
    lastName : String
end
Example: Disable default property reactivity in a Java class
@classReactive
public static class Person {
    private String firstName;
    private String lastName;
}
@propertyReactive

If property reactivity is set to ALLOWED in the decision engine (no types are property reactive unless specified), this tag enables property reactivity for a specific Java class or a declared DRL fact type. You can use this tag if you want the decision engine to react only to modified properties that are constrained or bound inside a given pattern for the specified fact type, instead of re-evaluating all fact patterns for the fact each time the rule is triggered.

Example: Enable property reactivity in a DRL type declaration (when reactivity is disabled globally)
declare Person
  @propertyReactive
    firstName : String
    lastName : String
end
Example: Enable property reactivity in a Java class (when reactivity is disabled globally)
@propertyReactive
public static class Person {
    private String firstName;
    private String lastName;
}
@propertyChangeSupport

For facts that implement support for property changes as defined in the JavaBeans Specification, this tag enables the decision engine to monitor changes in the fact properties.

Example: Declare property change support in JavaBeans object
declare Person
    @propertyChangeSupport
end
4.2.2.7. Rule attributes in DRL
rule attributes

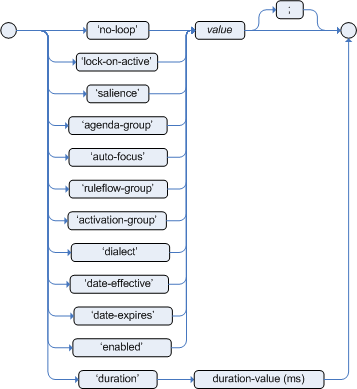

Figure 172. Rule attributes

Rule attributes are additional specifications that you can add to business rules to modify rule behavior. In DRL files, you typically define rule attributes above the rule conditions and actions, with multiple attributes on separate lines, in the following format:

rule "rule_name"
    // Attribute
    // Attribute
    when
        // Conditions
    then
        // Actions
end

The following table lists the names and supported values of the attributes that you can assign to rules:

Table 90. Rule attributes
Attribute Value

salience

An integer defining the priority of the rule. Rules with a higher salience value are given higher priority when ordered in the activation queue.

Example: salience 10

enabled

A Boolean value. When the option is selected, the rule is enabled. When the option is not selected, the rule is disabled.

Example: enabled true

date-effective

A string containing a date and time definition. The rule can be activated only if the current date and time is after a date-effective attribute.

Example: date-effective "4-Sep-2018"

date-expires

A string containing a date and time definition. The rule cannot be activated if the current date and time is after the date-expires attribute.

Example: date-expires "4-Oct-2018"

no-loop

A Boolean value. When the option is selected, the rule cannot be reactivated (looped) if a consequence of the rule re-triggers a previously met condition. When the condition is not selected, the rule can be looped in these circumstances.

Example: no-loop true

activation-group

A string identifying an activation (or XOR) group to which you want to assign the rule. In activation groups, only one rule can be activated. The first rule to fire will cancel all pending activations of all rules in the activation group.

Example: activation-group "GroupName"

duration

A long integer value defining the duration of time in milliseconds after which the rule can be activated, if the rule conditions are still met.

Example: duration 10000

timer

A string identifying either int (interval) or cron timer definitions for scheduling the rule.

Example: timer ( cron:* 0/15 * * * ? ) (every 15 minutes)

calendar

A Quartz calendar definition for scheduling the rule.

Example: calendars "* * 0-7,18-23 ? * *" (exclude non-business hours)

auto-focus

A Boolean value, applicable only to rules within agenda groups. When the option is selected, the next time the rule is activated, a focus is automatically given to the agenda group to which the rule is assigned.

Example: auto-focus true

lock-on-active

A Boolean value, applicable only to rules within rule flow groups or agenda groups. When the option is selected, the next time the ruleflow group for the rule becomes active or the agenda group for the rule receives a focus, the rule cannot be activated again until the ruleflow group is no longer active or the agenda group loses the focus. This is a stronger version of the no-loop attribute, because the activation of a matching rule is discarded regardless of the origin of the update (not only by the rule itself). This attribute is ideal for calculation rules where you have a number of rules that modify a fact and you do not want any rule re-matching and firing again.

Example: lock-on-active true

dialect

A string identifying either JAVA or MVEL as the language to be used for code expressions in the rule. By default, the rule uses the dialect specified at the package level. Any dialect specified here overrides the package dialect setting for the rule.

Example: dialect "JAVA"
4.2.2.8. Rule conditions in DRL
rule

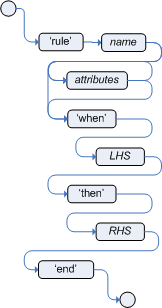

Figure 173. Rule
lhs

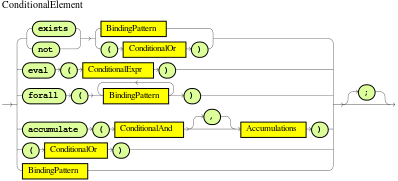

Figure 174. Conditional element in a rule

The when part of a DRL rule (also known as the Left Hand Side (LHS) of the rule) contains the conditions that must be met to execute an action. Conditions consist of a series of stated OOPath expressions of patterns and constraints, with optional bindings and supported rule condition elements (keywords), based on the available data objects in the package. OOPath is an object-oriented syntax extension to XPath for navigating through related elements while handling collections and filtering constraints.

For example, in a decision service that raises alerts when the temperature reaches or exceeds 80 degrees, a rule tooHot contains the when condition /temperature[value >= 80].

DRL uses when instead of if because if is typically part of a procedural execution flow during which a condition is checked at a specific point in time. In contrast, when indicates that the condition evaluation is not limited to a specific evaluation sequence or point in time, but instead occurs continually at any time. Whenever the condition is met, the actions are executed.

If the when section is empty, then the conditions are considered to be true and the actions in the then section are executed the first time the rules are fired. This is useful if you want to use rules to set up the decision engine state.

The following example rule uses empty conditions to insert a fact every time the rule is executed:

Example rule without conditions
rule "start-up"
  when
    // Empty
  then   // Actions to be executed once
    alerts.add( new Alert("INFO", "System started") );
end

Formally, the core grammar of an OOPath expression is defined in extended Backus-Naur form (EBNF) notation in the following way:

EBNF notation for OOPath expressions
OOPExpr = [ID ( ":" | ":=" )] ( "/" | "?/" ) OOPSegment { ( "/" | "?/" | "." ) OOPSegment } ;
OOPSegment = ID ["#" ID] ["[" ( Number | Constraints ) "]"]
OOPath expressions and constraints

An OOPath expression of a pattern in a DRL rule condition is the segment to be matched by the decision engine. An OOPath expression can potentially match each fact that is inserted into the working memory of the decision engine. It can also contain constraints to further define the facts to be matched.

In the simplest form, with no constraints, an OOPath expression matches a fact in the given data source. In the following example with a DataSource<Person> named person, the expression matches against all Person objects in the data source of the decision engine:

Example expression for a single fact type
/person

Patterns can also refer to superclasses or even interfaces, potentially matching facts from many different classes. For example, the following pattern matches all Student subtypes of the Person object:

Example pattern for subtypes
/person # Student

Square brackets in a pattern enclose the constraints, such as the following constraint on the person’s age:

Example pattern with a constraint
/person[ age == 50 ]

A constraint is an expression that returns true or false. Constraints in DRL are essentially Java expressions with some enhancements, such as property access, and some differences, such as equals() and !equals() semantics for == and != (instead of the usual same and not same semantics).

Any JavaBeans property can be accessed directly from pattern constraints. A JavaBeans property is exposed internally using a standard JavaBeans getter that takes no arguments and returns something. For example, the age property is written as age in DRL instead of the getter getAge():

DRL constraint syntax with JavaBeans properties
/person[ age == 50 ]

// This is equivalent to the following getter format:

/person[ getAge() == 50 ]

Kogito uses the standard JDK Introspector class to achieve this mapping and follows the standard JavaBeans specification. For optimal decision engine performance, use the property access format, such as age, instead of using getters explicitly, such as getAge().

Do not use property accessors to change the state of the object in a way that might affect the rules because the decision engine caches the results of the match between invocations for higher efficiency.

For example, do not use property accessors in the following ways:

public int getAge() {
    age++; // Do not do this.
    return age;
}
public int getAge() {
    Date now = DateUtil.now(); // Do not do this.
    return DateUtil.differenceInYears(now, birthday);
}

Instead of following the second example, insert a fact that wraps the current date in the working memory and update that fact between rule executions as needed.

However, if the getter of a property cannot be found, the compiler uses the property name as a fallback method name, without arguments:

Fallback method if object is not found
/person[ age == 50 ]

// If `Person.getAge()` does not exist, the compiler uses the following syntax:

/person[ age() == 50 ]

You can also nest access properties in patterns, as shown in the following example. Nested properties are indexed by the decision engine.

Example pattern with nested property access
/person[ address.houseNumber == 50 ]

// This is equivalent to the following expression:

/person[ getAddress().getHouseNumber() == 50 ]

You can use any Java expression that returns a boolean value as a constraint inside the parentheses of a pattern. Java expressions can be mixed with other expression enhancements, such as property access:

Example pattern with a constraint using property access and Java expression
/person[ age == 50 ]

You can change the evaluation priority by using parentheses, as in any logical or mathematical expression:

Example evaluation order of constraints
/person[ age > 100 && ( age % 10 == 0 ) ]

You can also reuse Java methods in constraints, as shown in the following example:

Example constraints with reused Java methods
/person[ Math.round( weight / ( height * height ) ) < 25.0 ]

Do not use constraints to change the state of the object in a way that might affect the rules because the decision engine caches the results of the match between invocations for higher efficiency. Any method that is executed on a fact in the rule conditions must be a read-only method. Also, the state of a fact should not change between rule invocations unless those facts are marked as updated in the working memory on every change.

For example, do not use a pattern constraint in the following ways:

/person[ incrementAndGetAge() == 10 ] // Do not do this.
/person[ System.currentTimeMillis() % 1000 == 0 ] // Do not do this.

Standard Java operator precedence applies to constraint operators in DRL, and DRL operators follow standard Java semantics except for the == and != operators.

The == operator uses null-safe equals() semantics instead of the usual same semantics. For example, the pattern /person[ firstName == "John" ] is similar to java.util.Objects.equals(person.getFirstName(), "John"), and because "John" is not null, the pattern is also similar to "John".equals(person.getFirstName()).

The != operator uses null-safe !equals() semantics instead of the usual not same semantics. For example, the pattern /person[ firstName != "John" ] is similar to !java.util.Objects.equals(person.getFirstName(), "John").

If the field and the value of a constraint are of different types, the decision engine uses type coercion to resolve the conflict and reduce compilation errors. For instance, if "ten" is provided as a string in a numeric evaluator, a compilation error occurs, whereas "10" is coerced to a numeric 10. In coercion, the field type always takes precedence over the value type:

Example constraint with a value that is coerced
/person[ age == "10" ] // "10" is coerced to 10

For groups of constraints, you can use a delimiting comma , to use implicit and connective semantics:

Example patterns with multiple constraints
// Person is at least 50 years old and weighs at least 80 kilograms:
/person[ age > 50, weight > 80 ]

// Person is at least 50 years old, weighs at least 80 kilograms, and is taller than 2 meters:
/person[ age > 50, weight > 80, height > 2 ]
Although the && and , operators have the same semantics, they are resolved with different priorities. The && operator precedes the || operator, and both the && and || operators together precede the , operator. Use the comma operator at the top-level constraint for optimal decision engine performance and human readability.

You cannot embed a comma operator in a composite constraint expression, such as in parentheses:

Example of misused comma in composite constraint expression
// Do not use the following format:
/person[ ( age > 50, weight > 80 ) || height > 2 ]

// Use the following format instead:
/person[ ( age > 50 && weight > 80 ) || height > 2 ]
Bound variables in patterns and constraints

You can bind variables to OOPath expressions of patterns and constraints to refer to matched objects in other portions of a rule. Bound variables can help you define rules more efficiently or more consistently with how you annotate facts in your data model.

For example, the following DRL rule uses the variable $p for an OOPath expression with the Person fact:

Pattern with a bound variable
rule "simple rule"
  when
    $p : /person
  then
    System.out.println( "Person " + p );
end

Similarly, you can also bind variables to nested properties, as shown in the following example:

// Two persons of the same age:
/person[ firstAge : age ]  // Binding
and
/person[ age == firstAge ] // Constraint expression

Ensure that you separate constraint bindings and constraint expressions for clearer and more efficient rule definitions. Although mixed bindings and expressions are supported, they can complicate patterns and affect evaluation efficiency.

// Do not use the following format:
/person[ age : age * 2 < 100 ]

// Use the following format instead:
/person[ age * 2 < 100, $age : age ]
Nested constraints and inline casts

In some cases, you might need to access multiple properties of a nested object, as shown in the following example:

Example pattern to access multiple properties
/person[ name == "mark", address.city == "london", address.country == "uk" ]

You can group these property accessors to nested objects for more readable rules, as shown in the following example:

Example pattern with grouped constraints
/person[ name == "mark"]/address[ city == "london", country == "uk" ]

When you work with nested objects, you can use the syntax TYPE#SUB_TYPE to cast to a subtype and make the getters from the parent type available to the subtype. You can use either the object name or fully qualified class name, and you can cast to one or multiple subtypes, as shown in the following examples:

Example patterns with inline casting to a subtype
// Inline casting with subtype name:
/person[ name == "mark"]/address#LongAddress[ country == "uk" ]

// Inline casting with fully qualified class name:
/person[ name == "mark"]/address#org.domain.LongAddress[ country == "uk" ]

// Multiple inline casts:
/person[ name == "mark" ]/address#LongAddress/country#DetailedCountry[ population > 10000000 ]

These example patterns cast Address to LongAddress, and additionally to DetailedCountry in the last example, making the parent getters available to the subtypes in each case.

Date literal in constraints

By default, the decision engine supports the date format dd-mmm-yyyy. You can customize the date format, including a time format mask if needed, by providing an alternative format mask with the system property drools.dateformat="dd-mmm-yyyy hh:mm". You can also customize the date format by changing the language locale with the drools.defaultlanguage and drools.defaultcountry system properties. For example, the locale of Thailand is set as drools.defaultlanguage=th and drools.defaultcountry=TH.

Example pattern with a date literal restriction
/person[ bornBefore < "27-Oct-2009" ]
Auto-boxing and primitive types

Drools attempts to preserve numbers in their primitive or object wrapper form, so a variable bound to an int primitive when used in a code block or expression will no longer need manual unboxing; unlike early Drools versions where all primitives were autoboxed, requiring manual unboxing. A variable bound to an object wrapper will remain as an object; the existing JDK 1.5 and JDK 5 rules to handle auto-boxing and unboxing apply in this case. When evaluating field constraints, the system attempts to coerce one of the values into a comparable format; so a primitive is comparable to an object wrapper.

Supported operators in DRL constraints

DRL supports standard Java semantics for operators in constraints, with some exceptions and with some additional operators that are unique in DRL. The following list summarizes the operators that are handled differently in DRL constraints than in standard Java semantics or that are unique in DRL constraints.

/, #

Use the / operator to group property accessors to nested objects, and use the # operator to cast to a subtype in nested objects. Casting to a subtype makes the getters from the parent type available to the subtype. You can use either the object name or fully qualified class name, and you can cast to one or multiple subtypes.

Example constraints with nested objects
// Ungrouped property accessors:
/person[ name == "mark", address.city == "london", address.country == "uk" ]

// Grouped property accessors:
/person[ name == "mark"]/address[ city == "london", country == "uk" ]
Example constraints with inline casting to a subtype
// Inline casting with subtype name:
/person[ name == "mark", address#LongAddress.country == "uk" ]

// Inline casting with fully qualified class name:
/person[ name == "mark", address#org.domain.LongAddress.country == "uk" ]

// Multiple inline casts:
/person[ name == "mark", address#LongAddress.country#DetailedCountry.population > 10000000 ]
!.

Use this operator to dereference a property in a null-safe way. The value to the left of the !. operator must be not null (interpreted as != null) in order to give a positive result for pattern matching.

Example constraint with null-safe dereferencing
/person[ $streetName : address!.street ]

// This is internally rewritten in the following way:

/person[ address != null, $streetName : address.street ]
[]

Use this operator to access a List value by index or a Map value by key.

Example constraints with List and Map access
// The following format is the same as `childList(0).getAge() == 18`:
/person[childList[0].age == 18]

// The following format is the same as `credentialMap.get("jdoe").isValid()`:
/person[credentialMap["jdoe"].valid]
<, <=, >, >=

Use these operators on properties with natural ordering. For example, for Date fields, the < operator means before, and for String fields, the operator means alphabetically before. These properties apply only to comparable properties.

Example constraints with before operator
/person[ birthDate < $otherBirthDate ]

/person[ firstName < $otherFirstName ]
==, !=

Use these operators as equals() and !equals() methods in constraints, instead of the usual same and not same semantics.

Example constraint with null-safe equality
/person[ firstName == "John" ]

// This is similar to the following formats:

java.util.Objects.equals(person.getFirstName(), "John")
"John".equals(person.getFirstName())
Example constraint with null-safe not equality
/person[ firstName != "John" ]

// This is similar to the following format:

!java.util.Objects.equals(person.getFirstName(), "John")
&&, ||

Use these operators to create an abbreviated combined relation condition that adds more than one restriction on a field. You can group constraints with parentheses () to create a recursive syntax pattern.

Example constraints with abbreviated combined relation
// Simple abbreviated combined relation condition using a single `&&`:
/person[age > 30 && < 40]

// Complex abbreviated combined relation using groupings:
/person[age ((> 30 && < 40) || (> 20 && < 25))]

// Mixing abbreviated combined relation with constraint connectives:
/person[age > 30 && < 40 || location == "london"]
abbreviatedCombinedRelationCondition
Figure 175. Abbreviated combined relation condition
abbreviatedCombinedRelationConditionGroup
Figure 176. Abbreviated combined relation condition withparentheses
matches, not matches

Use these operators to indicate that a field matches or does not match a specified Java regular expression. Typically, the regular expression is a String literal, but variables that resolve to a valid regular expression are also supported. These operators apply only to String properties. If you use matches against a null value, the resulting evaluation is always false. If you use not matches against a null value, the resulting evaluation is always true. As in Java, regular expressions that you write as String literals must use a double backslash \\ to escape.

Example constraint to match or not match a regular expression
/person[ country matches "(USA)?\\S*UK" ]

/person[ country not matches "(USA)?\\S*UK" ]
contains, not contains

Use these operators to verify whether a field that is an Array or a Collection contains or does not contain a specified value. These operators apply to Array or Collection properties, but you can also use these operators in place of String.contains() and !String.contains() constraints checks.

Example constraints with contains and not contains for a Collection
// Collection with a specified field:
/familyTree[ countries contains "UK" ]

/familyTree[ countries not contains "UK" ]


// Collection with a variable:
/familyTree[ countries contains $var ]

/familyTree[ countries not contains $var ]
Example constraints with contains and not contains for a String literal
// Sting literal with a specified field:
/person[ fullName contains "Jr" ]

/person[ fullName not contains "Jr" ]


// String literal with a variable:
/person[ fullName contains $var ]

/person[ fullName not contains $var ]
For backward compatibility, the excludes operator is a supported synonym for not contains.
memberOf, not memberOf

Use these operators to verify whether a field is a member of or is not a member of an Array or a Collection that is defined as a variable. The Array or Collection must be a variable.

Example constraints with memberOf and not memberOf with a Collection
/familyTree[ person memberOf $europeanDescendants ]

/familyTree[ person not memberOf $europeanDescendants ]
soundslike

Use this operator to verify whether a word has almost the same sound, using English pronunciation, as the given value (similar to the matches operator). This operator uses the Soundex algorithm.

Example constraint with soundslike
// Match firstName "Jon" or "John":
/person[ firstName soundslike "John" ]
str

Use this operator to verify whether a field that is a String starts with or ends with a specified value. You can also use this operator to verify the length of the String.

Example constraints with str
// Verify what the String starts with:
/message[ routingValue str[startsWith] "R1" ]

// Verify what the String ends with:
/message[ routingValue str[endsWith] "R2" ]

// Verify the length of the String:
/message[ routingValue str[length] 17 ]
in, notin

Use these operators to specify more than one possible value to match in a constraint (compound value restriction). This functionality of compound value restriction is supported only in the in and not in operators. The second operand of these operators must be a comma-separated list of values enclosed in parentheses. You can provide values as variables, literals, return values, or qualified identifiers. These operators are internally rewritten as a list of multiple restrictions using the operators == or !=.

compoundValueRestriction

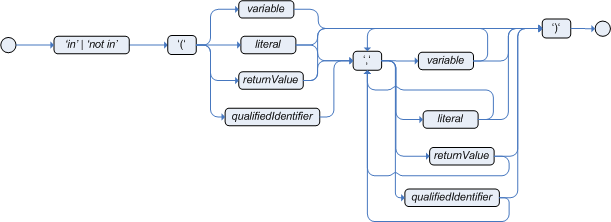

Figure 177. compoundValueRestriction
Example constraints with in and notin
/person[ $color : favoriteColor ]
/color[ type in ( "red", "blue", $color ) ]

/person[ $color : favoriteColor ]
/color[ type notin ( "red", "blue", $color ) ]
Operator precedence in DRL pattern constraints

DRL supports standard Java operator precedence for applicable constraint operators, with some exceptions and with some additional operators that are unique in DRL. The following table lists DRL operator precedence where applicable, from highest to lowest precedence:

Table 91. Operator precedence in DRL pattern constraints
Operator type Operators Notes

Nested or null-safe property access

/, !.

Not standard Java semantics

List or Map access

[]

Not standard Java semantics

Constraint binding

:

Not standard Java semantics

Multiplicative

*, /%

Additive

+, -

Shift

>>, >>>, <<

Relational

<, <=, >, >=, instanceof

Equality

== !=

Uses equals() and !equals() semantics, not standard Java same and not same semantics

Non-short-circuiting AND

&

Non-short-circuiting exclusive OR

^

Non-short-circuiting inclusive OR

|

Logical AND

&&

Logical OR

||

Ternary

? :

Comma-separated AND

,

Not standard Java semantics
Supported rule condition elements in DRL (keywords)

DRL supports the following rule condition elements (keywords) that you can use with the patterns that you define in DRL rule conditions:

and

Use this to group conditional components into a logical conjunction. Infix and prefix and are supported. You can group patterns explicitly with parentheses (). By default, all listed patterns are combined with and when no conjunction is specified.

infixAnd
Figure 178. infixAnd
prefixAnd
Figure 179. prefixAnd
Example patterns with and
//Infix `and`:
colorType: /color/type and /person[ favoriteColor == colorType ]

//Infix `and` with grouping:
(colorType: /color/type and (/person[ favoriteColor == colorType ] or /person[ favoriteColor == colorType ])

// Prefix `and`:
(and colorType: /color/type /person[ favoriteColor == colorType ])

// Default implicit `and`:
colorType: /color/type
/person[ favoriteColor == colorType ]

Do not use a leading declaration binding with the and keyword (as you can with or, for example). A declaration can only reference a single fact at a time, and if you use a declaration binding with and, then when and is satisfied, it matches both facts and results in an error.

Example misuse of and
// Causes compile error:
$person : (/person[ name == "Romeo" ] and /person[ name == "Juliet"])
or

Use this to group conditional components into a logical disjunction. Infix and prefix or are supported. You can group patterns explicitly with parentheses (). You can also use pattern binding with or, but each pattern must be bound separately.

infixOr
Figure 180. infixOr
prefixOr
Figure 181. prefixOr
Example patterns with or
//Infix `or`:
colorType: /color/type or /person[ favoriteColor == colorType]

//Infix `or` with grouping:
colorType: /color/type or (/person[ favoriteColor == colorType] and /person[ favoriteColor == colorType])

// Prefix `or`:
(or colorType: /color/type /person[ favoriteColor == colorType])
Example patterns with or and pattern binding
pensioner : ( /person[ sex == "f", age > 60 ] or /person[ sex == "m", age > 65 ] )

(or pensioner : /person[ sex == "f", age > 60 ]
    pensioner : /person[ sex == "m", age > 65 ])

The behavior of the or condition element is different from the connective || operator for constraints and restrictions in field constraints. The decision engine does not directly interpret the or element but uses logical transformations to rewrite a rule with or as a number of sub-rules. This process ultimately results in a rule that has a single or as the root node and one sub-rule for each of its condition elements. Each sub-rule is activated and executed like any normal rule, with no special behavior or interaction between the sub-rules.

Therefore, consider the or condition element a shortcut for generating two or more similar rules that, in turn, can create multiple activations when two or more terms of the disjunction are true.

exists

Use this to specify facts and constraints that must exist. This option is triggered on only the first match, not subsequent matches. If you use this element with multiple patterns, enclose the patterns with parentheses ().

exists
Figure 182. Exists
Example patterns with exists
exists /person[ firstName == "John"]

exists (/person[ firstName == "John", age == 42 ])

exists (/person[ firstName == "John" ] and
        /person[ lastName == "Doe" ])
not

Use this to specify facts and constraints that must not exist. If you use this element with multiple patterns, enclose the patterns with parentheses ().

not
Figure 183. Not
Example patterns with not
not /person[ firstName == "John"]

not (/person[ firstName == "John", age == 42 )]

not (/person[ firstName == "John" ] and
     /person[ lastName == "Doe" ])
forall

Use this to verify whether all facts that match the first pattern match all the remaining patterns. When a forall construct is satisfied, the rule evaluates to true. This element is a scope delimiter, so it can use any previously bound variable, but no variable bound inside of it is available for use outside of it.

forall
Figure 184. Forall
Example rule with forall
rule "All full-time employees have red ID badges"
  when
    forall( $emp : /employee[ type == "fulltime" ]
                   /employee[ this == $emp, badgeColor = "red" ] )
  then
    // True, all full-time employees have red ID badges.
end

In this example, the rule selects all employee objects whose type is "fulltime". For each fact that matches this pattern, the rule evaluates the patterns that follow (badge color) and if they match, the rule evaluates to true.

To state that all facts of a given type in the working memory of the decision engine must match a set of constraints, you can use forall with a single pattern for simplicity.

Example rule with forall and a single pattern
rule "All full-time employees have red ID badges"
  when
    forall( /employee[ badgeColor = "red" ] )
  then
    // True, all full-time employees have red ID badges.
end

You can use forall constructs with multiple patterns or nest them with other condition elements, such as inside a not element construct.

Example rule with forall and multiple patterns
rule "All employees have health and dental care programs"
  when
    forall( $emp : /employee
            /healthCare[ employee == $emp ]
            /dentalCare[ employee == $emp ]
          )
  then
    // True, all employees have health and dental care.
end
Example rule with forall and not
rule "Not all employees have health and dental care"
  when
    not ( forall( $emp : /employee
            /healthCare[ employee == $emp ]
            /dentalCare[ employee == $emp ] )
        )
  then
    // True, not all employees have health and dental care.
end
The format forall( p1 p2 p3 …​) is equivalent to not( p1 and not( and p2 p3 …​ ) ).
accumulate

Use this to iterate over a collection of objects, execute custom actions for each of the elements, and return one or more result objects (if the constraints evaluate to true). You can use predefined functions in your accumulate conditions or implement custom functions as needed. You can also use the abbreviation acc for accumulate in rule conditions.

Use the following format to define accumulate conditions in rules:

Preferred format for accumulate
accumulate( SOURCE_PATTERN; FUNCTIONS [;CONSTRAINTS] )
accumulate

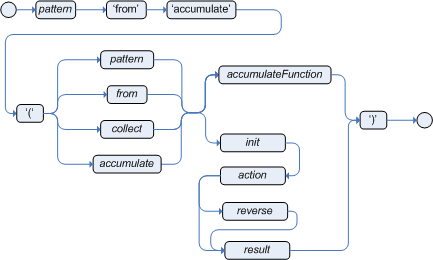

Figure 185. Accumulate
Although the decision engine supports alternate formats for the accumulate element for backward compatibility, this format is preferred for optimal performance in rules and applications.

The decision engine supports the following predefined accumulate functions. These functions accept any expression as input.

  • average

  • min

  • max

  • count

  • sum

  • collectList

  • collectSet

In the following example rule, min, max, and average are accumulate functions that calculate the minimum, maximum, and average temperature values over all the readings for each sensor:

Example rule with accumulate to calculate temperature values
rule "Raise alarm"
  when
    s : /sensor
    accumulate( /reading( sensor == $s, $temp : temperature );
                $min : min( $temp ),
                $max : max( $temp ),
                $avg : average( $temp );
                $min < 20, $avg > 70 )
  then
    // Raise the alarm.
end

The following example rule uses the average function with accumulate to calculate the average profit for all items in an order:

Example rule with accumulate to calculate average profit
rule "Average profit"
  when
    $order : /order
    accumulate( /orderItem( order == $order, $cost : cost, $price : price );
                $avgProfit : average( 1 - $cost / $price ) )
  then
    // Average profit for `$order` is `$avgProfit`.
end

To use custom, domain-specific functions in accumulate conditions, create a Java class that implements the org.kie.api.runtime.rule.AccumulateFunction interface. For example, the following Java class defines a custom implementation of an AverageData function:

Example Java class with custom implementation of average function
// An implementation of an accumulator capable of calculating average values

public class AverageAccumulateFunction implements org.kie.api.runtime.rule.AccumulateFunction<AverageAccumulateFunction.AverageData> {

    public void readExternal(ObjectInput in) throws IOException, ClassNotFoundException {

    }

    public void writeExternal(ObjectOutput out) throws IOException {

    }

    public static class AverageData implements Externalizable {
        public int    count = 0;
        public double total = 0;

        public AverageData() {}

        public void readExternal(ObjectInput in) throws IOException, ClassNotFoundException {
            count   = in.readInt();
            total   = in.readDouble();
        }

        public void writeExternal(ObjectOutput out) throws IOException {
            out.writeInt(count);
            out.writeDouble(total);
        }

    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#createContext()
     */
    public AverageData createContext() {
        return new AverageData();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#init(java.io.Serializable)
     */
    public void init(AverageData context) {
        context.count = 0;
        context.total = 0;
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#accumulate(java.io.Serializable, java.lang.Object)
     */
    public void accumulate(AverageData context,
                           Object value) {
        context.count++;
        context.total += ((Number) value).doubleValue();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#reverse(java.io.Serializable, java.lang.Object)
     */
    public void reverse(AverageData context, Object value) {
        context.count--;
        context.total -= ((Number) value).doubleValue();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#getResult(java.io.Serializable)
     */
    public Object getResult(AverageData context) {
        return new Double( context.count == 0 ? 0 : context.total / context.count );
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#supportsReverse()
     */
    public boolean supportsReverse() {
        return true;
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#getResultType()
     */
    public Class< ? > getResultType() {
        return Number.class;
    }

}

To use the custom function in a DRL rule, import the function using the import accumulate statement:

Format to import a custom function
import accumulate CLASS_NAME FUNCTION_NAME
Example rule with the imported average function
import accumulate AverageAccumulateFunction.AverageData average

rule "Average profit"
  when
    $order : /order
    accumulate( /orderItem[ order == $order, $cost : cost, $price : price ];
                $avgProfit : average( 1 - $cost / $price ) )
  then
    // Average profit for `$order` is `$avgProfit`.
end

For backward compatibility, the decision engine also supports the configuration of accumulate functions through configuration files and system properties, but this is a deprecated method. To configure the average function from the previous example using the configuration file or system property, set a property as shown in the following example:

drools.accumulate.function.average = AverageAccumulateFunction.AverageData

Note that drools.accumulate.function is a required prefix, average is how the function is used in the DRL files, and AverageAccumulateFunction.AverageData is the fully qualified name of the class that implements the function behavior.
Railroad diagrams for rule condition elements in DRL
AccumulateAction
AccumulateClause
AccumulateFunction
AccumulateInit
AccumulateResult
AccumulateReverse
AccumulateSteps
Accumulations
AdditiveExpr
Annotation
Arguments
ArrayCreatorRest
ArrayInitializer
AssignmentOperator
BindingPattern
Block
BooleanLiteral
CompilationUnit
ConditionalAnd
ConditionalElementAccumulate
ConditionalElementEval
ConditionalElementExists
ConditionalElementForall
ConditionalElementNot
ConditionalElement
ConditionalExpr
ConditionalOrExpr
ConditionalOr
Constraints
CreatedName
Creator
Definition
Digit
ExplicitGenericInvocationSuffix
ExplicitGenericInvocation
Exponent
ExpressionList
Expression
Field
Fraction
FromAccumulateClause
FromClause
FromCollectClause
FunctionDefinition
GlobalDefinition
IdentifierSuffix
ImportDefinition
InExpr
InlineListExpr
InlineMapExpr
InnerCreator
InstanceOfExpr
IntLiteral
Literal
ModifyStatement
NonWildcardTypeArguments
OrRestriction
OverClause
Parameters
Pattern
Placeholders
Primary
PrimitiveType
QualifiedName
QueryDefinition
QueryOptions
RealLiteral
RealTypeSuffix
RelationalExpr
RelationalOperator
RhsStatement
RuleAttributes
RuleAttribute
RuleDefinition
RuleOptions
Selector
ShiftExpr
SingleRestriction
SourcePattern
StringId
SuperSuffix
ThenPart
TypeArguments
TypeArgument
TypeDefinition
TypeOptions
Type
UnaryExprNotPlusMinus
UnaryExpr
Value
VariableInitializer
WhenPart
4.2.2.9. Rule actions in DRL

The then part of the rule (also known as the Right Hand Side (RHS) of the rule) contains the actions to be performed when the conditional part of the rule has been met. Rule actions are typically determined by one or more data sources that you define as part of your DRL rule unit. For example, if a bank requires loan applicants to have over 21 years of age (with a rule condition /applicant[ applicantName : name, age < 21 ]) and a loan applicant is under 21 years old, the then action of an "Underage" rule would be setApproved( false ) based on a defined data source, declining the loan because the applicant is under age.

The main purpose of rule actions is to to insert, delete, or modify data in the working memory of the decision engine. Effective rule actions are small, declarative, and readable. If you need to use imperative or conditional code in rule actions, then divide the rule into multiple smaller and more declarative rules.

Example rule for loan application age limit
rule "Underage"
  when
    /applicant[ applicantName : name, age < 21 ]
    $application : /loanApplication[ applicant == applicantName ]
  then
    $application.setApproved( false );
    $application.setExplanation( "Underage" );
end

For more information about using data sources for rule actions, see Rule units in DRL.

4.2.2.10. Comments in DRL files

DRL supports single-line comments prefixed with a double forward slash // and multi-line comments enclosed with a forward slash and asterisk /* …​ */. You can use DRL comments to annotate rules or any related components in DRL files. DRL comments are ignored by the decision engine when the DRL file is processed.

Example rule with comments
rule "Underage"
  // This is a single-line comment.
  when
    /applicant[ applicantName : name, age < 21 ]  // This is an in-line comment
    $application : /loanApplication[ applicant == applicantName ]
  then
    /* This is a multi-line comment
    in the rule actions. */
    $application.setApproved( false );
    $application.setExplanation( "Underage" );
end
multi line comment
Figure 186. Multi-line comment
The hash symbol # is not supported for DRL comments.
4.2.2.11. Error messages for DRL troubleshooting

Kogito provides standardized messages for DRL errors to help you troubleshoot and resolve problems in your DRL files. The error messages use the following format:

error message
Figure 187. Error message format for DRL file problems

  • 1st Block: Error code

  • 2nd Block: Line and column in the DRL source where the error occurred

  • 3rd Block: Description of the problem

  • 4th Block: Component in the DRL source (rule, function, query) where the error occurred

  • 5th Block: Pattern in the DRL source where the error occurred (if applicable)

Kogito supports the following standardized error messages:

101: no viable alternative

Indicates that the parser reached a decision point but could not identify an alternative.

Example rule with incorrect spelling
1: rule "simple rule"
2:   when
3:     exists /person
4:     exits /student  // Must be `exists`
5:   then
6: end
Error message
[ERR 101] Line 4:4 no viable alternative at input 'exits' in rule "simple rule"
Example rule without a rule name
1: package org.drools.examples;
2: rule    // Must be `rule "rule name"` (or `rule rule_name` if no spacing)
3:   when
4:     Object()
5:   then
6:     System.out.println("A RHS");
7: end
Error message
[ERR 101] Line 3:2 no viable alternative at input 'when'

In this example, the parser encountered the keyword when but expected the rule name, so it flags when as the incorrect expected token.

Example rule with incorrect syntax
1: rule "simple rule"
2:   when
3:     /student[ name == "Andy ]  // Must be `"Andy"`
4:   then
5: end
Error message
[ERR 101] Line 0:-1 no viable alternative at input '<eof>' in rule "simple rule" in pattern student
A line and column value of 0:-1 means the parser reached the end of the source file (<eof>) but encountered incomplete constructs, usually due to missing quotation marks "…​", apostrophes '…​', or parentheses (…​).
102: mismatched input

Indicates that the parser expected a particular symbol that is missing at the current input position.

Example rule with an incomplete rule statement
1: rule "simple rule"
2:   when
3:     $p : /person[
        // Must be a complete rule statement
Error message
[ERR 102] Line 0:-1 mismatched input '<eof>' expecting ']' in rule "simple rule" in pattern person
A line and column value of 0:-1 means the parser reached the end of the source file (<eof>) but encountered incomplete constructs, usually due to missing quotation marks "…​", apostrophes '…​', or parentheses (…​).
Example rule with incorrect syntax
1: package org.drools.examples;
2:
3: rule "Wrong syntax"
4:   when
5:     not /car[ ( type == "tesla", price == 10000 ) || ( type == "kia", price == 1000 ) ]
       // Must use `&&` operators instead of commas `,`
6:   then
7:     System.out.println("OK");
8: end
Error messages
[ERR 102] Line 5:36 mismatched input ',' expecting ')' in rule "Wrong syntax" in pattern car
[ERR 101] Line 5:57 no viable alternative at input 'type' in rule "Wrong syntax"
[ERR 102] Line 5:106 mismatched input ']' expecting 'then' in rule "Wrong syntax"

In this example, the syntactic problem results in multiple error messages related to each other. The single solution of replacing the commas , with && operators resolves all errors. If you encounter multiple errors, resolve one at a time in case errors are consequences of previous errors.

103: failed predicate

Indicates that a validating semantic predicate evaluated to false. These semantic predicates are typically used to identify component keywords in DRL files, such as declare, rule, exists, not, and others.

Example rule with an invalid keyword
 1: package nesting;
 2:
 3: import org.drools.compiler.Person
 4: import org.drools.compiler.Address
 5:
 6: Some text  // Must be a valid DRL keyword
 7:
 8: rule "test something"
 9:   when
10:     $p: /person[ name=="Michael" ]
11:   then
12:     $p.name = "other";
13:     System.out.println(p.name);
14: end
Error message
[ERR 103] Line 6:0 rule 'rule_key' failed predicate: {(validateIdentifierKey(DroolsSoftKeywords.RULE))}? in rule

The Some text line is invalid because it does not begin with or is not a part of a DRL keyword construct, so the parser fails to validate the rest of the DRL file.

This error is similar to 102: mismatched input, but usually involves DRL keywords.
104: trailing semi-colon not allowed

Indicates that an eval() clause in a rule condition uses a semicolon ; but must not use one.

Example rule with eval() and trailing semicolon
1: rule "simple rule"
2:   when
3:     eval( abc(); )  // Must not use semicolon `;`
4:   then
5: end
Error message
[ERR 104] Line 3:4 trailing semi-colon not allowed in rule "simple rule"
105: did not match anything

Indicates that the parser reached a sub-rule in the grammar that must match an alternative at least once, but the sub-rule did not match anything. The parser has entered a branch with no way out.

Example rule with invalid text in an empty condition
1: rule "empty condition"
2:   when
3:     None  // Must remove `None` if condition is empty
4:   then
5:      insert( new Person() );
6: end
Error message
[ERR 105] Line 2:2 required (...)+ loop did not match anything at input 'WHEN' in rule "empty condition"

In this example, the condition is intended to be empty but the word None is used. This error is resolved by removing None, which is not a valid DRL keyword, data type, or pattern construct.

4.2.2.12. Legacy DRL conventions

The following Drools Rule Language (DRL) conventions are no longer applicable or optimal in Kogito but might be available for backward compatibility.

Legacy functions in DRL
function
Figure 188. Function

Functions in DRL files put semantic code in your rule source file instead of in Java classes. Functions are especially useful if an action (then) part of a rule is used repeatedly and only the parameters differ for each rule. Above the rules in the DRL file, you can declare the function or import a static method from a helper class as a function, and then use the function by name in an action (then) part of the rule.

The following examples illustrate a function that is either declared or imported in a DRL file:

Example function declaration with a rule (option 1)
function String hello(String applicantName) {
    return "Hello " + applicantName + "!";
}

rule "Using a function"
  when
    // Empty
  then
    System.out.println( hello( "James" ) );
end
Example function import with a rule (option 2)
import function my.package.applicant.hello;

rule "Using a function"
  when
    // Empty
  then
    System.out.println( hello( "James" ) );
end
Legacy rule attributes

The following attributes were used in earlier versions of the decision engine to provide grouping of rules across a rule base. These attributes are superseded by DRL rule units and are only available for backward compatibility reasons. If you need to group your rules, use DRL rule units as a clearer and simpler grouping method.

Table 92. Legacy rule attributes
Attribute Value

agenda-group

A string identifying an agenda group to which you want to assign the rule. Agenda groups allow you to partition the agenda to provide more execution control over groups of rules. Only rules in an agenda group that has acquired a focus are able to be activated.

Example: agenda-group "GroupName"

ruleflow-group

A string identifying a rule flow group. In rule flow groups, rules can fire only when the group is activated by the associated rule flow.

Example: ruleflow-group "GroupName"
Legacy DRL rule condition syntax

In Kogito, the preferred syntax for DRL rule conditions is through OOPath expressions. For legacy use cases, you can write rules using traditional pattern matching. In this case, you must explicitly indicate the data source using the from clause, as shown in the following comparative examples:

Example PersonRules DRL file using OOPath notation
package org.acme
unit PersonRules;

import org.acme.Person;

rule isAdult
	when
		$person: /person[ age > 18 ]
	then
    modify($person) {
    	setAdult(true)
    };
end
Example PersonRules DRL file using traditional notation
package org.acme
unit PersonRules;

import org.acme.Person;

rule isAdult
	when
		$person: Person(age > 18) from person
	then
    modify($person) {
    	setAdult(true)
    };
end
Legacy DRL rule condition elements

The following rule condition elements (keywords) are obsolete in Kogito:

from

(Obsolete with OOPath notation)

Use this to specify a data source for a pattern. This enables the decision engine to reason over data that is not in the working memory. The data source can be a sub-field on a bound variable or the result of a method call. The expression used to define the object source is any expression that follows regular MVEL syntax. Therefore, the from element enables you to easily use object property navigation, execute method calls, and access maps and collection elements.

from
Figure 189. from
Example rule with from and pattern binding
rule "Validate zipcode"
  when
    Person( $personAddress : address )
    Address( zipcode == "23920W" ) from $personAddress
  then
    // Zip code is okay.
end
Example rule with from and a graph notation
rule "Validate zipcode"
  when
    $p : Person()
    $a : Address( zipcode == "23920W" ) from $p.address
  then
    // Zip code is okay.
end
Example rule with from to iterate over all objects
rule "Apply 10% discount to all items over US$ 100 in an order"
  when
    $order : Order()
    $item  : OrderItem( value > 100 ) from $order.items
  then
    // Apply discount to `$item`.
end

For large collections of objects, instead of adding an object with a large graph that the decision engine must iterate over frequently, add the collection directly to the KIE session and then join the collection in the condition, as shown in the following example:

when
  $order : Order()
  OrderItem( value > 100, order == $order )
Example rule with from and lock-on-active rule attribute
rule "Assign people in North Carolina (NC) to sales region 1"
  ruleflow-group "test"
  lock-on-active true
  when
    $p : Person()
    $a : Address( state == "NC" ) from $p.address
  then
    modify ($p) {} // Assign the person to sales region 1.
end

rule "Apply a discount to people in the city of Raleigh"
  ruleflow-group "test"
  lock-on-active true
  when
    $p : Person()
    $a : Address( city == "Raleigh" ) from $p.address
  then
    modify ($p) {} // Apply discount to the person.
end

Using from with lock-on-active rule attribute can result in rules not being executed. You can address this issue in one of the following ways:

  • Avoid using the from element when you can insert all facts into the working memory of the decision engine or use nested object references in your constraint expressions.

  • Place the variable used in the modify() block as the last sentence in your rule condition.

  • Avoid using the lock-on-active rule attribute when you can explicitly manage how rules within the same ruleflow group place activations on one another.

The pattern that contains a from clause cannot be followed by another pattern starting with a parenthesis. The reason for this restriction is that the DRL parser reads the from expression as "from $l (String() or Number())" and it cannot differentiate this expression from a function call. The simplest workaround to this is to wrap the from clause in parentheses, as shown in the following example:

Example rules with from used incorrectly and correctly
// Do not use `from` in this way:
rule R
  when
    $l : List()
    String() from $l
    (String() or Number())
  then
    // Actions
end

// Use `from` in this way instead:
rule R
  when
    $l : List()
    (String() from $l)
    (String() or Number())
  then
    // Actions
end
entry-point

(Superseded by rule unit data sources)

Use this to define an entry point, or event stream, corresponding to a data source for the pattern. This element is typically used with the from condition element. You can declare an entry point for events so that the decision engine uses data from only that entry point to evaluate the rules. You can declare an entry point either implicitly by referencing it in DRL rules or explicitly in your Java application.

Example rule with from entry-point
rule "Authorize withdrawal"
  when
    WithdrawRequest( $ai : accountId, $am : amount ) from entry-point "ATM Stream"
    CheckingAccount( accountId == $ai, balance > $am )
  then
    // Authorize withdrawal.
end
collect

(Obsolete with OOPath notation)

Use this to define a collection of objects that the rule can use as part of the condition. The rule obtains the collection either from a specified source or from the working memory of the decision engine. The result pattern of the collect element can be any concrete class that implements the java.util.Collection interface and provides a default no-arg public constructor. You can use Java collections like List, LinkedList, and HashSet, or your own class. If variables are bound before the collect element in a condition, you can use the variables to constrain both your source and result patterns. However, any binding made inside the collect element is not available for use outside of it.

collect
Figure 190. Collect
Example rule with collect
import java.util.List

rule "Raise priority when system has more than three pending alarms"
  when
    $system : System()
    $alarms : List( size >= 3 )
              from collect( Alarm( system == $system, status == 'pending' ) )
  then
    // Raise priority because `$system` has three or more `$alarms` pending.
end

In this example, the rule assesses all pending alarms in the working memory of the decision engine for each given system and groups them in a List. If three or more alarms are found for a given system, the rule is executed.

You can also use the collect element with nested from elements, as shown in the following example:

Example rule with collect and nested from
import java.util.LinkedList;

rule "Send a message to all parents"
  when
    $town : Town( name == 'Paris' )
    $mothers : LinkedList()
               from collect( Person( children > 0 )
                             from $town.getPeople()
                           )
  then
    // Send a message to all parents.
end
accumulate alternate syntax for a single function with return type

The accumulate syntax evolved over time with the goal of becoming more compact and expressive. Nevertheless, Kogito still supports previous syntaxes for backward compatibility purposes.

In case the rule is using a single accumulate function on a given accumulate, the author may add a pattern for the result object and use the "from" keyword to link it to the accumulate result.

Example: a rule to apply a 10% discount on orders over $100 could be written in the following way:

rule "Apply 10% discount to orders over US$ 100,00"
when
    $order : /order
    $total : Number( doubleValue > 100 )
             from accumulate( OrderItem( order == $order, $value : value ),
                              sum( $value ) )
then
    // apply discount to $order
end

In the above example, the accumulate element is using only one function (sum), and so, the rules author opted to explicitly write a pattern for the result type of the accumulate function (Number) and write the constraints inside it. There are no problems in using this syntax over the compact syntax presented before, except that is is a bit more verbose. Also note that it is not allowed to use both the return type and the functions binding in the same accumulate statement.

Compile-time checks are performed in order to ensure the pattern used with the "from" keyword is assignable from the result of the accumulate function used.

With this syntax, the "from" binds to the single result returned by the accumulate function, and it does not iterate.

In the above example, "$total" is bound to the result returned by the accumulate sum() function.

As another example however, if the result of the accumulate function is a collection, "from" still binds to the single result and it does not iterate:

rule "Person names"
when
  $x : Object() from accumulate(MyPerson( $val : name );
                                collectList( $val ) )
then
  // $x is a List
end

The bound "$x : Object()" is the List itself, returned by the collectList accumulate function used.

This is an important distinction to highlight, as the "from" keyword can also be used separately of accumulate, to iterate over the elements of a collection:

rule "Iterate the numbers"
when
    $xs : List()
    $x : Integer() from $xs
then
  // $x matches and binds to each Integer in the collection
end

While this syntax is still supported for backward compatibility purposes, for this and other reasons we encourage rule authors to make use instead of the preferred accumulate syntax (described previously), to avoid any potential pitfalls.

accumulate with inline custom code

Another possible syntax for the accumulate is to define inline custom code, instead of using accumulate functions.

The use of accumulate with inline custom code is not a good practice for several reasons, including difficulties on maintaining and testing rules that use them, as well as the inability of reusing that code. Implementing your own accumulate functions is very simple and straightforward, they are easy to unit test and to use. This form of accumulate is supported for backward compatibility only.

Only limited support for inline accumulate is provided while using the executable model. For example, you cannot use an external binding in the code while using the MVEL dialect:

rule R
dialect "mvel"
when
    String( $l : length )
    $sum : Integer() from accumulate (
                           Person( age > 18, $age : age ),
                           init( int sum = 0 * $l; ),
                           action( sum += $age; ),
                           reverse( sum -= $age; ),
                           result( sum )
                     )

The general syntax of the accumulate CE with inline custom code is:

RESULT_PATTERN from accumulate( SOURCE_PATTERN,
                                  init( INIT_CODE ),
                                  action( ACTION_CODE ),
                                  reverse( REVERSE_CODE ),
                                  result( RESULT_EXPRESSION ) )

The meaning of each of the elements is the following:

  • SOURCE_PATTERN: the source pattern is a regular pattern that the decision engine will try to match against each of the source objects.

  • INIT_CODE: this is a semantic block of code in the selected dialect that will be executed once for each tuple, before iterating over the source objects.

  • ACTION_CODE: this is a semantic block of code in the selected dialect that will be executed for each of the source objects.

  • REVERSE_CODE: this is an optional semantic block of code in the selected dialect that if present will be executed for each source object that no longer matches the source pattern. The objective of this code block is to undo any calculation done in the ACTION_CODE block, so that the decision engine can do decremental calculation when a source object is modified or deleted, hugely improving performance of these operations.

  • RESULT_EXPRESSION: this is a semantic expression in the selected dialect that is executed after all source objects are iterated.

  • RESULT_PATTERN: this is a regular pattern that the decision engine tries to match against the object returned from the RESULT_EXPRESSION. If it matches, the accumulate conditional element evaluates to true and the decision engine proceeds with the evaluation of the next CE in the rule. If it does not matches, the accumulate CE evaluates to false and the decision engine stops evaluating CEs for that rule.

It is easier to understand if we look at an example:

rule "Apply 10% discount to orders over US$ 100,00"
when
    $order : Order()
    $total : Number( doubleValue > 100 )
             from accumulate( OrderItem( order == $order, $value : value ),
                              init( double total = 0; ),
                              action( total += $value; ),
                              reverse( total -= $value; ),
                              result( total ) )
then
    // apply discount to $order
end

In the above example, for each Order in the Working Memory, the decision engine will execute the INIT_CODE initializing the total variable to zero. Then it will iterate over all OrderItem objects for that order, executing the action for each one (in the example, it will sum the value of all items into the total variable). After iterating over all OrderItem objects, it will return the value corresponding to the result expression (in the above example, the value of variable total). Finally, the decision engine will try to match the result with the Number pattern, and if the double value is greater than 100, the rule will fire.

The example used Java as the semantic dialect, and as such, note that the usage of the semicolon as statement delimiter is mandatory in the init, action and reverse code blocks. The result is an expression and, as such, it does not admit ';'. If the user uses any other dialect, he must comply to that dialect’s specific syntax.

As mentioned before, the REVERSE_CODE is optional, but it is strongly recommended that the user writes it in order to benefit from the improved performance on update and delete.

The accumulate CE can be used to execute any action on source objects. The following example instantiates and populates a custom object:

rule "Accumulate using custom objects"
when
    $person   : Person( $likes : likes )
    $cheesery : Cheesery( totalAmount > 100 )
                from accumulate( $cheese : Cheese( type == $likes ),
                                 init( Cheesery cheesery = new Cheesery(); ),
                                 action( cheesery.addCheese( $cheese ); ),
                                 reverse( cheesery.removeCheese( $cheese ); ),
                                 result( cheesery ) );
then
    // do something
end
eval

The conditional element eval is essentially a catch-all which allows any semantic code (that returns a primitive boolean) to be executed. This code can refer to variables that were bound in the conditions of the rule and functions in the rule package. Overuse of eval reduces the declarativeness of your rules and can result in a poorly performing decision engine. While eval can be used anywhere in the patterns, it is typically added as the last conditional element in the conditions of a rule.

eval
Figure 191. Eval

Instances of eval cannot be indexed and thus are not as efficient as Field Constraints. However this makes them ideal for being used when functions return values that change over time, which is not allowed within Field Constraints.

For those who are familiar with Kogito 2.x lineage, the old Kogito parameter and condition tags are equivalent to binding a variable to an appropriate type, and then using it in an eval node.

p1 : Parameter()
p2 : Parameter()
eval( p1.getList().containsKey( p2.getItem() ) )

p1 : Parameter()
p2 : Parameter()
// call function isValid in the LHS
eval( isValid( p1, p2 ) )

4.2.3. Creating DRL rules for your Kogito project

You can create and manage DRL rules for your Kogito project in your integrated development environment (IDE). For Kogito service, VSCode is the preferred IDE. In each DRL rule file, you define rule conditions, actions, and other components related to the rule, based on the data objects you create or import in the package.

In Kogito, you typically define DRL rules in rule units. A DRL rule unit is a module for rules and a unit of execution. A rule unit collects a set of rules with the declaration of the type of facts that the rules act on. A rule unit also serves as a unique namespace for each group of rules. A single rule base can contain multiple rule units. You typically store all the rules for a unit in the same file as the unit declaration so that the unit is self-contained.

For this procedure, create the following example DRL type declarations and DRL rule unit to define DRL rules in a decision service for a loan application:

Example DRL type declarations for a loan application
package org.mortgages;

declare Bankruptcy
    name: String
    yearOfOccurrence: int
end

declare Applicant
    name: String
    age: int
end

declare LoanApplication
    applicant: String
    approved: boolean
    explanation: String
end
Example DRL rule unit file for a loan application
package org.mortgages;
unit MortgageRules;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

declare MortgageRules extends RuleUnitData
  bankruptcy: DataStore<Bankruptcy> = DataSource.createStore()
  applicant: DataStore<Applicant> = DataSource.createStore()
  application: DataStore<LoanApplication> = DataSource.createStore()
end

rule "Bankruptcy history"
	salience 10
	when
    $a : /loanApplication[ applicantName: applicant ]
    exists (/bankruptcy[ name == applicantName, yearOfOccurrence > 1990 || amountOwed > 100000 ])
	then
		$a.setApproved( false );
		$a.setExplanation( "has been bankrupt" );
		loanApplication.remove( $a );
end

rule "Underage"
	salience 15
	when
    /applicant[ applicantName : name, age < 21 ]
    $application : /loanApplication[ applicant == applicantName ]
	then
		$application.setApproved( false );
		$application.setExplanation( "Underage" );
		loanApplication.remove( $a );
end
Prerequisites
Procedure

  1. In your VSCode IDE, open your Kogito project and create a src/main/resources/org/mortgages folder. This folder serves as the package for your DRL files in this example.

  2. In your new src/main/resources/org/mortgages folder, add the following ApplicationTypes.drl file to define the fact types for the loan application service:

    Example DRL type declarations for a loan application
    package org.mortgages;

declare Bankruptcy
    name: String
    yearOfOccurrence: int
end

declare Applicant
    name: String
    age: int
end

declare LoanApplication
    applicant: String
    approved: boolean
    explanation: String
end

    This DRL file defines the fact types that you can declare in any rule units in the same package for the decision service. Declarations in DRL files define new fact types or metadata for fact types to be used by rules in a DRL files. If you declare these types directly in the DRL rule unit file, you cannot declare them in any other rule units.

    This example defines the following fact types:

    • Bankruptcy: Provides data for bankruptcy status, if applicable

    • Applicant: Provides data about the loan applicant

    • LoanApplication: Provides data about loan approval status for a specified applicant, with an explanation if needed

  3. In the same src/main/resources/org/mortgages folder of your Kogito project, create the following LoanApplication.drl file to declare the DRL rule unit and data sources:

    Example DRL file with rule unit and data sources
    package org.mortgages;
unit MortgageRules;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStore;

declare MortgageRules extends RuleUnitData
  bankruptcy: DataStore<Bankruptcy> = DataSource.createStore()
  applicant: DataStore<Applicant> = DataSource.createStore()
  application: DataStore<LoanApplication> = DataSource.createStore()
end
...

    In this example, the rule unit is named MortgageRules and the previously defined fact types are declared as DataStore data sources.

    Data sources are typed sources of data that rule units can subscribe to for updates. You interact with the rule unit through the data sources it exposes. A data source can be a DataStream source for append-only storage, a DataStore source for writable storage to add or remove data, or a SingletonStore source for writable storage to set and clear a single element.

    This example uses the DataStore data source to enable application data to be added or removed as part of the decision service.

  4. To complete the DRL rule unit file, add the following rules for "Bankruptcy history" and "Underage" logic:

    Example DRL rule unit file for a loan application
    package org.mortgages;
unit MortgageRules;

import org.kie.kogito.rules.DataSource;
import org.kie.kogito.rules.DataStream;

declare MortgageRules extends RuleUnitData
  bankruptcy: DataStore<Bankruptcy> = DataSource.createStore()
  applicant: DataStore<Applicant> = DataSource.createStore()
  application: DataStore<LoanApplication> = DataSource.createStore()
end

rule "Bankruptcy history"
	salience 10
	when
    $a : /loanApplication[ applicantName: applicant ]
    exists (/bankruptcy[ name == applicantName, yearOfOccurrence > 1990 || amountOwed > 100000 ])
	then
		$a.setApproved( false );
		$a.setExplanation( "has been bankrupt" );
		loanApplication.remove( $a );
end

rule "Underage"
	salience 15
	when
    /applicant[ applicantName : name, age < 21 ]
    $application : /loanApplication[ applicant == applicantName ]
	then
		$application.setApproved( false );
		$application.setExplanation( "Underage" );
		loanApplication.remove( $a );
end

    The example rules consist of the following rule components:

    • rule: Use this segment to define each rule in the DRL file. Rules consist of a rule name in the format rule "rule name", followed by optional attributes that define rule behavior, such as salience or no-loop, followed by when and then definitions. Each rule must have a unique name within the rule package.

      In this example, the "Bankruptcy history" rule has a defined salience of 10 and the "Underage" rule has a defined salience of 15. These values ensure that the "Bankruptcy history" rule is executed first.

    • when and then: Use the when portion to define the condition patterns and constraints in OOPath syntax and use the then portion to define the actions to be executed when the conditions are met.

      In this example, the "Bankruptcy history" rule states that if an applicant has owed more than 100,000 USD of unresolved debt since 1990 (beginning 1991), then the applicant is considered to have been bankrupt and is not approved for a loan. The application is removed from memory.

      If the applicant passes the bankruptcy check, then the "Underage" rule states that if the applicant is younger than 21 years old, then the applicant is not approved for the loan. The application is removed from memory.

      If the applicant passes both checks, then the loan is approved.

  5. After you define all components of the data sources and rules, save all DRL files.

Additional resources

4.2.4. Kogito service execution

After you design your Kogito service, you can build and run your application and then send REST API requests to the application to execute your services. The exact REST API requests that you can use depend on how you set up the application.

For example, consider a Kogito service that is set up to generate a /persons REST API endpoint and determines whether a specified customer is an adult or is underage. In this example, you can send the following POST request using a REST client or curl utility to add an adult and execute the service:

Example POST request body to add an adult (JSON)
{
  "person": {
    "name": "John Quark",
    "age": 20
  }
}
Example curl command to add an adult
curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
Example response (JSON)
{
  "id": "3af806dd-8819-4734-a934-728f4c819682",
  "person": {
    "name": "John Quark",
    "age": 20,
    "adult": false
  },
  "isAdult": true
}

Note that for JSON marshaling, Kogito is relying on the default mappers of Quarkus and SpringBoot, which can be configured according to the specific requirements.

For information about creating, running, and testing an example application with Kogito services, see Creating and running your first Kogito services.

For information about deploying your Kogito service to OpenShift, see Deploying Kogito services on OpenShift.

4.3. Using spreadsheet decision tables in Kogito services

As a developer of business decisions, you can define business rules in a tabular format in spreadsheet decision tables and then include the spreadsheet file in your Kogito project. These rules are compiled into Drools Rule Language (DRL) for the decision service in your project.

4.3.1. Decision-authoring assets in Kogito

Kogito supports several assets that you can use to define business decisions for your decision service. Each decision-authoring asset has different advantages, and you might prefer to use one or a combination of multiple assets depending on your goals and needs.

The following table highlights the main decision-authoring assets supported in Kogito projects to help you decide or confirm the best method for defining decisions in your decision service.

Table 93. Decision-authoring assets supported in Kogito
Asset Highlights Authoring tools Documentation

Decision Model and Notation (DMN) models

  • Are decision models based on a notation standard defined by the Object Management Group (OMG)

  • Use graphical decision requirements diagrams (DRDs) that represent part or all of the overall decision requirements graph (DRG) to trace business decision flows

  • Use an XML schema that allows the DMN models to be shared between DMN-compliant platforms

  • Support Friendly Enough Expression Language (FEEL) to define decision logic in DMN decision tables and other DMN boxed expressions

  • Can be integrated efficiently with Business Process Model and Notation (BPMN) process models

  • Are optimal for creating comprehensive, illustrative, and stable decision flows

Kogito DMN modeler in VSCode or other DMN-compliant editor

Decision Model and Notation (DMN)

DRL rules

  • Are individual rules that you define directly in .drl text files

  • Provide the most flexibility for defining rules and other technicalities of rule behavior

  • Are optimal for creating rules that require advanced DRL options, such as rule units

  • Have strict syntax requirements for rules to be compiled properly

Any integrated development environment (IDE)

Drools Rule Language (DRL)

Spreadsheet decision tables

  • Are tabular sets of rules that you define in .xls or .xlsx spreadsheet files

  • Support template keys and values for creating rule templates

  • Are optimal for business environments that already rely on decision tables for rules

  • Have strict syntax requirements for rules to be compiled properly when used in Kogito

Spreadsheet editor

Spreadsheet decision tables

4.3.2. Spreadsheet decision tables

Spreadsheet decision tables are XLS or XLSX spreadsheet files that contain business rules defined in a tabular format. You can include spreadsheet decision tables as part of your Kogito project. Each row in a decision table is a rule, and each column is a condition, an action, or another rule attribute. After you create and include your spreadsheet decision tables in your project, the rules you defined are compiled into Drools Rule Language (DRL) rules for the decision service.

4.3.3. Decision table use case

An online shopping site lists the shipping charges for ordered items. The site provides free shipping under the following conditions:

  • The number of items ordered is 4 or more and the checkout total is $300 or more.

  • Standard shipping is selected (4 or 5 business days from the date of purchase).

The following are the shipping rates under these conditions:

Table 94. For orders less than $300
Number of items Delivery day Shipping charge in USD, N = Number of items

3 or fewer

Next day

2nd day

Standard

35

15

10

4 or more

Next day

2nd day

Standard

N*7.50

N*3.50

N*2.50
Table 95. For orders more than $300
Number of items Delivery day Shipping charge in USD, N = Number of items

3 or fewer

Next day

2nd day

Standard

25

10

N*1.50

4 or more

Next day

2nd day

Standard

N*5

N*2

FREE

These conditions and rates are shown in the following example spreadsheet decision table:

Decision table example
Figure 192. Decision table for shipping charges

In order for a decision table to be compiled in your Kogito project, the table must comply with certain structure and syntax requirements within an XLS or XLSX spreadsheet, as shown in this example. For more information, see Creating spreadsheet decision tables for your Kogito project.

4.3.4. Creating spreadsheet decision tables for your Kogito project

Spreadsheet decision tables (XLS or XLSX) require two key areas that define rule data: a RuleSet area and a RuleTable area. The RuleSet area of the spreadsheet defines elements that you want to apply globally to all rules in the same package (not only the spreadsheet), such as a rule set name or universal rule attributes. The RuleTable area defines the actual rules (rows) and the conditions, actions, and other rule attributes (columns) that constitute that rule table within the specified rule set. A spreadsheet of decision tables can contain multiple RuleTable areas, but only one RuleSet area.

For each Kogito project, try to include only one spreadsheet of decision tables, containing all necessary RuleTable definitions. Although you can include separate decision table spreadsheets, including multiple spreadsheets in the same project package can cause compilation errors from conflicting RuleSet or RuleTable attributes and is therefore not recommended.

Refer to the following sample spreadsheet as you define your decision table:

Decision table example

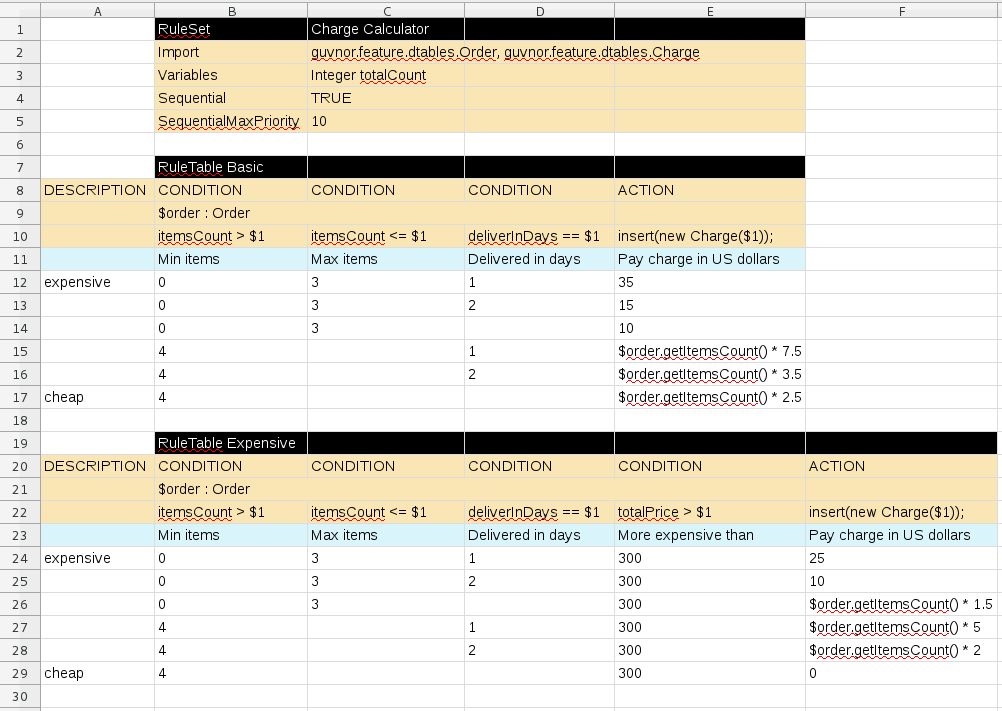

Figure 193. Sample spreadsheet decision table for shipping charges
Prerequisites

  • You have added the following dependency to the pom.xml file of your Kogito project to enable decision tables for decision services:

    Dependency to enable decision tables for decision services
    <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>drools-decisiontables</artifactId>
</dependency>
Procedure

  1. In a new XLS or XLSX spreadsheet, go to the second or third column and label a cell RuleSet (row 1 in example). Reserve the column or columns to the left for descriptive metadata (optional).

  2. In the next cell to the right, enter a name for the RuleSet. This named rule set will contain all RuleTable rules defined in the rule package.

  3. Under the RuleSet cell, define any rule attributes (one per cell) that you want to apply globally to all rule tables in the package. Specify attribute values in the cells to the right. For example, you can enter an Import label and in the cell to the right, specify relevant data objects from other packages that you want to import into the package for the decision table (in the format package.name.object.name). For supported cell labels and values, see RuleSet definitions.

  4. Below the RuleSet area and in the same column as the RuleSet cell, skip a row and label a new cell RuleTable (row 7 in example) and enter a table name in the same cell. The name is used as the initial part of the name for all rules derived from this rule table, with the row number appended for distinction. You can override this automatic naming by inserting a NAME attribute column.

  5. Use the next four rows to define the following elements as needed (rows 8-11 in example):

    • Rule attributes: Conditions, actions, or other attributes. For supported cell labels and values, see RuleTable definitions.

    • Object types: The data objects to which the rule attributes apply. If the same object type applies to multiple columns, merge the object cells into one cell across multiple columns (as shown in the sample decision table), instead of repeating the object type in multiple cells. When an object type is merged, all columns below the merged range will be combined into one set of constraints within a single pattern for matching a single fact at a time. When an object is repeated in separate columns, the separate columns can create different patterns, potentially matching different or identical facts.

    • Constraints: Constraints on the object types.

    • Column label: (Optional) Any descriptive label for the column, as a visual aid. Leave blank if unused.

      As an alternative to populating both the object type and constraint cells, you can leave the object type cell or cells empty and enter the full expression in the corresponding constraint cell or cells. For example, instead of Order as the object type and itemsCount > $1 as a constraint (separate cells), you can leave the object type cell empty and enter Order( itemsCount > $1 ) in the constraint cell, and then do the same for other constraint cells.

  6. After you have defined all necessary rule attributes (columns), enter values for each column as needed, row by row, to generate rules (rows 12-17 in example). Cells with no data are ignored (such as when a condition or action does not apply).

    If you need to add more rule tables to this decision table spreadsheet, skip a row after the last rule in the previous table, label another RuleTable cell in the same column as the previous RuleTable and RuleSet cells, and create the new table following the same steps in this section (rows 19-29 in example).

  7. Save your XLS or XLSX spreadsheet to finish.

  8. In your VSCode IDE, import the XLS or XLSX spreadsheet file in the relevant folder of your Kogito project, typically in src/main/resources.

Only the first worksheet in a spreadsheet workbook is processed as a decision table when you include the spreadsheet in your Kogito project. Each RuleSet name combined with the RuleTable name must be unique across all decision table files in the same package.

After you include the decision table in your Kogito project, the rules are rendered as DRL rules like the following example, from the sample spreadsheet:

//row 12
rule "Basic_12"
salience 10
  when
    $order : /orders[ itemsCount > 0, itemsCount <= 3, deliverInDays == 1 ]
  then
    insert( new Charge( 35 ) );
end
Enabling white space used in cell values

By default, any white space before or after values in decision table cells is removed before the decision table is processed by the decision engine. To retain white space that you use intentionally before or after values in cells, set the drools.trimCellsInDTable system property to false in the application.properties file of your Kogito project:

Enable white space in application.properties
drools.trimCellsInDTable=false

You can also set this property as a start-up option when you build your Kogito project:

On Quarkus
mvn compile quarkus:dev -Ddrools.trimCellsInDTable=false
On Spring Boot
mvn spring-boot:run -Ddrools.trimCellsInDTable=false
4.3.4.1. RuleSet definitions

Entries in the RuleSet area of a decision table define DRL constructs and rule attributes that you want to apply to all rules in a package (not only in the spreadsheet). Entries must be in a vertically stacked sequence of cell pairs, where the first cell contains a label and the cell to the right contains the value. A decision table spreadsheet can have only one RuleSet area.

The following table lists the supported labels and values for RuleSet definitions:

Table 96. Supported RuleSet definitions
Label Value Usage

RuleSet

The package name for the generated DRL file. Optional, the default is rule_table.

Must be the first entry.

Unit

The name of the rule unit for the generated DRL file.

Recommended for optimal rule grouping and execution.

Sequential

true or false. If true, then salience is used to ensure that rules fire from the top down.

Optional, at most once. If omitted, no firing order is imposed.

SequentialMaxPriority

Integer numeric value.

Optional, at most once. In sequential mode, this option is used to set the start value of the salience. If omitted, the default value is 65535.

SequentialMinPriority

Integer numeric value.

Optional, at most once. In sequential mode, this option is used to check if this minimum salience value is not violated. If omitted, the default value is 0.

EscapeQuotes

true or false. If true, then quotation marks are escaped so that they appear literally in the DRL.

Optional, at most once. If omitted, quotation marks are escaped.

Import

A comma-separated list of Java classes to import from another package.

Optional, may be used repeatedly.

Queries

One or more query definitions, according to DRL syntax.

Optional, may be used repeatedly.

Declare

One or more declarative types, according to DRL syntax.

Optional, may be used repeatedly.
In some cases, Microsoft Office, LibreOffice, and OpenOffice might encode a double quotation mark differently, causing a compilation error. For example, “A” fails, but "A" succeeds.
4.3.4.2. RuleTable definitions

Entries in the RuleTable area of a decision table define conditions, actions, and other rule attributes for the rules in that rule table. A spreadsheet of decision tables can contain multiple RuleTable areas.

The following table lists the supported labels (column headers) and values for RuleTable definitions. For column headers, you can use either the given labels or any custom labels that begin with the letters listed in the table.

Table 97. Supported RuleTable definitions
Label Or custom label that begins with Value Usage

NAME

N

Provides the name for the rule generated from that row. The default is constructed from the text following the RuleTable tag and the row number.

At most one column.

DESCRIPTION

I

Results in a comment within the generated rule.

At most one column.

CONDITION

C

Code snippet and interpolated values for constructing a constraint within a pattern in a condition.

At least one per rule table.

ACTION

A

Code snippet and interpolated values for constructing an action for the consequence of the rule.

At least one per rule table.

METADATA

@

Code snippet and interpolated values for constructing a metadata entry for the rule.

Optional, any number of columns.

The following sections provide more details about how condition, action, and metadata columns use cell data:

Conditions

For columns headed CONDITION, the cells in consecutive lines result in a conditional element:

  • First cell: Text in the first cell below CONDITION develops into a pattern for the rule condition, and uses the snippet in the next line as a constraint. If the cell is merged with one or more neighboring cells, a single pattern with multiple constraints is formed. All constraints are combined into a parenthesized list and appended to the text in this cell.

    If this cell is empty, the code snippet in the cell below it must result in a valid conditional element on its own. For example, instead of Order as the object type and itemsCount > $1 as a constraint (separate cells), you can leave the object type cell empty and enter Order( itemsCount > $1 ) in the constraint cell, and then do the same for any other constraint cells.

    To include a pattern without constraints, you can write the pattern in front of the text of another pattern, with or without an empty pair of parentheses. You can also append a from clause to the pattern.

    If the pattern ends with eval, code snippets produce boolean expressions for inclusion into a pair of parentheses after eval.

  • Second cell: Text in the second cell below CONDITION is processed as a constraint on the object reference in the first cell. The code snippet in this cell is modified by interpolating values from cells farther down in the column. If you want to create a constraint consisting of a comparison using == with the value from the cells below, then the field selector alone is sufficient. Any other comparison operator must be specified as the last item within the snippet, and the value from the cells below is appended. For all other constraint forms, you must mark the position for including the contents of a cell with the symbol $param. Multiple insertions are possible if you use the symbols $1, $2, and so on, and a comma-separated list of values in the cells below. However, do not separate $1, $2, and so on, by commas, or the table will fail to process.

    To expand a text according to the pattern forall($delimiter){$snippet}, repeat the $snippet once for each of the values of the comma-separated list in each of the cells below, insert the value in place of the symbol $, and join these expansions by the given $delimiter. Note that the forall construct may be surrounded by other text.

    If the first cell contains an object, the completed code snippet is added to the conditional element from that cell. A pair of parentheses is provided automatically, as well as a separating comma if multiple constraints are added to a pattern in a merged cell. If the first cell is empty, the code snippet in this cell must result in a valid conditional element on its own. For example, instead of Order as the object type and itemsCount > $1 as a constraint (separate cells), you can leave the object type cell empty and enter Order( itemsCount > $1 ) in the constraint cell, and then do the same for any other constraint cells.

  • Third cell: Text in the third cell below CONDITION is a descriptive label that you define for the column, as a visual aid.

  • Fourth cell: From the fourth row on, non-blank entries provide data for interpolation. A blank cell omits the condition or constraint for this rule.

Actions

For columns headed ACTION, the cells in consecutive lines result in an action statement:

  • First cell: Text in the first cell below ACTION is optional. If present, the text is interpreted as an object reference.

  • Second cell: Text in the second cell below ACTION is a code snippet that is modified by interpolating values from cells farther down in the column. For a singular insertion, mark the position for including the contents of a cell with the symbol $param. Multiple insertions are possible if you use the symbols $1, $2, and so on, and a comma-separated list of values in the cells below. However, do not separate $1, $2, and so on, by commas, or the table will fail to process.

    A text without any marker symbols can execute a method call without interpolation. In this case, use any non-blank entry in a row below the cell to include the statement. The forall construct is supported.

    If the first cell contains an object, then the cell text (followed by a period), the text in the second cell, and a terminating semicolon are strung together, resulting in a method call that is added as an action statement for the consequence. If the first cell is empty, the code snippet in this cell must result in a valid action element on its own.

  • Third cell: Text in the third cell below ACTION is a descriptive label that you define for the column, as a visual aid.

  • Fourth cell: From the fourth row on, non-blank entries provide data for interpolation. A blank cell omits the condition or constraint for this rule.

Metadata

For columns headed METADATA, the cells in consecutive lines result in a metadata annotation for the generated rules:

  • First cell: Text in the first cell below METADATA is ignored.

  • Second cell: Text in the second cell below METADATA is subject to interpolation, using values from the cells in the rule rows. The metadata marker character @ is prefixed automatically, so you do not need to include that character in the text for this cell.

  • Third cell: Text in the third cell below METADATA is a descriptive label that you define for the column, as a visual aid.

  • Fourth cell: From the fourth row on, non-blank entries provide data for interpolation. A blank cell results in the omission of the metadata annotation for this rule.

4.3.4.3. Additional rule attributes for RuleSet or RuleTable definitions

The RuleSet and RuleTable areas also support labels and values for other rule attributes, such as PRIORITY or NO-LOOP. Rule attributes specified in a RuleSet area will affect all rule assets in the same package (not only in the spreadsheet). Rule attributes specified in a RuleTable area will affect only the rules in that rule table. You can use each rule attribute only once in a RuleSet area and once in a RuleTable area. If the same attribute is used in both RuleSet and RuleTable areas within the spreadsheet, then RuleTable takes priority and the attribute in the RuleSet area is overridden.

The following table lists the supported labels (column headers) and values for additional RuleSet or RuleTable definitions. For column headers, you can use either the given labels or any custom labels that begin with the letters listed in the table.

Table 98. Additional rule attributes for RuleSet or RuleTable definitions
Label Or custom label that begins with Value

PRIORITY

P

An integer defining the salience value of the rule. Rules with a higher salience value are given higher priority when ordered in the activation queue. Overridden by the Sequential flag.

Example: PRIORITY 10

DATE-EFFECTIVE

V

A string containing a date and time definition. The rule can be activated only if the current date and time is after a DATE-EFFECTIVE attribute.

Example: DATE-EFFECTIVE "4-Sep-2018"

DATE-EXPIRES

Z

A string containing a date and time definition. The rule cannot be activated if the current date and time is after the DATE-EXPIRES attribute.

Example: DATE-EXPIRES "4-Oct-2018"

NO-LOOP

U

A Boolean value. When this option is set to true, the rule cannot be reactivated (looped) if a consequence of the rule re-triggers a previously met condition.

Example: NO-LOOP true

ACTIVATION-GROUP

X

A string identifying an activation (or XOR) group to which you want to assign the rule. In activation groups, only one rule can be activated. The first rule to fire will cancel all pending activations of all rules in the activation group.

Example: ACTIVATION-GROUP "GroupName"

DURATION

D

A long integer value defining the duration of time in milliseconds after which the rule can be activated, if the rule conditions are still met.

Example: DURATION 10000

TIMER

T

A string identifying either int (interval) or cron timer definitions for scheduling the rule.

Example: TIMER "*/5 * * * *" (every 5 minutes)

CALENDAR

E

A Quartz calendar definition for scheduling the rule.

Example: CALENDAR "* * 0-7,18-23 ? * *" (exclude non-business hours)

AUTO-FOCUS

F

A Boolean value, applicable only to rules within agenda groups. When this option is set to true, the next time the rule is activated, a focus is automatically given to the agenda group to which the rule is assigned.

Example: AUTO-FOCUS true

LOCK-ON-ACTIVE

L

A Boolean value, applicable only to rules within rule flow groups or agenda groups. When this option is set to true, the next time the ruleflow group for the rule becomes active or the agenda group for the rule receives a focus, the rule cannot be activated again until the ruleflow group is no longer active or the agenda group loses the focus. This is a stronger version of the no-loop attribute, because the activation of a matching rule is discarded regardless of the origin of the update (not only by the rule itself). This attribute is ideal for calculation rules where you have a number of rules that modify a fact and you do not want any rule re-matching and firing again.

Example: LOCK-ON-ACTIVE true
Example decision table with definitions used
Figure 194. Sample decision table spreadsheet with attribute columns

4.3.5. Kogito service execution

After you design your Kogito service, you can build and run your application and then send REST API requests to the application to execute your services. The exact REST API requests that you can use depend on how you set up the application.

For example, consider a Kogito service that is set up to generate a /persons REST API endpoint and determines whether a specified customer is an adult or is underage. In this example, you can send the following POST request using a REST client or curl utility to add an adult and execute the service:

Example POST request body to add an adult (JSON)
{
  "person": {
    "name": "John Quark",
    "age": 20
  }
}
Example curl command to add an adult
curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
Example response (JSON)
{
  "id": "3af806dd-8819-4734-a934-728f4c819682",
  "person": {
    "name": "John Quark",
    "age": 20,
    "adult": false
  },
  "isAdult": true
}

Note that for JSON marshaling, Kogito is relying on the default mappers of Quarkus and SpringBoot, which can be configured according to the specific requirements.

For information about creating, running, and testing an example application with Kogito services, see Creating and running your first Kogito services.

For information about deploying your Kogito service to OpenShift, see Deploying Kogito services on OpenShift.

4.4. Decision engine in Kogito

As a developer of business decisions, your understanding of the decision engine in Kogito can help you design more effective business assets and a more scalable decision management architecture. The decision engine is the Kogito component that stores, processes, and evaluates data to execute business rules and to reach the decisions that you define. This document describes basic concepts and functions of the decision engine to consider as you create your business rule system and decision services in Kogito.

4.4.1. Decision engine in Kogito

The decision engine is the rules engine in Kogito. The decision engine stores, processes, and evaluates data to execute the business rules or decision models that you define. The basic function of the decision engine is to match incoming data, or facts, to the conditions of rules and determine whether and how to execute the rules.

The decision engine operates using the following basic components:

  • Rules: Business rules or DMN decisions that you define. All rules must contain at a minimum the conditions that trigger the rule and the actions that the rule dictates.

  • Facts: Data that enters or changes in the decision engine that the decision engine matches to rule conditions to execute applicable rules.

  • Production memory: Location where rules are stored in the decision engine.

  • Working memory: Location where facts are stored in the decision engine.

  • Agenda: Location where activated rules are registered and sorted (if applicable) in preparation for execution.

When a business user or an automated system adds or updates rule-related information in Kogito, that information is inserted into the working memory of the decision engine in the form of one or more facts. The decision engine matches those facts to the conditions of the rules that are stored in the production memory to determine eligible rule executions. (This process of matching facts to rules is often referred to as pattern matching.) When rule conditions are met, the decision engine activates and registers rules in the agenda, where the decision engine then sorts prioritized or conflicting rules in preparation for execution.

The following diagram illustrates these basic components of the decision engine:

rule engine inkscape enterprise
Figure 195. Overview of basic decision engine components

These core concepts can help you to better understand other more advanced components, processes, and subprocesses of the decision engine, and as a result, to design more effective business assets in Kogito.

4.4.2. Execution control in the decision engine

When new rule data enters the working memory of the decision engine, rules may become fully matched and eligible for execution. A single working memory action can result in multiple eligible rule executions. When a rule is fully matched, the decision engine creates an activation instance, referencing the rule and the matched facts, and adds the activation onto the decision engine agenda. The agenda controls the execution order of these rule activations using a conflict resolution strategy.

When rules are executed, the decision engine cycles repeatedly through two phases:

  • Agenda evaluation. In this phase, the decision engine selects all rules that can be executed. If no executable rules exist, the execution cycle ends. If an executable rule is found, the decision engine registers the activation in the agenda and then moves on to the working memory actions phase to perform rule consequence actions.

  • Working memory actions. In this phase, the decision engine performs the rule consequence actions (the then portion of each rule) for all activated rules previously registered in the agenda. After all the consequence actions are complete or the rules are executed again, the decision engine returns to the agenda evaluation phase to reassess rules.

Two Phase enterprise
Figure 196. Two-phase execution process in the decision engine

When multiple rules exist on the agenda, the execution of one rule may cause another rule to be removed from the agenda. To avoid this, you can define how and when rules are executed in the decision engine. Some common methods for defining rule execution order are by using rule salience, agenda groups, activation groups, or rule units for DRL rule sets.

4.4.2.1. Salience for rules

Each rule has an integer salience attribute that determines the order of execution. Rules with a higher salience value are given higher priority when ordered in the activation queue. The default salience value for rules is zero, but the salience can be negative or positive.

For example, the following sample DRL rules are listed in the decision engine stack in the order shown:

rule "RuleA"
salience 95
  when
    $fact : /myFact[ field1 == true ]
  then
    System.out.println("Rule2 : " + $fact);
    update($fact);
end

rule "RuleB"
salience 100
  when
    $fact : /myFact[ field1 == false ]
  then
    System.out.println("Rule1 : " + $fact);
    $fact.setField1(true);
    update($fact);
end

The RuleB rule is listed second, but it has a higher salience value than the RuleA rule and is therefore executed first.

4.4.2.2. Activation groups for rules

An activation group is a set of rules bound together by the same activation-group rule attribute. In this group, only one rule can be executed. After conditions are met for a rule in that group to be executed, all other pending rule executions from that activation group are removed from the agenda.

For example, the following sample DRL rules belong to the specified activation group and are listed in the decision engine stack in the order shown:

Sample DRL rules for banking
rule "Print balance for AccountPeriod1"
activation-group "report"
  when
    ap : AccountPeriod1()
    acc : Account()
  then
    System.out.println( acc.accountNo +
                      " : " + acc.balance );
end
rule "Print balance for AccountPeriod2"
activation-group "report"
  when
    ap : AccountPeriod2()
    acc : Account()
  then
    System.out.println( acc.accountNo +
                      " : " + acc.balance );
end

For this example, if the first rule in the "report" activation group is executed, the second rule in the group and all other executable rules on the agenda are removed from the agenda.

4.4.3. Phreak rule algorithm in the decision engine

The decision engine in Kogito uses the Phreak algorithm for rule evaluation. Phreak evolved from the Rete algorithm, including the enhanced Rete algorithm ReteOO that was introduced in previous versions of Drools for object-oriented systems. Overall, Phreak is more scalable than Rete and ReteOO, and is faster in large systems.

While Rete is considered eager (immediate rule evaluation) and data oriented, Phreak is considered lazy (delayed rule evaluation) and goal oriented. The Rete algorithm performs many actions during the insert, update, and delete actions in order to find partial matches for all rules. This eagerness of the Rete algorithm during rule matching requires a lot of time before eventually executing rules, especially in large systems. With Phreak, this partial matching of rules is delayed deliberately to handle large amounts of data more efficiently.

The Phreak algorithm adds the following set of enhancements to previous Rete algorithms:

  • Three layers of contextual memory: Node, segment, and rule memory types

  • Rule-based, segment-based, and node-based linking

  • Lazy (delayed) rule evaluation

  • Stack-based evaluations with pause and resume

  • Isolated rule evaluation

  • Set-oriented propagations

4.4.3.1. Rule evaluation in Phreak

When the decision engine starts, all rules are considered to be unlinked from pattern-matching data that can trigger the rules. At this stage, the Phreak algorithm in the decision engine does not evaluate the rules. The rule actions are queued, and Phreak uses a heuristic, based on the rule most likely to result in execution, to calculate and select the next rule for evaluation. When all the required input values are populated for a rule, the rule is considered to be linked to the relevant pattern-matching data. Phreak then creates a goal that represents this rule and places the goal into a priority queue that is ordered by rule salience. Only the rule for which the goal was created is evaluated, and other potential rule evaluations are delayed. While individual rules are evaluated, node sharing is still achieved through the process of segmentation.

Unlike the tuple-oriented Rete, the Phreak propagation is collection oriented. For the rule that is being evaluated, the decision engine accesses the first node and processes all queued insert, update, and delete actions. The results are added to a set, and the set is propagated to the child node. In the child node, all queued insert, update, and delete actions are processed, adding the results to the same set. The set is then propagated to the next child node and the same process repeats until it reaches the terminal node. This cycle creates a batch process effect that can provide performance advantages for certain rule constructs.

The linking and unlinking of rules happens through a layered bit-mask system, based on network segmentation. When the rule network is built, segments are created for rule network nodes that are shared by the same set of rules. A rule is composed of a path of segments. In case a rule does not share any node with any other rule, it becomes a single segment.

A bit-mask offset is assigned to each node in the segment. Another bit mask is assigned to each segment in the path of the rule according to these requirements:

  • If at least one input for a node exists, the node bit is set to the on state.

  • If each node in a segment has the bit set to the on state, the segment bit is also set to the on state.

  • If any node bit is set to the off state, the segment is also set to the off state.

  • If each segment in the path of the rule is set to the on state, the rule is considered linked, and a goal is created to schedule the rule for evaluation.

The same bit-mask technique is used to track modified nodes, segments, and rules. This tracking ability enables an already linked rule to be unscheduled from evaluation if it has been modified since the evaluation goal for it was created. As a result, no rules can ever evaluate partial matches.

This process of rule evaluation is possible in Phreak because, as opposed to a single unit of memory in Rete, Phreak has three layers of contextual memory with node, segment, and rule memory types. This layering enables much more contextual understanding during the evaluation of a rule.

LayeredMemory enterprise

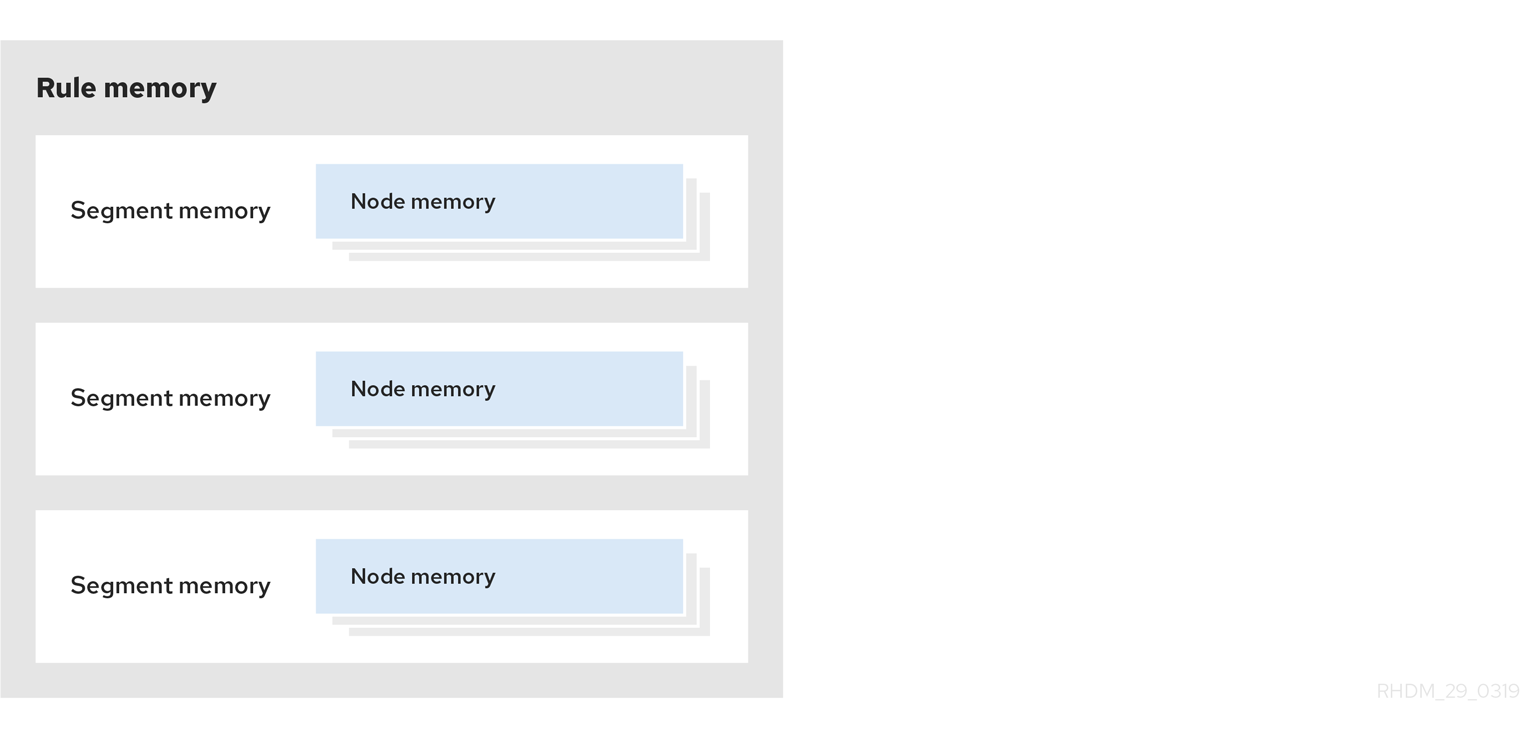

Figure 197. Phreak three-layered memory system

The following examples illustrate how rules are organized and evaluated in this three-layered memory system in Phreak.

Example 1: A single rule (R1) with three patterns: A, B and C. The rule forms a single segment, with bits 1, 2, and 4 for the nodes. The single segment has a bit offset of 1.

segment1 enterprise

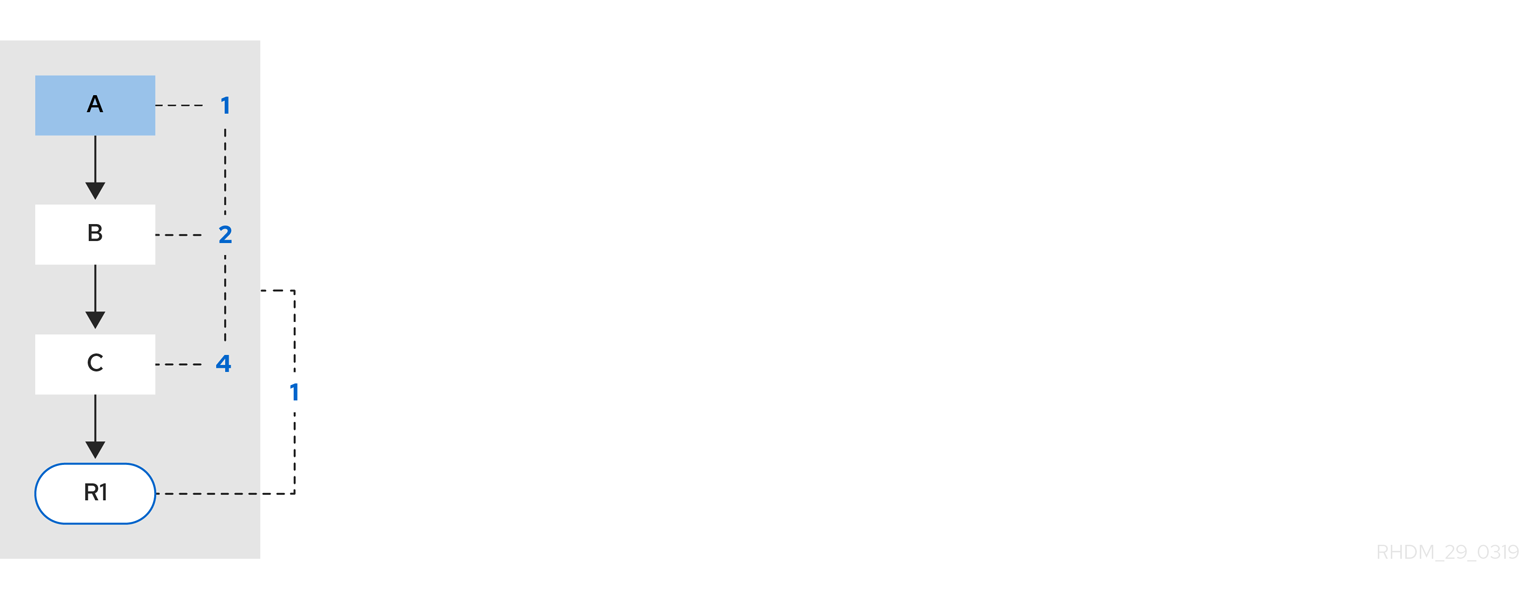

Figure 198. Example 1: Single rule

Example 2: Rule R2 is added and shares pattern A.

segment2 enterprise
Figure 199. Example 2: Two rules with pattern sharing

Pattern A is placed in its own segment, resulting in two segments for each rule. Those two segments form a path for their respective rules. The first segment is shared by both paths. When pattern A is linked, the segment becomes linked. The segment then iterates over each path that the segment is shared by, setting the bit 1 to on. If patterns B and C are later turned on, the second segment for path R1 is linked, and this causes bit 2 to be turned on for R1. With bit 1 and bit 2 turned on for R1, the rule is now linked and a goal is created to schedule the rule for later evaluation and execution.

When a rule is evaluated, the segments enable the results of the matching to be shared. Each segment has a staging memory to queue all inserts, updates, and deletes for that segment. When R1 is evaluated, the rule processes pattern A, and this results in a set of tuples. The algorithm detects a segmentation split, creates peered tuples for each insert, update, and delete in the set, and adds them to the R2 staging memory. Those tuples are then merged with any existing staged tuples and are executed when R2 is eventually evaluated.

Example 3: Rules R3 and R4 are added and share patterns A and B.

segment3 enterprise
Figure 200. Example 3: Three rules with pattern sharing

Rules R3 and R4 have three segments and R1 has two segments. Patterns A and B are shared by R1, R3, and R4, while pattern D is shared by R3 and R4.

Example 4: A single rule (R1) with a subnetwork and no pattern sharing.

segment4 enterprise
Figure 201. Example 4: Single rule with a subnetwork and no pattern sharing

Subnetworks are formed when a Not, Exists, or Accumulate node contains more than one element. In this example, the element B not( C ) forms the subnetwork. The element not( C ) is a single element that does not require a subnetwork and is therefore merged inside of the Not node. The subnetwork uses a dedicated segment. Rule R1 still has a path of two segments and the subnetwork forms another inner path. When the subnetwork is linked, it is also linked in the outer segment.

Example 5: Rule R1 with a subnetwork that is shared by rule R2.

segment5 enterprise
Figure 202. Example 5: Two rules, one with a subnetwork and pattern sharing

The subnetwork nodes in a rule can be shared by another rule that does not have a subnetwork. This sharing causes the subnetwork segment to be split into two segments.

Constrained Not nodes and Accumulate nodes can never unlink a segment, and are always considered to have their bits turned on.

The Phreak evaluation algorithm is stack based instead of method-recursion based. Rule evaluation can be paused and resumed at any time when a StackEntry is used to represent the node currently being evaluated.

When a rule evaluation reaches a subnetwork, a StackEntry object is created for the outer path segment and the subnetwork segment. The subnetwork segment is evaluated first, and when the set reaches the end of the subnetwork path, the segment is merged into a staging list for the outer node that the segment feeds into. The previous StackEntry object is then resumed and can now process the results of the subnetwork. This process has the added benefit, especially for Accumulate nodes, that all work is completed in a batch, before propagating to the child node.

The same stack system is used for efficient backward chaining. When a rule evaluation reaches a query node, the evaluation is paused and the query is added to the stack. The query is then evaluated to produce a result set, which is saved in a memory location for the resumed StackEntry object to pick up and propagate to the child node. If the query itself called other queries, the process repeats, while the current query is paused and a new evaluation is set up for the current query node.

Rule evaluation with forward and backward chaining

The decision engine in Kogito is a hybrid reasoning system that uses both forward chaining and backward chaining to evaluate rules. A forward-chaining rule system is a data-driven system that starts with a fact in the working memory of the decision engine and reacts to changes to that fact. When objects are inserted into working memory, any rule conditions that become true as a result of the change are scheduled for execution by the agenda.

In contrast, a backward-chaining rule system is a goal-driven system that starts with a conclusion that the decision engine attempts to satisfy, often using recursion. If the system cannot reach the conclusion or goal, it searches for subgoals, which are conclusions that complete part of the current goal. The system continues this process until either the initial conclusion is satisfied or all subgoals are satisfied.

The following diagram illustrates how the decision engine evaluates rules using forward chaining overall with a backward-chaining segment in the logic flow:

RuleEvaluation enterprise
Figure 203. Rule evaluation logic using forward and backward chaining
4.4.3.2. Property-change settings and listeners for fact types

By default, the decision engine does not re-evaluate all fact patterns for fact types each time a rule is triggered, but instead reacts only to modified properties that are constrained or bound inside a given pattern. For example, if a rule calls modify() on a fact as part of the rule actions, this modification does not automatically trigger the re-evaluation of all patterns referring to the modified type. Only the patterns constrained on the changed properties of that fact are re-evaluated. This property reactivity behavior prevents unwanted recursions and results in more efficient rule evaluation. This behavior also avoids the need of using the no-loop rule attribute to prevent infinite recursion.

You can modify or disable this property reactivity behavior with the following options, and then use a property-change setting in your Java class or DRL files to fine-tune property reactivity as needed:

  • ALWAYS: (Default) All types are property reactive, but you can disable property reactivity for a specific type by using the @classReactive property-change setting.

  • ALLOWED: No types are property reactive, but you can enable property reactivity for a specific type by using the @propertyReactive property-change setting.

  • DISABLED: No types are property reactive. All property-change listeners are ignored.

To set the property reactivity behavior, update the drools.propertySpecific system property in the application.properties file of your Kogito project:

Example property reactivity setting in system properties
drools.propertySpecific=ALLOWED

The decision engine supports the following property-change settings and listeners for fact classes or declared DRL fact types:

@classReactive

If property reactivity is set to ALWAYS in the decision engine (all types are property reactive), this tag disables the default property reactivity behavior for a specific Java class or a declared DRL fact type. You can use this tag if you want the decision engine to re-evaluate all fact patterns for the specified fact type each time the rule is triggered, instead of reacting only to modified properties that are constrained or bound inside a given pattern.

Example: Disable default property reactivity in a DRL type declaration
declare Person
  @classReactive
    firstName : String
    lastName : String
end
Example: Disable default property reactivity in a Java class
@classReactive
public static class Person {
    private String firstName;
    private String lastName;
}
@propertyReactive

If property reactivity is set to ALLOWED in the decision engine (no types are property reactive unless specified), this tag enables property reactivity for a specific Java class or a declared DRL fact type. You can use this tag if you want the decision engine to react only to modified properties that are constrained or bound inside a given pattern for the specified fact type, instead of re-evaluating all fact patterns for the fact each time the rule is triggered.

Example: Enable property reactivity in a DRL type declaration (when reactivity is disabled globally)
declare Person
  @propertyReactive
    firstName : String
    lastName : String
end
Example: Enable property reactivity in a Java class (when reactivity is disabled globally)
@propertyReactive
public static class Person {
    private String firstName;
    private String lastName;
}
@propertyChangeSupport

For facts that implement support for property changes as defined in the JavaBeans Specification, this tag enables the decision engine to monitor changes in the fact properties.

Example: Declare property change support in JavaBeans object
declare Person
    @propertyChangeSupport
end

4.4.4. Decision engine event listeners and debug logging

The APIs for decision engine event listeners in Kogito are subject to change.

In Kogito, you can add or remove listeners for decision engine events, such as fact insertions and rule executions. With decision engine event listeners, you can be notified of decision engine activity and separate your logging and auditing work from the core of your application.

The decision engine supports the following default event listeners for the agenda and working memory:

  • AgendaEventListener

  • WorkingMemoryEventListener

WorkingMemoryEventManager
Figure 204. WorkingMemoryEventManager

For each event listener, the decision engine also supports the following specific events that you can specify to be monitored:

  • MatchCreatedEvent

  • MatchCancelledEvent

  • BeforeMatchFiredEvent

  • AfterMatchFiredEvent

  • AgendaGroupPushedEvent

  • AgendaGroupPoppedEvent

  • ObjectInsertEvent

  • ObjectDeletedEvent

  • ObjectUpdatedEvent

  • ProcessCompletedEvent

  • ProcessNodeLeftEvent

  • ProcessNodeTriggeredEvent

  • ProcessStartEvent

For example, the following code uses a DefaultAgendaEventListener listener and specifies the AfterMatchFiredEvent event to be monitored. The code prints pattern matches after the rules are executed (fired):

Example code to monitor and print AfterMatchFiredEvent events in the agenda
public class MyListener extends DefaultAgendaEventListener {
    public void afterMatchFired(AfterMatchFiredEvent event) {
        super.afterMatchFired( event );
        System.out.println( event );
    }
}

@ApplicationScoped
public class RuleEventListenerConfig extends DefaultRuleEventListenerConfig {
    public RuleEventListenerConfig() {
        super(new MyListener());
    }
}

The decision engine also supports the following agenda and working memory event listeners for debug logging:

  • DebugAgendaEventListener

  • DebugRuleRuntimeEventListener

These event listeners implement the same supported event-listener methods and include a debug print statement by default. You can add a specific supported event to be monitored and documented, or monitor all agenda or working memory activity.

For example, the following code uses the DebugRuleRuntimeEventListener event listener to monitor and print all working memory events:

Example code to monitor and print all working memory events
@ApplicationScoped
public class RuleEventListenerConfig extends DefaultRuleEventListenerConfig {
    public RuleEventListenerConfig() {
        super(new DebugRuleRuntimeEventListener());
    }
}

5. Developing process services with Kogito

As a developer of business processes, you can use Kogito business automation to develop process services using Business Process Model and Notation (BPMN) 2.0 models. BPMN process models are graphical representations of the steps required to achieve a business goal. You can design your BPMN processes with the Kogito BPMN modeler in VSCode or import existing BPMN processes into your Kogito projects for deployment and execution.

For more information about BPMN, see the Object Management Group (OMG) Business Process Model and Notation 2.0 specification.

5.1. Example applications with Kogito services

Kogito includes example applications in the kogito-examples repository in GitHub. These example applications contain various types of Kogito services on Quarkus or Spring Boot to help you develop your own applications. The services use one or more Business Process Model and Notation (BPMN) process models, Decision Model and Notation (DMN) decision models, Drools Rule Language (DRL) rule units, XLS spreadsheet decision tables, or Java classes to define the service logic.

For information about each example application and instructions for using them, see the README file in the relevant application folder.

In the kogito-examples repository in GitHub, the example applications in the default stable branch use the latest version of Kogito. When you run examples in a local environment, ensure that the environment matches the requirements that are listed in the README file of the relevant application folder. Also, this might require making the necessary network ports available, as configured for Quarkus, Spring Boot, and docker-compose where applicable.

The following list describes some of the examples provided with Kogito:

Decision services

  • dmn-quarkus-example and dmn-springboot-example: A decision service (on Quarkus or Spring Boot) that uses DMN to determine driver penalty and suspension based on traffic violations.

  • rules-quarkus-helloworld: A Hello World decision service on Quarkus with a single DRL rule unit.

  • ruleunit-quarkus-example and ruleunit-springboot-example: A decision service (on Quarkus or Spring Boot) that uses DRL with rule units to validate a loan application and that exposes REST operations to view application status.

  • dmn-event-driven-quarkus and dmn-event-driven-springboot: A DMN decision service on Quarkus and Spring Boot that demonstrates the capability of the Kogito Event-Driven decisions add-on.

Decision services that use the Kogito Trusty Service and Explainability Service

  • dmn-tracing-quarkus: A DMN decision service on Quarkus that uses the kogito-addons-quarkus-tracing-decision add-on to generate tracing events that the Kogito Trusty Service and Explainability Service can consume and expose.

  • trusty-demonstration: A tutorial for deploying the dmn-tracing-quarkus example application on Kubernetes as a demonstration of Kogito Trusty Service and Explainability Service capabilities in a cloud environment.

  • dmn-tracing-quarkus: A DMN service on Quarkus to evaluate a loan approval and generate tracing events that might be consumed by the Trusty service.

Process services

  • process-quarkus-example and process-springboot-example: A process service (on Quarkus or Spring Boot) for ordering items and that exposes REST operations to create new orders or to list and delete active orders.

  • onboarding-example: A combination of a process service and two decision services that use DMN and DRL for onboarding new employees.

  • flexible-process-quarkus and flexible-process-springboot: A process service (on Quarkus or Spring Boot) that uses flexible processes for case management in Kogito.

  • process-usertasks-quarkus-with-console and process-usertasks-springboot-with-console: A process service with user tasks (on Quarkus or Spring Boot), displaying the entire user task lifecycle using the Kogito Management and Task Console.

  • process-springboot-example: A process service on Spring Boot for ordering items using add-ons.

  • process-usertasks-with-security-oidc-quarkus-with-console: A quickstart project using add-ons to show typical user task orchestration.

Process services that use Decision services

  • process-decision-quarkus: A process service integrated with decisions services, using an embedded method, in which business rule tasks are used for communication. The decisions are declared with DMN and DRL.

  • process-decision-rest-quarkus: A process service integrated with decisions services, using REST endpoints for remote communication. The decisions are declared with DMN and DRL.

Process services that use OptaPlanner

  • process-optaplanner-quarkus and process-optaplanner-springboot: A process service (on Quarkus or Spring Boot) that uses OptaPlanner to optimize airline flight schedules and seat assignments. For information about OptaPlanner integration with Kogito, see the OptaPlanner documentation.

Process services for OpenShift deployment

  • kogito-travel-agency: A combination of process services and decision services that use DRL and XLS for travel booking, intended for deployment on OpenShift.

Serverless Workflow services

  • serverless-workflow-greeting-quarkus and serverless-workflow-greeting-springboot: A Serverless Workflow greeting service with both JSON and YAML workflow definitions.

  • serverless-workflow-service-calls-quarkus and serverless-workflow-service-calls-springboot: A Serverless Workflow service for returning country information.

  • serverless-workflow-events-quarkus: A Serverless Workflow service for processing job applicant approvals and that showcases event-driven services.

  • serverless-workflow-github-showcase: A Serverless Workflow service deployed as a GitHub bot application that reacts upon a new PR being opened in a given GitHub project.

Process services that use MongoDB

  • process-mongodb-persistence-quarkus and process-mongodb-persistence-springboot: A quickstart project on (Quarkus and Spring Boot) using add-ons that process deals for travelers using MongoDB.

5.2. Business Process Model and Notation (BPMN) 2.0

Business Process Model and Notation (BPMN) 2.0 is a standard established by the Object Management Group (OMG) for describing and modeling business processes. BPMN defines an XML schema that enables BPMN models to be shared between BPMN-compliant platforms and across organizations so that business analysts and business process developers can collaborate in designing and implementing BPMN process services. The BPMN standard is similar to and can be used together with the Decision Model and Notation (DMN) standard for designing and modeling business decisions.

For more information about BPMN, see the Object Management Group (OMG) Business Process Model and Notation 2.0 specification.

5.2.1. BPMN model example

A typical BPMN business process consists of the following basic components:

  • Start events to initiate the process

  • Tasks or other steps that are completed as part of the process

  • Connectors to link the process nodes and create a sequence flow

  • End events to terminate the process

The following example is a real-world BPMN model scenario that demonstrates how you can use process modeling to reach a business goal based on business decisions, tasks, or other services. In this scenario, an order service uses business processes for ordering items, for verifying the order, and for evaluating customer age.

This example is based on the process-quarkus-example application in the kogito-examples repository in GitHub. However, this example may differ from the exact example source code as Kogito continues to be developed. Be sure to explore this and other Kogito examples in GitHub to help you develop your own applications.

The orders.bpmn2 process in the example describes the steps that need to be followed when ordering items. The process includes a script task for writing debug information and a call activity for invoking a subprocess, using a custom Order data object.

Image of `orders.bpmn` example process
Figure 205. Example orders.bpmn2 process

The Add items subprocess invokes the following orderItems.bpmn2 process, which uses a CalculationService.calculateTotal custom Java service and a user task to verify the order.

Image of `orderItems.bpmn` example process
Figure 206. Example orderItems.bpmn2 process invoked as a subprocess

The persons.bpmn2 process invokes a Decision Model and Notation (DMN) model in a business rule task to determine customer age, followed by a user task for special handling requirements for children, if applicable.

Image of `persons.bpmn` example process
Figure 207. Example persons.bpmn2 process invoked as a subprocess

Based on these processes and on application configurations, Kogito generates a set of REST operations to create new orders, to list and delete active orders, and to determine the age of a specified person.

For example, the following REST operations use the endpoint /orders to interact with customer orders. You can use a REST client, curl utility, or the Swagger UI configured for the application (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html) to send API requests to interact with the running application.

Image of Swagger UI for example application
Figure 208. Swagger UI to interact with all application endpoints (such as http://localhost:8080/q/swagger-ui or http://localhost:8080/swagger-ui.html)
For the predefined Kogito example applications, the Swagger UI for interacting with service endpoints is available only on Quarkus examples that you run in development mode or in native mode.
Example POST request body to create an order (JSON)
{
  "approver": "john",
  "order": {
    "orderNumber": "12345",
    "shipped": false
  }
}
Example curl command to create an order
curl -X POST http://localhost:8080/orders -H 'content-type: application/json' -H 'accept: application/json' -d '{"approver" : "john", "order" : {"orderNumber" : "12345", "shipped" : false}}'

The returned order displays an "id" field with a generated UUID that you can use to retrieve details about this specific order, if needed.

Example curl command to view active orders
curl -X GET http://localhost:8080/orders -H 'content-type: application/json' -H 'accept: application/json'
Example curl command to view order details by returned UUID
curl -X GET http://localhost:8080/orders/6b53c227-6d5e-40b7-8c8c-a541a2a47d58 -H 'content-type: application/json' -H 'accept: application/json'

You use the "id" value for the order that was returned when you created the order or when you retrieved active orders.

Example curl command to cancel the order by returned UUID
curl -X DELETE http://localhost:8080/orders/6b53c227-6d5e-40b7-8c8c-a541a2a47d58 -H 'content-type: application/json' -H 'accept: application/json'

The following is the BPMN source file for the orders.bpmn2 process model, as an example:

<?xml version="1.0" encoding="UTF-8"?>
<!-- origin at X=0.0 Y=0.0 -->
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmn20="http://www.omg.org/bpmn20" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:bpsim="http://www.bpsim.org/schemas/1.0" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:drools="http://www.jboss.org/drools" xmlns="http://www.jboss.org/drools" xmlns:ns="http://www.w3.org/2001/XMLSchema" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd http://www.jboss.org/drools drools.xsd http://www.bpsim.org/schemas/1.0 bpsim.xsd" id="_gfw8oEcJEemyodG9iPy-Bw" exporter="org.eclipse.bpmn2.modeler.core" exporterVersion="1.5.0.Final-v20180515-1642-B1" targetNamespace="http://www.omg.org/bpmn20">
  <bpmn2:itemDefinition id="_OrderItem" isCollection="false" structureRef="org.kie.kogito.examples.demo.Order"/>
  <bpmn2:itemDefinition id="_approverItem" isCollection="false" structureRef="String"/>
  <bpmn2:itemDefinition id="__9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderInputXItem" isCollection="false" structureRef="org.kie.kogito.examples.demo.Order"/>
  <bpmn2:itemDefinition id="__9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderOutputXItem" isCollection="false" structureRef="org.kie.kogito.examples.demo.Order"/>
  <bpmn2:process id="demo.Orders" drools:packageName="org.kie.kogito.examples" drools:version="1.0" drools:adHoc="false" name="Orders" isExecutable="true">
    <bpmn2:documentation id="_gfw8oUcJEemyodG9iPy-Bw"><![CDATA[Deals with orders created by customer]]></bpmn2:documentation>
    <bpmn2:property id="order" itemSubjectRef="_OrderItem" name="order"/>
    <bpmn2:property id="approver" itemSubjectRef="_approverItem" name="approver"/>
    <bpmn2:sequenceFlow id="_8216C810-34D8-4BFA-B814-1AA01907810F" sourceRef="_9484CB12-FE52-434C-AE9F-3C3C267D1C96" targetRef="_2D876EF2-93F4-4CBE-959A-04EF7BFA9CED"/>
    <bpmn2:sequenceFlow id="_58684613-0155-48B2-8746-7675AFF24439" sourceRef="_0617D7DF-047A-4EC4-85E7-E201D640F4F5" targetRef="_9484CB12-FE52-434C-AE9F-3C3C267D1C96">
      <bpmn2:extensionElements>
        <drools:metaData name="isAutoConnection.target">
          <drools:metaValue><![CDATA[true]]></drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
    </bpmn2:sequenceFlow>
    <bpmn2:sequenceFlow id="_B7B4282B-F317-4BF9-95E9-962B046EE815" sourceRef="_B44545AB-8B78-4FE4-B6B9-1D467954C070" targetRef="_0617D7DF-047A-4EC4-85E7-E201D640F4F5"/>
    <bpmn2:scriptTask id="_0617D7DF-047A-4EC4-85E7-E201D640F4F5" name="Dump order" scriptFormat="http://www.java.com/java">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue><![CDATA[Dump order]]></drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>_B7B4282B-F317-4BF9-95E9-962B046EE815</bpmn2:incoming>
      <bpmn2:outgoing>_58684613-0155-48B2-8746-7675AFF24439</bpmn2:outgoing>
      <bpmn2:script>System.out.println(&quot;Order has been created &quot; + order + &quot; with assigned approver &quot; + approver.toUpperCase());</bpmn2:script>
    </bpmn2:scriptTask>
    <bpmn2:endEvent id="_2D876EF2-93F4-4CBE-959A-04EF7BFA9CED">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue><![CDATA[]]></drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>_8216C810-34D8-4BFA-B814-1AA01907810F</bpmn2:incoming>
    </bpmn2:endEvent>
    <bpmn2:callActivity id="_9484CB12-FE52-434C-AE9F-3C3C267D1C96" drools:independent="false" drools:waitForCompletion="true" name="Add items" calledElement="demo.orderItems">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue><![CDATA[Add items]]></drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:incoming>_58684613-0155-48B2-8746-7675AFF24439</bpmn2:incoming>
      <bpmn2:outgoing>_8216C810-34D8-4BFA-B814-1AA01907810F</bpmn2:outgoing>
      <bpmn2:ioSpecification id="_gfw8okcJEemyodG9iPy-Bw">
        <bpmn2:dataInput id="_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderInputX" drools:dtype="org.kie.kogito.examples.demo.Order" itemSubjectRef="__9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderInputXItem" name="order"/>
        <bpmn2:dataOutput id="_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderOutputX" drools:dtype="org.kie.kogito.examples.demo.Order" itemSubjectRef="__9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderOutputXItem" name="order"/>
        <bpmn2:inputSet id="_gfw8o0cJEemyodG9iPy-Bw">
          <bpmn2:dataInputRefs>_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderInputX</bpmn2:dataInputRefs>
        </bpmn2:inputSet>
        <bpmn2:outputSet id="_gfw8pEcJEemyodG9iPy-Bw">
          <bpmn2:dataOutputRefs>_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderOutputX</bpmn2:dataOutputRefs>
        </bpmn2:outputSet>
      </bpmn2:ioSpecification>
      <bpmn2:dataInputAssociation id="_gfw8pUcJEemyodG9iPy-Bw">
        <bpmn2:sourceRef>order</bpmn2:sourceRef>
        <bpmn2:targetRef>_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderInputX</bpmn2:targetRef>
      </bpmn2:dataInputAssociation>
      <bpmn2:dataOutputAssociation id="_gfw8pkcJEemyodG9iPy-Bw">
        <bpmn2:sourceRef>_9484CB12-FE52-434C-AE9F-3C3C267D1C96_orderOutputX</bpmn2:sourceRef>
        <bpmn2:targetRef>order</bpmn2:targetRef>
      </bpmn2:dataOutputAssociation>
    </bpmn2:callActivity>
    <bpmn2:startEvent id="_B44545AB-8B78-4FE4-B6B9-1D467954C070">
      <bpmn2:extensionElements>
        <drools:metaData name="elementname">
          <drools:metaValue><![CDATA[]]></drools:metaValue>
        </drools:metaData>
      </bpmn2:extensionElements>
      <bpmn2:outgoing>_B7B4282B-F317-4BF9-95E9-962B046EE815</bpmn2:outgoing>
    </bpmn2:startEvent>
  </bpmn2:process>
  <bpmndi:BPMNDiagram id="_gfw8p0cJEemyodG9iPy-Bw">
    <bpmndi:BPMNPlane id="_gfw8qEcJEemyodG9iPy-Bw" bpmnElement="demo.Orders">
      <bpmndi:BPMNShape id="shape__B44545AB-8B78-4FE4-B6B9-1D467954C070" bpmnElement="_B44545AB-8B78-4FE4-B6B9-1D467954C070">
        <dc:Bounds height="56.0" width="56.0" x="100.0" y="100.0"/>
        <bpmndi:BPMNLabel/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape__9484CB12-FE52-434C-AE9F-3C3C267D1C96" bpmnElement="_9484CB12-FE52-434C-AE9F-3C3C267D1C96" isExpanded="true">
        <dc:Bounds height="101.0" width="153.0" x="458.5" y="78.0"/>
        <bpmndi:BPMNLabel>
          <dc:Bounds height="11.0" width="41.0" x="514.0" y="123.0"/>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape__2D876EF2-93F4-4CBE-959A-04EF7BFA9CED" bpmnElement="_2D876EF2-93F4-4CBE-959A-04EF7BFA9CED">
        <dc:Bounds height="56.0" width="56.0" x="712.0" y="100.0"/>
        <bpmndi:BPMNLabel/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="shape__0617D7DF-047A-4EC4-85E7-E201D640F4F5" bpmnElement="_0617D7DF-047A-4EC4-85E7-E201D640F4F5">
        <dc:Bounds height="102.0" width="154.0" x="236.0" y="77.0"/>
        <bpmndi:BPMNLabel>
          <dc:Bounds height="11.0" width="48.0" x="289.0" y="122.0"/>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="edge_shape__B44545AB-8B78-4FE4-B6B9-1D467954C070_to_shape__0617D7DF-047A-4EC4-85E7-E201D640F4F5" bpmnElement="_B7B4282B-F317-4BF9-95E9-962B046EE815" sourceElement="shape__B44545AB-8B78-4FE4-B6B9-1D467954C070" targetElement="shape__0617D7DF-047A-4EC4-85E7-E201D640F4F5">
        <di:waypoint xsi:type="dc:Point" x="156.0" y="128.0"/>
        <di:waypoint xsi:type="dc:Point" x="236.0" y="128.0"/>
        <bpmndi:BPMNLabel/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape__0617D7DF-047A-4EC4-85E7-E201D640F4F5_to_shape__9484CB12-FE52-434C-AE9F-3C3C267D1C96" bpmnElement="_58684613-0155-48B2-8746-7675AFF24439" sourceElement="shape__0617D7DF-047A-4EC4-85E7-E201D640F4F5" targetElement="shape__9484CB12-FE52-434C-AE9F-3C3C267D1C96">
        <di:waypoint xsi:type="dc:Point" x="313.0" y="128.0"/>
        <di:waypoint xsi:type="dc:Point" x="458.5" y="128.5"/>
        <bpmndi:BPMNLabel/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="edge_shape__9484CB12-FE52-434C-AE9F-3C3C267D1C96_to_shape__2D876EF2-93F4-4CBE-959A-04EF7BFA9CED" bpmnElement="_8216C810-34D8-4BFA-B814-1AA01907810F" sourceElement="shape__9484CB12-FE52-434C-AE9F-3C3C267D1C96" targetElement="shape__2D876EF2-93F4-4CBE-959A-04EF7BFA9CED">
        <di:waypoint xsi:type="dc:Point" x="535.0" y="128.5"/>
        <di:waypoint xsi:type="dc:Point" x="740.0" y="128.0"/>
        <bpmndi:BPMNLabel/>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn2:definitions>

5.2.2. BPMN2 support in Kogito

Kogito currently supports a subset of the Business Process Model and Notation 2.0 specification. Although the Kogito BPMN modeler displays many BPMN components in the canvas palette, the process engine (process runtime component) in Kogito currently executes only the supported subset of components. If you use any BPMN components from the Kogito BPMN modeler palette that are not supported by the process engine, your Kogito project might fail to compile or execute. Additional BPMN components are added to Kogito runtime support with every release.

The following tables list the components from the BPMN2 specification that are currently supported by the Kogito runtime:

Table 99. Support status icons
Key Description

grn check

Supported by Kogito runtime

bk x

Not supported by Kogito runtime
Table 100. BPMN2 components
Component type Component Support status

Start events

None

grn check

Message

grn check

Timer

grn check

Signal

grn check

Compensation

grn check

Error

bk x

Escalation

bk x

Cancel

bk x

Conditional

bk x

Link

bk x

Multiple

bk x

Parallel multiple

bk x

Intermediate events

Catching

Message

grn check

Timer

grn check

Signal

grn check

Link

grn check

Compensation

grn check

Error

bk x

Escalation

bk x

Cancel

bk x

Conditional

bk x

Multiple

bk x

Parallel multiple

bk x

Boundary

Message

grn check

Timer

grn check

Signal

grn check

Compensation

grn check

Error

bk x

Escalation

bk x

Cancel

bk x

Conditional

bk x

Multiple

bk x

Parallel multiple

bk x

Throwing

Message

grn check

Timer

bk x

Signal

bk x

Error

bk x

Escalation

bk x

Cancel

bk x

Compensation

bk x

Conditional

bk x

Link

bk x

Multiple

bk x

Parallel multiple

bk x

End events

None

grn check

Message

grn check

Error

grn check

Terminate

grn check

Compensation

grn check

Signal

bk x

Escalation

bk x

Cancel

bk x

Multiple

bk x

Tasks

Business rule

grn check

Script

grn check

User

grn check

Service

grn check

Send

bk x

Receive

bk x

Subprocesses

Embedded

grn check

Reusable (call activity)

grn check

Ad hoc

grn check

Event

bk x

Gateways

Inclusive

grn check

Exclusive

grn check

Parallel

grn check

Event-based

grn check

Complex

bk x

Chaining

bk x

Connectors

Sequence flow

grn check

Message flow

bk x

Association

bk x

Collaborators

Lane

bk x

Pool

bk x

Artifacts

Group

bk x

Text annotation

bk x

Data object

bk x

For more information about BPMN components, see the Object Management Group (OMG) Business Process Model and Notation 2.0 specification.

5.2.3. Start events supported in Kogito

BPMN start events initiate a business process. A start event cannot have an incoming sequence flow and must have only one outgoing sequence flow. You can use start events in top-level processes, embedded subprocess, and callable subprocesses where applicable.

Kogito currently supports the following start events:

Table 101. Supported start events
Start event type Top-level processes Subprocesses

Interrupt

Non-interrupt

None

bpmn start node

Not applicable

Not applicable

Message

bpmn message node

bpmn message node

bpmn message non interrupt

Timer

bpmn timer start

bpmn timer start

bpmn timer non interrupt

Signal

bpmn signal start

bpmn signal start

bpmn signal non interrupt
None

The none start event is a start event without a trigger condition. A process or a subprocess can contain at most one none start event, which is triggered on process or subprocess start by default, and the outgoing flow is taken immediately.

When you use a none start event in a subprocess, the execution of the process flow is transferred from the parent process into the subprocess and the none start event is triggered. This means that the token (the current location within the process flow) is passed from the parent process into the subprocess activity and the none start event of the subprocess generates a token of its own.

Message

A process can contain multiple message start events, which are triggered by a particular message. The process instance with a message start event starts its execution from this event after it has received the respective message. After the message is received, the process is instantiated and its message start event is executed immediately (its outgoing flow is taken).

Because a message can be consumed by an arbitrary number of processes and process elements, including no elements, one message can trigger multiple message start events and therefore instantiate multiple processes.

Timer

The timer start event is a start event with a timing mechanism that is triggered at the start of the process. A process can contain multiple timer start events.

When you use a timer start event in a subprocess, execution of the process flow is transferred from the parent process into the subprocess and the timer start event is triggered. The token is taken from the parent subprocess activity and the timer start event of the subprocess is triggered and waits for the timer to trigger.

After the time defined by the timer definition is reached, the outgoing flow is taken.

Signal

The signal start event is triggered by a signal with a particular signal code. The signal start event is triggered when the process instance receives the required signal, and then the signal start event is executed and its outgoing flow is taken. A process can contain multiple signal start events.

5.2.4. Intermediate events supported in Kogito

BPMN intermediate events drive the flow of a business process. Intermediate events catch or throw an event during the execution of the business process. You can add these events between start and end events or as a catch event on the boundary of an activity, such as a subprocess or a user task. You can configure boundary catch events as interrupting or non-interrupting events. An interrupting boundary catch event cancels the bound activity whereas a non-interrupting event does not.

An intermediate event handles a particular situation that occurs during process execution. The situation is a trigger for an intermediate event. In a process, you can add an intermediate event with one outgoing flow to an activity boundary.

If the event occurs while the activity is being executed, the event triggers its execution to the outgoing flow. One activity may have multiple boundary intermediate events. Note that depending on the behavior you require from the activity with the boundary intermediate event, you can use either of the following intermediate event types:

  • Interrupting: The activity execution is interrupted and the execution of the intermediate event is triggered.

  • Non-interrupting: The intermediate event is triggered and the activity execution continues.

Kogito currently supports the following intermediate events:

Table 102. Supported intermediate events
Intermediate event type Catching Boundary Throwing

Interrupt

Non-interrupt

Message

bpmn intermediate message

bpmn intermediate message

bpmn message noninterrupt

bpmn message throwing

Timer

bpmn intermediate timer

bpmn intermediate timer

bpmn timer noninterrupt

Not applicable

Signal

bpmn intermediate signal

bpmn intermediate signal

bpmn signal noninterrupt

Not applicable

Link

bpmn link catching

Not applicable

Not applicable

bpmn link throwing

Compensation

bpmn intermediate catch

bpmn intermediate catch

Not applicable

bpmn intermediate compensation throwing
Message

A message intermediate event is an intermediate event that enables you to manage a message object. Use one of the following events:

  • A throwing message intermediate event produces a message object based on the defined properties.

  • A catching message intermediate event listens for a message object with the defined properties.

Timer

A timer intermediate event enables you to delay workflow execution or to trigger the workflow execution periodically. It represents a timer that can trigger one or multiple times after a specified period of time. When the timer intermediate event is triggered, the defined timer condition is checked and the outgoing flow is taken.

When you add a timer intermediate event in the process workflow, it has one incoming flow and one outgoing flow. Its execution starts when the incoming flow transfers to the event. When you add a timer intermediate event on an activity boundary, the execution is triggered at the same time as the activity execution.

The timer is canceled if the timer element is canceled, for example, by completing or aborting the enclosing process instance.

Signal

A signal intermediate event enables you to produce or consume a signal object. Use either of the following options:

  • A throwing signal intermediate event produces a signal object based on the defined properties.

  • A catching signal intermediate event listens for a signal object with the defined properties.

Link

A link intermediate event enables you to jump from one place of the diagram to another. A link intermediate event is equivalent to the goto functionality in older programming languages.

Use throwing and catching link intermediate events together, where each functions in the following way:

  • A throwing link intermediate event refers to the target catching node.

  • A catching link intermediate event refers to the source throwing node.

Compensation

A compensation intermediate event is a boundary event attached to an activity in a transaction subprocess. It can finish with a compensation end event or a cancel end event. The compensation intermediate event must be associated with a flow, which is connected to the compensation activity.

The activity associated with the boundary compensation intermediate event is executed if the transaction subprocess finishes with the compensation end event. The execution continues with the respective flow.

5.2.5. End events supported in Kogito

BPMN end events terminate a business process. An end event has one or more incoming sequence flows and typically has no outgoing flows. A business process can contain multiple end events. All end events, with the exception of the none and terminate end events, are throw events. A process must contain at least one end event.

During runtime, an end event finishes the process workflow. The end event can finish only the workflow that reached it, or all workflows in the process instance, depending on the end event type.

Kogito currently supports the following end events:

Table 103. Supported end events
End event type Icon

None

bpmn end node

Message

bpmn end message

Error

bpmn end error

Terminate

bpmn end terminate

Compensation

bpmn end compensation
None

The none end event specifies that no other special behavior is associated with the end of the process.

Message

When a flow enters a message end event, the flow finishes and the end event produces a message as defined in its properties.

Error

The throwing error end event finishes the incoming workflow (consumes the incoming token) and produces an error object. Any other running workflows in the process or subprocess remain uninfluenced.

Terminate

The terminate end event finishes all execution flows in the specified process or subprocess instance. Activities being executed are canceled. A terminate end event inside a subprocess ends the subprocess instance but does not automatically end the parent process instance.

Compensation

A compensation end event is used to finish a transaction subprocess and trigger the compensation defined by the compensation intermediate event attached to the boundary of the subprocess activities.

5.2.6. Tasks supported in Kogito

BPMN tasks identify actions to be completed in a business process model and are the smallest unit of work in a process flow.

Kogito currently supports the following tasks:

Table 104. Supported tasks
Task type Task node

Business rule task

bpmn business rule task

Script task

bpmn script task

User task

bpmn user task

Service task

bpmn service task
Business rule task

A business rule task specifies a business decision to be executed either through a Decision Model and Notation (DMN) model or a Drools Rule Language (DRL) rule unit.

When a process reaches a business rule task defined by a DMN model, the process engine executes the DMN model decision with the inputs provided.

When a process reaches a business rule task defined by a DRL rule unit, the process engine begins executing the rules in the designated rule unit group. When there are no more active rules in the rule unit, the execution continues to the next element. During the rule unit execution, new activations in the rule unit are added to the decision engine agenda because these activations are changed by other rules.

In the Kogito BPMN modeler, you can modify the following properties for a selected business rule task:

Table 105. Business rule task properties
Label Description

Name

Identifies the name of the task.

Documentation

Describes the task. The text in this field is included in the process documentation, if applicable.

Rule Language

Determines whether the task invokes a decision from a Decision Model and Notation (DMN) model or a Drools Rule Language (DRL) rule unit.

Rule Flow Group (for DRL)

Defines the DRL rule unit in the format unit:PACKAGE_NAME.UNIT_NAME, such as unit:org.acme.PersonRules. This rule unit syntax specifies that you are using a rule unit instead of a traditional rule flow group.

Namespace, Decision Name, DMN Model Name (for DMN)

Identifies the relevant DMN model as found in the DMN model file.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

Is Async

Determines whether this task is invoked asynchronously. Make tasks asynchronous if they cannot be executed instantaneously, such as a task performed by an outside service.

AdHoc Autostart

Determines whether this is an ad hoc task that is started automatically. This option enables the task to automatically start when the process is created instead of being started by the completion of the previous node or by a signal event.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Assignments

Defines data input and output for the task. Click to open the Data I/O window and add data input and output as required.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall task.
Script task

A script task represents a script to be executed during the process execution. The associated script can access process variables. When a script task is reached during execution, the script is executed and the outgoing flow is taken.

Review the following list of suggestions before using a script task:

  • Avoid low-level implementation details in the process. Although you can use a script task to manipulate variables, consider using a service task when modeling more complex operations.

  • Ensure that the script is executed immediately. If the script is not intended to be executed immediately, consider using an asynchronous service task.

  • Avoid contacting external services through a script task. Use a service task to model communication with an external service.

  • Ensure scripts do not generate exceptions. Runtime exceptions should be caught and managed inside the script or transformed into signals or errors that can then be handled inside the process.

In the Kogito BPMN modeler, you can modify the following properties for a selected script task:

Table 106. Script task properties
Label Description

Name

Identifies the name of the task.

Documentation

Describes the task. The text in this field is included in the process documentation, if applicable.

Script

Defines a Java, JavaScript, or MVEL script to be executed by the task and specifies the script type.

Is Async

Determines whether this task is invoked asynchronously. Make tasks asynchronous if they cannot be executed instantaneously, such as a task performed by an outside service.

AdHoc Autostart

Determines whether this is an ad hoc task that is started automatically. This option enables the task to automatically start when the process is created instead of being started by the completion of the previous node or by a signal event.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall task.
User task

A user task is an activity in the process workflow that cannot be performed automatically by the system and therefore requires the intervention of a human user, or actor.

On execution, the user task element is instantiated as a task that appears in the list of tasks of one or more actors. If a user task element defines the Groups property, the task is displayed in task lists of all users that are members of the group. Any user who is a member of the group can claim the task. After a user task is claimed, the task disappears from the task list of the other users.

In the Kogito BPMN modeler, you can modify the following properties for a selected user task:

Table 107. User task properties
Label Description

Name

Identifies the name of the task.

Documentation

Describes the task. The text in this field is included in the process documentation, if applicable.

Task Name

Identifies the name of the task as it is displayed to human user (actor).

Subject

Defines the subject for the task.

Actors

Specifies the authorized human users (actors) who can complete the user task. Click Add to add a row and then select an actor from the list or click New to add a new actor.

Groups

Specifies the authorized group of human users (actors) who can complete the user task. Click Add to add a row and then select a group from the list or click New to add a new group. Any actor in the group can complete the user task.

Assignments

Defines data input and output for the task. Click to open the Data I/O window and add data input and output as required.

Reassignments

Specifies a different actor to complete the task.

Notifications

Defines notifications associated with the task.

Is Async

Determines whether this task is invoked asynchronously. Make tasks asynchronous if they cannot be executed instantaneously, such as a task performed by an outside service.

Skippable

Determines whether the task is optional and can be skipped.

Priority

Defines a priority for the task.

Description

Describes the task as it is displayed to a human user (actor).

Created By

Specifies the human user (actor) who created the task. Click Add to add a row and then select a user from the list or click New to add a new user.

AdHoc Autostart

Determines whether this is an ad hoc task that is started automatically. This option enables the task to automatically start when the process is created instead of being started by the completion of the previous node or by a signal event.

Multiple Instance

Determines whether this task has multiple instances.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

Content

Defines the content of the script.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall task.
Service task

A service task is an activity that is completed automatically by an external software service and does not require human interaction.

In the Kogito BPMN modeler, you can modify the following properties for a selected service task:

Table 108. Service task properties
Label Description

Name

Identifies the name of the task.

Documentation

Describes the task. The text in this field is included in the process documentation, if applicable.

Implementation

Determines whether the task is implemented in Java or is a web service.

Interface

Defines the class used to implement the script, for example, org.xyz.HelloWorld.

Operation

Defines the method called by the interface, for example, sayHello().

Assignments

Defines data input and output for the task. Click to open the Data I/O window and add data input and output as required.

AdHoc Autostart

Determines whether this is an ad hoc task that is started automatically. This option enables the task to automatically start when the process is created instead of being started by the completion of the previous node or by a signal event.

Is Async

Determines whether this task is invoked asynchronously. Make tasks asynchronous if they cannot be executed instantaneously, such as a task performed by an outside service.

Multiple Instance

Determines whether this task has multiple instances.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the task, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall task.

A service task also allows you to add a parameter of type org.kie.kogito.internal.process.runtime.KogitoProcessContext in your method signature to receive the process context, in which the task is executed. The following is an example of a service task using the process context:

Example service task using process context
@ApplicationScoped
public class CalculationService {

    public Order calculateTotal(Order order, KogitoProcessContext context) {
        System.out.println("Process Id = " + context.getProcessInstance().getStringId());
    }
}

5.2.7. Custom tasks supported in Kogito

The BPMN specification supports the ability to extend the bpmn2:task element to create custom tasks in a software implementation. Similar to standard BPMN tasks, custom tasks identify actions to be completed in a business process model, but they also include specialized functionality, such as compatibility with an external service of a specific type (REST, email, or web service) or checkpoint behavior within a process (milestone).

Kogito provides predefined custom tasks under Custom Tasks in the BPMN modeler palette, but currently does not support the ability for you to define your own custom task extensions.

Kogito currently supports the following predefined custom tasks:

Table 109. Supported custom tasks
Custom task type Custom task node

Milestone

bpmn milestone
Milestone

A milestone represents a single point of achievement within a process instance. You can use milestones to flag certain events to trigger other tasks or track the progress of the process. Milestones are useful for Key Performance Indicator (KPI) tracking or for identifying the tasks that are still to be completed. Milestones can occur at the end of a stage in a process or they can be the result of achieving other milestones.

A milestone typically uses a defined input condition that must be met in order to complete the milestone. If no input condition is defined, the milestone is completed automatically when the process reaches the milestone. You can also configure milestones with the AdHoc Autostart property to be triggered automatically when the process starts or you can set the Signal definition in a signal event in the process to trigger the milestone explicitly. Milestones can be triggered as many times as required. A milestone is achieved when the condition is met or is achieved automatically if no condition is defined.

In the following example process, several milestones control the process for IT hardware orders. For example, when the condition for the Order placed milestone is met, the completed milestone triggers a notification script task and leads to an end signal event that triggers the next Order shipped milestone, and so on to subsequent milestones until the process is complete.

Image of example process with milestones

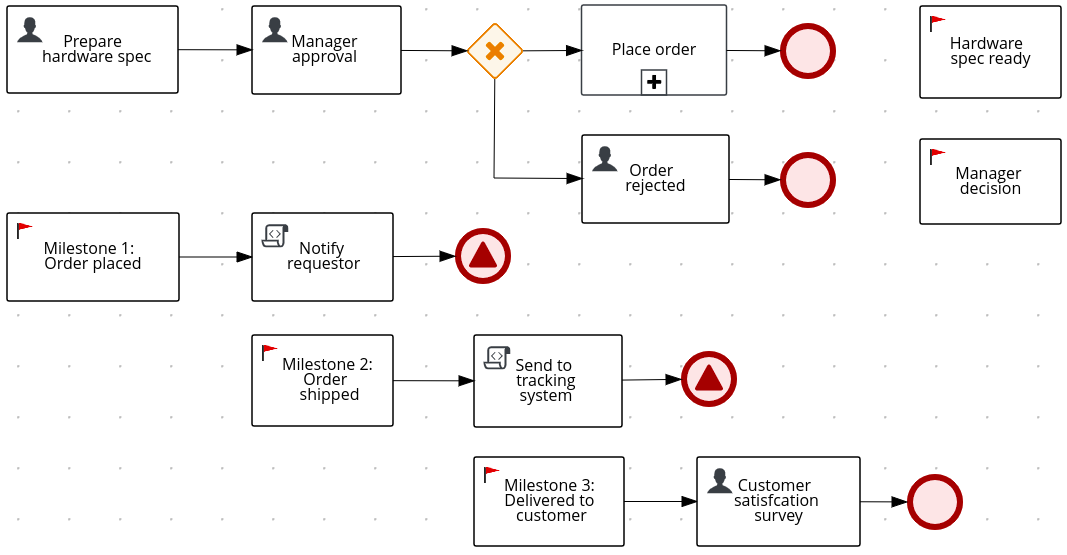

Figure 209. Example process with milestones
Image of example signal configuration with a milestone

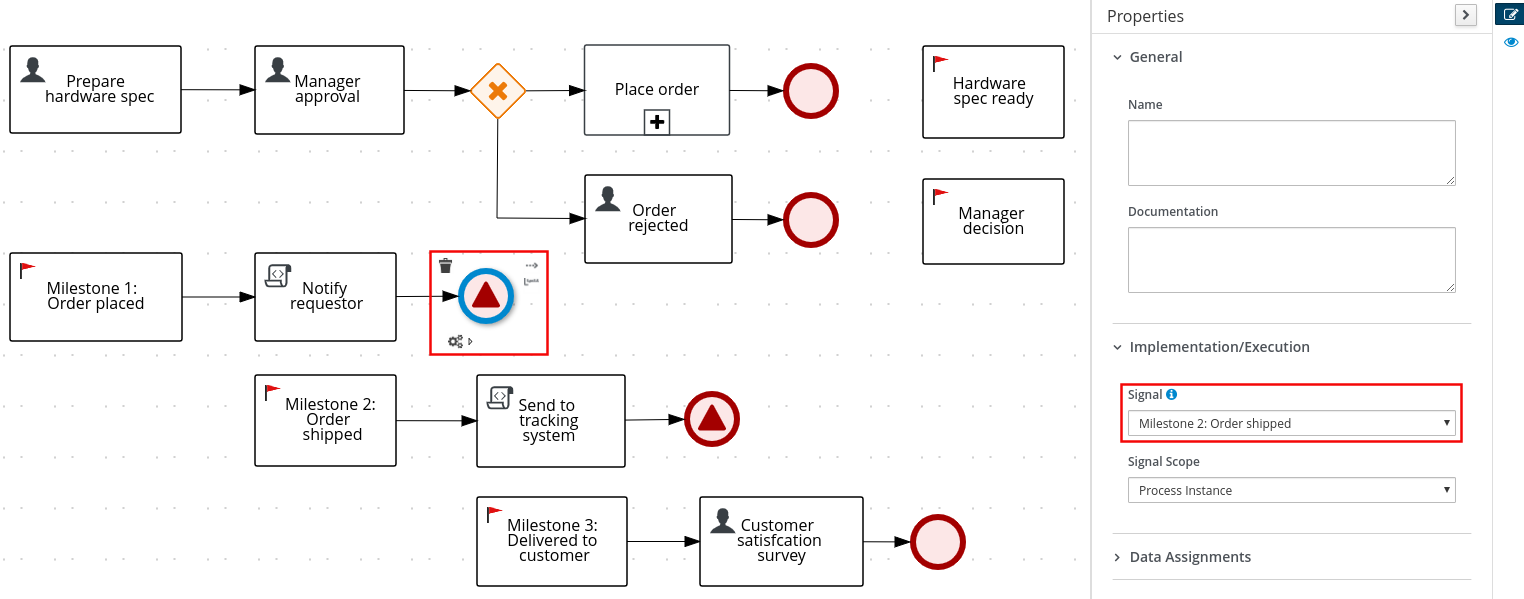

Figure 210. Example end signal event configured to trigger the next milestone

Milestones can reach the following states during process execution:

  • Active: A milestone condition has been defined for the milestone node but it has not been met.

  • Completed: A milestone condition has been met (if applicable), the milestone has been achieved, and the process can proceed to the next task or can end.

In the Kogito BPMN modeler, you can modify the following properties for a selected milestone:

Table 110. Milestone properties
Label Description

Name

Identifies the name of the milestone.

Documentation

Describes the milestone. The text in this field is included in the process documentation, if applicable.

Is Async

Determines whether this milestone is invoked asynchronously. Make milestones asynchronous if they cannot be executed instantaneously, such as in a process performed by an outside service.

AdHoc Autostart

Determines whether this is an ad hoc milestone that is started automatically. This option enables the milestone to automatically start when the process is created instead of being started by a signal event.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the milestone, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the milestone, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Assignments

Defines data input and output for the milestone. Click to open the Data I/O window and add data input and output as required. A milestone typically uses a defined input condition that must be met in order to complete the milestone. If no input condition is defined, the milestone is completed automatically when the process reaches the milestone.

For each milestone that requires a condition, enter at least one input data assignment with the following values:

  • Name: Condition

  • Data Type: String

  • Source: Enter a Java expression for the condition to be met, such as order.isShipped() in a process that uses an order process variable.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall task.

5.2.8. Subprocesses supported in Kogito

BPMN subprocesses are portions of a parent process that contain process nodes. You can embed part of the parent process within a subprocess. You can also include variable definitions within the subprocess. These variables are accessible to all nodes inside the subprocess.

A subprocess must have one incoming connection and one outgoing connection. A terminate end event inside a subprocess ends the subprocess instance but does not automatically end the parent process instance. A subprocess ends when there are no more active elements in it.

In the following example, the Place order subprocess checks whether sufficient stock is available to place the order and updates the stock information if the order can be placed. The customer is then notified through the main process based on whether the order was placed.

subprocess

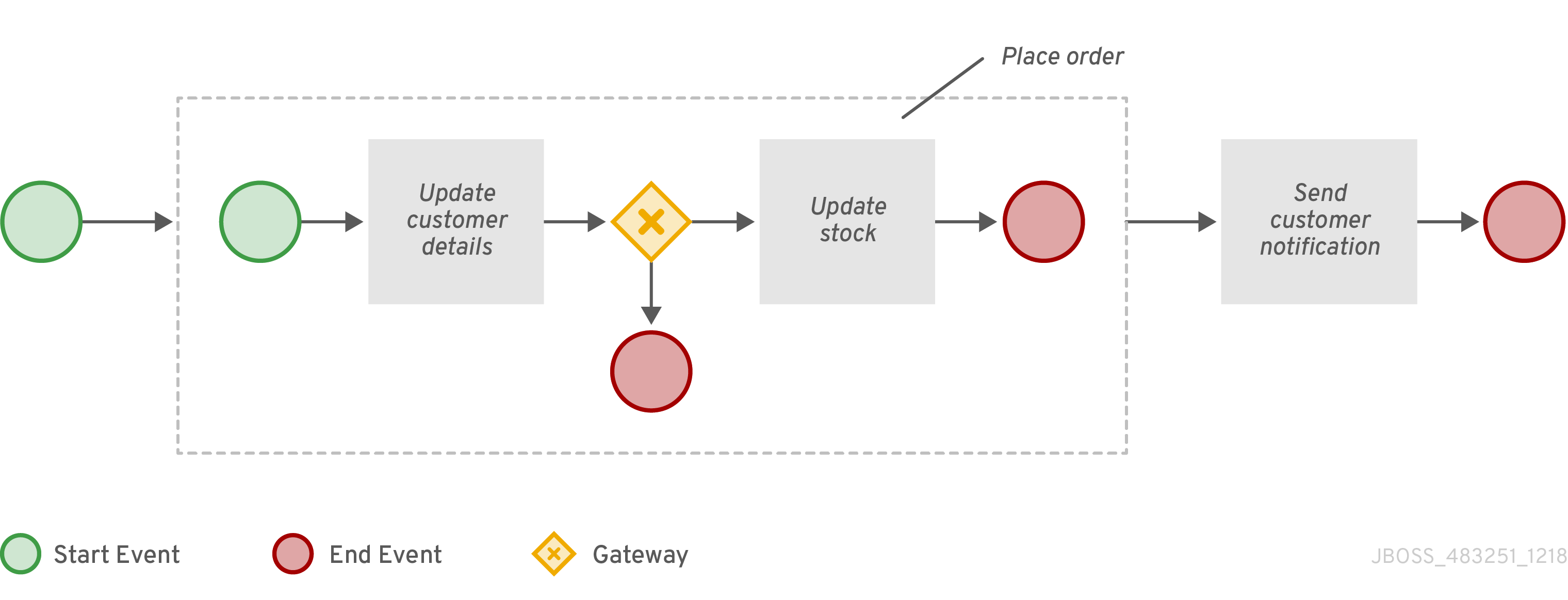

Figure 211. Example subprocess

Kogito currently supports the following subprocesses:

Table 111. Supported subprocesses
Subprocess type Subprocess node

Embedded subprocess

bpmn embedded subprocess

Ad hoc subprocess

bpmn adhoc subprocess

Reusable subprocess

bpmn reusable subprocess
Embedded subprocess

An embedded subprocess encapsulates a part of the parent process and shares the parent process data. This subprocess must contain a start event and at least one end event. You can define local subprocess variables that are accessible to all elements inside this container.

Multiple-instance behavior is currently not supported for embedded subprocesses in Kogito.

In the Kogito BPMN modeler, you can modify the following properties for a selected embedded subprocess:

Table 112. Embedded subprocess properties
Label Description

Name

Identifies the name of the subprocess.

Documentation

Describes the subprocess. The text in this field is included in the process documentation, if applicable.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

Is Async

Determines whether this subprocess is invoked asynchronously. Make subprocesses asynchronous if they cannot be executed instantaneously, such as a subprocess performed by an outside service.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Process Variables

Defines any process variables for the subprocess. Process variables are visible within the specific subprocess instance. Process variables are initialized at subprocess creation and destroyed on subprocess completion. Variable Tags provide greater control over the variable behavior, such as whether the variable is required or internal. For more information about variable tags, see Variables in Kogito processes.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall subprocess.
Ad hoc subprocess

An ad hoc subprocess contains embedded inner activities and is intended to be executed with a more flexible ordering compared to the typical routing of processes. Unlike typical processes, an ad hoc subprocess does not contain a complete, structured BPMN diagram description, such as from a start event to an end event. Instead, the ad hoc subprocess contains only activities, sequence flows, gateways, and intermediate events. An ad hoc subprocess can also contain data objects and data associations.

The activities within ad hoc subprocesses are not required to have incoming and outgoing sequence flows. However, you can specify sequence flows between some of the contained activities. Sequence flows provide the same ordering constraints in ad hoc subprocesses as in a typical process. Any intermediate events must have outgoing sequence flows and they can be triggered multiple times while the ad hoc subprocess is active.

In the Kogito BPMN modeler, you can modify the following properties for a selected ad hoc subprocess:

Table 113. Ad hoc subprocess properties
Label Description

Name

Identifies the name of the subprocess.

Documentation

Describes the subprocess. The text in this field is included in the process documentation, if applicable.

AdHocActivationCondition

Defines a Java expression that determines when the subprocess is activated, such as order.isShipped() in a process that uses an order process variable. To activate the subprocess automatically when the parent process starts, leave this field empty with no condition specified.

This field supports only Java expressions and does not support Drools expressions as indicated in the field label. This label will be updated in a future release.

AdHocCompletionCondition

Defines a Java expression that determines when the subprocess is completed, such as order.isDelivered() in a process that uses an order process variable. By default, this field contains the value autocomplete to complete the subprocess automatically when the subprocess ends.

This field supports only Java expressions and does not support Drools and MVEL expressions as indicated in the field label. This label will be updated in a future release.

AdHocOrdering

Not supported in Kogito. This property specifies whether the subprocess is executed in Sequential or Parallel order in the parent process, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

AdHoc Autostart

Determines whether this ad hoc subprocess is started automatically. This option enables the subprocess to automatically start when the subprocess is created instead of being started by the completion of the previous node or by a signal event.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

Is Async

Determines whether this subprocess is invoked asynchronously. Make subprocesses asynchronous if they cannot be executed instantaneously, such as a subprocess performed by an outside service.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Process Variables

Defines any process variables for the subprocess. Process variables are visible within the specific subprocess instance. Process variables are initialized at subprocess creation and destroyed on subprocess completion. Variable Tags provide greater control over the variable behavior, such as whether the variable is required or internal. For more information about variable tags, see Variables in Kogito processes.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall subprocess.
Reusable subprocess

A reusable subprocess calls another process or subprocess instance to be used within a parent process. This subprocess enables you to reuse the same process repeatedly without manually duplicating the subprocess. This subprocess typically appears collapsed within the parent process.

In the Kogito BPMN modeler, you can modify the following properties for a selected reusable subprocess:

Table 114. Reusable subprocess properties
Label Description

Name

Identifies the name of the subprocess.

Documentation

Describes the subprocess. The text in this field is included in the process documentation, if applicable.

Called Element

Specifies the ID of the process or subprocess that the activity calls and instantiates.

Independent

Determines whether the subprocess is started and completed independently of the parent process or whether the subprocess is canceled when the parent process is terminated.

Abort Parent

(Available only when Independent is not selected.) Determines whether a dependent reusable subprocess can abort the parent process when the subprocess is aborted or when an error occurs during the subprocess execution.

Wait for completion

Determines whether the parent process must wait for this subprocess to complete before continuing.

Is Async

Determines whether this subprocess is invoked asynchronously. Make subprocesses asynchronous if they cannot be executed instantaneously, such as a subprocess performed by an outside service.

Multiple Instance

Determines whether the subprocess is executed multiple times. When you select this option, the following additional options appear:

  • MI Execution mode: Specifies whether the multiple subprocess instances are executed in Sequential or Parallel order as each instance is triggered. In sequential order, a triggered subprocess starts only after the previous subprocess instance completes. In parallel order, a subprocess instance starts whenever it is triggered and can run in parallel with any other triggered subprocesses.

  • MI Collection input: Specifies the process variable that represents a collection of elements for which new instances are created. The subprocess is instantiated as many times as needed according to the size of the collection.

  • MI Data Input: Specifies the name of the process variable that contains the selected element in the collection. The variable is used to access elements in the collection.

  • MI Collection output: (Optional) Specifies the process variable that represents the collection of elements that gather the output of the multi-instance node.

  • MI Data Output: Specifies the name of the process variable that is added to the output collection that you selected in the MI Collection output property.

  • MI Completion Condition: Not supported in Kogito. This property defines a Java expression that is evaluated on each completed subprocess instance, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Entry Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the start of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

On Exit Action

Not supported in Kogito. This property defines a Java, JavaScript, or MVEL script that directs an action at the end of the subprocess, and is currently available only in distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

SLA Due Date

Specifies the date when the service level agreement (SLA) expires.

Assignments

Defines data input and output for the task. Click to open the Data I/O window and add data input and output as required.

Metadata Attributes

Defines custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

The Metadata Attributes enable the new metaData extensions to BPMN diagrams and modify the behavior of the overall subprocess.

5.2.9. Gateways supported in Kogito

BPMN gateways create or synchronize branches in a process workflow using a set of conditions in a gating mechanism. BPMN2 supports converging gateways that merge multiple flows into one flow, and diverging gateways that split one flow into multiple flows. One gateway cannot have multiple incoming and multiple outgoing flows.

In the following business process diagram, the exclusive (XOR) gateway evaluates only the incoming flow whose condition evaluates to true:

gateway
Figure 212. Example process with exclusive gateway

In this example, the customer details are verified by a user and the process is assigned to a user for approval. If the request is approved, an approval notification is sent to the user. If the request is rejected, a rejection notification is sent to the user.

Kogito currently supports the following gateways:

Table 115. Supported gateways
Gateway type Icon

Exclusive (XOR)

bpmn gateway exclusive

Inclusive (OR)

bpmn gateway inclusive

Parallel (AND)

bpmn gateway parallel

Event (AND)

bpmn gateway event
Exclusive

A diverging exclusive gateway selects only the first incoming flow that evaluates to true and that contains the lowest priority number, if applicable. A converging exclusive gateway activates the next node for each triggered incoming flow.

Ensure that at least one of the outgoing flows evaluates to true at runtime. If no outgoing flows evaluate to true, the process instance terminates with a runtime exception.

Although priorities are evaluated in Kogito, the BPMN2 specification does not guarantee the priority order. Avoid depending on the priority attribute in your workflow.

A converging exclusive gateway also enables a workflow branch to continue to its outgoing flow as soon as it reaches the gateway. When one of the incoming flows triggers the gateway, the workflow continues to the outgoing flow of the gateway. If a gateway is triggered by more than one incoming flow, the gateway activates the next node for each trigger.

Inclusive

A diverging inclusive gateway selects the incoming flow and all outgoing flows that evaluate to true. Connections with lower priority numbers are triggered before triggering higher priority connections. Although priorities are evaluated, the BPMN2 specification does not guarantee the priority order. Avoid depending on the priority attribute in your workflow.

Ensure that at least one of the outgoing flows evaluates to true at runtime. If no outgoing flows evaluate to true, the process instance terminates with a runtime exception.

Although priorities are evaluated in Kogito, the BPMN2 specification does not guarantee the priority order. Avoid depending on the priority attribute in your workflow.

A converging inclusive gateway also merges all incoming flows previously created by an inclusive diverging gateway. A converging inclusive gateway acts as a synchronizing entry point for the inclusive gateway branches.

Parallel

A parallel gateway synchronizes and creates parallel flows. A diverging parallel gateway selects the incoming flow and all outgoing flows simultaneously. A converging parallel gateway waits until all incoming flows have entered and then triggers the outgoing flow.

Event

An event gateway is only diverging and reacts to possible events, as opposed to the data-based exclusive gateway that reacts to the process data. An event gateway selects the outgoing flow based on the event that occurs, and selects only one outgoing flow at a time. An event gateway might act as a start event, where the process is instantiated only if one of the intermediate events connected to the event-based gateway occurs.

5.2.10. Connectors supported in Kogito

BPMN connectors create an association between two components in a process. When a connector is directed, the association is sequential and indicates that one of the elements is executed immediately before the other within an instance of the process. Connectors can start and end at the top, bottom, right, or left of the process components being associated. The BPMN2 specification allows you to use your discretion, placing connectors in a way that makes the process behavior easy to follow and understand.

Kogito currently supports only sequence flow connectors. A sequence flow connects elements of a process and defines the order in which those elements are executed within an instance.

5.3. Creating and editing BPMN models in the Kogito BPMN modeler

You can use the Kogito BPMN modeler in VSCode to design BPMN process models and define process logic for a complete and functional BPMN model.

Kogito currently supports a subset of the Business Process Model and Notation 2.0 specification. Although the Kogito BPMN modeler displays many BPMN components in the canvas palette, the process engine (process runtime component) in Kogito currently executes only the supported subset of components. If you use any BPMN components from the Kogito BPMN modeler palette that are not supported by the process engine, your Kogito project might fail to compile or execute. Additional BPMN components are added to Kogito runtime support with every release.

For more information about BPMN2 support in Kogito, see BPMN2 support in Kogito.

Prerequisites
Procedure

  1. In your VSCode IDE, create or import a BPMN file in the relevant folder of your Kogito project, typically in src/main/resources.

    For a new BPMN file, you can also enter bpmn.new in a web browser to design your business process in the Kogito online BPMN modeler. When you finish creating your process model, you can click Download in the online modeler page to import your BPMN file into your Kogito project.

  2. Open the new or imported BPMN file to view the process diagram in the Kogito BPMN modeler.

    If the process diagram does not open in the Kogito BPMN modeler, ensure that you have installed and enabled the Kogito Bundle VSCode extension.

    If the Kogito BPMN modeler opens only the XML source of the BPMN file and displays an error message, review the reported errors and the BPMN model file to ensure that all BPMN elements are correctly defined.

  3. Select the background of the BPMN modeler canvas and, in the upper-right corner of the modeler, click Properties to add or verify information for the BPMN file as described in the following table:

    Table 116. General process properties
    Label Description

    Name

    Enter the name of the process.

    Documentation

    Describes the process. The text in this field is included in the process documentation, if applicable.

    ID

    Enter an identifier for this process, such as orderItems.

    Package

    Enter the package location for this process in your Kogito project, such as org.acme.

    ProcessType

    Specify whether the process is public or private (or null, if not applicable).

    Version

    Enter the artifact version for the process.

    Ad hoc

    Select this option if this process is a flexible process that uses other ad hoc auto-start fragments and that does not require strict start and end events.

    Process Instance Description

    Enter a description of the process purpose.

    Imports

    Click to open the Imports window and add any data object classes required for your process.

    Executable

    Select this option to make the process executable as part of your Kogito project.

    SLA Due Date

    Enter the date when the service level agreement (SLA) expires.

    Process Variables

    Add any process variables for the process. Process variables are visible within the specific process instance. Process variables are initialized at process creation and destroyed on process completion. Variable Tags provide greater control over the variable behavior, such as whether the variable is required or internal. For more information about variable tags, see Variables in Kogito processes.

    Metadata Attributes

    Add any custom metadata attribute name and value that you want to use for custom event listeners, such as a listener to implement some action when a metadata attribute is present.

    You can also use this field to configure role-based access to the process. To configure role-based access, set the attribute Name to securityRoles and set the attribute value to the relevant group or groups defined for the process, such as employees,managers.

    Global Variables

    Not supported in Kogito. Global variables are visible to all process instances and assets in a project, and apply only to distributions of the BPMN modeler in jBPM and Red Hat Process Automation Manager.

    The Metadata Attributes entries are similar to Process Variables tags in that they enable new metaData extensions to BPMN diagrams. However, process variable tags modify the behavior of specific process variables, such as whether a certain variable is required or internal, whereas metadata attributes are key-value definitions that modify the behavior of the overall process, such as whether the process contains securityRoles or is used in conjunction with a custom event listener.

    For example, the following custom metadata attribute riskLevel and value low in a BPMN process correspond to a custom event listener for starting the process:

    Image of custom metadata attribute and value

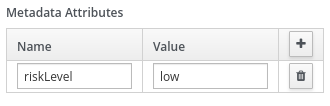

    Figure 213. Example metadata attribute and value in the BPMN modeler
    Example metadata attribute and value in the BPMN file
    <bpmn2:process id="approvals" name="approvals" isExecutable="true" processType="Public">
  <bpmn2:extensionElements>
    <tns:metaData name="riskLevel">
      <tns:metaValue><![CDATA[low]]></tns:metaValue>
    </tns:metaData>
  </bpmn2:extensionElements>
    Example event listener with metadata value
    public class MyListener implements ProcessEventListener {
    ...
    @Override
    public void beforeProcessStarted(ProcessStartedEvent event) {
        Map < String, Object > metadata = event.getProcessInstance().getProcess().getMetaData();
        if (metadata.containsKey("low")) {
            // Implement some action for that metadata attribute
        }
    }
}

  4. Begin adding components to your new or imported BPMN process model by clicking and dragging one of the BPMN nodes from the left palette:

    bpmn drag nodes

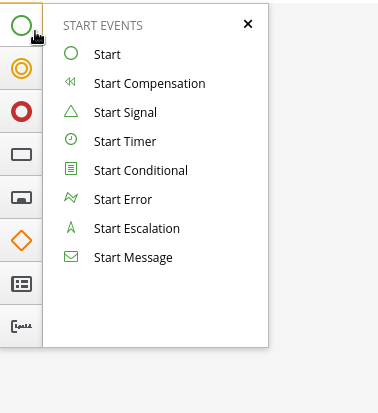

    Figure 214. Adding BPMN components

    Although the Kogito BPMN modeler displays many BPMN components in the canvas palette, the process engine (process runtime component) in Kogito currently supports only the following BPMN components:

    • Start events

      • Start

      • Start Signal

      • Start Timer

      • Start Message

    • Intermediate events

      • Intermediate Signal (catching and boundary)

      • Intermediate Timer (catching and boundary)

      • Intermediate Message (catching, boundary, and throwing)

    • End events

      • End

      • End Error

      • End Terminate

      • End Message

    • Tasks

      • Business Rule

      • User

      • Service

      • Script

    • Subprocesses

      • Embedded

      • Reusable

    • Gateways

      • Parallel

      • Event

      • Exclusive

      • Inclusive

  5. In the BPMN modeler canvas, for each new BPMN component that you add, select the new node, and in the upper-right corner of the BPMN modeler, click Properties to define the node identity and behavior.

    For more information about BPMN component properties, see BPMN2 support in Kogito.

    For this example, use a business rule task based on a Decision Model and Notation (DMN) decision model as your first activity node.

    This example assumes that you have the following assets in your Kogito project:

    • A Java object org.acme.Person

    • A DMN model PersonDecisions.dmn with the namespace https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1

  6. In the left palette, select Activities → Business Rule, drag the task to the canvas, and link to it from a start event.

  7. Select the business rule task and define the following properties:

    • General: Name the rule task Evaluate person.

    • Implementation/Execution: Set the following values:

      • Rule Language: DMN

      • Namespace: https://kiegroup.org/dmn/_52CEF9FD-9943-4A89-96D5-6F66810CA4C1

      • Decision Name: isAdult

      • DMN Model Name: PersonDecisions

    • Data Assignments: Add the following assignments:

      • Data Input: Add a data input with the name Person, with the type org.acme.Person, and with the source person.

      • Data Output: Add a data output with the name isAdult, with the type Boolean, and with the source isAdult.

  8. In the left palette, select Gateways → Exclusive, drag the gateway to the canvas, and link to it from the rule task.

  9. In the left palette, select Activities → User, drag the user task to the canvas, and link to it from the exclusive gateway.

  10. Select the user task and define the following properties:

    • General: Name the user task Special handling for children.

    • Implementation/Execution: Set the task name to ChildrenHandling, and add a data input with the name person, the type org.acme.Person, and the source person.

  11. In the left palette, select End Events → End, drag two end events to the canvas, and link to one end event from the user task and to the other end event from the exclusive gateway.

  12. Select the connector that connects the exclusive gateway to the end event and for the Implementation/Execution property, set the Condition Expression to Java and enter the condition return isAdult == true;.

  13. Select the connector that connects the exclusive gateway to the user task and for the Implementation/Execution property, set the Condition Expression to Java and enter the condition to return isAdult == false;

  14. Save the BPMN process file.

    The following is the BPMN model for applicant age evaluation in this example:

    Image of `persons.bpmn2` process diagram
    Figure 215. Example persons.bpmn2 BPMN process

    You can continue adding or modifying any remaining components and properties of your BPMN process or create a separate example.

    The following are additional BPMN models that are used with the persons.bpmn2 process as part of the same example application:

    Image of `orders.bpmn2` example process
    Figure 216. Example orders.bpmn2 process
    Image of `orderItems.bpmn` example process
    Figure 217. Example orderItems.bpmn2 process invoked as a subprocess

    As an illustration of a more complex use case, the following is an example BPMN model from a separate mortgage loan application for determining loan approval:

    Image of mortgage application business process.

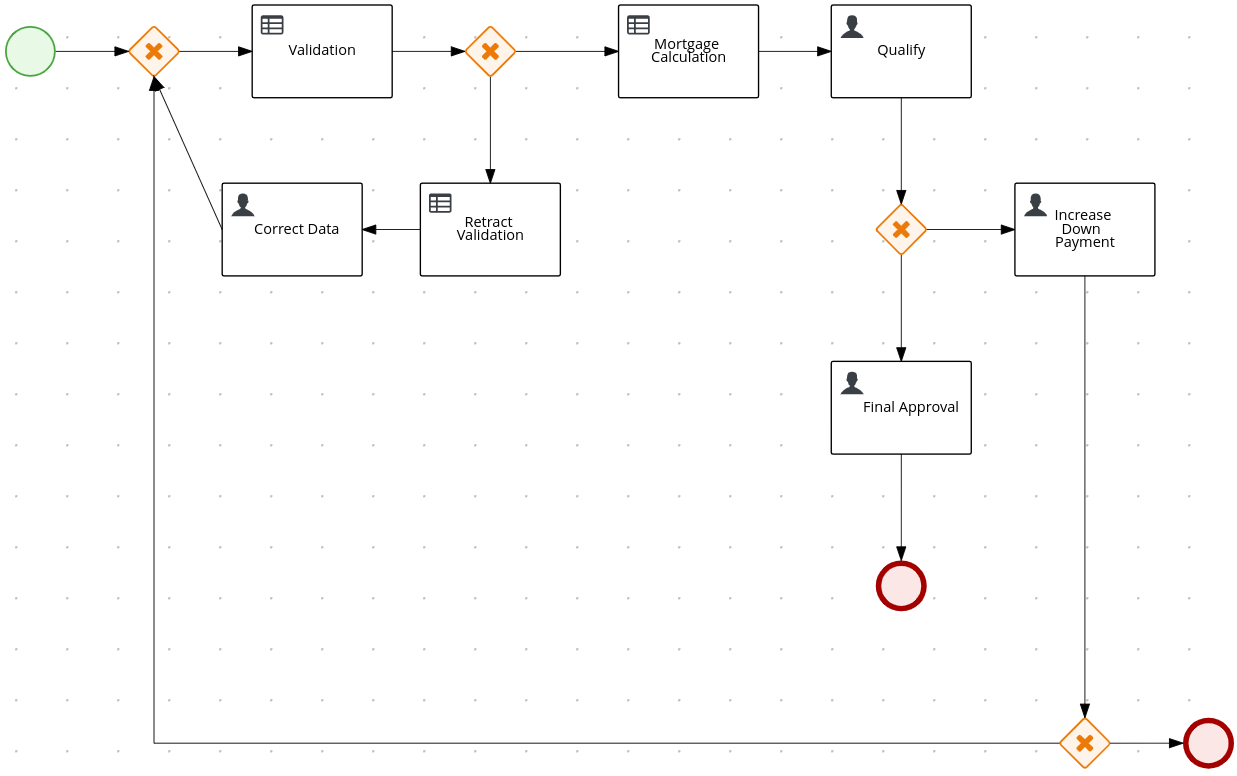

    Figure 218. Example business process for a mortgage loan application

    For more Kogito examples and instructions for using them, see the kogito-examples repository in GitHub.

5.4. Variables in Kogito processes

Variables in Kogito processes store data that is used during runtime. The Kogito BPMN modeler supports the following types of variables:

  • Process variables: Variables that are visible within a specific process instance. Process variables are initialized at process creation and destroyed on process completion.

  • Local variables: Variables that are visible within a specific process component, such as a task. Local variables are initialized when the element context is initialized (when the execution workflow enters the node and execution of the onEntry action has finished, if applicable). Local variables are destroyed when the element context is destroyed (when the execution workflow leaves the element).

A BPMN component, such as a process, subprocess, or task, can only access variables in its own context or in its parent context. A component cannot access a variable defined in a child component. When a BPMN component requires access to a variable during runtime, its own context is searched first.

If the variable cannot be found directly in the component context, the immediate parent context is searched. The search continues until the process context is reached.

If the variable cannot be found, a read access request returns null, a write access produces an error message, and the process continues its execution. Variables are searched for based on their unique ID.

5.4.1. Variable tags in BPMN process files

For greater control over variable behavior, you can tag process variables and local variables in the BPMN process file. Tags are simple string values that you add as metadata to a specific variable.

Kogito supports the following tags for process variables and local variables:

  • internal: Sets the variable as internal only for a process instance and hides the variable from the exposed REST model. For example, you can use this tag with intermediate variables that help hold some state during the execution of the process but are not part of the domain.

  • required: Sets the variable as a requirement in order to start a process instance. If a process instance starts without the required variable, Kogito generates a VariableViolationException error.

  • readonly: Indicates that the variable is for informational purposes only and can be set only once during process instance execution. If the value of a read-only variable is modified at any time, Kogito generates a VariableViolationException error.

  • input: Sets the variable as an input of the process and therefore is not exposed in the returned data model. As a result, the value of an input variable is not returned in response to REST requests.

  • output: Sets the variable as an output of the process and therefore is not expected for a process start and is included in the returned data model. As a result, the value of an output variable is returned in response to REST requests.

  • business-relevant: Indicates that the variable is relevant for a particular item of business value. This tag is helpful for monitoring purposes or for implying that the variable is relevant to another application.

  • tracked: Sets a variable to be tracked for changes so that Kogito generates events anytime the value of this variable is changed. Events are published to the kogito-variables-events topic in Kogito, where you can access the previous and new values.

You can define a variable tag in the {KOGITO} BPMN modeler in VSCode, or you can add the tag directly in the BPMN process source file as a customTags metadata property with the tag value defined in the format ![CDATA[TAG_NAME]].

For example, the following BPMN process applies the required tag to an approver process variable:

Image of variable tags in BPMN modeler

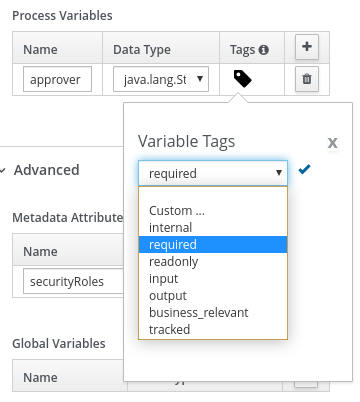

Figure 219. Example variable tagged in the BPMN modeler
Example variable tagged in a BPMN file
<bpmn2:property id="approver" itemSubjectRef="ItemDefinition_9" name="approver">
  <bpmn2:extensionElements>
    <tns:metaData name="customTags">
      <tns:metaValue><![CDATA[required]]></tns:metaValue>
    </tns:metaData>
  </bpmn2:extensionElements>
</bpmn2:property>

You can use multiple tags for a variable where applicable, but use caution and ensure that the tags are logical and do not conflict. For example, avoid tagging a variable as both internal and required.

By default, if a process variable has no tag assigned to it, Kogito assigns an input and an output tag to it.

You can also define custom variable tags in your BPMN files to make variable data available to Kogito process event listeners. Custom tags do not influence the Kogito runtime as the standard variable tags do and are for informational purposes only. You define custom variable tags in the same customTags metadata property format that you use for standard Kogito variable tags.

5.4.2. Defining process variables in Kogito processes

Process variables are visible within a specific process instance. Process variables are initialized at process creation and destroyed on process completion. You can map process variables to local variables.

Procedure

  1. In your VSCode IDE, open the relevant BPMN process file to view the process in the Kogito BPMN modeler.

  2. Select the background of the BPMN modeler canvas and, in the upper-right corner of the modeler, click Properties.

  3. Under Process Data → Process Variables, click the plus icon to add a new process variable and enter the following values:

    • Name: Enter the name of the process variable, such as order for a process variable with order information shared by all applicable nodes in the process.

    • Data Type: Enter a custom or standard data type of the variable, such as org.acme.Order.

      Image of process variable example
      Figure 220. Example process variables in BPMN modeler

5.4.3. Defining local variables in Kogito processes

Local variables are visible within a specific process component, typically a task. Local variables are initialized when the element context is initialized (when the execution workflow enters the node and execution of the onEntry action has finished, if applicable). Local variables are destroyed when the element context is destroyed (when the execution workflow leaves the element).

You can map local variables to global or process variables. This mapping enables you to maintain relative independence from the parent context that accommodates the local variable. This isolation helps prevent technical exceptions.

For tasks, with the exception of script tasks, you define local variables as data input or output assignments under Assignments in the task properties. Data input assignments define variables that enter the task and provide the entry data required for the task execution. Data output assignments refer to the context of the task after execution to acquire output data.

User tasks present data related to the actor who is completing the user task. User tasks also require the actor to provide result data related to the execution.

Procedure

  1. In your VSCode IDE, open the relevant BPMN process file to view the process in the Kogito BPMN modeler.

  2. Select the relevant task (non-script task) and, in the upper-right corner of the modeler, click Properties.

  3. Under Assignments, click the edit icon to open the Data I/O window, and click Add to begin adding local variables as data input or output:

    • Name: Enter the name of the data input or output, such as person for a local variable with person information as the input and isAdult for a local variable with adult status as the output.

    • Data Type: Enter a custom or standard data type of the data input or output, such as org.acme.Person.

    • Source or Target: Enter the source object for the data input or the target object for the data output, such as person for a Java class with person information.

      Image of local variable example
      Figure 221. Example local variables in BPMN modeler

5.5. Persistence in Kogito services

Kogito supports runtime persistence for preserving process data in your services, such as active process nodes and process instance variables, across application restarts.

For Kogito persistence, you can use one of the following supported persistence stores:

  • Infinispan: (Default) Persists data using configured key-value storage definitions

  • MongoDB: Persists data using a document-based format

  • Kafka Streams: (Quarkus only) Persists data in Kafka clusters

  • JDBC: Persists data to different relational databases such as PostgreSQL and Oracle using JDBC driver.

  • File system: Persists data to files in the file system.

Runtime persistence is intended primarily for storing data that is required to resume workflow execution for a particular process instance. Persistence applies to both public and private processes that are not yet complete. Once a process completes, persistence is no longer applied. This persistence behavior means that only the information that is required to resume execution is persisted.

Node instances that are currently active or in wait states are persisted. When a process instance finishes execution but has not reached the end state (completed or aborted), the node instance data is persisted.

Persistence setup scripts for Kogito runtimes and Kogito runtimes supporting services are included in the kogito-ddl-1.43.0.Final-db-scripts.zip artifact.

5.5.1. Persistence workflow in Kogito

In Kogito, a process instance is persisted when the process reaches a wait state, where the process does not execute anymore but has not reached the end state (completed or aborted).

For example, when a process reaches a user task or a catching signal event, the process instance pauses and the Kogito process engine takes a complete snapshot of the process, including the following data:

  • Process instance metadata, such as process instance ID, process definition ID, state, description, and start date

  • Process instance variables

  • Active node instances, including local variables

Process instance metadata is persisted with a predefined protobuf (protocol buffers) schema that is aware of the metadata and supports node instances that are in wait states.

For straight-through process instances that do not trigger any activity, persistence is not invoked and no data is stored.

Each persistence provider stores data according to their underlying mechanism. For instance, when using Infinispan, each process definition has its own cache for storing runtime information. The cache is based on the process definition ID and is named in the Infinispan Server. MongoDB creates a separated document collection per process definition whereas JDBC provider will use a single table for all processes but include the process definition ID in order to isolate operations. This setup facilitates maintenance of process instance data and reduces concurrency on the cache instances.

5.5.2. Persisted process instance variables and data types

Persisted process variables, local variables, and other process data are stored with the process instance. The stored data is marshalled into bytes format so it can be transferred and persisted into one of the supported persistence providers. The marshalling and unmarshalling is implemented based on protobuf (protocol buffers).

Kogito will persist all process instance variables defined in the process model once the execution reaches a wait state. Once the wait state is reached, marshalling will take place in order to transform all process variables into bytes, which can be accomplished using one of the following methods:

5.5.2.1. Persistence using Protobuf marshalling

Kogito generates both the protobuf schema (as PROTO files) and marshallers for persisting variables. The Kogito marshallers are based on the ProtoStream subproject of Infinispan.

When you build your Kogito project, Kogito scans all process definitions and extracts information about the data within the business assets. Based on the unique data types (regardless of how many processes reference a specified type), PROTO files are generated that build a complete schema for the application. These files are stored inside the /META-INF/resources/persistence/protobuf/ folder of the generated JAR file (e.g. quarkus-apps/quarkus/generated-bytecode.jar) and also in the target/classes/META-INF/resources/persistence/protobuf/ folder of your project after successful build.

Example PROTO file generated by Kogito to persist process data
syntax = "proto2";
package org.kie.kogito.examples.demo.orders;
import "kogito-index.proto";
import "kogito-types.proto";
option kogito_model = "Orders";
option kogito_id = "demo.orders";

/* @Indexed */
message Order {
	option java_package = "org.kie.kogito.examples.demo.orders";
	/* @Field(store = Store.YES) @SortableField */
	optional string orderNumber = 1;
	/* @Field(store = Store.YES) @SortableField */
	optional bool shipped = 2;
	/* @Field(store = Store.YES) @SortableField */
	optional double total = 3;
}
/* @Indexed */
message Orders {
	option java_package = "org.kie.kogito.examples.demo.orders";
	/* @Field(store = Store.YES) @SortableField
 @VariableInfo(tags="") */
	optional string approver = 1;
	/* @Field(store = Store.YES) @SortableField */
	optional string id = 2;
	/* @Field(store = Store.YES) @SortableField
 @VariableInfo(tags="") */
	optional Order order = 3;
	/* @Field(store = Store.YES) @SortableField */
	optional org.kie.kogito.index.model.KogitoMetadata metadata = 4;
}
Each PROTO file imports kogito-types.proto and kogito-index.proto files that automatically define the base types managed by Kogito.

Based on the PROTO files, marshallers are also generated and configured in the application so that whenever a particular data type is used in a process instance, the data is successfully marshalled and unmarshalled.

5.5.2.2. Persistence using Java serialization

To enable Java serialization, you should make sure all data types can be serialized. This means that classes should implement java.io.Serializable as well as have an empty constructor. It is also necessary to set kogito.persistence.proto.marshaller=false in your application.properties file.

In case you would like to use Quarkus native compilation, it is also necessary to follow the instructions so your data types can be serialized in native mode. For more details, visit (Quarkus registering for reflection)

The following annotation is usually required for Quarkus native mode:

import io.quarkus.runtime.annotations.RegisterForReflection;

@RegisterForReflection(serialization = true)
public class MyPojo implements Serializable {
}

5.5.3. Supported data types for persisted variables

For optimal persistence with process data and variables, use Java objects as data types that represent your process variables. If you use other formats for data types, your data might not be persisted or your Kogito project might fail to compile.

Kogito currently supports the following data types for process variables:

Table 117. Supported data types
Data type Description

java.lang.String

Basic text type

java.lang.Integer

Basic number type

java.lang.Long

Extended size number type

java.lang.Float

Basic floating point number type

java.lang.Double

Extended size floating point number type

java.util.Date

Basic date type

java.lang.Boolean

Basic boolean type

java.io.Serializable

Custom data types and other Java types such as Collections and Enums

5.5.4. Enabling JDBC persistence for Kogito services

As an alternative to using Infinispan or MongoDB for Kogito runtime persistence, you can enable persistence for your Kogito services using JDBC. JDBC allows Kogito to persist data using different relational databases. We recommend using PostgreSQL. The complete list of supported databases is dependent on the target runtime you use, for instance, Quarkus supports the following JDBC datasources.

Kogito provides two ways to manage the database schema, either via manually applying the provided DDL kogito-ddl-1.43.0.Final-db-scripts.zip, or via Flyway integration. The service does not create a schema by default.

Please check examples below on how to enable different databases using JDBC data sources.

5.5.4.1. Enabling PostgreSQL persistence using JDBC driver for Kogito services

You can enable PostgreSQL persistence for your Kogito services using JDBC driver.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-jdbc-postgresql</artifactId>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-agroal</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.postgresql</groupId>
  <artifactId>postgresql</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure PostgreSQL and to connect to the PostgreSQL server.

    Replace the server host, port, and database information according to your PostgreSQL Server installation. By default, the database is named kogito.

    On Quarkus
    kogito.persistence.type=jdbc
quarkus.datasource.username=kogito-user
quarkus.datasource.password=kogito-pass
quarkus.datasource.jdbc.url=jdbc:postgresql://localhost:5432/kogito
# Below properties are required to create database schema with Flyway at startup.
quarkus.flyway.migrate-at-start=true
quarkus.datasource.db-kind=postgresql
    On Spring Boot
    kogito.persistence.type=jdbc
spring.datasource.username=kogito-user
spring.datasource.password=kogito-pass
spring.datasource.url=jdbc:postgresql://localhost:5432/kogito
# Below properties are required to create database schema with Flyway at startup.
spring.flyway.enabled=true
spring.flyway.locations=classpath:db/{vendor}

For an example Kogito service with PostgreSQL persistence using JDBC driver, see the following example applications in GitHub:

5.5.4.2. Enabling Oracle persistence using JDBC driver for Kogito services

You can enable Oracle persistence for your Kogito services using JDBC driver.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-jdbc-oracle</artifactId>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-agroal</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>com.oracle.database.jdbc</groupId>
  <artifactId>ojdbc8</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure and to connect to the Oracle database.

    Replace the server host, port, and database information according to your Oracle Server installation. By default, the database is named as kogito.

    On Quarkus
    kogito.persistence.type=jdbc
quarkus.datasource.username=kogito
quarkus.datasource.password=kogito
quarkus.datasource.jdbc.url=jdbc:oracle://oracle:1521/kogito
# Below properties are required to create database schema with Flyway at startup.
quarkus.flyway.migrate-at-start=true
quarkus.datasource.db-kind=oracle
    On Spring Boot
    kogito.persistence.type=jdbc
spring.datasource.username=kogito
spring.datasource.password=kogito
spring.datasource.url=jdbc:oracle://oracle:1521/kogito
# Below properties are required to create database schema with Flyway at startup.
spring.flyway.enabled=true
spring.flyway.locations=classpath:db/{vendor}

5.5.5. Enabling Infinispan persistence for Kogito services

You can enable persistence for your Kogito services using Infinispan to persist data, such as active process nodes and process instance variables, so that the data is preserved across application restarts. For Kogito persistence with Infinispan, you must have a an Infinispan Server installed and running in order to enable persistence.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-infinispan</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-infinispan</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.infinispan</groupId>
  <artifactId>infinispan-spring-boot-starter-remote</artifactId>
  <version>INFINISPAN_SPRING_BOOT_VERSION</version>
</dependency>

  2. Add following property to the src/main/resources/application.properties file in your Kogito project to configure the connection to the Infinispan Server.

    Replace the server host and port information according to your Infinispan Server installation.

    On Quarkus
    quarkus.infinispan-client.server-list=localhost:11222
    On Spring Boot
    infinispan.remote.server-list=127.0.0.1:11222
As an alternative to enabling Infinispan persistence explicitly in Kogito services, you can use the Kogito Operator to install the Infinispan infrastructure and enable persistence for the service during deployment on OpenShift. For more information about enabling Infinispan persistence with the Kogito Operator, see Deploying Kogito services on OpenShift.

For example Kogito services with Infinispan persistence, see the following example applications in GitHub:

5.5.6. Enabling MongoDB persistence for Kogito services

As an alternative to using Infinispan for Kogito runtime persistence, you can enable persistence for your Kogito services using MongoDB. MongoDB is a general purpose, document-based database that enables you to store data in JSON-like documents instead of key-value storage definitions in Infinispan-based persistence storage. For Kogito persistence with MongoDB, you must have a MongoDB Server installed and running in order to enable persistence.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-mongodb</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-mongodb</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-data-mongodb</artifactId>
  <version>MONGODB_SPRING_BOOT_VERSION</version>
</dependency>

  2. Add following properties to the src/main/resources/application.properties file in your Kogito project to configure MongoDB persistence and to connect to the relevant MongoDB Server and database.

    Replace the server host, port, and database information according to your MongoDB Server installation. By default, the database is named kogito.

    On Quarkus
    kogito.persistence.type=mongodb
quarkus.mongodb.connection-string = mongodb://localhost:27017
quarkus.mongodb.database=kogito_db
    On Spring Boot
    kogito.persistence.type=mongodb
spring.data.mongodb.uri=mongodb://localhost:27017
spring.data.mongodb.database=kogito_db

    Optionally, enable MongoDB transactions by adding the following property:

    kogito.persistence.transaction.enabled=true

For example Kogito services with MongoDB persistence, see the following example applications in GitHub:

5.5.7. Enabling Kafka Streams persistence for Kogito services

For Quarkus-based Kogito services, as an alternative to using Infinispan or MongoDB for Kogito runtime persistence, you can enable persistence using Kafka Streams. Kafka Streams is a client library for building applications and microservices, where the input and output data are stored in Kafka topics. For Kogito persistence with Kafka Streams, you must have Kafka installed and running in order to enable persistence.

Kafka Streams persistence is supported for only Quarkus-based Kogito services.
Prerequisites
Procedure

  1. Add the following dependency to the pom.xml file of your Kogito project:

    Project dependency to enable Kafka Streams persistence (Quarkus only)
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-kafka</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure Kafka persistence and to connect to the relevant Kafka server.

    Replace the server host and port information according to your Kafka installation.

    Application properties to enable Kafka Streams persistence (Quarkus only)
    kogito.persistence.type=kafka
kafka.bootstrap.servers=localhost:9092

For an example Kogito service with Kafka persistence, see the following example application in GitHub:

5.5.8. Enabling optimistic locking with persistence

Kogito runtimes need to safely handle concurrent requests to shared instances such as process instances or tasks. Kogito handles these requests using persistence enabled optimistic locking for concurrency control with the version on record (using the version field in the database or the metadata version in the case of Infinispan). This feature is optional and can be activated only with persistence by adding the following properties to the src/main/resources/application.properties file in your Kogito project,

kogito.persistence.optimistic.lock=true

Below are the persistence providers that support optimistic locking

  • Infinispan

  • MongoDB

  • JDBC

5.6. Enabling Kafka messaging for Kogito services

Kogito supports the MicroProfile Reactive Messaging specification for messaging in your services. You can enable messaging to configure message events as either input or output of business process execution.

For example, the following handle-travelers.bpmn2 process uses messaging start and end events to communicate with travelers:

Image of message-based process

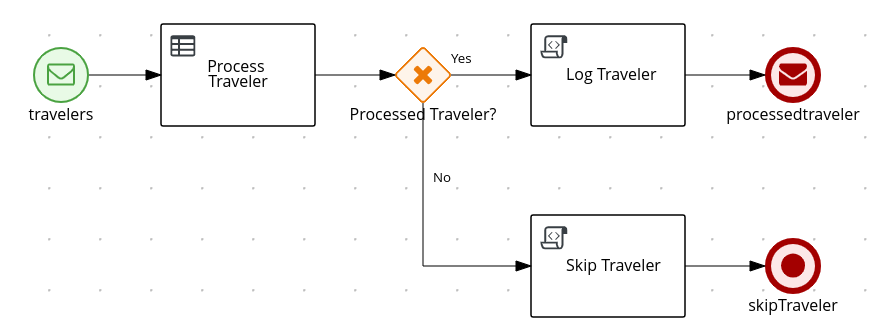

Figure 222. Example process with messaging start and end events

In this example, the message start and end events require the following information:

  • Message name that maps to the channel that delivers messages

  • Message payload that maps to a process instance variable

Image of message start event data

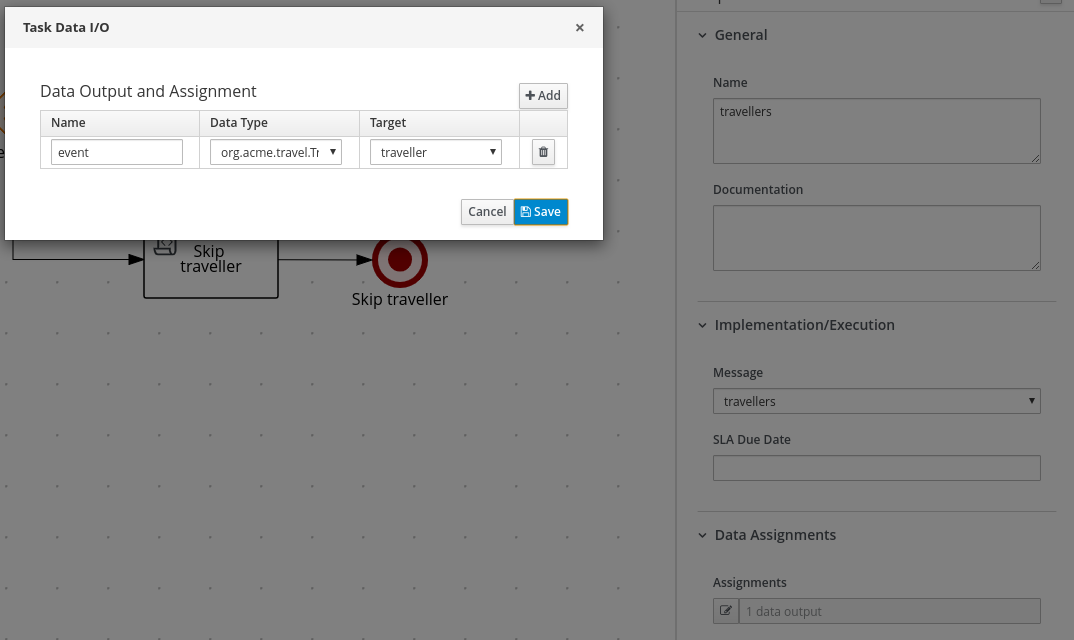

Figure 223. Example message configuration for start event
Image of message end event data
Figure 224. Example message configuration for end event

For this procedure, the messaging is based on Apache Kafka as the event publisher, so you must have Kafka installed in order to enable messaging. Your marshalling configuration depends on the messaging solution that you use.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
</dependency>
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-cloudevents</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.springframework.kafka</groupId>
  <artifactId>spring-kafka</artifactId>
</dependency>
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-cloudevents</artifactId>
</dependency>
<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-databind</artifactId>
</dependency>

  2. Configure the incoming and outgoing messaging channels and properties:

    • On Quarkus: Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure the incoming and outgoing messages and channels:

      Configure incoming and outgoing messages and channels
      mp.messaging.incoming.kogito_incoming_stream.connector=smallrye-kafka
mp.messaging.incoming.kogito_incoming_stream.topic=travellers
mp.messaging.incoming.kogito_incoming_stream.value.deserializer=org.apache.kafka.common.serialization.StringDeserializer
mp.messaging.outgoing.kogito_outgoing_stream.connector=smallrye-kafka
mp.messaging.outgoing.kogito_outgoing_stream.topic=processedtravellers
mp.messaging.outgoing.kogito_outgoing_stream.value.serializer=org.apache.kafka.common.serialization.StringSerializer

      Replace travellers with the name of the message start event. Replace processedtravellers with the name of the message end event.

      To prevent execution errors due to long wait times with messaging, you can also use the following property to disable waiting for message completion:

      Disable message wait time
      mp.messaging.outgoing.[channel-name].waitForWriteCompletion=false

    • On Spring Boot: Add the following property to the src/main/resources/application.properties file in your Kogito project to configure the messaging channel:

      Configure messaging channel
      kafka.bootstrapAddress=localhost:9092
kogito.addon.cloudevents.kafka.kogito_incoming_stream=travellers
kogito.addon.cloudevents.kafka.kogito_outgoing_stream=processedtravellers
As an alternative to enabling Kafka messaging explicitly in Kogito services, you can use the Kogito Operator to install the Kafka infrastructure and enable messaging for the service during deployment on OpenShift. For more information about enabling Kafka messaging with the Kogito Operator, see Deploying Kogito services on OpenShift.

For example Kogito services with Kafka messaging, see the following example applications in GitHub:

5.7. Knative Eventing in Kogito services

Knative Eventing is a serverless platform that enables you to create event producers and consumers for your applications. Knative Eventing uses standard HTTP POST requests to send and receive events between event producers and consumers. These events conform to the CloudEvents specification, which enables creating, parsing, sending, and receiving events in any programming language.

Kogito provides the Knative Eventing add-on that enables you to use Knative Eventing with Kogito services that consume or publish messages within a Business Process Model and Notation (BPMN) process model, Serverless Workflow, or decisions. Kogito runtime events for messages, processes, tasks, and other application activities are published in CloudEvents format so that they can be consumed efficiently by other entities, such as the Knative Eventing system.

Knative Eventing is currently supported for Kogito services on Quarkus only. The Kogito Operator supports Knative Eventing 0.20 or later.

For example, the following handle-travelers.bpmn2 process uses messaging start and end events to communicate with travelers:

Image of BPMN process receiving and publishing messages
Figure 225. Example process with messaging start and end events

When the Knative Eventing add-on is enabled in the Kogito project that contains this example process, an event consumer is generated from the message start node and an event producer is generated from the message end node at build time.

The following diagram illustrates a scenario with Knative Eventing and a Kogito service that contains event consumers:

Kogito service listening to events

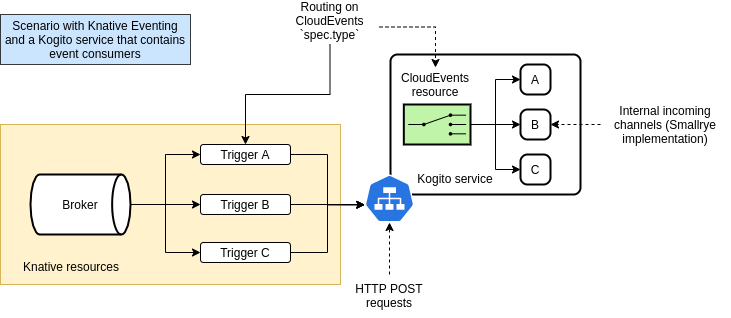

Figure 226. Knative Eventing and a Kogito service with event consumers

In this scenario, three Knative Eventing Triggers are generated to filter the messages that are received by the Kogito service. These messages are sent to the default Kogito service port. A message-routing mechanism in the generated code redirects the message to an inner channel based on the name of the message start event in the BPMN process model. The names of message start and end events serve as unique CloudEvents type attribute definitions in Knative Eventing.

In the example handle-travlers.bpmn2 process, the message start node is named travelers, so a message with a type named travelers triggers the message start node, as shown in the following example curl request:

Example request to trigger the travelers message start event
$ curl -X POST \
      -H "content-type: application/json"  \
      -H "ce-specversion: 1.0"  \
      -H "ce-source: /from/localhost"  \
      -H "ce-type: travelers"  \
      -H "ce-id: 12346"  \
      -d '{"firstName": "Jane", "lastName": "Doe", "email": "jane.doe@example.com", "nationality": "German"}' \
  http://localhost:8080

The following diagram illustrates a scenario with Knative Eventing and a Kogito service that contains event producers:

Kogito service producing events

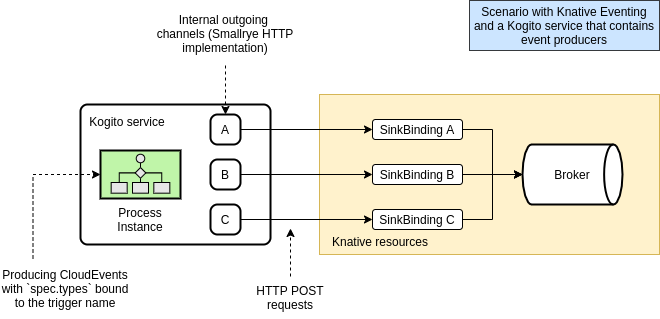

Figure 227. Knative Eventing and a Kogito service with event producers

In this scenario, the Kogito service sends HTTP POST messages to the Knative Eventing Broker through the SinkBinding resource. The SinkBinding endpoint is generated by the Knative Eventing platform and is injected in the Kogito service container as an environment variable named ${K_SINK}. Alternatively, you can use the Knative KogitoSource. For more information about the Knative Eventing component, see the project website.

The following example message is generated by the Kogito service:

Example message generated by the Kogito service
Context Attributes,
  specversion: 1.0
  type: process/travelers/processedtravellers
  source: /process/Travelers/2f692fd9-fff8-4b0a-bb64-96d1a4772490
  id: 29e43b17-3a70-4b46-aca0-7ab8e2133eee
  time: 2020-08-10T20:52:39.383346Z
Extensions,
  knativearrivaltime: 2020-08-10T20:52:39.391404032Z
  knativehistory: default-kne-trigger-kn-channel.kogito.svc.cluster.local
  kogitoprocid: Travelers
  kogitoprocinstanceid: 2f692fd9-fff8-4b0a-bb64-96d1a4772490
  kogitoprocist: 1
Data,
  {"firstName":"Jan","lastName":"Kowalski","email":"jan.kowalski@example.com","nationality":"German","processed":true}

In this case, the CloudEvents type attribute uses the format process/PROCESS_ID/NODE_NAME. This format prevents the messages generated by the Kogito service from conflicting with other messages being generated within the cluster, and enables the Knative Triggers objects to filter these messages by a unique type. The generated CloudEvents message also contains information about the process instance, such as the process ID, process instance ID, and process instance state.

The following diagram illustrates the overall architecture of a Kogito service deployed in a Knative Eventing environment on a Kubernetes or OpenShift cluster:

Kogito service deployed on Knative Eventing environment

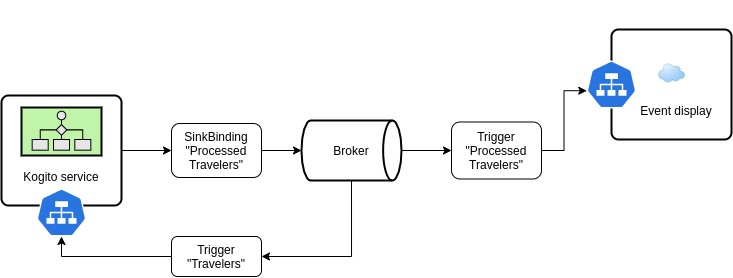

Figure 228. Kogito service deployed in Knative Eventing environment on Kubernetes or OpenShift

5.7.1. Enabling Knative Eventing for Kogito services

You can enable Knative Eventing support for Kogito services that consume or publish messages within a Business Process Model and Notation (BPMN) process model or Serverless Workflow. When you enable Knative Eventing for a Kogito project, event consumers and producers are generated from message start and end nodes in BPMN processes at build time. You can use these event consumers and producers as part of your Kogito service deployment in a Knative Eventing environment on Kubernetes or OpenShift clusters.

Knative Eventing is currently supported for Kogito services on Quarkus only. The Kogito Operator supports Knative Eventing 0.20 or later.
Prerequisites

  • You have installed and deployed Knative Eventing 0.20.0 or later on a Kubernetes or an OpenShift cluster. For information about Knative Eventing on OpenShift, see Installing Knative Eventing in the OpenShift documentation.

  • You have created a BPMN model in your Kogito project with message start or end events that you want to integrate with Knative Eventing. For information about creating BPMN models, see Creating and editing BPMN models in the Kogito BPMN modeler.

Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    Knative Eventing dependencies
    <dependencies>
    <!-- Enables Knative integration with Kogito -->
    <dependency>
      <groupId>org.kie.kogito</groupId>
      <artifactId>kogito-addons-quarkus-knative-eventing</artifactId>
    </dependency>
    <!-- Enables Kubernetes and Knative resources generation for Kogito -->
    <dependency>
      <groupId>io.quarkus</groupId>
      <artifactId>quarkus-kubernetes</artifactId>
    </dependency>
</dependencies>

    This dependency enable Knative Eventing add-on and messaging requirements. When a Kogito service has the Knative Eventing add-on enabled, Kogito generates code based on Smallrye Reactive Messaging to publish messages.

    Optionally, you can add the Quarkus Kubernetes dependency as exemplified. In this case, the add-on also generates Knative and Kubernetes resources to deploy the Kogito Service on any cluster. The exemplification assumes that you are using the quarkus-kubernetes extension.

  2. In your Kogito project, open the BPMN file that you want to use for consuming or producing messages in the Knative Eventing environment. BPMN files are typically in src/main/resources.

    For example, the following handle-travelers.bpmn2 process uses messaging start and end events to communicate with travelers:

    Image of BPMN process receiving and publishing messages
    Figure 229. Example process with messaging start and end events

    The names of message start and end events serve as CloudEvents type attribute definitions in Knative Eventing and must be unique.

  3. For each message event in the BPMN process model, select the node, click Properties in the upper-right corner of the modeler, and verify that the node name is clear and unique.

    For example, consider adding the project or process name as a prefix to the message node name, such as travelagency.travelers in the following example:

    Image of a message node property name

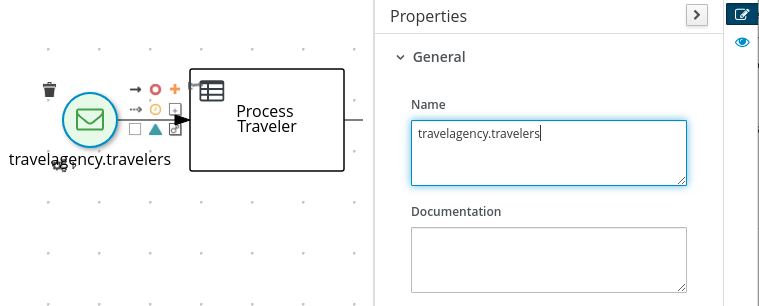

    Figure 230. Set a unique message node name

  4. The Knative Eventing Add-on automatically configures your Kogito service by default with the following properties:

    Required application properties for publishing
    mp.messaging.outgoing.kogito_outgoing_stream.connector=quarkus-http
mp.messaging.outgoing.kogito_outgoing_stream.url=${K_SINK}
    You can override these properties anytime by adding them to src/main/resources/application.properties file in your project.

    The quarkus-http property defines the HTTP endpoint for the published messages. The ${K_SINK} property is an environment variable injected by Knative Eventing when you deploy a Kogito service that references a Knative Eventing SinkBinding or KogitoSource object.

    If you run the environment variable K_SINK locally for test purposes, ensure that K_SINK is available in your environment. You can change the property to a constant value as follows:
    mp.messaging.outgoing.kogito_outgoing_stream.url=${K_SINK:http://localhost:8080/}

  5. Build your Kogito project locally using your usual method, such as mvn clean package, and navigate to the target/generated-sources/kogito directory in your project and verify the following contents:

    • Generated classes with the suffixes MessageConsumer and MessageProducer. These classes are generated based on the message start and end events in your BPMN model.

    • Generated app folder containing a CloudEventListenerResource.java file. This file detects any CloudEvents messages produced by the Knative Eventing source that targets your Kogito service.

    If any of these items are missing, ensure that you have configured all required dependencies, applications properties, and message event name. After all checks are complete, rebuild the project.

  6. After you configure and test your Kogito project locally, in your Kubernetes or OpenShift environment, add the following custom resources to deploy your Kogito project. These resources are generated automatically by the Kogito Knative Eventing add-on and can be found in target/kubernetes/kogito.yml and target/kubernetes/kubernetes.yml files. These resources are required for consuming or producing events in a Knative Eventing environment.

    If you plan to run the application locally, please take a look at the example "Process Knative Quickstart Quarkus". You will understand how to configure the enviroment in your local machine using Knative Event Display.

    • Broker: When you deploy a Kogito service that uses the Knative Eventing add-on, you can also deploy a Knative Eventing Broker in the same namespace. The Kogito service uses this Broker to publish or listen to CloudEvents messages. You can use any Broker channel for the Kogito service, such as InMemoryChannel, KafkaChannel, or NatssChannel.

      By default, the InMemoryChannel channel is used when no channel is specified, as shown in the following Broker custom resource example:

      Example Broker custom resource for Knative Eventing with default InMemoryChannel
      apiVersion: eventing.knative.dev/v1
kind: Broker
metadata:
  name: default
      InMemoryChannel channels are for development use only. Do not use this channel in a production deployment.

      For more information about available Broker channels and how to install them, see Available Channels in the Knative documentation.

    • Knative Trigger: To make our service aware of the events of type travellers that are arriving in the Broker:

      Example Knative Trigger custom resource for a Kogito service with Broker binding
      apiVersion: eventing.knative.dev/v1
kind: Trigger
metadata:
  name: travellers-trigger-process-knative-quickstart-quarkus
spec:
  broker: default
  filter:
    attributes:
      type: travellers
  subscriber:
    ref:
      apiVersion: serving.knative.dev/v1
      kind: Service
      name: process-knative-quickstart-quarkus

    • Knative SinkBinding: The SinkBinding resource is used to sink the generated events of a Kogito service to the Knative Broker. Alternatively, you can set the property org.kie.kogito.addons.knative.eventing.generate-kogito-source as true. Using this approach, the add-on generates a Knative KogitoSource as shown in the following example:

      Example KogitoSource custom resource for a Kogito service with the default Broker
      apiVersion: kogito.knative.dev/v1alpha1
kind: KogitoSource
metadata:
  name: process-knative-quickstart-quarkus
spec:
  sink:
    ref:
      apiVersion: eventing.knative.dev/v1
      kind: Broker
      name: default
      namespace: ""
  subject:
    apiVersion: serving.knative.dev/v1
    kind: Service
    name: process-knative-quickstart-quarkus

    After you apply the auto-generated resources to the Kubernetes or OpenShift namespace, the events in the BPMN or Serverless Workflow files (if any) are dispatched to the default Broker.

    The Knative Eventing Trigger resource filters all messages that are delivered to the default Broker and sends the messages to the Kogito service.

    This Knative Eventing SinkBinding resource injects the ${K_SINK} environment variable to the Deployment or Knative Service resource created by the add-on. Each message that is generated by the Kogito service is redirected to the default Knative Broker.

    If you do not want to use the auto-generated resources, you must create Trigger and SinkBinding resources manually.

    If any other components need to consume the messages produced by the Kogito service, you must create an additional Knative Eventing Trigger resource as shown in the following example:

    Knative Eventing resource for other consuming components
    apiVersion: eventing.knative.dev/v1
kind: Trigger
metadata:
  name: event-display-trigger
spec:
  # The default Broker is enabled in the namespace.
  broker: default
  filter:
    # Listens only to events of type `success` emitted by the CloudEvents-processing service.
    attributes:
      # The same type being generated by the custom service.
      type: /process/travelers/processedtravellers
      # The subscriber is the deployed displayer service. Any event that matches the filter in the Broker is sent here.
  subscriber:
    ref:
      apiVersion: serving.knative.dev/v1
      kind: Service
      name: event-display

    The spec.filter.attributes.type value defined in the Trigger resource is the same as the value generated by the Kogito service.

For an example Kogito service with Knative Eventing enabled, see the process-knative-quickstart-quarkus example application.

Additional resources

5.8. Task lifecycle in Kogito processes

In Kogito business processes, tasks are implemented as work items and their execution is defined by work item handlers. User tasks in particular are a core construct in Kogito processes. When a user task is reached in a process, the task progresses through phases of a defined lifecycle until it reaches an end state.

Kogito supports the following default phases in a work item (task) lifecycle:

  • Active: Indicates initial state when the work item is activated

  • Abort: Indicates abnormal completion of the work item

  • Complete: Indicates normal completion of the work item

  • Claim: Assigns the work item to a specific actor, restricting access to anyone else

  • Release: Unassigns the work item from a specific actor, releasing it to any other potential user or group to work on it (by claiming or completing)

  • Skip: Skips the work item

With Kogito, you can also add custom lifecycles and lifecycle phases to meet your business needs.

A lifecycle moves a work item across various phases that are not defined by the WorkItem interface and defines the behavior of a work item at runtime. You typically add a lifecycle on top of the WorkItemHandler interface so that the lifecycle is pluggable with more flexible runtime characteristics.

The WorkItemHandler interface provides the option to move between task phases, as shown in the following method example:

WorkItemHandler support for moving between task phases
public void transitionToPhase(WorkItem workItem, WorkItemManager manager, Transition<?> transition)
This method is a default method that does nothing when not implemented. This functionality maintains backward compatibility with existing work item handler implementations.

You typically implement the transitionToPhase method as shown in the following example:

Example implementation of transitionToPhase method
@Override
public void transitionToPhase(WorkItem workItem, WorkItemManager manager, Transition<?> transition) {

    lifeCycle.transitionTo(workItem, manager, (Transition<Map<String, Object>>) transition);
}

The lifeCycle element is an implementation of org.kie.kogito.process.workitem.LifeCycle<T> that defines the execution semantics.

5.8.1. User task authorization

The org.jbpm.process.instance.impl.humantask.BaseHumanTaskLifeCycle implementation in Kogito ensures that a user task is worked on by authorized users, based on the user or group assignments that you provide.

You can use the following parameters to provide assignments for authorized users or groups in the relevant BPMN process model. All of the listed parameters support expressions.

Table 118. Parameters for authorized users or groups
Parameter name Description Example value

ActorId

Comma-separated list of authorized users

John,Mary,#{actor}

GroupId

Comma-separated list of authorized groups of users

mangers,#{mygroup}

BusinessAdministratorId

Comma-separated list of authorized administrators

administrator,#{adminuser}

BusinessAdministratorGroupId

Comma-separated list of groups of administrators

admins,#{admingroup}

ExcludedOwnerId

Comma-separated list of unauthorized users who cannot work on this task

paul,#{lastactor}
Authorization is only enforced when the method that calls the work item lifecycle methods uses a security context. This security behavior is dependent on the API that you use.

5.8.2. REST endpoints for tasks in Kogito

When a process execution reaches the associated user task node, the user task enters the Active phase and the execution is paused. In the user task active phase, related input properties are passed to the task. After the user task is completed, the generated results are mapped with the process properties and then the process execution resumes.

When a user task is in the Active phase, you can change the task phase, update task results, and manage comments and attachments of a task using the following REST endpoints.

For each endpoint, use a REST client, curl utility, or Swagger UI (if configured for the application) to send requests with the following components:

  • Base URL: http://HOST:PORT/{processId}/{processInstanceId}/{taskName}/{taskInstanceId}

  • Path parameters:

    • {processId}: The string identifier of the process definition, such as approval

    • {processInstanceId}: The integer identifier of the process instance, such as ec44f890-d21d-444f-a4ec-cb88589bd79

    • {taskName}: The string identifier of the task definition, such as firstLineApproval

    • {taskInstanceId}: The integer identifier of the node instance, such as 7a520588-d5ab-464a-8378-d34fda3ff7e9

  • HTTP headers: For POST requests only:

    • accept: application/json

    • content-type: application/json

  • HTTP methods: GET, POST, PUT, or DELETE

5.8.2.1. Task phases

Use the following REST endpoints to change phases for a task:

Change the current phase for a task

[POST] /phase/{phaseName}

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/phase/complete

Example curl request
curl -X POST http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/phase/complete -H 'content-type: application/json' -H 'accept: application/json'
5.8.2.2. Comments

Use the following endpoints to manage comments for a user task:

Retrieve list of comments related to a task

[GET] /comments

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments

Example curl request
curl -X GET http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments -H 'content-type: application/json' -H 'accept: application/json'
Create a comment with the text passed in the request body

[POST] /comments

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments

Example curl request
curl -X POST http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments -H 'content-type: application/json' -H 'accept: application/json'
Update a comment with the text passed in the request body

[PUT] /comments/{commentId}

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments/firstComment

Example curl request
curl -X PUT http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments/firstComment -H 'content-type: application/json' -H 'accept: application/json'
Delete a comment

[DELETE] /comments/{commentId}

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments/firstComment

Example curl request
curl -X DELETE http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/comments/firstComment -H 'content-type: application/json' -H 'accept: application/json'
5.8.2.3. Attachments

Use the following REST endpoints to manage attachments for a user task:

Retrieve list of attachments related to a task

[GET] /attachments

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments

Example curl request
curl -X GET http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments -H 'content-type: application/json' -H 'accept: application/json'
Create an attachment with the URL passed in the request body

[POST] /attachments

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments

Example curl request
curl -X POST http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments -H 'content-type: application/json' -H 'accept: application/json'
Update an attachment with the URL passed in the request body

[PUT] /attachments/{attachmentId}

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments/firstAttachment

Example curl request
curl -X PUT http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments/firstAttachment -H 'content-type: application/json' -H 'accept: application/json'
Delete an attachment

[DELETE] /attachments/{attachmentId}`

Example REST endpoint

http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments/firstAttachment

Example curl request
curl -X DELETE http://localhost:8080/approval/ec44f890-d21d-444f-a4ec-cb88589bd79/firstLineApproval/7a520588-d5ab-464a-8378-d34fda3ff7e9/attachments/firstAttachment -H 'content-type: application/json' -H 'accept: application/json'
5.8.2.4. Task management

The REST endpoints for task management in Kogito enable you to manage the predefined information of a task, which cannot be modified using the tasks API endpoints. The predefined information of a task includes Description, Priority, Potential Owners, Administrators, and Input Parameters.

The REST API endpoints for task management are accessible to system administrators and users with enough privileges.

The task management REST endpoints support the following HTTP methods:

  • GET method is used to retrieve information about a task.

  • PUT method is used to replace the entire task information, indicating that you need to pass the entire task information. Therefore, if you do not include a field in the request, then that field is set as null.

  • PATCH method is used to replace certain task information, indicating that you need to pass only those fields that you want to modify.

The task management REST API base URL is http://HOST:PORT/management/processes/approvals. Use the following REST endpoints to manage a task:

Retrieve a task information

[GET] /instances/{processInstanceId}/tasks/{taskId}

Example REST endpoint

http://localhost:8080/management/processes/approvals/instances/ec44f890-d21d-444f-a4ec-cb88589bd79/tasks/8B62D3CA-5D03-4B2B-832B-126469288BB4

Example curl request
curl -X GET http://localhost:8080/management/processes/approvals/instances/ec44f890-d21d-444f-a4ec-cb88589bd79/tasks/8B62D3CA-5D03-4B2B-832B-126469288BB4 -H 'content-type: application/json' -H 'accept: application/json'
Example response (JSON)
{
  "description": null,
  "priority": null,
  "potentialUsers": [
    "manager"
  ],
  "potentialGroups": [
    "managers"
  ],
  "excludedUsers": [],
  "adminUsers": [],
  "adminGroups": [],
  "inputParams": {
    "TaskName": "firstLineApproval",
    "NodeName": "First Line Approval",
    "Skippable": "true",
    "ActorId": "manager",
    "traveller": {
      "firstName": "John",
      "lastName": "Doe",
      "email": "jon.doe@example.com",
      "nationality": "American",
      "address": {
        "street": "main street",
        "city": "Boston",
        "zipCode": "10005",
        "country": "US"
      }
    },
    "GroupId": "managers"
  }
}
Modify specific fields of a task

[PATCH] /instances/{processInstanceId}/tasks/{taskId}

Example REST endpoint

http://localhost:8080/management/processes/approvals/instances/ec44f890-d21d-444f-a4ec-cb88589bd79/tasks/8B62D3CA-5D03-4B2B-832B-126469288BB4

Example request body (JSON)
{
	"inputParams": {
		"Skippable": false
	},
	"description": " Real Betis Balompie is the best soccer team in the world",
	"potentialUsers": ["manager", "meganito"]
}
Example response (JSON)
{
	"description": " Real Betis Balompie is the best soccer team in the world",
	"priority": null,
	"potentialUsers": [
		"manager", "menganito"
	],
	"potentialGroups": [
		"managers"
	],
	"excludedUsers": [],
	"adminUsers": [],
	"adminGroups": [],
	"inputParams": {
		"TaskName": "firstLineApproval",
		"NodeName": "First Line Approval",
		"Skippable": false,
		"ActorId": "manager",
		"traveller": {
			"firstName": "John",
			"lastName": "Doe",
			"email": "jon.doe@example.com",
			"nationality": "American",
			"address": {
				"street": "main street",
				"city": "Boston",
				"zipCode": "10005",
				"country": "US"
			}
		},
		"GroupId": "managers",

	}
}

5.8.3. API interaction with task lifecycle phases

The following example API interacts with user tasks (work items) using lifecycle phases:

Example API to interact with task lifecycle phases
// Start process instance
ProcessInstance<?> processInstance = approvalsProcess.createInstance(m);
processInstance.start();

// Set up security policy with identity information
StaticIdentityProvider identity = new StaticIdentityProvider("admin", Collections.singletonList("managers"));
SecurityPolicy policy = SecurityPolicy.of(identity);

// Get list of work items, taking security restrictions into account
List<WorkItem> workItems = processInstance.workItems(policy);

// Work on a task
final String wiId = workItems.get(0).getId();
processInstance.transitionWorkItem(wiId,
                                   new HumanTaskTransition(Claim.ID, null, policy));

processInstance.transitionWorkItem(wiId,
                                   new HumanTaskTransition(Complete.ID, Collections.singletonMap("approved", false), policy));

When you interact with user tasks through a REST API, you can also provide the following query parameters for user and group information:

Table 119. Query parameters for user or group information in REST APIs
Parameter name Description Multi-value support

user

User name to be used for the user task authorization check

No

group

Zero or more group names to be used for the user task authorization check

Yes

For example, the following REST endpoints interact with user tasks in an orderItems.bpmn2 process for verifying customer orders:

Example GET request to retrieve open tasks using the process UUID
curl -X GET http://localhost:8080/orderItems/66c11e3e-c211-4cee-9a07-848b5e861bc5/tasks
Example response
{"62f1c985-d31c-4ead-9906-2fe8d05937f0":"Verify order"}
Example GET request to retrieve task details by process and task UUID
curl -X GET http://localhost:8080/orderItems/66c11e3e-c211-4cee-9a07-848b5e861bc5/Verify_order/62f1c985-d31c-4ead-9906-2fe8d05937f0
Example response
{"id":"62f1c985-d31c-4ead-9906-2fe8d05937f0","input1":{"orderNumber":"12345","shipped":false,"total":0.537941914075738},"name":"Verify order"}
Example POST request to complete the task and define the authorized group and user
curl -X POST http://localhost:8080/orderItems/66c11e3e-c211-4cee-9a07-848b5e861bc5/Verify_order/62f1c985-d31c-4ead-9906-2fe8d05937f0?group=managers&user=john -H "accept: application/json" -H "content-type: application/json"
Example response
{"id":"66c11e3e-c211-4cee-9a07-848b5e861bc5","order":{"orderNumber":"12345","shipped":false,"total":0.537941914075738}}

5.8.4. Creating a custom task lifecycle and phase

You can extend the user task lifecycle and lifecycle phases in Kogito to implement a custom lifecycle and phases as needed.

Procedure

  1. To add custom lifecycle phases, implement the org.kie.kogito.process.workitem.LifeCyclePhase resource in the Java class for your custom lifecycle phases.

    This resource implements the following key methods:

    • id: Assigns a unique ID that is used when transitioning through phases

    • canTransition: Provides a checkpoint between phases, if this phase can be transitioned from a specified phase

    • status: Defines a human-readable status for this phase

    • isTerminating: Determines if this phase is a completion stage, and if so, completes the work item and moves on to the next activity in the process

    • apply: Enables additional updates to the work item when transitioning through phases

    You can implement as many phases as needed or extend existing phases.

  2. To add a custom lifecycle, implement the org.kie.kogito.process.workitem.LifeCycle<Map<String, Object>> resource in the Java class for your custom lifecycle.

    To support user tasks, the parameterized type LifeCycle must be Map<String, Object>.

    This resource implements the following key methods:

    • phaseById: Retrieves the lifecycle phase by ID to verify if the phase is supported by the lifecycle implementation

    • phases: Returns all supported phases by a specified lifecycle implementation

    • transitionTo: Provides the main logic to handle phase transition

    • data: Returns the current state of data for the work item

    The following is an example Java class that extends the Complete lifecycle phase from a custom lifecycle implementation:

    Example Java class to extend the Complete lifecycle phase
    package org.acme.travels.usertasks;

import java.util.Arrays;
import java.util.List;

import org.jbpm.process.instance.impl.workitem.Complete;
import org.kie.kogito.process.workitem.LifeCyclePhase;

public class CompleteStartedOnly extends Complete {

    private List<String> allowedTransitions = Arrays.asList(Start.ID);

    @Override
    public boolean canTransition(LifeCyclePhase phase) {
        return allowedTransitions.contains(phase.id());
    }

}

  3. After you implement your custom lifecycle or lifecycle phases, create a Java configuration class to enable the process engine to use the new lifecycle or phase instead of the default lifecycle.

    In this configuration, you use the WorkItemHandlerConfig class as you do for any other work item handler, as shown in the following example:

    Example configuration class for a custom lifecycle phase
    @ApplicationScoped
public class CustomWorkItemHandlerConfig extends DefaultWorkItemHandlerConfig {
 {
  register("Human Task", new HumanTaskWorkItemHandler(new CustomHumanTaskLifeCycle()));
 }
}

    The work item handler is the same as the default, but instead of the default lifecycle, you pass as a constructor argument the custom implementation of the LifeCycle interface.

For example Kogito services with custom task lifecycle configurations, see the following example applications in GitHub:

5.8.5. Kogito task notification add-on

Kogito provides different task notification add-ons for Quarkus and Spring Boot, enabling you to manage the notifications related to a task when the task is not started or not completed. The task notification add-ons include task-notification-quarkus-addon, task-notification-springboot-addon, mail-quarkus-addon, and mail-springboot-addon.

When a user task deadline is reached and the Task state type is still Not started or Not completed, then a notification is triggered using the configured add-ons. To publish an event on Apache Kafka, Kogito provides task-notification-quarkus-addon and task-notification-springboot-addon addons, and to send an email notification, Kogito provides mail-quarkus-addon and mail-springboot-addon. The mail-quarkus-addon and mail-springboot-addon add-ons send the email notification using the information added on the Notification page.

Notification setting in Kogito

In the previous example, a notification is set to be triggered every minute till the task is completed. When the defined Task expiration definition expires, an email notification is sent to the added user.

To configure the add-ons for your Kogito services, you can add the task notification add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable task notifications in Quarkus projects
<profile>
	<id>notification</id>
	<dependencies>
    	 <dependency>
        	 <groupId>org.kie.kogito</groupId>
        	 <artifactId>mail-quarkus-addon</artifactId>
    	 </dependency>
    	 <dependency>
        	 <groupId>org.kie.kogito</groupId>
        	 <artifactId>task-notification-quarkus-addon</artifactId>
    	</dependency>
    	<dependency>
        	 <groupId>io.quarkus</groupId>
        	 <artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
    	</dependency>
  	</dependencies>
</profile>

In the previous configuration, task-notification-quarkus-addon is added as a dependency that uses the Smallrye library to define a channel named kogito-deadline-events. In the kogito-deadline-events channel, as quarkus-smallrye-reactive-messaging-kafka dependency is added, an event that contains the notification data is published into the configured Apache Kafka topic.

Once the event is published into the configured Apache Kafka topic, you can configure a listener that publishes the email on event reception. To configure an event listener, add the mail-quarkus-addon in the pom.xml file of your Kogito project. The mail-quarkus-addon accesses the Apache Kafka records that are published on kogito-deadline-events and sends an email using the information in the Apache Kafka record.

To send an email notification, you need to add the following properties to the application.properties file. For more information about email configuration, see Quarkus mailer configuration.

Example properties to enable mail notification in application.properties file
quarkus.mailer.host=localhost
quarkus.mailer.port=25
quarkus.mailer.mock=false
quarkus.mailer.ssl=false
quarkus.mailer.start-tls=disabled

5.9. Processes and decisions integration in Kogito

When you design a business process in Kogito, you can define decisions as distinct services using DMN and DRL. For more information about defining decision services, see Developing decision services with Kogito and Developing decision services with Kogito.

Kogito enables the integration of processes and decisions using different ways, including:

  • Embedded method

  • Remote method

Based on the use cases, you can either use the embedded or remote method, or you can combine both methods in the same process.

5.9.1. Embedded method to integrate processes and decisions

The embedded method to integrate the processes and decisions uses business rule tasks that use the communication between a local process and decision engine that is running in the same application. The embedded method does not require any remote call but requires the decision services to be deployed in the same application as the process running.

For more information about business rule tasks, see Tasks supported in Kogito.

Image of Embedded process integration with decisions
Figure 231. Embedded method to integrate a process with decisions

For more information, you can see Traffic violations example for embedded method.

You can also use the example applications for Quarkus and Spring Boot, such as process-decisions-quarkus and process-decisions-springboot.

The example of a traffic violations project describes how to use decisions within the processes and how to integrate decisions in an embedded way using the business rule tasks, which must be deployed with a process in the same application.

In Kogito, the decisions can be expressed in different domains or assets, such as DMN and DRL. All the assets including BPMN, DMN, and DRL must be placed in the resources folder.

When the example application is running, there also must be different running processes, such as a process using a business rule task, containing the URL as http://localhost:8080/traffic.

5.9.1.1. Traffic violations example for embedded method

The traffic violations project is based on the evaluation process of the traffic violations. In the traffic violations example, first, the information of the driver is fetched, and based on the fetched information, it is determined whether the driver has a valid driving license using a RuleUnit in a DRL. After the validation of the driving license, the violation evaluation is executed, which is defined as a DMN decision, and the output provides the information of whether the driver is suspended or not.

Image of Traffic Process in process designer
Figure 232. Traffic violations example
Processes in traffic violation example

In the traffic violations project, the interactions with the defined decisions are executed using the decision engine. Also, the information that is required to execute the decision evaluation must be defined in the Data Assignments property of the business rule task.

The ID property of a process is used in the REST endpoint generation, which refers to the path that is used to interact with the process.

Also, the classes in the process are used to define the Plain Old Java Objects (POJOs) that enable the interaction between the process and decisions. The process classes include Violation, Driver, Fine.

Decisions in traffic violation example

The traffic violations process contains license validation as a decision that is created using DRL. The license validation consists of rules that are evaluated to verify that the license is expired or not. The result of the license validation is added for the driver variable. The rule units are declared in the LicenseValidationService.drl file and the rule unit data is added to the LicenseValidationService class.

Example LicenseValidationService.drl file
unit LicenseValidationService

rule "Is driver license valid"
when
    $driver: /driver[licenseExpiration.after(currentTime)]
then
    $driver.setValidLicense(true);
end

rule "Is driver license expired"
when
    $driver: /driver[licenseExpiration.before(currentTime)]
then
    $driver.setValidLicense(false);
end

query "validation"
  $driver : /driver
end
Example LicenseValidationService class
public class LicenseValidationService implements RuleUnitData {
    private SingletonStore<Driver> driver;

    public LicenseValidationService() {
        this(DataSource.createSingleton());
    }

    public LicenseValidationService(SingletonStore<Driver> driver) {
        this.driver = driver;
    }

    public void setDriver(SingletonStore<Driver> driver) {
        this.driver = driver;
    }

    public SingletonStore<Driver> getDriver() {
        return driver;
    }

    public Date getCurrentTime() {
        return new Date();
    }
}

After the license validation task, the traffic violations process contains traffic violation as a decision that is created using DMN. The traffic violation decision verifies whether the driver is suspended or not based on the points in the driver’s license.

The traffic violation decision is declared in the TrafficViolation.dmn file.

Image of Traffic Violation - DMN in DMN designer
Figure 233. Example TrafficViolation.dmn file
Data mapping between a process and decisions

To map the data between a process and decisions, you can align all the attributes names in a Java class, which is used as process variables. If the names of the attributes contain spaces or the names of the attributes are not following Java conventions, then you can use Jackson annotations. The Jackson annotations align the process variables with the data types of the DMN model. For example, in the traffic violations project, the Violation class is mapped with the speedLimit attribute using the @JsonProperty annotation. Therefore, the speedLimit attribute can be integrated with the Violation data type defined in the DMN model.

Violation class defined in the Traffic Violations example
public class Violation {

    @JsonProperty("Code")
    private String code;

    @JsonProperty("Date")
    private Date date;

    @JsonProperty("Type")
    private String type;

    @JsonProperty("Speed Limit")
    private BigDecimal speedLimit;

    @JsonProperty("Actual Speed")
    private BigDecimal actualSpeed;

    //Getters / Setters
}
Image of Violation Data Type in DMN in DMN designer
Figure 234. Violation data type in DMN

When the driver information is fetched, an external call to a service task is performed to retrieve the driver information from the database. In this case, the service task implementation is performed using the DriverService class. In the Data Assignments, driverId is defined as an input variable and driver is defined as an output variable, consisting of the driver information.

Fetching the driver information leads to the license validation task, which represents the task of calling a DRL service.

Image of License Validation Task in process designer

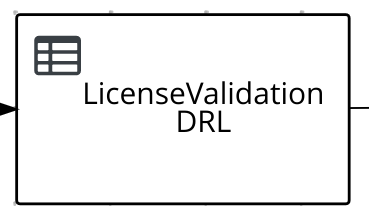

Figure 235. License validation task (DRL)

The properties that are required to set for the DRL service task include Rule Language, which must be set as DRL and the Rule Flow Group. You can set the value of Rule Flow Group using the following format:

unit: + [the FQCN of the Rule Unit Data class] For example: unit:org.kie.kogito.traffic.LicenseValidationService

In this case, the driver variable contains the license validation information.

Image of License Validation Task data assignment in process designer

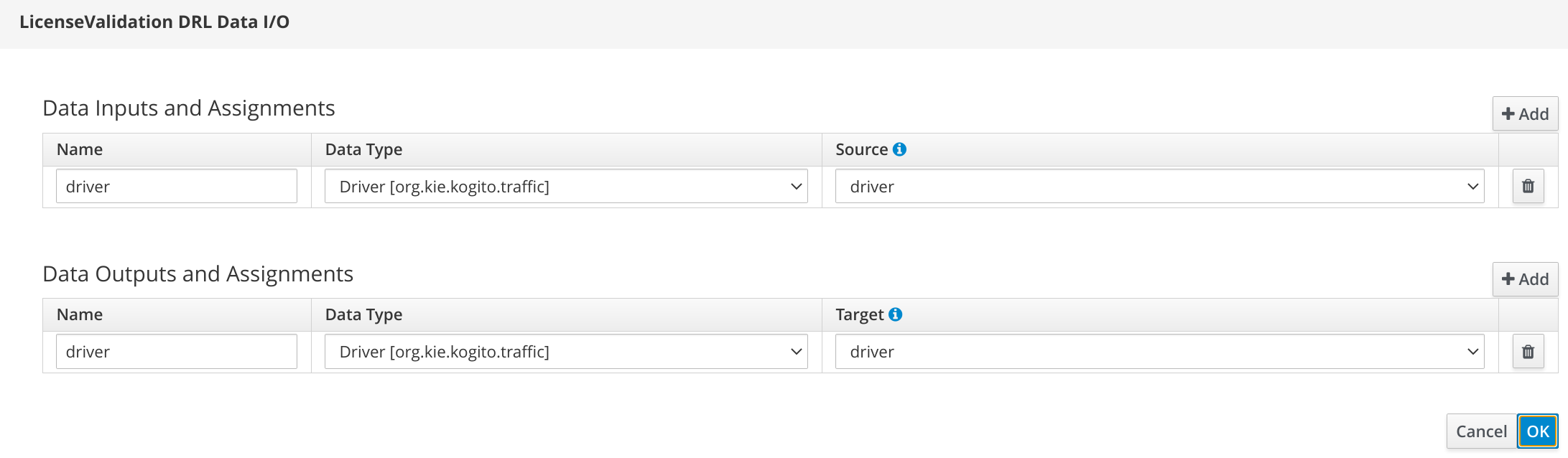

Figure 236. License validation task data assignments

Similar to the license validation task, the traffic violation task represents the task of calling a DMN service.

raffic Violation Task data in process designer

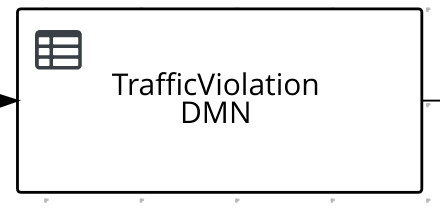

Figure 237. Traffic violation task (DMN)

The properties that are required to set for the DMN service task include Rule Language, which must be set as DMN. Also, you must set the values for Namespace, Decision Name and DMN Model Name properties as defined in the DMN model, such as TrafficViolation.dmn. For example, you can set the following values:

The input for the traffic violation task includes Driver and Violation variables, and the output includes Suspended and Fine in the Data Assignment property.

Traffic Violation Task data assignment in process designer
Figure 238. Traffic Violation Task data assignment

In both cases, whether the driver is suspended or not, the related information is logged in the console.

5.9.2. Remote method to integrate processes and decisions

The remote method to integrate the processes and decisions uses REST endpoints from the decision services. In the REST endpoints, the process can use the BPMN to send HTTP requests, such as a service task or a REST work item.

In the remote method, it is not required for the process and decision services to run in the same application, as the communication between the process and decision services is performed using the network.

Image of Process integration with decisions through REST
Figure 239. Process integration with decisions through REST

You can also use the example applications for Quarkus and Spring Boot, such as process-decisions-rest-quarkus and process-decisions-rest-springboot.

You can define the decisions in different domains or assets, such as DMN and DRL. Here, we can consider the example of traffic violations, which describes how to integrate decisions in a remote environment using REST endpoints. In the REST endpoints, the decisions are deployed from the process service.

For convenience, the decision assets in the traffic violations example are under the same project as the process. The endpoints are generated differently for the process and decisions but under the same application. However, the endpoints can be placed in different applications.

The traffic violations example of the remote method covers the following processes:

  • DMN to define a decision service

  • DRL to define rules decision service

  • To integrate the process with decisions using REST endpoints

  • Service task to call an external decision service

  • REST work item to call an external decision service

When the example application is running, there also must be different running processes, such as:

To use the application, you can send requests to the URL. For example:

Example JSON request
{
  "driverId": "12345",
  "violation": {
    "Type": "speed",
    "Speed Limit": 100,
    "Actual Speed": 140
  }
}
Example CURL request
curl -X POST -H 'Content-Type:application/json' -H 'Accept:application/json' -d '{"driverId": "12345","violation":{"Type":"speed","Speed Limit": 100,"Actual Speed":140}}' http://localhost:8080/traffic_service
Example response
{
  "id": "e499326d-3bd2-4ddb-93b7-0f68f74a9673",
  "driverId": "12345",
  "driver": {
    "licenseExpiration": "2021-08-12T19:35:48.971+00:00",
    "validLicense": true,
    "Name": "Arthur",
    "State": "SP",
    "City": "Campinas",
    "Points": 13,
    "Age": 30
  },
  "trafficViolationResponse": {
    "Fine": {
      "Amount": 1000,
      "Points": 7
    },
    "Suspended": "Yes"
  },
  "violation": {
    "Code": null,
    "Date": null,
    "Type": "speed",
    "Speed Limit": 100,
    "Actual Speed": 140
  }
}
5.9.2.1. Traffic violations example for remote method

The traffic violations example for remote method is similar to the Traffic violations example for embedded method. However, in the remote method, you need to use different tasks to perform the calls to the decision services.

The traffic violations example is based on the evaluation process of the traffic violations. In the traffic violations example, first, the information of the driver is fetched, and based on the fetched information, it is determined whether the driver has a valid driving license using a RuleUnit in a DRL. After the validation of the driving license, the violation evaluation is executed, which is defined as a DMN decision, and the output provides the information of whether the driver is suspended or not.

The ID property of a process is used in the REST endpoint generation, which refers to the path that is used to interact with the process.
Image of Traffic Process with service tasks for REST in process designer
Figure 240. Traffic process variables

Also, the classes in the process are used to define the Plain Old Java Objects (POJOs) that enable the interaction between the process and decisions. The process classes include Violation, Driver, Fine and TrafficViolationResponse.

Traffic process using service tasks

When using service tasks for defining a process, it requires coding to provide an implementation in the application that is responsible to execute the task, and in this case a REST or HTTP call.

Image of Traffic Process with service tasks for REST in process designer
Figure 241. Traffic Process with service tasks for REST

For more information about implementation, see Quarkus REST Client, and for implementation details, see the following LicenseValidationRestClient and TrafficViolationRestClient classes.

LicenseValidationRestClient class in traffic violation example
@Path("/validation/first")
@RegisterRestClient
public interface LicenseValidationRestClient {

    @POST
    @Produces(MediaType.APPLICATION_JSON)
    @Consumes(MediaType.APPLICATION_JSON)
    Driver post(Map<String, Object> parameters);

}
TrafficViolationRestClient class in traffic violation example
@Path("/Traffic%20Violation")
@RegisterRestClient
public interface TrafficViolationRestClient {

    @POST
    @Produces(MediaType.APPLICATION_JSON)
    @Consumes(MediaType.APPLICATION_JSON)
    TrafficViolationResponse post(Map<String, Object> parameters);

}

The process is declared in the traffic-rules-dmn-service-task.bpmn file.

Traffic process using REST work item

Using the REST work item is a declarative way, which does not require additional implementation. The REST or HTTP call is executed by the decision engine.

Image of Traffic Process with service tasks for REST in process designer
Figure 242. Process using REST work item

The information that is required to execute the REST call, such as URL and HTTP method must be set in the Data Assignments for the REST work item. The process is declared in the traffic-rules-dmn-wih.bpmn file.

Data mapping between a process and decisions

Data mapping from a process to decisions in the remote method is similar to the embedded method. For more information, see Data mapping between a process and decisions.

To map the data between a process and decisions, you can align all the attributes names in a Java class, which is used as process variables. If the names of the attributes contain spaces or the names of the attributes are not following Java conventions, then you can use Jackson annotations. The Jackson annotations align the process variables with the data types of the DMN model. For example, in the traffic violations project, the Violation class is mapped with the speedLimit attribute using the @JsonProperty annotation. Therefore, the speedLimit attribute can be integrated with the Violation data type defined in the DMN model.

Violation class defined in the traffic process
public class Violation {

    @JsonProperty("Code")
    private String code;

    @JsonProperty("Date")
    private Date date;

    @JsonProperty("Type")
    private String type;

    @JsonProperty("Speed Limit")
    private BigDecimal speedLimit;

    @JsonProperty("Actual Speed")
    private BigDecimal actualSpeed;

    //Getters / Setters
}

In the traffic violation project, when fetching driver information, an external call to a service task is performed to retrieve the driver information from the database. In this case, the service task implementation is performed using the DriverService class. In the Data Assignments, driverId is defined as an input variable and driver is defined as an output variable, consisting of the driver information.

Fetching the driver information leads to the license validation task, which represents the task of calling a DRL service. The license validation task can be performed using a service task or REST work item:

  • When using a service task for the license validation task, the implementation properties must be along with the method. In the implementation properties, it is must to set the Java class to implement the service task that executes the REST call.

    Image of License Validation Service Task in process designer

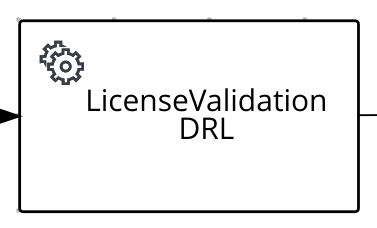

    Figure 243. License validation service task

    The input and output mapping for the license validation service task is the driver variable, which contains the validated license information.

    Image of License Validation Service Task data assignment in process designer
    Figure 244. License validation service task data assignment

  • When using a REST work item, the input and output mapping for the license validation task includes the driver variable that contains the validated license information. Also, the URL and HTTP method is set as input parameters for the process.

    Image of License Validation Service Task in process designer

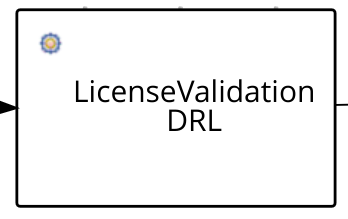

    Figure 245. License validation REST work item
    Image of License Validation Service Task data assignment in process designer

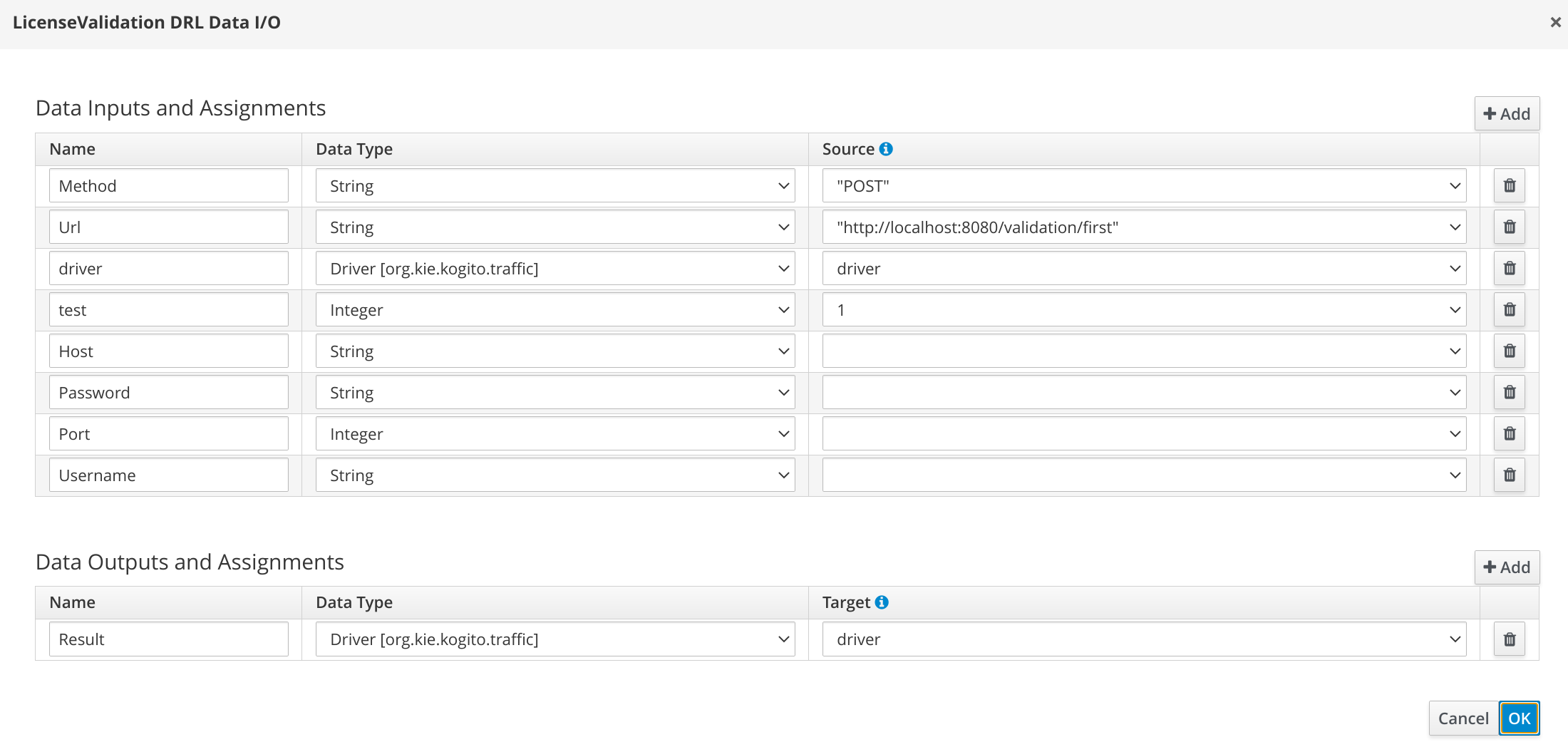

    Figure 246. License validation REST work item data assignment

Similar to the license validation task, the traffic violation task represents the task of calling a DMN service using a service task or REST work item:

  • When using a service task, the implementation properties must be set along with the method. The implementation properties consist of the Java class that implements the service task.

    Image of License Validation Service Task in process designer
    Figure 247. Traffic violation service task
    Image of Traffic Violation Service Task properties in process designer

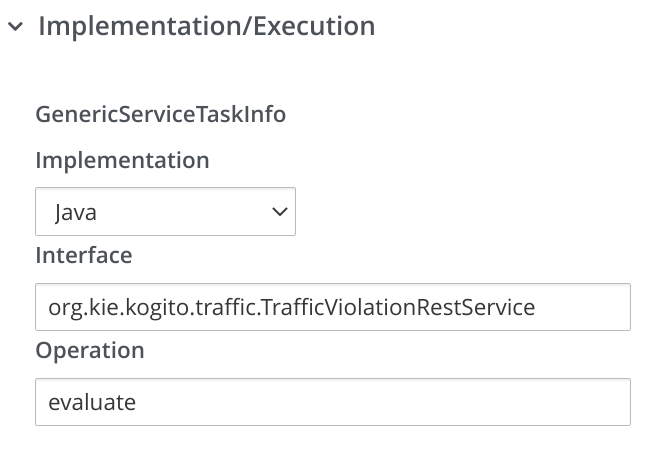

    Figure 248. Traffic violation service task properties

    The input for the traffic violation task includes Driver and Violation variables, and the output includes Suspended and Fine, which is part of TrafficViolationResponse.

    Image of Traffic Violation Service Task data assignment in process designer
    Figure 249. Traffic violation service task data assignment

  • When using a REST work item, the input for the task violation task includes Driver and Violation variables, and the output includes Suspended and Fine, which is part of `TrafficViolationResponse. Also, the URL and HTTP method is set as input parameters for the process.

    Image of Traffic Violation REST Work Item in process designer
    Figure 250. Traffic violation REST work item
    Image of Traffic Violation REST Work Item data assignmentg in process designer
    Figure 251. Traffic violation REST work item data assignment

In both cases, whether the driver is suspended or not, the related information is logged in the console.

5.10. Flexible processes for case management in Kogito

Kogito does not support the Case Management Model and Notation (CMMN) specification for case management in process services. Instead, Kogito uses Business Process Model and Notation (BPMN) extensions to provide similar case-management functionality through flexible processes.

A flexible process in Kogito is any process definition that uses ad hoc components or other features that enable the process to be executed more flexibly than traditional processes. For example, a flexible process does not require a standard start event and does not require all nodes to be connected. Some of the typical components in flexible processes include the Ad-Hoc process property that enables the process to use ad hoc auto-start fragments and to not require strict start and end events, ad hoc subprocesses that contain embedded inner activities within another process, and milestones that flag or trigger tasks and events.

Similar to case files in CMMN, flexible processes enable you to define traditional processes with more flexibility when the execution path is not rigid. This flexibility is helpful when the process cannot be fully automated or when the scope of the process is difficult to measure. A typical example of a case or flexible process is related to healthcare. A patient has a file that is accessible to the doctor and to any health professionals (or knowledge workers) who are assigned to the patient. These assigned workers take action and make different decisions and assessments until the patient is diagnosed and treated, completing the case or flexible process.

Kogito currently supports the following key case-related features in flexible processes:

  • Ad hoc processes: An ad hoc process is any process definition that has the Ad-Hoc property enabled in the process diagram Properties panel. This property enables the process to use ad hoc auto-start fragments, such as ad hoc subprocesses and ad hoc tasks, and to not require strict start and end events. An ad hoc process is similar to a Case in CMMN.

    Image of Ad-Hoc process property
    Figure 252. Ad hoc process property

  • Ad hoc subprocesses: An ad hoc subprocess contains embedded inner activities within another process and is a standard BPMN component that is supported in Kogito. An ad hoc subprocess is similar to a Stage in CMMN.

    Image of ad hoc subprocess node in process designer
    Figure 253. Ad hoc subprocess node

  • Ad hoc auto-start fragments: An ad hoc auto-start fragment is any ad hoc process, ad hoc subprocess, or ad hoc task with the AdHoc Autostart property enabled. This property enables the fragment to automatically start when the process is created instead of being started by the completion of the previous node or by a signal event.

    Image of ad hoc subprocess node in process designer
    Figure 254. Ad hoc auto-start property

  • Milestones: A milestone is a standard CMMN component that is incorporated in Kogito as a BPMN custom task. A milestone represents a single point of achievement within a process instance. You can use milestones to flag certain events to trigger other tasks or track the progress of the process.

    Image of Mileston node in process designer
    Figure 255. Milestone node

  • REST API requests as signals: A REST API request can serve as a signal event to trigger milestones or to create and start ad hoc fragments such as ad hoc processes, ad hoc subprocesses, or tasks. For non-flexible processes, an empty POST request for a process triggers the start node, whereas in a flexible process, the request creates the process instance. Similarly for ad hoc tasks, an empty POST request instantiates the task node. All ad hoc auto-start fragments with the AdHoc Autostart property enabled are started automatically when the process is created.

    Example curl request to add comments to a ticket
    curl -D -X POST -H 'Content-Type:application/json' -H 'Accept:application/json' http://localhost:8080/serviceDesk/b3c75b24-2691-4a76-902c-c9bc29ea076c/ReceiveSupportComment
    Example response (JSON)
    HTTP/1.1 201 Created
Content-Length: 305
Location: http://localhost:8080/serviceDesk/b3c75b24-2691-4a76-902c-c9bc29ea076c/ReceiveSupportComment/f3b36cf9-3953-43ae-afe6-2a48fea8a79a
Content-Type: application/json

{
  "id":"b3c75b24-2691-4a76-902c-c9bc29ea076c",
  "supportCase":{
    "product": {
      "name":"Kogito",
      "family":"Middleware"
    },
    "description":"Kogito is not working for some reason.",
    "engineer":"kelly",
    "customer":"Paco the customer",
    "state":"WAITING_FOR_OWNER",
    "comments":null,
    "questionnaire":null
  },
  "supportGroup":"Kogito"
}

5.10.1. Flexible process example

A typical flexible process consists of one or more of the following basic components:

  • Optional start event (might or might not be explicit)

  • Optional node connections (might or might not connect all nodes)

  • Enabled Ad-Hoc process property

  • One or more subprocesses, typically ad hoc subprocesses

  • Ad hoc auto-start fragments, such as ad hoc subprocesses or ad hoc tasks

  • Milestones that flag or trigger events

  • End event to terminate the process

The following example is a real-world BPMN model scenario that demonstrates how you can use flexible processes for case management. In this scenario, a service desk uses a flexible process for handling customer tickets related to problems or questions about a specific product.

This example is based on the flexible-process-quarkus application in the kogito-examples repository in GitHub. However, this example may differ from the exact example source code as Kogito continues to be developed. Be sure to explore this and other Kogito examples in GitHub to help you develop your own applications.
Image of `service-desk.bpmn2` example process
Figure 256. Example service-desk.bpmn2 flexible process

To start the process and generate a ticket, a user provides an initial supportCase object in a REST request that contains information about the product, the customer, and the related issue:

Example REST request to start the process and generate a ticket
{
  "supportCase": {
    "customer": "Paco the customer",
    "description": "Kogito is not working for some reason.",
    "product": {
      "family": "Middleware",
      "name": "Kogito"
    }
  }
}

After the ticket is generated, the Triage ad hoc subprocess is automatically started and the ticket is assigned to a support team and then to a support engineer. If the system cannot determine which team to assign the ticket to, a user assigns the ticket manually to a support engineer.

The decision logic for the Triage subprocess is defined in the following SupportGroup decision table in the triage.dmn Decision Model and Notation (DMN) model:

Image of `SupportGroup` example DMN decision table

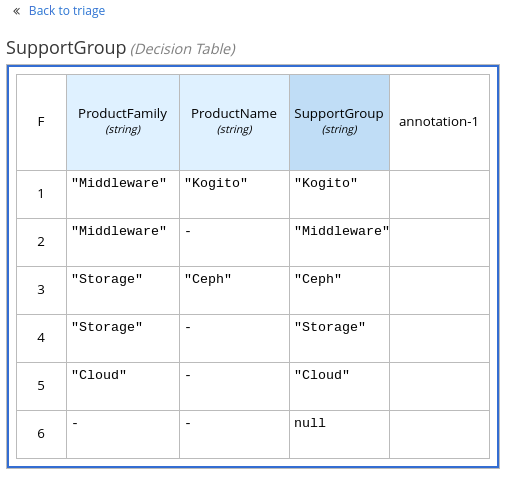

Figure 257. Example SupportGroup DMN decision table

The Work case ad hoc subprocess is also automatically started when the process is created. Anyone from the customer and support groups can add comments. To create a task that can be used to add a comment, a user can send an empty POST request as shown in the following example:

Example curl request
curl -D -X POST -H 'Content-Type:application/json' -H 'Accept:application/json' http://localhost:8080/serviceDesk/b3c75b24-2691-4a76-902c-c9bc29ea076c/ReceiveSupportComment
Example response (JSON)
HTTP/1.1 201 Created
Content-Length: 305
Location: http://localhost:8080/serviceDesk/b3c75b24-2691-4a76-902c-c9bc29ea076c/ReceiveSupportComment/f3b36cf9-3953-43ae-afe6-2a48fea8a79a
Content-Type: application/json

{
  "id":"b3c75b24-2691-4a76-902c-c9bc29ea076c",
  "supportCase":{
    "product": {
      "name":"Kogito",
      "family":"Middleware"
    },
    "description":"Kogito is not working for some reason.",
    "engineer":"kelly",
    "customer":"Paco the customer",
    "state":"WAITING_FOR_OWNER",
    "comments":null,
    "questionnaire":null
  },
  "supportGroup":"Kogito"
}

A user can then use the URL in the Location HTTP header when rendering the form action, as shown in the following example:

Example form action for a user comment
<form action="http://localhost:8080/serviceDesk/b3c75b24-2691-4a76-902c-c9bc29ea076c/ReceiveSupportComment/f3b36cf9-3953-43ae-afe6-2a48fea8a79a" method="post">
  <label for="comment">Comment:</label>
  <input type="text" id="comment" name="comment">
</form>

After the customer is satisfied with the ticket response and actions, a user clicks a Resolve Case button, which sends an empty POST request to the service task to set the case to Resolved and the process emits a CaseResolved event. This event signals the CaseResolved milestone, which starts the Close ad hoc subprocess that sends, receives, and saves the customer questionnaire and closes the case.

5.11. Kogito process management add-on

Kogito provides a kogito-addons-quarkus-process-management add-on that enables basic REST operations that you can use to manage process instances. These REST operations are supplemental to any other specific REST operations that you have configured in your application.

To configure process management REST capabilities for your Kogito services, you can add the process management add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process management REST operations
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-management</artifactId>
</dependency>

The Kogito process management add-on provides REST support for the following basic operations:

  • Process instances: Abort an active process instance

  • Node instances: Cancel or re-trigger a node instance, or trigger a new node instance

  • Error handling: Retrieve error details for a process instance, or skip or re-trigger a failed node instance

In addition to exposed REST operations, the process management add-on also provides the following REST exception mappers to generate more meaningful error messages for typical exception types:

  • ProcessInstanceNotFound

  • NodeInstanceNotFound

  • NodeNotFound

  • ProcessInstanceExecutionError

  • NotAuthorized

  • InvalidTransition (for work items)

  • InvalidLifeCyclePhase (for work items)

These exception mappers produce a valid HTTP error code with JSON payload with the context that caused the exception.

For example, the following is a ProcessInstanceNotFoundException error generated at runtime:

Example error with JSON payload at runtime
HTTP code : 404

{
  "processInstanceId" : "c6862071-0f2e-4f21-9bc8-586245a76c3aa",
  "message" : "Process instance with id c6862071-0f2e-4f21-9bc8-586245a76c3aa not found"
}

5.11.1. REST endpoints for the process management add-on

After you add the kogito-addons-quarkus-process-management dependency to your Kogito project and run your Kogito services, you can use the following REST endpoints to manage your process and node instances. These REST operations are supplemental to any other specific REST operations that you have configured in your application.

For each endpoint, use a REST client, curl utility, or Swagger UI (if configured for the application) to send requests with the following components:

  • Base URL: http://HOST:PORT/management/processes/{processId}/instances/{processInstanceId}

  • Path parameters:

    • {processId}: The string identifier of the process definition, such as orders

    • {processInstanceId}: The integer identifier of the process instance, such as ec44f890-d21d-444f-a4ec-cb88589bd79

    • {nodeId}: The string identifier of the node, such as verifyOrders

    • {nodeInstanceId}: The integer identifier of the node instance, such as 6e46bec2-0273-46f6-ad7d-2ff156e55a6c

  • HTTP headers: For POST requests only:

    • accept: application/json

    • content-type: application/json

  • HTTP methods: GET, POST, or DELETE

5.11.1.1. Process instances

Use the following REST endpoints from the process management add-on to interact with process instances:

Return active node instances for a process instance

[GET] /management/processes/{processId}/instances/{processInstanceId}/nodeInstances

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances

Example curl request
curl -X GET localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances -H 'content-type: application/json' -H 'accept: application/json'
Example response (JSON)
{
  "id": "ec44f890-d21d-444f-a4ec-cb88589bd79a",
  "name": "Verify order",
  "nodeInstanceId": "6e46bec2-0273-46f6-ad7d-2ff156e55a6c",
  "parameters": {
    "Locale": "en-UK",
    "TaskName": "Verify order",
    "NodeName": "Verify order",
    "Priority": "1",
    "input1": {
      "orderNumber": "12345",
      "shipped": false,
      "total": 0.8233575052440095
    },
    "Skippable": "true",
    "ActorId": "john"
  },
  "phase": "active",
  "phaseStatus": "Ready",
  "results": {},
  "state": 0
}
Abort a process instance

[DELETE] /management/processes/{processId}/instances/{processInstanceId}

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a

Example curl request
curl -X DELETE localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a -H 'content-type: application/json' -H 'accept: application/json'
5.11.1.2. Nodes

Use the following REST endpoint from the process management add-on to interact with process nodes:

Return nodes from a process

[GET] /management/processes/{processId}/nodes

Example REST endpoint

http://localhost:8080/management/processes/orders/nodes

Example curl request
curl -X GET localhost:8080/management/processes/orders/nodes -H 'content-type: application/json' -H 'accept: application/json'
Example response (JSON)
[
  {
    "name": "End",
    "id": 1,
    "type": "EndNode",
    "uniqueId": "1"
  },
  {
    "name": "End",
    "id": 2,
    "type": "EndNode",
    "uniqueId": "2"
  },
  {
    "name": "Hello2",
    "id": 3,
    "type": "HumanTaskNode",
    "uniqueId": "3"
  },
  {
    "name": "Split",
    "id": 4,
    "type": "Split",
    "uniqueId": "4"
  },
  {
    "name": "End",
    "id": 5,
    "type": "EndNode",
    "uniqueId": "5"
  },
  {
    "name": "End",
    "id": 6,
    "type": "EndNode",
    "uniqueId": "6"
  },
  {
    "name": "Hello1",
    "id": 7,
    "type": "HumanTaskNode",
    "uniqueId": "7"
  },
  {
    "name": "Start",
    "id": 8,
    "type": "StartNode",
    "uniqueId": "8"
  },
  {
    "name": "BoundaryEvent",
    "id": 9,
    "type": "BoundaryEventNode",
    "uniqueId": "9"
  },
  {
    "name": "BoundaryEvent",
    "id": 10,
    "type": "BoundaryEventNode",
    "uniqueId": "10"
  }
]
5.11.1.3. Node instances

Use the following REST endpoints from the process management add-on to interact with node instances:

Cancel a node instance within a process instance

[DELETE] /management/processes/{processId}/instances/{processInstanceId}/nodeInstances/{nodeInstanceId}

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances/6e46bec2-0273-46f6-ad7d-2ff156e55a6c

Example curl request
curl -X DELETE localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances/6e46bec2-0273-46f6-ad7d-2ff156e55a6c -H 'content-type: application/json' -H 'accept: application/json'
Re-trigger a node instance within a process instance

[POST] /management/processes/{processId}/instances/{processInstanceId}/nodeInstances/{nodeInstanceId}

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances/6e46bec2-0273-46f6-ad7d-2ff156e55a6c

Example curl request
curl -X POST localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodeInstances/6e46bec2-0273-46f6-ad7d-2ff156e55a6c -H 'content-type: application/json' -H 'accept: application/json'
Trigger a new instance of a node within a process instance

[POST] /management/processes/{processId}/instances/{processInstanceId}/nodes/{nodeId}

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodes/verifyOrder

Example curl request
curl -X POST localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/nodes/verifyOrder -H 'content-type: application/json' -H 'accept: application/json'
5.11.1.4. Error handling

Use the following REST endpoints from the process management add-on to troubleshoot errors with process and node instances:

These endpoints function only when a process instance is in an ERROR state.
Return error details for a process instance

[GET] /management/processes/{processId}/instances/{processInstanceId}/error

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/error

Example curl request
curl -X GET localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/error -H 'content-type: application/json' -H 'accept: application/json'
Example response (JSON)
{
  "processInstanceId" : "ec44f890-d21d-444f-a4ec-cb88589bd79a",
  "message" : "Process instance with id c6862071-0f2e-4f21-9bc8-586245a76c3aa contains no input assignment"
}
Re-trigger any failed nodes within a process instance

[POST] /management/processes/{processId}/instances/{processInstanceId}/retrigger

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/retrigger

Example curl request
curl -X POST localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/retrigger -H 'content-type: application/json' -H 'accept: application/json'
Skip any failed nodes within a process instance

[POST] /management/processes/{processId}/instances/{processInstanceId}/skip

Example REST endpoint

http://localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/skip

Example curl request
curl -X POST localhost:8080/management/processes/orders/instances/ec44f890-d21d-444f-a4ec-cb88589bd79a/skip -H 'content-type: application/json' -H 'accept: application/json'

5.12. Kogito process SVG add-on

Kogito provides an add-on named process-svg-addon, enabling the basic REST operations that you can use to visualize the process diagram and execution path of the related process instances. The REST operations are supplemental to any other specific REST operation that is configured in your application.

The add-on requires the access of process SVG files. The process SVG files can be placed in a file system, which is accessible to the service or available in META-INF/processSVG/ folder in the class path. For example, when the SVG files are generated, rename the files to {processId}.svg. The {processId}.svg file is used by the add-on and placed in a file system folder (accessible by the service) or in META-INF/processSVG folder in the class path. The configuration property kogito.svg.folder.path of the add-on points to the file system folder, otherwise the files are searched in the class path.

The VSCode extension enables you to export the process to SVG format:

Manually export to SVG at VSCode
Figure 258. Export process diagram at VSCode

When you export a process to SVG format, the generated SVG is named to {processFileName}-svg.svg.

The process code generation searches this export and, if this file exists, copies and renames it to `META-INF/processSVG/{processId}.svg allowing the process SVG addon to consume it directly.

To configure process SVG REST capabilities for your Kogito services, you can add the process SVG add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process SVG REST operations in Quarkus projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-svg</artifactId>
</dependency>
Project dependency to enable process SVG REST operations in Spring Boot projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-process-svg</artifactId>
</dependency>

The process SVG add-on provides the following set of configuration properties:

Table 120. Process SVG add-on configuration properties in Kogito

Property

Description

kogito.svg.folder.path

Determines the folder in which the add-on searches the initial process diagrams. If this property is not enabled, then the add-on searches META-INF/processSVG/ folder in the class path.

Default value: empty

Example: kogito.svg.folder.path=/home/user/diagrams

kogito.svg.color.completed

Changes the color to fill the completed nodes when showing the execution path.

Default value: #C0C0C0

Example: kogito.svg.color.completed=#C2C0C1

kogito.svg.color.completed.border

Changes the color of the border of the completed node when showing the execution path.

Default value: #030303

Example: kogito.svg.color.completed.border=#C2C0C1

kogito.svg.color.active.border

Changes the color of the border of the active node when showing the execution path.

Default value: #FF0000

Example: kogito.svg.color.active.border=#C2C0C1

The Kogito process SVG add-on provides REST support for the following basic operations:

  • Process Diagram: Return the process SVG diagram

  • Process instance diagram: Return the process SVG diagram displaying the executed path of a specific process instance

5.12.1. REST endpoints for the process SVG add-on

After you add the kogito-addons-quarkus-process-svg or kogito-addons-springboot-process-svg dependency to your Kogito project, add the recommended configuration properties, and run your Kogito services. You can use the following REST endpoints to receive the process related SVGs. The REST operations are supplemental to any other specific REST operations that are configured in your application.

These REST operations are supplemental to any other specific REST operations that you have configured in your application.

For each endpoint, use a REST client, curl utility, or Swagger UI (if configured for the application) to send requests with the following components:

  • Base URL: http://HOST:PORT/svg/processes/{processId}

  • Path parameters:

    • {processId}: The string identifier of the process definition, such as travels

  • HTTP methods: GET

5.12.1.1. Process diagram

Use the following REST endpoint from the process SVG add-on to interact with the process diagram:

Return the SVG that shows the process diagram

[GET] /svg/processes/{processId}

Example REST endpoint

http://localhost:8380/svg/processes/travels

Example curl request
curl -X GET http://localhost:8380/svg/processes/travels -H 'content-type: application/json' -H 'accept: image/svg+xml'
5.12.1.2. Process instance diagram

Use the following endpoint from the process SVG add-on to interact with the process instance diagram:

Return the process SVG diagram and highlight the executed path

[GET] /svg/processes/{processId}/instances/{processInstanceId}

Example REST endpoint

http://localhost:8380/svg/processes/travels/instances/2d115b55-ff30-42f0-ab21-e0651abb4d04

Example curl request
curl -X GET http://localhost:8380/svg/processes/travels/instances/2d115b55-ff30-42f0-ab21-e0651abb4d04 -H 'content-type: application/json' -H 'accept: image/svg+xml'

This REST endpoint can be used in environments that hold enabled security at the connected Data Index Service. The SVG add-on generates a query on Data Index Service to retrieve the executed nodes and if the Data Index Service contains enabled security, then it needs to pass a valid bearer token to complete the query.

If the SVG add-on detects a known security context enabled, then it retrieves the bearer token, otherwise the add-on reuses the token that is passed directly in the Authorization header.

Currently, the process SVG add-on retrieves the token for systems that contain OpenID Connect using Keycloak.

5.13. Kogito process event add-on

Kogito provides a process event add-on, which you can use to send processes, tasks, and variable events to an external event listener. In this case, the processes, tasks, and variable events are generated as a result of the execution of an operation, which modifies a process state; such events are known as runtime events.

In Kogito, every modifying operation is executed within an abstraction called a unit of work. Examples of such operations include creating a process instance, transitioning a task, and modifying a variable. A runtime event is published when a unit of work is completed.

You can use the Kogito process event add-on to build a historical representation of all process instance executions. Also, you can use this add-on with process REST API to build a custom graphical user interface to handle the user tasks.

By default, the event format follows CloudEvent specification. The CloudEvent specification allows sending information using the data field, which contains a JSON of one of the following types:

To configure process event capabilities for your Kogito services, you can add the process event add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process event operations in Quarkus projects
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-events-process</artifactId>
</dependency>
Project dependency to enable process event operations in Spring Boot projects
<dependency>
  	<groupId>org.kie.kogito</groupId>
  	<artifactId>kogito-addons-springboot-events-process-kafka</artifactId>
</dependency>
The Kogito process event add-on for Spring Boot is specific to Kafka. Therefore, you do not need to add additional dependencies to your pom.xml file to use an event broker.

For Quarkus, the Kogito process event add-on implementation is based on Smallrye Messaging library, which provides a set of connectors for event brokers, such as JMS, AMQP, and Kafka. Therefore, the Kogito process event add-on is not specifically combined with any event broker in Quarkus, but requires additional configuration to use a suitable Smallrye connector.

For example, to use Kafka as an event broker in Quarkus, you can add the following dependency in the pom.xml file of your Kogito project:

Project dependency to enable Kafka event broker in Quarkus
 <dependency>
  	<groupId>io.quarkus</groupId>
  	<artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
</dependency>

Smallrye defines an abstraction named channel to enable multi-broker support. For every channel that you define in your Kogito application, you can specify the connector to use for that channel using the following form:

mp.messaging.[incoming|outgoing].<channel name>.connector = <connector name>

Optionally, for Kafka connector, you can define the Kafka topic to be used for that channel using the following form:

mp.messaging.[incoming|outgoing].<channel name>.topic = <topic name>

You can also set up a channel property using the following form:

mp.messaging.[incoming|outgoing].<channel name>.<property name>= <property value>

If the defined property is not found, then the topic name is considered to be the same as Kafka name.

The Kogito process event add-on defines a channel for each event type, such as kogito-processinstances-events, kogito-usertaskinstances-events, and kogito-variables-events. Therefore, when the process event add-on is enabled, you must add the event types to your application.properties file using the following properties:

Properties to define event types in application.properties file
mp.messaging.outgoing.kogito-processinstances-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-processinstances-events.topic=kogito-processinstances-events
mp.messaging.outgoing.kogito-processinstances-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

mp.messaging.outgoing.kogito-usertaskinstances-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-usertaskinstances-events.topic=kogito-usertaskinstances-events
mp.messaging.outgoing.kogito-usertaskinstances-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

mp.messaging.outgoing.kogito-variables-events.connector=smallrye-kafka
mp.messaging.outgoing.kogito-variables-events.topic=kogito-variables-events
mp.messaging.outgoing.kogito-variables-events.value.serializer=org.apache.kafka.common.serialization.StringSerializer

Additionally, you can disable the publishing on any channel by setting the related property to false as shown in the following example:

Example properties to disable publishing
kogito.events.usertasks.enabled=false
kogito.events.variables.enabled=false

5.14. Kogito Management Console

The Kogito Management Console is a user interface for viewing the state of all available Kogito services and managing process instances:

Image of Kogito Management Console
Figure 259. Kogito Management Console

You can use the Management Console to view process, subprocess, and node instance details, abort process instances, and view domain-specific process data.

The Management Console requires your Kogito services to use the following Kogito components:

  • Kogito Data Index Service: Enables the Management Console to access stored events related to processes and domain data from your Kogito services. The Kogito Data Index Service requires Infinispan or MongoDB persistence and Apache Kafka messaging for your Kogito service. For more information about the Data Index Service, see Configuring Kogito supporting services and runtime capabilities.

  • Kogito process management add-on: Enables the Management Console to interact with the process data from your Kogito services through the add-on REST endpoint /management/processes. If you do not enable this add-on for your Kogito service, the Management Console provides read-only access to your service data without the ability to modify instances, such as aborting process instances. For more information about the process management add-on, see Kogito process management add-on.

To visualize the process instance execution path at the management console, add the following add-on:

  • Kogito process SVG add-on: Enables the process SVG diagram to visualize the process instance execution path. If this add-on is not enabled for your Kogito service, the management console does not display the diagram panel. For more information about the process SVG add-on, see Kogito process SVG add-on.

5.14.1. Using the Kogito Management Console to manage process instances

You can use the Kogito Management Console to view and manage process instance details from your Kogito services. You can run the Management Console for local Kogito services or add it to your Kogito infrastructure on OpenShift.

Prerequisites

  • A Kogito Data Index Service instance is configured and running for your Kogito service. The Data Index Service enables the Management Console to access stored process data. The Data Index Service requires Infinispan or MongoDB persistence and Apache Kafka messaging for your Kogito service. For information about the Data Index Service, see Configuring Kogito supporting services and runtime capabilities.

  • The pom.xml file of your Kogito project contains the following dependency for the process management add-on. This add-on enables the Management Console to interact with the process data through the add-on REST endpoint /management/processes. For more information about the process management add-on, see Kogito process management add-on.

    Project dependency to enable process management REST operations
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-management</artifactId>
</dependency>

  • The application.properties file of your Kogito project contains the following system properties for the location where the Kogito service is deployed, such as http://localhost:8080, and for Quarkus Cross-Origin Resource Sharing (CORS) support. These properties enable the Management Console to generate the URLs to execute the REST operations from the process management add-on.

    Application properties for REST URLs
    kogito.service.url=http://HOST:PORT
quarkus.http.cors=true
Procedure

  1. Go to the management-console artifacts page, select the latest release of the Kogito Management Console, and download the management-console-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded management-console-VERSION-runner.jar file and enter the following command to run the Management Console:

    Running the Management Console
    $ java -Dquarkus.http.port=8280 -jar management-console-VERSION-runner.jar

    The default port for the Management Console is 8080, but this example specifies port 8280 to avoid conflicts with the example Kogito service running at port 8080.

    Also, the Management Console uses the default Data Index Service port 8180. If you modified this port in your Data Index Service instance, you must also modify the port in the Management Console properties by using the start-up property -Dkogito.dataindex.http.url=http://HOST:PORT/graphql when you run the Management Console.

    To change the logging level of the Management Console, such as for debugging, you can specify the following start-up properties:

    Modifying Management Console logging level for debugging
    $ java  \
  -Dquarkus.log.console.level=DEBUG -Dquarkus.log.category.\"org.kie.kogito\".min-level=DEBUG  \
  -Dquarkus.log.category.\"org.kie.kogito\".level=DEBUG  \
  -Dquarkus.http.port=8280  \
  -jar management-console-VERSION-runner.jar

    In an OpenShift environment, you can use the Kogito command-line interface (CLI) or the OpenShift web console to add the Management Console to your Kogito infrastructure:

    Adding the Management Console to your OpenShift infrastructure using the Kogito CLI

    The Management Console is requiring a Keycloak instance for the authentication. If you need to setup a Keycloak instance in your OpenShift cluster you can use to Keycloak Operator.

    After this you have to configure on your Keycloak realm for the Management Console. You can refer to this example if you don’t know how to do it.

    Then you need to:

    • Create a KogitoInfra resource for the Keycloak configuration based on:

    apiVersion: app.kiegroup.org/v1beta1
kind: KogitoInfra
metadata:
 name: kogito-keycloak-infra
spec:
 resource:
  envs:
   - name: -Dkogito.consoles.keycloak.config.realm
     value: <keycloak_realm>
   - name: -Dkogito.consoles.keycloak.config.url
     value: <keycloak_url>
   - name: -Dkogito.consoles.keycloak.config.client-id
     value: <keyloak_console_client_id>
   - name: -Dkogito.consoles.keycloak.config.health-check-url
     value: <keycloak_health_check_url>
   - name: -Dkogito.consoles.keycloak.config.disable-health-check
     value: <keyloak_disable_health_check_flag>
   - name: -Dkogito.consoles.keycloak.config.update-token-validity
     value: <keycloak_update_token_validity>
   - name: -Dkogito.svg.folder.path
     value: /home/kogito/data/svg

    Please remember to replace the placeholders in the above example (i.e. keycloak_realm, keycloak_url, keyloak_console_client_id, keycloak_health_check_url, keyloak_disable_health_check_flag and keycloak_update_token_validity) with the right values based on your Keycloak setup (here you can find the meaning of each Keycloak property and its default value!).

    $ oc apply -f kogito-keycloak-infra.yaml -p PROJECT_NAME

    • Install the Management Console KogitoSupportingService with this command with the Kogito CLI:

    $ kogito install mgmt-console -p PROJECT_NAME --infra kogito-keycloak-infra

    or if you don’t want to use the Kogito CLI you can use this resource:

    apiVersion: app.kiegroup.org/v1beta1
kind: KogitoSupportingService
metadata:
 name: management-console
spec:
 serviceType: MgmtConsole
 replicas: 1
 infra:
  - kogito-keycloak-infra

    that you have to apply using the command:

    $ oc apply -f management-console-supportingservice.yaml -p PROJECT_NAME
    Image of Kogito Management Console instance on OpenShift

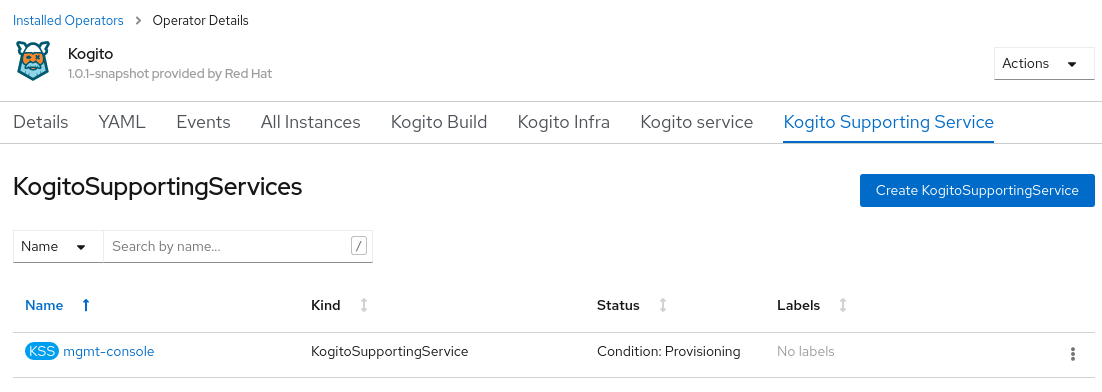

    Figure 260. Kogito Management Console instance on OpenShift web console

  3. In a web browser, navigate to http://localhost:8280 to open the Management Console. If you modified the configured Management Console port, use the modified location.

    On OpenShift, navigate to the route URL for the Management Console instance.

5.14.2. Kogito Management Console application

Kogito Management Console consists of the following tabs that allow you to interact with your process instances and data:

  • Process Instances: Use this tab to find process and subprocess instances by status or business key

  • Jobs: Use this tab to view a list of available jobs to filter jobs by status and perform actions for individual jobs, such as view details, reschedule, or cancel.

Image of Kogito Management Console
Figure 261. Kogito Management Console

In this example, the Management Console displays data for the kogito-travel-agency extended example application in the kogito-examples repository in GitHub.

5.14.2.1. Process instances

The Process Instances tab displays the list of process instances and enables you to add filters to the list.

Image of process instance list section
Figure 262. Process Instances tab

When you select a process instance on the Process Instances page, it redirects you to the Process Details page, providing the process instance details including interactions with the process instance. You can access the Process Details page from a different Kogito Management Console tab, displaying the instance related data and enables you to perform the available actions. You can also sort the results based on the column headers.

Image of Process Instance details in Management Console
Figure 263. Process Details page

The Process Details page consists of the following panels:

  • Process Diagram panel

  • Details panel

  • Process Variables panel

  • Timeline panel

  • Node Trigger panel

  • Milestones panel

  • Jobs panel

    Process Diagram panel

    This panel enables you to explore the process diagram and execution path of the related process instance. The execution path is displayed when the Management Console finds the .svg resources using the Kogito process SVG add-on configuration included in the Kogito Management Console.

    Image of process instance diagram panel
    Figure 264. Process Diagram panel

    This panel includes different controls to view the process diagram, such as Selection, Pan, Zoom in, Zoom out, and Fit to viewer.

    Details panel

    This panel displays the basic process instance information and provides links to the related process runtime UI. If the process instance is related to other process instances, then links to the parent and subprocess instances are also available in the Details panel.

    Image of process instance details panel

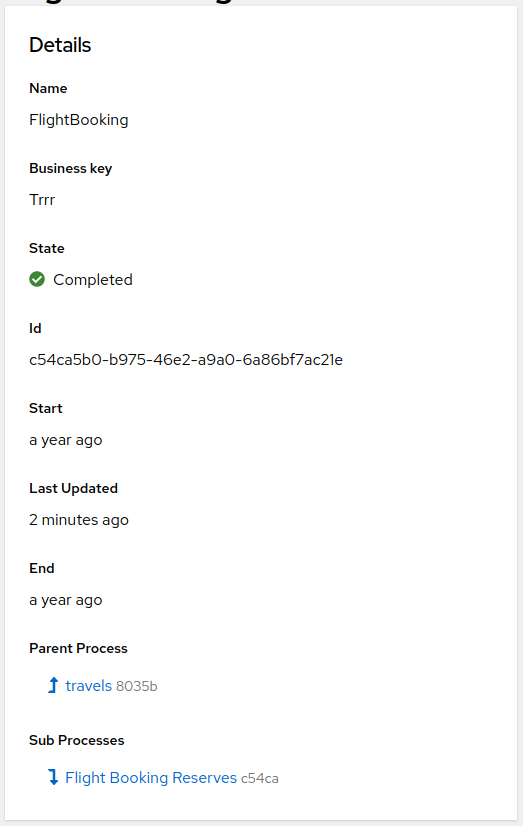

    Figure 265. Details panel

    The Details panel consists of the following fields:

    • Name: The process definition ID related to the process instance.

    • Business key: Optional business key of the process instance.

    • State: The state of the process instance. The state of a process instance can be pending, active, completed, aborted, suspended, or error.

    • Id: The unique identifier of the process instance.

    • Endpoint: The endpoint of the process instance. You can click the displayed endpoint to view the process or application UI that triggered the process instance.

      Image of process instance details endpoint in Management Console
      Figure 266. Process instance details endpoint

    • Start: Time reference indicating when the process instance is started.

    • Last Updated: Time reference indicating when the process instance is updated.

    • End: Time reference indicating when the process instance is completed.

    • Parent Process: Parent process instance of the instance (if linked). You can click and navigate to the parent process instance.

    • Sub Processes: Subprocess of the instance (if linked). You can click and navigate to the subprocess instances.

    Process Variables panel

    The Process Variables panel displays the process instance domain data in a tree structure. When you hover the mouse on different elements, the available actions are displayed.

    Image of process variables panel in Management Console
    Figure 267. Process Variables panel
    Image of process variables panel available actions in Management Console
    Figure 268. Actions in Process Variables panel

    The process variables in the Process Variables panel consists of the following actions:

    • Expand or collapse: Enables you to expand or collapse an element.

    • Add item: Enables you to add a new key. When you add a new key, it contains null values, which you can edit if required.

      Steps to add a new variable to a process instance in Management Console
      Figure 269. Add new key

    • Copy: Enables you to copy the selected value in clipboard.

    • Edit: Enables you to edit the selected element value.

    • Remove: Enables you to remove the selected element.

    If there are pending changes to be saved, the panel displays Changes are not saved yet message. To save the changes that you made to the process variable, click Save, or click Abort to abort the changes. If you want to revert the changes, click the refresh icon.

    Timeline panel

    The Timeline panel displays the list of node instances related to the process instance sorted by the start time. Each node consists of an icon, indicating the state of the node, such as active, completed, or error.

    Image of Timeline panel showing the related node instances
    Figure 270. Timeline panel

    The actions that are available for an active node include retriggering and canceling a node. Whereas the actions for an error node include retrying and skipping the node. The node actions in the Timeline panel are connected with the Kogito runtime service to perform the requested action.

    If a node in the Timeline panel is associated with a job, then select the clock icon to view the job details or click the menu for additional job operations, such as Job Reschedule or Job Cancel.

    Node Trigger panel

    The Node Trigger panel displays the list of all process definition nodes in a drop-down. When you select a node, the related information is displayed, such as Node name, Node type, and Node id. Click the Trigger button, to trigger the selected node.

    Image of node trigger panel in Management Console

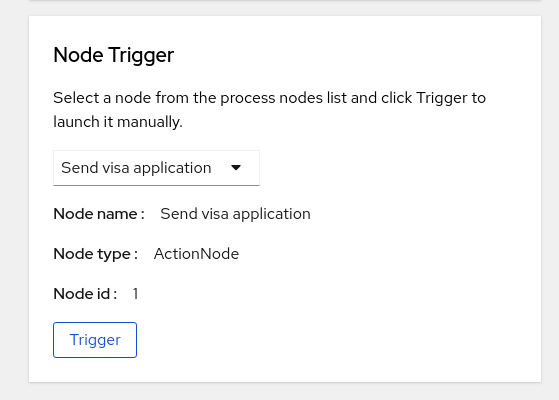

    Figure 271. Node Trigger panel
    Milestones panel

    The Milestones panel displays a list of the milestones for the process instance, if applicable.

    Image of milestones panel in Management Console

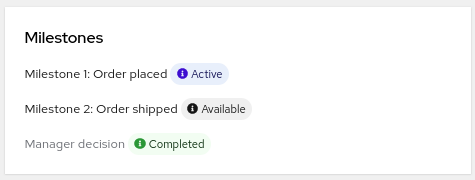

    Figure 272. Milestones panel
    Jobs panel

    The Jobs panel displays the list of available jobs that are related to the process instance.

    Image of jobs panel in Management Console

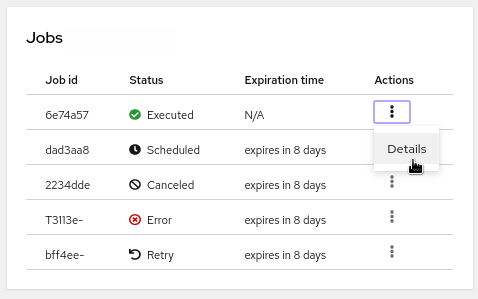

    Figure 273. Jobs panel
    Image of jobs panel details in Management Console

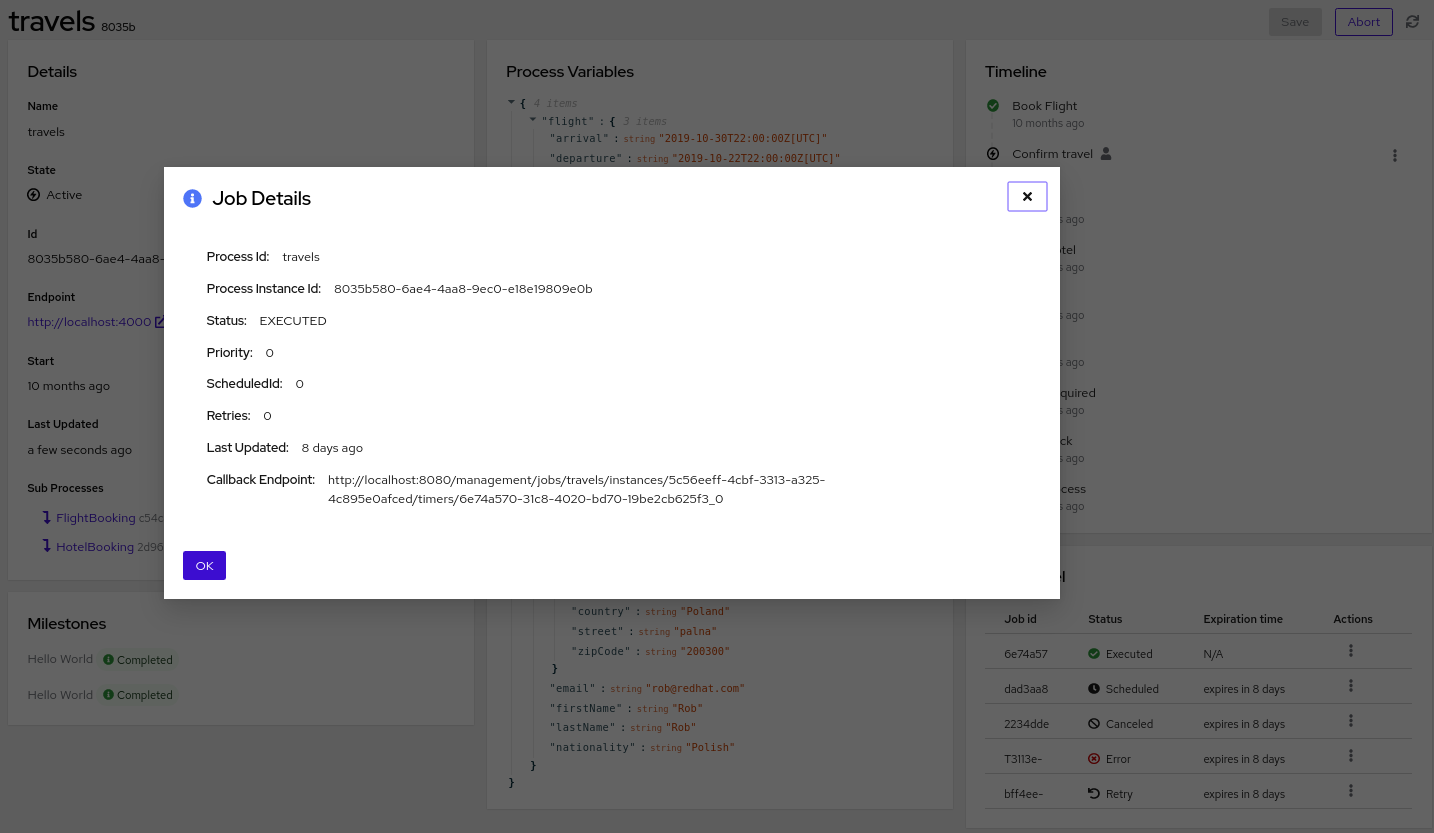

    Figure 274. Job details

    You can reschedule or cancel a job that is in scheduled or error state. You can also modify the expiration time for one-time jobs and repeat interval, repeat time, and expiration time for the periodic jobs.

5.14.2.2. Jobs management

The Jobs Management tab displays the list of existing jobs, which you can filter and perform related management actions such as viewing job details, rescheduling a job, or canceling a job.

Image of Jobs Management page in Management Console
Figure 275. Jobs Management page

You can also cancel the multiple jobs at the same time. To cancel multiple jobs, select the jobs to be canceled and click the Cancel Selected button.

5.14.3. Configuring Kogito Management Console security

For security, the Kogito Management Console accesses Keycloak as an authentication service. Once a user is authenticated, Management Console uses bearer tokens to communicate with other Kogito services.The bearer tokens are issued using OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Management Console repository in GitHub.
Prerequisites
Ensure that you log in to the administration console of the Keycloak, navigate to the respective client configuration, and add correct URLs of different applications. For easier configuration, you can add in the *Web Origins, however, it can cause security issues. You can also add the origin URLs as a parameter to the Web Origins, which can prevent the issues related to Access-Control-Allow-Origin.
Image of client config in keycloak server
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Management Console repository and enter the following command to run the application with security enabled:

    Run the Management Console with security enabled
    mvn clean compile quarkus:dev
    Ensure that the service is not started at the same port as the security server. You can change the port by adding -Dquarkus.http.port=PORT_NUMBER to the start-up properties.

  2. Navigate to the src/main/resources/application.properties file of the Management Console project and add the following properties:

    Required security properties in applications.properties file
    # OpenID Connect configurations
kogito.consoles.keycloak.config.realm=kogito
kogito.consoles.keycloak.config.url=http://localhost:8280/auth/
kogito.consoles.keycloak.config.client-id=kogito-console-quarkus
kogito.consoles.keycloak.config.health-check-url=http://localhost:8280/auth/realms/kogito/.well-known/openid-configuration
kogito.consoles.keycloak.config.disable-health-check=false
kogito.consoles.keycloak.config.update-token-validity=30

  3. Replace any property definitions with those of your specific environment, especially the following properties:

    • kogito.consoles.keycloak.config.url: The base URL of the Keycloak server, such as https://localhost:8280/auth. All other Keycloak server pages and service URLs are derived from the base URL.

    • kogito.consoles.keycloak.config.client-id: The client ID of the application. Each application contains a client ID that is used to identify the application.

    • kogito.consoles.keycloak.config.realm: The realm, containing all the security configurations.

    • kogito.consoles.keycloak.config.health-check-url: The health check URL that is used to check if the Keycloak server started properly.

    • kogito.consoles.keycloak.config.disable-health-check: The property to disable the health check. By default, the health check is enabled.

    • kogito.consoles.keycloak.config.update-token-validity: The property indicates the minimum validity (in seconds) of the token. If the token expires within the specified time, the token is refreshed.

  4. In the same application.properties file, also configure the resources to be exposed and the required permissions for accessing the resources.

  5. Stop and restart the Kogito Management Console to ensure that the security changes are applied.

Additional resources

5.15. Kogito Task Console

The Kogito Task Console is a user interface for viewing and interacting with user tasks in Kogito process services.

Image of Kogito Task Console
Figure 276. Kogito Task Console

You can use the Task Console to view your list of assigned tasks, view the task details for each task, and move the task to the next phase of the task lifecycle. For more information about the task lifecycle, see Task lifecycle in Kogito processes.

The Task Console requires your Kogito services to use the Kogito Data Index Service. The Data Index Service enables the Task Console to access stored events related to tasks and domain data from your Kogito services. The Kogito Data Index Service requires Infinispan or MongoDB persistence and Apache Kafka messaging for your Kogito service. For more information about the Data Index Service, see Configuring Kogito supporting services and runtime capabilities.

5.15.1. Using the Kogito Task Console to interact with user tasks

You can use the Kogito Task Console to view and interact with user tasks in Kogito process services. You can run the Task Console for local Kogito services or add it to your Kogito infrastructure on OpenShift.

Prerequisites

  • A Kogito Data Index Service instance is configured and running for your Kogito service. The Data Index Service enables the Task Console to access stored tasks and process data. The Data Index Service requires Infinispan or MongoDB persistence and Apache Kafka messaging for your Kogito service. For information about the Data Index Service, see Configuring Kogito supporting services and runtime capabilities.

  • The application.properties file of your Kogito project contains the following system properties for the location where the Kogito service is deployed, such as http://localhost:8080, and for Quarkus Cross-Origin Resource Sharing (CORS) support.

    Application properties for REST URLs
    kogito.service.url=http://HOST:PORT
quarkus.http.cors=true
Procedure

  1. Go to the task-console artifacts page, select the latest release of the Kogito Task Console, and download the task-console-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded task-console-VERSION-runner.jar file and enter the following command to run the Task Console:

    Running the Task Console
    $ java -Dquarkus.http.port=8280 -jar task-console-VERSION-runner.jar

    The default port for the Task Console is 8080, but this example specifies port 8280 to avoid conflicts with the example Kogito service running at port 8080.

    Also, the Task Console uses the default Data Index Service port 8180. If you modified this port in your Data Index Service instance, you must also modify the port in the Task Console properties by using the start-up property -Dkogito.dataindex.http.url=http://HOST:PORT/graphql when you run the Task Console.

    To change the logging level of the Task Console, such as for debugging, you can specify the following start-up properties:

    Modifying Task Console logging level for debugging
    $ java  \
  -Dquarkus.log.console.level=DEBUG -Dquarkus.log.category.\"org.kie.kogito\".min-level=DEBUG  \
  -Dquarkus.log.category.\"org.kie.kogito\".level=DEBUG  \
  -Dquarkus.http.port=8280  \
  -jar task-console-VERSION-runner.jar

    If your Kogito project has a custom task lifecycle that defines custom states, you can use the following properties to configure the Task Console to use those states and show them in the filters:

    • kogito.task.states.list: Comma-separated list of values containing all the states that you want to show in the Task Console. Without this property, the Task Console shows the default lifecycle states Ready, Reserved, Completed, Aborted, and Skipped.

    • kogito.task.active.states.list: Comma-separated list of values containing the active task states. These states are used in the Task Inbox default filter. Without this property, the default active states are Ready and Reserved.

    Configuring custom task states for the Task Console
    $ java  \
  -Dkogito.task.states.list=Started,Pending,Finished,Cancelled \
  -Dkogito.task.active.states.list=Started,Pending \
  -jar task-console-VERSION-runner.jar
    For more information about task lifecycles, see Task lifecycle in Kogito processes.

    In an OpenShift environment, you can use the Kogito command-line interface (CLI) or the OpenShift web console to add the Task Console to your Kogito infrastructure:

    Adding the Task Console to your OpenShift infrastructure using the Kogito CLI
    $ kogito install task-console -p PROJECT_NAME
    Image of Kogito Task Console instance on OpenShift
    Figure 277. Kogito Task Console instance on OpenShift web console

  3. In a web browser, navigate to http://localhost:8280 to open the Task Console. If you modified the configured Task Console port, use the modified location.

    On OpenShift, navigate to the route URL for the Task Console instance.

    Image of Kogito Task Console
    Figure 278. Kogito Task Console

    In this example, the Task Console displays data for the kogito-travel-agency extended example application in the kogito-examples repository in GitHub.

    The Task Inbox page lists the available user tasks that you can interact with. You can use the upper toolbar options to filter the tasks or use the column headers to sort the tasks as needed. You can also search for tasks by the full name or by partial name, such as Apply.

    Image of the tasks assigned to the current user
    Figure 279. Tasks assigned to the current user
    Image of status filtering on *Task Inbox*
    Figure 280. Available task status filters
    Image of status and names filtering on *Task Inbox*
    Figure 281. Applied filters

  4. Select a task name to view task details and interact with the task:

    Image of *Task Details* page
    Figure 282. Task details

    Depending on the current phase of the selected task, you can select from the available actions for that task, such as Abort, Release, Skip, or Complete, to move the task to the next phase.

    For additional task details, you can select View details. This panel lists the task ID, state, owner, related process instance ID, and other helpful information about the task.

    Image of task details panel
    Figure 283. Task details panel

5.15.2. Configuring Kogito Task Console security

For security, Kogito Task Console accesses Keycloak as an authentication service. Once a user is authenticated, Task Console uses bearer tokens to communicate with other Kogito services. These tokens are issued by OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Task Console repository in GitHub.
Prerequisites

  • You have cloned the Kogito Task Console repository from GitHub.

  • An instance of Keycloak server is running.

Ensure that you log in to the administration console of the Keycloak, navigate to the respective client configuration, and add correct URLs of different applications. For easier configuration, you can add in the *Web Origins, however, it can cause security issues. You can also add the origin URLs as a parameter to the Web Origins, which can prevent the issues related to Access-Control-Allow-Origin.
Image of client config in keycloak server
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Task Console repository and enter the following command to run the application with security enabled:

    Run the Task Console with security enabled
    mvn clean compile quarkus:dev
    Ensure that the service is not started at the same port as the security server. You can change the port by adding -Dquarkus.http.port=PORT_NUMBER to the start-up properties.

  2. Navigate to the src/main/resources/application.properties file of the Task Console project and add the following properties:

    Required security properties in applications.properties file
    # OpenID Connect configurations
kogito.consoles.keycloak.config.realm=kogito
kogito.consoles.keycloak.config.url=http://localhost:8280/auth/
kogito.consoles.keycloak.config.client-id=kogito-console-quarkus
kogito.consoles.keycloak.config.health-check-url=http://localhost:8280/auth/realms/kogito/.well-known/openid-configuration
kogito.consoles.keycloak.config.disable-health-check=false
kogito.consoles.keycloak.config.update-token-validity=30

  3. Replace any property definitions with those of your specific environment, especially the following properties:

    • kogito.consoles.keycloak.config.url: The base URL of the Keycloak server, such as https://localhost:8280/auth. All other Keycloak server pages and service URLs are derived from the base URL.

    • kogito.consoles.keycloak.config.client-id: The client ID of the application. Each application contains a client ID that is used to identify the application.

    • kogito.consoles.keycloak.config.realm: The realm, containing all the security configurations.

    • kogito.consoles.keycloak.config.health-check-url: The health check URL that is used to check if the Keycloak server started properly.

    • kogito.consoles.keycloak.config.disable-health-check: The property to disable the health check. By default, the health check is enabled.

    • kogito.consoles.keycloak.config.update-token-validity: The property indicates the minimum validity (in seconds) of the token. If the token expires within the specified time, the token is refreshed.

  4. In the same application.properties file, also configure the resources to be exposed and the required permissions for accessing the resources.

  5. Stop and restart the Kogito Task Console to ensure that the security changes are applied.

Additional resources

5.16. Runtime Tools Quarkus Extension

In Kogito, Runtime Tools Quarkus Extension helps in developing your Kogito applications in Quarkus. This extension adds a new user interface with unified features from the different Kogito Management Console and Task Console, which is accessible in the Quarkus Dev UI. This is intended for the local development environment, can be integrated with Quarkus applications, and allows you to test the Kogito application without the need of a complex setup.

5.16.1. Setting up the Runtime Tools Quarkus Extension

Quarkus Dev UI shows a list of extensions that you can add to your project.

Procedure

  1. To enable the Runtime Tools Quarkus extension from your Quarkus project, you must add the following dependency to the pom.xml file:

    Dependency to access Kogito Runtime Tools Dev UI in Quarkus
    <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>runtime-tools-quarkus-extension</artifactId>
    <version>1.43.0.Final</version>
</dependency>

  2. Add the following properties to the application.properties file to configure the users and impersonate the users on the task page using the dropdown at the top:

    • kogito.users.<user>.groups: This property creates a list of users and assigns specific roles to the users

    kogito.users.jdoe.groups=admin
kogito.users.admin.groups=admin
kogito.users.user.groups=user

5.16.2. Accessing Runtime Tools Quarkus Extension

After setting up the Runtime Tools Quarkus Extension, you can access the Quarkus extension in your project.

Procedure

  1. To access the Quarkus extension, run your project in development mode and select the http://localhost:8080/q/dev URL:

    Image of quarkus dev ui

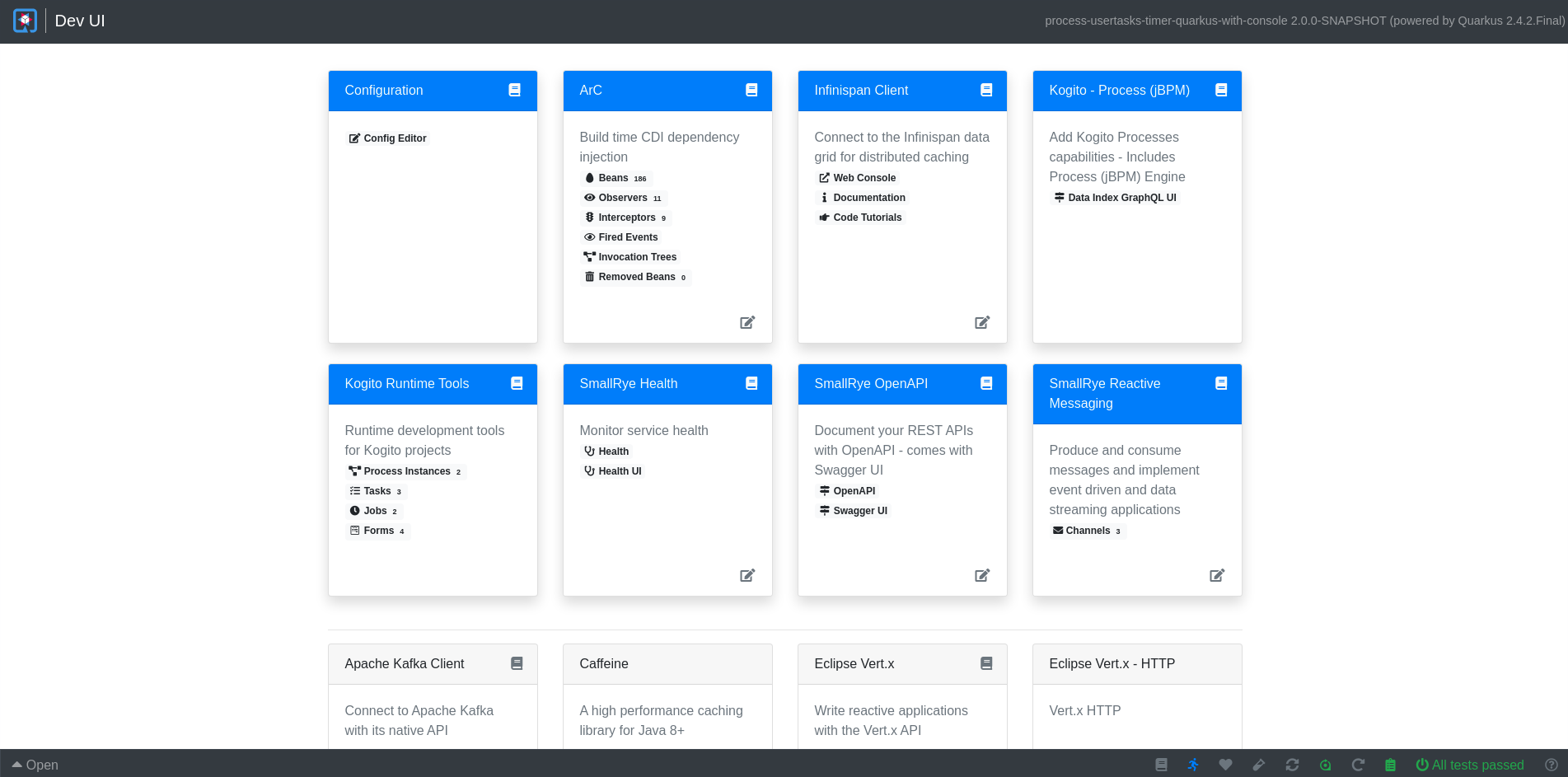

    Figure 284. Quarkus Dev UI

    The Quarkus extension consists of different menus to navigate to different pages, such as Configuration, Kogito Runtime Tools, and Infinispan Client. Using the Kogito Runtime Tools menu, you can navigate to Process Instances, Tasks, Jobs, and Forms. The features are similar to Kogito Management Console and Task Console.

    kogito runtime tools dev ui card

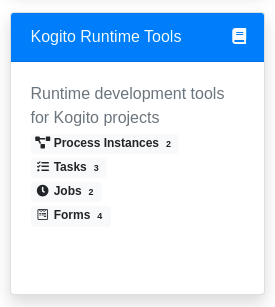

    Figure 285. Kogito Runtime Tools Dev UI for Quarkus

    • Process Instances: Use this section to view process and subprocess instances by status or business key. For more details, see Process instances.

    • Jobs: Use this section to view a list of available jobs. You can also filter the jobs by status and perform different actions, such as view details, reschedule, or cancel. For more details, see [proc-jobs-management].

    • Tasks: Use this section to view the list of available user tasks that you can interact with by filtering based on the status. For more details, see Kogito Task Console.

    • Forms: Use this section to generate and customize the forms directly in the browser.

5.16.3. Forms

The Kogito Quarkus extension enables you to customize the forms directly on the browser by using the dedicated code editor, which can compile HTML code and React code that is written in Typescript. You can use Patternfly components to create React forms. These customized forms are used in Task Inbox.

The Forms page in the Dev UI contains a list of generated forms in a project. To switch between the table view and gallery view, select the toggle on the top-right corner of the page. You can also filter the list of forms by entering the form name.

Image of forms in Dev UI table view

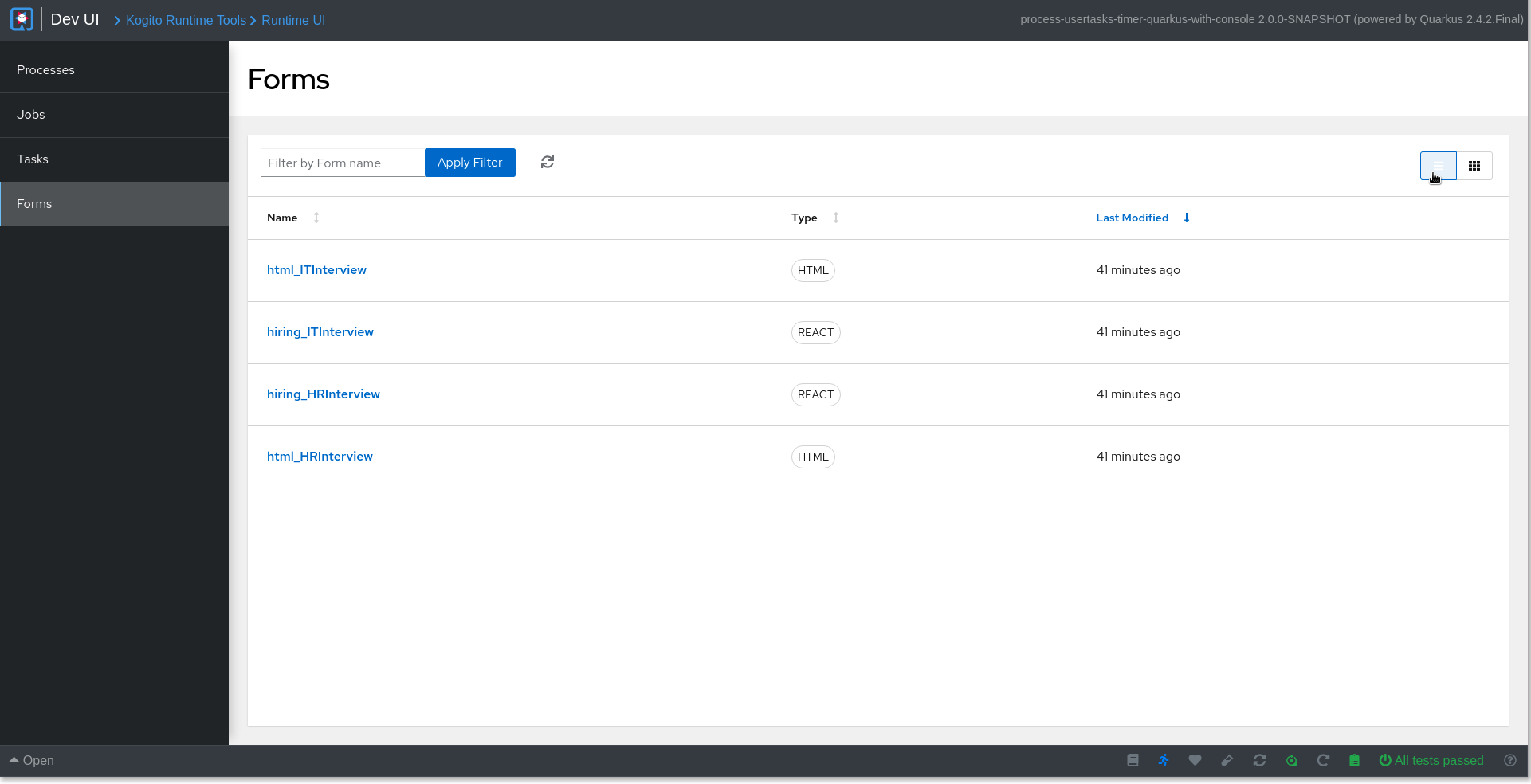

Figure 286. Forms in Kogito Runtime tools Dev UI

When you select a form in the Forms page, you are redirected to the form displayer. The form displayer contains a code editor, which compiles the source code and displays the results on the right-side panel.

Initially, the form content and the related configuration are added to the code editor. You can make changes to the code in the editor and click the play icon from the toolbar to execute the code immediately on the browser.

The Source tab loads the source code of the form in HTML or Typescript format based on the selected form. When the configurations of a form are loaded on the Connections tab, a set of resources including CDN links, URLs pointing to JS or CSS files are added to the form.

Image of form displayer source code editor
Figure 287. Form source in code editor
Image of form displayer configuration code editor

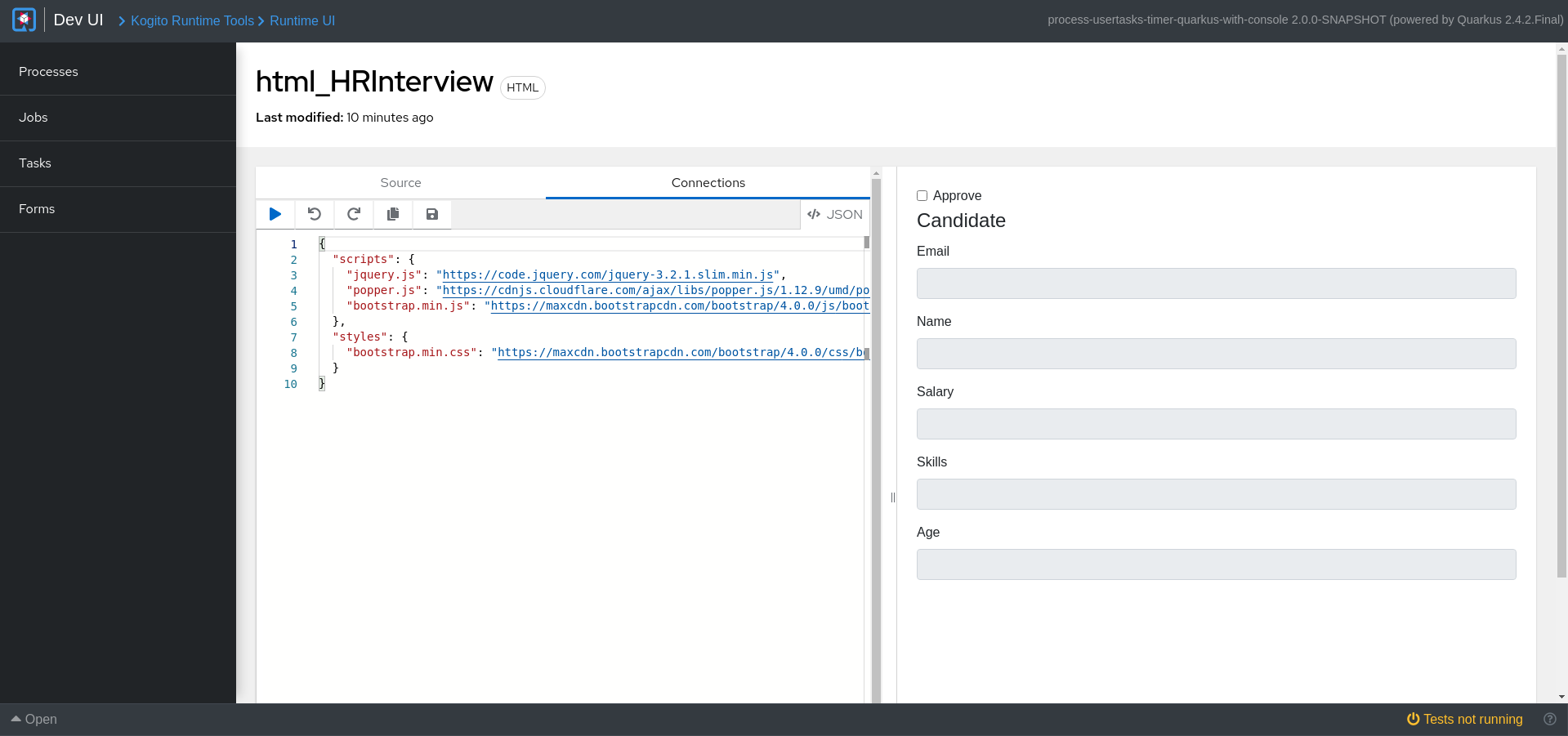

Figure 288. Form cofigurations in code editor

The code editor contains toolbar options, which allow you to undo and redo changes. Clicking on the play button executes the code and changes are applied immediately, while the save option allows you to save the changes on the source or configuration of the forms.

Image of code editor toolbar options

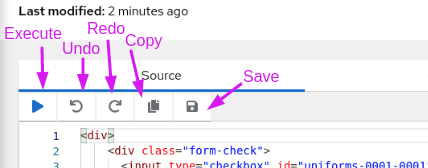

Figure 289. Toolbar options in code editor

5.17. Kogito service execution

After you design your Kogito service, you can build and run your application and then send REST API requests to the application to execute your services. The exact REST API requests that you can use depend on how you set up the application.

For example, consider a Kogito service that is set up to generate a /persons REST API endpoint and determines whether a specified customer is an adult or is underage. In this example, you can send the following POST request using a REST client or curl utility to add an adult and execute the service:

Example POST request body to add an adult (JSON)
{
  "person": {
    "name": "John Quark",
    "age": 20
  }
}
Example curl command to add an adult
curl -X POST http://localhost:8080/persons -H 'content-type: application/json' -H 'accept: application/json' -d '{"person": {"name":"John Quark", "age": 20}}'
Example response (JSON)
{
  "id": "3af806dd-8819-4734-a934-728f4c819682",
  "person": {
    "name": "John Quark",
    "age": 20,
    "adult": false
  },
  "isAdult": true
}

Note that for JSON marshaling, Kogito is relying on the default mappers of Quarkus and SpringBoot, which can be configured according to the specific requirements.

For information about creating, running, and testing an example application with Kogito services, see Creating and running your first Kogito services.

For information about deploying your Kogito service to OpenShift, see Deploying Kogito services on OpenShift.

6. Orchestrating microservices with Serverless Workflow in Kogito

As a microservices developer or architect, you can use the Serverless Workflow specification to orchestrate application services in your Kogito project. The Serverless Workflow specification enables you to define declarative workflow models that orchestrate event-driven, serverless applications. The specification is hosted by the Cloud Native Computing Foundation (CNCF) and is currently a CNCF Sandbox project that is progressing to become an Incubating project.

The target users of Serverless Workflow orchestration are mostly developers and architects who want to define logical steps of execution declaratively (no code) for cloud-native services. Although you can orchestrate your services using process diagrams in Business Process Model and Notation (BPMN), the Serverless Workflow has less focus on business definition and more focus on function-level steps of execution. Serverless Workflow is also designed specifically for microservice orchestration and therefore has a smaller scope than BPMN. Serverless Workflow also enables you to write workflows in formats (JSON or YAML) that might be better suited for developing and deploying serverless applications in cloud or container environments.

⚠️ Quarkus is the only supported runtime for Serverless Workflow.

Ultimately, the choice of which specification to use for orchestrating event-driven microservices depends on your environment needs, development goals, and personal preference.

The Serverless Workflow functions, events, and states are the core constructs for defining the orchestration behavior for your services. You can use one or all of these three constructs in your workflow definitions.

  • functions: Function definitions are reusable constructs that you can use to define invocation information about services that need to be invoked during workflow execution.

  • events: Event definitions are reusable constructs that you can use to define all consumed and produced events during workflow execution.

  • states: State definitions enable you to define your workflow states (control-logic blocks) and determine what your workflow should do.

For more information about what you can automate using Serverless Workflow, see use cases.

For more information about Serverless Workflow, see the Serverless Workflow website.

Kogito 1.43 implements version 0.8 of the Serverless Workflow specification. You can find the current implementation status here.

6.1. Serverless Workflow orchestration in Kogito

You can use Serverless Workflow definition files in your Kogito project to define your domain-specific orchestration services. Your Serverless Workflow files can be in JSON or YAML format with the extension .sw.json or .sw.yaml.

The following diagram illustrates Serverless Workflow orchestration in Kogito:

Image of Serverless Workflow orchestration in Kogito
Figure 290. Serverless Workflow orchestration in Kogito

6.2. Serverless Workflow example in Kogito

The following example is a real-world Serverless Workflow scenario in Kogito that demonstrates how you can use Serverless Workflow definitions to orchestrate your Kogito services. In this scenario, an order service uses Serverless Workflow to process orders from multiple sources and approve or deny orders.

For more Kogito examples that use Serverless Workflow, see the kogito-examples repository in GitHub.

The following diagram illustrates the basic architecture of this scenario:

Image of example Serverless Workflow orchestration for processing orders in Kogito
Figure 291. Example Serverless Workflow orchestration for processing orders in Kogito

New orders can come from different sources, such as web applications or messaging services. Each order is then converted into CloudEvents messages, which represent the events that need to trigger the workflow execution. The events are pushed to an Apache Kafka topic.

New order events that are pushed to Kafka trigger new instances of the workflow. The workflow invokes a business rule service and a human task service to make the order approval decision. The business rule service can be a Kogito service with Decision Model and Notation (DMN) decision models or Drools Rule Language (DRL) rules, or it can be an external service. For this example, the rule service uses a DRL rules in Kogito to verify whether the order can be auto-approved. If the order cannot be auto-approved, then the workflow uses the human task service, which likewise can be a Kogito service or an external service, to notify a manager that the order requires human approval.

After the order decision is made, the workflow generates an event in CloudEvents format that notifies other services or other workflows that a decision was made for a particular order.

To orchestrate these services in this way, the example uses the following ordersworkflow.sw.json Serverless Workflow definition:

Example ordersworkflow.sw.json workflow definition (JSON)
{
  "id": "ordersworkflow",
  "name": "Orders Workflow",
  "version": "1.0",
  "events": [
    {
      "name": "NewOrderEvent",
      "source": "neworder",
      "type": "kafka"
    },
    {
      "name": "ApprovalDecisionEvent",
      "source": "out-approvaldecision",
      "type": "kafka"
    }
  ],
  "functions": [
    {
      "name": "AutoAproveOrderFunction",
      "type": "rule",
      "metadata": {
        "ruleflowgroup": "neworder"
      }
    },
    {
      "name": "OrderManagerApprovalFunction",
      "type": "decision",
      "metadata": {
        "taskname": "managerApproval",
        "actorid": "managers",
        "groupid": "managers"
      }
    }
  ],
  "states": [
    {
      "name": "HandleNewOrder",
      "type": "event",
      "start": {
        "kind": "default"
      },
      "eventsActions": [
        {
          "eventRefs": [
            "NewOrderEvent"
          ],
          "actions": [
            {
              "functionRef": {
                "refName": "AutoAproveOrderFunction"
              }
            }
          ]
        }
      ],
      "transition": {
        "nextState": "CheckIfNeedManagerApproval"
      }
    },
    {
      "name": "CheckIfNeedManagerApproval",
      "type": "switch",
      "dataConditions": [
        {
          "path": "$.decision",
          "value": "Approved",
          "operator": "equals",
          "transition": {
            "nextState": "OrderAutoApproved"
          }
        },
        {
          "path": "$.decision",
          "value": "NeedManagerApproval",
          "operator": "equals",
          "transition": {
            "nextState": "OrderManagerApproval"
          }
        }
      ],
      "defaultCondition": {
        "nextState": "OrderManagerApproval"
      }
    },
    {
      "name": "OrderAutoApproved",
      "type": "inject",
      "data": {
        "finalDecision": "Approved"
      },
      "end": {
        "kind": "event",
        "produceEvent": {
          "eventRef": "ApprovalDecisionEvent"
        }
      }
    },
    {
      "name": "OrderManagerApproval",
      "type": "operation",
      "actionMode": "sequential",
      "actions": [
        {
          "name": "managerAprovalAction",
          "functionRef": {
            "refName": "OrderManagerApprovalFunction"
          }
        }
      ],
      "end": {
        "kind": "event",
        "produceEvent": {
          "eventRef": "ApprovalDecisionEvent"
        }
      }
    }
  ]
}

The following diagram illustrates the basic structure and sequence of this example workflow definition:

Image of `ordersworkflow.sw.json` workflow definition
Figure 292. Structure of the example ordersworkflow.sw.json workflow definition

The HandleNewOrder state is the workflow starting state. This state is an event type state that requires one or more events to be consumed before the workflow can be invoked. This event state defines the instances of this workflow that are created when the referenced NewOrderEvent is consumed. In this case, events are consumed using Kafka.

After the NewOrderEvent is consumed, the state defines a list of actions to be performed. Actions define all the functions or services that must be invoked as part of the workflow. In this case, a single AutoApproveOrderFunction function or service defines how to invoke the rule service.

After the execution of the rule service is complete, the event state specifies that the workflow must transition to the CheckIfNeedManagerApprvoal state, which is a switch type state. The order is then either auto-approved if no manager approval is required, or is assigned to a manager to complete the remaining states of the workflow.

For more Kogito examples that use Serverless Workflow, see the following example applications in GitHub:

6.2.1. Creating and editing Serverless Workflow definitions in Kogito

You can use Serverless Workflow definition files in your Kogito project to define your domain-specific orchestration services. Your Serverless Workflow definition files can be in JSON or YAML format with the extension .sw.json or .sw.yaml.

Prerequisites

  • You have created a Kogito project and have included any Java objects or other business assets required for your Serverless Workflow service. For information about creating a project, see Creating and running your first Kogito services.

Procedure

  1. In your Kogito project, create or import a .sw.json or .sw.yaml Serverless Workflow definition file in the relevant folder, typically in src/main/resources.

    Kogito supports both JSON and YAML formats for workflow definitions. You can use multiple workflow definitions in both formats if needed.

  2. Open the workflow definition file and define the following basic components:

    Serverless Workflow definition format in JSON
    {
  "id": "sampleWorkflow",
  "version": "1.0",
  "name": "Sample Workflow",
  "description": "Sample Workflow",
  "functions": [],
  "events": [],
  "states": []
}
    Serverless Workflow definition format in YAML
    id: sampleWorkflow
version: '1.0'
name: Sample Workflow
description: Sample Workflow
functions: []
events: []
states: []

    The Serverless Workflow functions, events, and states are the core constructs for defining the orchestration behavior for your services. You can use one or all of these three constructs in your workflow definitions.

    You can find more information about the core constructs in the Workflow Model section of the specification.

    For example, the following Serverless Workflow definition performs a customer credit check in a loan application service to approve or deny the customer loan application:

    Example Serverless Workflow definition for credit check (JSON)
    {
  "id": "customercreditcheck",
  "version": "1.0",
  "name": "Customer Credit Check Workflow",
  "description": "Perform Customer Credit Check",
  "functions": [
    {
      "name": "callCreditCheckMicroservice",
      "resource": "creditCheckResource",
      "type": "service"
    },
    {
      "name": "sendRejectionEmailFunction",
      "resource": "rejectEmailResource"
    }
  ],
  "events": [
    {
      "name": "CreditCheckCompletedEvent",
      "type": "creditCheckCompleteType",
      "source": "creditCheckSource",
      "correlation": [
        {
          "contextAttributeName": "customerId"
        }
      ]
    }
  ],
  "states": [
    {
      "name": "CheckCredit",
      "type": "callback",
      "start": {
        "kind": "default"
      },
      "action": {
        "functionRef": {
          "refName": "callCreditCheckMicroservice",
          "parameters": {
            "customer": "{{ $.customer }}"
          }
        }
      },
      "eventRef": "CreditCheckCompletedEvent",
      "transition": {
        "nextState": "EvaluateDecision"
      }
    },
    {
      "name": "EvaluateDecision",
      "type": "switch",
      "dataConditions": [
        {
          "condition": "{{ $.creditCheck[?(@.decision == 'Approved')] }}",
          "transition": {
            "nextState": "StartApplication"
          }
        },
        {
          "condition": "{{ $.creditCheck[?(@.decision == 'Denied')] }}",
          "transition": {
            "nextState": "RejectApplication"
          }
        }
      ],
      "defaultCondition": {
        "transition": {
          "nextState": "RejectApplication"
        }
      }
    },
    {
      "name": "StartApplication",
      "type": "operation",
      "actions": [
        {
          "subFlowRef": "startApplicationWorkflowId"
        }
      ],
      "end": {
        "kind": "default"
      }
    },
    {
      "name": "RejectApplication",
      "type": "operation",
      "actionMode": "sequential",
      "actions": [
        {
          "functionRef": {
            "refName": "sendRejectionEmailFunction",
            "parameters": {
              "applicant": "{{ $.customer }}"
            }
          }
        }
      ],
      "end": {
        "kind": "default"
      }
    }
  ]
}
    Example Serverless Workflow definition for credit check (YAML)
    id: customercreditcheck
version: '1.0'
name: Customer Credit Check Workflow
description: Perform Customer Credit Check
functions:
- name: callCreditCheckMicroservice
  resource: creditCheckResource
  type: microservice
- name: sendRejectionEmailFunction
  resource: rejectEmailResource
events:
- name: CreditCheckCompletedEvent
  type: creditCheckCompleteType
  source: creditCheckSource
  correlation:
  - contextAttributeName: customerId
states:
- name: CheckCredit
  type: callback
  start:
    kind: default
  action:
    functionRef:
      refName: callCreditCheckMicroservice
      parameters:
        customer: "{{ $.customer }}"
  eventRef: CreditCheckCompletedEvent
  transition:
    nextState: EvaluateDecision
- name: EvaluateDecision
  type: switch
  dataConditions:
  - condition: "{{ $.creditCheck[?(@.decision == 'Approved')] }}"
    transition:
      nextState: StartApplication
  - condition: "{{ $.creditCheck[?(@.decision == 'Denied')] }}"
    transition:
      nextState: RejectApplication
  defaultCondition:
    transition:
      nextState: RejectApplication
- name: StartApplication
  type: operation
  actions:
    - subFlowRef: startApplicationWorkflowId
  end:
    kind: default
- name: RejectApplication
  type: operation
  actionMode: sequential
  actions:
  - functionRef:
      refName: sendRejectionEmailFunction
      parameters:
        applicant: "{{ $.customer }}"
  end:
    kind: default

    For more Serverless Workflow definition examples in Kogito, see the kogito-examples repository in GitHub.

  3. Continue adding and defining any remaining components for your workflow definition files and save the completed files.

After you define your serverless workflow definitions, you can build and deploy your Kogito services as usual to your preferred cloud or container platform, such as OpenShift. When an event trigger occurs, your application orchestrates your Kogito services according to the workflow definition or definitions that you have defined. If you are using a serverless deployment platform, such as OpenShift Serverless, your application automatically scales up based on incoming demand, or scales to zero after use.

Additional resources

6.3. Error handling in Serverless Workflow

You can handle the exceptions that are thrown by operation nodes as described in the Serverless Workflow Specification.

You need to specify the qualified name of the exception that might be thrown by the operation in the code field of the error definition.

serverless-workflow-error-quarkus is an example application that invokes an EvenService, which is throwing IllegalArgumentException if the number in the workflow model is odd.

7. Configuring Kogito supporting services and runtime capabilities

As a developer of business processes and decisions, you can configure Kogito supporting services and runtime properties for advanced use cases with your Kogito services.

7.1. Kogito supporting services and runtime configuration

Kogito supporting services consist of middleware infrastructure services and other dedicated services that help you build additional functionality in the Kogito domain-specific services that you develop.

Kogito supports the following key middleware infrastructure services:

  • Infinispan persistence

  • Apache Kafka reactive messaging

Kogito also provides the following dedicated services:

  • Kogito Data Index Service indexing and querying

  • Kogito Jobs Service job scheduling

The Kogito runtime supports various configuration options for these supporting services and for other capabilities, such as the following examples:

  • Custom event listeners

  • Prometheus metrics monitoring

  • Process instance management

These supporting services, runtime configurations, and Kogito add-on components enable you to optimize your Kogito domain-specific services for your business automation requirements.

7.2. Kogito runtime properties quick reference

The following table serves as a quick reference for commonly used runtime configuration properties supported by Kogito. You can define these properties in the src/main/resources/application.properties file of the relevant Kogito project or by using the -D prefix during application start-up.

Some of these properties might require accompanying dependencies in the relevant Kogito project to enable the specified capability. For more information about dependency requirements, review the sections of the Kogito configuration documentation that relate to that property.
Table 121. Common runtime properties in Kogito
Relevance Property Description

Events

kogito.events.processinstances.enabled

Determines whether runtime events are published for process instances, either true or false

Default value: true

Example: kogito.events.processinstances.enabled=true

kogito.events.usertasks.enabled

Determines whether runtime events are published for user task instances, either true or false

Default value: true

Example: kogito.events.usertasks.enabled=true

kogito.events.variables.enabled

Determines whether runtime events are published for process instances variables, either true or false

Default value: true

Example: kogito.events.variables.enabled=true

kogito.messaging.as-cloudevents

Determines whether messages (sent or received through message events) are published in CloudEvents format, either true of false

Example: kogito.messaging.as-cloudevents=true

Infinispan persistence

quarkus.infinispan-client.server-list

For Spring Boot: infinispan.remote.server-list

Defines the location where an Infinispan Server is running, typically used to connect your application to Infinispan for persistence

Example: quarkus.infinispan-client.server-list=localhost:11222

For Spring Boot: infinispan.remote.server-list=127.0.0.1:11222

quarkus.infinispan-client.auth-username

quarkus.infinispan-client.auth-password

Identifies the Infinispan user name and password to authenticate Infinispan persistence capabilities in the relevant application, if required, such as in the Kogito Data Index Service

Examples:

quarkus.infinispan-client.auth-username=admin

quarkus.infinispan-client.auth-password=admin123

kogito.persistence.infinispan.template

Defines an optional template name of the Infinispan cache configuration to be used to persist process instance data

Example: kogito.persistence.infinispan.template=MyTemplate

Kafka messaging

Incoming:

mp.messaging.incoming.kogito_incoming_stream.connector

mp.messaging.incoming.kogito_incoming_stream.topic (Optional, defaults to kogito_incoming_stream)

mp.messaging.incoming.kogito_incoming_stream.value.deserializer

Outgoing:

mp.messaging.outgoing.kogito_outgoing_stream.connector

mp.messaging.outgoing.kogito_outgoing_stream.topic (Optional, defaults to kogito_outgoing_stream)

mp.messaging.outgoing.kogito_outgoing_stream.value.serializer

Spring Boot:

kafka.bootstrapAddress

kogito.addon.cloudevents.kafka.kogito_incoming_stream (Optional, defaults to kogito_incoming_stream)

kogito.addon.cloudevents.kafka.kogito_outgoing_stream (Optional, defaults to kogito_outgoing_stream)

Defines the connector, topic, and deserializer for the incoming and outgoing messages and channels for reactive messaging with Apache Kafka

Examples for incoming:

mp.messaging.incoming.kogito_incoming_stream.connector=smallrye-kafka

mp.messaging.incoming.kogito_incoming_stream.topic=travellers

mp.messaging.incoming.kogito_incoming_stream.value.deserializer=org.apache.kafka.common.serialization.StringDeserializer

Examples for outgoing:

mp.messaging.outgoing.kogito_outgoing_stream.connector=smallrye-kafka

mp.messaging.outgoing.kogito_outgoing_stream.topic=processedtravellers

mp.messaging.outgoing.kogito_outgoing_stream.value.serializer=org.apache.kafka.common.serialization.StringSerializer

Examples for Spring Boot:

kafka.bootstrapAddress=localhost:9092

kogito.addon.cloudevents.kafka.kogito_incoming_stream=travellers

kogito.addon.cloudevents.kafka.kogito_outgoing_stream=processedtravellers

Kogito Jobs Service

kogito.service.url

Defines the location where the Kogito service is deployed, typically used by the Jobs Service to find the source of the jobs

Example: kogito.service.url=http://localhost:8080

kogito.jobs-service.url

Defines the callback URL that posts to a running Kogito Jobs Service

Example: kogito.jobs-service.url=http://localhost:8085

kogito.jobs-service.backoffRetryMillis

(Specified in Jobs Service) Defines the retry back-off time in milliseconds between job execution attempts, in case the execution fails

Default value: 1000

Example: kogito.jobs-service.backoffRetryMillis=1000

kogito.jobs-service.maxIntervalLimitToRetryMillis

(Specified in Jobs Service) Defines the maximum interval in milliseconds when retrying to execute jobs, in case the execution fails

Default value: 60000

Example: kogito.jobs-service.maxIntervalLimitToRetryMillis=60000

mp.messaging.outgoing.kogito-job-service-job-status-events.bootstrap.servers

(Specified in Jobs Service) Identifies the Kafka bootstrap server address with the port used to publish events

Default value: localhost:9092

Example: mp.messaging.outgoing.kogito-job-service-job-status-events.bootstrap.servers=localhost:9092

mp.messaging.outgoing.kogito-job-service-job-status-events.topic

(Specified in Jobs Service) Defines the name of the Kafka topic where the events are published

Default value: kogito-jobs-events

Example: mp.messaging.outgoing.kogito-job-service-job-status-events.topic=kogito-jobs-events

RESTEasy

resteasy.jaxrs.scan-packages

(Spring Boot only) Lists comma-separated package names that contain REST endpoint Java classes. Sub-packages are automatically scanned. Wildcard notation is supported. Packages generated by DMN namespaces typically start with http.

Example: resteasy.jaxrs.scan-packages=org.kie.kogito.example,http*

REST endpoint generation

kogito.generate.rest

Disables the REST endpoints generation globally.

Example: kogito.generate.rest=false

REST endpoint generation for a specific resource

  • kogito.generate.rest.decisions

  • kogito.generate.rest.predictions

  • kogito.generate.rest.processes

  • kogito.generate.rest.rules

Disables the REST endpoints generation for a specific resource.

Example: In your project, which contains .dmn and .bpmn files, you can disable only the decision REST endpoints using kogito.generate.decisions=false property .

Data Index service protobuf generation

kogito.persistence.data-index.proto.generation

Disables the generation of protobuf files used by Data Index service. The protobuf files are used for domain-specific queries when the storage supports, such as Infinispan and MongoDB. In other cases, the protobuf files are not necessary and can be skipped. The default value of this property is true.

Example: kogito.persistence.data-index.proto.generation=false to disable the generation of a protobuf file.

Kogito runtime protobuf marshaller generation

kogito.persistence.proto.marshaller

Disables the generation of domain-specific protobuf marshaller to serialize process variables. When setting this property to false, Kogito leverages Java serialization to persist process variables. The default value of this property is true.

The types of process variables must implement java.io.Serializable when protobuf marshaller generation is disabled.
Java serialization strategy does not work when using native build.

Example: kogito.persistence.data-index.proto.generation=false to disable the generation of a protobuf file.

7.3. Kogito runtime events

A runtime event is record of a significant change of state in the application domain at a point in time. Kogito emits runtime events as a result of successfully executed requests, or units of work, in a process instance or task instance in a process. Kogito can use these events to notify third parties about changes to the BPMN process instance and its data.

7.3.1. Process instance events

For every executed process instance, an event is generated that contains information for that instance, such as the following information:

  • Process instance metadata, such as the process definition ID, process instance ID, process instance state, and other identifying information

  • Node instances that have been triggered during the execution

  • Variables used and the current state of variables after the execution

These events provide a complete view of the process instances being executed and can be consumed by an event listener, such as a ProcessEventListener configuration.

If multiple processes are executed within a single request (unit of work), each process instance is given a dedicated event.

The following event is an example process instance event generated after the request was executed successfully:

Example process instance event
{
  "specversion": "0.3",
  "id": "f52af50c-4fe2-4581-9184-7ad48137fb3f",
  "source": null,
  "type": "ProcessInstanceEvent",
  "time": "2019-08-05T17:47:49.019494+02:00[Europe/Warsaw]",
  "data": {
    "id": "c1aced49-399b-4938-9071-b2ffa3fb7045",
    "parentInstanceId": null,
    "rootInstanceId": null,
    "processId": "deals",
    "processName": "SubmitDeal",
    "startDate": 1565020069015,
    "endDate": null,
    "state": 1,
    "nodeInstances": [
      {
        "id": "a8fe24c4-27a5-4869-85df-16e9f170f2c4",
        "nodeId": "2",
        "nodeDefinitionId": "CallActivity_1",
        "nodeName": "Call a deal",
        "nodeType": "SubProcessNode",
        "triggerTime": 1565020069015,
        "leaveTime": null
      },
      {
        "id": "7a3bf1b1-b167-4928-969d-20bddf16c87a",
        "nodeId": "1",
        "nodeDefinitionId": "StartEvent_1",
        "nodeName": "StartProcess",
        "nodeType": "StartNode",
        "triggerTime": 1565020069015,
        "leaveTime": 1565020069015
      }
    ],
    "variables": {
      "name": "my fancy deal",
      "traveller": {
        "firstName": "John",
        "lastName": "Doe",
        "email": "jon.doe@example.com",
        "nationality": "American",
        "address": {
          "street": "main street",
          "city": "Boston",
          "zipCode": "10005",
          "country": "US"
        }
      }
    }
  },
  "kogitoprocinstanceid": "c1aced49-399b-4938-9071-b2ffa3fb7045",
  "kogitoparentprociid": null,
  "kogitorootprociid": null,
  "kogitoprocid": "deals",
  "kogitoprocist": "1"
}

The event is in CloudEvents format so that it can be consumed efficiently by other entities.

The event data also includes the following extensions to enable event routing based on the event metadata without requiring the body of the event:

  • kogitoprocinstanceid

  • kogitoparentprociid

  • kogitorootprociid

  • kogitoprocid

  • kogitoprocist

7.3.2. User task instance events

If an executed request (unit of work) in a process instance interacts with a user task, an event is generated for that user task and contains information for the task instance, such as the following information:

  • Task metadata, such as the task description, priority, start and complete dates, and other identifying information

  • Task input and output data

  • Task assignments, such as the task owner, potential users and groups, business administrator and business administrator groups, or excluded users

  • Task reference name that should be used to interact with the task using the Kogito service endpoints

The following event is an example user task instance event generated after the relevant request was executed successfully:

Example user task instance event
{
  "data": {
    "adminGroups": [],
    "adminUsers": [],
    "excludedUsers": [],
    "id": "4d899471-19dd-485d-b7f4-b313185d430d",
    "inputs": {
      "Locale": "en-UK",
      "trip": {
        "begin": "2019-09-22T22:00:00Z[UTC]",
        "city": "Boston",
        "country": "US",
        "end": "2019-09-26T22:00:00Z[UTC]",
        "visaRequired": true
      },
      "TaskName": "VisaApplication",
      "NodeName": "Apply for visa",
      "Priority": "1",
      "Skippable": "true",
      "traveller": {
        "address": {
          "city": "Krakow",
          "country": "Poland",
          "street": "Polna",
          "zipCode": "12345"
        },
        "email": "jan.kowalski@email.com",
        "firstName": "Jan",
        "lastName": "Kowalski",
        "nationality": "Polish"
      }
    },
    "outputs": {},
    "potentialGroups": [],
    "potentialUsers": [],
    "processId": "travels",
    "processInstanceId": "63c297cb-f5ac-4e20-8254-02f37bd72b80",
    "referenceName": "VisaApplication",
    "startDate": "2019-09-16T15:22:26.658Z[UTC]",
    "state": "Ready",
    "taskName": "Apply for visa",
    "taskPriority": "1"
  },
  "id": "9c340cfa-c9b6-46f2-a048-e1114b077a7f",
  "kogitoprocid": "travels",
  "kogitoprocinstanceid": "63c297cb-f5ac-4e20-8254-02f37bd72b80",
  "kogitousertaskiid": "4d899471-19dd-485d-b7f4-b313185d430d",
  "kogitousertaskist": "Ready",
  "source": "http://localhost:8080/travels",
  "specversion": "0.3",
  "time": "2019-09-16T17:22:26.662592+02:00[Europe/Berlin]",
  "type": "UserTaskInstanceEvent"
}

The event data also includes the following extensions to enable event routing based on the event metadata without requiring the body of the event:

  • kogitousertaskiid

  • kogitousertaskist

  • kogitoprocinstanceid

  • kogitoprocid

7.3.3. Event publishing

Kogito generates events only when at least one publisher is configured. A Kogito service environment can have many event publishers that publish these events into different channels.

By default, Kogito includes the following message-based event publishers, depending on your application framework:

  • For Quarkus: Reactive Messaging for sending events using Apache Kafka, Apache Camel, Advanced Message Queuing Protocol (AMQP), or MQ Telemetry Transport (MQTT)

  • For Spring Boot: Spring for Apache Kafka for sending events using Kafka

To enable or disable event publishing, you can adjust the following properties in the src/main/resources/application.properties file in your Kogito project:

  • kogito.events.processinstances.enabled: Enables or disables publishing process instance events (default: true)

  • kogito.events.usertasks.enabled: Enables or disables publishing user task instance events (default: true)

  • kogito.events.variables.enabled: Enables or disables publishing process instances variables events (default: true)

To develop additional event publishers, you can implement the org.kie.kogito.event.EventPublisher implementation and include the required annotations for JavaBeans discovery.

7.4. Enabling Kafka messaging for Kogito services

Kogito supports the MicroProfile Reactive Messaging specification for messaging in your services. You can enable messaging to configure message events as either input or output of business process execution.

For example, the following handle-travelers.bpmn2 process uses messaging start and end events to communicate with travelers:

Image of message-based process
Figure 293. Example process with messaging start and end events

In this example, the message start and end events require the following information:

  • Message name that maps to the channel that delivers messages

  • Message payload that maps to a process instance variable

Image of message start event data
Figure 294. Example message configuration for start event
Image of message end event data
Figure 295. Example message configuration for end event

For this procedure, the messaging is based on Apache Kafka as the event publisher, so you must have Kafka installed in order to enable messaging. Your marshalling configuration depends on the messaging solution that you use.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
</dependency>
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-cloudevents</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.springframework.kafka</groupId>
  <artifactId>spring-kafka</artifactId>
</dependency>
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-cloudevents</artifactId>
</dependency>
<dependency>
  <groupId>com.fasterxml.jackson.core</groupId>
  <artifactId>jackson-databind</artifactId>
</dependency>

  2. Configure the incoming and outgoing messaging channels and properties:

    • On Quarkus: Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure the incoming and outgoing messages and channels:

      Configure incoming and outgoing messages and channels
      mp.messaging.incoming.kogito_incoming_stream.connector=smallrye-kafka
mp.messaging.incoming.kogito_incoming_stream.topic=travellers
mp.messaging.incoming.kogito_incoming_stream.value.deserializer=org.apache.kafka.common.serialization.StringDeserializer
mp.messaging.outgoing.kogito_outgoing_stream.connector=smallrye-kafka
mp.messaging.outgoing.kogito_outgoing_stream.topic=processedtravellers
mp.messaging.outgoing.kogito_outgoing_stream.value.serializer=org.apache.kafka.common.serialization.StringSerializer

      Replace travellers with the name of the message start event. Replace processedtravellers with the name of the message end event.

      To prevent execution errors due to long wait times with messaging, you can also use the following property to disable waiting for message completion:

      Disable message wait time
      mp.messaging.outgoing.[channel-name].waitForWriteCompletion=false

    • On Spring Boot: Add the following property to the src/main/resources/application.properties file in your Kogito project to configure the messaging channel:

      Configure messaging channel
      kafka.bootstrapAddress=localhost:9092
kogito.addon.cloudevents.kafka.kogito_incoming_stream=travellers
kogito.addon.cloudevents.kafka.kogito_outgoing_stream=processedtravellers
As an alternative to enabling Kafka messaging explicitly in Kogito services, you can use the Kogito Operator to install the Kafka infrastructure and enable messaging for the service during deployment on OpenShift. For more information about enabling Kafka messaging with the Kogito Operator, see Deploying Kogito services on OpenShift.

For example Kogito services with Kafka messaging, see the following example applications in GitHub:

7.4.1. Applying outbox pattern in Kogito events using MongoDB and Debezium

To avoid the data inconsistencies in process services, the Kogito services must update the process data and publish events within a unit of work entirely, but not partially. However, Apache Kafka does not support distributed transactions. In order to resolve this problem, you can apply the outbox pattern with Kogito service.

When you store the data of a process service in a unit of work, you can also add the records that represent the events to be sent into the outbox tables in the same transaction. After that, a separate message relay process publishes the events that are added into the outbox tables to Kafka broker asynchronously. For more information about the outbox pattern, see Debezium blog.

Debezium is useful for message relay, which comes with Change Data Capture connectors for various databases, such as MongoDB. It captures new entries in MongoDB collections and stream those entries to Apache Kafka.

Kogito enables you to store the data of a process and events of the same unit of work in a single transaction using MongoDB.

For this procedure, a Kogito service is configured to store the process data and events in a single transaction using MongoDB. Also, a Debezium MongoDB connector is configured and started to stream the events from MongoDB collections to Apache Kafka topics.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project to store Kogito events to MongoDB:

    On Quarkus
    <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-addons-quarkus-events-mongodb</artifactId>
</dependency>
    On Spring Boot
    <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-addons-springboot-events-mongodb</artifactId>
</dependency>

  2. Configure the MongoDB database and collections for Kogito services to store the Kogito events to the MongoDB collections:

    Add properties to the src/main/resources/application.properties file in your Kogito project to configure the MongoDB database and collections as shown in the following example:

    Properties to configure MongoDB database
    kogito.events.database=kogito
kogito.events.processinstances.collection=kogitoprocessinstancesevents
kogito.events.usertasks.collection=kogitousertaskinstancesevents
kogito.events.variables.collection=kogitovariablesevents

  3. Enable MongoDB persistence for Kogito services to use MongoDB as a runtime persistence. For more information, see Enabling MongoDB persistence for Kogito services.

  4. Build your Kogito project and start the Kogito service.

    Ensure that you enable MongoDB transaction by adding the following property to the src/main/resources/application.properties file in your Kogito project:

    Property to enable MongoDB transaction
    kogito.persistence.transaction.enabled=true

    When you add the previous property to your Kogito project, the process data and events that are generated in the same unit of work, are stored to MongoDB in the same transaction. This procedure avoids potential inconsistencies.

  5. Start Debezium MongoDB connector to stream Kogito events from MongoDB collections to Kafka topics:

    Follow the Debezium MongoDB connector deployment instructions to install the Debezium MongoDB connector, configure the connector, and start the connector.

    Use the following example configuration to configure the Debezium MongoDB connector, which captures the events from MongoDB collections and stream the events to Kafka topics:

    Example configuration for Debezium MongoDB connector
    {
  "name": "kogito-connector",
  "config": {
    "connector.class" : "io.debezium.connector.mongodb.MongoDbConnector",
    "tasks.max" : "1",
    "mongodb.hosts" : "rs0/mongodb:27017",
    "mongodb.name" : "dbserver1",
    "mongodb.user" : "debezium",
    "mongodb.password" : "dbz",
    "database.include" : "kogito",
    "database.history.kafka.bootstrap.servers" : "kafka:9092",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": "false",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "false",
    "collection.include.list": "kogito.kogitoprocessinstancesevents,kogito.kogitousertaskinstancesevents,kogito.kogitovariablesevents",
    "transforms": "unwrap,reroute",
    "transforms.unwrap.type": "io.debezium.connector.mongodb.transforms.ExtractNewDocumentState",
    "transforms.unwrap.array.encoding": "array",
    "transforms.unwrap.drop.tombstones": "false",
    "transforms.unwrap.delete.handling.mode": "drop",
    "transforms.unwrap.operation.header": "false",
    "transforms.reroute.type": "io.debezium.transforms.ByLogicalTableRouter",
    "transforms.reroute.topic.regex": "(.*)kogito(.*)events(.*)",
    "transforms.reroute.topic.replacement": "kogito-$2-events",
    "transforms.reroute.key.enforce.uniqueness": "false",
    "skipped.operations": "u,d",
    "tombstones.on.delete": "false"
  }
}

    In the previous example configuration, replace the server host, port, replica set, database, and collections information according to your MongoDB, Kafka installation, and Kogito project configuration.

You can also use the following example applications for consistency in a Kogito service using MongoDB and Debezium:

7.4.2. Registering event listeners

You can register custom event listeners to detect and publish events that are not published by Kogito by default. Your custom event listener configuration must implement the relevant implementation for either processes or rules.

Procedure

  1. Create an event listener configuration class for either process or rule events, such as a ProcessEventListenerConfig class or a RuleEventListenerConfig class.

  2. In your event listener configuration class, extend the default implementation of the configuration class as part of your listener definition:

    • Implementation for process events: org.kie.kogito.process.impl.DefaultProcessEventListenerConfig

    • Implementation for rule events: org.drools.core.config.DefaultRuleEventListenerConfig

    Example process event listener with extended default implementation
    @ApplicationScoped
public class ProcessEventListenerConfig extends DefaultProcessEventListenerConfig {

    public ProcessEventListenerConfig() {
        super(new CustomProcessEventListener());
    }
}
    Example rule event listener with extended default implementation
    @ApplicationScoped
public class RuleEventListenerConfig extends DefaultRuleEventListenerConfig {

    public RuleEventListenerConfig() {
        super(new CustomRuleEventListener());
    }
}
    These configuration classes must be injectable, so ensure that you properly annotate the classes, such as with the annotations @ApplicationScoped or @Component, so that they can be found and registered.

    Alternatively, you can implement the relevant event listener interface instead of extending the default implementation, but this approach excludes other listeners provided by Kogito.

    • Interface for process events: org.kie.kogito.process.ProcessEventListenerConfig

    • Interface for rule events: org.kie.kogito.rules.RuleEventListenerConfig

  3. After the event listener is configured, package the listener configuration class in the src/main/java folder of the relevant application or add it as dependency in the pom.xml file of the application to make the listener available.

7.5. Metrics monitoring in Kogito services

Kogito supports metrics monitoring modules powered by Micrometer, so you can export your metrics to any monitoring system supported by Micrometer. The primary monitoring module in Kogito is based on Prometheus, which enables you to collect and store metrics related to your Kogito assets, and then visualize those metrics through a configured data-graphing tool such as Grafana.

As an alternative to Prometheus, you can also use Elasticsearch metrics monitoring with your Kogito services, or you can subscribe to any Micrometer registry using an API exposed by the Kogito monitoring library.

7.5.1. Enabling Prometheus metrics monitoring in Kogito

Prometheus is an open source systems monitoring toolkit that you can use with Kogito to collect and store metrics related to the execution of Business Process Model and Notation (BPMN) process models, business rules, and Decision Model and Notation (DMN) decision models. You can access the stored metrics through a REST API call to a configured application endpoint, through the Prometheus expression browser, or using a data-graphing tool such as Grafana.

Prerequisites
Procedure

  1. In your Kogito project, depending on the framework you are using, add one of the following dependencies to the pom.xml file to enable the Prometheus add-on:

    Add dependency for Prometheus Quarkus add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-monitoring-prometheus</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    Add dependency for Prometheus Springboot add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-monitoring-prometheus</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

    By default, all stored metrics are exported to the configured monitoring module. If you want to disable certain metrics from being exported, you can set any of the following properties in the application.properties file of your Kogito project:

    Enable or disable specific metrics from being exported
    kogito.monitoring.rule.useDefault=false
kogito.monitoring.process.useDefault=false
kogito.monitoring.interceptor.useDefault=false

  2. In the prometheus.yaml file of your Prometheus distribution, add the following settings in the scrape_configs section to configure Prometheus to scrape metrics from your Kogito service:

    Example scrape configurations in prometheus.yaml file
    scrape_configs:
  job_name: 'kogito-metrics'
metrics_path: /q/metrics
static_configs:
  - targets: ["localhost:8080"]
    For Spring Boot application, the metrics path is /actuator/prometheus

    Replace the values according to your Kogito service settings.

  3. In a command terminal, navigate to your Kogito project and run the project using your preferred run mode, such as development mode:

    On Quarkus
    mvn clean compile quarkus:dev
    On Spring Boot
    mvn clean compile spring-boot:run

    After you start your Kogito service, Prometheus begins collecting metrics and Kogito publishes the metrics to the configured REST API endpoint.

  4. To verify the metrics configuration, use a REST client or curl utility to send a GET request to the configured endpoint as follows:

    Example curl command to return Prometheus metrics from a Quarkus application
    curl -X GET http://localhost:8080/q/metrics
    Example curl command to return Prometheus metrics from a Spring Boot application
    curl -X GET http://localhost:8080/actuator/prometheus
    Example response
    # HELP kogito_process_instance_completed_total Completed Process Instances
# TYPE kogito_process_instance_completed_total counter
# HELP kogito_process_instance_started_total Started Process Instances
# TYPE kogito_process_instance_started_total counter
kogito_process_instance_started_total{app_id="acme-travels",process_id="travels",} 1.0
# HELP kogito_work_item_duration_seconds Work Items Duration
# TYPE kogito_work_item_duration_seconds summary
# HELP drl_match_fired_nanosecond Drools Firing Time
# TYPE drl_match_fired_nanosecond histogram
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="1000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="2000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="3000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="4000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="5000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="6000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="7000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="8000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="9000000.0",} 1.0
drl_match_fired_nanosecond_bucket{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",le="+Inf",} 1.0
drl_match_fired_nanosecond_count{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",} 1.0
drl_match_fired_nanosecond_sum{identifier="acme-travels",rule_name="Brazilian citizens require visa to Australia",} 789941.0
# HELP kogito_process_instance_sla_violated_total Process Instances SLA Violated
# TYPE kogito_process_instance_sla_violated_total counter
# HELP kogito_process_instance_duration_seconds Process Instances Duration
# TYPE kogito_process_instance_duration_seconds summary
# HELP kogito_process_instance_running_total Running Process Instances
# TYPE kogito_process_instance_running_total gauge
kogito_process_instance_running_total{app_id="acme-travels",process_id="travels",} 1.0

    If the metrics are not available at the defined endpoint, review and verify the Kogito and Prometheus configurations described in this section.

    You can also interact with your collected metrics and application targets in the Prometheus expression browser at http://HOST:PORT/graph and http://HOST:PORT/targets, or integrate your Prometheus data source with a data-graphing tool such as Grafana:

    Image of targets in Prometheus expression browser
    Figure 296. Prometheus expression browser with Kogito service targets
    Image of application metrics in Grafana

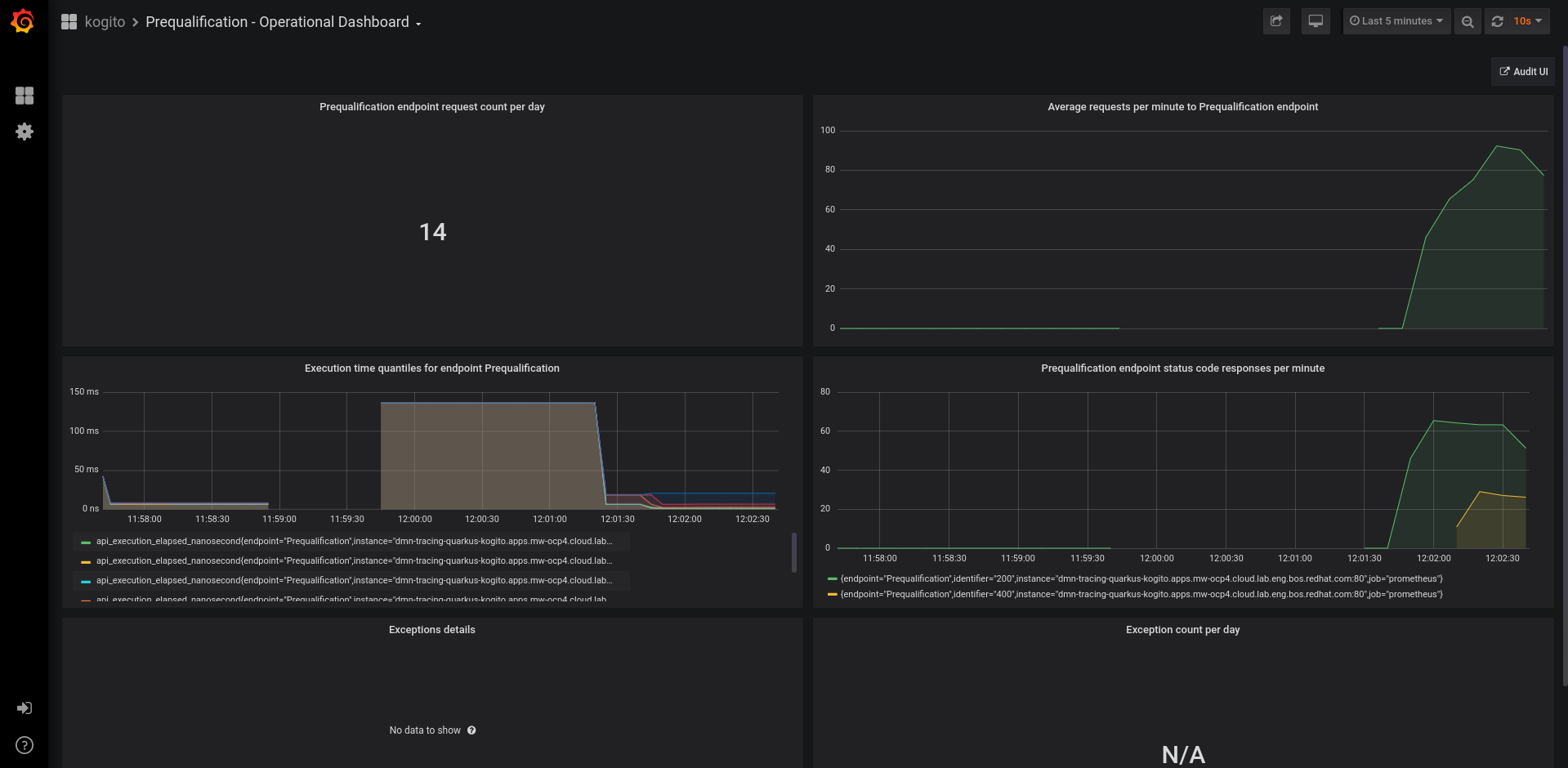

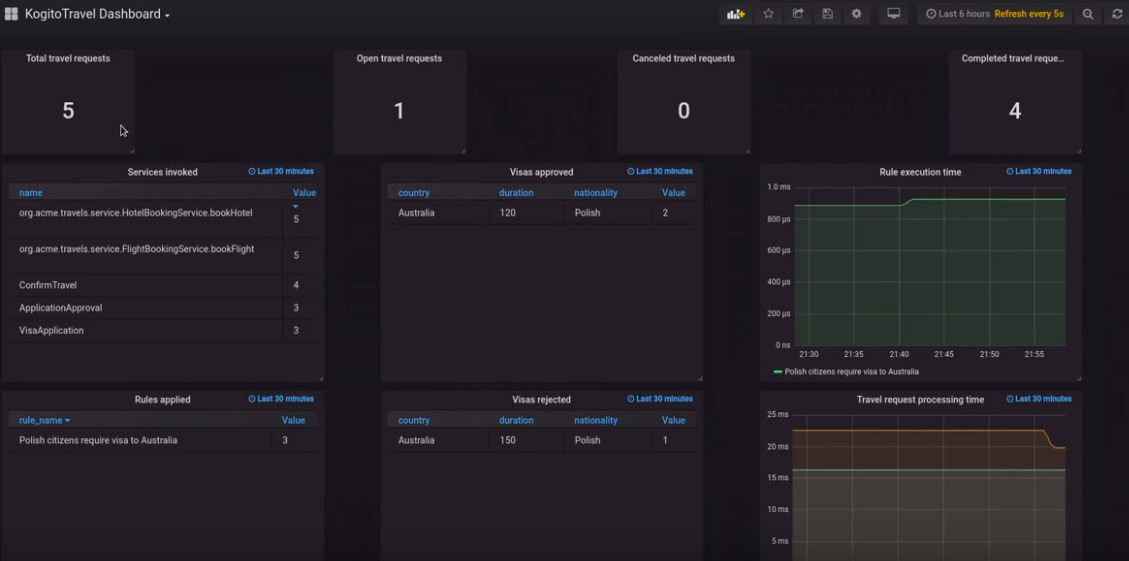

    Figure 297. Grafana dashboard with Kogito service metrics
Additional resources
7.5.1.1. Grafana dashboards for default metrics in Kogito

If any of the Prometheus monitoring modules are imported as dependencies in the pom.xml file of your Kogito project, some Grafana dashboards that use the default metrics are generated under the folder target/classes/META-INF/resources/monitoring/dashboards/ every time you compile your Kogito service.

Two types of dashboards are exported depending on the decision model used on the endpoints:

  • Operational dashboard: This dashboard is generated for DMN and DRL endpoints and contains the following metrics:

    • Total number of requests on the endpoint

    • Average number of requests per minute on the endpoint

    • Quantiles on the elapsed time to evaluate the requests

    • Exception details

      Generated operational dashboard
      Figure 298. Generated operational dashboard example

  • Domain-specific dashboard: Currently this dashboard is exported only for DMN endpoints. The domain-specific dashboard contains a graph for each type of decision in the DMN model. Only the built-in types number, string, and boolean are currently supported.

    • If the output of the decision is a number type, the graph contains the quantiles for that metric on a sliding window of 3 minutes.

    • If the output is a boolean or a string type, the graph contains the number of occurrences for each output on a 10-minute average.

      Generated domain specific dashboard
      Figure 299. Generated domain-specific dashboard example
Generated dashboards for BPMN resources are currently not supported.
7.5.1.2. Custom Grafana dashboards in Kogito

You can add custom dashboards that are defined as json files in your project. For format specification and more information, see Official documentation page.

To add custom dashboards in your Kogito project, you must follow the following conventions:

  • Dashboard files must be stored in /src/main/resources/META-INF/dashboards directory

  • dashboard file names must start with domain-dashoboard (for domain specific dashboards) or operational-dashboard (for operational dashboards)

  • Dashboard file names must end with .json

  • Dashboard file names must not conflict with the auto-generated ones

  • The title attribute of custom dashboards must not conflict with the auto-generated attributes

Custom dashboards are available in the Grafana panel along with the auto-generated dashboards.

7.5.1.3. Disabling Grafana dashboards generation in Kogito

You can disable the generation of default dashboards in Prometheus metrics monitoring using the following properties:

Properties to disable default dashboards
kogito.grafana.disabled.operational.dashboards
kogito.grafana.disabled.domain.dashboards
Prerequisites
Procedure

  1. To disable Grafana dashboard, add a comma-separated list of dashboard identifiers to the following properties:

    Properties to disable Grafana dashboard
    kogito.grafana.disabled.operational.dashboards
kogito.grafana.disabled.domain.dashboards

    The kogito.grafana.disabled.operational.dashboards property disables the generation of operational dashboards and kogito.grafana.disabled.domain.dashboards property disables the generation of domain dashboards.

    For example, a project containing the following resources uses the default configuration and generates the default dashboards:

    Example project resources
    Hello.drl
LoanEligibility.dmn
Traffic Violation.dmn

    The following are the default generated dashboards in Kogito:

    Table 122. Example default generated dashboards for a project
    Dashboard type Dashboard name

    Operational

    Hello

    LoanEligibility

    Traffic Violation

    Domain

    Hello

    LoanEligibility

    Traffic Violation

    If you use the following configuration in the application.properties file, the generation of Hello and Traffic Violation operational dashboards, and LoanEligibility domain dashboard is avoided.

    Configuration for disabling specific dashboards
    kogito.grafana.disabled.operational.dashboards=Hello,Traffic Violation
kogito.grafana.disabled.domain.dashboards=LoanEligibility
    Table 123. Customized generation of dashboards in Kogito
    Dashboard type Dashboard name

    Operational

    LoanEligibility

    Domain

    Hello

    Traffic Violation

    The spaces between the dashboard identifiers are eliminated as follows:

    Example dashboard identifiers with spaces
    Hello, Traffic Violation, LoanEligibility
    Example dashboard identifiers without spaces
    "Hello"
"Traffic Violation"
"LoanEligibility"

    However, the spaces within a dashboard identifier are maintained as follows:

    Example dashboard identifiers with spaces
    Traffic Violation, Traffic    Violation, Tra ffic Violation
    Example dashboard identifiers without spaces
    "Traffic Violation"
"Traffic    Violation"
"Tra ffic Violation"

7.5.2. Enabling Elasticsearch metrics monitoring in Kogito

Elasticsearch is a distributed, open source search and analytics engine that you can use with Kogito to collect and store metrics as an alternative to Prometheus.

Prerequisites
Procedure

  1. In your Kogito project, depending on the framework you are using, add one of the following dependencies to the pom.xml file to enable the Elastic add-on:

    Add dependency for Elastic Quarkus add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-monitoring-elastic</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    Add dependency for Elastic Springboot add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-monitoring-elastic</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

    By default, all stored metrics are exported to the configured monitoring module. If you want to disable certain metrics from being exported, you can set any of the following properties in the application.properties file of your Kogito project:

    Enable or disable specific metrics from being exported
    kogito.monitoring.rule.useDefault=false
kogito.monitoring.process.useDefault=false
kogito.monitoring.interceptor.useDefault=false

  2. In the application.properties file of your Kogito project, edit the following properties as needed to configure the Elastic add-on:

    Table 124. Application properties for Elastic monitoring add-on
    Property Description

    kogito.addon.monitoring.elastic.host

    Specifies the host to send metrics to.

    Default value: http://localhost:9200

    kogito.addon.monitoring.elastic.index

    Specifies the index to store metrics in.

    Default value: micrometer-metrics

    kogito.addon.monitoring.elastic.step

    Sets the interval at which metrics are sent to Elastic.

    Default value: Every 1 minute

    kogito.addon.monitoring.elastic.indexDateFormat

    Specifies the index date format used for rolling indices. This is appended to the index name, separated by the indexDateSeparator.

    Default value: yyyy-MM

    kogito.addon.monitoring.elastic.timestampFieldName

    Defines the name of the timestamp field.

    Default value: @timestamp

    kogito.addon.monitoring.elastic.autoCreateIndex

    Determines whether to create the index automatically if it does not exist.

    Default value: true

    kogito.addon.monitoring.elastic.userName

    Specifies the Basic Authentication user name.

    kogito.addon.monitoring.elastic.password

    Specifies the Basic Authentication password.

    kogito.addon.monitoring.elastic.pipeline

    Specifies the ingest pipeline name.

    kogito.addon.monitoring.elastic.indexDateSeparator

    Specifies the separator between the index name and the date part.

    Default value: - (hyphen)

    kogito.addon.monitoring.elastic.documentType

    Specifies the type to be used when writing metrics documents to an index. This configuration is only used with Elasticsearch versions 6 and earlier.

    Default value: doc

7.5.3. Enabling metrics monitoring with a custom Micrometer registry in Kogito

As an alternative to using the metrics monitoring modules provided in Kogito, you can subscribe to any Micrometer registry using an API exposed by the Kogito monitoring library. For the complete list of monitoring systems supported by Micrometer, see the Micrometer Documentation.

As an example, this procedure demonstrates how you can export metrics to the Micrometer Atlas metrics database.

Procedure

  1. In your Kogito project, depending on the framework you are using, add one of the following dependencies to the pom.xml file to enable the monitoring core add-on:

    Add dependency for monitoring core Quarkus add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-monitoring-core</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    Add dependency for monitoring core Springboot add-on
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-monitoring-core</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

    By default, all stored metrics are exported to the configured monitoring module. If you want to disable certain metrics from being exported, you can set any of the following properties in the application.properties file of your Kogito project:

    Enable or disable specific metrics from being exported
    kogito.monitoring.rule.useDefault=false
kogito.monitoring.process.useDefault=false
kogito.monitoring.interceptor.useDefault=false

    As an alternative, if you do not want to use the default listeners and the default metrics, you can import the core common module directly:

    Add dependency for monitoring core common module
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-monitoring-core</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

    To write custom metrics, you can create custom event listeners and then register your Micrometer Meter object to the global CompositeMeterRegistry using the method getDefaultMeterRegistry of the class io.micrometer.core.instrument.Metrics.globalRegistry. For more information about registering custom event listeners in Kogito, see Registering event listeners.

  2. Depending on the registry that you want to use, add the relevant dependency to the pom.xml file of your Kogito project. For this example, the Atlas registry requires the following dependency:

    Add dependency for Atlas registry
    <dependency>
  <groupId>io.micrometer</groupId>
  <artifactId>micrometer-registry-atlas</artifactId>
  <version>MICROMETER_VERSION</version>
</dependency>

  3. Subscribe to your registry using the method add of the globalRegistry of io.micrometer.core.instrument.Metrics. For example, on Quarkus, create the following AtlasProvider.java class in your Kogito project:

    Example Java class on Quarkus to subscribe to a custom Micrometer registry for Kogito core monitoring
    import java.time.Duration;

import javax.annotation.PostConstruct;
import javax.inject.Singleton;

import com.netflix.spectator.atlas.AtlasConfig;
import io.micrometer.atlas.AtlasMeterRegistry;
import io.micrometer.core.instrument.Clock;
import io.micrometer.core.instrument.Metrics
import io.quarkus.runtime.Startup;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

@Singleton
@Startup
public class AtlasProvider {

    private AtlasMeterRegistry registry;
    private static final Logger logger = LoggerFactory.getLogger(AtlasProvider.class);

    private AtlasProvider() {
    }

    @PostConstruct
    public void setUp() {
        AtlasConfig atlasConfig = new AtlasConfig() {
            @Override
            public Duration step() {
                return Duration.ofSeconds(10);
            }

            @Override
            public String get(String k) {
                return null; // accept the rest of the defaults
            }
        };
        registry = new AtlasMeterRegistry(atlasConfig, Clock.SYSTEM);
        Metrics.globalRegistry.add(registry);
        registry.start();
        logger.info("Atlas registry added to monitoring addon and started.");
    }
}

7.6. Persistence in Kogito services

Kogito supports runtime persistence for preserving process data in your services, such as active process nodes and process instance variables, across application restarts.

For Kogito persistence, you can use one of the following supported persistence stores:

  • Infinispan: (Default) Persists data using configured key-value storage definitions

  • MongoDB: Persists data using a document-based format

  • Kafka Streams: (Quarkus only) Persists data in Kafka clusters

  • JDBC: Persists data to different relational databases such as PostgreSQL and Oracle using JDBC driver.

  • File system: Persists data to files in the file system.

Runtime persistence is intended primarily for storing data that is required to resume workflow execution for a particular process instance. Persistence applies to both public and private processes that are not yet complete. Once a process completes, persistence is no longer applied. This persistence behavior means that only the information that is required to resume execution is persisted.

Node instances that are currently active or in wait states are persisted. When a process instance finishes execution but has not reached the end state (completed or aborted), the node instance data is persisted.

Persistence setup scripts for Kogito runtimes and Kogito runtimes supporting services are included in the kogito-ddl-1.43.0.Final-db-scripts.zip artifact.

7.6.1. Persistence workflow in Kogito

In Kogito, a process instance is persisted when the process reaches a wait state, where the process does not execute anymore but has not reached the end state (completed or aborted).

For example, when a process reaches a user task or a catching signal event, the process instance pauses and the Kogito process engine takes a complete snapshot of the process, including the following data:

  • Process instance metadata, such as process instance ID, process definition ID, state, description, and start date

  • Process instance variables

  • Active node instances, including local variables

Process instance metadata is persisted with a predefined protobuf (protocol buffers) schema that is aware of the metadata and supports node instances that are in wait states.

For straight-through process instances that do not trigger any activity, persistence is not invoked and no data is stored.

Each persistence provider stores data according to their underlying mechanism. For instance, when using Infinispan, each process definition has its own cache for storing runtime information. The cache is based on the process definition ID and is named in the Infinispan Server. MongoDB creates a separated document collection per process definition whereas JDBC provider will use a single table for all processes but include the process definition ID in order to isolate operations. This setup facilitates maintenance of process instance data and reduces concurrency on the cache instances.

7.6.2. Persisted process instance variables and data types

Persisted process variables, local variables, and other process data are stored with the process instance. The stored data is marshalled into bytes format so it can be transferred and persisted into one of the supported persistence providers. The marshalling and unmarshalling is implemented based on protobuf (protocol buffers).

Kogito will persist all process instance variables defined in the process model once the execution reaches a wait state. Once the wait state is reached, marshalling will take place in order to transform all process variables into bytes, which can be accomplished using one of the following methods:

7.6.2.1. Persistence using Protobuf marshalling

Kogito generates both the protobuf schema (as PROTO files) and marshallers for persisting variables. The Kogito marshallers are based on the ProtoStream subproject of Infinispan.

When you build your Kogito project, Kogito scans all process definitions and extracts information about the data within the business assets. Based on the unique data types (regardless of how many processes reference a specified type), PROTO files are generated that build a complete schema for the application. These files are stored inside the /META-INF/resources/persistence/protobuf/ folder of the generated JAR file (e.g. quarkus-apps/quarkus/generated-bytecode.jar) and also in the target/classes/META-INF/resources/persistence/protobuf/ folder of your project after successful build.

Example PROTO file generated by Kogito to persist process data
syntax = "proto2";
package org.kie.kogito.examples.demo.orders;
import "kogito-index.proto";
import "kogito-types.proto";
option kogito_model = "Orders";
option kogito_id = "demo.orders";

/* @Indexed */
message Order {
	option java_package = "org.kie.kogito.examples.demo.orders";
	/* @Field(store = Store.YES) @SortableField */
	optional string orderNumber = 1;
	/* @Field(store = Store.YES) @SortableField */
	optional bool shipped = 2;
	/* @Field(store = Store.YES) @SortableField */
	optional double total = 3;
}
/* @Indexed */
message Orders {
	option java_package = "org.kie.kogito.examples.demo.orders";
	/* @Field(store = Store.YES) @SortableField
 @VariableInfo(tags="") */
	optional string approver = 1;
	/* @Field(store = Store.YES) @SortableField */
	optional string id = 2;
	/* @Field(store = Store.YES) @SortableField
 @VariableInfo(tags="") */
	optional Order order = 3;
	/* @Field(store = Store.YES) @SortableField */
	optional org.kie.kogito.index.model.KogitoMetadata metadata = 4;
}
Each PROTO file imports kogito-types.proto and kogito-index.proto files that automatically define the base types managed by Kogito.

Based on the PROTO files, marshallers are also generated and configured in the application so that whenever a particular data type is used in a process instance, the data is successfully marshalled and unmarshalled.

7.6.2.2. Persistence using Java serialization

To enable Java serialization, you should make sure all data types can be serialized. This means that classes should implement java.io.Serializable as well as have an empty constructor. It is also necessary to set kogito.persistence.proto.marshaller=false in your application.properties file.

In case you would like to use Quarkus native compilation, it is also necessary to follow the instructions so your data types can be serialized in native mode. For more details, visit (Quarkus registering for reflection)

The following annotation is usually required for Quarkus native mode:

import io.quarkus.runtime.annotations.RegisterForReflection;

@RegisterForReflection(serialization = true)
public class MyPojo implements Serializable {
}

7.6.3. Supported data types for persisted variables

For optimal persistence with process data and variables, use Java objects as data types that represent your process variables. If you use other formats for data types, your data might not be persisted or your Kogito project might fail to compile.

Kogito currently supports the following data types for process variables:

Table 125. Supported data types
Data type Description

java.lang.String

Basic text type

java.lang.Integer

Basic number type

java.lang.Long

Extended size number type

java.lang.Float

Basic floating point number type

java.lang.Double

Extended size floating point number type

java.util.Date

Basic date type

java.lang.Boolean

Basic boolean type

java.io.Serializable

Custom data types and other Java types such as Collections and Enums

7.6.4. Enabling optimistic locking with persistence

Kogito runtimes need to safely handle concurrent requests to shared instances such as process instances or tasks. Kogito handles these requests using persistence enabled optimistic locking for concurrency control with the version on record (using the version field in the database or the metadata version in the case of Infinispan). This feature is optional and can be activated only with persistence by adding the following properties to the src/main/resources/application.properties file in your Kogito project,

kogito.persistence.optimistic.lock=true

Below are the persistence providers that support optimistic locking

  • Infinispan

  • MongoDB

  • JDBC

7.6.5. Enabling Infinispan persistence for Kogito services

You can enable persistence for your Kogito services using Infinispan to persist data, such as active process nodes and process instance variables, so that the data is preserved across application restarts. For Kogito persistence with Infinispan, you must have a an Infinispan Server installed and running in order to enable persistence.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-infinispan</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-infinispan</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.infinispan</groupId>
  <artifactId>infinispan-spring-boot-starter-remote</artifactId>
  <version>INFINISPAN_SPRING_BOOT_VERSION</version>
</dependency>

  2. Add following property to the src/main/resources/application.properties file in your Kogito project to configure the connection to the Infinispan Server.

    Replace the server host and port information according to your Infinispan Server installation.

    On Quarkus
    quarkus.infinispan-client.server-list=localhost:11222
    On Spring Boot
    infinispan.remote.server-list=127.0.0.1:11222
As an alternative to enabling Infinispan persistence explicitly in Kogito services, you can use the Kogito Operator to install the Infinispan infrastructure and enable persistence for the service during deployment on OpenShift. For more information about enabling Infinispan persistence with the Kogito Operator, see Deploying Kogito services on OpenShift.

For example Kogito services with Infinispan persistence, see the following example applications in GitHub:

7.6.6. Enabling MongoDB persistence for Kogito services

As an alternative to using Infinispan for Kogito runtime persistence, you can enable persistence for your Kogito services using MongoDB. MongoDB is a general purpose, document-based database that enables you to store data in JSON-like documents instead of key-value storage definitions in Infinispan-based persistence storage. For Kogito persistence with MongoDB, you must have a MongoDB Server installed and running in order to enable persistence.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-mongodb</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-mongodb</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-data-mongodb</artifactId>
  <version>MONGODB_SPRING_BOOT_VERSION</version>
</dependency>

  2. Add following properties to the src/main/resources/application.properties file in your Kogito project to configure MongoDB persistence and to connect to the relevant MongoDB Server and database.

    Replace the server host, port, and database information according to your MongoDB Server installation. By default, the database is named kogito.

    On Quarkus
    kogito.persistence.type=mongodb
quarkus.mongodb.connection-string = mongodb://localhost:27017
quarkus.mongodb.database=kogito_db
    On Spring Boot
    kogito.persistence.type=mongodb
spring.data.mongodb.uri=mongodb://localhost:27017
spring.data.mongodb.database=kogito_db

    Optionally, enable MongoDB transactions by adding the following property:

    kogito.persistence.transaction.enabled=true

For example Kogito services with MongoDB persistence, see the following example applications in GitHub:

7.6.7. Enabling Kafka Streams persistence for Kogito services

For Quarkus-based Kogito services, as an alternative to using Infinispan or MongoDB for Kogito runtime persistence, you can enable persistence using Kafka Streams. Kafka Streams is a client library for building applications and microservices, where the input and output data are stored in Kafka topics. For Kogito persistence with Kafka Streams, you must have Kafka installed and running in order to enable persistence.

Kafka Streams persistence is supported for only Quarkus-based Kogito services.
Prerequisites
Procedure

  1. Add the following dependency to the pom.xml file of your Kogito project:

    Project dependency to enable Kafka Streams persistence (Quarkus only)
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-kafka</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure Kafka persistence and to connect to the relevant Kafka server.

    Replace the server host and port information according to your Kafka installation.

    Application properties to enable Kafka Streams persistence (Quarkus only)
    kogito.persistence.type=kafka
kafka.bootstrap.servers=localhost:9092

For an example Kogito service with Kafka persistence, see the following example application in GitHub:

7.6.8. Enabling JDBC persistence for Kogito services

As an alternative to using Infinispan or MongoDB for Kogito runtime persistence, you can enable persistence for your Kogito services using JDBC. JDBC allows Kogito to persist data using different relational databases. We recommend using PostgreSQL. The complete list of supported databases is dependent on the target runtime you use, for instance, Quarkus supports the following JDBC datasources.

Kogito provides two ways to manage the database schema, either via manually applying the provided DDL kogito-ddl-1.43.0.Final-db-scripts.zip, or via Flyway integration. The service does not create a schema by default.

Please check examples below on how to enable different databases using JDBC data sources.

7.6.8.1. Enabling PostgreSQL persistence using JDBC driver for Kogito services

You can enable PostgreSQL persistence for your Kogito services using JDBC driver.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-jdbc-postgresql</artifactId>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-agroal</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>org.postgresql</groupId>
  <artifactId>postgresql</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure PostgreSQL and to connect to the PostgreSQL server.

    Replace the server host, port, and database information according to your PostgreSQL Server installation. By default, the database is named kogito.

    On Quarkus
    kogito.persistence.type=jdbc
quarkus.datasource.username=kogito-user
quarkus.datasource.password=kogito-pass
quarkus.datasource.jdbc.url=jdbc:postgresql://localhost:5432/kogito
# Below properties are required to create database schema with Flyway at startup.
quarkus.flyway.migrate-at-start=true
quarkus.datasource.db-kind=postgresql
    On Spring Boot
    kogito.persistence.type=jdbc
spring.datasource.username=kogito-user
spring.datasource.password=kogito-pass
spring.datasource.url=jdbc:postgresql://localhost:5432/kogito
# Below properties are required to create database schema with Flyway at startup.
spring.flyway.enabled=true
spring.flyway.locations=classpath:db/{vendor}

For an example Kogito service with PostgreSQL persistence using JDBC driver, see the following example applications in GitHub:

7.6.8.2. Enabling Oracle persistence using JDBC driver for Kogito services

You can enable Oracle persistence for your Kogito services using JDBC driver.

Prerequisites
Procedure

  1. Add the following dependencies to the pom.xml file of your Kogito project:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-jdbc-oracle</artifactId>
</dependency>
<dependency>
  <groupId>io.quarkus</groupId>
  <artifactId>quarkus-agroal</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-persistence-jdbc</artifactId>
  <version>KOGITO_VERSION</version>
</dependency>
<dependency>
  <groupId>com.oracle.database.jdbc</groupId>
  <artifactId>ojdbc8</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>

  2. Add the following properties to the src/main/resources/application.properties file in your Kogito project to configure and to connect to the Oracle database.

    Replace the server host, port, and database information according to your Oracle Server installation. By default, the database is named as kogito.

    On Quarkus
    kogito.persistence.type=jdbc
quarkus.datasource.username=kogito
quarkus.datasource.password=kogito
quarkus.datasource.jdbc.url=jdbc:oracle://oracle:1521/kogito
# Below properties are required to create database schema with Flyway at startup.
quarkus.flyway.migrate-at-start=true
quarkus.datasource.db-kind=oracle
    On Spring Boot
    kogito.persistence.type=jdbc
spring.datasource.username=kogito
spring.datasource.password=kogito
spring.datasource.url=jdbc:oracle://oracle:1521/kogito
# Below properties are required to create database schema with Flyway at startup.
spring.flyway.enabled=true
spring.flyway.locations=classpath:db/{vendor}

7.7. Kogito Data Index Service

Kogito provides a Data Index Service that stores all Kogito events related to processes, tasks, and domain data. The Data Index Service uses Apache Kafka messaging to consume CloudEvents messages from Kogito services, and then indexes the returned data for future GraphQL queries and stores the data in the Infinispan persistence store. The Data Index Service is at the core of all Kogito search, insight, and management capabilities.

Diagram of an example Kogito service using Data Index Service
Figure 300. Data Index Service architecture in an example Kogito service

The Kogito Data Index Service has the following key attributes:

  • Distinct focus on domain data

  • Flexible data structure

  • Distributable and cloud-ready format

  • Infinispan-based persistence support

  • Message-based communication with Kogito runtime (Apache Kafka, cloud events )

  • Powerful querying API using GraphQL

The Kogito Data Index Service is not intended for permanent storage or audit log purposes. The Data Index Service is designed to make business domain data accessible for processes that are currently in progress.

7.7.1. Data Index Service workflow in Kogito

The Kogito Data Index Service is a Quarkus application, based on Vert.x with Reactive Messaging, that exposes a GraphQL endpoint that client applications use to access business domain-specific data and other information about running process instances.

The Data Index Service uses Apache Kafka messaging to consume CloudEvents messages from Kogito services, and then indexes the returned data for future GraphQL queries. These events contain information about units of work executed for a process.

Indexed data from the Data Index Service is parsed and pushed into the following Infinispan caches:

  • Domain cache: Generic cache for each process definition where the process instance variables are pushed as the root content. This cache also includes some process instance metadata, which enables data correlation between domain and process instances. Data is transferred in JSON format to an Infinispan Server.

  • Process instance cache: Cache for each process instance. This cache contains all process instance information, including all metadata and other detailed information such as executed nodes.

  • User task instance cache: Cache for each user task instance. This cache contains all task instance information, including all metadata and other detailed information such as data input and output.

  • Jobs cache: Cache for each scheduled job instance. This cache contains all job instance information, including all detailed information related to a specific job, such as the number of times a job is fired and next time the same job will be fired.

The indexing functionality in the Data Index Service is provided by choosing one of the following persistent providers:

When using Infinispan, Apache Lucene provides indexing and a protobuf (protocol buffers) schema and generated marshallers manage the communication between the Data Index Service and Infinispan.

After the data is indexed and stored in a cache, the Data Index Service inspects the process model to update the GraphQL schema and enable a type-checked query system that consumer clients can use to access the data.

Infinispan indexing

Infinispan also supports data indexing through an embedded Apache Lucene engine. To determine which attributes must be indexed, Inifinispan requires @Indexed and @Field Hibernate Search parameters that annotate the relevant protobuf file attributes:

Example indexed model in Infinispan Server configuration
/* @Indexed */
message ProcessInstanceMeta {
    /* @Field(store = Store.YES) */
    optional string id = 1;
}

For more information about Infinispan indexing, see Indexing of protobuf encoded entries in the Infinispan documentation.
7.7.1.1. Index the domain-specific data in Data Index Service

You can enable or disable the domain-specific types or custom types indexing in Kogito. To achieve this, you can change the value of the kogito.data-index.domain-indexing property to true or false, based on the behavior you want to achieve. By default, the domain indexing is enabled on Data Index Service using MongoDB and Infinispan persistence type. When you disable the domain indexing, the Data Index Service stops creating custom types in GraphQL queries, and the GraphQL schema starts exposing queries only for ProcessInstances, UserTaskInstances, and Jobs types.

The Data Index PostgreSQL persistence provider does not support indexing for custom types. Therefore, setting the kogito.data-index.domain-indexing property to true does not have any impact.

7.7.2. Using the Kogito Data Index Service to query application data

Kogito provides a Data Index Service that stores all Kogito events related to processes, tasks, and domain data. The Data Index Service uses Kafka messaging to consume CloudEvents messages from Kogito services, and then indexes the returned data for future GraphQL queries and stores the data in the Infinispan persistence store. The Data Index Service is at the core of all Kogito search, insight, and management capabilities.

You can use the Kogito Data Index Service to index, store, and query process data in your Kogito services.

Prerequisites
Procedure

  1. Configure your Kogito project to enable Infinispan persistence and Apache Kafka messaging.

    For instructions on enabling persistence, see Enabling Infinispan persistence for Kogito services.

    For instructions on enabling messaging, see Enabling Kafka messaging for Kogito services.

  2. Go to the data-index-service-infinispan artifacts page, select the latest release of the Data Index Service, and download the data-index-service-infinispan-VERSION-runner.jar file to a local directory.

  3. In a command terminal, navigate to the directory location of the downloaded data-index-service-infinispan-VERSION-runner.jar file and enter the following command to run the Data Index Service with the required Infinispan credentials:

    Running the Data Index Service
    $ java  \
  -Dquarkus.infinispan-client.auth-username=INFINISPAN_USER_NAME \
  -Dquarkus.infinispan-client.auth-password=INFINISPAN_PASSWORD \
  -jar data-index-service-infinispan-VERSION-runner.jar

    For more information about Infinispan authentication on Quarkus, see Infinispan client in the Quarkus documentation.

    To change the logging level of the Data Index Service, such as for debugging, you can specify the following start-up properties as needed when you run the Data Index Service:

    Modifying Data Index Service logging level for debugging
    $ java  \
  -Dquarkus.log.console.level=DEBUG -Dquarkus.log.category.\"org.kie.kogito\".min-level=DEBUG  \
  -Dquarkus.log.category.\"org.kie.kogito\".level=DEBUG  \
  -jar data-index-service-infinispan-VERSION-runner.jar

  4. In a separate command terminal window, navigate to your Kogito project and run the project using your preferred run mode, such as development mode:

    On Quarkus
    mvn clean compile quarkus:dev
    On Sprint Boot
    mvn clean compile spring-boot:run

    With the Data Index Service and your Kogito project both configured and running, the Data Index Service starts consuming messages from the defined Kafka topics, such as kogito-processinstances-events.

  5. In a web browser, navigate to the http://HOST:PORT location configured for your running Kogito service, such as http://localhost:8080/, to explore the exposed data model.

    To query the available data using the GraphiQL interface, navigate to http://HOST:PORT/graphql, such as http://localhost:8080/graphql in this example, and begin executing supported queries to interact with your application data.

    Example query for process instance data
    { ProcessInstances {
  id,
  processId,
  processName,
  state,
  nodes {
    name,
    type,
    enter,
    exit
  }
} }
    Image of GraphQL query and response for process instances
    Figure 301. Example response

    For available query types, click Docs in the upper-right corner of the GraphiQL interface.

    For more information about supported queries with the Data Index Service, see Supported GraphQL queries with the Data Index Service.

    As an alternative to enabling the Data Index Service explicitly for Kogito services, you can use the Kogito Operator to install the Data Index Service custom resource for the service deployment on OpenShift. For more information about installing the Data Index Service with the Kogito Operator, see Deploying Kogito services on OpenShift.

7.7.3. Supported GraphQL queries with the Data Index Service

After you configure and run your Kogito service and the Kogito Data Index Service, you can query the available data using the GraphiQL interface displayed at http://HOST:PORT/graphql, such as http://localhost:8080/graphql.

The Kogito Data Index Service supports GraphQL queries for domain-specific (domain cache) types and for process instances, task instances, and jobs.

7.7.3.1. GraphQL queries for domain-specific types (domain cache)

Use the following GraphQL queries to retrieve data about process definitions. These example queries assume that a Travels Business Process Model and Notation (BPMN) process model is running or has been executed.

Retrieve data from process definitions

You can retrieve data about a specified process definition from your Kogito service.

Example query
{
  Travels {
    visaApplication {
      duration
    }
    flight {
      flightNumber
      gate
    }
    hotel {
      name
      address {
        city
        country
      }
    }
    traveller {
      firstName
      lastName
      nationality
      email
    }
  }
}
Correlate data using the metadata parameter

You can use the metadata parameter to correlate data from domain-specific types (domain cache) with data from process instances and task instances. This parameter is added to all root models that are deployed in the Data Index Service and enables you to retrieve and filter query data.

Example query
{
  Travels {
    flight {
      flightNumber
      arrival
      departure
    }
    metadata {
      lastUpdate
      userTasks {
        name
      }
      processInstances {
        processId
      }
    }
  }
}
Filter query results using the where and metadata parameters

You can use the where parameter with multiple combinations to filter query results based on process definition attributes. The attributes available for search depend on the BPMN process model that is deployed, such as a Travels process model in this example.

Example query
{
  Travels(where: {traveller: {firstName: {like: "Cri*"}}}) {
    flight {
      flightNumber
      arrival
      departure
    }
    traveller {
      email
    }
  }
}
The like operator is case sensitive.

You can also use the metadata parameter to filter correlated query results from related process instances or tasks.

Example query
{
  Travels(where: {metadata: {processInstances: {id: {equal: "1aee8ab6-d943-4dfb-b6be-8ea8727fcdc5"}}}}) {
    flight {
      flightNumber
      arrival
      departure
    }
  }
}
Example query
{
  Travels(where: {metadata: {userTasks: {id: {equal: "de52e538-581f-42db-be65-09e8739471a6"}}}}) {
    flight {
      flightNumber
      arrival
      departure
    }
  }
}
Sort query results using the orderBy parameter

You can use the orderBy parameter to sort query results based on process definition attributes. You can also specify the direction of sorting in ascending ASC order or descending DESC order. Multiple attributes are applied to the database query in the order they are specified in the query filter.

Example query
{
  Travels(orderBy: {trip: {begin: ASC}}) {
    flight {
      flightNumber
      arrival
      departure
    }
  }
}
Limit and offset query results using the pagination parameter

You can use the pagination parameter to specify a limit and offset for query results.

Example query
{
  Travels(where: {traveller: {firstName: {like: "Cri*"}}}, pagination: {offset: 0, limit: 10}) {
    flight {
      flightNumber
      arrival
      departure
    }
    traveller {
      email
    }
  }
}
7.7.3.2. GraphQL queries for process instances, user task instances, and jobs

Use the following GraphQL queries to retrieve data about process instances, user task instances, and jobs.

Retrieve data from process instances

You can retrieve data about a specified process instance from your process definition.

Example query
{
  ProcessInstances {
    id
    processId
    state
    parentProcessInstanceId
    rootProcessId
    rootProcessInstanceId
    variables
    nodes {
      id
      name
      type
    }
  }
}
Retrieve data from user task instances

You can retrieve data from a specified user task instance.

Example query
{
  UserTaskInstances {
    id
    name
    actualOwner
    description
    priority
    processId
    processInstanceId
  }
}
Retrieve data from jobs

You can retrieve data from a specified job instance.

Example query
{
  Job {
    id
    status
    priority
    processId
    processInstanceId
    executionCounter
  }
}
Filter query results using the where parameter

You can use the where parameter with multiple combinations to filter query results based on process or task attributes.

Example query
{
  ProcessInstances(where: {state: {equal: ACTIVE}}) {
    id
    processId
    processName
    start
    state
    variables
  }
}
Example query
{
  ProcessInstances(where: {id: {equal: "d43a56b6-fb11-4066-b689-d70386b9a375"}}) {
    id
    processId
    processName
    start
    state
    variables
  }
}
Example query
{
  UserTaskInstances(where: {state: {equal: "Ready"}}) {
    id
    name
    actualOwner
    description
    priority
    processId
    processInstanceId
  }
}

By default, every filtered attribute is executed as an AND operation in queries. You can modify this behavior by combining filters with an AND or OR operator.

Example query
{
  ProcessInstances(where: {or: {state: {equal: ACTIVE}, rootProcessId: {isNull: false}}}) {
    id
    processId
    processName
    start
    end
    state
  }
}
Example query
{
  ProcessInstances(where: {and: {processId: {equal: "travels"}, or: {state: {equal: ACTIVE}, rootProcessId: {isNull: false}}}}) {
    id
    processId
    processName
    start
    end
    state
  }
}

Depending on the attribute type, the following operators are also available:

  • String array argument:

    • contains : String

    • containsAll: Array of strings

    • containsAny: Array of strings

    • isNull: Boolean (true or false)

  • String argument:

    • in: Array of strings

    • like: String

    • isNull: Boolean (true or false)

    • equal: String

  • ID argument:

    • in: Array of strings

    • equal: String

    • isNull: Boolean (true or false)

  • Boolean argument:

    • isNull: Boolean (true or false)

    • equal: Boolean (true or false)

  • Numeric argument:

    • in: Array of integers

    • isNull: Boolean

    • equal: Integer

    • greaterThan: Integer

    • greaterThanEqual: Integer

    • lessThan: Integer

    • lessThanEqual: Integer

    • between: Numeric range

    • from: Integer

    • to: Integer

  • Date argument:

    • isNull: Boolean (true or false)

    • equal: Date time

    • greaterThan: Date time

    • greaterThanEqual: Date time

    • lessThan: Date time

    • lessThanEqual: Date time

    • between: Date range

    • from: Date time

    • to: Date time

Sort query results using the orderBy parameter

You can use the orderBy parameter to sort query results based on process or task attributes. You can also specify the direction of sorting in ascending ASC order or descending DESC order. Multiple attributes are applied to the database query in the order they are specified in the query filter.

Example query
{
  ProcessInstances(where: {state: {equal: ACTIVE}}, orderBy: {start: ASC}) {
    id
    processId
    processName
    start
    end
    state
  }
}
Example query
{
  UserTaskInstances(where: {state: {equal: "Ready"}}, orderBy: {name: ASC, actualOwner: DESC}) {
    id
    name
    actualOwner
    description
    priority
    processId
    processInstanceId
  }
}
Limit and offset query results using the pagination parameter

You can use the pagination parameter to specify a limit and offset for query results.

Example query
{
  ProcessInstances(where: {state: {equal: ACTIVE}}, orderBy: {start: ASC}, pagination: {limit: 10, offset: 0}) {
    id
    processId
    processName
    start
    end
    state
  }
}
7.7.3.3. Data Index service Gateway API

Data Index incorporates a set of queries or mutations that allow firing operations on runtime services endpoints using GraphQL notation.

Image of data-index external points connections
Figure 302. Data Index Gateway API external connections
The Kogito process management add-on needs to be enabled for Kogito runtime service to perform the requested operation.

The Data Index Gateway API enables you to peform the following operations:

Abort a process instance

Retrieves a process instance with the ID passed as a parameter and launches the abort operation on related Kogito service.

Example mutation for abort operation
mutation {
    ProcessInstanceAbort (id:"66e05e9c-eaab-47af-a83e-156498b7096d")
}
Retry a process instance

Retrieves a process instance with the id passed as a parameter and launches the retry operation on related Kogito service.

Example mutation for retry operation
mutation {
    ProcessInstanceRetry (id:"66e05e9c-eaab-47af-a83e-156498b7096d")
}
Skip a process instance

Retrieves a process instance with the ID passed as a parameter and launches the skip operation on related Kogito service.

Example mutation for skip operation
mutation {
    ProcessInstanceSkip (id:"66e05e9c-eaab-47af-a83e-156498b7096d")
}
Retrieve a process instance diagram

Retrieves a process instance diagram that shows the execution path. When the diagram field of a process instance is queried, a call to a specific Kogito service is generated to retrieve the requested process instance diagram.

Example query to retrieve a process instance diagram
{ProcessInstances(where: { id: {equal: "1017afb1-5749-440e-8b9b-6b876bb5894d"}}){
  diagram
}}
The Kogito process SVG add-on also needs to be enabled for Kogito runtime service to retrieve the process instance diagram.
Retrieve the process instance source file content

Retrieves the process instance source file. When the source field of a process instance is queried, a call to a specific Kogito service is generated to retrieve the requested process instance source file content.

Example query to retrieve a process instance source file content
{ProcessInstances(where: { id: {equal: "1017afb1-5749-440e-8b9b-6b876bb5894d"}}){
  source
}}
The Kogito source files add-on also needs to be enabled for Kogito runtime service to retrieve the process instance diagram.
Retrieve process instance nodes

Retrieves the nodes of a process instance that are coming from the process definition. When the nodeDefinitions field of a process instance is queried, a call to a specific Kogito service is generated to retrieve the requested list of available nodes.

Example query to retrieve process instance nodes
{ProcessInstances(where: { id: {equal: "1017afb1-5749-440e-8b9b-6b876bb5894d"}}){
  diagram
}}
Update process instance variables

Updates the variables of a process instance using the id passed as a parameter. Retrieves a process instance using the id passed as a parameter and launches the update operation on related Kogito service with the new values passed in variables parameter.

Example mutation to update process instance variables
mutation {
    ProcessInstanceUpdateVariables
        (id:"23147fcc-da82-43a2-a577-7a36b26094bd",
         variables:"{\"it_approval\":true,\"candidate\":{\"name\":\"Joe\",\"email\":\"jdoe@ts.com\",\"salary\":30000,\"skills\":\"java\"},\"hr_approval\":true}")
}
Trigger a node instance

Triggers a node instance using the node definition nodeId. The nodeId is included in the nodeInstances of a process instance using the id passed as parameter.

Example mutation to trigger a node instance
mutation{
  NodeInstanceTrigger(
    id: "9674e3ed-8c13-4c3f-870e-7465d9ca7ca7",
    nodeId:"_B8C4F63C-81AD-4291-9C1B-84967277EEF6")
}
Retrigger a node instance

Retriggers a node instance using the id, which is similar to nodeInstanceId related to a process instance. The id of the process instance is passed as a parameter.

Example mutation to retrigger a node instance
mutation{
  NodeInstanceRetrigger(
    id: "9674e3ed-8c13-4c3f-870e-7465d9ca7ca7",
    nodeInstanceId:"01756ba2-ac16-4cf1-9d74-154ae8f2df21")
}
Cancel a node instance

Cancels a node instance with the id, which is similar to nodeInstanceId related to a process instance. The id of the process instance is passed as a parameter.

Example mutation to cancel a node instance
mutation{
  NodeInstanceCancel(
    id: "9674e3ed-8c13-4c3f-870e-7465d9ca7ca7",
    nodeInstanceId:"01756ba2-ac16-4cf1-9d74-154ae8f2df21")
}
Reschedule a job

Reschedules a job using the id. The job id and other information are passed in the data parameter.

Example mutation to reschedule a job
mutation{
  JobReschedule(
    id: "9674e3ed-8c13-4c3f-870e-7465d9ca7ca7",
    data:"{\"expirationTime\": \"2021-08-27T04:35:54.631Z\",\"retries\": 2}")
}
Cancel a job

Cancels a job using the id passed as a parameter.

Example mutation to cancel a job
mutation{
  JobCancel(
    id: "9674e3ed-8c13-4c3f-870e-7465d9ca7ca7")
}
Retrieve the user task schema

Retrieves the schema of the user task instance using the taskId. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes. When the schema field of a user task instance is queried, a call to a specific Kogito service is generated to retrieve the requested task schema.

Example query for task instance schema
{UserTaskInstances (where: {id: {equal: "b356d136-e601-43ee-9c2d-ee47198b9303"}}) {
  schema(user:"jdoe" groups:["managers"])
}}
Update a user task instance

Updates the data of a user task instance using the taskId and the information passed in the parameters. The parameters passed is only affected with this operation. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to update a task instance
mutation{
    UserTaskInstanceUpdate (
        taskId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        user: "jdoe",
        groups: ["managers", "users", "IT"],
        description: "New task description"
        priority: "High"
        actualOwner: "jdoe"
        adminGroups: ["managers","IT"]
        adminUsers: ["admin"]
        excludedUsers: ["katy"]
        potentialGroups: ["users"]
        potentialUsers: ["alice"]
        inputParams: "{\"it_approval\":true,\"candidate\":{\"name\":\"Joe\",\"email\":\"jdoe@ts.com\",\"salary\":30000,\"skills\":\"java\"},\"hr_approval\":true}"
    )
}
Add a comment to a user task instance

Adds a new comment to the user task instance using the taskId and the information passed in the comment parameter. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to add a new comment to a user task instance
mutation{
    UserTaskInstanceCommentCreate(
        taskId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        user: "jdoe",
        groups: ["managers", "users", "IT"],
        comment: "New Comment to add"
    )
}
Update a comment in a user task instance

Updates a comment using the commentId and the information passed in the comment parameter in a user task instance. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to update a user task instance comment
mutation{
    UserTaskInstanceCommentUpdate(
        commentId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        comment: "Comment new content",
        user: "jdoe",
        groups: ["managers", "users", "IT"]
    )
}
Delete a comment in a user task instance

Deletes a comment using the commentId in a user task instance. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to delete a user task instance comment
mutation{
    UserTaskInstanceCommentDelete(
        commentId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        user: "jdoe",
        groups: ["managers", "users", "IT"]
    )
}
Add an attachment to a user task instance

Adds a new attachment to the user task instance using the taskId and the information passed in the name and uri parameter. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to add a new attachment to a user task instance
mutation{
    UserTaskInstanceAttachmentCreate(
        taskId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        user: "jdoe",
        groups: ["managers", "users", "IT"],
        name:"Attachment name"
        uri:"https://drive.google.com/file/d/1Z_Lipg2jzY9TNewTaskAttachmentUri"
    )
}
Update an attachment in a user task instance

Updates an attachment using the attachmentId and the information passed in the name and uri parameter in a user task instance. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to update a user task instance attachment
mutation{
    UserTaskInstanceAttachmentUpdate(
        attachmentId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        name:"Attachment new name"
        uri:"https://drive.google.com/file/d/1Z_Lipg2jzY9TAttachmentNewUri",
        user: "jdoe",
        groups: ["managers", "users", "IT"]
    )
}
Delete an attachment in a user task instance

Deletes an attachment using the attachmentId in a user task instance. The call allows you to pass the user and groups parameters even if the parameters are mandatory. If user and groups parameters are used to run the call to runtimes.

Example mutation to delete a user task instance attachment
mutation{
    UserTaskInstanceAttachmentDelete(
        attachmentId:"b356d136-e601-43ee-9c2d-ee47198b9303",
        user: "jdoe",
        groups: ["managers", "users", "IT"]
    )
}

7.7.4. Enabling Kogito Data Index Service security with OpenID Connect

For Quarkus-based Kogito services, you can use the Quarkus OpenID Connect adapter with the Kogito Data Index Service to enable security using token authorization. These tokens are issued by OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Data Index Service repository in GitHub.
Prerequisites
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Data Index Service repository and enter the following command to run the application with the required security properties:

    Run the Data Index Service with security properties
    mvn clean compile quarkus:dev  \
  -Dquarkus.profile=keycloak  \
  -Dkogito.protobuf.folder=/home/git/kogito-apps/tree/master/data-index/data-index-service/src/test/resources  \
  -Dkogito.protobuf.watch=true

    The Kogito Data Index Service contains a Quarkus profile to encapsulate the security configuration, so if the service requires security, you can specify the quarkus.profile=keycloak property at build time to enable the needed security. If the keycloak Quarkus profile is not added, the OpenID Connect extension is disabled.

  2. Navigate to the src/main/resources/application.properties file of the Data Index Service project and add the following properties:

    Required security properties in applications.properties file
    # OpenID Connect configurations
%keycloak.quarkus.oidc.enabled=true
%keycloak.quarkus.oidc.tenant-enabled=true
%keycloak.quarkus.oidc.auth-server-url=http://localhost:8280/auth/realms/kogito
%keycloak.quarkus.oidc.client-id=kogito-service
%keycloak.quarkus.oidc.credentials.secret=secret
%keycloak.quarkus.oidc.application-type=service

%keycloak.quarkus.oidc.web-app-tenant.auth-server-url=http://localhost:8280/auth/realms/kogito
%keycloak.quarkus.oidc.web-app-tenant.client-id=kogito-service
%keycloak.quarkus.oidc.web-app-tenant.credentials.secret=secret
%keycloak.quarkus.oidc.web-app-tenant.application-type=web-app

kogito.data-index.vertx-graphql.ui.path=/graphiql
kogito.data-index.vertx-graphql.ui.tenant=web-app-tenant

# HTTP security configurations
%keycloak.quarkus.http.auth.permission.authenticated.paths=/*
%keycloak.quarkus.http.auth.permission.authenticated.policy=authenticated
    The quarkus.oidc.enabled property enables or disables security at build time, while the quarkus.oidc.tenant-enabled property enables or disables security at runtime.

    Replace any property definitions with those of your specific environment, especially the following properties:

    • quarkus.oidc.auth-server-url: The base URL of the OpenID Connect (OIDC) server, such as https://localhost:8280/auth. All other OIDC server page and service URLs are derived from this URL. If you work with Keycloak OIDC server, ensure that the base URL is in the following format: https://HOST:PORT/auth/realms/KEYCLOAK_REALM.

    • quarkus.oidc.client-id: The client ID of the application. Each application has a client ID that is used to identify the application.

    • quarkus.oidc.credentials.secret: The client secret for the application.

    If you are enabling security at runtime using the quarkus.oidc.tenant-enabled property, the quarkus.http.auth.permission path and policy must specify how authentication is applied. By default, if security is enabled, the user must be authenticated to access any path.

    The default configuration provides a multi-tenant configuration so that the Kogito Data Index Service can use two endpoints with different security quarkus.oidc.application-type configurations:

    • The /graphql endpoint is configured as a service application that enables Bearer token authentication.

    • The /graphiql interface endpoint, shown in the previous configuration file example, is configured as a web-app application that redirects unauthenticated users to the Keycloak login page. You configure this endpoint using the kogito.data-index.vertx-graphql.ui.path property.

  3. In the same application.properties file, also configure the resources to be exposed and the required permissions for accessing the resources.

    For example, you can enable only users with the role confidential to access a single /graphql endpoint:

    Example GraphQL security role configuration
    %keycloak.quarkus.http.auth.policy.role-policy1.roles-allowed=confidential
%keycloak.quarkus.http.auth.permission.roles1.paths=/graphql
%keycloak.quarkus.http.auth.permission.roles1.policy=role-policy1

  4. Stop and restart the Kogito Data Index Service to ensure that the security changes are applied.

Additional resources

7.7.5. Enabling MongoDB persistence for the Kogito Data Index Service

Instead of using the default Infinispan-based persistence in the Kogito Data Index Service, you can configure the Data Index Service to use MongoDB persistence storage if needed.

Prerequisites
Procedure

  1. Go to the data-index-service-mongodb artifacts page, select the latest release of the Data Index Service, and download the data-index-service-mongodb-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded data-index-service-mongodb-VERSION-runner.jar file and enter the following command to run the Data Index Service with the required MongoDB connection information:

    Running the Data Index Service with MongoDB connection information
    $ java  \
  -Dquarkus.mongodb.connection-string=MONGODB_SERVER_CONNECTION_STRING \
  -Dquarkus.mongodb.database=DATABASE_NAME \
  -jar data-index-service-mongodb-VERSION-runner.jar

    For more information about MongoDB configuration on Quarkus, see Using the MongoDB client in the Quarkus documentation.

  3. After the Data Index Service is running, compile and run your Kogito project as usual and navigate to the http://HOST:PORT location configured for your running Kogito service, such as http://localhost:8080/, to explore the exposed data model.

Indexes are created on every attribute that is annotated with @Indexed and @Field in the protobuf files. However, a single MongoDB collection can have no more than 64 indexes, including the default _id Index.

7.7.6. Enabling PostgreSQL persistence for the Kogito Data Index Service

Instead of using the default Infinispan-based persistence in the Kogito Data Index Service, you can configure the Data Index Service to use PostgreSQL persistence storage if needed.

Prerequisites
Procedure

  1. Go to the data-index-service-postgresql artifacts page, select the latest release of the Data Index Service, and download the data-index-service-postgresql-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded data-index-service-postgresql-VERSION-runner.jar file and enter the following command to run the Data Index Service with the required PostgreSQL connection information:

    Running the Data Index Service with PostgreSQL connection information
    $ java  \
  -Dquarkus.datasource.jdbc.url=POSTGRESQL_SERVER_JDBC_URL \
  -Dquarkus.datasource.username=POSTGRESQL_USERNAME \
  -Dquarkus.datasource.password=POSTGRESQL_PASSWORD \
  -jar data-index-service-postgresql-VERSION-runner.jar

    For more information about PostgreSQL configuration on Quarkus, see JDBC Configuration Reference in the Quarkus documentation.

  3. After the Data Index Service is running, compile and run your Kogito project as usual and navigate to the http://HOST:PORT location configured for your running Kogito service, such as http://localhost:8080/, to explore the exposed data model.

Data Index Service with PostgreSQL does not support indexing domain-specific data. The GraphQL schema only exposes queries for ProcessInstances, UserTaskInstances, and Jobs.
7.7.6.1. PostgreSQL database setup for the Kogito Data Index Service

Kogito provides two ways to manage the database schema, either via manually applying the provided DDL kogito-ddl-1.43.0.Final-db-scripts.zip, or via Flyway integration. This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In a nutshell, to create the required tables for Data Index on an empty database, you must add the quarkus.flyway.migrate-at-start=true property.

7.7.7. Enabling Oracle persistence for the Kogito Data Index Service

You can configure the Kogito Data Index Service to use Oracle persistence storage if needed.

Prerequisites
Procedure

  1. Go to the data-index-service-oracle artifacts page and select the latest release of the Data Index Service.

  2. Download the data-index-service-oracle-VERSION-runner.jar file to a local directory.

  3. In a command terminal, navigate to the directory location of the downloaded data-index-service-oracle-VERSION-runner.jar file and enter the following command to run the Data Index Service with the required Oracle connection information:

    Running the Data Index Service with Oracle connection information
    $ java  \
  -Dquarkus.datasource.db-kind=oracle
  -Dquarkus.datasource.jdbc.url=ORACLE_SERVER_JDBC_URL \
  -Dquarkus.datasource.username=ORACLE_USERNAME \
  -Dquarkus.datasource.password=ORACLE_PASSWORD \
  -jar data-index-service-oracle-VERSION-runner.jar

    For more information about Oracle configuration on Quarkus, see JDBC Configuration Reference in the Quarkus documentation.

  4. After the Data Index Service is running, compile and run your Kogito project as usual and navigate to the http://HOST:PORT location configured for your running Kogito service, such as http://localhost:8080/, to explore the exposed data model.

Data Index Service with Oracle does not support indexing domain-specific data. The GraphQL schema only exposes queries for ProcessInstances, UserTaskInstances, and Jobs.
7.7.7.1. Oracle database setup for the Kogito Data Index Service

Kogito provides two ways to manage the database schema, either via manually applying the provided DDL kogito-ddl-1.43.0.Final-db-scripts.zip, or via Flyway integration. This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In a nutshell, to create the required tables for Data Index on an empty database, you must add the quarkus.flyway.migrate-at-start=true property.

7.7.8. Quarkus Dev Service for Kogito Data Index Service

When you use the Kogito Process Quarkus extension, a temporary Data Index Service is automatically provisioned while the Quarkus application is running in development mode. When you use one of the following Quarkus extensions, the Dev Service is set up for immediate use:

Quarkus extension in Kogito
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-quarkus</artifactId>
</dependency>
Quarkus extension in Kogito
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-quarkus-processes</artifactId>
</dependency>

When you start your Quarkus project in development mode, an in-memory instance of the Data Index Service is automatically started in the background. This feature is enabled by Quarkus Dev Services, and leverages Testcontainers to start an image of the Data Index Service.

The Kogito Process Quarkus extension sets up your Quarkus application to automatically replicate any Kogito messaging events related to process instances and user tasks into the provisioned Data Index instance.

Once the service is up and running, you can query the GraphQL interface directly using http://localhost:8180/graphql or using the Quarkus Dev UI console http://localhost:8080/q/dev.

The Data Index GraphQL endpoint can query for ProcessInstances and UserTaskInstances. For more information about operations and attributes to query, see Kogito Data Index GraphQL queries.

Quarkus Dev Service for the Kogito Data Index Service does not support indexing for custom types. The GraphQL schema only exposes queries for ProcessInstances, UserTaskInstances.

You can share the same Data Index instance across multiple Kogito services during development. Sharing Data Index instances is enabled by default, therefore, only one Data Index instance is started. This behaviour can be adjusted to start multiple instances using the quarkus.kogito.devservices.shared property.

The Quarkus Dev Service also allows further configuration options including:

  • To disable Data Index Dev Service, use the quarkus.kogito.devservices.enabled=false property.

  • To change the port where the Data Index Service runs, use the quarkus.kogito.devservices.port=8180 property.

  • To adjust the provisioned image, use quarkus.kogito.devservices.imageName=quay.io/kiegroup/kogito-data-index-ephemeral property.

  • To disable sharing the Data Index instance across multiple Quarkus applications, use quarkus.kogito.devservices.shared=false property.

For more information about Quarkus Dev Services, see Dev Services guide.

Additional resources

7.8. Kogito Jobs Service

Kogito provides a Jobs Service for scheduling Business Process Model and Notation (BPMN) process events that are configured to be executed at a specified time. These time-based events in a process model are known as jobs.

By default, Kogito services use an in-memory timer service to handle jobs defined in your BPMN process models. This default timer service does not cover long time intervals and is only suitable for short delays defined in the process. For advanced use cases where time intervals can be days or weeks or when additional event handling options are required, you can configure your Kogito project to use the Kogito Jobs Service as an external timer service.

The Jobs Service does not execute a job, but triggers a callback that might be an HTTP request on an endpoint specified for the job request or any other configured callback. The Jobs Service receives requests for job scheduling and then sends a request at the time specified on the job request.

Diagram of the Jobs Service architecture

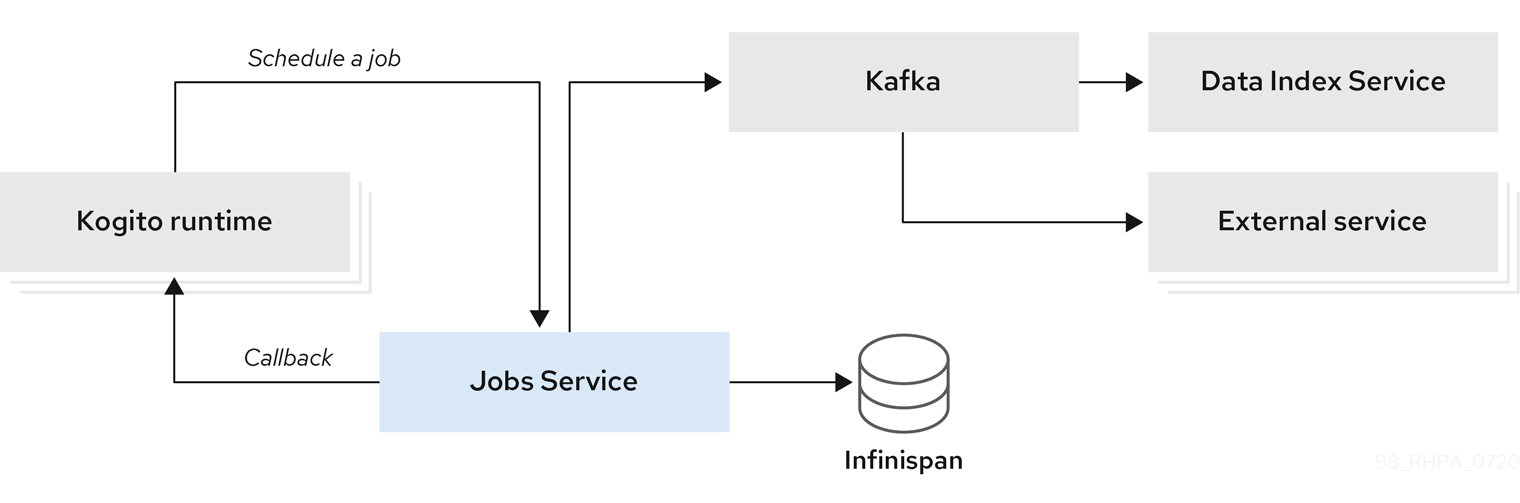

Figure 303. Jobs Service architecture
The Kogito Jobs Service currently supports only HTTP POST requests that are sent to an endpoint specified on the job-scheduling request. The HTTP callback information must be specified in the job-scheduling request.

The main goal of the Jobs Service is to work with only active jobs. The Jobs Service tracks only the jobs that are scheduled and that need to be executed. When a job reaches a final state, the job is removed from the Jobs Service. All job information and transition states are sent to the Kogito Data Index Service where they can be indexed and made available for GraphQL queries.

The Jobs Service implementation is based on non-blocking APIs and Reactive Messaging on top of Quarkus, which provides effective throughput and resource utilization. The scheduling engine is implemented on top of Vert.x and the external requests are built using a non-blocking HTTP client based on Vert.x.

7.8.1. Supported job states in the Kogito Jobs Service

The Kogito Jobs Service uses an internal state control mechanism to manage the job scheduling lifecycle using the following supported job states:

  • Scheduled

  • Executed

  • Canceled

  • Retry

  • Error

The Jobs Service workflow through these states is illustrated in the following diagram:

Diagram of Jobs Service states
Figure 304. Jobs Service state control workflow

7.8.2. Supported job types in the Kogito Jobs Service

The Kogito Jobs Service supports the following job types:

  • Time scheduled: A job that is scheduled at a specified time and executed only once when that point in time is reached. The time must be specified on the job scheduling request and must be in the future.

  • Periodic scheduled: A job that is scheduled at a specified time and executed after a specified interval, and then executed repeatedly over a specified period of time until a limit of executions is reached. The execution limit and interval must be specified in the job-scheduling request.

7.8.3. Supported configuration properties in the Kogito Jobs Service

The Kogito Jobs Service supports the following configuration properties. You can set these properties either using the -D prefix during Jobs Service start-up or in the src/main/resources/application.properties file of the Jobs Service project.

Table 126. Supported configuration properties in Jobs Service
Name Description Value Default

kogito.jobs-service.backoffRetryMillis

Defines the retry back-off time in milliseconds between job execution attempts, in case the execution fails

Long type

1000

kogito.jobs-service.maxIntervalLimitToRetryMillis

Defines the maximum interval in milliseconds when retrying to execute jobs, in case the execution fails

Long type

60000

mp.messaging.outgoing.kogito-job-service-job-status-events.bootstrap.servers

Identifies the Kafka bootstrap server address with the port used to publish events

String

localhost:9092

mp.messaging.outgoing.kogito-job-service-job-status-events.topic

Defines the name of the Kafka topic where the events are published

String

kogito-jobs-events

7.8.4. Using the Kogito Jobs Service as a timer service

By default, Kogito services use an in-memory timer service to handle time-based events (jobs) defined in your Business Process Model and Notation (BPMN) process models. This default timer service does not cover long time intervals and is only suitable for short delays defined in the process.

For advanced use cases where time intervals can be days or weeks or when additional event handling options are required, you can configure your Kogito project to use the Kogito Jobs Service as an external timer service. Whenever you need to schedule a timer as part of process instance, the timer is scheduled in the Jobs Service and the Jobs Service calls back to the Kogito service upon timer expiration.

The Kogito Jobs Service also supports Infinispan, PostgreSQL, or MongoDB persistence that you can enable when you run the Jobs Service so that job data is preserved across application restarts.

Procedure

  1. Go to the jobs-service-common artifacts page, select the latest release of the Jobs Service, and download the jobs-service-common-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded jobs-service-common-VERSION-runner.jar file and enter the following command to run the Jobs Service with in-memory persistence enabled:

    Running the Jobs Service with in-memory persistence enabled
    $ java -jar jobs-service-common-VERSION-runner.jar

    If the Jobs Service uses the default in-memory storage, all job information is lost between application restarts.

    To change the logging level of the Jobs Service, such as for debugging, you can specify the following start-up properties:

    Modifying Jobs Service logging level for debugging
    $ java  \
  -Dquarkus.log.console.level=DEBUG -Dquarkus.log.category.\"org.kie.kogito\".min-level=DEBUG  \
  -Dquarkus.log.category.\"org.kie.kogito\".level=DEBUG  \
  -jar jobs-service-common-VERSION-runner.jar

  3. In your Kogito project, add the following dependency to the pom.xml file to enable the Jobs Service add-on:

    On Quarkus
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-jobs-management</artifactId>
</dependency>
    On Spring Boot
    <dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-springboot-jobs-management</artifactId>
</dependency>

  4. In your Kogito project, add the following properties to the src/main/resources/application.properties to define the locations of the Jobs Service and the callback to be used when the timer expires:

    Configure Kogito service properties for Jobs Service
    kogito.jobs-service.url=http://localhost:8085
kogito.service.url=http://localhost:8080

  5. In a command terminal, navigate to your Kogito project and run the project using your preferred run mode, such as development mode:

    On Quarkus
    mvn clean compile quarkus:dev
    On Sprint Boot
    mvn clean compile spring-boot:run

    With the Jobs Service and your Kogito project both configured and running, the Jobs Service can receive any job-scheduling requests to function as the external timer service.

    By default, the implementation of the Jobs Service uses the following basic components:

    • An implementation of the org.kie.kogito.jobs.JobsService interface that is used by the service to schedule jobs

    • A REST endpoint registered at the path /management/jobs

    If the default REST clients used by the Jobs Service add-on do not meet your needs, you can configure custom REST clients using the relevant service implementors. The REST client depends on the application type:

    • On Quarkus, the Jobs Service uses a Vert.x web client: io.vertx.ext.web.client.WebClient

    • On Spring Boot, the Jobs Service uses a rest template: org.springframework.web.client.RestTemplate

    In both cases, you produce an instance of the client to enable detailed setup of the client.

As an alternative to enabling the Jobs Service explicitly for Kogito services, you can use the Kogito Operator to install the Jobs Service custom resource for the service deployment on OpenShift. For more information about installing the Jobs Service with the Kogito Operator, see Deploying Kogito services on OpenShift.

7.8.5. Persistence in the Kogito Jobs Service

The Kogito Jobs Service supports the following persistence mechanisms for job data:

  • In-memory persistence: (Default) Job data is persisted with the Jobs Service in-memory storage during the Jobs Service runtime. If the Jobs Service is restarted, all job information is lost. If no other persistence configuration is set, the Jobs Service uses this persistence mechanism.

  • Infinispan persistence: Job data is persisted using Infinispan storage so that the data is preserved across application restarts. If the Jobs Service is restarted, the service continues to process any previously scheduled jobs.

  • PostgreSQL persistence: Job data is persisted using PostgreSQL storage so that the data is preserved across application restarts. If the Jobs Service is restarted, the service continues to process any previously scheduled jobs. Flyway is used to manage database schema.

  • MongoDB persistence: Job data is persisted using MongoDB storage so that the data is preserved across application restarts. If the Jobs Service is restarted, the service continues to process any previously scheduled jobs.

7.8.5.1. Enabling Infinispan persistence in the Kogito Jobs Service

You can enable Infinispan persistence in the Kogito Jobs Service during application start-up.

Procedure

  1. Go to the jobs-service-infinispan artifacts page, select the latest release of the Jobs Service, and download the jobs-service-infinispan-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded jobs-service-infinispan-VERSION-runner.jar file and enter the following command to run the Jobs Service with Infinispan persistence enabled:

    Running the Jobs Service with Infinispan persistence enabled
    $ java  \
    -jar jobs-service-infinispan-VERSION-runner.jar

    For more information about Infinispan configuration with Quarkus applications, see Infinispan client in the Quarkus documentation.

7.8.5.2. Enabling PostgreSQL persistence in the Kogito Jobs Service

You can enable PostgreSQL persistence in the Kogito Jobs Service during application start-up.

Procedure

  1. Go to the jobs-service-postgresql artifacts page, select the latest release of the Jobs Service, and download the jobs-service-postgresql-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded jobs-service-postgresql-VERSION-runner.jar file and enter the following command to run the Jobs Service with PostgreSQL persistence enabled:

    Running the Jobs Service with PostgreSQL persistence enabled
    $ java  \
    -Dquarkus.datasource.jdbc.url=DATASOURCE_JDBC_URL \
    -Dquarkus.datasource.reactive.url=DATASOURCE_URL \
    -Dquarkus.datasource.username=DATASOURCE_USERNAME \
    -Dquarkus.datasource.password=DATASOURCE_PASSWORD \
    -jar jobs-service-postgresql-VERSION-runner.jar

    By default, Flyway is enabled in the Kogito Jobs Service. According to the quarkus.datasource.jdbc.url property, Flyway creates or updates the required database schema to run the Jobs Service, alongside configured user must have permissions to alter the database.

    In case you want to manage the database without Flyway automation, set the -Dquarkus.flyway.migrate-at-start property to false when you start the Jobs Service, otherwise, the service might fail during the initialization.

    For more information about PostgreSQL configuration with Quarkus applications, see Quarkus reactive SQL client and Flyway in the Quarkus documentation.

7.8.5.3. Enabling MongoDB persistence in the Kogito Jobs Service

You can enable MongoDB persistence in the Kogito Jobs Service during application start-up.

Procedure

  1. Go to the jobs-service-mongodb artifacts page, select the latest release of the Jobs Service, and download the jobs-service-mongodb-VERSION-runner.jar file to a local directory.

  2. In a command terminal, navigate to the directory location of the downloaded jobs-service-mongodb-VERSION-runner.jar file and enter the following command to run the Jobs Service with MongoDB persistence enabled:

    Running the Jobs Service with MongoDB persistence enabled
    $ java  \
    -Dquarkus.mongodb.connection-string=MONGODB_SERVER_CONNECTION_STRING \
    -Dquarkus.mongodb.database=DATABASE_NAME \
    -jar jobs-service-mongodb-VERSION-runner.jar

    For more information about MongoDB configuration with Quarkus applications, see Using the MongoDB client in the Quarkus documentation.

7.8.6. Enabling Kafka messaging in the Kogito Jobs Service

The Kogito Jobs Service supports Apache Kafka messaging to publish events for each job state transition to a defined Kafka topic. Any application can subscribe to this Kafka topic to receive information about jobs and job state transitions. For example, the Kogito Data Index Service is subscribed to the Jobs Service Kafka topic so that if you configure and run the Jobs Service, the Data Index Service can begin indexing jobs with their current state.

You can enable Kafka messaging in the Kogito Jobs Service during application start-up and in the Jobs Service application.properties file.

Procedure

  1. In the src/main/resources/application.properties file in the Jobs Service project, add the following properties to identify the Kafka bootstrap server with the port used to publish events and the Kafka topic where the events are published:

    Defining Kafka server and topic in Jobs Service application.properties
    mp.messaging.outgoing.kogito-job-service-job-status-events.bootstrap.servers=SERVER_ADDRESS
mp.messaging.outgoing.kogito-job-service-job-status-events.topic=TOPIC_NAME

  2. Run the Jobs Service with the property -Dquarkus.profile=events-support:

    Enabling Kafka messaging during Jobs Service start-up
    $ java  \
    -Dquarkus.profile=events-support  \
    -jar jobs-service-common-VERSION-runner.jar

    Alternatively, you can add the environment variable QUARKUS_PROFILE=events-support.

7.8.7. Enabling Kogito Jobs Service security with OpenID Connect

For Quarkus-based Kogito services, you can use the Quarkus OpenID Connect adapter with the Kogito Jobs Service to enable security using bearer token authorization. These tokens are issued by OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Jobs Service repository in GitHub.
Prerequisites
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Jobs Service repository and enter the following command to run the application with the required security properties:

    Run the Jobs Service with security properties
    mvn clean compile quarkus:dev  -Dquarkus.profile=keycloak

    The Jobs Service contains a Quarkus profile to encapsulate the security configuration, so if the service requires security, you can specify the quarkus.profile=keycloak property at build time to enable the needed security. If the keycloak Quarkus profile is not added, the OpenID Connect extension is disabled.

  2. Navigate to the src/main/resources/application.properties file of the Jobs Service project and add the following properties:

    Required security properties in applications.properties file
    %keycloak.quarkus.oidc.enabled=true
%keycloak.quarkus.oidc.tenant-enabled=true
%keycloak.quarkus.oidc.auth-server-url=http://localhost:8280/auth/realms/kogito
%keycloak.quarkus.oidc.client-id=kogito-jobs-service
%keycloak.quarkus.oidc.credentials.secret=secret
%keycloak.quarkus.http.auth.policy.role-policy1.roles-allowed=confidential
%keycloak.quarkus.http.auth.permission.roles1.paths=/*
%keycloak.quarkus.http.auth.permission.roles1.policy=role-policy1
    The quarkus.oidc.enabled property enables or disables security at build time, while the quarkus.oidc.tenant-enabled property enables or disables security at runtime.

    Replace any property definitions with those of your specific environment, especially the following properties:

    • quarkus.oidc.auth-server-url: The base URL of the OpenID Connect (OIDC) server, such as https://localhost:8280/auth. All other OIDC server page and service URLs are derived from this URL. If you work with Keycloak OIDC server, ensure that the base URL is in the following format: https://HOST:PORT/auth/realms/KEYCLOAK_REALM.

    • quarkus.oidc.client-id: The client ID of the application. Each application has a client ID that is used to identify the application.

    • quarkus.oidc.credentials.secret: The client secret for the application.

  3. In the same application.properties file, also configure the resources to be exposed and the required permissions for accessing the resources.

    If you are enabling security at runtime using the quarkus.oidc.tenant-enabled property, the quarkus.http.auth.permission path and policy must specify how authentication is applied. By default, if security is enabled, the user must be authenticated to access any path.

    This example configuration enables only users with role confidential to access any endpoint.

  4. Stop and restart the Kogito Jobs Service to ensure that the security changes are applied.

Additional resources

7.9. Kogito process management add-on

Kogito provides a kogito-addons-quarkus-process-management add-on that enables basic REST operations that you can use to manage process instances. These REST operations are supplemental to any other specific REST operations that you have configured in your application.

To configure process management REST capabilities for your Kogito services, you can add the process management add-on as a dependency in the pom.xml file of your Kogito project:

Project dependency to enable process management REST operations
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-process-management</artifactId>
</dependency>

The Kogito process management add-on provides REST support for the following basic operations:

  • Process instances: Abort an active process instance

  • Node instances: Cancel or re-trigger a node instance, or trigger a new node instance

  • Error handling: Retrieve error details for a process instance, or skip or re-trigger a failed node instance

In addition to exposed REST operations, the process management add-on also provides the following REST exception mappers to generate more meaningful error messages for typical exception types:

  • ProcessInstanceNotFound

  • NodeInstanceNotFound

  • NodeNotFound

  • ProcessInstanceExecutionError

  • NotAuthorized

  • InvalidTransition (for work items)

  • InvalidLifeCyclePhase (for work items)

These exception mappers produce a valid HTTP error code with JSON payload with the context that caused the exception.

For example, the following is a ProcessInstanceNotFoundException error generated at runtime:

Example error with JSON payload at runtime
HTTP code : 404

{
  "processInstanceId" : "c6862071-0f2e-4f21-9bc8-586245a76c3aa",
  "message" : "Process instance with id c6862071-0f2e-4f21-9bc8-586245a76c3aa not found"
}

7.10. Kogito Trusty Service and Explainability Service

Kogito provides a Trusty Service that stores all Kogito tracing events related to decisions made in Kogito services. As an aid to the Trusty Service workflow for storing tracing events, Kogito also provides a supplemental Explainability Service that provides an explanation for the decisions made in Kogito services.

The Trusty Service uses Apache Kafka messaging to consume CloudEvents messages from Kogito services, and then processes the tracing events and stores the data, including any explainability results from the Explainability Service, in the Infinispan persistence store. The Explainability Service likewise uses Apache Kafka messaging to consume CloudEvents messages from the Trusty Service, and then applies explainability algorithms. Some algorithms require the Explainability Service to interact with the Kogito service that evaluated the decision. This communication is performed with HTTP POST requests.

The Trusty Service and Explainability Service are at the core of the TrustyAI metrics monitoring initiative in Kogito.

Diagram of an example Kogito service using Trusty Service
Figure 305. Trusty Service and Explainability Service architecture in an example Kogito service

The Kogito Trusty Service has the following key attributes:

  • Focus on decisions

  • Flexible data structure

  • Distributable and cloud-ready format

  • Infinispan-based persistence support

  • Message-based communication with Kogito runtime (Apache Kafka, cloud events )

  • Integration with the Explainability Service to retrieve advanced analysis for the decisions

The Kogito Trusty Service and Explainability Service are Quarkus applications, based on Vert.x with Reactive Messaging. Tracing data from the Trusty Service is parsed and pushed into the Decisions cache for each decision made in a Kogito service. Each record contains information about all decision inputs, outputs, and errors, if any.

The Trusty Service storage is provided by Infinispan. Communication between the Trusty Service and Infinispan is handled through a protobuf (protocol buffers) schema and generated marshallers.

After the tracing event is analyzed and stored, the Trusty Service exposes the data with a dedicated API.

For information about using the Kogito Trusty Service and Explainability Service with the Kogito Operator, see Deploying Kogito services on OpenShift.

For example Kogito services that use the Trusty Service and Explainability Service, see the following example applications in GitHub:

  • dmn-tracing-quarkus: A DMN decision service on Quarkus that uses the kogito-addons-quarkus-tracing-decision add-on to generate tracing events that the Kogito Trusty Service and Explainability Service can consume and expose.

  • trusty-demonstration: A tutorial for deploying the dmn-tracing-quarkus example application on Kubernetes as a demonstration of Kogito Trusty Service and Explainability Service capabilities in a cloud environment.

7.10.1. Enabling Kogito Trusty Service security with OpenID Connect

For Quarkus-based Kogito services, you can use the Quarkus OpenID Connect adapter with the Kogito Trusty Service to enable security using token authorization. These tokens are issued by OpenID Connect and OAuth 2.0 compliant authorization servers such as Keycloak.

This procedure applies only when you are using a locally cloned copy of the Kogito Trusty Service repository in GitHub.
Prerequisites
Procedure

  1. In a command terminal, navigate to the local clone of the Kogito Trusty Service repository and enter the following command to run the application with the required security properties:

    Run the trusty Service with security properties
    mvn clean compile quarkus:dev -Dquarkus.profile=keycloak

    The Kogito Trusty Service contains a Quarkus profile to encapsulate the security configuration, so if the service requires security, you can specify the quarkus.profile=keycloak property at build time to enable the needed security. If the keycloak Quarkus profile is not added, the OpenID Connect extension is disabled.

  2. Navigate to the src/main/resources/application.properties file of the Trusty Service project and add the following properties:

    Required security properties in applications.properties file
    # OpenID Connect configurations
%keycloak.quarkus.oidc.enabled=true
%keycloak.quarkus.oidc.tenant-enabled=true
%keycloak.quarkus.oidc.auth-server-url=http://localhost:8280/auth/realms/kogito
%keycloak.quarkus.oidc.client-id=kogito-service
%keycloak.quarkus.oidc.credentials.secret=secret
%keycloak.quarkus.oidc.application-type=service

# HTTP security configurations
%keycloak.quarkus.http.auth.permission.authenticated.paths=/*
%keycloak.quarkus.http.auth.permission.authenticated.policy=authenticated
    The quarkus.oidc.enabled property enables or disables security at build time, while the quarkus.oidc.tenant-enabled property enables or disables security at runtime.

    Replace any property definitions with those of your specific environment, especially the following properties:

    • quarkus.oidc.auth-server-url: The base URL of the OpenID Connect (OIDC) server, such as https://localhost:8280/auth. All other OIDC server page and service URLs are derived from this URL. If you work with Keycloak OIDC server, ensure that the base URL is in the following format: https://HOST:PORT/auth/realms/KEYCLOAK_REALM.

    • quarkus.oidc.client-id: The client ID of the application. Each application has a client ID that is used to identify the application.

    • quarkus.oidc.credentials.secret: The client secret for the application.

    If you are enabling security at runtime using the quarkus.oidc.tenant-enabled property, the quarkus.http.auth.permission path and policy must specify how authentication is applied. By default, if security is enabled, the user must be authenticated to access any path.

  3. Stop and restart the Kogito Trusty Service to ensure that the security changes are applied.

Additional resources

8. Kogito glossary of terms

This glossary defines terms, concepts, or components that are referenced frequently in Kogito documentation or that have a unique meaning or function in Kogito.

BPMN model

A definition of a business process workflow based on the Business Process Model and Notation (BPMN) specification. BPMN is a standard established by the Object Management Group (OMG) for describing and modeling business processes. BPMN defines an XML schema that enables BPMN models to be shared between BPMN-compliant platforms and across organizations so that business analysts and business process developers can collaborate in designing and implementing BPMN process services. The BPMN standard is similar to and can be used together with the Decision Model and Notation (DMN) standard for designing and modeling business decisions.

Additional resources
business domain API

An API that your business develops and implements within business applications that contain Kogito services.

business models

The collection of BPMN process models, DMN decision models, DRL rules, XLS decision tables, and any other assets that define the business logic for a Kogito service.

CloudEvents format

A specification for describing event data in a common way. Kogito runtime events for messages, processes, tasks, and other application activities are published in CloudEvents format so that they can be consumed efficiently by other entities, such as the Kogito Data Index Service.

Additional resources
decision table

A set of business rules defined in a tabular format. Each row in a decision table is a rule, and each column is a condition, an action, or another rule attribute.

Additional resources
development mode

A project build option that provides a fast feedback loop from code changes to a running system using hot reload. Development mode also enables debugging tools such as Swagger in Kogito runtime services.

Additional resources
DRL rule

A definition of a business rule in Drools Rule Language (DRL) format. DRL is a notation established by the Drools open source business automation project for defining and describing business rules.

Additional resources
DRL rule unit

A module for rules and a unit of execution. A rule unit collects a set of rules with the declaration of the type of facts that the rules act on. A rule unit also serves as a unique namespace for each group of rules. A single rule base can contain multiple rule units. You typically store all the rules for a unit in the same file as the unit declaration so that the unit is self-contained.

Additional resources
DMN model

A definition of a business decision flow based on the Decision Model and Notation (DMN) specification. DMN is a standard established by the Object Management Group (OMG) for describing and modeling operational decisions. DMN defines an XML schema that enables DMN models to be shared between DMN-compliant platforms and across organizations so that business analysts and business rules developers can collaborate in designing and implementing DMN decision services. The DMN standard is similar to and can be used together with the Business Process Model and Notation (BPMN) standard for designing and modeling business processes.

Additional resources
event listener

A procedure or function in a program that reacts to a specified event, such as a completed node in a process or an executed decision.

Additional resources
intelligent application

An optimized, integrated solution that uses Kogito services to implement business-domain knowledge.

Kogito Audit Investigation Console

A user interface for monitoring and investigating Decision Model and Notation (DMN) model executions in Kogito.

Additional resources
Kogito CLI

A command-line interface (CLI) that enables you to interact with the Kogito Operator for deployment tasks. The Kogito CLI also enables you to deploy Kogito services from source instead of relying on custom resources and YAML files.

Additional resources
Kogito Data Index Service

A dedicated service in Kogito that stores all Kogito events related to processes, tasks, and domain data. The Data Index Service uses Apache Kafka messaging to consume CloudEvents messages from Kogito services, and then indexes the returned data for future GraphQL queries and stores the data in the Infinispan or MongoDB persistence store. The Data Index Service is at the core of all Kogito search, insight, and management capabilities.

Additional resources
Kogito domain-specific service

A business automation service for your business domain that you create using Kogito. You define the logic of this service using BPMN process models, DMN decision models, or other business models, and any other supported runtime configurations. In Kogito documentation, the general term for Kogito services that you create refers to this type of service.

Kogito Explainability Service

A dedicated service in Kogito that provides an explanation for the decisions made in Kogito services, in conjunction with the Kogito Trusty Service.

Additional resources
Kogito Jobs Service

A dedicated service in Kogito for scheduling BPMN process events that are configured to be executed at a specified time. These time-based events in a process model are known as jobs. The Jobs Service does not execute a job, but triggers a callback that might be an HTTP request on a given endpoint specified for the job request or any other configured callback. The Jobs Service receives requests for job scheduling and then sends a request at the time specified on the job request.

Additional resources
Kogito Management Console

A user interface for viewing the state of all available Kogito services and managing process instances.

Additional resources
Kogito Operator

An operator that deploys Kogito services and manages the required Kogito infrastructure services. The Kogito Operator is based on the Operator SDK and automates many of the deployment steps for you.

Additional resources
Kogito runtime event

A record of a significant change of state in the application domain at a point in time. Kogito emits runtime events as a result of successfully executed requests, or units of work, in a process instance or task instance in a process. Kogito can use these events to notify third parties about changes to the BPMN process instance and its data.

Additional resources
Kogito runtime persistence

An optional capability for preserving Kogito process data in your services across application restarts. Kogito persistence is based on Infinispan and enables you to configure key-value storage definitions to persist data, such as active process nodes and process instance variables. Alternatively, MongoDB can be used.

Additional resources
Kogito supporting services

The collection of middleware infrastructure services and other dedicated services that help you build additional functionality in the Kogito domain-specific services that you develop. Key middleware infrastructure services in Kogito include Infinispan, MongoDB, or Kafka Streams persistence, and Apache Kafka reactive messaging. Dedicated services provided by Kogito include the Kogito Data Index Service, Jobs Service, Trusty Service, and Explainability Service.

Additional resources
Kogito Task Console

A user interface for viewing and interacting with user tasks in Kogito process services.

Additional resources
Kogito Trusty Service

A dedicated service in Kogito for storing all Kogito tracing events related to decisions made in Kogito services. The Kogito Explainability Service is typically used in conjunction with this service.

Additional resources
message event

A specified point in a business process where a defined message is used as the input (received) or output (sent) as a result of the process execution. For example, a message event might be an email sent to a specified user after a task is complete.

Additional resources
MicroProfile Reactive Messaging

A specification for sending and receiving messages within and between microservices using message brokers. Kogito supports MicroProfile Reactive Messaging for messaging in Kogito services, such as message events used as either input or output of business process execution.

Additional resources
middleware infrastructure services

The collection of supplemental services in Kogito that provide capabilities such as persistence, messaging, and security. Key middleware infrastructure services in Kogito include Infinispan persistence and Apache Kafka reactive messaging.

Additional resources
process definition

A model that defines the components, workflow, and functionality for a business process, such as a BPMN model.

process instance

An occurrence of a pending, running, or completed business process, based on the process definition.

PROTO file (.proto)

A data library used for marshalling Java objects in protobuf (protocol buffers) format. Kogito runtime persistence and communication with Infinispan or MongoDB are handled through a protobuf schema and generated marshallers.

Additional resources
task lifecycle

A mechanism that moves a user task or custom task (work item) across various phases, such as Active → Claim → Complete. Kogito provides standard lifecycle phases for user tasks and also supports custom lifecycles or lifecycle phases.

Additional resources
unit of work

A component in Kogito that serves as the basis for Kogito runtime execution. Units of work capture all steps in a process and are used internally to move a process instance from one state to the next state. After all possible steps in a process are successfully executed, the final state is sent to the Kogito runtime as a runtime event. Kogito can then use these events to notify third parties about changes to the BPMN process instance and its data.

Additional resources

9. Release notes for Kogito 1.43

These release notes highlight some of the new features, fixed issues, and known issues in Kogito 1.43. These release notes are not comprehensive.

For the complete list of new features, fixed issues, and known issues in Kogito 1.43, see the following release notes pages in Atlassian Jira. Each Kogito release includes one or more Kogito tooling releases as shown in this list.

9.1. Summary of key features in Kogito

Kogito offers the following key features. For more information about these and other features in Kogito, see the Kogito documentation links where provided. Not all Kogito features are fully documented.

9.1.1. Kogito domain-specific services

Additional resources

9.1.2. Kogito supporting services and consoles

  • Data Index Service for indexing, storing, and querying your Kogito service data

  • Jobs Service for scheduling process events over extended periods of time

  • Trusty Service for storing all Kogito tracing events related to decisions made in Kogito services.

  • Explainability Service that provides an explanation for the decisions made in Kogito services, in conjunction with the Trusty Service.

  • NoSQL key-value persistence store based on Infinispan to enable elastic persistence scalability

  • JSON-like document-based persistence with MongoDB as an alternative to using Infinispan for Kogito runtime persistence

  • Messaging capabilities based on Apache Kafka to enable messages as either input or output of business process execution

  • Business monitoring capabilities based on Prometheus for generated metrics

  • Process management add-on to enable basic REST operations for managing process instances

  • Process SVG add-on to enable basic REST operations for visualizing process diagram and the related execution path

  • Management Console includes a new panel to view the process diagram, displaying the execution path of the related process instance

  • Management Console user interface for viewing the state of all available Kogito services and managing process instances

  • Task Console user interface for viewing and interacting with user tasks in Kogito process services.

  • Audit Investigation Console user interface for monitoring and investigating Decision Model and Notation (DMN) model executions in Kogito.

Additional resources

9.1.3. Kogito developer tooling

  • Code generation based on the process models and decision models that developers create

  • Local live (hot reload) coding on Quarkus for Kogito domain-specific services

  • Kogito VSCode extension (recommended) for modeling in Visual Studio Code

  • Kogito GitHub Chrome extension for viewing graphical business models directly in GitHub, including model differences in GitHub pull requests

  • Business Modeler online viewer for online modeling

  • Kogito DMN editor supports opening DMN 1.1, DMN 1.2, and DMN 1.3 models and saves any model as DMN 1.2

  • Kogito standalone editors for embedding editors in your application

Additional resources

9.1.4. Kogito deployment on OpenShift

  • Scalable and auto-provisioned infrastructure managed by the Kogito Operator

  • Kogito command-line interface (CLI) to interact with the Kogito Operator to deploy Kogito services on OpenShift

  • Support for Source-to-Image (S2I) builds and binary builds for deploying Kogito services on OpenShift

Additional resources

9.2. New features in Kogito 1.43.0

The following sections describe some of the new features or enhancements in Kogito 1.43.0.

9.2.1. Kogito runtimes

9.2.1.1. Kogito Serverless Workflow

New features on 1.43.0.

9.3. New features in Kogito 1.42.0

The following sections describe some of the new features or enhancements in Kogito 1.42.0.

9.3.1. Kogito runtimes

9.3.1.1. Kogito Serverless Workflow

New features on 1.42.0.

9.4. New features in Kogito 1.41.0

The following sections describe some of the new features or enhancements in Kogito 1.41.0.

9.4.1. Kogito runtimes

9.4.1.1. Kogito Serverless Workflow

New features on 1.41.0.

9.5. New features in Kogito 1.40.0

The following sections describe some of the new features or enhancements in Kogito 1.40.0.

9.5.1. Kogito runtimes

9.5.1.1. Kogito Serverless Workflow

New features on 1.40.0.

9.6. New features in Kogito 1.39.0

The following sections describe some of the new features or enhancements in Kogito 1.39.0.

9.6.1. Kogito runtimes

9.6.1.1. Kogito Serverless Workflow

New features on 1.39.0.

9.7. New features in Kogito 1.38.0

The following sections describe some of the new features or enhancements in Kogito 1.38.0.

9.7.1. Kogito runtimes

9.7.1.1. Kogito RocksDB persistence addon

Starting from this release, a new Quarkus extension is available to integrate RocksDB as a persistence option to Kogito runtimes. To use the new extension, add as a dependency to the project:

RocksDB Persistence Addon
<dependency>
  <groupId>org.kie.kogito</groupId>
  <artifactId>kogito-addons-quarkus-persistence-rocksdb</artifactId>
</dependency>

There are two additional properties: - kogito.persistence.rocksdb.clean: if the db dir should be removed when application is shutdown, default false. - kogito.persistence.rocksdb.data.dir: data directory, default to rocksdbtemp.

9.7.1.2. Kogito Serverless Workflow

New features on 1.38.0.

9.8. New features in Kogito 1.37.0

The following sections describe some of the new features or enhancements in Kogito 1.37.0.

9.8.1. Kogito runtimes

9.8.1.1. Kogito Serverless Workflow

New features on 1.37.0.

9.9. New features in Kogito 1.36.0

The following sections describe some of the new features or enhancements in Kogito 1.36.0.

9.9.1. Kogito runtimes

9.9.1.1. Kogito Serverless Workflow

New features on 1.36.0.

9.9.2. Kogito supporting services

9.9.2.1. Jobs Service Embedded Addon

A new addon is available to make Job Service run embedded with the Kogito application, without requiring to deploy it as an external service.

The addon is a Quarkus extension and makes use of the Embedded PostgreSQL extension.

It should be used for development and it is not recommended for production environments.

9.10. New features in Kogito 1.35

The following sections describe some of the new features or enhancements in Kogito 1.35.

9.10.1. Kogito runtimes

9.10.1.1. Kogito Serverless Workflow

New features on 1.35.

9.10.1.2. Kogito JDBC addon integration with Flyway

Starting from this release, the following addons ( kogito-addons-quarkus-persistence-jdbc and kogito-addons-springboot-persistence-jdbc ) are now integrated with Flyway for database schema management. This also means that kogito.persistence.auto.ddl property is no longer used. Below is a migration reference for each plugin:

kogito-addons-quarkus-persistence-jdbc

This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In order to achieve the same behavior as kogito.persistence.auto.ddl=true, you must add the following properties:

  • quarkus.flyway.migrate-at-start=true

  • quarkus.datasource.db-kind=postgresql

Flyway integration uses a regular JDBC connection. Depending on your settings it is likely to need to include more JDBC-related properties such as username, password, etc, as shown in Developing with Flyway.
kogito-addons-springboot-persistence-jdbc

Spring Boot comes with out-of-the-box integration for Flyway. Hence, Kogito JDBC add-on exposes full compatibility with the settings available. In order to achieve the same behavior as kogito.persistence.auto.ddl=true, you must add the following properties:

  • spring.flyway.enabled=true

  • spring.flyway.locations=classpath:db/{vendor}

Flyway integration uses a regular JDBC connection. Depending on your settings it is likely to need to include more JDBC-related properties such as username, password, etc. For the complete set of properties, visit SpringBoot Data Migration properties.

9.10.2. Kogito supporting services

9.10.2.1. Data Index Oracle integration with Flyway

To create the database for running Data Index Oracle, it is now possible to use Flyway. This is an alternative to manually applying DDL scripts. This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In a nutshell, to create the required tables for Data Index on an empty database, you must add the quarkus.flyway.migrate-at-start=true property. For more details, visit quarkus.flyway.migrate-at-start.

9.11. New features in Kogito 1.34

The following sections describe some of the new features or enhancements in Kogito 1.34.

9.11.1. Kogito runtimes

9.11.1.1. Kogito Serverless Workflow

New features on 1.34.

9.11.2. Kogito supporting services

9.11.2.1. Added support for Primitive data types Long/Float/Double at Data Index

Data Index has added specific support for Long, Float and Double java types, mapping them with their equivalent GraphQL scalar type. This specific mapping has improved the unmarshalling operation, making the resulting values more precise.

9.12. New features in Kogito 1.33

The following sections describe some of the new features or enhancements in Kogito 1.33.

9.12.1. Kogito runtimes

9.12.1.1. Kogito Serverless Workflow

New features on 1.33.

9.12.2. Kogito supporting services

9.12.2.1. Data Index Addons for Kogito runtimes

Starting from this release, a new set of Quarkus extensions are available to incorporate Data Index features to Kogito runtimes. By allowing Data Index to be used as a Quarkus extension, any process and task execution will automatically be persisted using the Data Index extension storage in use. This requires that different storage types of the extension be provided. The initial supported list of extensions is as follows:

  • kogito-addons-quarkus-data-index-infinispan

  • kogito-addons-quarkus-data-index-mongodb

  • kogito-addons-quarkus-data-index-inmemory

  • kogito-addons-quarkus-data-index-postgresql

To include any of these addons into your project, just add the dependency as shown in the following example, along with Quarkus required properties for the database connection to the application properties.

Data Index PostgreSQL Addon
<dependencies>
  <dependency>
    <groupId>org.kie.kogito</groupId>
    <artifactId>kogito-addons-quarkus-data-index-postgresql</artifactId>
  </dependency>
</dependencies>

A new example has been included in our kogito-examples repository, to demonstrate how to combine a Kogito runtime with Data Index Addon using PostgreSQL persistence. For more details, visit serverless-workflow-data-index-quarkus.

By adding any extensions to the runtime, indexing of the data starts to happen automatically, and the GraphQL endpoint becomes available to retrieve this data. There, it will be possible to retrieve data from processes and tasks.

Note: The Data Index Quarkus extension offers a subset of the schema available when compared to using the Data Index service. For an instance, domain-specific and jobs-related queries are not available. Also, any GraphQL mutation target as Gateway API is also not supported.

9.13. New features in Kogito 1.32

The following sections describe some of the new features or enhancements in Kogito 1.32.

9.13.1. Kogito runtimes

9.13.1.1. Kogito Serverless Workflow

New features on 1.32.

9.13.1.2. Kogito PostgreSQL addon integration with Flyway

Starting from this release, the following addons ( kogito-addons-quarkus-persistence-postgresql and kogito-addons-springboot-persistence-postgresql ) are now integrated with Flyway for database schema management. This also means that kogito.persistence.auto.ddl property is no longer used. Below is a migration reference for each plugin:

kogito-addons-quarkus-persistence-postgresql

This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In order to achieve the same behavior as kogito.persistence.auto.ddl=true, you must add the following properties:

  • quarkus.flyway.migrate-at-start=true

  • quarkus.datasource.jbdc.url={JDBC_URL}

Flyway integration uses a regular JDBC connection, hence the need to add Quarkus JDBC connection properties. Depending on your settings it is likely to need to include more JDBC-related properties such as username, password, etc, as shown in Developing with Flyway.
kogito-addons-springboot-persistence-postgresql

Spring Boot comes with out-of-the-box integration for Flyway. Hence, Kogito PostgreSQL add-on exposes full compatibility with the settings available. In order to achieve the same behavior as kogito.persistence.auto.ddl=true, you must add the following properties:

  • spring.flyway.enabled=true

  • spring.flyway.url={JDBC_URL}

Flyway integration uses a regular JDBC connection, hence the need to add JDBC connection properties. Depending on your settings it is likely to need to include more JDBC-related properties such as username, password, etc. For the complete set of properties, visit SpringBoot Data Migration properties.

9.13.2. Kogito supporting services

9.13.2.1. Data Index PostgreSQL integration with Flyway

To create the database for running Data Index PostgreSQL, it is now possible to use Flyway. This is an alternative to manually applying DDL scripts. This integration is done via Quarkus Flyway and the following guide can give extra details about how to use it. In a nutshell, to create the required tables for Data Index on an empty database, you must add the quarkus.flyway.migrate-at-start=true property. For more details, visit quarkus.flyway.migrate-at-start.

9.14. New features in Kogito 1.31.1

The following sections describe some of the new features or enhancements in Kogito 1.31.1.

9.14.1. Kogito runtimes

9.14.1.1. Kogito Serverless Workflow

New features on 1.31.

9.14.2. Kogito supporting services

9.14.2.1. Data Index improved logging for MongoDB queries

When using DEBUG level for the Data Index MongoDB service, it will log detailed information about queries executed into MongoDB.

9.15. New features in Kogito 1.31

The following sections describe some of the new features or enhancements in Kogito 1.31.

9.15.1. Kogito runtimes

9.15.1.1. Kogito Serverless Workflow

New features on 1.31.

Kogito Serverless Workflow Operator

Starting from this release, a new operator, specific to Serverless Workflow is available in the Alpha version. For more details, see README.

9.16. New features in Kogito 1.30

The following sections describe some of the new features or enhancements in Kogito 1.30.

9.16.1. Kogito runtimes

9.16.1.1. Kogito Serverless Workflow

New features on 1.30.

9.16.2. Kogito supporting services

9.16.2.1. Data Index support to map protobuf kogito.Date types as a graphql DateTime

Instead of returning dates as plain String, the data index will map dates to the appropriate DateTime graphql type.

9.16.2.2. New jobs service image containing all persistence options

Starting from this release, jobs service offers a new image /kogito-jobs-service-allinone, which combines Infinispan, Postgresql, In-memory and MongoDB persistence types.

9.17. New features in Kogito 1.29

The following sections describe some of the new features or enhancements in Kogito 1.29.

9.17.1. Kogito runtimes

9.17.1.1. Kogito Serverless Workflow

New features on 1.29.

9.17.2. Kogito supporting services

9.17.2.1. Jobs Service

Starting from this release, the jobs service allows multiple instances of the service to run simultaneously. This is done via primary and stand-by elections, where only one would be active at a given time.

9.18. New features in Kogito 1.28

The following sections describe some of the new features or enhancements in Kogito 1.28.

9.18.1. Kogito runtimes

9.18.1.1. Kogito Serverless Workflow

New features on 1.28.

9.19. New features in Kogito 1.27

The following sections describe some of the new features or enhancements in Kogito 1.27.

9.19.1. Kogito runtimes

9.19.1.1. Kogito Serverless Workflow

New features on 1.27.

9.20. New features in Kogito 1.26

The following sections describe some of the new features or enhancements in Kogito 1.26.

9.20.1. Kogito runtimes

9.20.1.1. Kogito Serverless Workflow

New features on 1.26.

9.21. New features in Kogito 1.25

The following sections describe some of the new features or enhancements in Kogito 1.25.

9.21.1. Kogito runtimes

9.21.1.1. Introduce HTTP code for error handling on Kogito Serverless Workflows

Added support for handling errors using HTTP codes in Serverless Workflow, for full details, visit Error handling in Serverless Workflow.

9.21.1.2. Kogito Serverless Workflow codestart for Quarkus

The Kogito Serverless Workflow codestart for Quarkus will allow new projects using the kogito-quarkus-serverless-workflow extension to include a basic Serverless Workflow sample file and integration test as a starting point instead of an empty project.

9.21.1.3. Kogito Serverless Workflow gRPC enhacements

Improved support of gRCP in Kogito Serverless Workflow, which now follows JSON Mapping.

9.21.1.4. Kogito memory leak fixes when using BusinesRuleTask

A memory leak has been fixed in this release that affects Kogito processes using business rules. For more details, visit KOGITO-7569

9.22. New features in Kogito 1.24

The following sections describe some of the new features or enhancements in Kogito 1.24.

9.22.1. Kogito runtimes

9.22.1.1. Kogito change in DMN/Decisions code generated OAS/Swagger type names

In the previous versions of Kogito, model-specific OAS/Swagger type names generated from DMN/Decisions models used a number-based format, for example InputSet1, InputSet2, etc. However, this format has some limitations impacting external clients and external plugins across evolutions of the Kogito application being developed. For example, adding or removing DMN/Decisions models from your Kogito application does not guarantee a stable naming and ordering across evolutions of your Kogito application.

Starting from Kogito 1.24.0, the model-specific OAS/Swagger type names by default will now be based on the names of the DMN/Decisions models themselves, for example, InputSetLoan, InputSetValidation, etc. In the case of two DMN/Decisions models sharing the same name, it will automatically fall back to the previous number-based format. In addition, the number-based format strategy now accounts for the DMN/Decisions models to be ordered by their namespace and name, to maximize stable naming results in the OAS/Swagger definitions file.

No change is required from a Kogito application development perspective.

This is an effective convenient improvement while integrating your Kogito-based application with external tools, clients, and plugins. For more information, see KOGITO-7154.

9.22.1.2. Kogito changes in KogitoProcessEventListener behaviour

Starting from this release, any KogitoProcessEventListener registered in Kogito runtime, will immediately be executed once the engine triggers an event. Previously, it would be enlisted as a part of the UnitOfWork and only be executed once the work was completed. To achieve a similar behavior, it is recommended to use an EventPublisher.

9.22.1.3. Kogito persistence support for process versions

Basic support for Process versions is included in this release. This includes adding a new process_version column in the database. Initially, version support is only available on jdbc and postgresql persistence addons. By default, version support will persist the version from the BPMN or SW file. This means, that processes are individually versioned and the lifecycle of it can be manually tweaked as needed. Another strategy is to use the project version for all the processes. This can be achieved by setting kogito.workflow.version-strategy=project in the application.properties. This strategy uses the project version as the version for all processes contained in the project. For instance, changing a Maven project version would automatically update the version of all processes it contains. The versioning process allows isolating different runtimes sharing the same database. This means that different runtimes, running different process versions would not be able to retrieve information from any process that does not belong to the same process version in execution.

9.23. New features in Kogito 1.23

The following sections describe some of the new features or enhancements in Kogito 1.23.

9.23.1. Kogito runtimes

9.23.1.1. Kogito runtime persistence allows to use Java serialization instead protobuf definitions

Starting from Kogito 1.23.0, runtime persistence will allow using Java objects serialization instead of custom marshallers and protobuf definitions. To enable this feature, set kogito.persistence.proto.marshaller=false in your application.properties file. This mode requires all the process variables using custom data types to implement java.io.Serializable and it is not compatible with data persisted using protobuf definitions.

For more information, see Persistence in Kogito services.

9.23.1.2. Source files addon: Added endpoint to get source file content and changed get sources rest endpoint URL

A new endpoint to get the specific process source file content has been added to the Source files addon.

Source files add-on endpoint URL to get the source files have been changed from ‘/management/process/{Id}/sources’ to ‘/management/processes/{processId}/sources’ to be aligned with the other management rest endpoints.

For more information, see Kogito source files add-on.

9.23.1.3. Kogito Data Index service Gateway API incorporates a new call to get the process source file content

A new call to Kogito runtimes services to get the specific process source file content has been added to the Data Index Gateway API.

For more information, see Data Index service Gateway API.

9.24. New features in Kogito 1.22

The following sections describe some of the new features or enhancements in Kogito 1.22.

9.24.1. Kogito runtimes

9.24.1.1. Added a support for collections at Kogito data index service

Now Kogito data index can process domain data that incorporates collections in the model. Those collections are now included as a part of the Kogito data index GraphQL schema.

9.25. New features in Kogito 1.21

The following sections describe some of the new features or enhancements in Kogito 1.21.

9.25.1. Kogito runtimes

9.25.1.1. Added new Source Files Add-on

A new Add-on named Source Files that allows you to download the source files (.bpmn, .bpmn2, .json, and .yaml) was added.

9.25.1.2. Changes in Maven Artifact ID on Spring Boot persistence related add-ons

In this release, Kogito persistence add-ons for Spring Boot runtime have been updated with a new Maven Artifact Id. The table below shows the mapping between old and new artifacts id, please update your project dependencies accordingly.

Add-On Description

Deprecated Artifact ID

New Artifact ID

Persistence File System

kogito-addons-persistence-filesystem

kogito-addons-springboot-persistence-filesystem

Persistence Infinispan

kogito-addons-persistence-infinispan

kogito-addons-springboot-persistence-infinispan

Persistence JDBC

kogito-addons-persistence-jdbc

kogito-addons-springboot-persistence-jdbc

Persistence MongoDB

kogito-addons-persistence-mongodb

kogito-addons-springboot-persistence-mongodb

Persistence Postgresql

kogito-addons-persistence-postgresql

kogito-addons-springboot-persistence-postgresql

9.26. New features in Kogito 1.20

The following sections describe some of the new features or enhancements in Kogito 1.20.

9.26.1. Kogito runtimes

9.26.1.1. Specific extension for decision table files

All the files with .xls, .xlsx and .csv extensions are considered and parsed as decision tables. In general, this is a too strong assumption, breaking projects containing random excel files that are not decision tables and generating artificial compile-time errors. To prevent such problems this policy has been changed, considering and processing files as decision tables only if their extension is prepended with .drl. In other words, files with .drl.xls, .drl.xlsx, and .drl.csv extensions will now be compiled as decision tables.

9.26.1.2. Kogito upgraded version of Spring Boot

Starting from Kogito 1.20.0, Spring Boot is upgraded to version 2.6.6.

9.27. New features in Kogito 1.19

The following sections describe some of the new features or enhancements in Kogito 1.19.

9.27.1. Kogito runtimes

9.27.1.1. Serverless workflow updates for Kogito

  • Serverless workflow event timeouts support is implemented for the Callback and Switch states. It is now possible to define a waiting time for the event reception in Callback and Switch states.

For more information about serverless workflow timeouts definition, see Workflow Timeouts in the serverless workflow specification section.

9.28. New features in Kogito 1.18

The following sections describe some of the new features or enhancements in Kogito 1.18.

9.28.1. Kogito runtimes

9.28.1.1. Kogito recommends upgraded version of Spring Boot

Starting from Kogito 1.18.0, you must upgrade the Spring Boot version to 2.4.9.

9.28.1.2. Serverless Workflow updates for Kogito

  • Serverless Workflow data input schema validation. You can now refer to a json schema file using the dataInputSchema attribute in the Workflow Definition Structure.

  • Serverless Workflow Invocation error handling. Now error messages are properly formatted and the HTTP code is returned correctly.

{"failedNodeId":"_jbpm-unique-16","id":"98f85f01-431a-4494-a549-75316e58c3e6","message":"org.everit.json.schema.ValidationException - #/numbers/0/x: expected type: Number, found: String"}

  • Serverless Workflow function reference

  • Serverless Workflow magic word for retrieving process metadata. For example, process instance id is accessible from an expression using $WORKFLOW.instanceId

  • Allows changing the default incoming or outgoing channel name for messaging addon

    • kogito.addon.messaging.incoming.defaultName=<channelName>

    • kogito.addon.messaging.outgoing.defaultName=<channelName>

  • Allow MessageDecorator override to set Kafka record key

9.29. New features in Kogito 1.17

The following sections describe some of the new features or enhancements in Kogito 1.17.

9.29.1. Kogito runtimes

9.29.1.1. Ability to use PostgreSQL persistence using 'with-console' example applications

You can now use process-usertasks-quarkus-with-console and process-usertasks-timer-quarkus-with-console example applications to use Infinispan or PostgreSQL persistence and to see Kogito Management and Task consoles, Kogito Data Index, and Kogito Jobs services.

9.29.1.2. Support for Oracle Database for Kogito services

You can now use Oracle Database for your Kogito services. Oracle is added as a new kind of persistence and can be configured to interact with the Kogito Data Index Service.

9.29.1.3. Runtime support for DMN Specification v1.4

Starting from Kogito 1.16.0, runtime support for DMN Specification v1.4 in the Drools DMN Engine is available.

9.30. New features in Kogito 1.16

The following sections describe some of the new features or enhancements in Kogito 1.16.

9.30.1. Kogito runtimes

9.30.1.1. Example application for Kogito Serverless Workflow to demonstrate SAGA pattern

In Kogito 1.16.0, a new example application is added to demonstrate how to use Serverless Workflow to implement the SAGA pattern. The serverless-workflow-saga-quarkus example application is based on Quarkus runtime.

9.30.1.2. Kogito Serverless Workflow support for state data filters

The Kogito runtime support is now expanded to the Serverless Workflow specification by implementing support to state data filters. For more information about the usage of data filters, see the specification.

You can also see the serverless-workflow-foreach-quarkus example application on how to use state data filters in your Kogito project.

9.30.1.3. Kogito Serverless Workflow data merging support for action data filters

The Kogito runtime support is now expanded to the Serverless Workflow specification by implementing support to data merging for action data filters.

For more information on how to use data merging and action data filters, see the serverless-workflow-expression-quarkus example application.

9.30.1.4. Kogito Serverless Workflow support for data merging and event data filters

The Kogito runtime support is now expanded to the Serverless Workflow specification by implementing support for event data filters and data merging for the events in business processes.

For more information about how to use event data filters and data merging, see the serverless-workflow-callback-quarkus example application.

9.31. New features in Kogito 1.15

The following sections describe some of the new features or enhancements in Kogito 1.15.

9.31.1. Kogito runtimes

9.31.1.1. Kogito runtime tools Dev UI

Added the new Runtime tools Quarkus extension to help during the development of your Kogito applications in Quarkus. The extension will add a new ui with unified features from the different Kogito consoles that will be accessible in the Quarkus Dev UI.

For more information, see Runtime tools Quarkus Extension.

9.31.1.2. Kogito recommends upgraded version of Infinispan

Starting from Kogito 1.15.0, you must upgrade the Infinispan version to 13.0.2 or greater.

9.31.1.3. Kogito async execution support for process nodes

Starting from Kogito 1.15.0, Kogito supports setting Is Async property to the process nodes, which can modify the process execution behavior. The nodes that are async are executed asynchronously, signifying that process state builds up until an async node is found. When an async node is found, a separate execution thread is started to handle the process execution.

Also, you must set the Kogito Jobs Service properly, as the Jobs Service is responsible for triggering the execution of async nodes in the process instance.

9.31.1.4. Kogito Serverless Workflow support for Workflow Compensation

In Kogito 1.15.0, the Kogito runtime support is expanded to the Serverless Workflow specification by implementing support to Workflow Compensation. For more details about its usage see the specification. You can also explore the new example serverless-workflow-compensation-quarkus on how to use compensation in your Kogito project.

9.31.2. Kogito supporting services

9.31.2.1. Kogito Data Index PostgreSQL schema updates

A set of changes are applied to make the naming convention of the PostgreSQL database schema more consistent. When you upgrade to the Kogito Data Index version 1.15.0, the existing schema becomes incompatible.

You can manually recreate the new PostgreSQL schema using the provided DDL kogito-ddl-1.43.0.Final-db-scripts.zip script, and then migrating the data to the new structure to deploy the Kogito Data Index version 1.15.0.

9.32. New features in Kogito 1.14

The following sections describe some of the new features or enhancements in Kogito 1.14.

9.32.1. Kogito runtimes

9.32.1.1. Quarkus Dev Service for Kogito Data Index Service

The Kogito Process Quarkus extension, can now automatically provision the Data Index Service when running the Quarkus application on Development mode. Once you start your Quarkus project on development mode, an in-memory instance of the Data Index service starts in the background.

The Kogito Process Quarkus extension sets up your Quarkus application to automatically replicate any Kogito messaging events into the provisioned Data Index instance. When the service is running, you can query the GraphQL interface directly from your application using http://localhost:8180/graphql or use the Quarkus Dev UI console http://localhost:8080/q/dev/.

For more information, see Quarkus Dev Service for Kogito Data Index Service.

9.32.1.2. Support for jq expressions in Serverless Workflow

Kogito now provides support for jq expressions in Serverless Workflow. By default, all workflow expressions must be defined using the jq version 1.6 syntax.

If you want to use a different expression language, then ensure that the same expression language is used for all the workflow expressions.

9.32.1.3. Error handling updates in Serverless Workflow

The Serverless Workflow language now allows you to define explicit error handling. That means you can define the error handling inside your workflow model instead of defining a generic error handling entity.

Defining error handling inside your workflow model, allows error handling to become part of your orchestration activities and business problem solutions.

9.33. New features in Kogito 1.13

The following sections describe some of the new features or enhancements in Kogito 1.13.

9.33.1. Kogito runtimes

9.33.1.1. Kogito Data Index support to store user task comments and attachments information

The user task comments and attachments are now part of the Kogito Data Index GraphQL schema and allow you to query the comments and attachments as part of the UserTaskInstance fields including comments and attachments.

9.33.1.2. Kogito Data Index service new Gateway API methods

A new set of GraphQL mutations are supported to perform the following operations on different Kogito services:

  • Update a comment in a user task instance

  • Delete a comment in a user task instance

  • Update an attachment in a user task instance

  • Delete an attachment in a user task instance

For more information, see Kogito Data Index Service.

9.33.2. Kogito tooling

9.33.2.1. Breaking change on Quarkus dependencies for Kogito extensions

The quarkus-resteasy and quarkus-resteasy-jackson are now optional dependencies for Kogito extensions. If these dependencies are not added to your project, then you must disable the REST endpoint generation using kogito.generate.rest=false property.

9.34. New features in Kogito 1.12

The following sections describe some of the new features or enhancements in Kogito 1.12.

9.34.1. Kogito runtimes

9.34.1.1. Kogito Data Index service new Gateway API methods

A new set of GraphQL mutations are supported to perform the following operations on different Kogito services:

  • Update process instance variables

  • Trigger a node instance related to a process instance

  • Retrigger an existing node instance

  • Cancel a node instance

  • Reschedule a job

  • Cancel a job

  • Get user task schema

  • Update user task instance

  • Add a comment to user task instance

  • Add an attachment to user task instance

For more information, see Kogito Data Index Service.

9.34.1.2. Ability to use outbox pattern in Kogito events using MongoDB and Debezium

You can now configure the Kogito services to update the process data and events of the same unit of work entirely to avoid potential data inconsistencies. After configuring the Kogito services, you can use Debezium to capture the new Kogito events from MongoDB collections and stream the events to Apache Kafka topics.

For more information, see Enabling consistency in process data and Kogito events using MongoDB and Debezium and Enabling MongoDB persistence for Kogito services.

9.34.1.3. Ability to create custom REST endpoints using Kogito API

Kogito now enables you to create custom REST endpoints using Kogito API. The Kogito API is only available for Quarkus and is currently experimental.

For more information about creating custom REST endpoints, see Creating custom REST endpoints using Kogito API.

9.34.1.4. Ability to disable protobuf generation in Kogito

Kogito now allows users to disable protobuf marshaller generation for runtime persistence and fallback on Java serialization. Also, you can disable the generation of protobuf file for the Data Index service if not used.

For more information, see Kogito runtime properties quick reference.

9.35. New features in Kogito 1.11

The following sections describe some of the new features or enhancements in Kogito 1.11.

9.35.1. Kogito runtimes

9.35.1.1. Support for Kogito Spring Boot starters

You can now add Kogito Spring Boot starters to your Spring Boot project and get started with Kogito quickly. For more information about Kogito Spring Boot starters, see Starters for your Kogito project.

9.35.1.2. Renamed ArtifactId of Kogito messaging add-ons

The following Kogito messaging add-ons are renamed:

Table 127. Quarkus
Old ArtifactId New ArtifactId

kogito-addons-quarkus-cloudevents

kogito-addons-quarkus-messaging

kogito-addons-quarkus-cloudevents-multi

kogito-addons-quarkus-messaging

kogito-addons-quarkus-events-smallrye

kogito-addons-quarkus-events-process
Table 128. Spring Boot
Old ArtifactId New ArtifactId

kogito-addons-springboot-cloudevents

kogito-addons-springboot-messaging

kogito-addons-springboot-events-kafka

kogito-addons-springboot-events-process-kafka
9.35.1.3. Renamed ArtifactId of Kogito Spring Boot archetype

The name of the Kogito Spring Boot archetype ArtifactId is changed from kogito-springboot-archetype to kogito-spring-boot-archetype.

To create a new Spring Boot based project using the archetype, see the instructions on Creating and running your first Kogito services.

9.35.1.4. Removed Kogito Quarkus archetype

The Kogito Quarkus archetype (kogito-quarkus-archetype) is no longer available. To create a new Quarkus based project, please revisit updated instructions on Creating and running your first Kogito services.

9.35.1.5. Breaking change on metrics name provided by Kogito Prometheus monitoring add-ons

The metrics name provided by Kogito Prometheus monitoring add-ons (kogito-addons-quarkus-monitoring-prometheus or kogito-addons-springboot-monitoring-prometheus) are changed as follows:

Table 129. Prometheus monitoring add-ons
Add-on Changed to

kie_process_instance_started_total

kogito_process_instance_started_total

kie_process_instance_sla_violated_total

kogito_process_instance_sla_violated_total

kie_process_instance_completed_total

kogito_process_instance_completed_total

kie_process_instance_running_total

kogito_process_instance_running_total

kie_process_instance_duration_seconds

kogito_process_instance_duration_seconds

kie_work_item_duration_seconds

kogito_work_item_duration_seconds
You must review any of your configured tools such as Grafana in which the names of the metrics are used.

For more information about how to use these metrics, see Enabling Prometheus metrics monitoring in Kogito.

9.35.1.6. Renamed ArtifactId of Kogito Spring Boot BOM

The name of the Kogito Spring Boot BOM ArtifactId is changed from kogito-springboot-bom to kogito-spring-boot-bom. For instructions on how to create a new Spring Boot based project, see the instructions on Creating and running your first Kogito services.

9.35.1.7. Experimental support for Gradle

Kogito now provides experimental support for creating and building a Kogito project using Quarkus and Gradle as a build tool.

9.35.2. Kogito supporting services

9.35.2.1. Ability to add Metadata Attributes to all nodes and events

You can now add Metadata Attributes property to all the nodes and events in the BPMN editor. The Metadata Attributes property is a key-value definition that you can use for custom event listeners. For more information about Metadat Attributes property, see Developing process services with Kogito.

9.35.2.2. Kogito Data Index service recommends upgraded version of Infinispan

Starting from Kogito 1.11.0, you must upgrade the Infinispan version to 12.1.7 or later to prevent the issues regarding results returned in paginated queries.

9.35.2.3. Kogito Data Index service supports new Gateway API

A new set of GraphQL queries and mutations are supported to perform the following operations on different Kogito services:

  • Abort a process instance

  • Retry a process instance

  • Skip a process instance

For more information, see Kogito Data Index Service.

9.35.2.4. Kogito Data Index service API queries extended to retrieve data from Kogito runtime services

The Kogito Data Index service API queries are now extended to retrieve process instance diagram and process instance nodes from runtimes Kogito services. For more information, see Kogito Data Index Service.

9.35.2.5. Processes and decisions integration in Kogito

Kogito enables the integration of processes and decisions. There are different ways to integrate the processes and decisions including:

  • Embedded method

  • Remote method

For more information about processes and decisions integration, see Processes and decisions integration in Kogito.

9.36. New features in Kogito 1.10

The following sections describe some of the new features or enhancements in Kogito 1.10.

9.36.1. Kogito runtimes

9.36.1.1. Breaking change on Kogito PostgreSQL add-on for Quarkus

The usage of kogito.persistence.postgresql.connection.uri is discontinued in 1.9.0 when using PostgreSQL add-on for Quarkus. You can use the same configuration using Quarkus reactive datasource.

Example of how to configure the datasource in the application.properties file:
quarkus.datasource.reactive.url=postgresql://localhost:5432/kogito
quarkus.datasource.username=kogito-user
quarkus.datasource.password=kogito-pass
9.36.1.2. Breaking change on Kogito Management and Task Consoles

The GraphQL endpoint URL now requires the entire path, for example, http://host-name:port-number/graphql. You can pass the URL as an environment variable kogito.dataindex.http.url to the Quarkus application or image.

9.36.1.3. Persistence script bundle

Persistence setup scripts for Kogito runtimes and Kogito runtimes supporting services are now included in the kogito-ddl-1.43.0.Final-db-scripts.zip artifact.

9.37. Known issues in Kogito 1.43

The following list describes some of the known issues in Kogito 1.43. For more information about each known issue, select the Atlassian Jira link provided.

  • In some cases, the names of task nodes in a BPMN process diagram cannot be edited. [KOGITO-1267]

  • In a Kogito service where a DMN decision model is invoked in a BPMN process model, when a user interacts with the service through REST API requests, a HashMap cannot be cast to OBJECT error is returned in the error log. [KOGITO-1332]
