Chapter 39. ModeShape Administration Console

39.1. What can be managed and/or monitored?
39.2. Configuration
39.3. Metrics
39.4. Control (Operations)

The ModeShape Administration Console is a web based administrative and monitoring tool for ModeShape. ModeShape's Administration Console is built using the RHQ library and adds an additional plugin into the Embedded JOPR application already available in the JBoss AS.

Administration Console

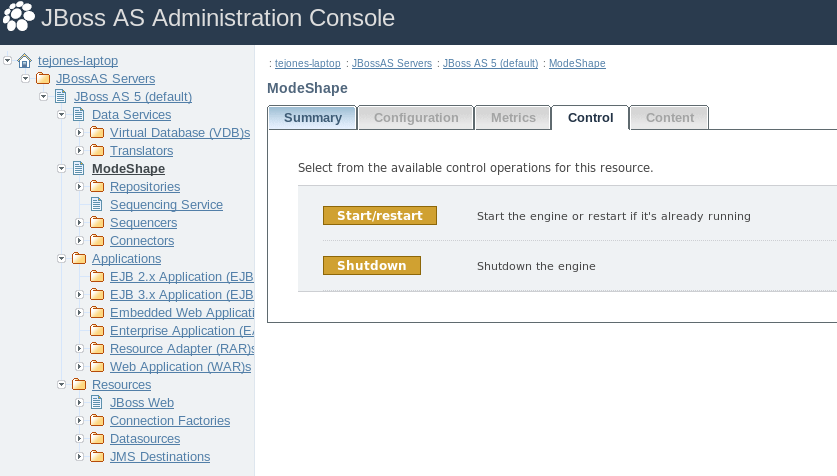

Figure 39.1. Administration Console


39.1. What can be managed and/or monitored?

39.2. Configuration

While you cannot directly configure ModeShape through the Administration Console, the configuration properties are displayed for several ModeShape components including:

39.3. Metrics

Table 39.1. Repository

# of Active SessionsThe number of JCR sessions that are currently active.

Table 39.2. Sequencing Service

Number Of Nodes SequencedThe number of nodes sequenced.
Number Of Nodes SkippedThe number of nodes that were skipped because no sequencers applied.

Table 39.3. Connectors

Total Connections in UseThe number of connections in use.

39.4. Control (Operations)

Table 39.4. ModeShape Engine

Start/RestartStart the engine or restart if it's already running.
ShutdownStop the engine.

Table 39.5. Sequencing Service

Number Of Nodes SequencedThe number of nodes sequenced.
Number Of Nodes SkippedThe number of nodes that were skipped because no sequencers applied.

Table 39.6. Connectors

PingPing the connector to test availability.
