Warning
The conversation aware ESB actions mechanism should be considered an alpha version only, and subject to change in future releases. Its inclusion within this release is intended to enable the community to experiment with the approach and hopefully provide feedback that can be used to guide the direction of this capability.
The term "conversation" represents a structured set of interactions (or message exchanges) between one or more peer to peer services, to conduct a business transaction. The "conversation" is defined from a service neutral (i.e. global) perspective.
This document explains how such a "conversation" description can be used to ensure conformance of one or more service implementations, within an ESB, during the design and implementation phase of the system.
This section introduces the choreography description language (CDL) defined by W3C, which is a standard notation for defining conversations from a global perspective, and the pi4soa open source project which provides an editor for creating choreography descriptions, as well as utilizing these descriptions for conformance checking, monitoring and execution purposes.
Finally the section will provide a brief discussion of how CDL can be used to provide conformance checking of an ESB, through the use of 'conversation aware' ESB actions.
In general, conformance checking is the procedure for ensuring that a component has been correctly built according to some specification or standard. In terms of CDL, it more specifically ensures that one or more services perform their responsibilities correctly in accordance with the choreography description.
The pi4soa tools suite provide the mechanism for producing service endpoint descriptions for each service within a choreography description. The relevant service descriptions can then be compared (for conformance) against their ESB service implementations.
However, to make this possible, it is necessary to be able to derive the communication 'type' structure from the ESB implementation, i.e. where messages (of particular types) are sent and received, where decision points are, where actions are performed concurrently, etc.
This is why a specific set of 'conversation aware' ESB actions have been defined (discussed in a later section), to make it possible to derive the communication 'type' structure from an ESB service implementation.
Once the communication 'type' structure has been obtained from the ESB implementation, it can be compared against the relevant service endpoint description projected from the choreography description, to determine if there are any differences. These can then be reported to the ESB service developer, so that they can fix the problems, before the service is deployed to the runtime environment.
This ensures that all of the services will interaction correctly, as they will all have been validated against the choreography, and therefore work together by design.
In the following two sections, we will describe how ESB services can be described using either Stateful or Stateless "conversation aware" ESB actions. The benefits of each approach will be discussed.
This section outlines the various stateful "conversation aware" ESB actions that can be used to make the communication behaviour of a service implementation explicit, thus enabling it to be compared for conformance against a description of the expected behaviour.
The benefit of this stateful approach is that the stateful behaviour of a service is explicitly defined, and can be used to perform a precise conformance check against the stateful behaviour expected from a choreography description. The disadvantage of the approach, and the reason why this section describes many more ESB action types than in the following section, is that the ESB service needs to maintain additional state information related to the individual sessions (i.e. a session per business transaction), and this state information needs to be persisted independently from other business information that the service may be accessing. This state information can be used to determine when messages have been received out of order, however this functionality is also available in the conversation validation mechanism.
The top level component is the Service, which will have a single endpoint reference (i.e. service category and name) that will be used by external clients (or other services) that interact with this service.
However the service behaviour is stateful, and therefore will need a means of routing the inbound request to the appropriate service descriptor that is (a) capable of handling the request, and (b) the service instance is in an appropriate state where the service descriptor can be executed.
The action used to perform routing of the inbound requests is called MessageRouterAction, for example:
<service category="ESBBroker.BrokerParticipant" name="ESBBrokerProcess" description="">
<listeners>
<jms-listener name="BrokerServiceListener"
busidref="BrokerService"
maxThreads="1"/>
</listeners>
<actions mep="OneWay">
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.MessageRouterAction"
process="process" name="s0-1">
<property name="paths">
<route service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main"
initiate="true">
<message type="enquiry">
<identity type="primary" >
<token name="id" locator="//@id" />
</identity>
</message>
</route>
<route service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.5" >
<message type="buy">
<identity type="primary" >
<token name="id" locator="//@id" />
</identity>
</message>
<message type="cancel">
<identity type="primary" >
<token name="id" locator="//@id" />
</identity>
</message>
</route>
</property>
</action>
</actions>
</service>
In this example, the 'service' endpoint reference will be associated with the service category "ESBBroker.BrokerParticipant" and name "ESBBrokerProcess". All inbound requests to an instance of this service will be routed via this service descriptor.
This service descriptor therefore only has a single action, which represents the message routing capability. The action class is org.jboss.soa.overlord.jbossesb.stateful.actions.MessageRouterAction. This action only defines a single property 'path' which defines one or more 'route' elements. The attributes associated with this 'route' element are:
- service-category and service-name, together identify the service descriptor that should be invoked if this route is selected
- an optional 'initiate' boolean attribute. If the attribute is specified, and its value is 'true', then the route can only be selected if the service instance relevant for the inbound message does not yet exist, and this message will result in a CreateSessionAction being invoked to create the service instance. If the attribute value is 'false', or not specified, then a service instance must already exist that is capable of handling the inbound message.
The 'route' element will contain one or more 'identity' elements, and one or more 'messageType' elements.
The 'identity' element is used to extract information from the inbound message that can be used to identify the appropriate service instance. The only attribute on the 'identity' element is the type of identity, which can be:
-
primary
the primary identity field, used to associate a message with the session
-
alternate
an alternative primary identity
-
association
link the message to a session based on an identity previously associated with the session (or parent session). However this identity will not be associated with the current session, it is usually only used to link a child session to a parent session
-
derived
the extracted identity will be placed in reserve for use as the primary identity for a subsequent session. It is not directly associated with the session in which it is discovered
The one or more 'token' definitions contained within the 'identity' element provide the details regarding the structure of the identity. The token has 'name' and 'locator' attributes, the locator being used to provide an expression that locates the identity information within the inbound message. If more than one token is defined, it provides a composite identity (i.e. made up of multiple parts).
The one or more 'messageType' elements, contained within the 'route' element, defines the message type(s) that should be routed to the service descriptor associated with the 'route' element.
Note
If a route is marked as initiate='true', with the correct message type for an inbound message, but a service instance already exists for the identity information extracted from the message, then the route will not be selected. The converse is also true.
Note
Similarly, even if a message type match is found, if the service instance is not in an appropriate state to invoke the target service descriptor, then the route will not be selected.
If no routes are found for a particular inbound message, then an exception will be reported.
All actions (and therefore service descriptors) for a particular service implementation must be defined within the same ESB configuration file. This is a current requirement, to ensure that all of the inter-related service descriptors are available to support the static validation (e.g. conformance checking).
The jboss-esb.xml file must be defined within either the same Eclipse project as the pi4soa choreography description (.cdm file), or in a project that has a 'project reference' to the project containing the choreography description.
To establish the link between the choreography description and the jboss-esb.xml, both must 'implement' a common conversation type.
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.CreateSessionAction"
process="process" name="...">
....
<property name="conversationType"
value="overlord.cdl.samples.LoanBroker@Broker" />
....
</action>
The conversation type is specified in the CreateSessionAction ESB action, described later in this section, and is associated as a semantic annotation against the relevant Participant Type or Participant Instance within the choreography description.

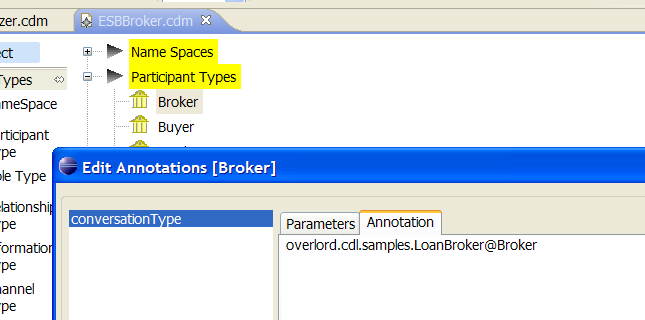

To associate the conversation type with either the Participant Type or Instance, open the choreography description in the pi4soa choreography designer. Then select the "Choreography->Edit Annotations" menu item from the popup menu associated with the Participant Type or Instance. In the lefthand panel, select "Add Freeform Annotation" from the popup menu, then specify "conversationType" as the annotation type and press 'Ok'. Then select the 'Annotation' tab in the righthand panel, and enter the conversation type, e.g. "overlord.cdl.samples.LoanBroker@Broker". Note the '@' is important, as the following word indicates the 'role' associated with the conversation type which precedes the '@' symbol.
A "session" represents a specific instantiation of a service definition that is involved in a business transaction (or conversation). The "session" will be distinguished based on unique identity information relevant to the business transaction, that is derived from specific properties within the messages being exchanged by the interacting services.
The service description can be composed from other reusable sub-service descriptions, although the service can only define a single 'root' (i.e. top level) definition.
Each top level or sub-service description will be associated with a business state 'pojo' class that contains its business relevant information and logic (i.e. methods). This class is identified by the property 'session', which will be associated with the initial conversation based ESB actions in a service (or sub-service) description, or in any subsequent conversation based ESB actions that require the information to determine the session instance.
As well as representing the business state and logic for a session (or sub-session), the pojo can define an annotation that provides information about the session. The annotation type is org.jboss.soa.overlord.jbossesb.stateful.actions.Service.
package org.jboss.soa.overlord.samples.jbossesb.loan.broker;
import org.jboss.soa.overlord.jbossesb.stateful.actions.Service;
@Service(name="{http://www.jboss.org/overlord/loanBroker}Broker",
conversationType="overlord.cdl.samples.LoanBroker@Broker",
root=true)
public class BrokerMain {
....
}
The 'name' attribute represents a name associated with the complete service description, encompassing both top level and composed sub-session behaviour. The 'root' attribute indicates whether this pojo is related to the top level session, or a sub-session.
For pojos that represent the 'root', or top level session, for a service description, they should also specify the optional 'conversationType' attribute. This expresses the type that will be checked for conformance, and is comprised of two parts separated by the '@' symbol. The first part is a fully qualified name of the conversation type. The second part represents the role being played within the conversation type.
If the Service annotation is not defined on the pojo, then the information (service description name, root and optional conversation type) must be explicitly defined in the relevant conversation based ESB actions.
A session, whether top level or a child sub-session, will be instantiated by defining a service descriptor that starts with a CreateSessionAction. For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.CreateSessionAction"
process="process" name="...">
<property name="session"
value="org.jboss.soa.overlord.samples.jbossesb.loan.broker.BrokerMain" />
</action>
where the 'session' property references the pojo defined previously. What distinguishes whether the session is a top level or child sub-session is the value of the 'root' attribute on the pojo annotation (or property on the CreateSessionAction if no annotation is defined on the pojo), i.e. if root is true, then the service descriptor will represent the top level session.
Only a single top level (root) session can be defined per service description.
Certain service descriptors, and actions within those service descriptors, will need to be able to access the session in which they are executing. In many situations the session will automatically be available due to prior activities that may have occurred, causing the session reference to be cached and retrieved when required.
However, in some situations (such as receiving a response message from another service) there may not be enough context information to understand which session should be retrieved from the database to handle the incoming message.
The solution to this problem is to ensure that the first "conversation aware" ESB action in the receiving service descriptor has the additional information required to resolve the context. This information will include:
-
Message identities
Message identities refer to the extraction of information from the message content to be used to uniquely identify a session instance. This information can be associated with any "conversation aware" ESB action, and has the following format:
<property name="identities" >
<identity type="primary" >
<token name="<name>" locator="<xpath expression>" />
</identity>
</property>
Multiple identities can be derived from an incoming message. Each identity will have a type, either primary, alternate, derived or association.
Each identity can have one or more tokens defined. If more than one is defined, then it will represent a composite identity.
The name of the token is not relevant, just used for information purposes. The main purpose of the token is to locate a value from the message content.
-
Session pojo
The session pojo class can be used to narrow down the specific sub-session, within a service instance, that the message should be routed to.
- Service description name (which may be available on a Service annotation on the Session pojo).
Services interact by sending and receiving messages, whether synchronously or asynchronously.
JBossESB is designed to anonymously handle inbound messages (possibly requests), without explicitly defining restrictions on message type, and then optionally returning responses (again without explicitly defining the response message type).
Although this is sufficient for a runtime mechanism, where issues related to unexpected message types can be handled with suitable exceptions/faults, it does not enable the communication type structure to be understood by examination of the JBossESB configuration.
Therefore, the set of "conversation aware" ESB actions include actions for sending and receiving messages. Although these actions are not strictly necessary for the ESB to process messages, they make the communication behaviour of the ESB service explicit, which enables it to be statically checked (validated) against a description of the expected behaviour.
When sending a message, the first thing to consider is the type of the message. This can be declared as a property on the SendMessageAction. If dealing with RPC style interactions, then we may also want to optionally specify an operation name.
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SendMessageAction"
process="process" name="...">
<property name="operation" value="getQuote" />
<property name="messageType" value="requestForQuote" />
....
</action>
In this example, the message type has no 'namespace'. If a namespace is appropriate, it can be defined inside {} curly braces (e.g. "{http://www.jboss.org/examples}requestForQuote" for an XML type, or "{java:org.jboss.example}Quote" for a Java type).
The next important aspect is to define the destination of the message. This will be dependent upon whether the message being sent is a request or a response/notification.
-
Sending a request
When sending a request, we need to identify the destination service category/name. This is done by either specifying the category and name explicitly, using the serviceCategory and serviceName properties:
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SendMessageAction"
process="process" name="...">
....
<property name="serviceName" value="RequestForQuote.main" />
<property name="serviceCategory" value="ESBBroker.SupplierParticipant" />
....
</action>
or based on expressions using the serviceCategoryExpression and serviceNameExpression properties:
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SendMessageAction"
process="process" name="...">
....
<property name="serviceNameExpression" value="supplier.serviceName" />
<property name="serviceCategoryExpression" value="supplier.serviceCategory" />
....
</action>
The second approach enables the category/name details to be obtained from the session pojo, using an expression (see later for details of specifying expressions).
If a response is expected from the request, then the optional responseServiceName and responseServiceCategory can be used to specify the service descriptor that should receive the response message.
-
Sending a response
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SendMessageAction"
process="process" name="...">
....
<property name="clientEPR" value="buyer" />
....
</action>
When sending a response, the destination will not be directly available. The destination would have been received as a 'reply to' EPR (Endpoint Reference) in a previously received request (see ReceiveMessageAction for details of how to store the 'reply to' EPR).
Therefore, to indicate which EPR to respond to, a property called 'clientEPR' is specified with the name of the stored EPR. This must match up to a previously stored EPR name within a ReceiveMessageAction.
The final part of the SendMessageAction is the identity declaration. See discussion on Message Identities early in this chapter.
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SendMessageAction"
process="process" name="...">
....
<property name="identities" >
<identity type="primary" >
<token name="id" locator="//@id" />
<token name="supplierId" locator="//@supplierId" />
</identity>
</property>
</action>
The identity information extracts values from the message content being sent, and determines whether it correlates with the identity already associated with the session (or sub-session). If the message is correctly correlated to the session, then it will be sent. Otherwise an exception will be generated.
It is possible that multiple identities can be defined, associating new 'alternate' or 'derived' identities with the session (or sub-session). These can be used to link subsequent messages (send or received) to the same session.
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.ReceiveMessageAction"
process="process" name="s1-2">
<property name="operation" value="makeEnquiry" />
<property name="messageType" value="enquiry" />
<property name="clientEPR" value="buyer" />
<property name="identities" >
<identity type="primary" >
<token name="id" locator="//@id" />
</identity>
</property>
</action>
The ReceiveMessageAction is used to explicitly define the message type that should be received. If an RPC style has been used, then the optional operation name can also be defined.
Unlike the SendMessageAction, which will actually send a message to the specified service category/name, the ReceiveMessageAction primarily serves to provide explicit details about the expected message and to perform any relevant validation of the message content, including conforming that the extracted identity details correlate correctly with the session (or sub-session). If an incorrect message type is received, or an appropriate session cannot be located, then an error will be logged.
The optional 'clientEPR' property is used to store any specific "reply to" EPR (associated with the message) against the specified name. This makes the EPR accessible to any subsequent SendMessageAction activities that need to return a response or send a notification.
As previously mentioned, each session or sub-session is associated with a business state pojo which contains the information required by the session. The relevant class is identified by the 'session' property on appropriate "conversation aware" ESB actions.
When an action needs to access (read) information defined on this business state pojo, it will simply define an expression that can access (and navigate) the properties and invoke methods on the object where appropriate.
However we also need to have the ability to modify the state information. This is achieved using the SetStateAction. For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SetStateAction" name="...">
<property name="variable" value="supplierIndex" />
<property name="stateExpression" value="nextSupplier()" />
</action>
With this action, it is possible to specify a target 'variable' on the pojo business object, associated with the session (or sub-session), and have the value associated with an expression assigned to that variable.
In the example above, the expression is defined using the 'stateExpression' property. This expression will be applied to the pojo business object associated with the session (or sub-session), to extract information from variables, or invoke methods on the object.
The other type of expression that can be used is defined in the 'messageExpression' property. This will apply the expression to the content of the current message on the ESB action pipeline.
The other action that can be used to manipulate information is SetMessageAction. This action can be used to set the contents or a header property of the message on the ESB action pipeline. For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SetMessageAction"
process="process" name="...">
<property name="headerProperty" value="quoteList" />
<property name="stateExpression" value="quotes" />
</action>
This example shows how information from the session's associated business pojo state can be placed in a header property of the current message passing through the action pipeline.
If the 'headerProperty' property is not specified, then the value extracted from the state object will be placed in the default entry within the message contents, replacing any existing value.
This section describes the various control flow mechanisms that are supported by the "conversation aware" ESB actions.
The default control flow, supported natively by the ESB action pipeline design, is a sequence. As the name implies, the actions are performed one at a time in the order they defined in the action pipeline, i.e. in a sequence.
The action associated with the 'selection of a path based on a decision' is the IfAction. An example of this construct is:
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.IfAction" process="process" name="...">
<property name="paths">
<if expression="isCreditHistoryAvailable()"
service-category="ESBBroker.CreditAgency"
service-name="CreditAgency.decision1"
immediate="true" />
<elseif expression="isBadCreditHistory()"
service-category="ESBBroker.CreditAgency"
service-name="CreditAgency.decision2"
immediate="true" />
<else service-category="ESBBroker.CreditAgency"
service-name="CreditAgency.decision3"
immediate="true" />
</property>
</action>
This construct defines a 'path' property with one or more elements, representing the if, elseif and else aspects of the traditional if/else construct. Only the if element is mandatory, and can be followed by zero or more elseif elements before ending with the optional else element.
The if and elseif elements can define an 'expression' attribute to be evaluated at runtime, to determine if the associated 'service-category' and 'service-name' should be invoked.
If the 'immediate' boolean attribute is defined as true on any of the elements, it means that the associated service category/name should be invoked immediately (i.e. it represents a control link). However, if this attribute is false, or not specified, then the associated service category/name is expected to be triggered upon the receipt of a message from an external source.
The action used to select paths based on a received message type is SwitchAction. For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.SwitchAction"
process="process" name="...">
<property name="paths">
<case service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.7" >
<message type="buy" />
</case>
<case service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.6" >
<message type="cancel" />
</case>
</property>
</action>
The 'paths' property defines one or more 'case' elements. These elements identify a service category and name that should be invoked upon receipt of one or more message types, as specified by 'message' elements contained within the 'case' elements.
The 'type' attribute on the 'message' element defines the type of message that can be routed to the specified service category/name. In the example above, the message types have no namespace. However if they have a namespace, this can be defined in curly braces, e.g. "{http://www.jboss.org/samples}buy".
Once a path has been selected, the associated service category/name will be invoked immediately. If none of the paths specified within this action are relevant to the received message, then a runtime exception will be thrown.
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.ParallelAction"
process="process" name="...">
<property name="paths">
<path service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.2"
immediate="true" />
<path service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.3"
immediate="true" />
<join service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.4" />
</property>
</action>
The ParallelAction is used to initiate multiple concurrent threads of activity. These are represented by the 'path' elements within the 'paths' property. Each path identifies its service category/name and also whether it should be invoked immediately (i.e. 'immediate' attribute set to 'true'), or will be triggered by a message from an external source.
The other element contained within the 'paths' property is the 'join' element, which represents the service category/name that acts as a convergence point across all of the concurrent threads. When all of the initiated threads have completed, the service category/name associated with the 'join' element will be invoked.
The mechanism for performing repetition is through the use of two actions, WhileAction and ScheduleStateAction. The WhileAction defines the condition to be evaluated, and the two relevant paths, i.e. one that enters the loop body and one that represents the activities that occur after the while loop, when the conditions have not been met. The ScheduleStateAction is used within the loop body to return back to the service descriptor containing the WhileAction, to cause the loop to be re-evaluated.
For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.WhileAction"
process="process" name="...">
<property name="paths">
<while expression="hasNextSupplier()"
service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.2"
immediate="true" />
<exit service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.3"
immediate="true" />
</property>
</action>
The WhileAction defines a 'paths' property which contains two elements, a 'while' and an 'exit' element. Both elements define the service category and name they will invoke, and whether the service descriptors will be triggered immediately or based on an incoming message from an external source.
Additionally, the 'while' path defines the condition that will decide whether to enter or skip the loop.
Then at some point in the activities directly or indirectly associated with the service descriptor "ESBBroker.BrokerParticipant/ESBBrokerProcess.main.2", there would be,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.ScheduleStateAction"
process="process" name="...">
<property name="serviceCategory" value="ESBBroker.BrokerParticipant" />
<property name="serviceName" value="ESBBrokerProcess.main.1" />
<property name="immediate" value="true" />
</action>
while results in the service descriptor associated with the WhileAction being re-evaluated (i.e. executed again). The ScheduleStateAction will define the service category and name to invoke, and whether to invoke them immediately, or whether the service descriptor will be triggered via an incoming message from an external source.
The WhenAction is used to block one or more awaiting paths, until an expression associated with one of the paths becomes true.
For example,
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.WhenAction"
process="process" name="s4-1">
<property name="session"
value="org.jboss.soa.overlord.samples.jbossesb.loan.broker.BrokerMain" />
<property name="paths">
<when expression="receivedAllQuotes()"
service-category="ESBBroker.BrokerParticipant"
service-name="ESBBrokerProcess.main.4" />
</property>
</action>
In this example, there is only one path defined, which will block until the receivedAllQuotes() expression becomes true. When this expression evaluates to true, the service category and name defined for the when element will be scheduled.
The ability to compose reusable modules into higher level functions is a useful capability in any language. This mechanism is also supported in the "conversation aware" ESB actions, using the PerformAction to invoke a sub-session. For example,
<actions mep="OneWay">
<action class="org.jboss.soa.overlord.jbossesb.stateful.actions.PerformAction"
process="process" name="...">
<property name="serviceCategory" value="ESBBroker.BrokerParticipant" />
<property name="serviceName" value="RequestForQuote.main" />
<property name="returnServiceCategory" value="ESBBroker.BrokerParticipant" />
<property name="returnServiceName" value="ESBBrokerProcess.main.9" />
<property name="bindDetails" >
<bind from-expression="getCurrentSupplier()"
to-variable="supplier" />
</property>
<property name="parentReference" value="parent" />
</action>
</actions>
The 'serviceCategory' and 'serviceName' properties define the service descriptor that will be invoked (i.e. that represents the sub-session). This service descriptor must begin with a CreateSessionAction, to indicate that it represents the start of a sub-session.
The optional 'returnServiceCategory' and 'returnServiceName' represent the service descriptor that will be invoked once the sub-session has completed, to enable the parent session to continue. If these properties are not defined, then it means that sub-session is being performed asynchronously, and therefore the parent session will not wait for it to complete.
The optional 'bindDetails' provides the means for the parent session to assign specific information from its state to the newly created pojo associated with the child session.
Note
Currently the bound details from the parent will be copied into the child pojo, and therefore modifications will not be reflected back into the parent pojo.
The optional 'parentReference' is used to set a reference, on the child session's pojo, to the parent session's pojo. The value of the 'parentReference' identifies the property on the child session's pojo that will be used to reference the parent pojo.
After the M1 release, we've found some problems in the Stateful "conversation aware" ESB actions approach, mainly due to its complexity and the need to have services recording state information. Therefore, we've introduced the Stateless "conversation aware" ESB actions, which we will see it later on. With this new approach, users can still validate the message exchange in the runtime, but it doesn't need us to store the state. So it simplified a lot without losing its functionality.
Thus the benefit of this approach is its simplicity, and therefore it has less impact on the way that users create ESB service descriptors. The disadvantage with this approach is that only fragments of stateful behaviour can be derived from the ESB jboss-esb.xml. However, this is useful enough to perform static conformance checking of the service implementation against a choreography description, and when used in conjunction with the dynamic conversation validation mechanism, it is still possible to determine out of sequence messages.
Firstly, let's see the two basic actions for interaction. Services interact by sending and receiving messages, whether synchronously or asynchronously.
JBossESB is designed to anonymously handle inbound messages (possibly requests), without explicitly defining restrictions on message type, and then optionally returning responses (again without explicitly defining the response message type).
Although this is sufficient for a runtime mechanism, where issues related to unexpected message types can be handled with suitable exceptions/faults, it does not enable the communication type structure to be understood by examination of the JBossESB configuration.
When sending a message, the first thing to consider is the type of the message. This can be declared as a property on the SendMessageAction. If dealing with RPC style interactions, then we may also want to optionally specify an operation name.
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.SendMessageAction"
process="process" name="...">
<property name="operation" value="getQuote" />
<property name="messageType" value="requestForQuote" />
....
</action>
-
Sending a request
When sending a request, we need to identify the destination service category/name. This is done by either specifying the category and name explicitly, using the serviceCategory and serviceName properties:
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.SendMessageAction"
process="process" name="...">
....
<property name="serviceName" value="RequestForQuote.main" />
<property name="serviceCategory" value="ESBBroker.SupplierParticipant" />
....
</action>
-
Sending a response
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.SendMessageAction"
process="process" name="...">
....
<property name="clientRole" value="buyer" />
<property name="eprStore" value="orgization.your.impl.EPRStorageImpl" />
....
</action>
When sending a response, the destination will not be directly available. The destination would have been received as a 'reply to' EPR (Endpoint Reference) in a previously received request (see ReceiveMessageAction for details of how to store the 'reply to' EPR). Therefore, to indicate which EPR to respond to, a property called 'clientEPR' is specified with the name of the stored EPR. This must match up to a previously stored EPR name within a ReceiveMessageAction.
The value of storageClass should be a class that implements the org.jboss.soa.overlord.jbossesb.EPRStorage interface, basically this class is responsible for registering, getting EPR from roleName.
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.ReceiveMessageAction"
process="process" name="s1-2">
<property name="operation" value="makeEnquiry" />
<property name="messageType" value="enquiry" />
<property name="clientRole" value="buyer" />
<property name="eprStore" value="com.acme.services.creditAgency.MemoryEPRStorage" />
</action>
The ReceiveMessageAction is used to explicitly define the message type that should be received. If an RPC style has been used, then the optional operation name can also be defined.
Unlike the SendMessageAction, which will actually send a message to the specified service category/name, the ReceiveMessageAction primarily serves to provide explicit details about the expected message and to perform any relevant validation of the message content. If an incorrect message type is received, then an error will be logged.
The optional 'clientRole' and 'storageClass' properties are used to store any specific "reply to" EPR (associated with the message) against the specified name. This makes the EPR accessible to any subsequent SendMessageAction activities that need to return a response or send a notification.
This section describes the two control flow mechanisms that are supported by the stateless ESB actions.
The default control flow, supported natively by the ESB action pipeline design, is a sequence. As the name implies, the actions are performed one at a time in the order they defined in the action pipeline, i.e. in a sequence.
The action associated with the 'selection of a path based on a decision' is the IfAction. An example of this construct is:
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.IfAction" name="..."
process="process">
<property name="paths">
<if service-category="PurchaseGoods.CreditAgency"
service-name="CreditAgency.decision1"
decision-class="org.jboss.soa.overlord.jbossesb.TestDecision"/>
<elseif service-category="PurchaseGoods.CreditAgency"
service-name="CreditAgency.decision2"
decision-class="org.jboss.soa.overlord.jbossesb.Test2ndDecision"/>
<else service-category="PurchaseGoods.CreditAgency"
service-name="CreditAgency.decision3"/>
</property>
</action>
This construct defines a 'path' property with one or more elements, representing the if, elseif and else aspects of the traditional if/else construct. Only the if element is mandatory, and can be followed by zero or more elseif elements before ending with the optional else element.
The if and elseif elements can define an 'decision-class' attribute to be evaluated at runtime, to determine if the associated 'service-category' and 'service-name' should be invoked. the value of decision-class must implement the interface of org.jboss.soa.overlord.jbossesb.Decision.
The action used to select paths based on a received message type is SwitchAction. In the stateless esb actions approach, we are using this as the Message Router. The configuration of SwithAction is like:
<action class="org.jboss.soa.overlord.jbossesb.stateless.actions.SwitchAction"
name="..." process="process">
<property name="serviceDescriptionName"
value="{org.pi4soa.esbbroker.esbbroker}ESBBrokerProcess-Broker"/>
<property name="conversationType" value="overlord.cdl.samples.LoanBroker@Broker"/>
<property name="paths">
<case service-category="org.pi4soa.esbbroker.esbbroker"
service-name="ESBBrokerProcess_Broker__1">
<message type="enquiry"/>
</case>
<case service-category="org.pi4soa.esbbroker.esbbroker"
service-name="ESBBrokerProcess_Broker__7">
<event description="Event trigger to send quoteList message type(s)"/>
</case>
<case service-category="org.pi4soa.esbbroker.esbbroker"
service-name="ESBBrokerProcess_Broker__8">
<message type="buy"/>
</case>
</property>
</action>
In this approach, the SwitchAction typically is the point of contact for other services. Also true for the internal services. In the same manner as the Stateful ESB actions, it is necessary to specify the 'conversation type' that the service represents, to enable conformance checking to be performed against a choreography description that provides the associated conversation type. In the Stateless ESB actions, this initial SwitchAction defines this information in the conversationType property.
The 'paths' property defines one or more 'case' elements. These elements identify a service category and name that should be invoked upon receipt of one or more message types, as specified by 'message' elements contained within the 'case' elements.
The 'type' attribute on the 'message' element defines the type of message that can be routed to the specified service category/name. In the example above, the message types have no namespace. However if they have a namespace, this can be defined in curly braces, e.g. "{http://www.jboss.org/samples}buy".
The 'event' element is defined for paths with no associated message type. These paths are expected to be triggered by a different sort of event, for example an internal timeout managed by the service implementation. However these internal events are triggered, and directed to the appropriate service descriptor is a implementation issue for the service. The inclusion of this path in the SwitchAction symbolises the exist of this asynchronously triggered path in the behaviour of the service.
Once a path has been selected, the associated service category/name will be invoked immediately. If none of the paths specified within this action are relevant to the received message, then a runtime exception will be thrown.
Tip
In this M2 release, we've just had these four actions in the stateless esb action approach. we might add other actions in the subsequent release. If you have any comments and feedback, you can go to the forum or issue track to raise your request.This section explains how to generate a template JBossESB configuration file from a pi4soa choreography description (.cdm) file.

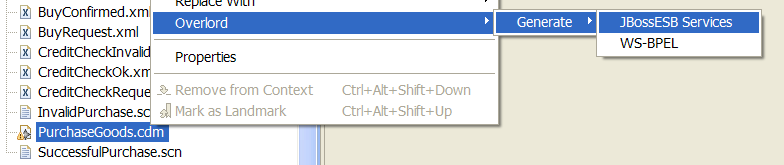

When the choreography description has been completed, and has no errors, the user should select the "Overlord->Generate->JBossESB Services" menu item from the popup menu associated with the choreography description (.cdm) file.

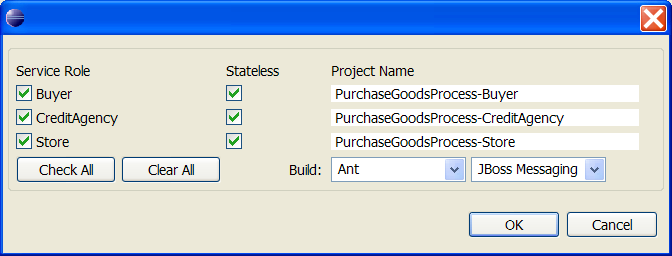

When the dialog window is displayed, it will contain the list of services that can be generated, along with the project names that will be created. The user can unselect the services they do not wish to generate (also using the 'Check All' or 'Clear All' buttons). There is also a checkbox to determine whether a stateful or stateless (the default) implementation should be generated.
The user can also select their preferred build system, which will create the relevant build structure and script in the generated Java project to enable the JBossESB service to be deployed, as well as the appropiate messaging system to use.
If there is a problem with the name of the project select, such as invalid characters used in the name, or the project name already exists, then it will be displayed in red.

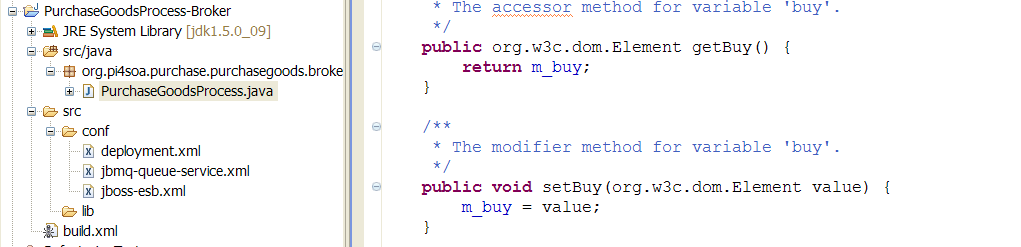

In the above image, on the left it shows the generated project structure for the Broker service role. On the right it shows a portion of a generated session class, with the accessor and modifier for one of the variables associated with that session.
Although an initial build script will be created, depending on the build system selected, the user may need to edit the script to set certain properties, or change the way the build occurs. For example, with the Ant build, the deploy target (which is the default) will attempt to place the deployed .esb file into a location defined by the ${org.jboss.esb.server.deploy.dir}. If this variable has not been defined, then a folder called ${org.jboss.esb.server.deploy.dir} will be created in the root folder of the project, containing the .esb file.
Conformance checking can be used to determine whether an ESB configuration, containing "conversation aware" ESB actions, matches the expected behaviour as defined within a choreography description (.cdm file). The Eclipse environment will report any conformance issues as errors in the Problems view.
This section will explain the types of conformance errors that may be reported and how to deal with them. Not all errors, associated with an ESB configuration, will be discussed in this section. Many errors may be detected that will indicate problems associated with the way that behaviour has been specified in the configuration file (e.g. conversation type has not been defined). These are not directly related to conformance.
When an error occurs, related to conformance between the ESB configuration file and a choreography description, it will have an associated quick fix resolution that can be used to display the relevant activity being referred to within the choreography description.
This error message indicates that the reference description contains activities that were not found in the ESB configuration.
This error has an associated quick fix to enable the missing activities to be inserted in the appropriate location within the ESB configuration.
Note
When this resolution is selected, if it displays an error “Could not insert activities found in referenced description”, this means that it was not possible to insert the additional activities automatically.
This error occurs when an activity contains a type that does not match with the equivalent activity in the choreography description. A common example would be an interaction, where the message types are not compatible.
This error has an associated quick fix to enable the type to be updated in the relevant activity within the ESB configuration.
Note
When this resolution is selected, if it displays an error “Could not update activity with information from referenced description”, this means that it was not possible to update the information automatically.
This error occurs when there are extra activities within the ESB configuration that do not appear within the choreography description.
This error has an associated quick fix to enable the unwanted activities to be removed from the ESB configuration.
Note
When this resolution is selected, if it displays an error “Could not delete activities from the model”, this means that it was not possible to delete the activities automatically.
This error indicates that a grouping contruct (e.g. ParallelAction, IfAction or SwitchAction) in the ESB configuration has additional paths that do not match the equivalent grouping construct in the choreography description.
