Chapter 3. Identity Management - Overview

Table of Contents

3.1. Introduction
3.1.1. Injecting the Identity Management Objects
3.1.2. Interacting with PicketLink IDM During Application Startup
3.1.3. Configuring the Default Partition
3.2. Getting Started - The 5 Minute Guide
3.3. Identity Model
3.3.1. Which Identity Model Should My Application Use?
3.4. Creating a Custom Identity Model
3.4.1. The @AttributeProperty Annotation
3.4.2. The @Unique Annotation
3.5. Creating Custom Relationships
3.6. Partition Management
3.6.1. Creating Custom Partitions

PicketLink Identity Management (IDM) is a fundamental module of PicketLink, with all other modules building on top of the IDM component to implement their extended features. It features provide a rich and extensible API for managing the identities (such as users, groups and roles) of your applications and services. It also supports a flexible system for identity partitioning, allowing it to be used as a complete security solution in simple web applications and/or as an Identity Provider (IDP) in more complex multi-domain scenarios. It also provides the core Identity Model API classes (see below) upon which an application's identity classes are defined to provide the security structure for that application.

The Identity Management features of PicketLink are accessed primarily via the following three interfaces:

  • PartitionManager is used to manage identity partitions, which are essentially a container for a set of identity objects. The PartitionManager interface provides a set of CRUD methods for creating, reading, updating and deleting partitions, as well as methods for creating an IdentityManager or RelationshipManager (more on these next). A typical Java EE application with simple security requirements will likely not be required to access the PartitionManager API directly.

  • IdentityManager is used to manage identity objects within the scope of a partition. Some examples of identity objects are users, groups and roles, although PicketLink is not limited to just these. Besides providing the standard set of CRUD methods for managing and locating identity objects, the IdentityManager interface also defines methods for managing credentials and for creating identity queries which may be used to locate identities by their properties and attributes.

  • RelationshipManager is used to manage relationships - a relationship is a typed association between two or more identities, with each identity having a definitive meaning within the relationship. Some examples of relationships that may already be familiar are group memberships (where a user is a member of a particular group) or granted roles (where a user is assigned to a role to afford them a certain set of privileges). The RelationshipManager provides CRUD methods for managing relationships, and also for creating a relationship query which may be used to locate relationships between identities based on the relationship type and participating identity object/s.


In case you are wondering why a separate RelationshipManager interface is required for managing relationships between identites, it is because PicketLink supports relationships between identities belonging to separate partitions; therefore the scope of a RelationshipManager instance is not constrained to a single partition in the same way as the IdentityManager.

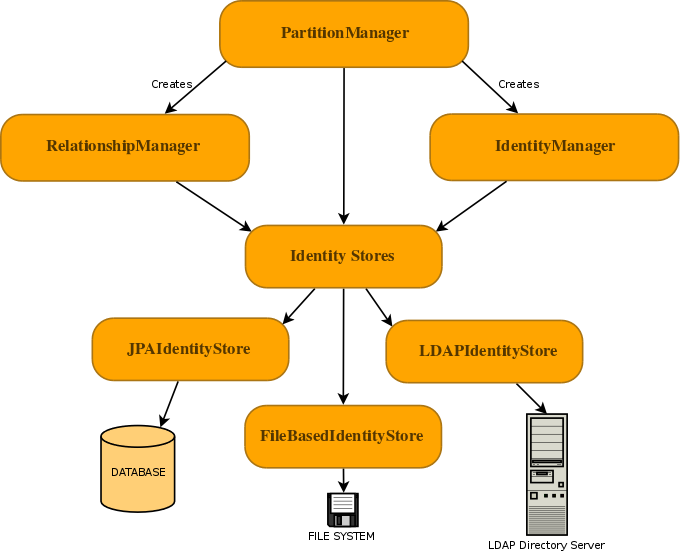

Interaction with the backend store that provides the persistent identity state is performed by configuring one or more IdentityStores. PicketLink provides a few built-in IdentityStore implementations for storing identity state in a database, file system or LDAP directory server, and it is possible to provide your own custom implementation to support storing your application's identity data in other backends, or extend the built-in implementations to override their default behaviour.

If you'd like to get up and running with IDM quickly, the good news is that PicketLink will provide a default configuration that stores your identity data on the file system if no other configuration is available. This means that if you have the PicketLink libraries in your project, you can simply inject the PartitionManager, IdentityManager or RelationshipManager beans into your own application and start using them immediately:

@Inject PartitionManager partitionManager;

@Inject IdentityManager identityManager;
@Inject RelationshipManager relationshipManager;

Once you have injected an IdentityManager you can begin creating users, groups and roles for your application:

User user = new User("jdoe");

Group group = new Group("employees");
Role admin = new Role("admin");

Use the RelationshipManager to create relationships, such as role assignments and group memberships:

// Grant the admin role to the user

relationshipManager.add(new Grant(user, admin));
// Add the user to the employees group
relationshipManager.add(new GroupMembership(user, group));

The static methods provided by the org.picketlink.idm.model.basic.BasicModel class are based on the basic identity model and may be used to lookup various identity objects, or test whether certain relationships exist. These methods accept either an IdentityManager or RelationshipManager object as a parameter.

// Lookup the user by their username

User user = BasicModel.getUser(identityManager, "jdoe");
// Test if the user has the admin role
boolean isAdmin = BasicModel.hasRole(relationshipManager, user, role);
// Test if the user is a member of the employee group
boolean isEmployee = BasicModel.isMember(relationshipManager, user, group);

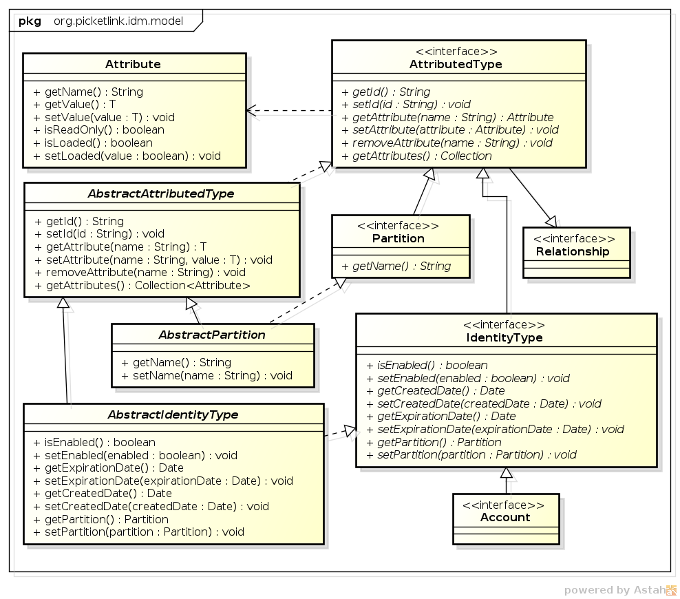

The Identity Model is a set of classes that define the security structure of an application. It may consist of identity objects such as users, groups and roles; relationships such as group and role memberships; and partitions such as realms or tiers. The classes found in the org.picketlink.idm.model package define the base types upon which the identity model is built upon:

  • AttributedType is the base interface for the identity model. It declares a number of methods for managing a set of attribute values, plus getId() and setId() methods for setting a unique identifier value.

  • Attribute is used to represent an attribute value. An attribute has a name and a (generically typed) value, and may be marked as read-only. Attribute values that are expensive to load (such as large binary data) may be lazy-loaded; the isLoaded() method may be used to determine whether the Attribute has been loaded or not.

  • Partition is the base interface for partitions. Since each partition must have a name it declares a getName() method.

  • Relationship is the base interface for relationships. Besides the base methods defined by the AttributedType interface, relationship implementations have no further contractual requirements, however they will define methods that return the identities and attribute values in accordance with the relationship type.

  • IdentityType is the base interface for Identity objects. It declares properties that indicate whether the identity object is enabled or not, optional created and expiry dates, plus methods to read and set the owning Partition.

  • Account is the base interface for identities that are capable of authenticating. Since the authentication process may not depend on one particular type of attribute (not all authentication is performed with a username and password) there are no hard-coded property accessors defined by this interface. It is up to each application to define the Account implementations required according to the application's requirements.

  • AbstractAttributedType is an abstract base class for creating AttributedType implementations.

  • AbstractPartition is an abstract base class that implements the base methods of the Partition interface, to simplify the development of partition implementations.

  • AbstractIdentityType is an abstract base class that implements the base methods of the IdentityType interface, to simplify the development of identity objects.

A custom identity model typically consists of two types of objects - the identity objects which define the security constructs of an application, and the relationships which define how the identity objects interract with each other to establish a meaningful security policy. PicketLink treats both types of object in an abstract manner, so it is up to the developer to create meaning for these objects and their relationships within the context of their own application. This section will describe how to create new identity objects and customize their properties and attributes, while the following section will complete the picture by describing how custom relationships are created.

Let's start by looking at the source for some of the identity objects in the basic model, starting with the Agent and User objects:

public class Agent extends AbstractIdentityType implements Account {

    private String loginName;
    public Agent() { }
    public Agent(String loginName) {
        this.loginName = loginName;
    public String getLoginName() {
        return loginName;
    public void setLoginName(String loginName) {
        this.loginName = loginName;
public class User extends Agent {

    private String firstName;
    private String lastName;
    private String email;
    public User() { }
    public User(String loginName) {
    public String getFirstName() {
        return firstName;
    public void setFirstName(String firstName) {
        this.firstName = firstName;
    public String getLastName() {
        return lastName;
    public void setLastName(String lastName) {
        this.lastName = lastName;
    public String getEmail() {
        return this.email;
    public void setEmail(String email) {
        this.email = email;

The Agent class is intended to represent a third party entity that may authenticate against an application, whether human (a user) or non-human (an external or remote process). Because Agent implements the Account marker interface, it is making a declaration that this identity object is capable of authenticating. To support the typical username/password authentication method, the Agent class defines a loginName property, however since the Account interface enforces no particular method of authentication (instead of a using username for authentication your application may require a certificate or fingerprint) this property is arbitrary.

The User class represents a human user and extends Agent to add the human-specific properties firstName, lastName and email. Since human users are also capable of authenticating it will also inherit the loginName property from the Agent.

One of the strengths of PicketLink is its ability to support custom relationship types. This extensibility allows you, the developer to create specific relationship types between two or more identities to address the domain-specific requirements of your own application.


Please note that custom relationship types are not supported by all IdentityStore implementations - see the Identity Store section above for more information.

To create a custom relationship type, we start by creating a new class that implements the Relationship interface. To save time, we also extend the AbstractAttributedType abstract class which takes care of the identifier and attribute management methods for us:

  public class Authorization extends AbstractAttributedType implements Relationship {


The next step is to define which identities participate in the relationship. Once we create our identity property methods, we also need to annotate them with the org.picketlink.idm.model.annotation.RelationshipIdentity annotation. This is done by creating a property for each identity type.

  private User user;

  private Agent application;
  public User getUser() {
    return user;
  public void setUser(User user) {
    this.user = user;
  public Agent getApplication() {
    return application;
  public void setApplication(Agent application) {
    this.application = application;

We can also define some attribute properties, using the @RelationshipAttribute annotation:

  private String accessToken;

  public String getAccessToken() {
    return accessToken;
  public void setAccessToken(String accessToken) {
    this.accessToken = accessToken;

PicketLink has been designed from the ground up to support a system of partitioning, allowing the identity objects it manages to be separated into logical groupings. Partitions may be used to split identities into separate realms, allowing an application to serve multiple organisations (for example in a SaaS architecture) or to support a multi-tier application allowing each tier to define its own set of identity objects (such as groups or roles). PicketLink's architecture also allows you to define your own custom partition types, allowing more complex use cases to be supported.

The PartitionManager interface provides the following methods for managing partitions:

public interface PartitionManager extends Serializable {

    <extends Partition> T getPartition(Class<T> partitionClass, String name);
    <extends Partition> List<T> getPartitions(Class<T> partitionClass);
    <extends Partition> T lookupById(final Class<T> partitionClass, String id);
    void add(Partition partition);
    void add(Partition partition, String configurationName);
    void update(Partition partition);
    void remove(Partition partition);

To create a new Partition object you may use either of the add() methods. If a configurationName parameter value isn't provided (see Chapter 7, Identity Management - Configuration for more information), then the newly created Partition will use the default configuration.

// Create a new Realm partition called "acme"

partitionManager.add(new Realm("acme"));
// Create a new Tier partition called "sales" using the named configuration "companyAD"

partitionManager.add(new Tier("sales"), "companyAD");

Each new Partition object created will be automatically assigned a unique identifier value, which can be accessed via its getId() method:

Realm realm = new Realm("acme");

String partitionId = realm.getId();

Partitions may be retrieved using either their name or their unique identifier value. Both methods require the exact partition class to be provided as a parameter:

Realm realm = partitionManager.getPartition(Realm.class, "acme");

Tier tier = partitionManager.lookupById(Tier.class, tierId);

It is also possible to retrieve all partitions for a given partition class. In this case you can retrieve all partitions for a given type or all of them:

List<Realm> realms = partitionManager.getPartitions(Realm.class);

List<Partition> allPartitions = partitionManager.getPartitions(Partition.class);

Since Partition objects all implement the AttributedType interface, it is also possible to set arbitrary attribute values:

realm.setAttribute(new Attribute<Date>("created", new Date()));

After making changes to an existing Partition object, the update() method may be used to persist those changes:


A Partition object may also be removed with the remove() method:


Removing a Partition object is permanent, and will also remove all identity objects that exist within that partition!
