The component to render data as a grid that allows choosing data from a model and obtains built-in support of Ajax updates.
A completely skinned table and child elements
Possibility to update a limited set of rows with Ajax
Possibility to receive values dynamically from a model
Table 6.69. rich : dataGrid attributes
| Attribute Name |
Description
|
|---|---|
| ajaxKeys | This attribute defines row keys that are updated after an AJAX request |
| align | Deprecated. This attribute specifies the position of the table with respect to the document. The possible values are "left", "center" and "right". The default value is "left". |
| bgcolor | Deprecated. This attribute sets the background color for the document body or table cells. This attribute sets the background color of the canvas for the document body (the BODY element) or for tables (the TABLE, TR, TH, and TD elements). Additional attributes for specifying text color can be used with the BODY element. This attribute has been deprecated in favor of style sheets for specifying background color information |
| binding | JSF: The attribute takes a value-binding expression for a component property of a backing bean |
| border | HTML: This attributes specifies the width of the frame around a component. Default value is "0". |
| captionClass | Assigns one or more space-separated CSS class names to the component caption |
| captionStyle | CSS style rules to be applied to the component caption |
| cellpadding | This attribute specifies the amount of space between the border of the cell and its contents. Default value is "0". |
| cellspacing | This attribute specifies the amount of space between the border of the cell and its contents. The attribute also specifies the amount of space to leave between cells. Default value is "0". |
| columnClasses | JSF: Assigns one or more space-separated CSS class names to the columns of the table. If the CSS class names are comma-separated, each class will be assigned to a particular column in the order they follow in the attribute. If you have less class names than columns, the class will be applied to every n-fold column where n is the order in which the class is listed in the attribute. If there are more class names than columns, the overflow ones are ignored. |
| columns | Number of columns |
| componentState | It defines EL-binding for a component state for saving or redefinition |
| dir | HTML: Direction indication for text that does not inherit directionality. Valid values are "LTR" (left-to-right) and "RTL" (right-to-left) |
| elements | Number of elements in grid |
| first | A zero-relative row number of the first row to display |
| footerClass | Assigns one or more space-separated CSS class names to the component footer |
| frame | This attribute specifies which sides of the frame surrounding a table will be visible. Possible values: "void", "above", "below", "hsides", "lhs", "rhs", "vsides", "box" and "border". The default value is "void". |
| headerClass | Assigns one or more space-separated CSS class names to the component header |
| id | JSF: Every component may have a unique id that is automatically created if omitted |
| lang | HTML: Code describing the language used in the generated markup for this component |
| onclick | DHTML: The client-side script method to be called when the element is clicked |
| ondblclick | DHTML: The client-side script method to be called when the element is double-clicked |
| onkeydown | DHTML: The client-side script method to be called when a key is pressed down over the element |
| onkeypress | DHTML: The client-side script method to be called when a key is pressed over the element and released |
| onkeyup | DHTML: The client-side script method to be called when a key is released |
| onmousedown | DHTML: The client-side script method to be called when a mouse button is pressed down over the element |
| onmousemove | DHTML: The client-side script method to be called when a pointer is moved within the element |
| onmouseout | DHTML: The client-side script method to be called when a pointer is moved away from the element |
| onmouseover | DHTML: The client-side script method to be called when a pointer is moved onto the element |
| onmouseup | DHTML: The client-side script method to be called when a mouse button is released |
| onRowClick | The client-side script method to be called when the row is clicked |
| onRowDblClick | The client-side script method to be called when the row is double-clicked |
| onRowMouseDown | The client-side script method to be called when a mouse button is pressed down over the row |
| onRowMouseMove | The client-side script method to be called when a pointer is moved within the row |
| onRowMouseOut | The client-side script method to be called when a pointer is moved away from the row |
| onRowMouseOver | The client-side script method to be called when a pointer is moved onto the row |
| onRowMouseUp | The client-side script method to be called when a mouse button is released over the row |
| rendered | JSF: If "false", this component is not rendered |
| rowClasses | JSF: Assigns one or more space-separated CSS class names to the rows of the table. If the CSS class names are comma-separated, each class will be assigned to a particular row in the order they follow in the attribute. If you have less class names than rows, the class will be applied to every n-fold row where n is the order in which the class is listed in the attribute. If there are more class names than rows, the overflow ones are ignored. |
| rowKey | RowKey is a representation of an identifier for a specific data row |
| rowKeyConverter | Converter for a row key object |
| rowKeyVar | Request scoped variable for client access to rowKey |
| rules | This attribute specifies which rules will appear between cells within a table. The rendering of rules is user agent dependent. Possible values: * none: No rules. This is the default value. * groups: Rules will appear between row groups (see THEAD, TFOOT, and TBODY) and column groups (see COLGROUP and COL) only. * rows: Rules will appear between rows only. * cols: Rules will appear between columns only. * all: Rules will appear between all rows and columns |
| stateVar | The attribute provides access to a component state on the client side |
| style | HTML: CSS style rules to be applied to the component |
| styleClass | JSF: Assigns one or more CSS class names to the component. Corresponds to the HTML "class" attribute. |
| summary | This attribute provides a summary of the table's purpose and structure for user agents rendering to non-visual media such as speech and Braille |
| title | HTML: Advisory title information about markup elements generated for this component |
| value | JSF: The current value for this component |
| var | A request-scope attribute via which the data object for the current row will be used when iterating |
| width | HTML: This attribute specifies the desired width of the entire table and is intended for visual user agents. When the value is percentage value, the value is relative to the user agent's available horizontal space. In the absence of any width specification, table width is determined by the user agent |
Table 6.70. Component identification parameters
| Name | Value |
|---|---|
| component-type | org.richfaces.DataGrid |
| component-class | org.richfaces.component.html.HtmlDataGrid |
| component-family | org.richfaces.DataGrid |
| renderer-type | org.richfaces.DataGridRenderer |
| tag-class | org.richfaces.taglib.DataGridTag |
To create the simplest variant of dataGrid on a page, use the following syntax:
Example:
...
<rich:dataGrid value="#{dataTableScrollerBean.allCars}" var="car">
<h:outputText value="#{car.model}"/>
</rich:dataGrid>
...
Example:
import org.richfaces.component.html.HtmlDataGrid;
...
HtmlDataGrid myList = new HtmlDataGrid();
...
The component takes a list from a model and outputs it the same way as with <h:panelGrid> for inline data. To define grid properties and styles, use the same definitions as for <h:panelGrid>.
The component allows to:
Use "header" and "footer" facets for output
Limit number of output elements ( "elements" attribute) and define first element for output ( "first" attribute)
Bind pages with <rich:datascroller> component
Here is an example:
Example:
...
<rich:panel style="width:150px;height:200px;">
<h:form>
<rich:dataGrid value="#{dataTableScrollerBean.allCars}" var="car" columns="2" elements="4" first="1">
<f:facet name="header">
<h:outputText value="Car Store"></h:outputText>
</f:facet>
<rich:panel>
<f:facet name="header">
<h:outputText value="#{car.make} #{car.model}"></h:outputText>
</f:facet>
<h:panelGrid columns="2">
<h:outputText value="Price:" styleClass="label"></h:outputText>
<h:outputText value="#{car.price}"/>
<h:outputText value="Mileage:" styleClass="label"></h:outputText>
<h:outputText value="#{car.mileage}"/>
</h:panelGrid>
</rich:panel>
<f:facet name="footer">
<rich:datascroller></rich:datascroller>
</f:facet>
</rich:dataGrid>
</h:form>
</rich:panel>
...

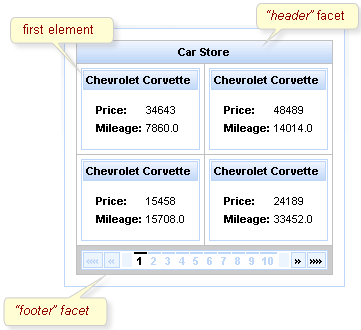

This is a result:
The component was created basing on the <a4j:repeat> component and as a result it could be partially updated with Ajax. "ajaxKeys" attribute allows to define row keys that are updated after an Ajax request.
Here is an example:
Example:
...
<rich:dataGrid value="#{dataTableScrollerBean.allCars}" var="car" ajaxKeys="#{listBean.list}"
binding="#{listBean.dataGrid}" id="grid" elements="4" columns="2">
...
</rich:dataGrid>
...
<a4j:commandButton action="#{listBean.action}" reRender="grid" value="Submit"/>
...
In the example "reRender" attribute contains value of "id" attribute for <rich:dataGrid> component. As a result the component is updated after an Ajax request.
Table 6.71. Facets
| Facet name | Description |
|---|---|
| header | Defines the header content |
| footer | Defines the footer content |
| caption | Defines the caption content |
For skinnability implementation, the components use a style class redefinition method. Default style classes are mapped on skin parameters.
There are two ways to redefine the appearance of all <rich:dataGrid> components at once:
Redefine the corresponding skin parameters
Add to your style sheets style classes used by a <rich:dataGrid> component
Skin parameters redefinition for <rich:dataGrid> are the same as for the <rich:dataTable> component.
Custom style classes for <rich:dataGrid> are the same as for the <rich:dataTable> component.
In order to redefine styles for all <rich:dataGrid> components on a page using CSS, it's enough to create classes with the same names (possible classes are the same as for the <rich:dataTable> ) and define necessary properties in them.
Example:
...
.rich-table-footercell{
color:#ff7800;
}
...

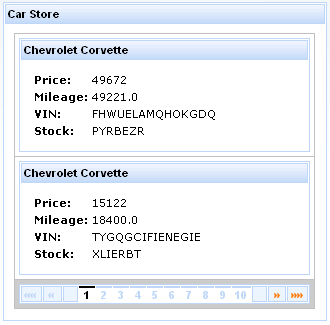

This is a result:
In the example color of footercell was changed.
Also it's possible to change styles of particular <rich:dataGrid> component. In this case you should create own style classes and use them in corresponding <rich:dataGrid> styleClass attributes. An example is placed below:
Example:
...
.myClass{
font-style:italic;
}
...
The "columnClasses" attribute for <rich:dataGrid> is defined as it's shown in the example below:
Example:
<rich:dataGrid ... columnClasses="myClass"/>

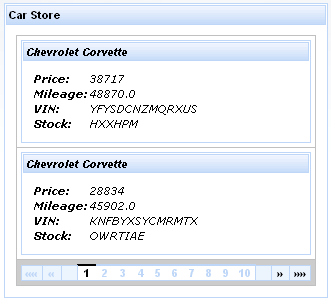

This is a result:
As it could be seen on the picture above, the font style for columns was changed.
On the component LiveDemo page you can see the example of <rich:dataGrid> usage and sources for the given example.
