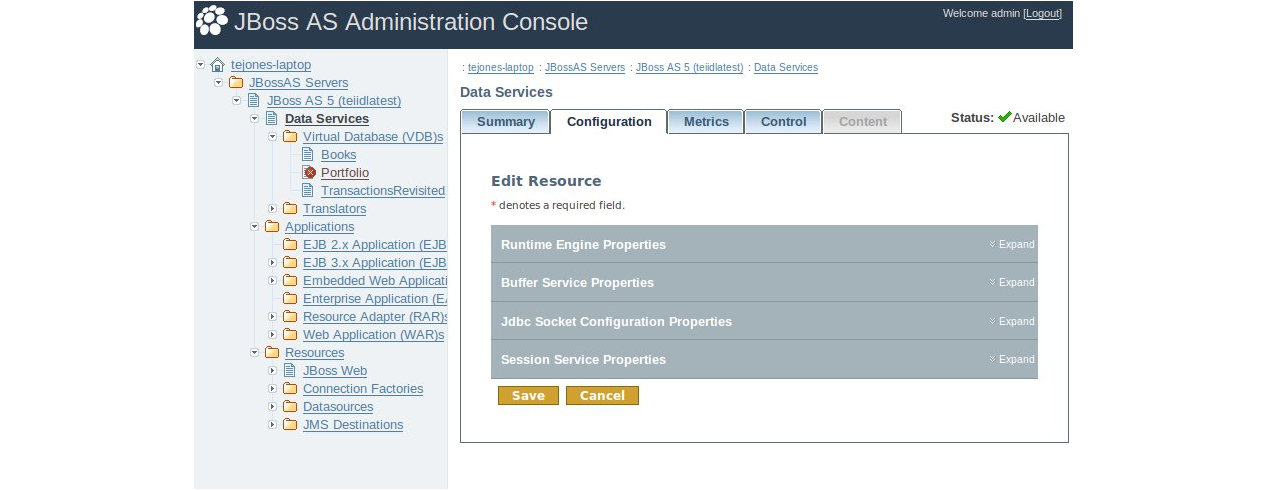

The Teiid Admin Console is a web based administrative and monitoring tool for Teiid. Teiid's Admin Console is built using the Embedded JOPR library and adds a additional plugin into the Embeeded JOPR program already available in the JBoss AS.

5.1. What can be monitored and/or configured?

Here are the steps to follow to install Teiid

1. The Teiid Runtime Engine (Data Services node in the tree)

2. VDBs - Virtual databases

   1. Models

      1. Source- these are physical sources

      2. Multi-source - these are multiple sourced models

      3. Logical - these are virtual sources

   2. Translator instances- any Translator instances defined for use by this VDB

3. Translators - These are the extensions to supported datasources that come with Teiid out-of-the-box.

Note

The creation/modification of the datasource is managed by the JBossAS plugin.

5.1.1. Configuration

1. Runtime Engine properties

2. Buffer Service

3. Jdbc Socket configuration

4. Session Service

5.1.2. Metrics

1. Long Running Query count

2. Active Query count

3. Active Session count

5.1.3. Control (Operations)

1. View Long Running Queries

2. View Current Sessions

3. Terminate Session

4. View Current Requests

5. Terminate requests

6. View Current Transactions

7. Terminate Transaction

5.1.4. Deploying the VDB

VDB archive files created it the Designer Tool or Dynamic VDBs can be deployed into Teiid server using the Admin Console.

1. Select the Virtual Database node in the Admin Console tree and click the Add New Resource button.

2. Select the VDB archive file from the file system and click continue.

3. The VDB will deploy if no fatal errors are found in the archive. The status of the VDB will be UP if no errors are found with the models in the VDB.

4. If there are model errors, the VDB will be deployed with a status of DOWN and the errors will be listed on the configuration tab of the VDB. VDBs that are not UP will be marked with a red X in the tree.

Only Model's "connection-jndi-name" can be modified using this tool by clicking on the "configuration" tab, all other proeprties are read-only.
