This chapter discusses various features targeted at defining and managing metamodel-specific objects.

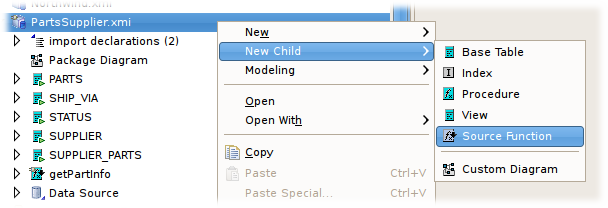

To improve ability to utilize database functions within View transformations, a new New Child > Source Function action and wizard was added to assist in building a source procedure that conforms to a function structure, including input and output parameters. Prior to Teiid Designer 7.5, these functions were required to be modeled as User Defined functions.

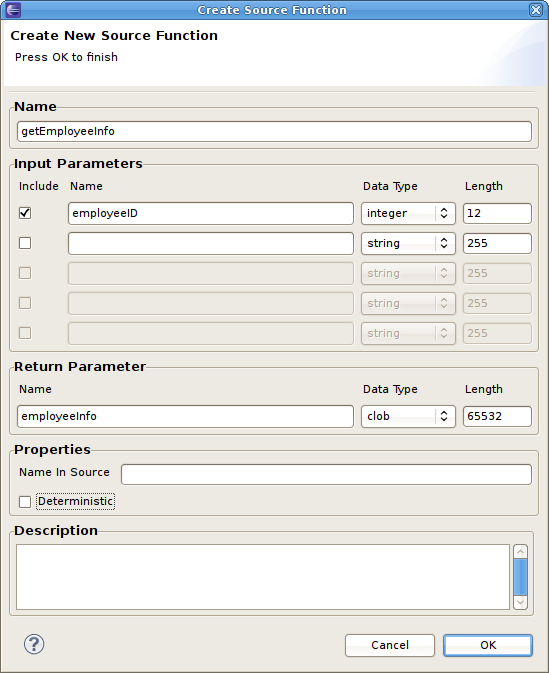

Running the action will display the Create New Source Function dialog. Enter your database function name, define input parameters including datatype and length, specify output parameter info, set options and click OK.
The resulting source function will be added to your model and will be represented
by the
icon.

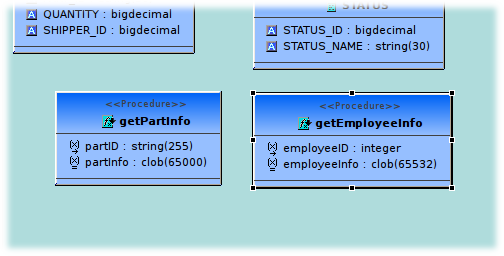

When finished, the new source function will be displayed in your model's package diagram.
This section contains descriptions of various features related to creating and managing relational view model objects.

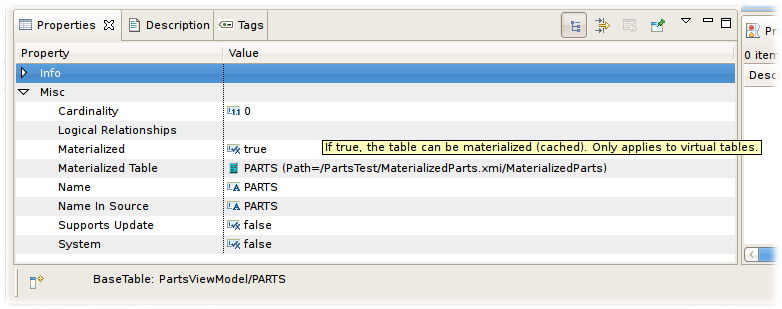

For any relational view table you can enable it's materialized view option by setting the Materialized property to TRUE and setting the Materialized Table reference, as shown in the figure below. Note that you are required to have already created your relational tables.
Designer includes a feature to assist in quickly creating materialized relational tables based on your existing view tables.
To create materialized views:

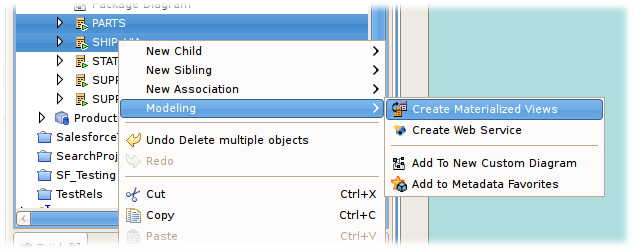

Step 1 - Right-click on one or more view tables in the Section 10.2.1, “Model Explorer View” and select the Modeling > Create Materialized Views action.

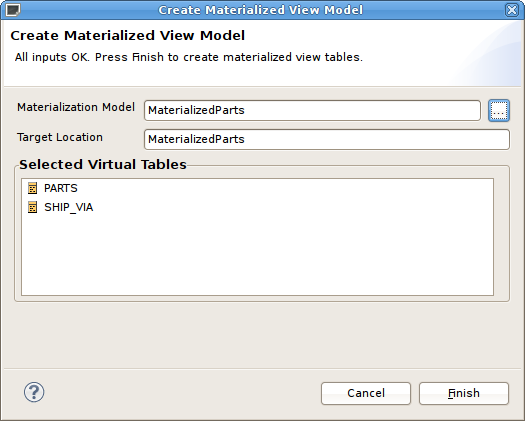

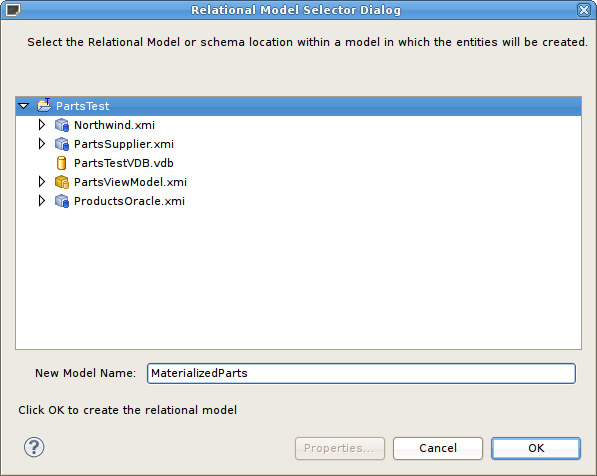

Step 2 - In the Create Materialized View Model dialog specify or select a target relational model for your generated relational tables.
Step 2a - Selecting the browse '...' button displays the Relational Model Selector dialog where you select an existing relational model or specify a unique name for a new model.
Step 3 - Click OK to create relational tables corresponding to your selected view tables and automatically set the Materialized property to TRUE and the Materialized Table reference value to your newly generated table.

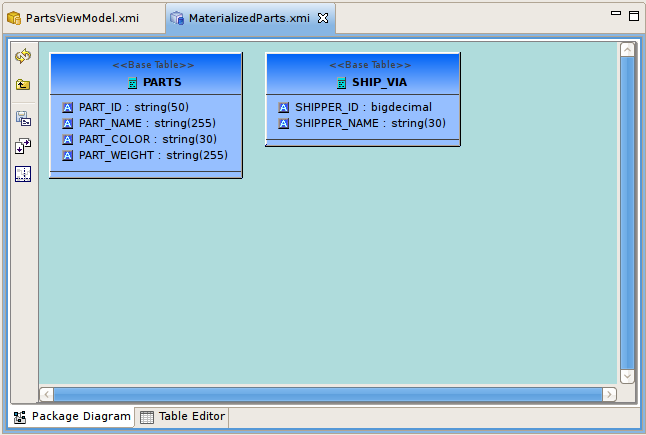

When finished your view tables will be configured with their new materialized properties and the corresponding relational tables will be shown in their package diagram.

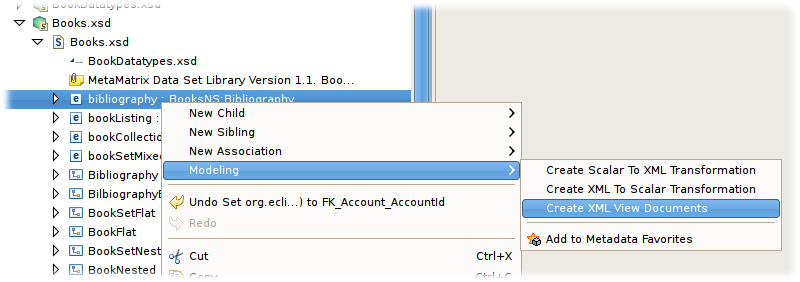

You can create XML View Documents by selecting an element in the Model Explorer and selecting the Modeling > Create XML View Documents action.

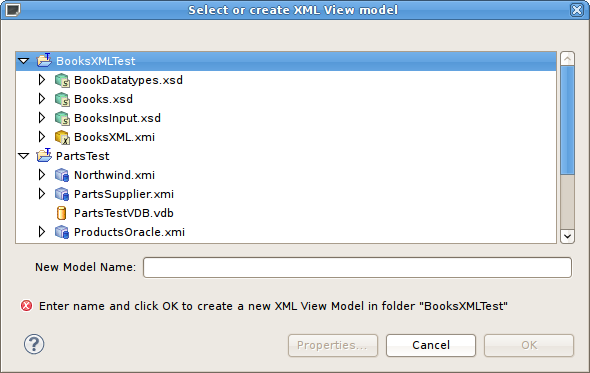

The action will query you for a target XML Document model. You can either select an existing XML Document model from your workspace, or enter a unique model name and the wizard will create a new model for you.

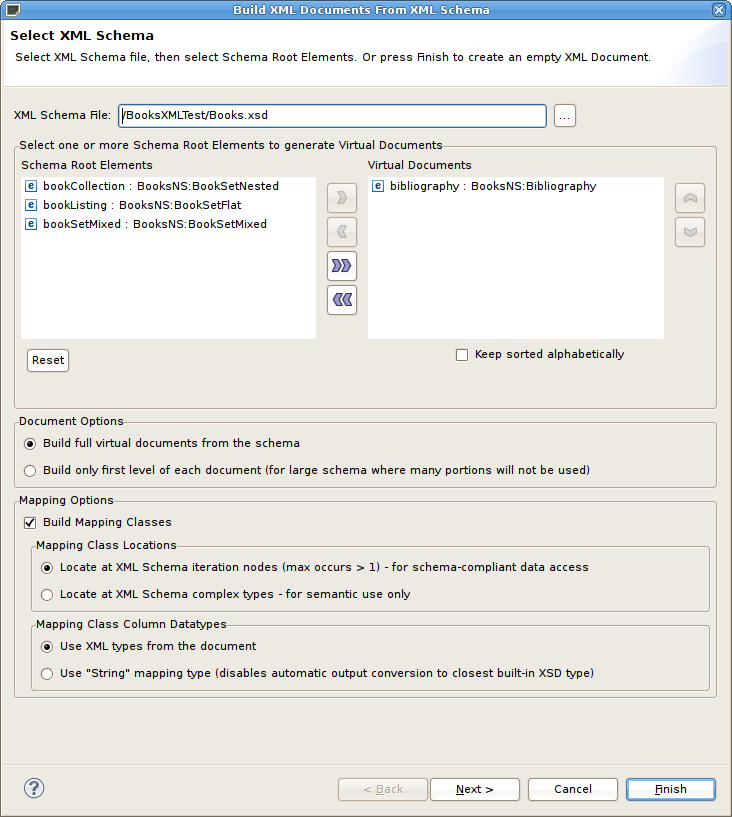

After selecting or creating your new XML Document model, the XML Document builder page will be displayed. This page is explained in greater detail in Section 2.3.2, “Build XML Documents From XML Schema ”section.
This method is recommended for experienced users for consistent and rapid deployment of Web services designed to query relational sources. It provides detailed control of all Web service interfaces, operations and required transformations from XML Views
To create a Web service model from relational models or objects:
Step 1 - Select any combination of relational models, tables and/or procedures in the Section 10.2.1, “Model Explorer View” tree.
Note
It is recommended that the user selects single source models, which enables auto-naming of input/output schema and Web service models in \ Step 3.

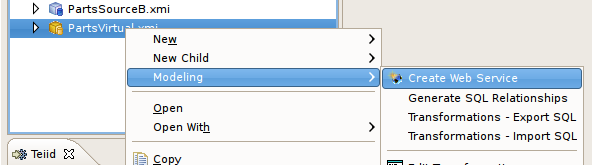

Step 2 - Right-click select Modeling > Create Web Service action

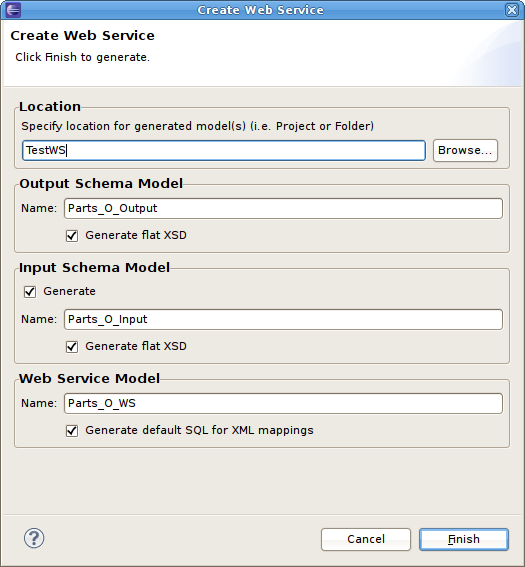

.Step 3 - In the Create Web Service dialog, specify file names for the generated Input Schema file, Output Schema file and Web service model. Change options as desired. Click Finish when done.

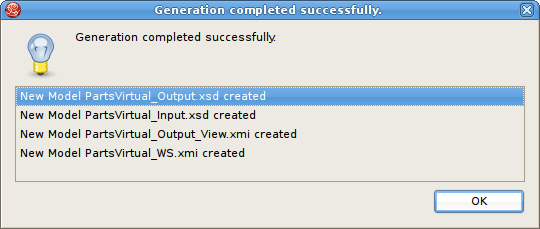

Step 4 - When model generation is complete, a confirmation dialog should appear. Click OK.
Teiid Designer allows you to expose your VDBs via a SOAP or REST interface. JBossWS-CXF or RESTEasy wars can be generated based on models within your VDBs. This section describes these wizards in detail.
The Teiid Designer provides web service generation capabilities in the form of a JBossWS-CXF war. Once you have added your Web Service Models as described in Section 2.5, “Creating Web Service View Model” to your VDB, deployed the VDB to a running Teiid instance and created your VDB's data source, you are ready to expose the web service using the generated war.
To generate a new JBossWS-CXF war using the VDB:
Step 1 - Right-click on the VDB containing your web service model(s) and select the Modeling > Generate JBossWS-CXF War action.

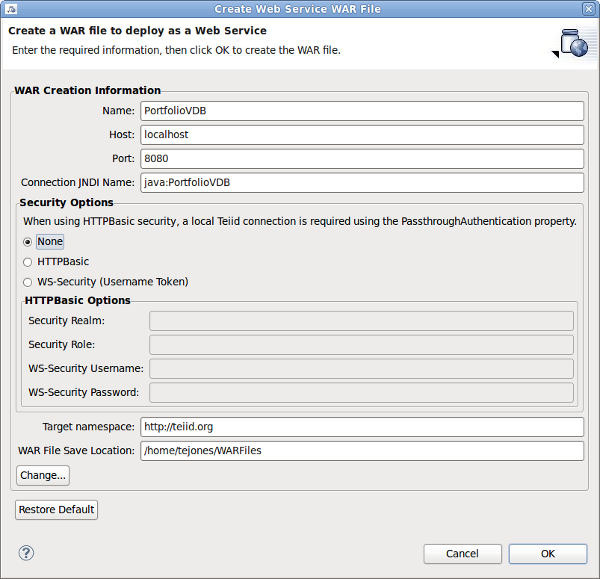

Step 2 - Fill in missing properties in Web Service War Generation Wizard shown below.
Table 5.1. Field Descriptions
Field Name Description Name The name of the generated war file. Host The server host name (or IP). Port The server port. Connection JNDI Name The JNDI connection name to the deployed Teiid source VDB. Security options
None - no username/password required to connect to the VDB through the generated web service.
HTTP Basic - the specified security realm and role will be used. The default realm value is the realm that comes out-of-the-box with Teiid (teiid-security). The role needs to be defined in the appropriate security mechanism. In the case of Teiid, use the teiid-security-roles.properties file. When using HTTPBasic, a local Teiid connection using the PassthroughAuthentication property is required. See the Teiid user's manual for details on PassthroughAuthentication.
WS-Security - a password callback class will be generated for you which will validate that the username/password values you specified in the war generator dialog are passed in. This is meant to be a testing mechanism for your WS-Security enabled web service and your own security mechanism should be implemented in this class. All source code is included in the generated war along with the compiled class files.
Target namespace This is the target namespace that will be used in the generated WSDL and subsequent generated web service classes. War File Save Location The folder where the generated WAR file should be saved.

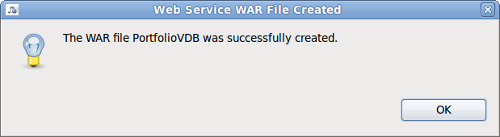

Step 3 - Click OK to generate the web service war. When war generation is complete, a confirmation dialog should appear. Click OK.
In Teiid Designer, it is also possible to expose your VDBs over REST using a generated RESTEasy war. Also, if your target virtual model has update, insert and delete SQL defined, you can easily provide CRUD capabilities via REST. Accepted inputs into the generated REST operations are URI path parameters and/or XML. The only output at this time is an XML document.

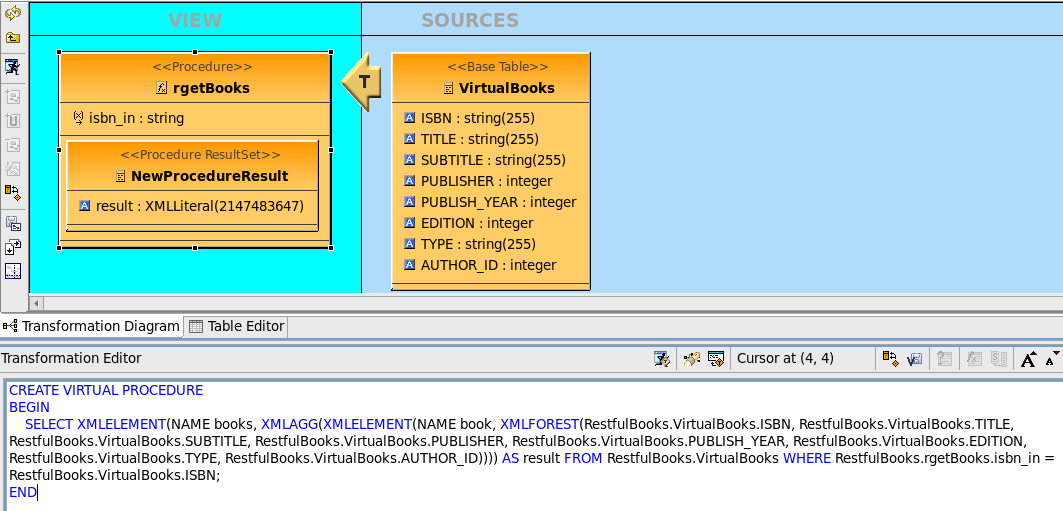

Step 1 In a virtual model, add a procedure(s) that returns an XMLLiteral object. The target of your procedure can be any models in your VDB. Here is an example procedure that selects from a virtual table (VirtualBooks) and returns the results as an XMLLiteral:
Notice the syntax used to convert the relation table result of the select from VirtualBooks, to an XMLLiteral. All XML functions are documented in the Scalar Functions chapter of the Teiid Reference Guide.

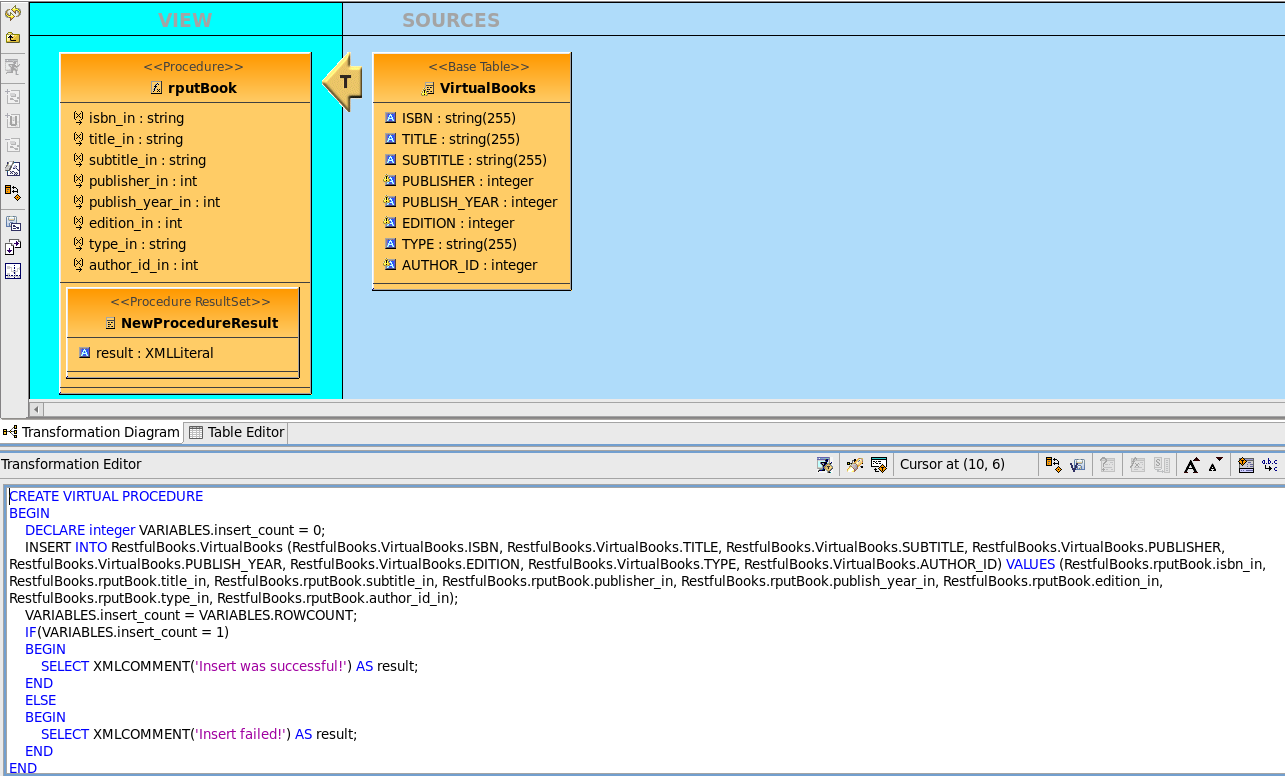

Here is an example of an update procedure that will insert a row and return an XMLLiteral object:
The input format for the REST procedure could be URI parameters, an XML document, or some combination of both. When using an XML document your root node should be <input> and the XML nodes should correspond to order of the procedure's input parameters. For example, here is the input for the above insert procedure:
Step 2 - Now we need to identify our procedure as REST eligible. To do this we add two extended properties to the procedure via the Modeling->Manage Extended Properties context menu option.
The two required properties are defined in the table below:
Table 5.2. Required Extended Properties for RESTful Procedures
Property Name Description REST-METHOD The HTTP method that will determine the REST mapping of this procedure. Supported methods are: GET, PUT, POST and DELETE URI The resource path to the procedure. For example, if you use “books/{isbn}” as your URI value for a procedure, http://{host}:{port}/{war_context}/{model_name}/books/123 would execute this procedure and pass 123 in as a parameter.

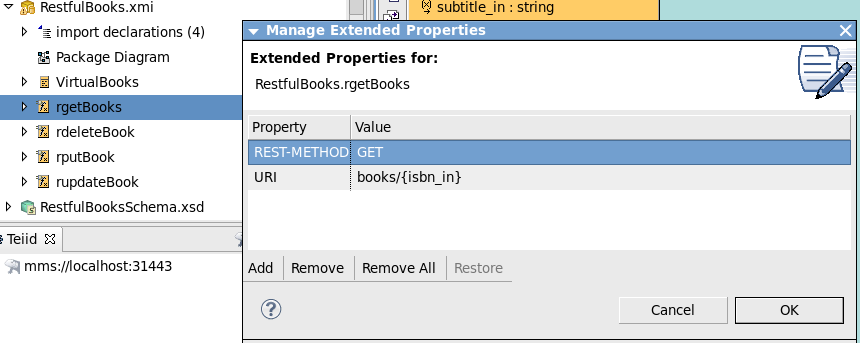

Here's what the above example would look like in the Extended Properties dialog:
Note that the generated URI will have the model name included as part of the path, so full URL would look like this: http://{host}:{port}/{war_context}/{model_name}/books/123. If you wanted a REST service to return all books, you would write your procedure just as it is above, but remove the input parameter. The URI property would then just be 'books' (or whatever you want) and the URL would be http://{host}:{port}/{war_context}/{model_name}/books.
Once you have added all of your procedures along with the required extended properties, be sure and add the model to your VDB or synchronize if it's already included in the VDB. You will then need to re-deploy the VDB.
Important
If you redeploy your VDB during development, you may receive an "Invalid Session Exception" due to a stale connection obtained for the pool. This can be corrected by flushing the data source or, alternatively, you could add a test query to your VDB connection's -ds.xml file. This will insure you get a valid connection after redeploying your VDB. The syntax for the test query is as follows: <check-valid-connection-sql>some arbitrary sql</check-valid-connection-sql>"
Step 3 - 3. If you have not already done so, you will need to create a data source for your VDB. This can be done in the Teiid View of Designer. Right-click on your deployed VDB and select Create Data Source. The Generate REST WAR dialog will ask you for the JNDI name for your created source so that it can connect to your VDB.

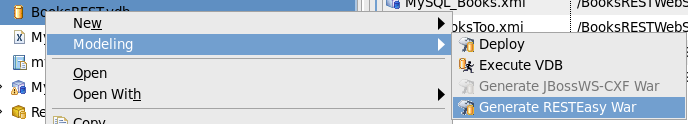

Step 4 - Right-click on the VDB containing your virtual model(s) with REST eligible procedures and select the Modeling > Generate RESTEasy War action. If there are no procedures that are REST eligible, the "Generate RESTEasy War" option will not be enabled.

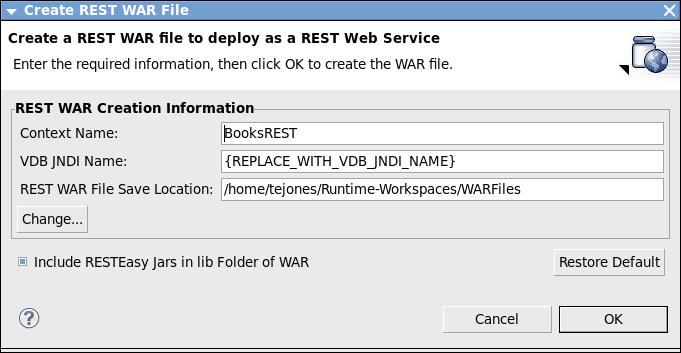

Step 5 - Fill in missing properties in the REST War Generation Wizard shown below.
Table 5.3. Field Descriptions
Field Name Description Name The name of the generated war file. Connection JNDI Name The JNDI connection name to the deployed Teiid source VDB. War File Save Location The folder where the generated WAR file should be saved. Include RESTEasy Jars in lib Folder of WAR If selected, the RESTEasy jars and there dependent jars will be included in the lib foled of the generated WAR. If not selected, the jars will not be included. This should be de-selected in environments where RESTEasy is installed in the classpath of the server installation to avoid conflicts.

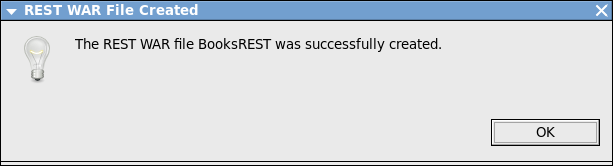

Step 6 - Click OK to generate the REST war. When war generation is complete, a confirmation dialog should appear. Click OK.
