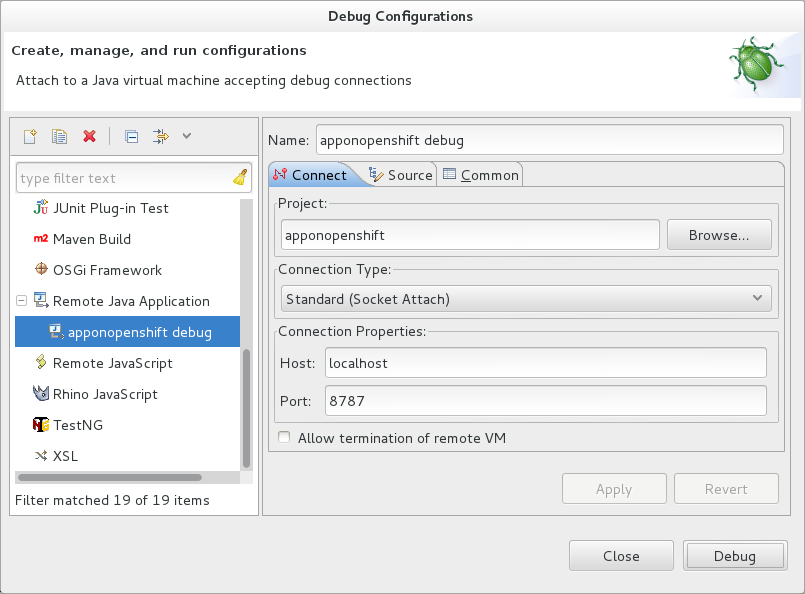

- 8.2.14. Debug a Deployed Application
- 8.3. Customizing OpenShift Tools
OpenShift is Red Hat's Platform as a Service (PaaS) for applications. It consists of an application platform in the cloud, enabling you to build, test and run applications in a cloud architecture. OpenShift provides disk space, CPU resources, network connectivity, and a runtime environment.
OpenShift is available in three versions: OpenShift Online, Enterprise and Origin. OpenShift Online is the public cloud offering, with free and paid plans, hosted at https://openshift.redhat.com. OpenShift Enterprise is the private cloud offering, obtained through a Red Hat OpenShift subscription and hosted in a private data center. OpenShift Origin is the community and local cloud offering, available to download and install locally for development and testing purposes.
OpenShift has a number of key features to assist you in developing and deploying applications:
Unique domain names, or namespaces, support the hosting of your applications. A user account provides you with access to domains, the latter having the potential to be associated with multiple applications.
Numerous cartridges give you access to predefined build and runtime environments with popular languages, database and management frameworks. OpenShift can also be extensively customized with the Do-It-Yourself (DIY) cartridge.
Different sized gears provide RAM and disk space for your applications and cartridges. You can use a set number of small gears as part of OpenShift Online with Free Plan, a free OpenShift user account, and extend to more gears and bigger gears with OpenShift Online with Silver Plan or OpenShift Enterprise.
Built-in administrative and stack management frees you up to focus on code development. OpenShift manages the intricate details of deploying your application to the stack and interfacing with middleware technologies for you.
Automatic or manual scaling of the resources supporting your applications ensures that application performance does not suffer as usage increases. OpenShift can create additional instances of your application across more gears and enable clustering.
OpenShift can be accessed via the web interface at https://www.openshift.com/ on the OpenShift website or via the OpenShift command line interface.
OpenShift Tools is tooling available within the IDE for OpenShift. It provides an alternative way of accessing OpenShift and managing the development of applications deployed on OpenShift servers.
OpenShift Tools consists of a set of wizards and actions, which together provide core functionality for developing OpenShift applications:
The tools prepare you for working with OpenShift, by assisting you to create OpenShift user accounts and domains.
OpenShift Tools assists you with the essential tasks of setting up your system and the IDE for OpenShift interaction, such as creating connections and generating and uploading SSH keys.
When creating and developing OpenShift applications, OpenShift Tools provides wizards for creating new and importing existing OpenShift applications.
A variety of actions are available for managing deployed applications, for tasks such as restarting applications, uploading changes to applications, viewing OpenShift server output, editing application cartridges and environment variables, and deleting applications.
The aim of this section is to guide you in using OpenShift Tools:
Create OpenShift Online user accounts
Connect to OpenShift servers
Generate SSH keys and upload them to an OpenShift user account
Create and manage domains
Create new OpenShift applications from within the IDE
Deploy existing workspace applications to OpenShift and import existing OpenShift applications into a workspace
Manage and debug deployed OpenShift applications
To begin using OpenShift Online, you need to create a user account. OpenShift Tools provides the ability to create an OpenShift Online user account from within the IDE.

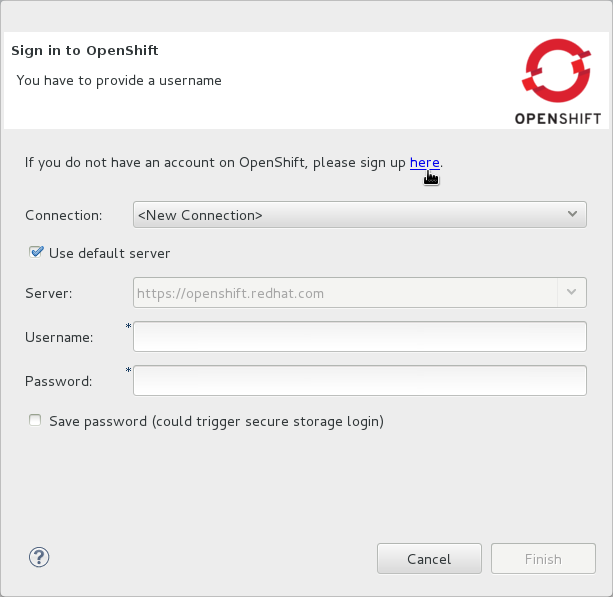

To create a user account, click the OpenShift Explorer view. If the OpenShift Explorer view is not visible, click →→, expand JBoss Tools and double-click OpenShift Explorer.
Click the icon
and click the link to sign up for an account. This opens https://openshift.redhat.com/app/account/new in a browser window. Follow the instructions on the OpenShift web page to create an account. Once created, you can close the browser window.
Management of your OpenShift Online user account, such as changing or resetting your password, must be carried out through the OpenShift management console at https://openshift.redhat.com/app/login?redirectUrl=%2Fapp%2Fconsole.
Once you have an OpenShift user account, you can connect to OpenShift and then create domains and applications. The procedure below guides you through connecting to OpenShift for the first time in the IDE.

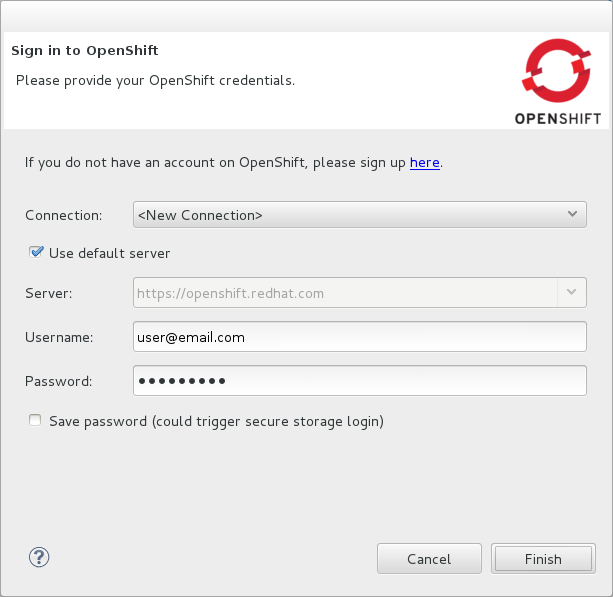

Procedure 8.1. Connect to OpenShift
In the OpenShift Explorer view, click the icon
.
Complete the fields and options as detailed:
From the Connection list, select New Connection.
To use a different OpenShift server from that stated in the Server field, clear the Use default server check box and in the Server field type the address of the server.
Note
The default server information is taken from the
express.conffile generated by the RHC, the OpenShift Client Tools. In the case that this file does not exist, OpenShift Tools assumes the default server to be OpenShift Online at https://openshift.redhat.com.In the Username and Password fields, type your OpenShift user account authentication information.
If you want the Password field to automatically populate for this connection in future, select the Save password check box.
Note
The password is retained in secure storage provided by the IDE. To manage the settings for secure storage, click →, expand General→Security and select Secure Storage.
Click for OpenShift Tools to connect to OpenShift.
If your credentials are incorrect, the Sign in to OpenShift wizard remains open for you to change your authentication information.
If you selected for your password to be saved, you are prompted to enter your secure storage password or, if this is your first use of secure storage, you are prompted to set a secure storage password.
Once your credentials are verified as correct, the wizard closes and a live OpenShift connection is listed in the OpenShift Explorer view.
Important
Note that all SSL certificates, whether valid or invalid, are accepted automatically by OpenShift Tools.
When you close the IDE, any live OpenShift connections will be disconnected but they can be easily reestablished. OpenShift Tools lists previous connections in the OpenShift Explorer view until cleared by you. In the OpenShift Explorer view, double-click or expand the appropriate connection to open an automatically completed connection wizard. Type your password or, if using the saved password facility, the master password and click .
Using OpenShift Tools, you can view and manage live OpenShift connections.

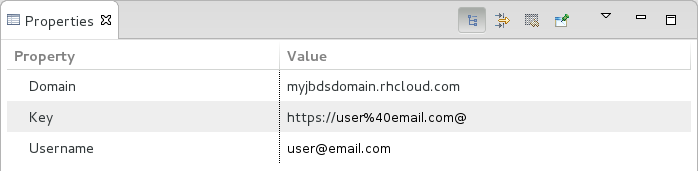

- View information about a connection
In the OpenShift Explorer view, right-click the connection and click . The Properties view opens and shows information about the associated domains, key and user account. The Key parameter is unique to the connection and it is used by the IDE for identification purposes.
- Refresh information about a connection
In the OpenShift Explorer view, right-click the connection and click . Information is retrieved from OpenShift and the OpenShift Explorer view updated as appropriate. This action is useful if you are simultaneously making changes to your domains and applications in the IDE and the OpenShift web interface or command line interface. Additionally, it may be used to recover from errors.
- Delete a connection
In the OpenShift Explorer view, right-click the connection and click .
SSH keys are essential when working with OpenShift. They enable you to develop and access deployed applications. SSH keys are also used to control access of other contributors to your OpenShift applications. SSH keys must be uploaded to the OpenShift server and, as detailed in the procedure below, OpenShift Tools can assist with both the generation and uploading of SSH keys to OpenShift.

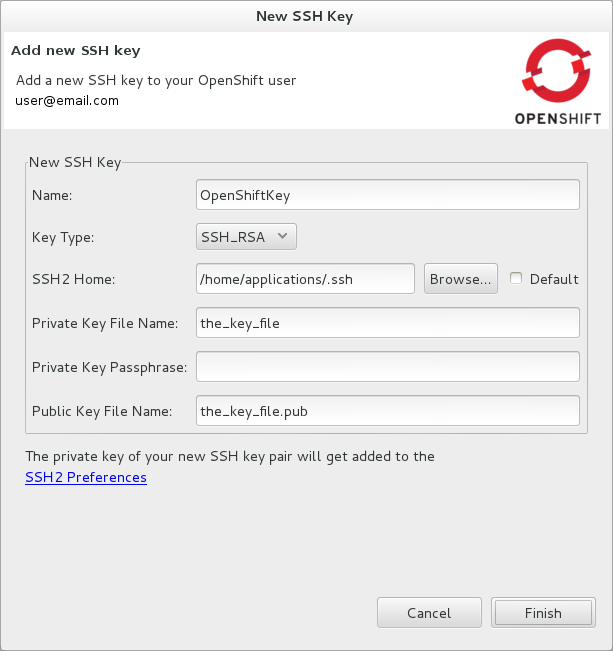

Procedure 8.2. Generate and Upload SSH Keys to OpenShift
In the OpenShift Explorer view, right-click the connection and click .
To create a new SSH private-public key pair, click .
Complete the fields and options as detailed:
In the Name field, type a name for the key pair that will be used by OpenShift to distinguish this key pair from others associated with your account.
From the Key Type list, select SSH_RSA.
Ensure the SSH2 Home field contains the location where you want to create the files associated with the key pair. To change the location, clear the Default check box and click to navigate to the desired location.
Note
The default location for creating SSH key files is determined by the SSH information for the IDE. The default location can be altered by clicking →, expanding General→Network Connections, selecting SSH2 and changing the location in the SSH2 home field of the General tab.
In the Private Key File Name field, type a name for the private key file.
In the Private Key Passphrase field, type a passphrase for use in accessing the private key. This field is not mandatory and can be left empty if you want.
In the Public Key File Name field, type a name for the public key file. Typically the file name of the public key is that of the private key with
.pubappended.
Click . The SSH key pair is generated and the public key automatically uploaded to OpenShift.
Click to close the Manage SSH Keys window.
OpenShift Tools provides actions for managing the SSH keys of your OpenShift account.
- Upload an existing public SSH key to OpenShift
In the OpenShift Explorer view, right-click the connection and click . Click . In the Name field, type a name for the key that will be used by OpenShift to distinguish the key from others associated with your account. Click to navigate to and select the public key file. Click and click to close the Manage SSH Keys window.
You must also inform the IDE of the location of the private key file. Click →, expand General→Network Connections and selecting SSH2. Click and locate the private key file. Click and click to close the Preferences window.
- Remove a public SSH key from OpenShift
In the OpenShift Explorer view, right-click the connection and click . From the SSH Public Keys table select the key you want to remove from your OpenShift account and click . At the prompt asking if you are sure you want to remove the key, click . Click to close the Manage SSH Keys window.
Note
only disassociates keys with your OpenShift account. The files associated with a 'removed' SSH public-private key pair still exist in the local location where they were generated and can be uploaded again to OpenShift using the action.
- Refresh the SSH key information associated with OpenShift
In the OpenShift Explorer view, right-click the connection and click . Click and click to close the Manage SSH Keys window. It may be necessary to use this action if you make changes to your OpenShift SSH key settings through the OpenShift web interface while the IDE is open with a live OpenShift connection.
Once you have an OpenShift user account, you need to create domains in which to host your applications. Note that user accounts for OpenShift Online with Free plan can be associated with one domain only, but one domain can host multiple applications. The procedure below guides you through creating a new domain once a live connection between OpenShift and the IDE is established. If you already have a domain associated with your user account, domain information is automatically passed to the IDE when a live connection is started.
Procedure 8.3. Create a Domain
In the OpenShift Explorer view, right-click the connection and click →. Alternatively, right-click the connection, click and click .
In the Domain Name field, type the name of the domain you would like to use. When the domain is created, the name you provide is appended with the cloud address, for example
.rhcloud.comfor OpenShift Online.Click . Domain names must be unique so if the name you have chosen is already in use you will see a warning. In this case, choose another name and try again until you have a unique one.
Note
There are restrictions on the name you can use for a domain. Names must consist only of alphanumeric characters and can have a maximum length of 16 characters.
OpenShift Tools provides actions for managing the domains of your OpenShift account.
- View the domains associated with a connection
In the OpenShift Explorer view, right-click the connection and click . Alternatively, right-click the connection and click . The Properties view opens, where the first row of the table contains the names of the domains associated with the connection.
- Rename a domain
In the OpenShift Explorer view, right-click the domain and click . Alternatively, right-click the connection and click . From the Domains table, select the domain and click . In the Domain Name field, type the new name of the domain and click . You cannot change the name of a domain which has associated applications.
Important
Renaming your domain changes the public URLs of applications you later create.
- Delete a domain
In the OpenShift Explorer view, right-click the domain and click . Alternatively, right-click the connection and click . From the Domains table, select the domain and click . You cannot delete a domain that has any applications associated with it unless, at the prompt, you select the Force applications deletion check box. Click to complete the deleting action.
Note
Forcing the deletion of applications results in the applications being deleted from the OpenShift server. The projects of applications will still be visible in the Project Explorer and Git Repositories view as the local clone of the Git repository for projects is not deleted.

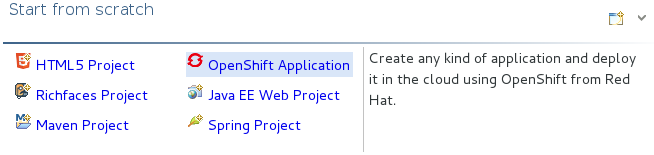

OpenShift Tools provides the OpenShift Application wizard to assist you in creating and deploying OpenShift applications.
As detailed in the procedure below, OpenShift applications can be created using three sources: an existing workspace project, a Git source or a default project template. For an existing workspace project, the wizard merges the existing project contents with the key metadata files from a new OpenShift application so that the application can be deployed on OpenShift. For a Git source, the wizard uses the source as the new OpenShift application so the source must be OpenShift-enabled, namely have a .openshift directory and have the openshift profile specified in the pom.xml. For a project template, the templates are provided by OpenShift.
In addition to deploying your OpenShift applications, the wizard assists you in setting up linked remote (OpenShift server) and local Git repositories containing the original and clone of your project, respectively. You can then push project changes to OpenShift via Git or allow the OpenShift server adapter to do it for you.
Important
You must have SSH keys set up first in order to successfully proceed with the OpenShift Application wizard.

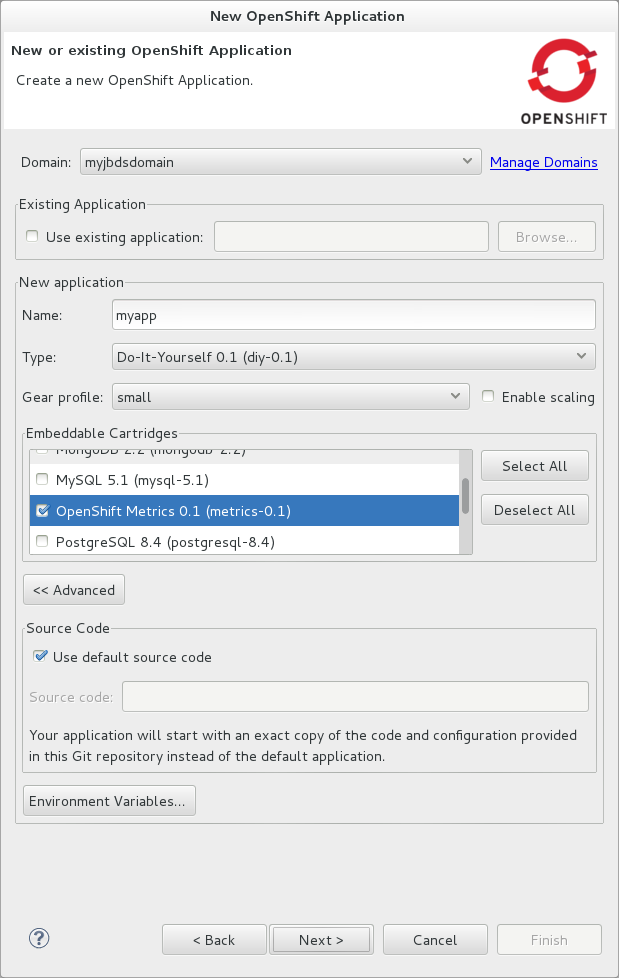

Procedure 8.4. Create and Deploy an Application on OpenShift
In the OpenShift Explorer view, right-click the connection or domain and click →. Alternatively, in JBoss Central click OpenShift Application, after which you are prompted to select an OpenShift connection and provide your user authentication information.
If you do not have a domain associated with the connection, the wizard prompts you to create one. In the Domain Name field, type the name of the domain you would like to use and click . Domain names must be unique so if the name you have chosen is already in use you will see a warning. In this case, choose another name and try again until you have a unique one.
Complete the fields and options about the OpenShift application as detailed:
From the Domain list, select the domain to which to assign the application.
In the Name field, type a name for the new OpenShift application. There are restrictions on the name you can use for an application. Names must consist only of alphanumeric characters. In the case of an existing workspace project, for simplicity you may choose the OpenShift application name to be the same as the name of the workspace project.
From the Type list, select a runtime server. This will ensure the necessary core programming or technology cartridge is added to your application.
From the Gear profile list, select the gear size. This is RAM and disk space required by your applications and its cartridges. If you are using OpenShift Online with Free Plan, you have access to small gears only.
If you want OpenShift to automatically increase the instances of your application and enable clustering as usage increases, select the Enable scaling check box.

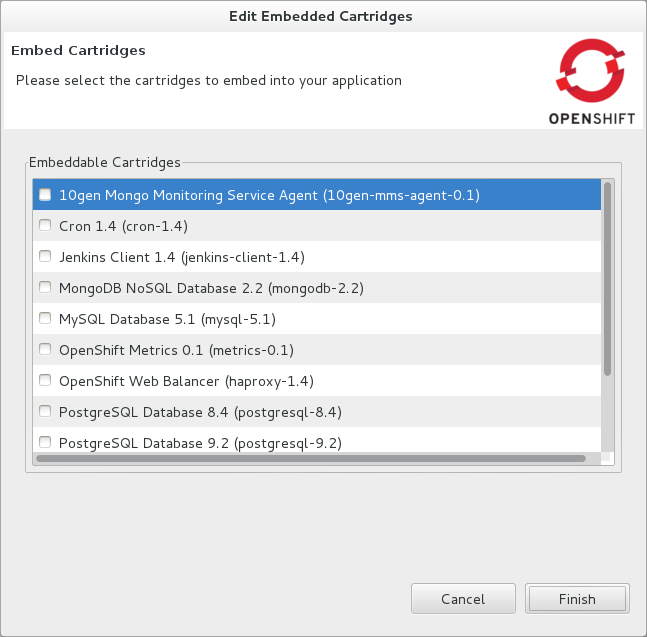

From the Embedded Cartridges list, select the functionality you want to enable in your application. This will add associated capabilities and support to your application.
To specify that the new application is to be based on source code from an existing Git repository, click and clear the Use default source code check box. In the Source code field, type the URL of the source code location.
To declare environment variables to be used when the application is run, click and click . Click to declare an environment variable. In the Name and Value fields, type a name and value for the environment variable respectively. Click to save the information and click to close the Environment Variables window.
Click .
Complete the fields and options as detailed:
To specify that the new application is to be based on an existing workspace project, clear the Create a new project check box and in the Use existing project field type the name of the project or click to locate the project. Otherwise, ensure the Create a new project check box is selected.
Ensure the Create and set up a server for easy publishing check box is selected. This option automatically creates an OpenShift server adapter for the application, enabling you to easily upload changes made in the IDE to the OpenShift server.
To disable Maven builds, check the Disable automatic Maven builds when pushing to OpenShift check box. This informs OpenShift not to launch the Maven build process when the Maven project is pushed to OpenShift but to put the deployment straight into the deployments folder. It is useful when you want to push applications already built for deployment rather than source code.
Click .
The Git Clone Destination field shows the location to be used for the local Git repository. The location must already exist to be able to proceed with the wizard. To change the location, clear the Use default clone location check box and type the location in the Git Clone Destination field or click to navigate to the location.
Click . If you are prompted that the authenticity of the host cannot be established and asked whether you want to continue connecting, check that the host name matches that of your application and domain and click .
At the prompt asking if you want to publish committed changes to OpenShift, click . The progress of the application creation process is visible in the Console view.
Once created, the application is listed under the connection and domain in the OpenShift Explorer view. The application type proceeds the application name. The project is also listed in the Project Explorer and Git Repositories views, where the details proceeding the application name indicate the current Git branch and status compared to the remote repository. Additionally, the server adapter for the application is visible in the Servers view.
Note
To view the project in the Git Repositories view, in the Project Explorer view right-click the project name and click →. Alternatively, click →→, expand Git and double-click Git Repositories.
All applications deployed on OpenShift are listed under live connections in the OpenShift Explorer view. But only the project files of OpenShift applications created through the IDE are immediately available in the Project Explorer and Git Repositories views. If you want to work on the project files associated with an application, you must first import the application. OpenShift Tools can assist you to import your deployed OpenShift applications into the IDE, as detailed in the procedure below.

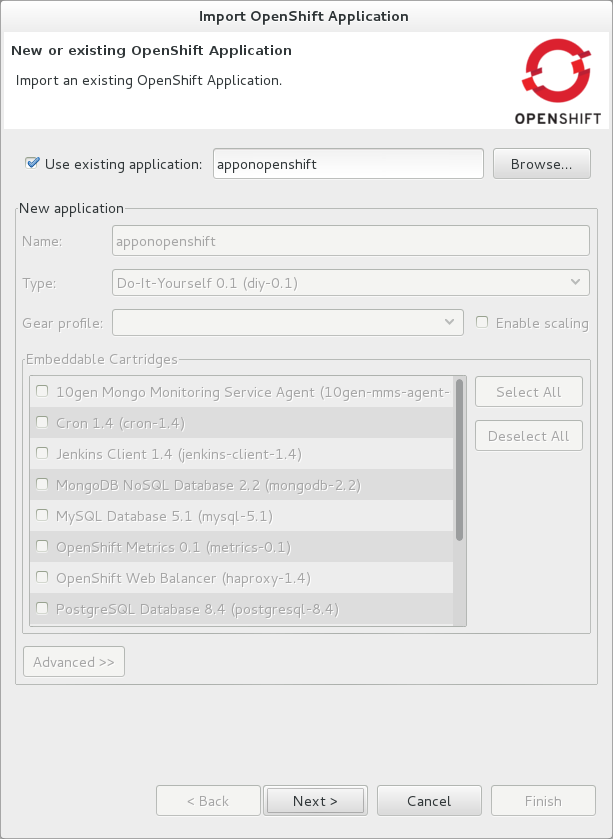

Procedure 8.5. Import an OpenShift Application
Click →, expand OpenShift and double-click Existing OpenShift Application. Alternatively, in the OpenShift Explorer view, right-click the application and click .
Complete the fields and options as detailed:
From the Domain list, select the domain of the application.
Ensure the Use existing application check box is selected and type the name of the application in the text field. This field has an automatic completion feature to assist you in typing the application name or click to see a list of all of your applications associated with the domain.
Important
Project names in the IDE workspace must be unique. If the name of the application you want to import is identical to an existing project in the workspace, the OpenShift Tools will not complete the import. To work around this constraint, you can import the OpenShift application to another workspace or change the name of either the conflicting project or application.
Click .
Complete the fields and options as detailed:
Ensure the Create a new project check box is selected. This option creates a new project in your IDE workspace for the existing OpenShift application.
Ensure the Create and set up a server for easy publishing check box is selected. This option automatically creates an OpenShift server adapter for the application, enabling you to easily upload changes made in the IDE to the OpenShift server.
To disable Maven builds, check the Disable automatic Maven builds when pushing to OpenShift check box. This informs OpenShift not to launch the Maven build process when the Maven project is pushed to OpenShift but to put the deployment straight into the deployments folder. It is useful when you want to push applications already built for deployment rather than source code.
Click .

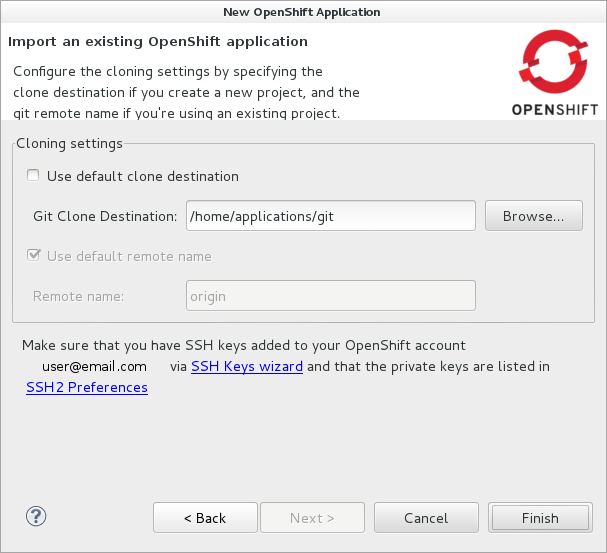

The Git Clone Destination field shows the location to be used for the local Git repository. The location must already exist to be able to proceed with the wizard. To change the location, clear the Use default clone location check box and type the location in the Git Clone Destination field or click to navigate to the location.
Click . If you are prompted that the authenticity of the host cannot be established and asked whether you want to continue connecting, check that the host name matches that of your application and domain and click .
OpenShift Tools modifies the .gitignore file on importing the application. At the prompt asking if you want to publish committed changes to OpenShift, click . The progress of the import process is visible in the Console view.
Once imported, the project is listed in the Project Explorer and Git Repositories veiws, where the details proceeding the application name indicate the current Git branch and status compared to the remote repository. Additionally, the server adapter for the application is visible in the Servers view.
In order to easily publish changes to a deployed OpenShift application, each application needs a server adapter. The OpenShift Application wizard can automatically generate server adapters for new or imported OpenShift applications if you select the Create and set up a server for easy publishing check box. But OpenShift also provides an action to assist you in generating server adapters for OpenShift application that already exist in the IDE, as detailed in the procedure below. You can use this action if you need to regenerate a deleted server adapter for an OpenShift application or if you create or import an OpenShift application and do not select the Create and set up a server for easy publishing check box.

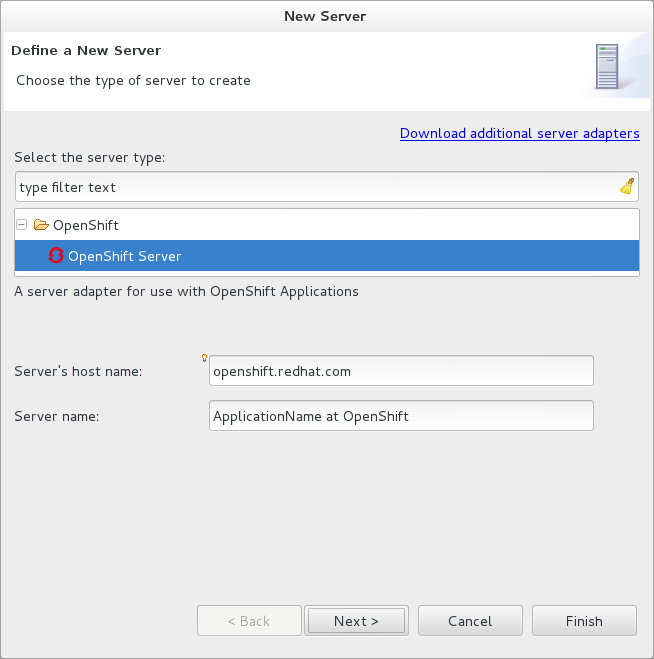

Procedure 8.6. Generate a server adapter for an application
In the OpenShift Explorer view, right-click the application and click .
Complete the fields and options as detailed:
From the list of server types, expand OpenShift and select OpenShift Server.
The Server's host name and Server name field are automatically completed. The Server's host name field contains the host name of the server and the Server name field contains the name by which the server adapter is know in the Servers view. You can edit these values as appropriate by typing in the fields.
Click .

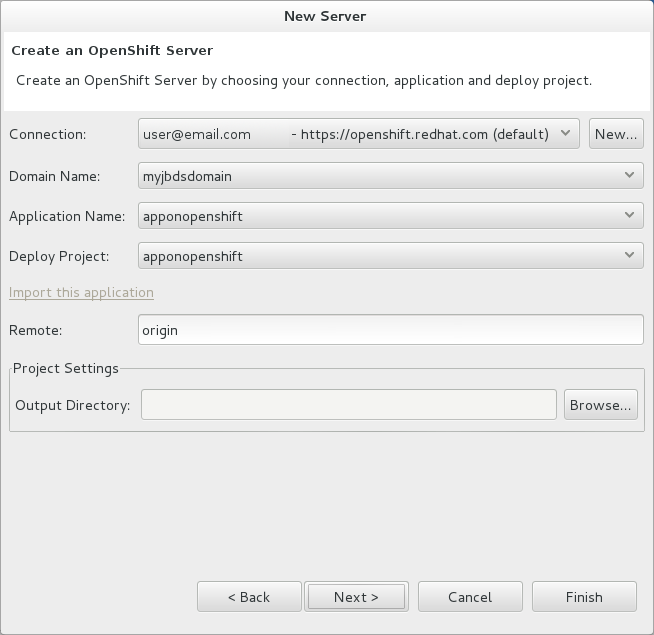

Complete the fields and options as detailed:
Ensure the Connection, Domain Name, Application Name and Deploy Project fields contain the correct information relating to the application for which you want to generate the server adapter.
In the Remote field, type the alias for the remote Git repository. For OpenShift Online applications this is
origin.In the Output Directory field, type the location where archived projects for deployment are to be stored or click to navigate to the location.
Click .
From the Available list, select the project for which the server adapter is being generated and click . The application is now listed under Configured.
Click for OpenShift Tools to generate the server adapter. Once generated, the server adapter is listed in the Servers view.
OpenShift Tools provides actions for viewing deployed OpenShift applications and information about them.
- View a deployed application
In the OpenShift Explorer view, right-click the application and click . A browser tab opens displaying your deployed application. Alternatively, in the Servers view, right-click the server adapter for the application and click →.

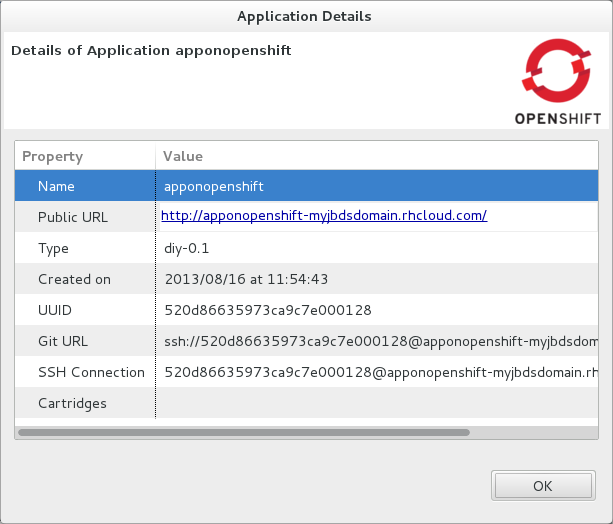

- View information about an application
In the OpenShift Explorer view, right-click the application and click . The displayed information includes the public URL of the application, application type, and remote Git repository location. Click to close the Details window.

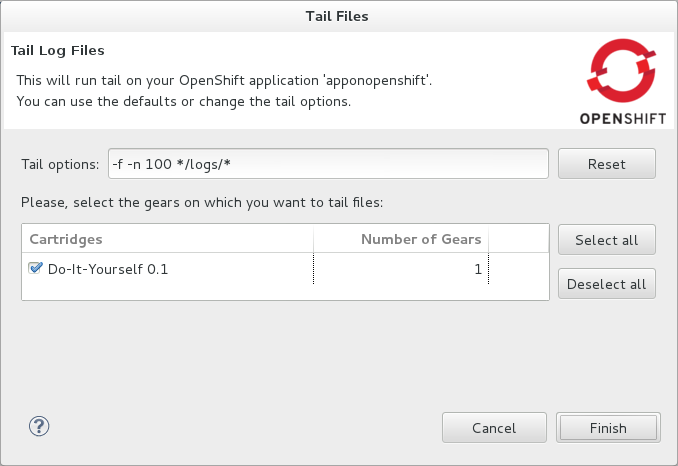

- View output from the OpenShift server
In the OpenShift Explorer view, right-click the application and click . Alternatively, in the Servers view right-click the server adapter of the application and click →. The Tail Log Files window opens, with either the default retrieval syntax or last used syntax for this application in the Tail options field.
To change the retrieval command, in the Tail options field type the appropriate syntax. To specify the gears for which to show the server logs, from the table select the check boxes of the appropriate gears. Click for OpenShift to retrieve the output, which is displayed in a distinct Console view for each gear.

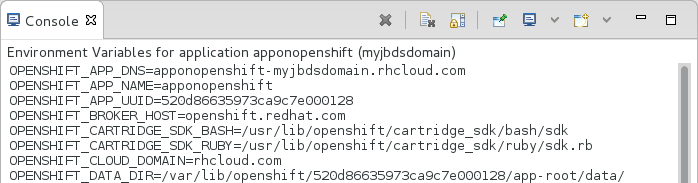

- View values of variables associated with an application
In the OpenShift Explorer view, right-click the application and click . Variable names and values are listed in the Console view. Alternatively, in the Servers view, right-click the server adapter of the application and click →.
- View properties of cartridges associated with an application
In the OpenShift Explorer view, right-click the cartridge and click . The Properties view opens and lists information about the cartridge.
- View information about the server of an application
In the Servers view, double-click the server adapter for the application. A Server Editor opens, enabling viewing and editing of server details. To save any changes, press Ctrl+S or click → or click the icon.
- Refresh information about an application
In the OpenShift Explorer view, right-click the connection, domain, application or cartridge and click . Information is retrieved from OpenShift and the OpenShift Explorer view is updated as appropriate. This action is useful if you are simultaneously making changes in the IDE and the OpenShift web interface or command line interface to your domain and applications. Additionally, it may be used to recover from errors.
OpenShift Tools provides actions for developing and managing deployed OpenShift applications.
- Upload modifications to a deployed application
In the Servers view, right-click the server adapter for the application and click . At the prompt asking if you want to publish to OpenShift by committing changes to Git, you can customize the default commit message
Commit from JBoss Tools. Click and the changes, together with the commit message, are pushed to the remote Git repository. Additionally, the application is automatically updated on the OpenShift server and the Console view displays OpenShift server output.Note
To view a log of changes to the local git repository, in the Git Repositories view, right-click a repository and click →. The History view opens, showing a log of commits for the local Git repository.
- Edit environment variables associated with an application
In the OpenShift Explorer view, right-click the application and click . Click , or to customize the environment variables. Click to close the window.

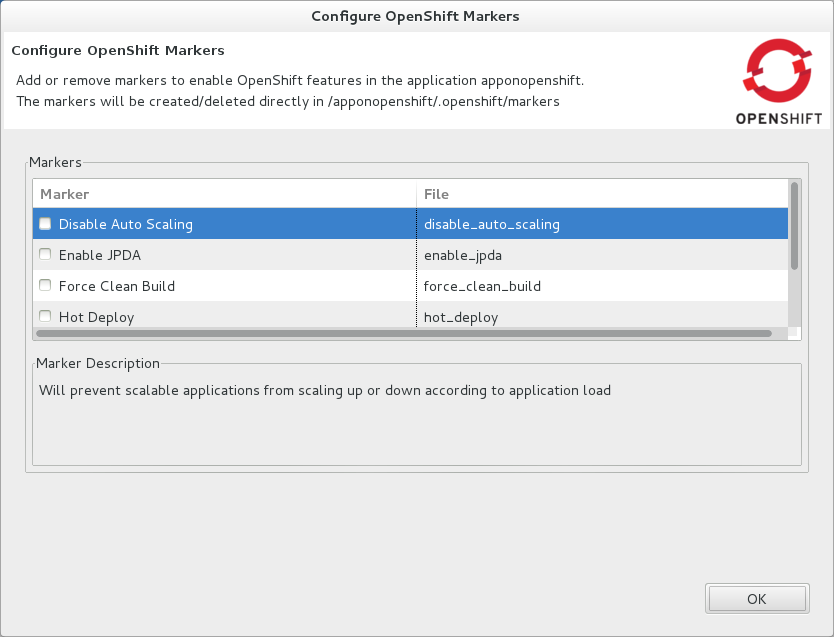

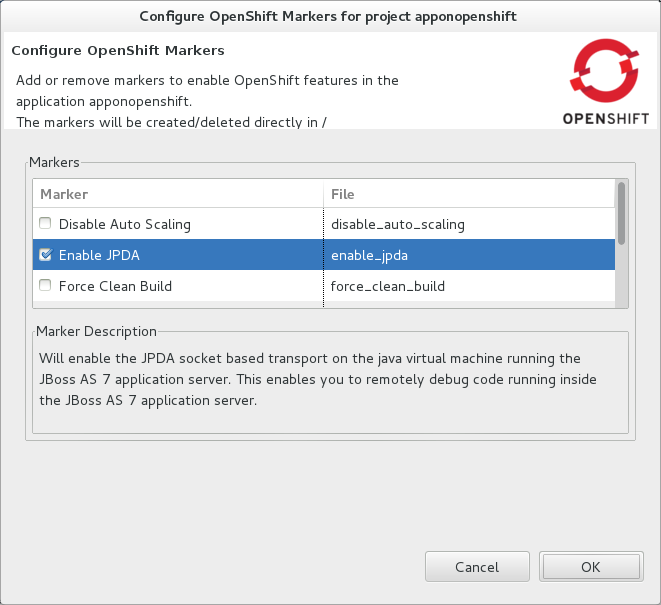

- Add or remove markers associated with an application
In the Project Explorer view, right-click the application and click →. Select or clear the check boxes of markers as desired. Information about markers is given in the Marker Description section of the Configure OpenShift Markers Window. Click for your marker choice to be applied to the application.
- Add or remove cartridges associated with an application
In the OpenShift Explorer view, right-click the application and click . Select or clear the check boxes of cartridges as desired. Click for your cartridge choice to be applied to the application. You are prompted if the cartridges you have chosen to add or remove require further action, such as the addition of prerequisite cartridges or removal of conflicting cartridges. You can choose to ignore or apply the suggestions of the prompt.
- Restart an application
In the OpenShift Explorer view, right-click the application and click . Alternatively, in the Servers tab right-click the server adapter of the application and click →.
- Forward remote ports
You can forward the remote ports of the OpenShift server to your system to enable access to various services, such as MySQL. Port forwarding is available for all OpenShift applications, including scalable ones.
Important
Your application must be running before attempting to configure port forwarding.
In the OpenShift Explorer view, right-click the application and click . Alternatively, in the Servers view right-click the server adapter of the application and click →.
After checking the authenticity of SSH keys, the Application port forward window opens. Before commencing port forwarding, there are a number of options you can set:
By default, the local address is 127.0.0.1. If this is unavailable, a random available address is allocated. To set the local address to be the same as the remote address, clear the Use '127.0.0.1' as the local address for all Services check box.
By default, the local port numbers are the same as the remote port numbers. To set independent local port numbers, select the Find free ports for all Services check box.
To commence port forwarding, click . Click to close the Application port forward window.
- Delete a server adapter for an OpenShift application
In the Servers view, right-click the server adapter for the application and click . At the prompt asking if you are sure you want to delete the server adapter, click .
- Delete an application
In the OpenShift Explorer view, right-click the application and click . At the prompt asking if you are sure you want to destroy the application, select . The progress of the deleting process is shown in the activity bar in the lower right of the IDE window. To open the Progress view and see more detailed progress information or cancel the deleting process, double-click on the activity bar.
Note
Deleting applications results in the applications being deleted from the OpenShift server. The projects of applications are still be visible in the Project Explorer and Git Repositories view as the local Git repository copies of projects are not deleted. Additionally, any server adapters for deleted OpenShift applications are still listed in the Servers view but they are invalid.
OpenShift Tools enables you to debug your deployed OpenShift applications within the IDE through port forwarding. A number of configuration steps are required both locally and remotely to achieve this. You must first set the Enable JPDA (Java Platform Debugger Architecture) marker in your application source code that configures the virtual machine running the server on which your application is deployed for debugging. You must then configure port forwarding for the local and remote debug ports and connect the IDE debugger. The procedures below guide you through each of these configuration requirements and must be completed in the order given.
Procedure 8.7. Configure the OpenShift Server for Debugging
Important
Your application must be deployed on OpenShift before attempting to configure the OpenShift server for debugging.
In the Project Explorer view, right-click the project and click → .
Select the Enable JPDA check box and click .
In the Servers view, right-click the server adapter for the application and click . At the prompt asking if you want to publish to OpenShift by committing changes to Git, you can customize the default commit message
Commit from JBoss Tools. Click and the changes, together with the commit message, are pushed to the remote Git repository. Additionally, the application is automatically updated on the OpenShift server and the Console view displays OpenShift server output.
Procedure 8.8. Enable Port Forwarding for the Local and Remote Debug Ports
Important
Your application must be started on OpenShift before attempting to configure port forwarding.
In the OpenShift Explorer view, right-click the application and click . Alternatively, in the Servers view right-click the server adapter of the application and click → .

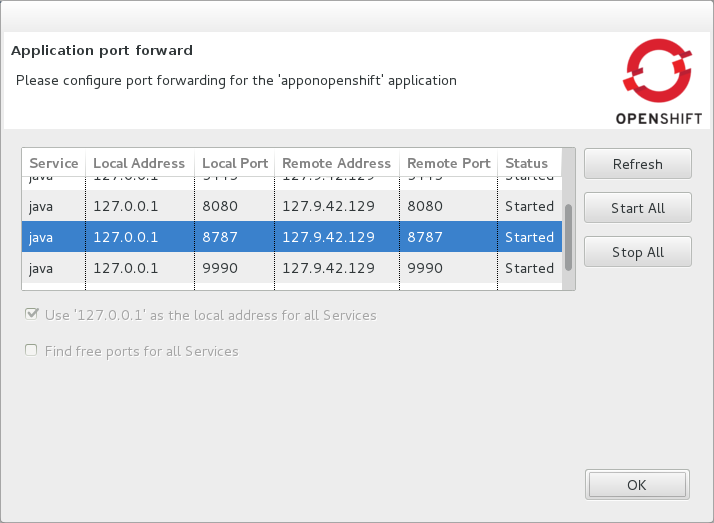

Click . This connects all local ports to their remote counterpart ports, including the local and remote debug ports. Ensure the Status value shows Started for the debug ports and click OK to close the Application port forward window.
Note
For applications using the JBossAS OpenShift cartridge, the default debug port is
8787.
Procedure 8.9. Configure and Connect the IDE Debugger
In the global toolbar of the JBoss perspective, click the drop-down list for the icon
and select .
From the debug configurations list, select Remote Java Application and click the New launch configuration icon
.
Complete the fields of the Connect tab as detailed:
In the Project field, type the name of the workspace project associated with the OpenShift application or click to locate the project.
In the Port field, type the value of the debug port.
Note
You can set the debugger to look up source code for classes it encounters that are not contained in your project, for example classes used by application servers defined in the IDE. When inputing values for the launch configuration, in the Source tab click Add. From the list of source containers, select JBoss Maven Source Container and click OK. The JBoss Maven Source Container uses indexes available from Maven repositories to locate the source code. From the list, select a runtime server, the libraries of which will be indexed in the JBoss Maven Source Container, and click .
Click Debug. Connecting to the OpenShift server may take some time to complete and you can monitor the progress in the Progress bar or Progress view. Once the connection process is complete, the debugger is running. You can review debug output in the Debug and Console views.
The aim of this section is to guide you in customizing OpenShift Tools:
Specify the timeout behavior for OpenShift requests
You may find that some requests made to OpenShift require a long time to complete and do not finish within the IDE default timeout limit of 120 seconds. For example, some of the OpenShift quickstarts take a long time to checkout the associated large source code. To resolve the timeout restriction, you can modify the default timeout limit to meet your requirements.
To modify the timeout limit, click →, expand JBoss Tools and select OpenShift. In the Remote requests timeout field, type the required timeout limit in seconds. Click and click to close the Preferences window.
