Chapter 3. Editors

The Struts configuration file editor has three modes with different representation of struts-config.xml: Diagram, Tree and Source. The modes can be selected via the tabs at the bottom of the editor. Any changes made in one mode are immediately visible when you switch to any other mode.

When working in Source view, you always have all the following features available:

Content Assist
Open On Selection
File Folding

3.1.1. Diagram Mode

The Diagram mode graphically displays the Web flow of the application defined in the Struts configuration file.

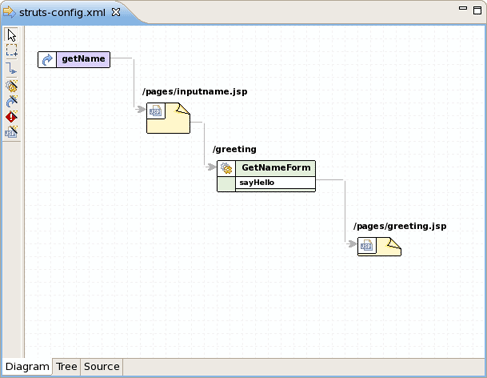

Figure 3.1. Diagram Mode

The Diagram mode allows to edit navigation in your Struts application. Just by right-clicking anywhere on the diagram, you can use a context menu to create the building blocks of a Struts application:

Actions
Global forwards
Global exceptions
JSP Pages

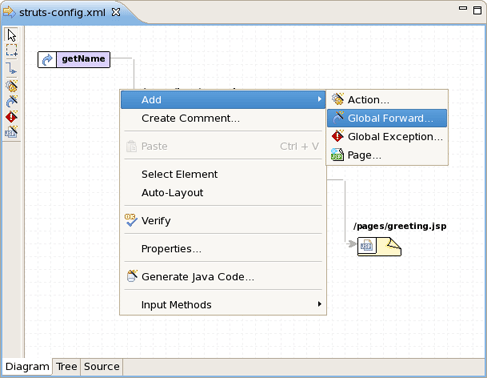

Figure 3.2. Diagram Context Menu

Along the upper-left side of the editor is a stack of seven icons for changing the behavior of the cursor in the diagram.

Figure 3.3. Editor Icons

The first icon switches to the default regular selection cursor, the second to the marquee selection cursor and the third to the new connection cursor. The last four icons switch the cursor to an insert cursor for each type of Struts build block listed above (and in the order listed).

For instance, clicking on the first of these four icons (the one with the gears) will switch the cursor to insert actions. Clicking anywhere in the diagram with this cursor has the same effect as right-click and selecting Add > Action... from the context menu with the regular cursor active. It's just more efficient to use this cursor if you're adding more than one action at once.

3.1.2. Tree Mode

The Tree mode represents the different elements of the Struts application that are organized into functional categories on the left-hand side and a form for editing the properties of currently selected items on the right-hand side.

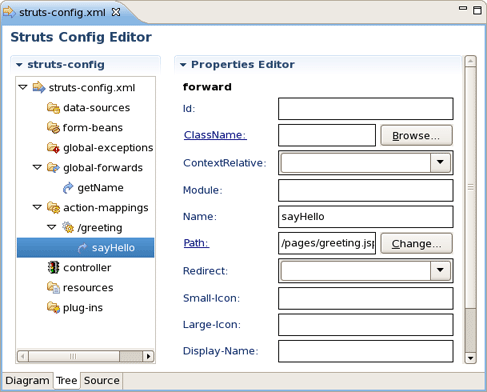

Figure 3.4. Tree Mode

You can also right-click on any node in the category tree and perform appropriate operations through a context menu. For instance, by right-clicking on the action-mappings category node, you can add new actions to the application.

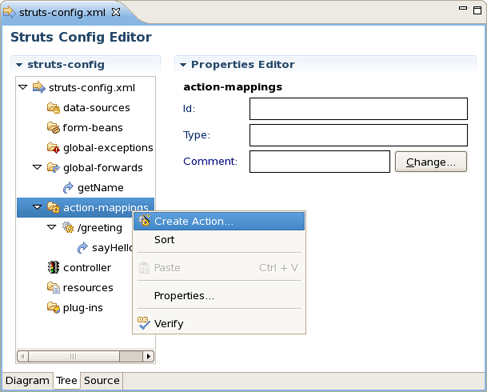

Figure 3.5. Tree Context Menu

3.1.3. Source Mode

In the Source mode, you have complete editing control of the underlying XML coding.

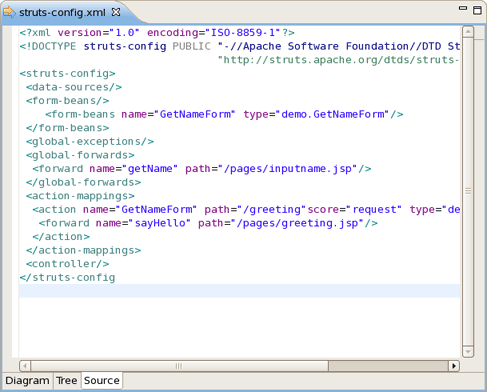

Figure 3.6. Source Mode

You can take advantage of code assist.

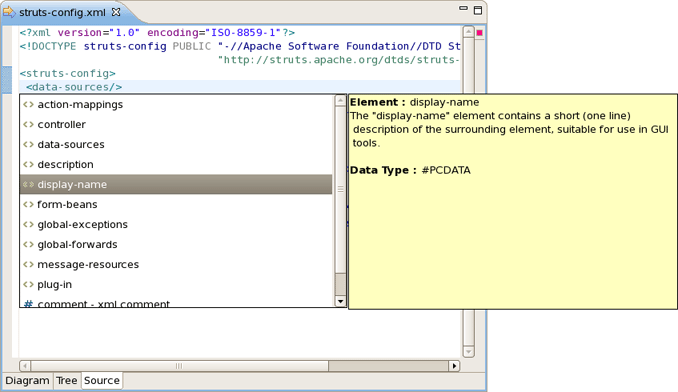

Figure 3.7. Code Assist

The editor will also immediately flag any errors.

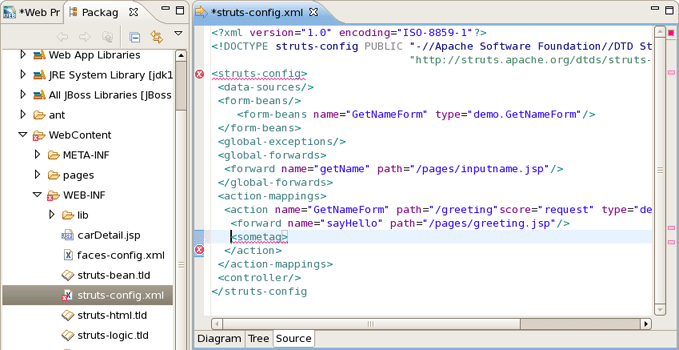

Figure 3.8. Errors in Source Mode

Finally, you can use the Outline view with the editor to easily navigate through the file.

Figure 3.9. Outline View

Find more information about editor features here.

3.2. Graphical Editor for Tiles Files

The Tiles configuration file editor has three main modes: Tree, Diagram and Source. The modes can be selected via the tabs at the bottom of the editor. Any changes made in one mode are immediately visible when you switch to any other mode.

When working in Source view, you always have all following features available:

Content Assist
Open On Selection

3.2.1. Create New Tiles File

To create new Tiles files, right click any folder and select New > Tiles File.

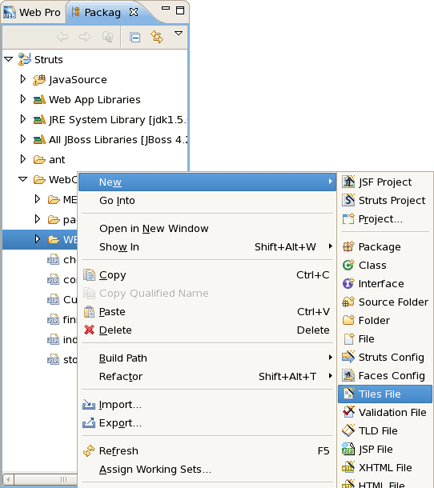

Figure 3.10. Creating a New Tiles File

3.2.2. Tree Mode

The Tree mode represents the different elements of the Tiles file that are organized into functional categories on the left-hand side and a form for editing the properties of currently selected items on the right-hand side.

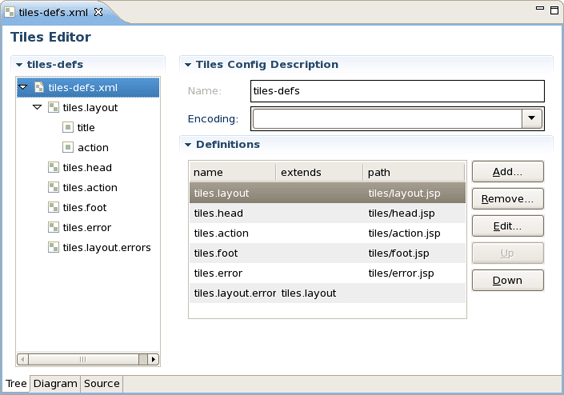

Figure 3.11. Tree Mode

To edit the file, simply right click any node and select among the available actions.

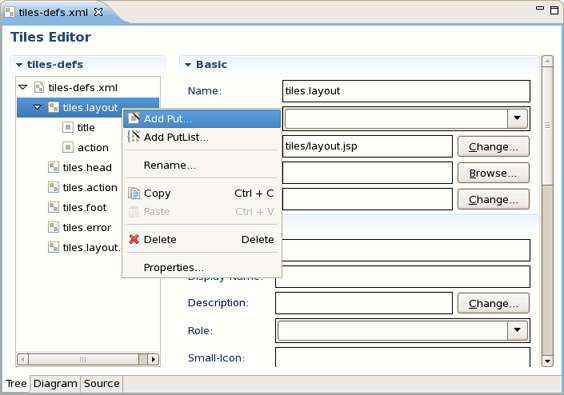

Figure 3.12. Editing in Tiles Editor

3.2.3. Diagram Mode

The Diagram mode allows you to create complex Tiles files in the form of a diagram.

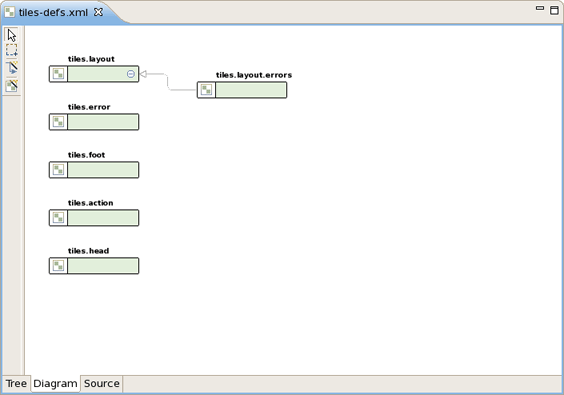

Figure 3.13. Diagram Mode

To create new definitions, simply right click anywhere in the diagram.

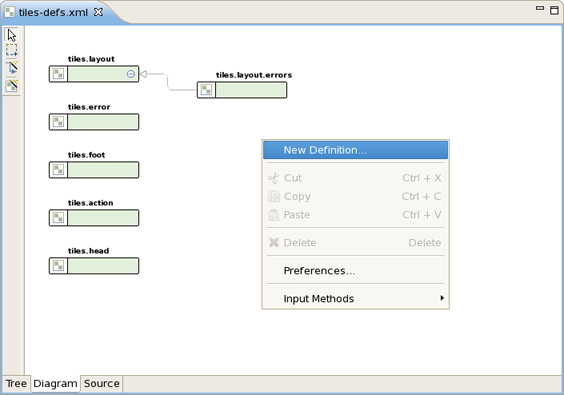

Figure 3.14. Creating New Definition

You can also use the Diagram toolbar to make editing easier.

Figure 3.15. Diagram Toolbar

It contains four icons for changing the cursor state. The first one is the default cursor state for selecting existing nodes. The second icon is marquee selector. The third is used for creating new connections and the last one is for adding definition template to the content.

3.2.4. Source

The other mode of the Tiles editor is the Source mode that gives you full control over the source. Any changes here will immediately appear in other modes when you switch to them.

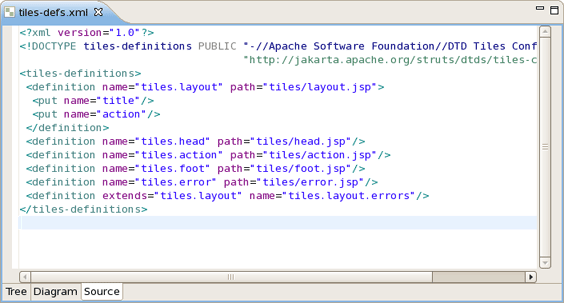

Figure 3.16. Source Mode

Code assist is available in the Source mode.

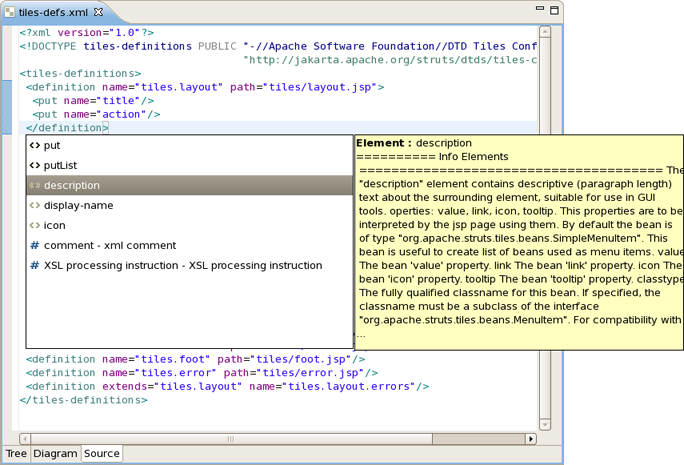

Figure 3.17. Code Assist

Any errors are immediately reported as shown below:

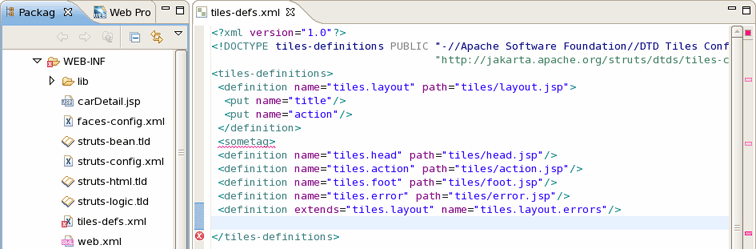

Figure 3.18. Errors Reporting

You can also use the Outline view together with the editor's Source mode. It provides an easier navigation through the file.

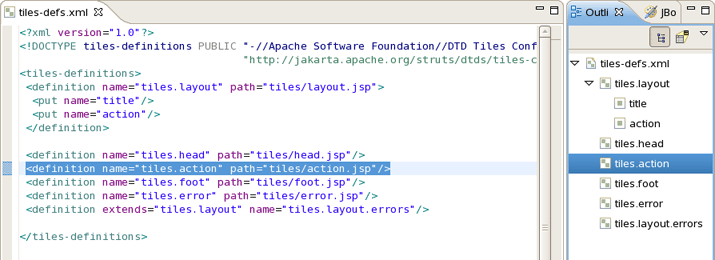

Figure 3.19. Outline View

3.3. Graphical Editor for Struts Validation Files

Providing full support for development Struts applications JBoss Tools comes with a visual validation editor. To create a new validation file, right click any folder in Project Explorer and select File > New > Other... from the context menu and then JBoss Tools Web > Struts > Validation File.

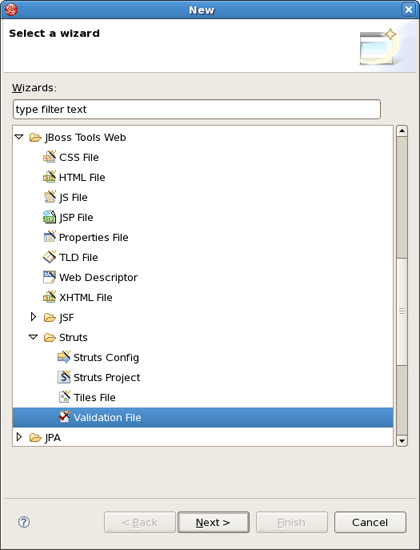

Figure 3.20. Creating New Validation File

The validation editor works with five modes: Formsets, Validators, Constants and standard Tree and Source that you can easily switch over using tabs at the bottom of the editor.

The Formsets mode shows forms and their elements on the left side and the dialogue for defining their validation rules on the right side.

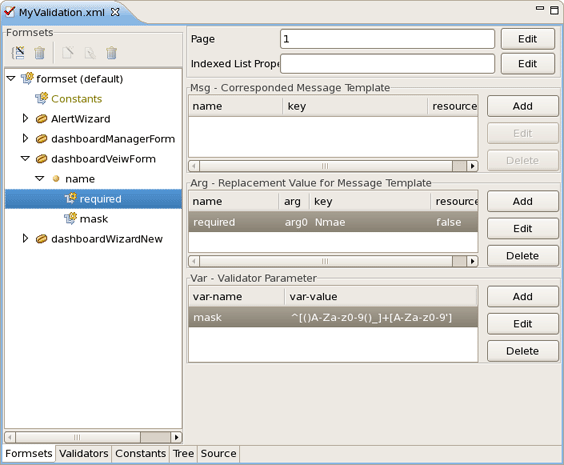

Figure 3.21. Formsets Mode

The Constants mode let you set constant values for your validation rules.

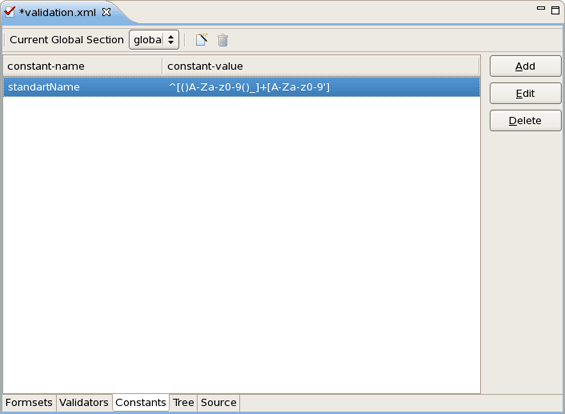

Figure 3.22. Constansts Mode

The validation file can also be viewed in a Tree mode.

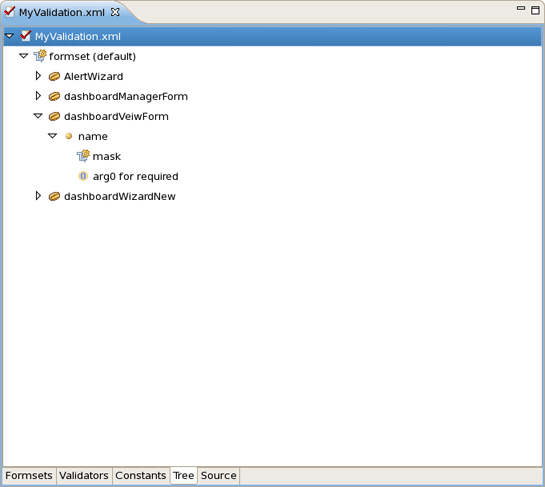

Figure 3.23. Tree Mode

At any point you have full control over the source by switching to the Source mode. Any editing in this mode will immediately be available in other modes of the editor.

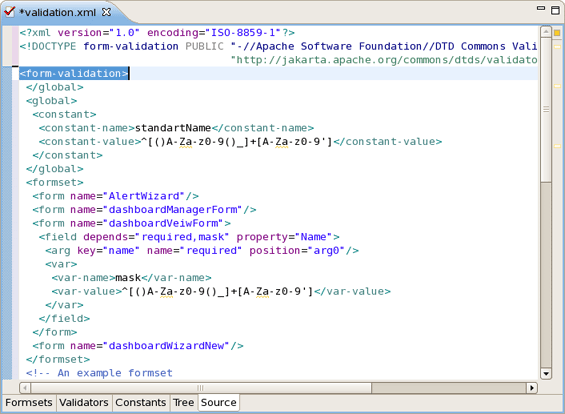

Figure 3.24. Source Mode

You can also open your own custom or Struts-standard validation-rules.xml file.

The Validators mode shows the validation rules for a selected validator. You can of course add your own rules.

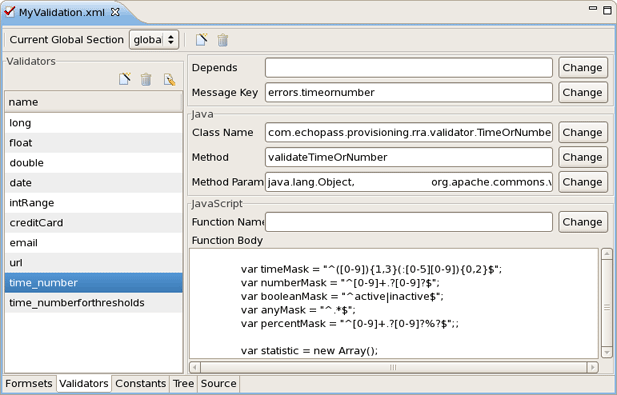

Figure 3.25. Validators Mode

Here are the validation rules shown in the Source mode.

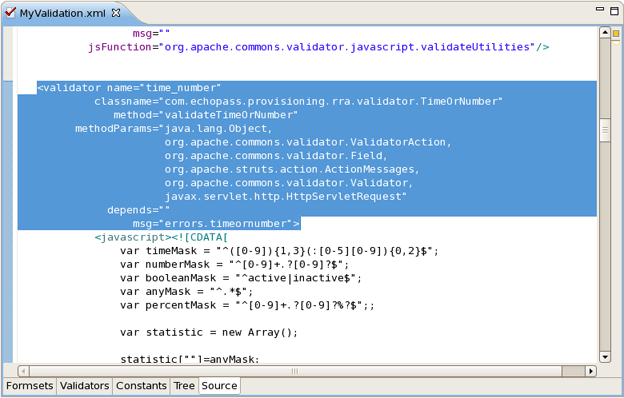

Figure 3.26. Validation Rules
