You'll need to download JBoss AS 5.0.1.GA from jboss.org, and unzip it. For example:

$ cd /Applications
$ unzip ~/jboss-5.0.1.GA.zip

Next, download Web Beans from seamframework.org, and unzip it. For example

$ cd ~/
$ unzip ~/webbeans-$VERSION.zip

Als nächstes müssen wir Web Beans mitteilen, wo JBoss sich befindet. Editieren Sie jboss-as/build.properties und setzen Sie die jboss.home-Property. Zum Beispiel:

jboss.home=/Applications/jboss-5.0.1.GA

To install Web Beans, you'll need Ant 1.7.0 installed, and the ANT_HOME environment variable set. For example:

$ unzip apache-ant-1.7.0.zip
$ export ANT_HOME=~/apache-ant-1.7.0

Then, you can install the update. The update script will use Maven to download Web Beans automatically.

$ cd webbeans-$VERSION/jboss-as
$ ant update

Jetzt können Sie Ihr erstes Beispiel deployen!

Um das numberguess Beispiel zu deployen:

$ cd examples/numberguess
ant deploy

JBoss AS starten:

$ /Application/jboss-5.0.0.GA/bin/run.sh

Deployen Sie die Anwendung und genießen Sie stundenlangen Spaß unter http://localhost:8080/webbeans-numberguess!

Web Beans includes a second simple example that will translate your text into Latin. The numberguess example is a war example, and uses only simple beans; the translator example is an ear example, and includes enterprise beans, packaged in an EJB module. To try it out:

$ cd examples/translator
ant deploy

Warten Sie, bis die Anwendung deployt ist und besuchen Sie http://localhost:8080/webbeans-translator!

You'll need to download Tomcat 6.0.18 or later from tomcat.apache.org, and unzip it. For example:

$ cd /Applications
$ unzip ~/apache-tomcat-6.0.18.zip

Next, download Web Beans from seamframework.org, and unzip it. For example

$ cd ~/
$ unzip ~/webbeans-$VERSION.zip

Next, we need to tell Web Beans where Tomcat is located. Edit jboss-as/build.properties and set the tomcat.home property. For example:

tomcat.home=/Applications/apache-tomcat-6.0.18

To deploy the numberguess example for tomcat:

$ cd examples/tomcat
ant tomcat.deploy

Start Tomcat:

$ /Applications/apache-tomcat-6.0.18/bin/startup.sh

Deployen Sie die Anwendung und genießen Sie stundenlangen Spaß unter http://localhost:8080/webbeans-numberguess!

TODO

In der numberguess-Anwendung haben Sie 10 Versuche, eine Zahl zwischen 1 und 100 zu erraten. Nach jedem Versuch wird Ihnen mitgeteilt, ob Sie zu hoch oder zu niedrig liegen.

Das numberguess-Beispiel besteht aus einer Reihe von Web Beans, Konfigurationsdateien und Facelet JSF-Seiten, die als eine war verpackt sind. Fangen wir mit den Konfigurationsdateien an.

Alle Konfigurationsdateien für dieses Beispiel befinden sich in WEB-INF/, das in WebContent im Quell-Baum gespeichert ist. Zunächst haben wir faces-config.xml, in dem wir JSF anweisen, Facelets zu verwenden:

<?xml version='1.0' encoding='UTF-8'?>

<faces-config version="1.2"

              xmlns="http://java.sun.com/xml/ns/javaee"

              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

              xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-facesconfig_1_2.xsd">



    <application>

        <view-handler

>com.sun.facelets.FaceletViewHandler</view-handler>

    </application>



</faces-config

>

Es existiert eine leere web-beans.xml-Datei, die diese Anwendung als Web Beans Applikation kennzeichnet.

Und schließlich gibt es noch web.xml:

<?xml version="1.0" encoding="UTF-8"?>

<web-app version="2.5"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

   <display-name>Web Beans Numbergues example</display-name>

   <!-- JSF -->

   <servlet>
      <servlet-name>Faces Servlet</servlet-name>
      <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
      <load-on-startup>1</load-on-startup>
   </servlet>

   <servlet-mapping>
      <servlet-name>Faces Servlet</servlet-name>
      <url-pattern>*.jsf</url-pattern>
   </servlet-mapping>

   <context-param>
      <param-name>javax.faces.DEFAULT_SUFFIX</param-name>
      <param-value>.xhtml</param-value>
   </context-param>

   <session-config>
      <session-timeout>10</session-timeout>
   </session-config>

</web-app>

	Enable and load the JSF servlet
	Configure requests to .jsf pages to be handled by JSF
	Tell JSF that we will be giving our source files (facelets) an extension of .xhtml
	Configure a session timeout of 10 minutes

Let's take a look at the Facelet view:

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
    xmlns:ui="http://java.sun.com/jsf/facelets"
    xmlns:h="http://java.sun.com/jsf/html"
    xmlns:f="http://java.sun.com/jsf/core"
    xmlns:s="http://jboss.com/products/seam/taglib">

  <ui:composition template="template.xhtml">
    <ui:define name="content">
       <h1>Guess a number...</h1>
       <h:form id="NumberGuessMain">
          <div style="color: red">
             <h:messages id="messages" globalOnly="false"/>
             <h:outputText id="Higher" value="Higher!" rendered="#{game.number gt game.guess and game.guess ne 0}"/>
             <h:outputText id="Lower" value="Lower!" rendered="#{game.number lt game.guess and game.guess ne 0}"/>
          </div>

          <div>
             I'm thinking of a number between #{game.smallest} and #{game.biggest}.
             You have #{game.remainingGuesses} guesses.
          </div>

          <div>
             Your guess:
             <h:inputText id="inputGuess"
                          value="#{game.guess}"
                          required="true"
                          size="3"
                          disabled="#{game.number eq game.guess}">
                <f:validateLongRange maximum="#{game.biggest}"
                                     minimum="#{game.smallest}"/>
             </h:inputText>
            <h:commandButton id="GuessButton"
                             value="Guess"
                             action="#{game.check}"
                             disabled="#{game.number eq game.guess}"/>
          </div>
          <div>
            <h:commandButton id="RestartButton" value="Reset" action="#{game.reset}" immediate="true" />
          </div>
       </h:form>
    </ui:define>
  </ui:composition>
</html>

	Facelets is a templating language for JSF, here we are wrapping our page in a template which defines the header.
	There are a number of messages which can be sent to the user, "Higher!", "Lower!" and "Correct!"
	As the user guesses, the range of numbers they can guess gets smaller - this sentance changes to make sure they know what range to guess in.
	This input field is bound to a Web Bean, using the value expression.
	A range validator is used to make sure the user doesn't accidentally input a number outside of the range in which they can guess - if the validator wasn't here, the user might use up a guess on an out of range number.
	And, of course, there must be a way for the user to send their guess to the server. Here we bind to an action method on the Web Bean.

Das Beispiel besteht aus 4 Klassen, wobei die ersten beiden Binding-Typen sind. Zunächst gibt es den @Random Binding-Typ, der zur Einspeisung einer zufälligen Zahl dient:

@Target( { TYPE, METHOD, PARAMETER, FIELD })

@Retention(RUNTIME)

@Documented

@BindingType

public @interface Random {}

Es gibt außerdem den @MaxNumber Binding-Typ, der zur Einspeisung der maximalen Zahl, die eingespeist werden kann, verwendet wird:

@Target( { TYPE, METHOD, PARAMETER, FIELD })

@Retention(RUNTIME)

@Documented

@BindingType

public @interface MaxNumber {}

Die Generator-Klasse ist verantwortlich für die Erstellung der zufälligen Zahl via einer Producer-Methode. Sie legt auch die mögliche Maximalzahl via einer maximum Producer-Methode offen:

@ApplicationScoped

public class Generator {



   private java.util.Random random = new java.util.Random( System.currentTimeMillis() );



   private int maxNumber = 100;



   java.util.Random getRandom()

   {

      return random;

   }



   @Produces @Random int next() {

      return getRandom().nextInt(maxNumber);

   }



   @Produces @MaxNumber int getMaxNumber()

   {

      return maxNumber;

   }


}

Sie werden feststellen, dass der Generator anwendungsbegrenzt ist; daher erhalten wir nicht jedes Mal ein anderes Zufallsergebnis.

Das letzte Web Bean in der Anwendung ist das sessionbegrenzte Game.

Sie werden bemerken, dass wir die @Named-Annotation verwendet haben, damit wir das Bean durch EL in der JSF-Seite verwenden können. Zu guter Letzt haben wir Konstruktor-Einspeisung zur Initialisierung des Spiels mit Zufallszahl verwendet. Und natürlich müssen wir dem Spieler mitteilen, wenn er gewonnen hat, daher bieten wir Feedback mittels einer FacesMessage.

package org.jboss.webbeans.examples.numberguess;



import javax.annotation.PostConstruct;

import javax.faces.application.FacesMessage;

import javax.faces.context.FacesContext;

import javax.webbeans.AnnotationLiteral;

import javax.webbeans.Current;

import javax.webbeans.Initializer;

import javax.webbeans.Named;

import javax.webbeans.SessionScoped;

import javax.webbeans.manager.Manager;


@Named

@SessionScoped

public class Game

{

   private int number;



   private int guess;

   private int smallest;

   private int biggest;

   private int remainingGuesses;



   @Current Manager manager;



   public Game()

   {

   }



   @Initializer

   Game(@MaxNumber int maxNumber)

   {

      this.biggest = maxNumber;

   }


   public int getNumber()

   {

      return number;

   }



   public int getGuess()

   {

      return guess;

   }



   public void setGuess(int guess)

   {

      this.guess = guess;

   }



   public int getSmallest()

   {

      return smallest;

   }



   public int getBiggest()

   {

      return biggest;

   }



   public int getRemainingGuesses()

   {

      return remainingGuesses;

   }



   public String check()

   {

      if (guess

>number)

      {

         biggest = guess - 1;

      }

      if (guess<number)

      {

         smallest = guess + 1;

      }

      if (guess == number)

      {

         FacesContext.getCurrentInstance().addMessage(null, new FacesMessage("Correct!"));

      }

      remainingGuesses--;

      return null;

   }



   @PostConstruct

   public void reset()

   {

      this.smallest = 0;

      this.guess = 0;

      this.remainingGuesses = 10;

      this.number = manager.getInstanceByType(Integer.class, new AnnotationLiteral<Random

>(){});

   }



}

<listener>
   <listener-class>org.jboss.webbeans.environment.servlet.Listener</listener-class>
</listener>

3.4.2. The numberguess example for Apache Wicket

Whilst JSR-299 specifies integration with Java ServerFaces, Web Beans allows you to inject into Wicket components, and also allows you to use a conversation context with Wicket. In this section, we'll walk you through the Wicket version of the numberguess example.

Anmerkung

You may want to review the Wicket documentation at http://wicket.apache.org/.

Like the previous example, the Wicket WebBeans examples make use of the webbeans-servlet module. The use of the Jetty servlet container is common in the Wicket community, and is chosen here as the runtime container in order to facilitate comparison between the standard Wicket examples and these examples, and also to show how the webbeans-servlet integration is not dependent upon Tomcat as the servlet container.

These examples make use of the Eclipse IDE; instructions are also given to deploy the application from the command line.

3.4.2.1. Creating the Eclipse project

To generate an Eclipse project from the example:

cd examples/wicket/numberguess
mvn -Pjetty eclipse:eclipse

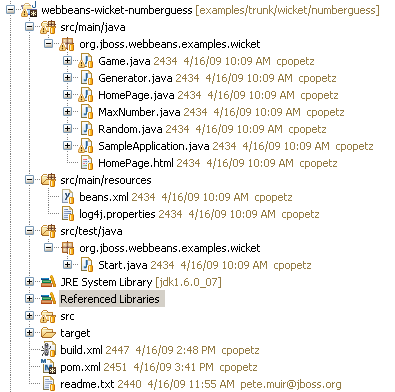

Then, from eclipse, choose File -> Import -> General -> Existing Projects into Workspace, select the root directory of the numberguess example, and click finish. Note that if you do not intend to run the example with jetty from within eclipse, omit the "-Pjetty." This will create a project in your workspace called webbeans-wicket-numberguess

3.4.2.2. Running the example from Eclipse

This project follows the wicket-quickstart approach of creating an instance of Jetty in the Start class. So running the example is as simple as right-clicking on that Start class in src/test/java in the Package Explorer and choosing Run as Java Application. You should see console output related to Jetty starting up; then visit able http://localhost:8080 to view the app. To debug choose Debug as Java Application.

3.4.2.3. Running the example from the command line in JBoss AS or Tomcat

This example can also be deployed from the command line in a (similar to the other examples). Assuming you have set up the build.properties file in the examples directory to specify the location of JBoss AS or Tomcat, as previously described, you can run ant deploy from the examples/wicket/numberguess directory, and access the application at http://localhost:8080/webbeans-numberguess-wicket.

3.4.2.4. Understanding the code

JSF uses Unified EL expressions to bind view layer components in JSP or Facelet views to beans, Wicket defines it's components in Java. The markup is plain html with a one-to-one mapping between html elements and the view components. All view logic, including binding of components to models and controlling the response of view actions, is handled in Java. The integration of Web Beans with Wicket takes advantage of the same binding annotations used in your business layer to provide injection into your WebPage subclass (or into other custom wicket component subclasses).

The code in the wicket numberguess example is very similar to the JSF-based numberguess example. The business layer is identical!

Differences are:

• Each wicket application must have a WebApplication subclass, In our case, our application class is SampleApplication:

  public class SampleApplication extends WebBeansApplication {
     @Override
     public Class getHomePage() {
        return HomePage.class;
     }
  }

  This class specifies which page wicket should treat as our home page, in our case, HomePage.class

• In HomePage we see typical wicket code to set up page elements. The bit that is interesting is the injection of the Game bean:

   @Current Game game;

  The Game bean is can then be used, for example, by the code for submitting a guess:

  final Component guessButton = new AjaxButton("GuessButton") {
     protected void onSubmit(AjaxRequestTarget target, Form form) {
        if (game.check()) {

  Anmerkung

  All injections may be serialized; actual storage of the bean is managed by JSR-299. Note that Wicket components, like the HomePage and it subcomponents, are not JSR-299 beans.

  Wicket components allow injection, but they cannot use interceptors, decorators and lifecycle callbacks such as @PostConstruct or @Initializer methods.

• The example uses AJAX for processing of button events, and dynamically hides buttons that are no longer relevant, for example when the user has won the game.

• In order to activate wicket for this webapp, the Wicket filter is added to web.xml, and our application class is specified:

  <filter>
     <filter-name>wicket.numberguess-example</filter-name>
     <filter-class>org.apache.wicket.protocol.http.WicketFilter</filter-class>
     <init-param>
        <param-name>applicationClassName</param-name>
        <param-value>org.jboss.webbeans.examples.wicket.SampleApplication</param-value>
     </init-param>
  </filter>

  <filter-mapping>
     <filter-name>wicket.numberguess-example</filter-name>
     <url-pattern>/*</url-pattern>
  </filter-mapping>

  <listener>
     <listener-class>org.jboss.webbeans.environment.servlet.Listener</listener-class>
  </listener>

  Note that the servlet listener is also added, as in the Tomcat example, in order to boostrap Web Beans when Jetty starts, and to hook Web Beans into the Jetty servlet request and session lifecycles.

3.4.3. The numberguess example for Java SE with Swing

This example can be found in the examples/se/numberguess folder of the Web Beans distribution.

To run this example:

• Open a command line/terminal window in the examples/se/numberguess directory

• Ensure that Maven 2 is installed and in your PATH

• Ensure that the JAVA_HOME environment variable is pointing to your JDK installation

• execute the following command

  mvn -Drun

There is an empty beans.xml file in the root package (src/main/resources/beans.xml), which marks this application as a Web Beans application.

The game's main logic is located in Game.java. Here is the code for that class, highlighting the changes made from the web application version:

@ApplicationScoped

public class Game implements Serializable

{


    private int number;

    private int guess;

    private int smallest;


    @MaxNumber

    private int maxNumber;


    private int biggest;

    private int remainingGuesses;

    private boolean validNumberRange = true;


    @Current Generator rndGenerator;


    ...


    public boolean isValidNumberRange()

    {

        return validNumberRange;

    }


    public boolean isGameWon()

    {

        return guess == number;

    }


    public boolean isGameLost()

    {

        return guess != number && remainingGuesses <= 0;

    }


    public boolean check()

    {

        boolean result = false;


        if ( checkNewNumberRangeIsValid() )

        {

            if ( guess > number )

            {

                biggest = guess - 1;

            }


            if ( guess < number )

            {

                smallest = guess + 1;

            }


            if ( guess == number )

            {

                result = true;

            }


            remainingGuesses--;

        }


        return result;

    }


    private boolean checkNewNumberRangeIsValid()

    {

        return validNumberRange = ( ( guess >= smallest ) && ( guess <= biggest ) );

    }


    @PostConstruct

    public void reset()

    {

        this.smallest = 0;

        ...

        this.number = rndGenerator.next();

    }

}

	The bean is application scoped instead of session scoped, since an instance of the application represents a single 'session'.
	The bean is not named, since it doesn't need to be accessed via EL
	There is no JSF FacesContext to add messages to. Instead the Game class provides additional information about the state of the current game including: If the game has been won or lost If the most recent guess was invalid This allows the Swing UI to query the state of the game, which it does indirectly via a class called MessageGenerator, in order to determine the appropriate messages to display to the user during the game.
	Validation of user input is performed during the check() method, since there is no dedicated validation phase
	The reset() method makes a call to the injected rndGenerator in order to get the random number at the start of each game. It cannot use manager.getInstanceByType(Integer.class, new AnnotationLiteral<Random>(){}) as the JSF example does because there will not be any active contexts like there is during a JSF request.

The MessageGenerator class depends on the current instance of Game, and queries its state in order to determine the appropriate messages to provide as the prompt for the user's next guess and the response to the previous guess. The code for MessageGenerator is as follows:

public class MessageGenerator

{

    @Current Game game;


    public String getChallengeMessage()

    {

        StringBuilder challengeMsg = new StringBuilder( "I'm thinking of a number between " );

        challengeMsg.append( game.getSmallest() );

        challengeMsg.append( " and " );

        challengeMsg.append( game.getBiggest() );

        challengeMsg.append( ". Can you guess what it is?" );


        return challengeMsg.toString();

    }


    public String getResultMessage()

    {

        if ( game.isGameWon() )

        {

            return "You guess it! The number was " + game.getNumber();

        } else if ( game.isGameLost() )

        {

            return "You are fail! The number was " + game.getNumber();

        } else if ( ! game.isValidNumberRange() )

        {

            return "Invalid number range!";

        } else if ( game.getRemainingGuesses() == Game.MAX_NUM_GUESSES )

        {

            return "What is your first guess?";

        } else

        {

            String direction = null;


            if ( game.getGuess() < game.getNumber() )

            {

                direction = "Higher";

            } else

            {

                direction = "Lower";

            }


            return direction + "! You have " + game.getRemainingGuesses() + " guesses left.";

        }

    }

}

	The instance of Game for the application is injected here.
	The Game's state is interrogated to determine the appropriate challenge message.
	And again to determine whether to congratulate, console or encourage the user to continue.

Finally we come to the NumberGuessFrame class which provides the Swing front end to our guessing game.

public class NumberGuessFrame  extends javax.swing.JFrame

{

    private @Current Game game;

    private @Current MessageGenerator msgGenerator;


    public void start( @Observes @Deployed Manager manager )

    {

        java.awt.EventQueue.invokeLater( new Runnable()

            {

                public void run()

                {

                    initComponents();

                    setVisible( true );

                }

            } );

    }


    private void initComponents() {


        buttonPanel = new javax.swing.JPanel();

        mainMsgPanel = new javax.swing.JPanel();

        mainLabel = new javax.swing.JLabel();

        messageLabel = new javax.swing.JLabel();

        guessText = new javax.swing.JTextField();

        ...

        mainLabel.setText(msgGenerator.getChallengeMessage());

        mainMsgPanel.add(mainLabel);


        messageLabel.setText(msgGenerator.getResultMessage());

        mainMsgPanel.add(messageLabel);

        ...

    }


    private void guessButtonActionPerformed( java.awt.event.ActionEvent evt )

    {

        int guess =  Integer.parseInt(guessText.getText());


        game.setGuess( guess );

        game.check();

        refreshUI();


    }


    private void replayBtnActionPerformed( java.awt.event.ActionEvent evt )

    {

       game.reset();

       refreshUI();

    }


    private void refreshUI()

    {

        mainLabel.setText( msgGenerator.getChallengeMessage() );

        messageLabel.setText( msgGenerator.getResultMessage() );

        guessText.setText( "" );

        guessesLeftBar.setValue( game.getRemainingGuesses() );

        guessText.requestFocus();

    }


    // swing components

    private javax.swing.JPanel borderPanel;

    ...

    private javax.swing.JButton replayBtn;


}

	The injected instance of the game (logic and state).
	The injected message generator for UI messages.
	This application is started in the usual Web Beans SE way, by observing the @Deployed Manager event.
	This method initialises all of the Swing components. Note the use of the msgGenerator.
	guessButtonActionPerformed is called when the 'Guess' button is clicked, and it does the following: Gets the guess entered by the user and sets it as the current guess in the Game Calls game.check() to validate and perform one 'turn' of the game Calls refreshUI. If there were validation errors with the input, this will have been captured during game.check() and as such will be reflected in the messeges returned by MessageGenerator and subsequently presented to the user. If there are no validation errors then the user will be told to guess again (higher or lower) or that the game has ended either in a win (correct guess) or a loss (ran out of guesses).
	replayBtnActionPerformed simply calls game.reset() to start a new game and refreshes the messages in the UI.
	refreshUI uses the MessageGenerator to update the messages to the user based on the current state of the Game.

Beim translator-Beispiel werden die von Ihnen eingegebenen Sätze ins Lateinische übersetzt.

Das translator-Beispiel ist eine ear und enthält EJBs. Als Folge ist seine Struktur komplexer als die desnumberguess-Beispiels.

Werfen wir zunächst einen Blick auf den ear-Aggregator, das sich im webbeans-translator-ear-Modul befindet. Maven generiert automatisch die application.xml für uns:

<plugin>

   <groupId

>org.apache.maven.plugins</groupId>

   <artifactId

>maven-ear-plugin</artifactId>

   <configuration>

      <modules>

         <webModule>

            <groupId

>org.jboss.webbeans.examples.translator</groupId>

            <artifactId

>webbeans-translator-war</artifactId>

            <contextRoot

>/webbeans-translator</contextRoot>

         </webModule>

      </modules>

   </configuration>

</plugin

>

Hier setzen wir den Kontextpfad, der uns eine schöne url liefert (http://localhost:8080/webbeans-translator).

<?xml version="1.0" encoding="UTF-8"?>

<application xmlns="http://java.sun.com/xml/ns/javaee"

             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

             xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/application_5.xsd"

             version="5">

  <display-name

>webbeans-translator-ear</display-name>

  <description

>Ear Example for the reference implementation of JSR 299: Web Beans</description>



  <module>

    <web>

      <web-uri

>webbeans-translator.war</web-uri>

      <context-root

>/webbeans-translator</context-root>

    </web>

  </module>

  <module>

    <ejb

>webbeans-translator.jar</ejb>

  </module>

</application

>

Next, lets look at the war. Just as in the numberguess example, we have a faces-config.xml (to enable Facelets) and a web.xml (to enable JSF) in WebContent/WEB-INF.

Interessanter ist das zur Übersetzung des Texts verwendete Facelet. Ganz wie im numberguess-Beispiel besitzen wir eine Vorlage, die das Formular umgibt (hier der Kürze wegen weggelassen):

<h:form id="NumberGuessMain">



   <table>

      <tr align="center" style="font-weight: bold" >

         <td>

            Your text

         </td>

         <td>

            Translation

         </td>

      </tr>

      <tr>

         <td>

            <h:inputTextarea id="text" value="#{translator.text}" required="true" rows="5" cols="80" />

         </td>

         <td>

            <h:outputText value="#{translator.translatedText}" />

         </td>

      </tr>

   </table>

   <div>

      <h:commandButton id="button" value="Translate" action="#{translator.translate}"/>

   </div>



</h:form

>

Der Benutzer kann Text im Textbereich links eingeben und dann die translate-Schaltfläche drücken (zur Übersetzung), um auf der rechten Seite das Ergebnis zu sehen.

Sehen wir uns schließlich noch das ejb-Modul webbeans-translator-ejb an. In src/main/resources/META-INF existiert nur eine leere web-beans.xml, die dazu dient das Archiv als Web Beans enthaltend zu markieren.

Wir haben uns das Interessanteste bis zuletzt aufgehoben, nämlich den Code! Das Projekt besitzt zwei einfache Beans, SentenceParser und TextTranslator und zwei Enterprise Beans, TranslatorControllerBean und SentenceTranslator. Sie sind wahrscheinlich schon weitehend vertraut damit, wie Web Bean aussehen, daher gehen wir hier nur auf die interessantesten Aspekte ein.

Sowohl bei SentenceParser als auch bei TextTranslator handelt es sich um abhängige Beans und TextTranslator verwendet Konstruktor-Initialisierung :

public class TextTranslator {

   private SentenceParser sentenceParser;

   private Translator sentenceTranslator;



   @Initializer

   TextTranslator(SentenceParser sentenceParser, Translator sentenceTranslator)

   {

      this.sentenceParser = sentenceParser;

      this.sentenceTranslator = sentenceTranslator;

TextTranslator ist ein stateless Bean (mit einem lokalen Business-Interface), wo alles passiert - natürlich konnten wir keinen kompletten Übersetzer entwickeln,, aber wir haben uns Mühe gegeben!

Schließlich gibt es noch den UI-orientierten Kontroller, der den Text vom Benutzer nimmt und ihn an den translator (Übersetzer) weitergibt. Hierbei handelt es sich um ein anfragenbegrenztes, benanntes, stateful Session Bean, das den translator einspeist.

@Stateful

@RequestScoped

@Named("translator")

public class TranslatorControllerBean implements TranslatorController

{



   @Current TextTranslator translator;

Das Bean besitzt auch Getter und Setter für alle Felder auf der Seite.

Da es sich um ein stateful Session Bean handelt, müssen wir eine remove-Methode besitzen:

   @Remove

   public void remove()

   {



   }

Der Web Beans Manager ruft die remove-Methode für Sie auf, wenn das Bean gelöscht wird, in diesem Fall am Ende der Anfrage.
