org.xnio.channels
Class FramedMessageChannel

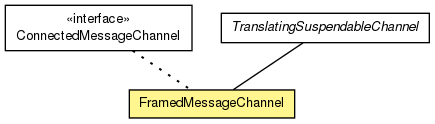

java.lang.Object
  org.xnio.channels.TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>
      org.xnio.channels.FramedMessageChannel

All Implemented Interfaces:

Closeable, Channel, InterruptibleChannel, BoundChannel, CloseableChannel, Configurable, ConnectedChannel, ConnectedMessageChannel, MessageChannel, ReadableMessageChannel, SuspendableChannel, SuspendableReadChannel, SuspendableWriteChannel, WrappedChannel<ConnectedStreamChannel>, WritableMessageChannel

public class FramedMessageChannel
extends TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>
implements ConnectedMessageChannel

A connected message channel providing a SASL-style framing layer over a stream channel where each message is prepended by a four-byte length field.

Author:

David M. Lloyd

Field Summary

Fields inherited from class org.xnio.channels.TranslatingSuspendableChannel

channel

Constructor Summary

FramedMessageChannel(ConnectedStreamChannel channel, ByteBuffer receiveBuffer, ByteBuffer transmitBuffer)
Construct a new instance.

FramedMessageChannel(ConnectedStreamChannel channel, Pooled<ByteBuffer> receiveBuffer, Pooled<ByteBuffer> transmitBuffer)
Construct a new instance.

Method Summary

protected void	closeAction(boolean readShutDown, boolean writeShutDown) The action to perform when the channel is closed via the TranslatingSuspendableChannel.close() method.
protected boolean	flushAction(boolean shutDown) The action to perform when the channel is flushed.
ConnectedStreamChannel	getChannel() Get the underlying channel.
SocketAddress	getLocalAddress() Get the local address that this channel is bound to.
<A extends SocketAddress> A	getLocalAddress(Class<A> type) Get the local address of a given type, or null if the address is not of that type.
SocketAddress	getPeerAddress() Get the peer address of this channel.
<A extends SocketAddress> A	getPeerAddress(Class<A> type) Get the peer address of a given type, or null if the address is not of that type.
int	receive(ByteBuffer buffer) Receive a message.
long	receive(ByteBuffer[] buffers) Receive a message.
long	receive(ByteBuffer[] buffers, int offs, int len) Receive a message.
boolean	send(ByteBuffer buffer) Send a complete message.
boolean	send(ByteBuffer[] buffers) Send a complete message.
boolean	send(ByteBuffer[] buffers, int offs, int len) Send a complete message.
protected void	shutdownReadsAction(boolean writeComplete) The action to perform when reads are shut down.
protected void	shutdownWritesComplete(boolean readShutDown) Notification that the channel has successfully flushed after having shut down writes.

Methods inherited from class org.xnio.channels.TranslatingSuspendableChannel

awaitReadable, awaitReadable, awaitWritable, awaitWritable, clearReadReady, clearReadRequiresWrite, clearWriteReady, clearWriteRequiresRead, close, flush, getCloseSetter, getOption, getReadSetter, getReadThread, getWorker, getWriteSetter, getWriteThread, handleClosed, handleReadable, handleWritable, isOpen, isReadResumed, isReadShutDown, isWriteComplete, isWriteResumed, isWriteShutDown, readRequiresWrite, removeReadRequiresExternal, removeWriteRequiresExternal, resumeReads, resumeWrites, setClosed, setOption, setReadReady, setReadRequiresWrite, setReadShutDown, setWriteReady, setWriteRequiresRead, setWriteShutDown, shutdownReads, shutdownWrites, shutdownWritesAction, supportsOption, suspendReads, suspendWrites, thisTyped, toString, tryAddReadRequiresExternal, tryAddWriteRequiresExternal, wakeupReads, wakeupWrites, writeRequiresRead

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface org.xnio.channels.ConnectedMessageChannel

getCloseSetter, getReadSetter, getWriteSetter

Methods inherited from interface org.xnio.channels.SuspendableReadChannel

awaitReadable, awaitReadable, getReadThread, isReadResumed, resumeReads, shutdownReads, suspendReads, wakeupReads

Methods inherited from interface org.xnio.channels.SuspendableWriteChannel

awaitWritable, awaitWritable, close, flush, getWriteThread, isWriteResumed, resumeWrites, shutdownWrites, suspendWrites, wakeupWrites

Methods inherited from interface org.xnio.channels.CloseableChannel

getWorker

Methods inherited from interface java.nio.channels.Channel

isOpen

Methods inherited from interface org.xnio.channels.Configurable

getOption, setOption, supportsOption

Constructor Detail

FramedMessageChannel

public FramedMessageChannel(ConnectedStreamChannel channel,
                            ByteBuffer receiveBuffer,
                            ByteBuffer transmitBuffer)

Construct a new instance.

Parameters:

channel - the channel to wrap

receiveBuffer - the receive buffer (should be direct)

transmitBuffer - the send buffer (should be direct)

FramedMessageChannel

public FramedMessageChannel(ConnectedStreamChannel channel,
                            Pooled<ByteBuffer> receiveBuffer,
                            Pooled<ByteBuffer> transmitBuffer)

Construct a new instance.

Parameters:

channel - the channel to wrap

receiveBuffer - the receive buffer (should be direct)

transmitBuffer - the send buffer (should be direct)

Method Detail

receive

public int receive(ByteBuffer buffer)
            throws IOException

Receive a message.

Specified by:

receive in interface ReadableMessageChannel

Parameters:

buffer - the buffer that will hold the message

Returns:

the size of the received message, 0 if no message is available, and -1 if the message channel has reached an end-of-file condition

Throws:

IOException - if an I/O error occurs

receive

public long receive(ByteBuffer[] buffers)
             throws IOException

Receive a message.

Specified by:

receive in interface ReadableMessageChannel

Parameters:

buffers - the buffers that will hold the message

Returns:

the size of the received message, 0 if no message is available, and -1 if the message channel has reached an end-of-file condition

Throws:

IOException - if an I/O error occurs

receive

public long receive(ByteBuffer[] buffers,
                    int offs,
                    int len)
             throws IOException

Receive a message.

Specified by:

receive in interface ReadableMessageChannel

Parameters:

buffers - the buffers that will hold the message

offs - the offset into the array of buffers of the first buffer to read into

len - the number of buffers to fill

Returns:

the size of the received message, 0 if no message is available, and -1 if the message channel has reached an end-of-file condition

Throws:

IOException - if an I/O error occurs

shutdownReadsAction

protected void shutdownReadsAction(boolean writeComplete)
                            throws IOException

Description copied from class: TranslatingSuspendableChannel

The action to perform when reads are shut down. By default, this method delegates to the underlying channel.

Overrides:

shutdownReadsAction in class TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>

Throws:

IOException - if an error occurs

send

public boolean send(ByteBuffer buffer)
             throws IOException

Send a complete message.

Specified by:

send in interface WritableMessageChannel

Parameters:

buffer - the message to send

Returns:

the result of the send operation; true if the message was sent, or false if it would block

Throws:

IOException - if an I/O error occurs

send

public boolean send(ByteBuffer[] buffers)
             throws IOException

Send a complete message.

Specified by:

send in interface WritableMessageChannel

Parameters:

buffers - the buffers holding the message to send

Returns:

the result of the send operation; true if the message was sent, or false if it would block

Throws:

IOException - if an I/O error occurs

send

public boolean send(ByteBuffer[] buffers,
                    int offs,
                    int len)
             throws IOException

Send a complete message.

Specified by:

send in interface WritableMessageChannel

Parameters:

buffers - the buffers holding the message to send

offs - the offset into the buffer array of the first buffer

len - the number of buffers that contain data to send

Returns:

the result of the send operation; true if the message was sent, or false if it would block

Throws:

IOException - if an I/O error occurs

flushAction

protected boolean flushAction(boolean shutDown)
                       throws IOException

Description copied from class: TranslatingSuspendableChannel

The action to perform when the channel is flushed. By default, this method delegates to the underlying channel. If the shutDown parameter is set, and this method returns true, the underlying channel will be shut down and this method will never be called again (future calls to TranslatingSuspendableChannel.flush() will flush the underlying channel until it returns true).

Overrides:

flushAction in class TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>

Parameters:

shutDown - true if the channel's write side has been shut down, false otherwise

Returns:

true if the flush succeeded, false if it would block

Throws:

IOException - if an error occurs

shutdownWritesComplete

protected void shutdownWritesComplete(boolean readShutDown)
                               throws IOException

Description copied from class: TranslatingSuspendableChannel

Notification that the channel has successfully flushed after having shut down writes. The underlying channel may not yet be fully flushed at this time.

Overrides:

shutdownWritesComplete in class TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>

Parameters:

readShutDown - true if the read side was already shut down, false otherwise

Throws:

IOException - if an error occurs

closeAction

protected void closeAction(boolean readShutDown,
                           boolean writeShutDown)
                    throws IOException

Description copied from class: TranslatingSuspendableChannel

The action to perform when the channel is closed via the TranslatingSuspendableChannel.close() method. By default, the underlying channel is closed.

Overrides:

closeAction in class TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>

Parameters:

readShutDown - if reads were previously shut down

writeShutDown - if writes were previously shut down

Throws:

IOException - if an error occurs

getPeerAddress

public SocketAddress getPeerAddress()

Get the peer address of this channel.

Specified by:

getPeerAddress in interface ConnectedChannel

Returns:

the peer address

getPeerAddress

public <A extends SocketAddress> A getPeerAddress(Class<A> type)

Get the peer address of a given type, or null if the address is not of that type.

Specified by:

getPeerAddress in interface ConnectedChannel

Parameters:

type - the address type class

Returns:

the peer address, or null if unknown

getLocalAddress

public SocketAddress getLocalAddress()

Get the local address that this channel is bound to.

Specified by:

getLocalAddress in interface BoundChannel

Returns:

the local address

getLocalAddress

public <A extends SocketAddress> A getLocalAddress(Class<A> type)

Get the local address of a given type, or null if the address is not of that type.

Specified by:

getLocalAddress in interface BoundChannel

Type Parameters:

A - the address type

Parameters:

type - the address type class

Returns:

the local address, or null if unknown

getChannel

public ConnectedStreamChannel getChannel()

Get the underlying channel.

Specified by:

getChannel in interface WrappedChannel<ConnectedStreamChannel>

Overrides:

getChannel in class TranslatingSuspendableChannel<ConnectedMessageChannel,ConnectedStreamChannel>

Returns:

the underlying channel
