6.10.14. <rich:tab> available since 3.0.0

expand all Description Key Features Details of Usage Reference Data Relevant Resources Links

The component defines a tab section within a tab panel.

The main component function is to define a content group that is rendered and processed when the tab is active, i.e. click on a tab causes switching onto a tab containing content corresponded to this tab.

The "label" attribute defines text to be represented. If you can use the "label" facet, you can even not use the "label" attribute.

      <f:facet name="label">
            <h:graphicImage value="/images/img1.png"/>
       <!--Any Content inside-->

A marker on a tab header defined with the "label" attribute. Moreover, each tab could be disabled (switching on this tab is impossible) with the "disable" attribute.

<rich:tabPanel width="20%">
      <tabs:tab  label="Canon">
            <h:outputText value="Canon EOS Digital Rebel XT" />
      <tabs:tab  label="Nikon">
            <h:outputText value="Nikon D70s" />
      <tabs:tab label="Olympus">
            <h:outputText value="Olympus EVOLT E-500" />
      <tabs:tab disabled="true" name="disabled" label="Disabled"/>

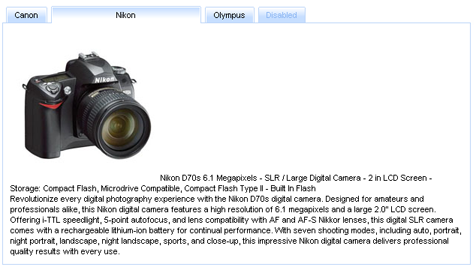

With this example it's possible to generate the tab panel with the last disabled and three active tabs (see the picture).

Switching mode could be defined not only for the whole panel tab, but also for each particular tab, i.e. switching onto one tab could be performed right on the client with the corresponding JavaScript and onto another tab with an Ajax request on the server. Tab switching modes are the same as tabPanel ones.

Each tab also has an attribute name (alias for "id" attribute). Using this attribute value it's possible e.g. to set an active tab on a model level specifying this name in the corresponding attribute of the whole tab.

Except the specific component attributes it has all necessary attributes for JavaScript event definition.

  • onmouseover

  • onmouseout

  • etc.

Some event could be performed on the tab which has been entered/left using ""ontabenter"" and "ontableave" attributes. See the example below:

      <rich:tab label="Tab1" ontabenter="alert()">

The following example shows how on the client side to get the names of entered/left tabs.


Information about the "process" attribute usage you can find in the "Decide what to process" guide section.

Table of <rich:tab> attributes.

You can find all necessary information about style classes redefinition in Definition of Custom Style Classes section.

Visit TabPanel page at RichFaces LiveDemo for examples of component usage and their sources.

If you have any questions or ideas regarding the <rich:tab> tell about them at the RichFaces Users Forum.
