6.10.3.  < rich:panel > available since 3.0.0

A skinnable panel that is rendered as a bordered rectangle with or without a header.


Table 6.216. rich : panel attributes

Attribute Name Description
binding JSF: The attribute takes a value-binding expression for a component property of a backing bean
bodyClassAssigns one or more space-separated CSS class names to the component content
headerLabel text appears on a panel header
headerClassAssigns one or more space-separated CSS class names to the component header
id JSF: Every component may have a unique id that is automatically created if omitted
onclick DHTML: The client-side script method to be called when the element is clicked
ondblclick DHTML: The client-side script method to be called when the element is double-clicked
onkeydown DHTML: The client-side script method to be called when a key is pressed down over the element
onkeypress DHTML: The client-side script method to be called when a key is pressed over the element and released
onkeyup DHTML: The client-side script method to be called when a key is released
onmousedown DHTML: The client-side script method to be called when a mouse button is pressed down over the element
onmousemove DHTML: The client-side script method to be called when a pointer is moved within the element
onmouseout DHTML: The client-side script method to be called when a pointer is moved away from the element
onmouseover DHTML: The client-side script method to be called when a pointer is moved onto the element
onmouseup DHTML: The client-side script method to be called when a mouse button is released
rendered JSF: If "false", this component is not rendered
styleHTML: CSS style rules to be applied to the component
styleClass JSF: Assigns one or more CSS class names to the component. Corresponds to the HTML "class" attribute.

Table 6.217. Component identification parameters

NameValue
component-typeorg.richfaces.panel
component-classorg.richfaces.component.html.HtmlPanel
component-familyorg.richfaces.panel
renderer-typeorg.richfaces.PanelRenderer
tag-classorg.richfaces.taglib.PanelTag

Here is a simple example as it could be used on a page:

Example:


...
<rich:panel header="Panel Header">
        ...
        <!--Any Content inside-->
        ...
</rich:panel>
...

Example:

import org.richfaces.component.html.HtmlPanel;

...
HtmlPanel myPanel = new HtmlPanel();
...

The "header" attribute defines text to be represented. If you can use the "header" facet, you can even not use the "header" attribute.

Example:


...
<rich:panel>
        <f:facet name="header">
                <h:graphicImage value="/images/img1.png"/>
        </f:facet>
        ...
        <!--Any Content inside-->
        ...
</rich:panel>
...

<rich:panel> components are used to group page content pieces on similarly formatted rectangular panels.

Example:


...
<rich:panel>
        ...
</rich:panel>
...

It's generating on a page in the following way:


The example shows that similar rectangular areas are formed with a particular style.

When creating a panel with a header element, one more <div> element is added with content defined for a header.

Example:


...
<rich:panel>
        <f:facet name="header">
                <h:outputText value="Olympus EVOLT E-500 "/>
        </f:facet>
        ...
</rich:panel>
...

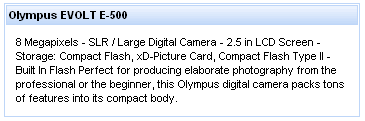

It's displayed on a page in the following way:


As it has been mentioned above, the component is mostly used for a page style definition, hence the main attributes are style ones.

  • "styleClass"

  • "headerClass"

  • "bodyClass"

Moreover, to add e.g. some JavaScript effects, events defined on it are used.

  • "onmouseover"

  • "onclick"

  • "onmouseout"

  • etc.


For skinnability implementation, the components use a style class redefinition method. Default style classes are mapped on skin parameters.

There are two ways to redefine the appearance of all <rich:panel> components at once:

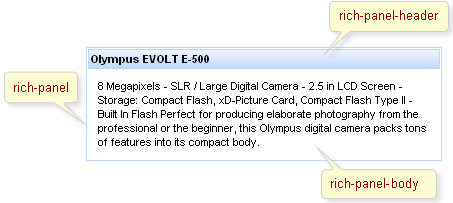

On the screenshot there are classes names that define styles for component elements.



In order to redefine styles for all <rich:panel> components on a page using CSS, it's enough to create classes with the same names (possible classes could be found in the table above) and define necessary properties in them. An example is placed below:

Example:


...
.rich-panel-body{

background-color: #ebf3fd;
}
...

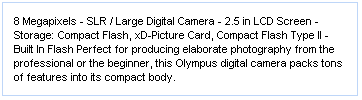

This is a result:


In the example a body background color was changed.

Also it's possible to change styles of particular <rich:panel> component. In this case you should create own style classes and use them in corresponding <rich:panel> styleClass attributes. An example is placed below:

Example:


...
.myClass{

text-align: justify;
}
...

The "bodyClass" attribute for <rich:panel> is defined as it's shown in the example below:

Example:


<h:panel... bodyClass="myClass"/>

This is a result:


As it could be seen on the picture above, text align of body was changed.

On the component LiveDemo page you can see the example of <rich:panel> usage and sources for the given example.
