Chapter 10. Tables and grids

This chapter covers all components related to the display of tables and grids.

10.1. `<a4j:repeat>`

The non-visual <a4j:repeat> component is used to iterate through a data model. The component renders child content for every iteration according to the current object data.

The <a4j:repeat> component extends the standard UIRepeat component to allow partial updates within iterations while sending Ajax requests. The component acts as a base for all the data iteration components detailed in this chapter.

10.1.1. Basic usage

The contents of the collection are determined using Expression Language (EL). The data model for the contents is specified with the value attribute. The var attribute names the object to use when iterating through the collection. This object is then referenced in the relevant child components. Example 10.1, “<a4j:repeat> example” shows how to use <a4j:repeat> to maintain a simple table.

Example 10.1. <a4j:repeat> example


<table>

    <tbody>

        <a4j:repeat value="#{repeatBean.items}" var="item">

            <tr>

                <td><h:outputText value="#{item.code}" id="item1" /></td>

                <td><h:outputText value="#{item.price}" id="item2" /></td>

            </tr>

        </a4j:repeat>

    </tbody>

</table>

Each row of a table contains two cells: one showing the item code, and the other showing the item price. The table is generated by iterating through items in the repeatBeans.items data model.

10.1.2. Limited views and partial updates

The <a4j:repeat> component uses other attributes common to iteration components, such as the first attribute for specifying the first item for iteration, and the rows attribute for specifying the number of rows of items to display.

Specific cells, rows, and columns can be updated without sending Ajax requests for the entire collection. Components that cause the change can specify which part of the table to update through the render attribute. The render attribute specifies which part of a table to update. The updated parts relate to where the action component is placed relative to the table:

Action components inside the table

Use render=componentID where the component identified by componentID is in the same row as the action component. The action component updates the single specified component, as demonstrated in Example 10.2, “Update a single component”.

Example 10.2. Update a single component


<rich:column>

   <a4j:commandButton render="col"></a4j:commandButton>

</rich:column>

<rich:column>

   <h:outputText value="#{car.model}" id="col"/>

</rich:column>

Action components outside the table

Use render=tableId:rowId:cellId to specify the cell to update. The action component updates the cell with an identifier of cellId, which is within the row with an identifier of rowId, which is within the table with an identifier of tableId.

Instead of a specific identifier, any of the references could be variables, as demonstrated in Example 10.3, “Use variables to specify references”.

Example 10.3. Use variables to specify references

render=tableId:#{@rows(bean.rowToUpdate)}:cellId

The @rows function accepts a collection of row keys to be updated.

10.1.3. Reference data

component-type: org.richfaces.Repeat
component-class: org.richfaces.component.UIRepeat
component-family: javax.faces.Data
renderer-type: org.richfaces.RepeatRenderer
handler-class: org.richfaces.taglib.html.RepeatHandler

10.2. `<rich:dataTable>`

The <rich:dataTable> component is used to render a table, including the table's caption. It works in conjunction with the <rich:column> and <rich:columnGroup> components to list the contents of a data model.

<rich:extendedDataTable>

The <rich:dataTable> component does not include extended table features, such as data scrolling (including lazy Ajax loading), row selection, and column reordering. These features are available as part of the <rich:extendedDataTable> component; refer to Section 10.6, “<rich:extendedDataTable>” for further details.

10.2.1. Basic usage

The value attribute points to the data model, and the var attribute specifies a variable to use when iterating through the data model.

In addition, the table requires a set of <rich:column> components to define the content of the table.

10.2.2. Customizing the table

The first attribute specifies which item in the data model to start from, and the rows attribute specifies the number of items to list. The header, footer, and caption facets can be used to display text, and to customize the appearance of the table through skinning. demonstrates a simple table implementation.

The keepSaved attribute defines whether this iteration component will reset saved children's state before rendering. By default, the state is reset if there are no faces messages with severity error or higher.

Example 10.4. <rich:dataTable> example


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">

    <f:facet name="caption">

        <h:outputText value="United States Capitals" />

    </f:facet>

    <f:facet name="header">

        <h:outputText value="Capitals and States Table" />

    </f:facet>

    <rich:column>

        <f:facet name="header">State Flag</f:facet>

            <h:graphicImage value="#{cap.stateFlag}"/>

        <f:facet name="footer">State Flag</f:facet>

    </rich:column>

    <rich:column>

        <f:facet name="header">State Name</f:facet>

            <h:outputText value="#{cap.state}"/>

        <f:facet name="footer">State Name</f:facet>

    </rich:column>

    <rich:column >

        <f:facet name="header">State Capital</f:facet>

            <h:outputText value="#{cap.name}"/>

        <f:facet name="footer">State Capital</f:facet>

    </rich:column>

    <rich:column>

        <f:facet name="header">Time Zone</f:facet>

            <h:outputText value="#{cap.timeZone}"/>

        <f:facet name="footer">Time Zone</f:facet>

    </rich:column>

    <f:facet name="footer">

        <h:outputText value="Capitals and States Table" />

    </f:facet>

</rich:dataTable>

[D]
Figure 10.1. <rich:dataTable> example

For details on filtering and sorting data tables, refer to Section 10.10, “Table filtering” and Section 10.11, “Table sorting”.

10.2.3. Partial updates

As <rich:dataTable> the component is based on the <a4j:repeat> component, it can be partially updated with Ajax. Refer to Section 10.1.2, “Limited views and partial updates” for details on partially updating the <rich:dataTable> component.

The <rich:dataTable> component supports master-detail markup with collapsible sub-table sections. Refer to Section 10.5, “<rich:collapsibleSubTable>” for full details on using the <rich:collapsibleSubTable> component.

Use the rows attribute to specify the number of rows to show at a time. The table is then presented in pages of rows. Pages can be navigated by using a control such as the <rich:dataScroller> component. Refer to Section 10.9, “<rich:dataScroller>” for full details on using the <rich:dataScroller> component.

10.2.4. JavaScript API

The <rich:dataTable> component can be controlled through the JavaScript API. The JavaScript API provides the following functions:

expandAllSubTables(): Expand any sub-tables contained in the data table.
collapseAllSubTables(): Collapse any sub-tables contained in the data table.
switchSubTable(subtableId): Switch the expanded or collapsed state of any sub-tables contained in the data table.
filter(columnId, newFilterValue, [isClearPreviousFilters]): Filter the table based on the column specified with the columnId parameter. Use the newFilterValue parameter as the filter value. The optional isClearPreviousFilters parameter is a boolean value which, if set to true, will clear any previous filters applied to the table.
sort(columnId, [direction], [isClearPreviousSorting]): Sort the table based on the column specified with the columnId parameter. The option direction parameter specifies whether to sort in ascending or descending order. The optional isClearPreviousSorting parameter is a boolean value which, if set to true, will clear any previous sorting applied to the table.

10.2.5. Reference data

component-type: org.richfaces.DataTable
component-class: org.richfaces.component.UIDataTable
component-family: org.richfaces.Data
renderer-type: org.richfaces.DataTableRenderer
handler-class: org.richfaces.taglib.DataTableHandler

10.2.6. Style classes and skin parameters

Table 10.1. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-dt` This class defines styles for the table.	`tableBackgroundColor`	background-color
	`tableBorderWidth`	border-left-width, border-top-width
	`tableBorderColor`	border-left-color, border-top-color
`.rf-dt-cap` This class defines styles for the table caption.	No skin parameters.
`.rf-dt-r` This class defines styles for a table row.	No skin parameters.
`.rf-dt-fst-r` This class defines styles for the first row in a table.	No skin parameters.
`.rf-dt-c` This class defines styles for a table cell.	`tableBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dt-nd` This class defines styles for a node.	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dt-hdr` This class defines styles for a table header.	No skin parameters.
`.rf-dt-hdr-fst` This class defines styles for the first header.	No skin parameters.
`.rf-dt-hdr-c` This class defines styles for a header cell.	`tableHeaderBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`tableHeaderTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dt-shdr` This class defines styles for a table sub-header.	No skin parameters.
`.rf-dt-shdr-fst` This class defines styles for the first sub-header.	No skin parameters.
`.rf-dt-shdr-c` This class defines styles for a sub-header cell.	`tableHeaderBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`tableHeaderTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dt-ftr` This class defines styles for a table footer.	No skin parameters.
`.rf-dt-ftr-fst` This class defines styles for the first footer.	No skin parameters.
`.rf-dt-ftr-c` This class defines styles for a footer cell.	`tableFooterBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dt-sftr` This class defines styles for a table sub-footer.	No skin parameters.
`.rf-dt-sftr-fst` This class defines styles for the first sub-footer.	No skin parameters.
`.rf-dt-sftr-c` This class defines styles for a sub-footer cell.	`tableFooterBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size

10.3. `<rich:column>`

The <rich:column> component facilitates columns in a table. It supports merging columns and rows, sorting, filtering, and customized skinning.

10.3.1. Basic usage

In general usage, the <rich:column> component is used in the same was as the JavaServer Faces (JSF) <h:column> component. It requires no extra attributes for basic usage, as shown in Example 10.5, “Basic column example”.

Example 10.5. Basic column example


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">

    <rich:column>

        <f:facet name="header">State Flag</f:facet>

        <h:graphicImage value="#{cap.stateFlag}"/>

    </rich:column>

    <rich:column>

        <f:facet name="header">State Name</f:facet>

        <h:outputText value="#{cap.state}"/>

    </rich:column>

    <rich:column >

        <f:facet name="header">State Capital</f:facet>

        <h:outputText value="#{cap.name}"/>

    </rich:column>

    <rich:column>

        <f:facet name="header">Time Zone</f:facet>

        <h:outputText value="#{cap.timeZone}"/>

    </rich:column>

</rich:dataTable>

[D]
Figure 10.2. Basic column example

10.3.2. Spanning columns

Columns can be merged by using the colspan attribute to specify how many normal columns to span. The colspan attribute is used in conjunction with the breakRowBefore attribute on the next column to determine how the merged columns are laid out. Example 10.6, “Column spanning example”.

Example 10.6. Column spanning example


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">

    <rich:column colspan="3">

        <h:graphicImage value="#{cap.stateFlag}"/>

    </rich:column>

    <rich:column breakBefore="true">

        <h:outputText value="#{cap.state}"/>

    </rich:column>

    <rich:column >

        <h:outputText value="#{cap.name}"/>

    </rich:column>

    <rich:column>

        <h:outputText value="#{cap.timeZone}"/>

    </rich:column>

</rich:dataTable>

[D]

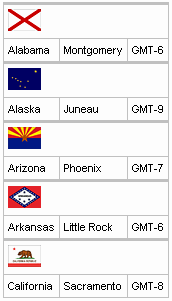

Figure 10.3. Column spanning example

10.3.3. Spanning rows

Example 10.7. Row spanning example


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">

    <rich:column rowspan="3">

        <f:facet name="header">State Flag</f:facet>

        <h:graphicImage value="#{cap.stateFlag}"/>

    </rich:column>

    <rich:column>

        <f:facet name="header">State Info</f:facet>

        <h:outputText value="#{cap.state}"/>

    </rich:column>

    <rich:column breakBefore="true">

        <h:outputText value="#{cap.name}"/>

    </rich:column>

    <rich:column breakBefore="true">

        <h:outputText value="#{cap.timeZone}"/>

    </rich:column>

</rich:dataTable>

[D]

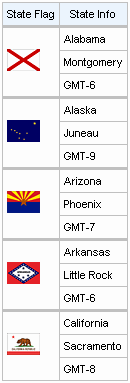

Figure 10.4. Row spanning example

For details on filtering and sorting columns, refer to Section 10.10, “Table filtering” and Section 10.11, “Table sorting”.

10.3.4. Reference data

component-type: org.richfaces.Column
component-class: org.richfaces.component.UIColumn
component-family: org.richfaces.Column

10.4. `<rich:columnGroup>`

The <rich:columnGroup> component combines multiple columns in a single row to organize complex parts of a table. The resulting effect is similar to using the breakRowBefore attribute of the <rich:column> component, but is clearer and easier to follow in the source code.

10.4.1. Complex headers

The <rich:columnGroup> can also be used to create complex headers in a table. Example 10.8, “Complex headers using column groups” and the resulting Figure 10.5, “Complex headers using column groups” demonstrate how complex headers can be achieved.

Example 10.8. Complex headers using column groups


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5" id="sublist">

    <f:facet name="header">

        <rich:columnGroup>

            <rich:column rowspan="2">

                <h:outputText value="State Flag"/>

            </rich:column>

            <rich:column colspan="3">

                <h:outputText value="State Info"/>

            </rich:column>

            <rich:column breakBefore="true">

                <h:outputText value="State Name"/>

            </rich:column>

            <rich:column>

                <h:outputText value="State Capital"/>

            </rich:column>

            <rich:column>

                <h:outputText value="Time Zone"/>

            </rich:column>

        </rich:columnGroup>

    </f:facet>

    <rich:column>

        <h:graphicImage value="#{cap.stateFlag}"/>

    </rich:column>

    <rich:column>

        <h:outputText value="#{cap.state}"/>

    </rich:column>

    <rich:column>

        <h:outputText value="#{cap.name}"/>

    </rich:column>

    <rich:column>

        <h:outputText value="#{cap.timeZone}"/>

    </rich:column>

</rich:dataTable>

[D]
Figure 10.5. Complex headers using column groups

10.4.2. Reference data

component-type: org.richfaces.ColumnGroup
component-class: org.richfaces.component.UIColumnGroup
component-family: org.richfaces.ColumnGroup
renderer-type: org.richfaces.ColumnGroupRenderer

10.5. `<rich:collapsibleSubTable>`

The <rich:collapsibleSubTable> component acts as a child element to a <rich:dataTable> component. The <rich:collapsibleSubTable> component iterates through the child collections in the currently iterated object to create master-detail tables.

Additionally, the detail part of the table can be collapsed or expanded through different modes. The <rich:collapsibleSubTable> component works with the <rich:collapsibleSubTableToggler> component, which expands and collapses the sub-tables.

10.5.1. Basic usage

The <rich:collapsibleSubTable> component requires the same basic attributes as the <rich:dataTable> component. The value attribute points to the collection, and the var attribute specifies a variable to use when iterating through the collection.

In addition, the <rich:collapsibleSubTable> component typically needs a corresponding <rich:collapsibleSubTableToggler> component to allow expanding and collapsing. Declare the id identifier on the <rich:collapsibleSubTable> element so that the <rich:collapsibleSubTableToggler> component can reference it. Refer to Section 10.5.5, “<rich:collapsibleSubTableToggler>” for details on the <rich:collapsibleSubTableToggler> component.

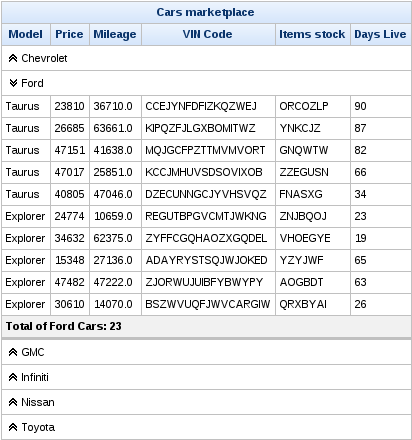

Example 10.9. Basic usage


<rich:dataTable value="#{carsBean.inventoryVendorLists}" var="list">

   <f:facet name="header">

      <rich:columnGroup>

         <rich:column colspan="6">

            <h:outputText value="Cars marketplace" />

         </rich:column>

         <rich:column breakRowBefore="true">

            <h:outputText value="Model" />

         </rich:column>

         <rich:column>

            <h:outputText value="Price" />

         </rich:column>

         <rich:column>

            <h:outputText value="Mileage" />

         </rich:column>

         <rich:column>

            <h:outputText value="VIN Code" />

         </rich:column>

         <rich:column>

            <h:outputText value="Items stock" />

         </rich:column>

         <rich:column>

            <h:outputText value="Days Live" />

         </rich:column>

      </rich:columnGroup>

   </f:facet>

   <rich:column colspan="6">

      <rich:collapsibleSubTableToggler for="sbtbl" />

      <h:outputText value="#{list.vendor}" />

   </rich:column>

   <rich:collapsibleSubTable value="#{list.vendorItems}" var="item" id="sbtbl"

      expandMode="client">

      <rich:column>

         <h:outputText value="#{item.model}" />

      </rich:column>

      <rich:column>

         <h:outputText value="#{item.price}" />

      </rich:column>

      <rich:column>

         <h:outputText value="#{item.mileage}" />

      </rich:column>

      <rich:column>

         <h:outputText value="#{item.vin}" />

      </rich:column>

      <rich:column>

         <h:outputText value="#{item.stock}" />

      </rich:column>

      <rich:column>

         <h:outputText value="#{item.daysLive}" />

      </rich:column>

      <f:facet name="footer">

         <h:outputText value="Total of #{list.vendor} Cars: #{list.count}" />

      </f:facet>

   </rich:collapsibleSubTable>

</rich:dataTable>

The resulting tables contains multiple sub-tables, grouping the list of cars by vendor. Each sub-table can be expanded or collapsed using the toggle with the vendor's name. The screenshot shows all sub-tables collapsed except for the sub-table for Ford cars.

[D]

10.5.2. Expanding and collapsing the sub-table

Use the boolean expanded attribute to control the current state of the sub-table.

The switching mode for performing submissions is determined by the expandMode attribute, which can have one of the following three values:

server: The default setting. Expansion of the <rich:collapsibleSubTable> component performs a common submission, completely re-rendering the page.
ajax: Expansion of the <rich:collapsibleSubTable> component performs an Ajax form submission, and the content of the data table is rendered.
client: Expansion of the <rich:collapsibleSubTable> component updates the data table on the client side.

10.5.3. Reference data

component-type: org.richfaces.CollapsibleSubTable
component-class: org.richfaces.component.UICollapsibleSubTable
component-family: org.richfaces.Data
renderer-type: org.richfaces.CollapsibleSubTableRenderer
handler-class: org.richfaces.taglib.CollapsibleSubTableHandler

10.5.4. Style classes

Table 10.2. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-cst` This class defines styles for the table.	No skin parameters.
`.rf-cst-r` This class defines styles for a table row.	No skin parameters.
`.rf-cst-fst-r` This class defines styles for the first row in a table.	No skin parameters.
`.rf-cst-c` This class defines styles for a table cell.	`tableBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-cst-hdr` This class defines styles for a table header.	No skin parameters.
`.rf-cst-hdr-fst` This class defines styles for the first header.	No skin parameters.
`.rf-cst-hdr-fst-r` This class defines styles for the first row in the header.	No skin parameters.
`.rf-cst-hdr-c` This class defines styles for a header cell.	`tableSubHeaderBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-cst-shdr` This class defines styles for a table sub-header.	No skin parameters.
`.rf-cst-shdr-fst` This class defines styles for the first sub-header.	No skin parameters.
`.rf-cst-shdr-c` This class defines styles for a sub-header cell.	`tableSubHeaderBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-cst-ftr` This class defines styles for a table footer.	No skin parameters.
`.rf-cst-ftr-fst` This class defines styles for the first footer.	No skin parameters.
`.rf-cst-ftr-c` This class defines styles for a footer cell.	`tableSubFooterBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-cst-sftr` This class defines styles for a table sub-footer.	No skin parameters.
`.rf-cst-sftr-fst` This class defines styles for the first sub-footer.	No skin parameters.
`.rf-cst-sftr-c` This class defines styles for a sub-footer cell.	`tableSubFooterBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size

10.5.5. `<rich:collapsibleSubTableToggler>`

The <rich:collapsibleSubTableToggler> component provides a toggle control for the user to expand and collapse sub-tables.

10.5.5.1. Basic usage

The <rich:collapsibleSubTableToggler> component requires the for attribute. The for attribute references the id identifier of the <rich:collapsibleSubTable> component to control.

Refer to Example 10.9, “Basic usage” for an example using the <rich:collapsibleSubTable> component. In the example, the toggle control is placed in a column that spans the width of the table. Output text next to the toggle control displays the car vendor's name for that sub-table.

10.5.5.2. Appearance

The icons and labels of the <rich:collapsibleSubTableToggler> component can be customized. Use the collapsedIcon and expandedIcon attributes to specify icons for the toggler when it is collapsed and expanded respectively. Use the collapsedLabel and expandedLabel attributes to specify labels for the toggler when it is collapsed and expanded respectively.

10.5.5.3. Reference data

component-type: org.richfaces.CollapsibleSubTableToggler
component-class: org.richfaces.component.UICollapsibleSubTableToggler
component-family: org.richfaces.CollapsibleSubTableToggler
renderer-type: org.richfaces.CollapsibleSubTableTogglerRenderer

10.5.5.4. Style classes and skin parameters

Style classes (selectors)

.rf-csttg: This class defines styles for a toggle control.
.rf-csttg-exp: This class defines styles for a toggle control which expands the sub-table.
.rf-csttg-colps: This class defines styles for a toggle control which collapses the sub-table.

10.6. `<rich:extendedDataTable>`

The <rich:extendedDataTable> component builds on the functionality of the <rich:dataTable> component, adding features such as scrolling for the table body (both horizontal and vertical), Ajax loading for vertical scrolling, frozen columns, row selection, and rearranging of columns. It also supports all the basic table features such as sorting, filtering, and paging using the <rich:dataScroller> component.

The <rich:extendedDataTable> component includes the following main attributes not included in the <rich:dataTable> component:

clientRows
frozenColumns
height
onselectionchange
selectedClass
selection
selectionMode

Complex sub-tables

Due to the complex mark-up involved in the <rich:extendedDataTable> component, it does not support the use of the <rich:collapsibleSubTable> component. The <rich:collapsibleSubTable> component is only available with the <rich:dataTable> component.

10.6.1. Basic usage

Basic use of the <rich:extendedDataTable> component requires the value and var attributes, the same as with the <rich:dataTable> component. In addition, a set of columns must be included to define the table content. Refer to Section 10.2, “<rich:dataTable>” for details.

10.6.2. Table appearance

As with the <rich:dataTable> component, the look of the <rich:extendedDataTable> component can be customized using the header and footer facets.

10.6.3. Extended features

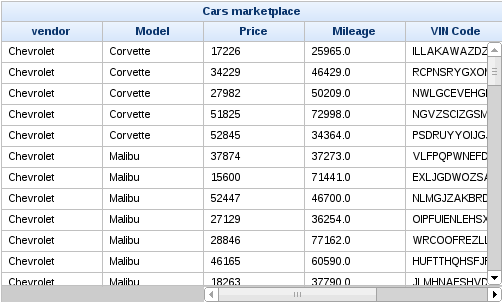

Example 10.10. <rich:extendedDataTable> example

This example <rich:extendedDataTable> component demonstrates horizontal and vertical scrolling and frozen columns. Each feature is detailed in this section.


<rich:extendedDataTable value="#{carsBean.allInventoryItems}"

                        var="car" id="table" frozenColumns="2"

                        style="height:300px; width:500px;" selectionMode="none">

   <f:facet name="header">

      <h:outputText value="Cars marketplace" />

   </f:facet>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="vendor" />

      </f:facet>

      <h:outputText value="#{car.vendor}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="Model" />

      </f:facet>

      <h:outputText value="#{car.model}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="Price" />

      </f:facet>

      <h:outputText value="#{car.price}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="Mileage" />

      </f:facet>

      <h:outputText value="#{car.mileage}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="VIN Code" />

      </f:facet>

      <h:outputText value="#{car.vin}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="Items stock" />

      </f:facet>

      <h:outputText value="#{car.stock}" />

   </rich:column>

   <rich:column>

      <f:facet name="header">

         <h:outputText value="Days Live" />

      </f:facet>

      <h:outputText value="#{car.daysLive}" />

   </rich:column>

</rich:extendedDataTable>

[D]

10.6.3.1. Scrolling

The example table shown in Example 10.10, “<rich:extendedDataTable> example” features both horizontal and vertical scrolling. Scrolling occurs automatically when the contents of the table exceed the dimensions specified with the height and width attributes. Headers and footers remain in place and visible when the table is scrolled.

Large tables can use Ajax "lazy" loading to cache data on the client during scrolling. Use the clientRows attribute to specify the number of rows to load. The specified number of rows are loaded on the initial rendering and with every vertical scroll. If the clientRows attribute is not specified, all the rows are loaded on the client without the use of Ajax.

In addition to Ajax scrolling, the <rich:extendedDataTable> component can also be used with the <rich:dataScroller> component in the same way as a regular <rich:dataTable> component. If both the clientRows and rows attributes are included, Ajax loading occurs as defined by the clientRows attribute, but the loading is limited to the current table page as determined by the rows attribute. Refer to Section 10.9, “<rich:dataScroller>” for full details on using the <rich:dataScroller> component.

10.6.3.2. Frozen columns

The example table shown in Example 10.10, “<rich:extendedDataTable> example” has the first two columns frozen so that they remain visible if the user scrolls horizontally through the table. Note that the horizontal scrollbar does not encompass these frozen columns. To freeze columns, use the frozenColumns attribute to specify the number of columns on the left-hand side of the table to freeze.

10.6.3.3. Row selection

Row selection is determined by the selectionMode attribute. Setting the attribute to none allows for no row selection capability. The example table shown in Example 10.10, “<rich:extendedDataTable> example” does not allow row selection.

Setting the selectionMode attribute to single allows the user to select a single row at a time using the mouse. With the selectionMode attribute set to multiple, the user can select multiple rows. Holding down the Ctrl key while clicking selects additional rows with each click. Holding down the Shift key while clicking selects all the rows in a range.

The selection attribute points to a collection of objects. It holds the rowKey identifiers to track which rows are selected. Example 10.11, “Selecting multiple rows” shows how to implement multiple row selection in the same table from Example 10.10, “<rich:extendedDataTable> example”.

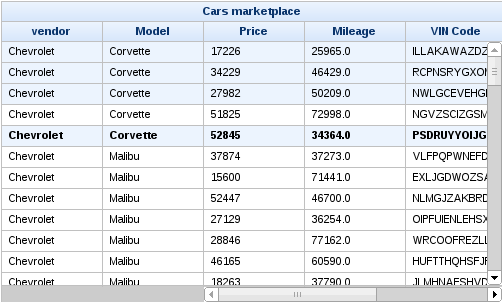

Example 10.11. Selecting multiple rows


<rich:extendedDataTable value="#{extTableSelectionBean.inventoryItems}"

                        var="car" selection="#{extTableSelectionBean.selection}"

                        id="table" frozenColumns="2"

                        style="height:300px; width:500px;" selectionMode="multiple">

   ...

The accompanying ExtSelectionBean bean handles which rows are selected. The rows are identified by their rowKey identifiers.

package org.richfaces.demo.tables;


import java.io.Serializable;

import java.util.ArrayList;

import java.util.Collection;

import java.util.List;


import javax.faces.bean.ManagedBean;

import javax.faces.bean.ManagedProperty;

import javax.faces.bean.SessionScoped;

import javax.faces.event.AjaxBehaviorEvent;


import org.richfaces.component.UIExtendedDataTable;

import org.richfaces.demo.tables.model.cars.InventoryItem;


@ManagedBean

@SessionScoped


public class ExtTableSelectionBean implements Serializable{


   private Collection<Object> selection;

   @ManagedProperty(value = "#{carsBean.allInventoryItems}")

   private List<InventoryItem> inventoryItems;

   private List<InventoryItem> selectionItems = new ArrayList<InventoryItem>();


   public void selectionListener(AjaxBehaviorEvent event){

      UIExtendedDataTable dataTable = (UIExtendedDataTable)event.getComponent();

      Object originalKey = dataTable.getRowKey();

      selectionItems.clear();

      for (Object selectionKey: selection) {

         dataTable.setRowKey(selectionKey);

         if (dataTable.isRowAvailable()){

            selectionItems.add((InventoryItem)dataTable.getRowData());

         }

      }

      dataTable.setRowKey(originalKey);

   }


   public Collection<Object> getSelection() {

      return selection;

   }


   public void setSelection(Collection<Object> selection) {

      this.selection = selection;

   }


   public List<InventoryItem> getInventoryItems() {

      return inventoryItems;

   }


   public void setInventoryItems(List<InventoryItem> inventoryItems) {

      this.inventoryItems = inventoryItems;

   }


   public List<InventoryItem> getSelectionItems() {

      return selectionItems;

   }


   public void setSelectionItems(List<InventoryItem> selectionItems) {

      this.selectionItems = selectionItems;

   }

}

[D]

10.6.3.4. Rearranging columns

Columns in a <rich:extendedDataTable> component can be rearranged by the user by dragging each column to a different position. A graphical representation of the column is displayed during dragging. Figure 10.6, “Dragging columns” illustrates the Price column being dragged to a new location. The small blue arrow indicates where the column will be moved to if it is dropped in the current position. Figure 10.7, “Rearranged columns” shows the result of dragging the Price column.

[D]

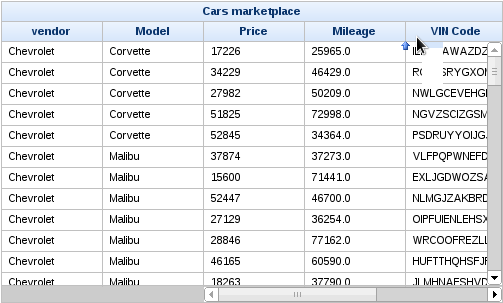

Figure 10.6. Dragging columns

[D]

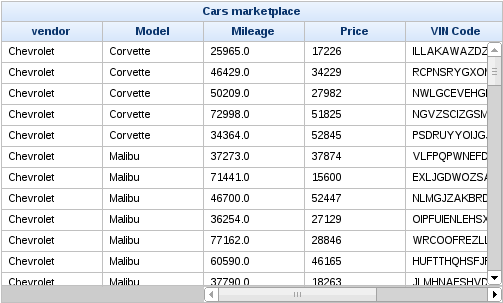

Figure 10.7. Rearranged columns

10.6.6. Style classes and skin parameters

Table 10.3. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-edt` This class defines styles for the table.	`tableBorderWidth`, `tableBorderColor`	border
`.rf-edt` This class defines styles for the table.	`tableBackgroundColor`	background-color
`.rich-edt-cnt` This class defines styles for the table content.	No skin parameters.
`.rf-edt-c` This class defines styles for a table cell.	`tableBorderWidth`, `tableBorderColor`	border-bottom
`.rf-edt-c` This class defines styles for a table cell.	`tableBorderWidth`, `tableBorderColor`	border-right
`.rf-edt-c-cnt` This class defines styles for the contents of a cell.	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-edt-tbl-hdr` This class defines styles for the table header.	`tableBorderWidth`, `tableBorderColor`	border-bottom
	`tableHeaderTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`tableHeaderTextColor`	color
`.rich-edt-hdr` This class defines styles for a header.	No skin parameters.
`.rf-edt-hdr-c` This class defines styles for a table header cell.	`tableBorderWidth`, `tableBorderColor`	border-bottom
	`tableBorderWidth`, `tableBorderColor`	border-right
`.rf-edt-hdr-c-cnt` This class defines styles for the contents of a header cell.	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`tableHeaderTextColor`	color
`.rf-edt-tbl-ftr` This class defines styles for the table footer.	`tableBorderWidth`, `tableBorderColor`	border-top
	`tableFooterBackgroundColor`	background-color
`.rich-edt-ftr` This class defines styles for a footer.	`tableBorderWidth`, `tableBorderColor`	border-top
`.rich-edt-ftr` This class defines styles for a footer.	`tableFooterBackgroundColor`	background-color
`.rich-edt-ftr-cnt` This class defines styles for the content of a footer.	No skin parameters.
`.rf-edt-ftr-c` This class defines styles for a table footer cell.	`tableBorderWidth`, `tableBorderColor`	border-bottom
	`tableBorderWidth`, `tableBorderColor`	border-right
`.rf-edt-ftr-c-cnt` This class defines styles for the contents of a footer cell.	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`generalTextColor`	color
`.rf-edt-ftr-emp` This class defines styles for an empty footer cell.	`tableBorderWidth`, `tableBorderColor`	border-right
`.rich-edt-ftr-fzn` This class defines styles for a frozen footer.	No skin parameters.
`.rich-edt-b` This class defines styles for the body of the table.	No skin parameters.
`.rf-edt-r-sel` This class defines styles for the selected row.	`tableBorderWidth`, `tableBorderColor`	border-right
`.rich-edt-r-act` This class defines styles for the active row.	No skin parameters.
`.rich-edt-rsz` This class defines styles for the table resizer.	No skin parameters.
`.rich-edt-rsz-cntr` This class defines styles for the resize container.	No skin parameters.
`.rich-edt-rsz-mkr` This class defines styles for the resize marker.	`generalTextColor`	border-left
`.rf-edt-rord` This class defines styles for the re-order functionality.	`tableBorderWidth`, `tableBorderColor`	border
	`tableHeaderBackgroundColor` / `tableBackgroundColor`	background-color
`.rich-edt-rord-mkr` This class defines styles for the re-order marker.	No skin parameters.
`.rich-edt-spcr` This class defines a spacer for Internet Explorer 7 compatibility.	No skin parameters.

10.7. `<rich:dataGrid>`

The <rich:dataGrid> component is used to arrange data objects in a grid. Values in the grid can be updated dynamically from the data model, and Ajax updates can be limited to specific rows. The component supports header, footer, and caption facets.

The <rich:dataGrid> component is similar in function to the JavaServer Faces <h:panelGrid> component. However, the <rich:dataGrid> component additionally allows iteration through the data model rather than just aligning child components in a grid layout.

[D]

Figure 10.8. The <rich:dataGrid> component

10.7.1. Basic usage

The <rich:dataGrid> component requires the value attribute, which points to the data model, and the var attribute, which holds the current variable for the collection of data.

10.7.2. Customizing the grid

The number of columns for the grid is specifed with the columns attribute, and the number of elements to layout among the columns is determined with the elements attribute. The first attribute references the zero-based element in the data model from which the grid starts.

Example 10.12. <rich:dataGrid> example


<rich:panel style="width:150px;height:200px;">

  <h:form>

    <rich:dataGrid value="#{dataTableScrollerBean.allCars}" var="car" columns="2" elements="4" first="1">

        <f:facet name="header">

          <h:outputText value="Car Store"></h:outputText>

      </f:facet>

      <rich:panel>

          <f:facet name="header">

            <h:outputText value="#{car.make} #{car.model}"></h:outputText>

          </f:facet>

          <h:panelGrid columns="2">

            <h:outputText value="Price:" styleClass="label"></h:outputText>

            <h:outputText value="#{car.price}"/>

            <h:outputText value="Mileage:" styleClass="label"></h:outputText>

            <h:outputText value="#{car.mileage}"/>

          </h:panelGrid>

      </rich:panel>

      <f:facet name="footer">

          <rich:dataScroller></rich:dataScroller>

      </f:facet>

    </rich:dataGrid>

  </h:form>

</rich:panel>

[D]

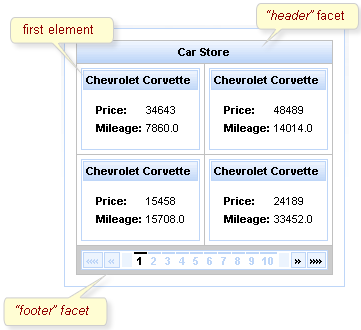

Figure 10.9. <rich:dataGrid> example

10.7.3. Partial updates

As <rich:dataGrid> the component is based on the <a4j:repeat> component, it can be partially updated with Ajax. Refer to Section 10.1.2, “Limited views and partial updates” for details on partially updating the <rich:dataGrid> component.

10.7.4. Reference data

component-type: org.richfaces.DataGrid
component-class: org.richfaces.component.UIDataGrid
component-family: org.richfaces.Data
renderer-type: org.richfaces.DataGridRenderer
handler-class: org.richfaces.taglib.DataGridHandler

10.7.5. Style classes and skin parameters

Table 10.4. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-dg` This class defines styles for the grid.	`tableBackgroundColor`	background-color
	`tableBorderWidth`	border-left-width, border-top-width
	`tableBorderColor`	border-left-color, border-top-color
`.rf-dg-cap` This class defines styles for the grid caption.	No skin parameters.
`.rf-dg-r` This class defines styles for a grid row.	No skin parameters.
`.rf-dg-c` This class defines styles for a grid cell.	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dg-nd-c` This class defines styles for a node cell.	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dg-th` This class defines styles for the grid header section.	`tableBorderWidth`	border-bottom-width
	`tableBorderColor`	border-bottom-color
`.rf-dg-h` This class defines styles for a grid header.	No skin parameters.
`.rf-dg-h-f` This class defines styles for the first header.	No skin parameters.
`.rf-dg-h-r` This class defines styles for a header row.	No skin parameters.
`.rf-dg-h-c` This class defines styles for a header cell.	`tableHeaderBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`tableHeaderTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dg-f` This class defines styles for a grid footer.	No skin parameters.
`.rf-dg-f-f` This class defines styles for the first footer.	No skin parameters.
`.rf-dg-f-c` This class defines styles for a footer cell.	`tableFooterBackgroundColor`	background-color
	`tableBorderWidth`	border-bottom-width, border-right-width
	`tableBorderColor`	border-bottom-color, border-right-color
	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size

10.8. `<rich:list>`

The <rich:list> component renders a list of items. The list can be an numerically ordered list, an un-ordered bullet-point list, or a data definition list. The component uses a data model for managing the list items, which can be updated dynamically.

10.8.1. Basic usage

The var attribute names a variable for iterating through the items in the data model. The items to iterate through are determined with the value attribute by using EL (Expression Language).

10.8.2. Type of list

By default, the list is displayed as an un-ordered bullet-point list. The type attribute is used to specify different list types:

unordered

The default presentation. The list is presented as a series of bullet-points, similar to the <ul> HTML element.

[D]

Figure 10.10. Unordered list

ordered

The list is presented as a numbered series of items, similar to the <ol> HTML element.

[D]

Figure 10.11. Ordered list

definitions

The list is presented as a series of data definitions. Part of the data model, specified as the term, is listed prominently. The other associated data is listed after each term.

[D]

Figure 10.12. Data definition list

The term is marked using the term facet. The facet is required for all definition lists. Use of the facet is shown in Example 10.13, “Data definition list”.

Example 10.13. Data definition list


<h:form>

    <rich:list var="car" value="#{dataTableScrollerBean.allCars}" type="definitions" rows="5" title="Cars">

        <f:facet name="term">

            <h:outputText value="#{car.make} #{car.model}"></h:outputText>

        </f:facet>

        <h:outputText value="Price:" styleClass="label"></h:outputText>

        <h:outputText value="#{car.price}" /><br/>

        <h:outputText value="Mileage:" styleClass="label"></h:outputText>

        <h:outputText value="#{car.mileage}" /><br/>

    </rich:list>

</h:form>

10.8.3. Bullet and numeration appearance

The appearance of bullet points for unordered lists or numeration for ordered lists can be customized through CSS, using the list-style-type property.

10.8.4. Customizing the list

The first attribute specifies which item in the data model to start from, and the rows attribute specifies the number of items to list. The title attribute is used for a floating tool-tip. Example 10.14, “<rich:list> example” shows a simple example using the <rich:list> component.

Example 10.14. <rich:list> example


<h:form>

    <rich:list var="car" value="#{dataTableScrollerBean.allCars}" rows="5" type="unordered" title="Car Store">

        <h:outputText value="#{car.make} #{car.model}"/><br/>

        <h:outputText value="Price:" styleClass="label"></h:outputText>

        <h:outputText value="#{car.price} "/><br/>

        <h:outputText value="Mileage:" styleClass="label"></h:outputText>

        <h:outputText value="#{car.mileage} "/><br/>

    </rich:list>

</h:form>

[D]
Figure 10.13. <rich:list> example

10.8.5. Reference data

component-type: org.richfaces.List
component-class: org.richfaces.component.UIList
component-family: org.richfaces.List
renderer-type: org.richfaces.ListRenderer
handler-class: org.richfaces.taglib.ListHandler

10.8.6. Style classes and skin parameters

Table 10.5. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-ulst-itm` This class defines styles for an item in an unordered list.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-olst-itm` This class defines styles for an item in an unordered list.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dlst-trm` This class defines styles for the term of an item in a definition list.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
`.rf-dlst-dfn` This class defines styles for the definition of an item in a definition list.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size

10.9. `<rich:dataScroller>`

The <rich:dataScroller> component is used for navigating through multiple pages of tables or grids.

[D]

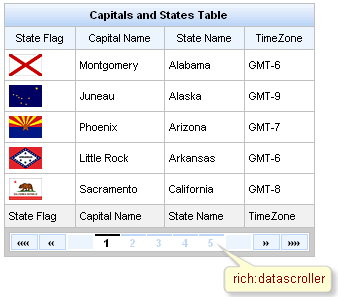

Figure 10.14. The <rich:dataScroller> component

10.9.1. Basic usage

The <rich:dataScroller> must be placed in a facet of the table or grid it needs to control. Alternatively, use the for attribute to bind the parent table or grid to the scroller.

The bound table or grid should also have the rows attribute defined to limit the number of rows per page.

The <rich:dataScroller> component must be re-rendered whenever a filter changes on the bound table, so that the scroller matches the current model for the table.

Example 10.15. Basic usage


<rich:dataTable id="table" value="#{capitalsBean.capitals}" var="cap" rows="5">

   <!-- table content -->

   ...

</rich:dataTable>

<rich:dataScroller for="table" maxPages="5">

   <f:facet name="first">

      <h:outputText value="First" />

   </f:facet>

   <f:facet name="last">

      <h:outputText value="Last" />

   </f:facet>

</rich:dataScroller>

10.9.2. Appearance and interactivity

The page attribute is a value-binding attribute used to define and save the current page number.

The <rich:dataScroller> component provides a range of controllers for scrolling through tables and grids:

Controls for scrolling by a specific amount

The component includes controls for switching to the first page, the last page, the next page, and the previous page, as well as controls for fast-forwarding or rewinding by a set amount. Use the fastStep attribute to set the number of pages to skip when fast-forwarding or rewinding.

The appearance of these controls can be customized using the following facets: first, last, next, previous, fastForward, and fastRewind. Additionally, there are facets for the controls' disabled states: first_disabled, last_disabled, next_disabled, previous_disabled, fastforward_disabled, and rewind_disabled.

Page controls

The component also features a series of numbered controls to jump to a specific page. Use the maxPages attribute to limit the number of page controls that appear. The current page control is highlighted.

To add optional separators between controls, define the separators with the controlsSeparator facet.

10.9.3. JavaScript API

The <rich:dataScroller> component can be controlled through the JavaScript API. The JavaScript API provides the following functions:

switchToPage(pageIndex): Switch to the page specified with the pageIndex parameter.
next(): Switch to the next page.
previous(): Switch to the previous page.
first(): Switch to the first page.
last(): Switch to the last page.
fastForward(): Step forward through the pages by the fastStep amount.
fastRewind(): Step backward through the pages by the fastStep amount.

10.9.4. Reference data

component-type: org.richfaces.DataScroller
component-class: org.richfaces.component.UIDataScroller
component-family: org.richfaces.DataScroller
renderer-type: org.richfaces.DataScrollerRenderer
handler-class: org.richfaces.taglib.DataScrollerHandler

10.9.5. Style classes and skin parameters

Table 10.6. Style classes (selectors) and corresponding skin parameters

Class (selector)	Skin Parameters	Mapped CSS properties
`.rf-ds` This class defines styles for the data scroller.	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`tableBackgroundColor`	background
`.rf-ds-btn` This class defines styles for buttons in the data scroller.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`tableBorderColor`	border-color
	`headerBackgroundColor`	background-color
`.rf-ds-btn-first` This class defines styles for the first button.	No skin parameters.
`.rf-ds-btn-fastrwd` This class defines styles for the fast rewind button.	No skin parameters.
`.rf-ds-btn-prev` This class defines styles for the previous button.	No skin parameters.
`.rf-ds-btn-next` This class defines styles for the next button.	No skin parameters.
`.rf-ds-btn-fastfwd` This class defines styles for the fast forward button.	No skin parameters.
`.rf-ds-btn-last` This class defines styles for the last button.	No skin parameters.
`.rf-ds-nmb-btn` This class defines styles for page number buttons in the data scroller.	`generalTextColor`	color
	`generalFamilyFont`	font-family
	`generalSizeFont`	font-size
	`tableBorderColor`	border-color
	`tableBackgroundColor`	background-color
`.rf-ds-press` This class defines styles for a data scroller when a control is pressed.	`tableBorderColor`	border-color
`tableBackgroundColor`	background
`.rf-ds-act` This class defines styles for an active data scroller.	`tableBorderColor`	color
`.rf-ds-dis` This class defines styles for a disabled data scroller.	`tableBorderColor`	color

10.10. Table filtering

Tables entries can be filtered by the user through either the basic built-in filter inputs, or by defining external filter controls. Refer to Section 10.3, “<rich:column>” for details on using the <rich:column> component in tables.

10.10.1. Filter Definition

To define a filter for a column use either the filter or filterExpression attributes, then use the filterValue attribute to point to an object which holds the current filtering value for the column. The attribute can be used to store filtering conditions in a session.

Use the filterExpression attribute to define an expression that can be evaluated as a boolean value. The expression checks if each table entry satisfies the filtering condition when the table is rendered. For example, the expression might be a JSTL (JavaServer Pages Standard Tag Library) function such as contains or equals.

Use the filter attribute to define a filter interface. The attribute must use EL (Expression Language) to point to an object which implements the org.richfaces.model.Filter<T> interface. The object must provide a single accept(T t) method. The method takes each iteration object as a parameter and returns a boolean value, which determines whether the object satisfies the filter. By defining a custom filter, you can implement complex business logic to filter a table.

10.10.2. Built-in filter controls

Availability of built-in filter controls

The built-in filter controls are only available with the extendedDataTable component. Support for built-in filter controls in the dataTable component will be added in a subsequent release.

The built-in filter controls of the <rich:column> component allow the user to enter text to use as the filtering value. The value of the built-in filter control is bound to the filterValue attribute, which can either be an initial filtering value on the page, or a value binding on the server. The filterValue is then applied to the filter defined either by the filterExpression or filter column attributes.

The filterValue is of type String. Conversion is either done implicitly via EL in the filterExpression, or explicitly within the filter function. The filter is processed and the table is rendered when the onblur event occurs for the column.

Example 10.16. Basic filtering


<rich:extendedDataTable value="#{carsBean.allInventoryItems}" var="car" filterVar="filterValue">

    <f:facet name="header">

        <h:outputText value="Cars marketplace"/>

    </f:facet>

    <rich:column filterExpression="#{empty filterValue or fn:startsWith(car.model, filterValue)}"

                 filterValue="#{carsFilteringBean.modelFilter}">

        <f:facet name="header">Model</f:facet>

        <h:outputText value="#{car.model}"/>

    </rich:column>

    <rich:column filterExpression="#{empty filterValue or car.price ge filterValue}"

                 filterValue="#{carsFilteringBean.priceFilter}"

                 filterConverterMessage="Error converting the 'Price' filter value">

        <f:facet name="header">Price</f:facet>

        <h:outputText value="#{car.price}"/>

    </rich:column>

</rich:extendedDataTable>

The example uses the basic filtering method on both columns in the table.

10.10.3. External filter controls

If you require more advanced filter controls use the external filtering properties of the <rich:column> component. With custom filter controls you can tailor the filter control, allowing for advanced use cases like select menus, checkboxes, etc. To use a custom filter control with the extendedDataTable component, one must first disable the built-in filter control.

Disabling built-in filter controls

The built-in search controls can be disabled on a column-by-column basis by setting the column attribute filterType="custom". Alternatively one can disable sort controls for the whole application via the following context-param in the web.xml:


<context-param>

    <param-name>org.richfaces.builtin.filter.enabled</param-name>

    <param-value>false</param-value>

</context-param>

Example 10.17. Filtering example


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" id="table">



    <f:facet name="header">

        <rich:columnGroup>

            <rich:column>

                <h:outputText value="State Name" />

            </rich:column>

            <rich:column>

                <h:outputText value="State Time Zone" />

            </rich:column>

        </rich:columnGroup>

    </f:facet>

    <rich:column filter="#{filteringBean.stateFilter}">

        <f:facet name="header">

            <h:inputText value="#{filteringBean.stateFilterValue}" id="input">

                <a4j:ajax event="keyup" render="table@body">

                    <a4j:attachQueue  requestDelay="700"

                        ignoreDupResponses="true" />

                </a4j:ajax>

            </h:inputText>

        </f:facet>

        <h:outputText value="#{cap.state}" />

    </rich:column>

    <rich:column filterExpression="#{fn:containsIgnoreCase(cap.timeZone, filteringBean.zoneFilterValue)}">

        <f:facet name="header">

            <h:selectOneMenu value="#{filteringBean.zoneFilterValue}">

                <f:selectItems value="#{filteringBean.zoneList}" />

                <a4j:ajax event="change" render="table@body" />

            </h:selectOneMenu>

        </f:facet>

        <h:outputText value="#{cap.timeZone}" />

    </rich:column>

</rich:dataTable>

The example uses a filter expression on the first column and a filter method on the second column.

[D]

10.11. Table sorting

Tables entries can be sorted by defining external sorting algorithms. Refer to Section 10.3, “<rich:column>” for details on using the <rich:column> component in tables.

Sorting non-English tables

To sort a table whose contents are not in English, add the org.richfaces.datatableUsesViewLocale context parameter to the project's web.xml settings file. Set the value of the context parameter to true.

10.11.1. Comparator Definition

Use the comparator attribute of the <rich:column> to specify the comparator to use when sorting. If no comparator is specified, the sorting algorithm will invoke the entries compareTo method of the sortBy values if they implement the java.lang.Comparable interface. As a final fall back, the algorithm implements a null sort, sorting elements based on whether or not they are null.

10.11.2. Built-in sort controls

Availability of built-in sort controls

The built-in sort controls are only available with the extendedDataTable component. Support for built-in sort controls in the dataTable component will be added in a subsequent release.

The built-in sorting controls of the <rich:column> component allow a user to click the sort icons of a column to sort it in ascending or descending order.

Set the sortBy attribute to indicate which value to use when sorting the column. Expressions in the sortBy attribute must refer to the variable declared in the table's var attribute, which is used to fill the contents of the table.

Example 10.18. Basic sorting


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" width="300px">

   <rich:column sortBy="#{cap.state}">

      <f:facet name="header">

         <h:outputText value="State Name"/>

      </f:facet>

      <h:outputText value="#{cap.state}"/>

   </rich:column>

   <rich:column sortBy="#{cap.name}">

      <f:facet name="header">

         <h:outputText value="State Capital"/>

      </f:facet>

      <h:outputText value="#{cap.name}"/>

   </rich:column>

</rich:dataTable>

The example uses the basic sorting method on both columns in the table.

Use the sortOrder attribute to set how the table's contents are sorted when it is first loaded. By default, the value of the sortOrder attribute is unsorted, so that table entries appear in the order the are contained in the data model. Use sortOrder="ascending" to sort the entries in ascending alphabetical or numerical order. Use sortOrder="descending" to sort the entries in descending alphabetical or numerical order. The sortOrder attribute can also be used to externally set the sort order of a table when using the external sorting method; refer to Section 10.11.3, “External sort controls” for details.

10.11.3. External sort controls

Set the sortBy attribute to indicate which iteration object property to use when sorting the column. If using custom-defined rules for sorting, use the comparator attribute instead. Set the comparator attribute to point to your comparator method, which will be used when sorting the data model.

Bind the sortOrder attribute to bean properties to manage the sorting order. The bean must handle all the sorting algorithms. Example 10.19, “Sorting” demonstrates table sorting using an external control.

Example 10.19. Sorting


<rich:dataTable value="#{capitalsBean.capitals}" var="cap" id="table">

    <rich:column>

        <f:facet name="header">

            State Flag

        </f:facet>

        <h:graphicImage value="#{cap.stateFlag}" alt="flag" />

    </rich:column>

    <rich:column sortBy="#{cap.name}" id="name" sortOrder="#{capitalsSortingBean.capitalsOrder}">

        <f:facet name="header">

            <a4j:commandLink value="Sort by Capital Name" render="table" action="#{capitalsSortingBean.sortByCapitals}" />

        </f:facet>

        <h:outputText value="#{cap.name}" />

    </rich:column>

    <rich:column sortBy="#{cap.state}" id="state" sortOrder="#{capitalsSortingBean.statesOrder}">

        <f:facet name="header">

            <a4j:commandLink value="Sort by State Name" render="table" action="#{capitalsSortingBean.sortByStates}" />

        </f:facet>

        <h:outputText value="#{cap.state}" />

    </rich:column>

    <rich:column sortBy="#{cap.timeZone}" id="timeZone" comparator="#{capitalsSortingBean.timeZoneComparator}"

        sortOrder="#{capitalsSortingBean.timeZonesOrder}">

        <f:facet name="header">

            <a4j:commandLink value="Sort by Time Zone" render="table" action="#{capitalsSortingBean.sortByTimeZones}" />

        </f:facet>

        <h:outputText value="#{cap.timeZone}" />

    </rich:column>

</rich:dataTable>

The example uses an external control to manage the table's sorting.

When multiple columns are capable of being sorted at the same time, set the priority by which the columns are sorted with the sortPriorities attribute. The attribute must contain a list of column identifiers in the order of the sorting sequence.
