Chapter 6. Creation and Registration

6.1. Create and Register a Custom Converter
6.2. Create and Register a Custom Validator
6.3. Create and Register Referenced Beans

6.1. Create and Register a Custom Converter

It's also possible to create a custom Converter in order to specify your own converting rules. Let's look at how you can do this.

To create and register a custom converter it's necessary to go through the following steps:

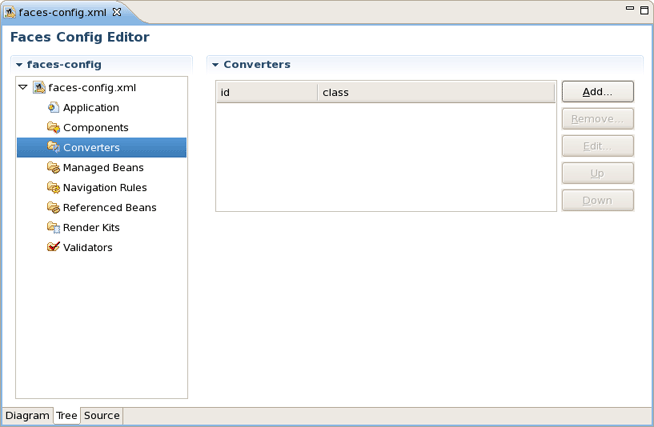

Converters

Figure 6.1. Converters


  • Select Converters and click on Add button.

  • On the form type the name of your converter in the Converter-id field and name of the class for converters. After clicking Finish button your custom converter is registered under the entered name.

Add Converter Form

Figure 6.2. Add Converter Form

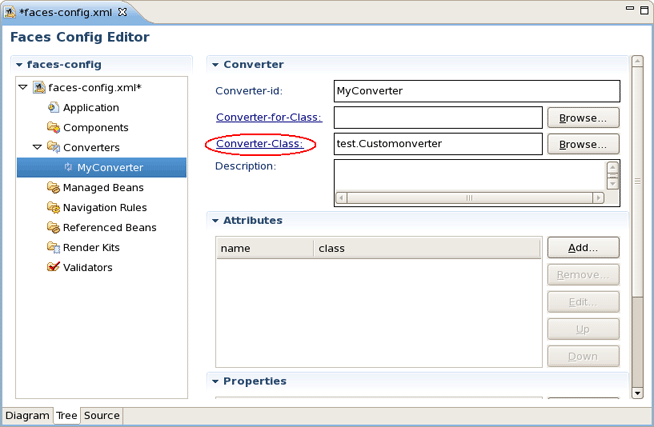

  • Now you can create "converter" class. In the Converter section you should see your Converter-id and Converter-class. Click on Converter-class to generate the source code.

Generation of Source Code for Converter Class

Figure 6.3. Generation of Source Code for Converter Class


  • A usual wizard for creating a Java class will appear. All needed fields here will be adjusted automatically. Just leave everything without changes and click Finish.

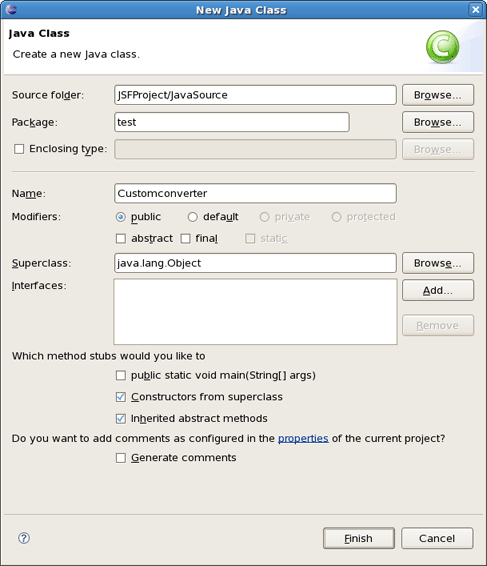

New Java Class Form

Figure 6.4. New Java Class Form


  • To open a converter class click again on Converter-class link in the Converter section.

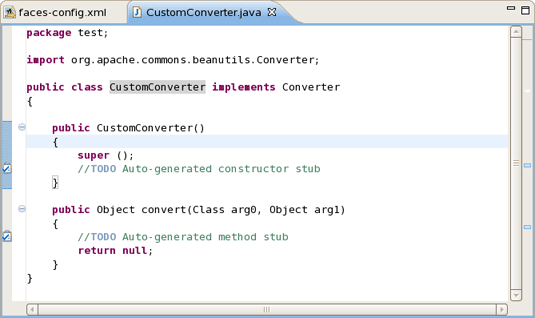

Converter Class

Figure 6.5. Converter Class


Now you are able to add a business logic of converter in the Java editor.

6.2. Create and Register a Custom Validator

It's also quite easy to develop your own custom Validators. You should perform the actions similar to previous. Go through the following steps:

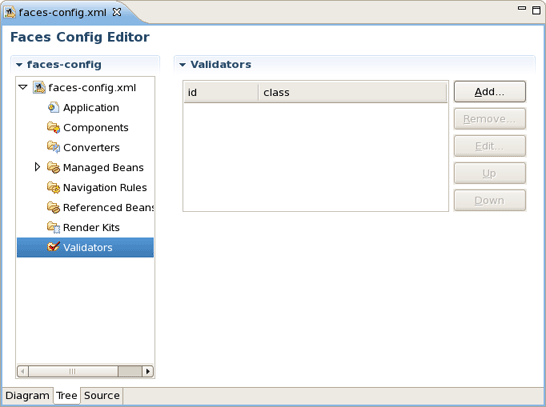

Validator in Faces Config Editor

Figure 6.6. Validator in Faces Config Editor


  • Select Validators and click on Add button.

  • Type the name of your validator in the Validator-id field and name of the class for validators. After clicking Finish button your custom validator is registered under the entered name.

Adding Validator

Figure 6.7. Adding Validator


Now you can create the "validator" class.

  • In the Validator section you can see your Validator-id and Validator-class. To generate the source code click on Validator-class.

Creating Validator Class

Figure 6.8. Creating Validator Class


  • Java class will be created automatically. Leave everything without changes and click Finish.

New Java Class Form

Figure 6.9. New Java Class Form

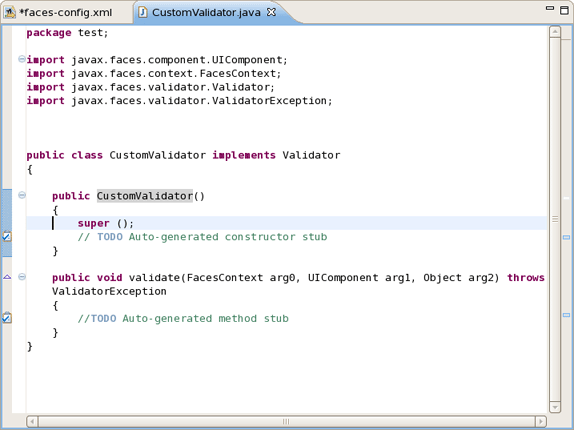

  • To open validator class click again on Validator-Class link in the Validator section. Now you are able to write a business logic of validator in the Java editor.

Converter Class Editing

Figure 6.10. Converter Class Editing


6.3. Create and Register Referenced Beans

Creation of Referenced Beans is similar to creation of Custom Validator as well. To perform this, let's walk through the necessary steps.

Referenced Beans in Faces Config Editor

Figure 6.11. Referenced Beans in Faces Config Editor


  • Select Referenced Beans and click on Add button.

  • Type in the name of your Referenced Bean and type in or select Referenced-Bean-Class by using Browse button.

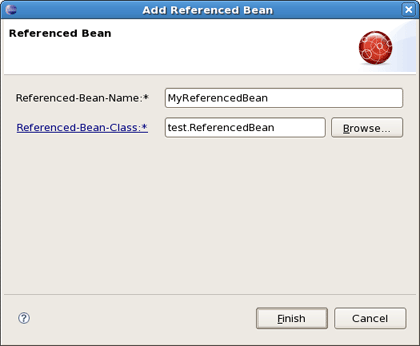

Add Referenced Bean

Figure 6.12. Add Referenced Bean


  • In the Referenced Bean section you should see your Referenced-Bean-Name and Referenced-Bean-Class. Click on the link to open the Java creation wizard.

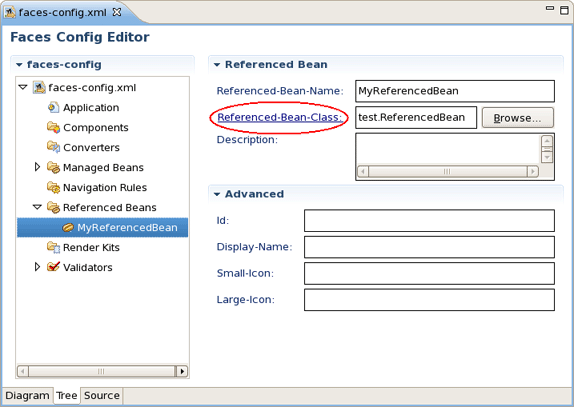

Create Referenced Bean Class

Figure 6.13. Create Referenced Bean Class


  • Java class will be created automatically. Leave everything without changes and click Finish.

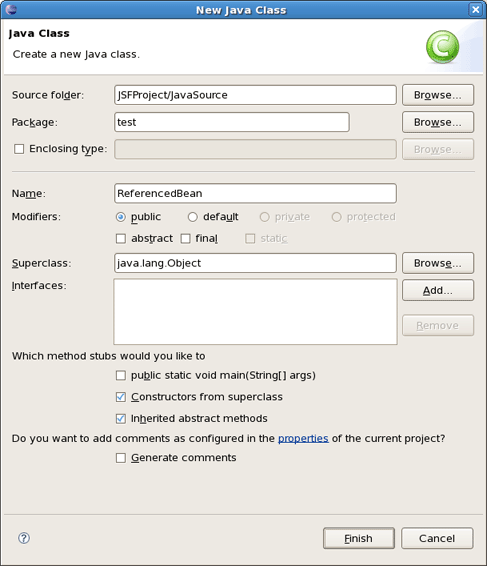

New Java Class Form

Figure 6.14. New Java Class Form


  • To open Referenced Bean class click again on Referenced-Bean-Class in the Referenced Bean section. Now you are able to write business logic of Referenced Bean in the Java editor.

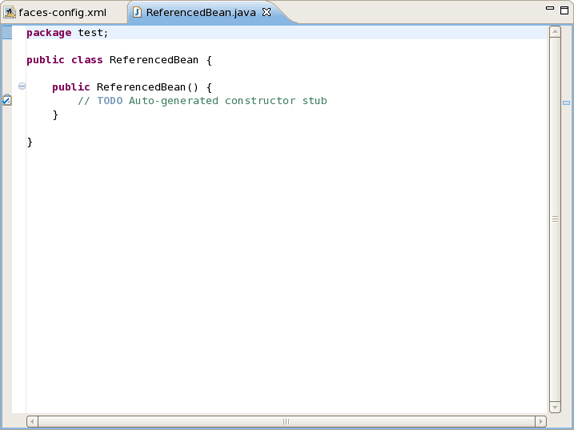

Referenced Bean Class Editing

Figure 6.15. Referenced Bean Class Editing
