2.1. Creating Seam Web Project with Birt Facet

First, open Seam perspective by going to Window > Open Perspective > Other > Seam. To create a new Seam Web project follow to File > New > Seam Web Project (or File > New > Other > Seam > Seam Web Project if you are not in the Seam perspective).

On the first wizard page enter the project name, then specify the target runtime and target server. In the Configuration section click Modify to configure the project facets.

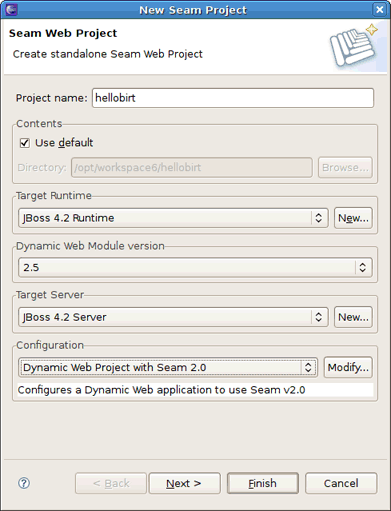

Figure 2.1. Creating Seam Web Project

Figure 2.2. Adding the Birt Reporting Runtime Component Facet

Figure 2.3. Choosing the JBoss BIRT Integration Web Project Configuration

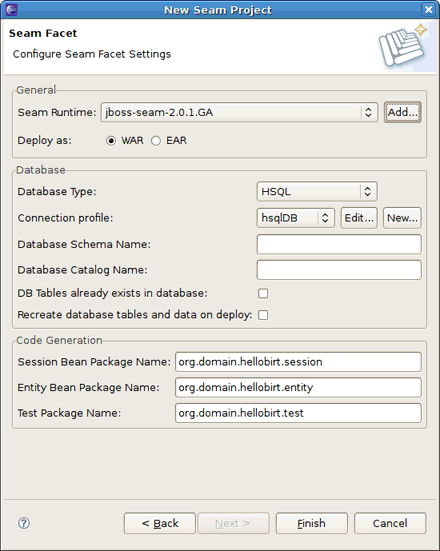

Figure 2.4. Configuring the Seam Facet settings

2.2. Integration with Seam

The JBoss BIRT Integration feature contains the BIRT tag that allows the user to add a BIRT report to an .xhtml file:

<p:birt xmlns:ui="http://java.sun.com/jsf/facelets"
            xmlns:s="http://jboss.com/products/seam/taglib"
            xmlns:p="http://jboss.com/products/seam/birt"
            designType="run"
            format="pdf"
            designName="test.rptdesign"
            title="JBoss Birt Test">

</p:birt>

Let's look how it works.

Create in the Web Content folder three .xhtml pages with the following content:

Now start the application server by clicking the Start option in the context menu of the server in the JBoss Server View (if the view isn't open go to Window > Show View > Other > JBoss Server View). Try the tests out by accessing http://localhost:8080/hellobirt/birttests.seam in your web browser.

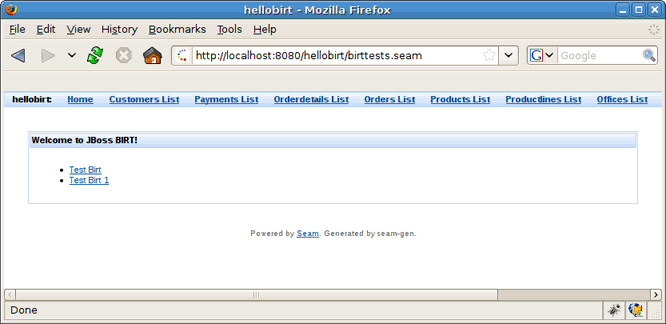

Figure 2.5. Welcome Page in the Browser

Figure 2.6. After Clicking Test Birt

Figure 2.7. After Clicking Test Birt 1

Figure 2.8. BIRT Report in the Browser Window

The BIRT tag recognizes most of the parameters described on the BIRT Report Viewer Parameters page. The attributes of the BIRT tag don't contain the "__" prefix.

The param tag describes report parameters (see the listing for the testbirt.xhtml above). It supports the following attributes:

These tags are defined in the org.jboss.birt.core/resources/jboss-seam-birt.jar library that contains source.

It is also possible to embed a BIRT report in some Seam .xhtml page. See how it may be done:

Example:

<!DOCTYPE composition PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
                                                        "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<ui:composition xmlns="http://www.w3.org/1999/xhtml"
		                 xmlns:s="http://jboss.com/products/seam/taglib"
		                 xmlns:ui="http://java.sun.com/jsf/facelets"
		                 xmlns:f="http://java.sun.com/jsf/core"
		                 xmlns:h="http://java.sun.com/jsf/html"
		                 xmlns:rich="http://richfaces.org/rich"
		                 xmlns:b="http://jboss.com/products/seam/birt"
		                 template="layout/template.xhtml">
        <ui:define name="body">
                <h:messages globalOnly="true" styleClass="message" id="globalMessages"/>
                     <rich:panel>
                         <f:facet name="header">Products</f:facet>
                         <b:birt designType="embed" designName="ProductCatalog.rptdesign"
                                         embeddable="true" masterpage="false"/>
                             <div style="clear:both"/>
                     </rich:panel>
                     <div class="actionButtons">
                         <s:button view="/ProductsEdit.xhtml" id="edit" value="Edit"/>

                         <s:button view="/#{empty productsFrom ? 'ProductsList' : productsFrom}.xhtml"
                                             id="done" value="Done"/>
                     </div>
        </ui:define>
</ui:composition>

See the result in a Browser:

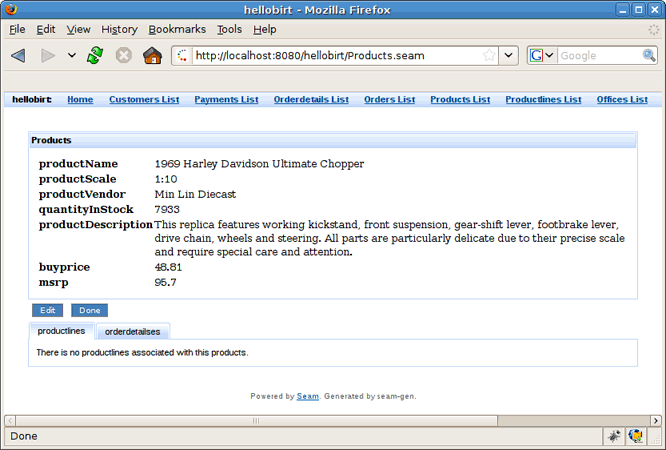

Figure 2.9. Embedding BIRT Report in Seam xhtml Page
