org.jboss.netty.handler.codec.http.websocket
Class WebSocketFrameDecoder

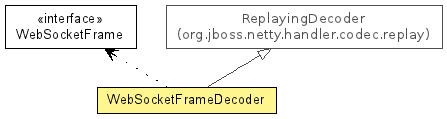

java.lang.Object
  org.jboss.netty.channel.SimpleChannelUpstreamHandler
      org.jboss.netty.handler.codec.replay.ReplayingDecoder<VoidEnum>
          org.jboss.netty.handler.codec.http.websocket.WebSocketFrameDecoder

All Implemented Interfaces:

ChannelHandler, ChannelUpstreamHandler

public class WebSocketFrameDecoder
extends ReplayingDecoder<VoidEnum>

Decodes ChannelBuffers into WebSocketFrames.

For the detailed instruction on adding add Web Socket support to your HTTP server, take a look into the WebSocketServer example located in the org.jboss.netty.example.http.websocket package.

Version:

$Rev: 2342 $, $Date: 2010-07-07 14:07:39 +0900 (Wed, 07 Jul 2010) $

Author:

The Netty Project, Mike Heath (mheath@apache.org), Trustin Lee

Nested Class Summary

Nested classes/interfaces inherited from interface org.jboss.netty.channel.ChannelHandler

ChannelHandler.Sharable

Field Summary

static int

DEFAULT_MAX_FRAME_SIZE

Constructor Summary

WebSocketFrameDecoder()

WebSocketFrameDecoder(int maxFrameSize)
Creates a new instance of WebSocketFrameDecoder with the specified maxFrameSize.

Method Summary

protected Object

decode(ChannelHandlerContext ctx, Channel channel, ChannelBuffer buffer, VoidEnum state) Decodes the received packets so far into a frame.

Methods inherited from class org.jboss.netty.handler.codec.replay.ReplayingDecoder

actualReadableBytes, channelClosed, channelDisconnected, checkpoint, checkpoint, decodeLast, exceptionCaught, getState, internalBuffer, messageReceived, setState

Methods inherited from class org.jboss.netty.channel.SimpleChannelUpstreamHandler

channelBound, channelConnected, channelInterestChanged, channelOpen, channelUnbound, childChannelClosed, childChannelOpen, handleUpstream, writeComplete

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

DEFAULT_MAX_FRAME_SIZE

public static final int DEFAULT_MAX_FRAME_SIZE

See Also:

Constant Field Values

Constructor Detail

WebSocketFrameDecoder

public WebSocketFrameDecoder()

WebSocketFrameDecoder

public WebSocketFrameDecoder(int maxFrameSize)

Creates a new instance of WebSocketFrameDecoder with the specified maxFrameSize. If the client sends a frame size larger than maxFrameSize, the channel will be closed.

Parameters:

maxFrameSize - the maximum frame size to decode

Method Detail

decode

protected Object decode(ChannelHandlerContext ctx,
                        Channel channel,
                        ChannelBuffer buffer,
                        VoidEnum state)
                 throws Exception

Description copied from class: ReplayingDecoder

Decodes the received packets so far into a frame.

Specified by:

decode in class ReplayingDecoder<VoidEnum>

Parameters:

ctx - the context of this handler

channel - the current channel

buffer - the cumulative buffer of received packets so far. Note that the buffer might be empty, which means you should not make an assumption that the buffer contains at least one byte in your decoder implementation.

state - the current decoder state (null if unused)

Returns:

the decoded frame

Throws:

Exception
